Continuous Caster
3-Strand Billet Caster (160×160 mm)
Technical Details

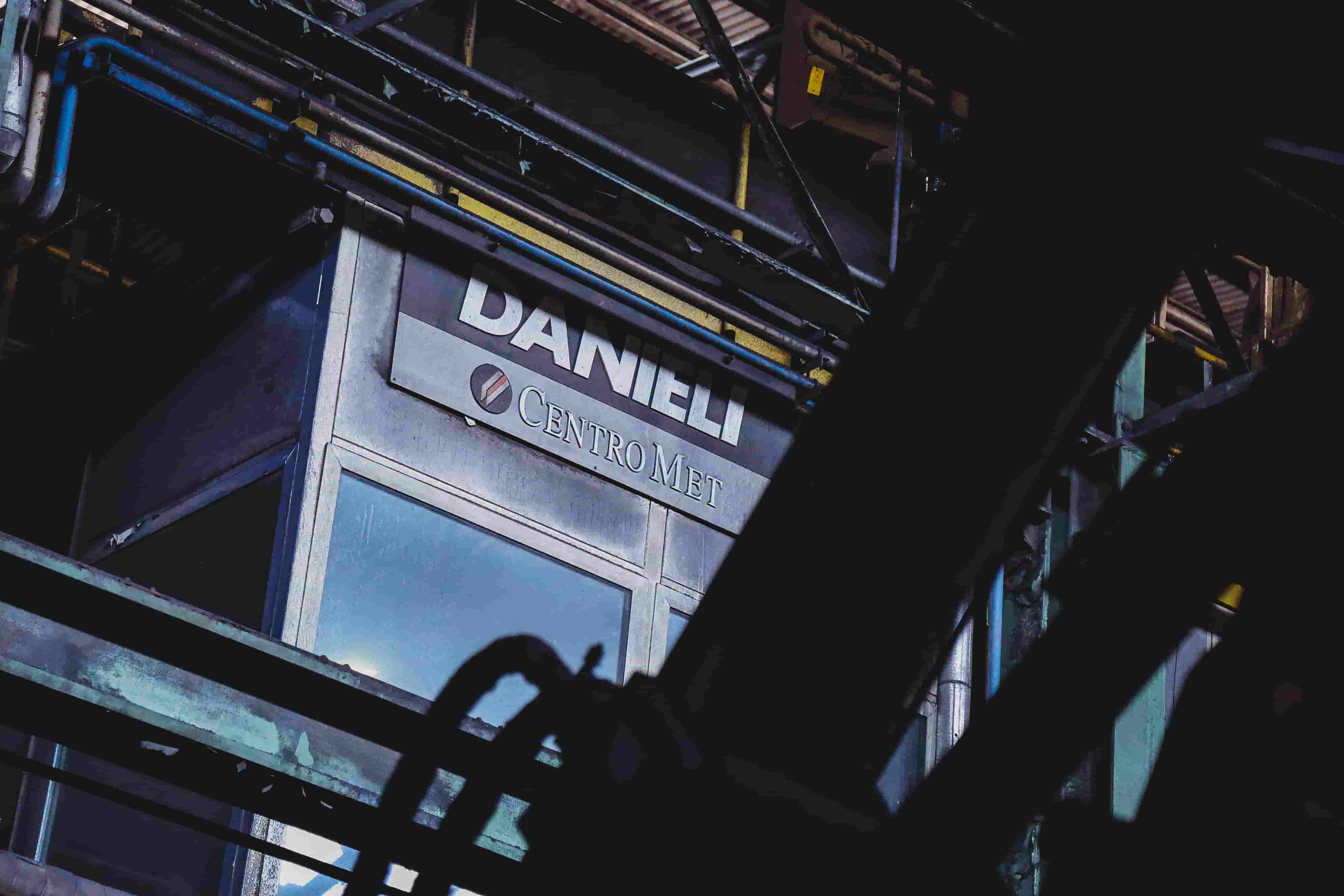

Manufacturer: Danieli Centro Met
Year of Manufacture: 2008
Type / Scope: 3-strand curved billet caster, upgraded from 130×130 mm to a new 160×160 mm casting section, with new tundish, mould, electromagnetic stirrer, secondary cooling and ladle
Key technical data:
- Number of strands: 3
- Max. castable section: 160×160mm
- Capacity: 530,000 TPY
- Billet cutting: Oxy-Cutting Torch
- Cutting length: 3.4 - 8.5m

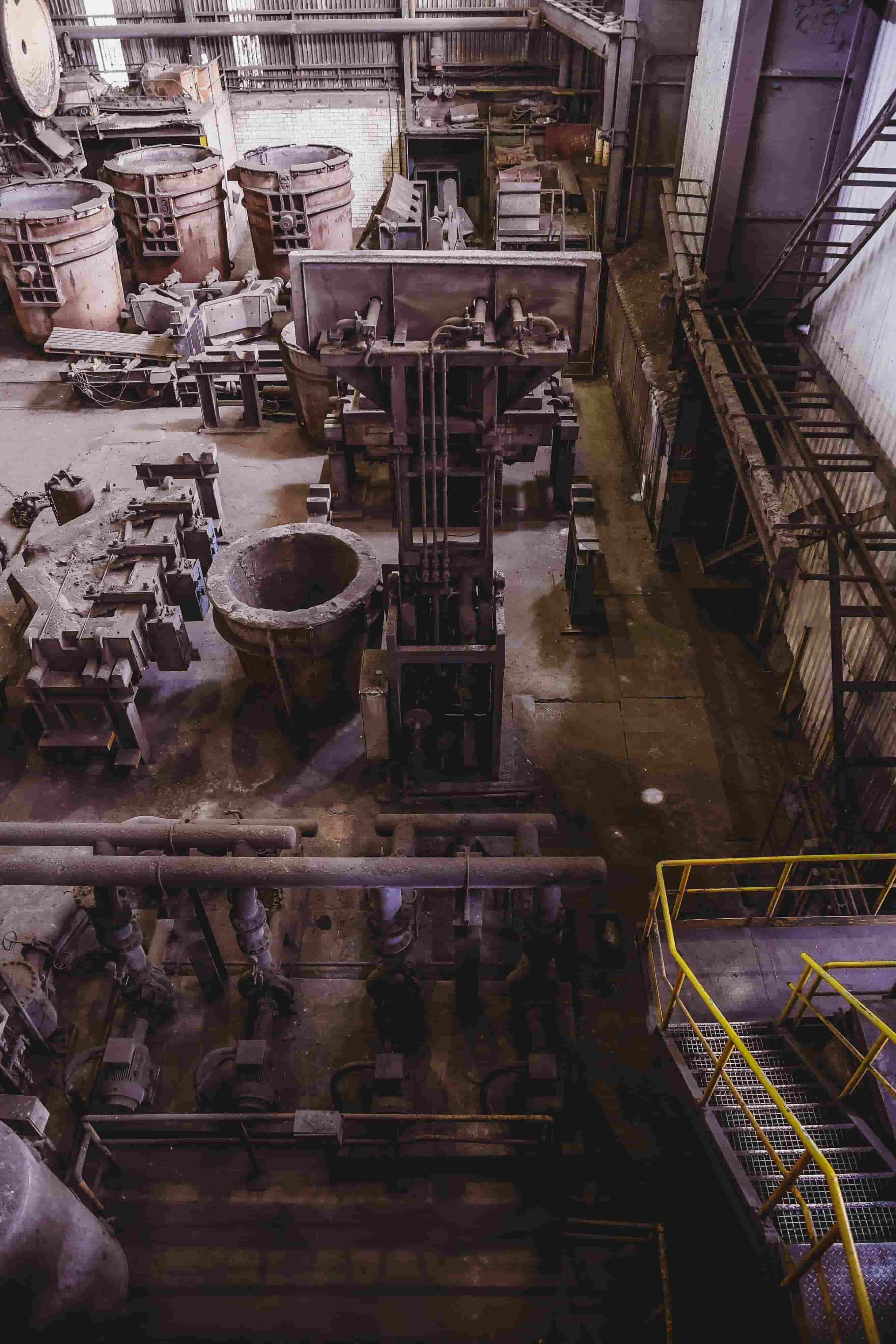

- Tundish capacity: New 14t (800mm steel bath)
- Machine radius: 7m
- Bending-unbending radius: 13m
- Strand distance: 1100mm

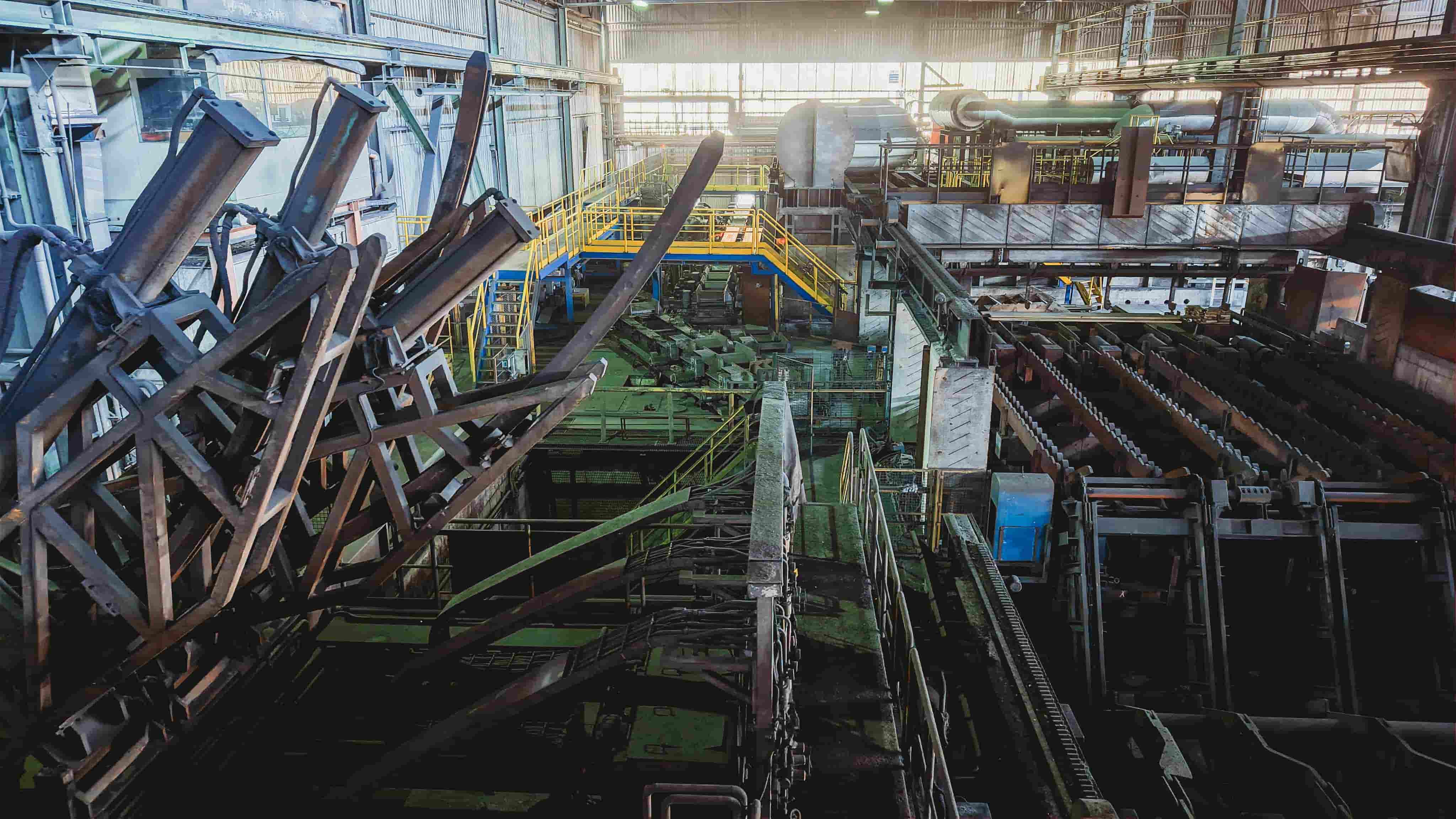

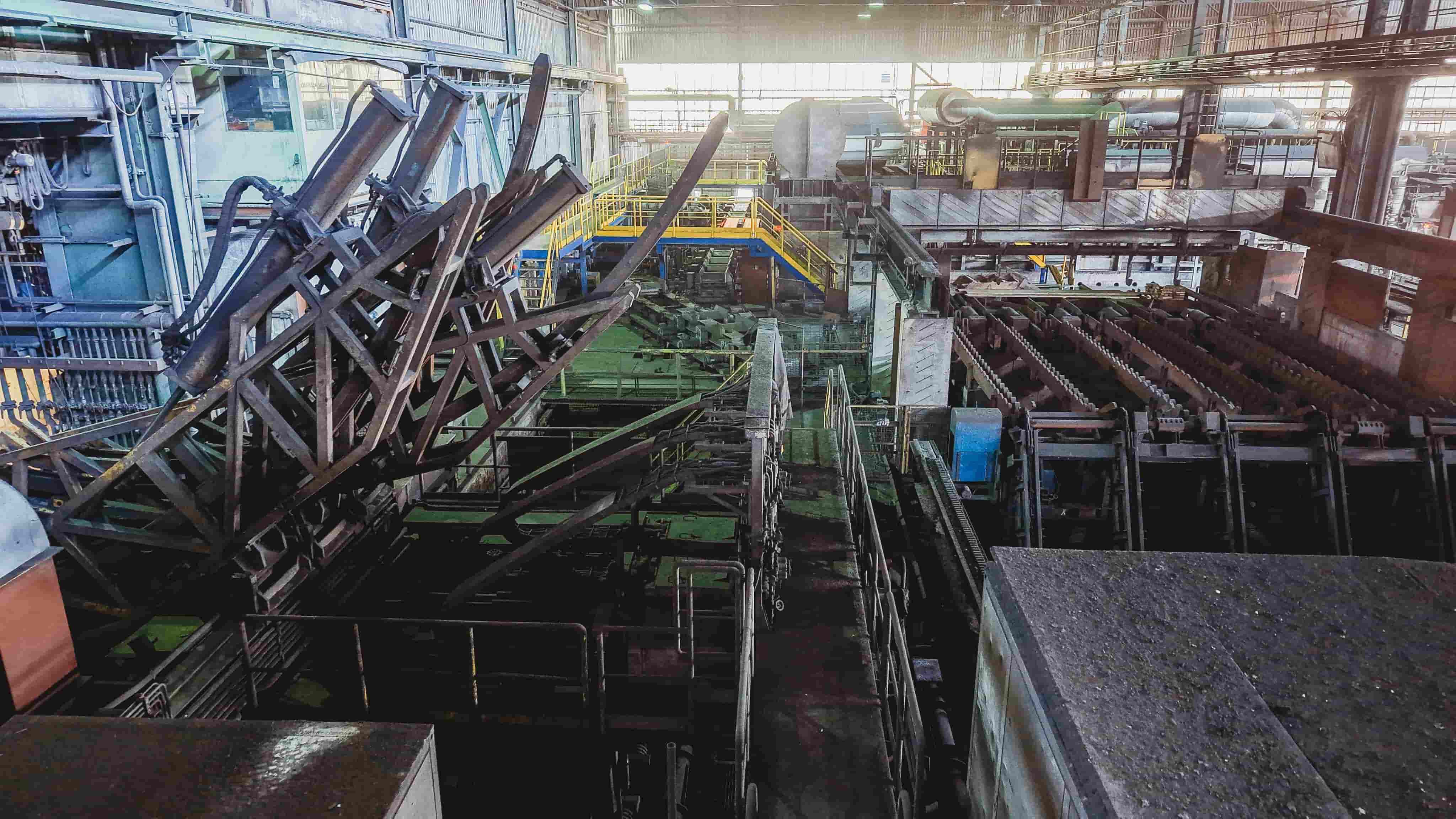

- Discharge system: Discharge roller table w/ levers, lateral comb transfer; walking-beam cooling bed; pusher collecting table
- Mould Parameters - 160×160 mm Section:
- Mould length: 1,000mm
- Primary flow rate: 2,000 l/min
- Water gap: 3.25 mm
- Mould thickness: 16 mm
- Corner radius: 6 mm
- Mould inlet pressure: 7–8 bar
- Max. inlet temperature: 35 °C
