CONSTEEL® Scrap Conveyor
Scrap Charging Conveyor & Preheater System
Technical Details
Manufacturer: TENOVA
Year of Manufacture: 2008

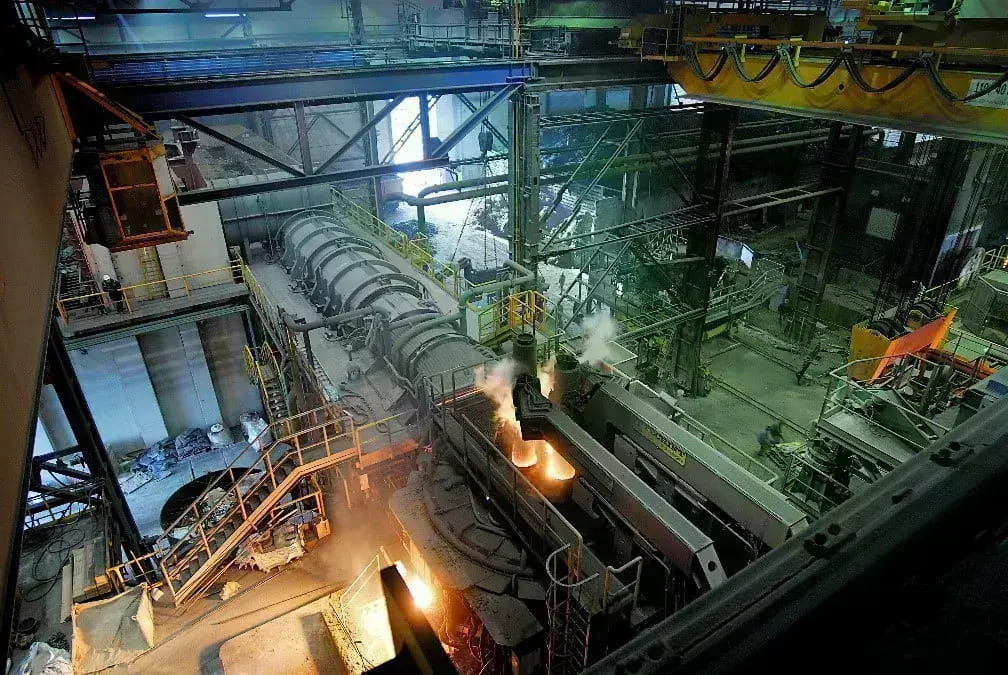

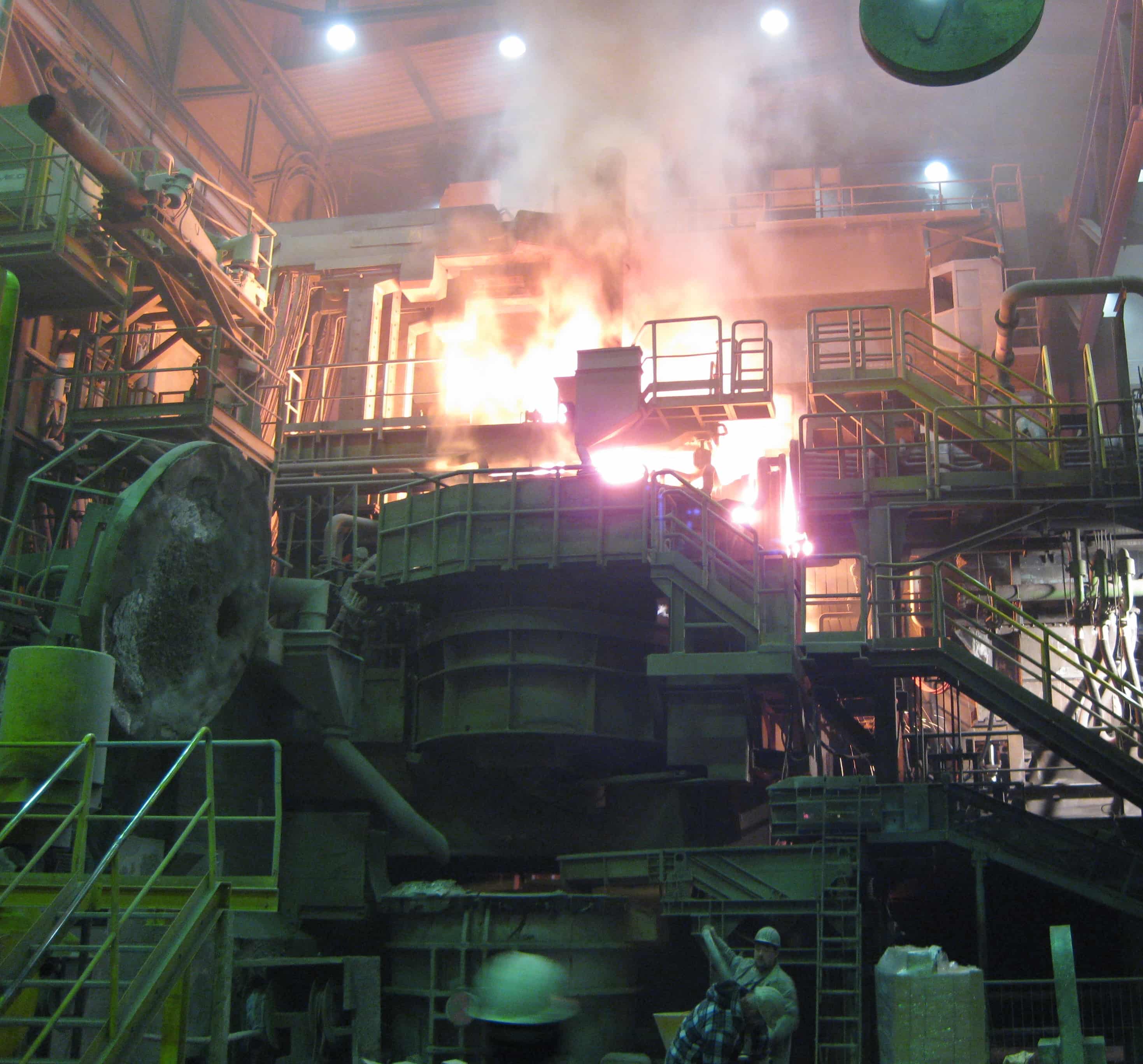

Type / Scope: Consteel® scrap charging and preheating conveyor system feeding the EAF, comprising the charging/preheater conveyor, connecting car and post-combustion system
Main equipment:

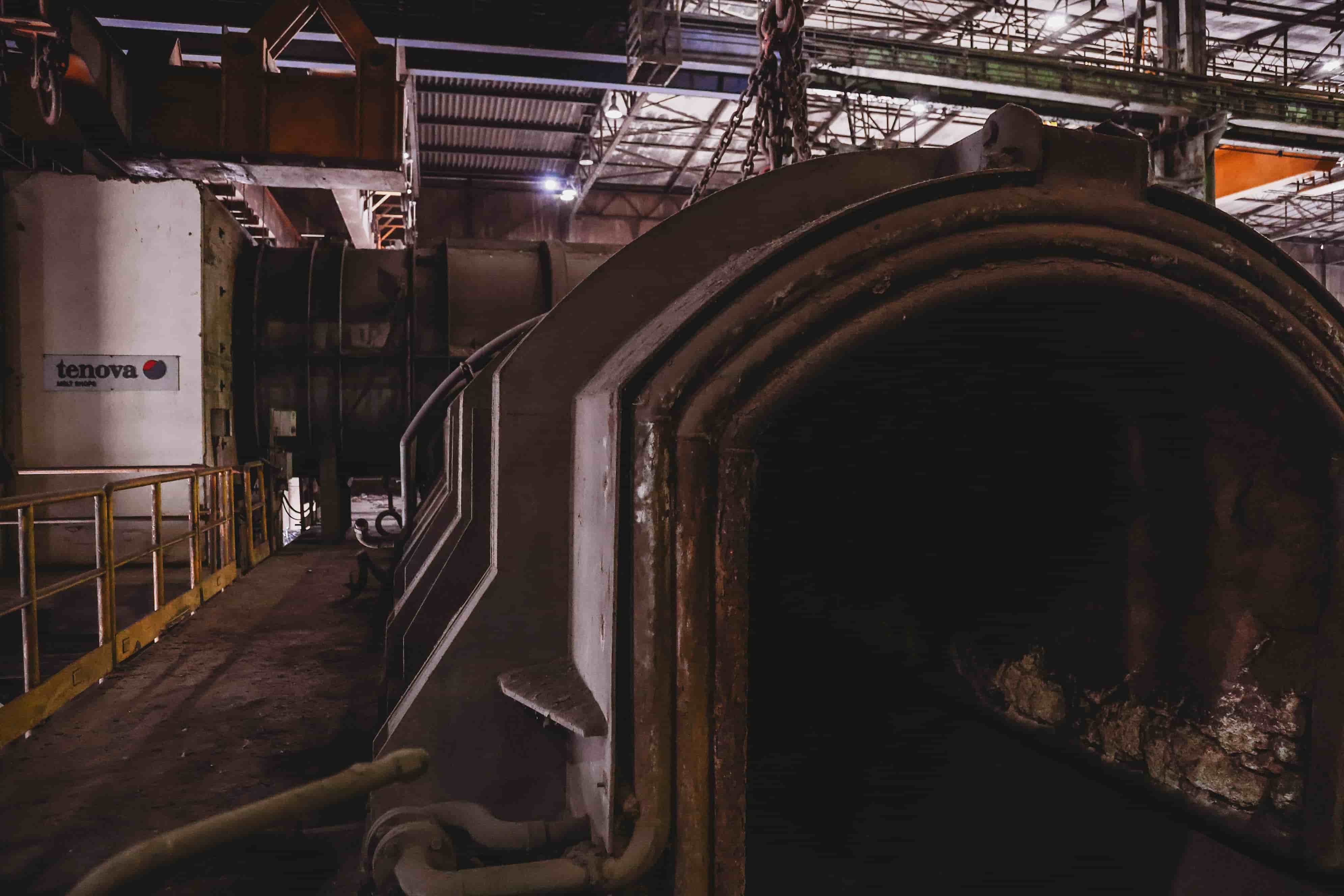

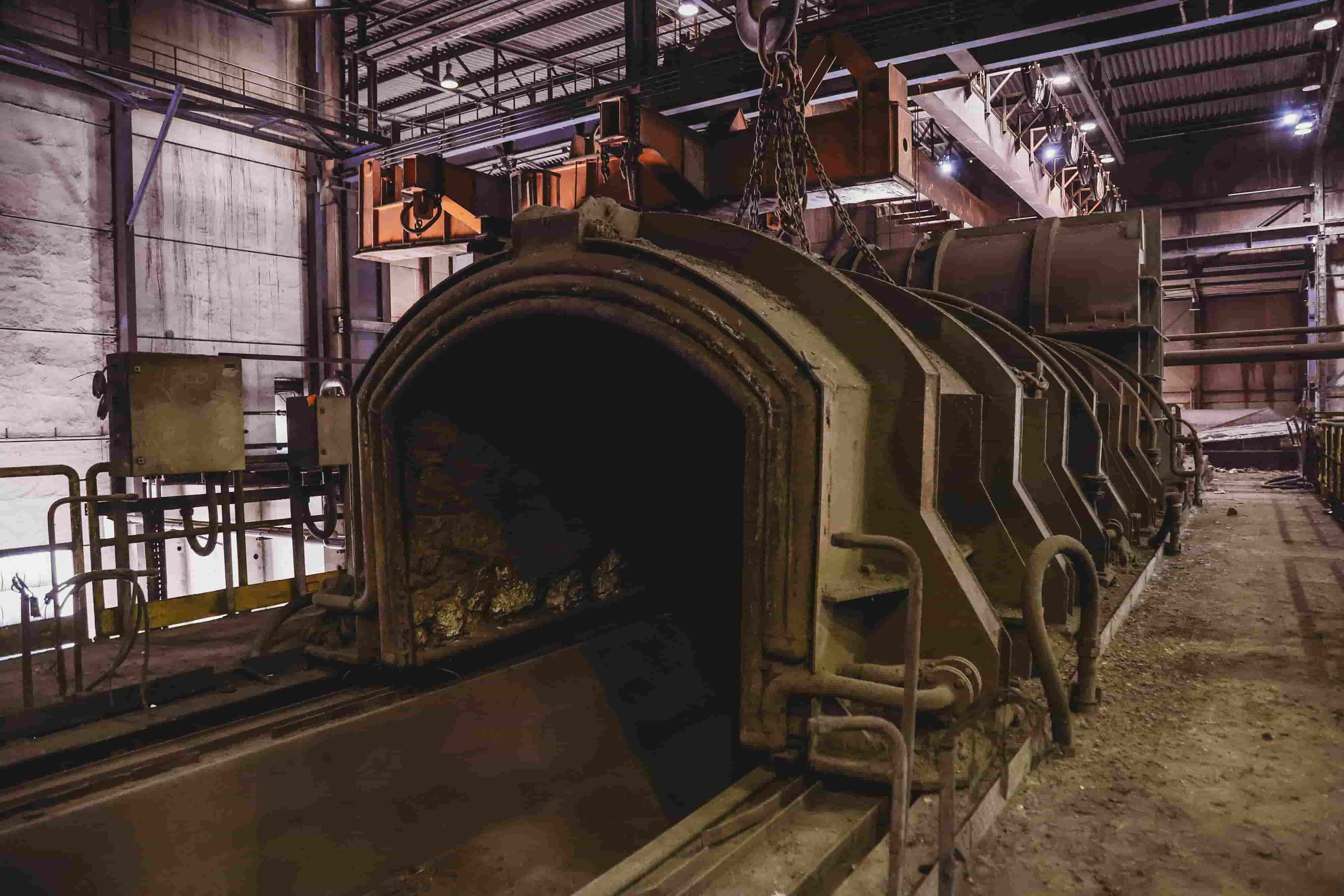

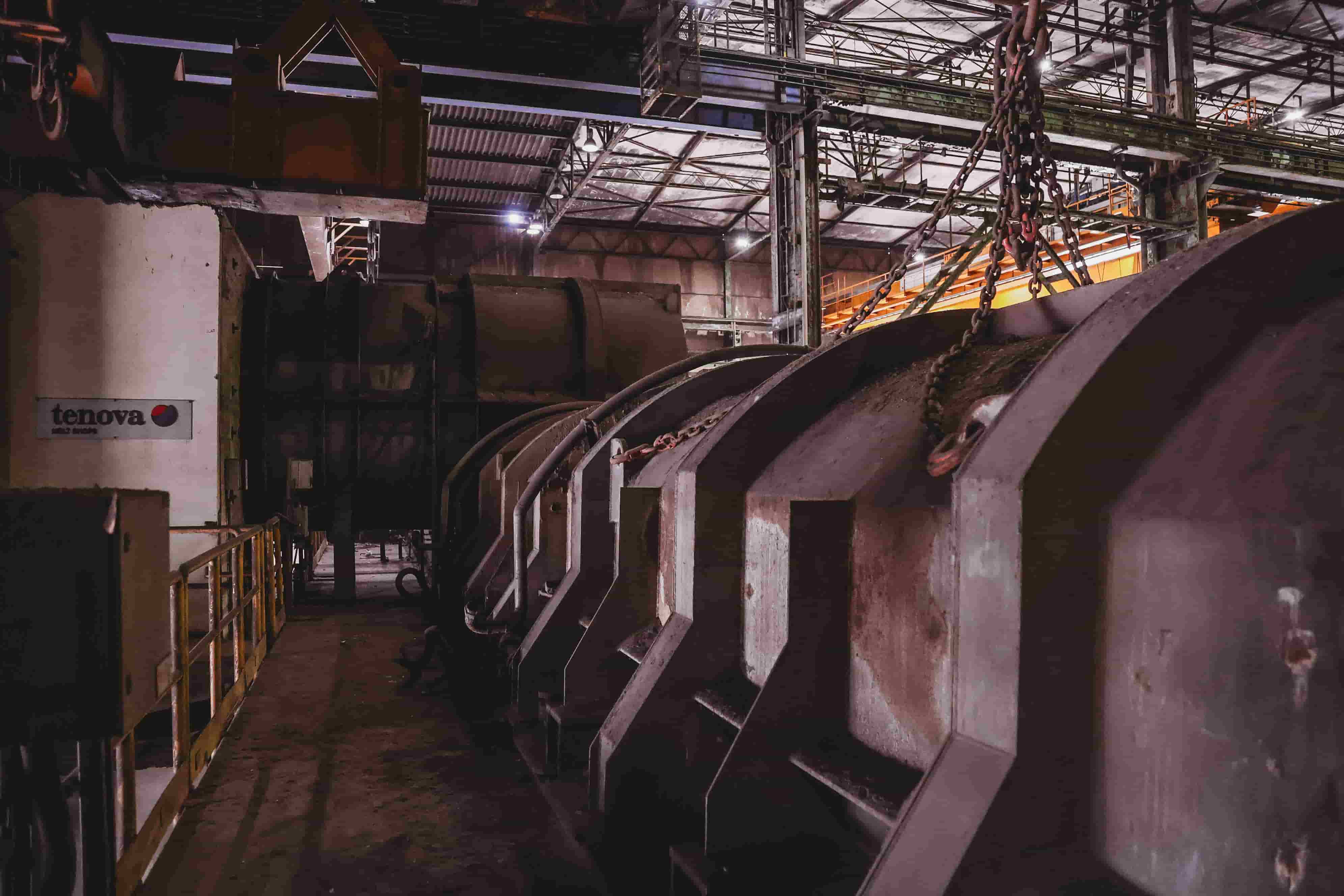

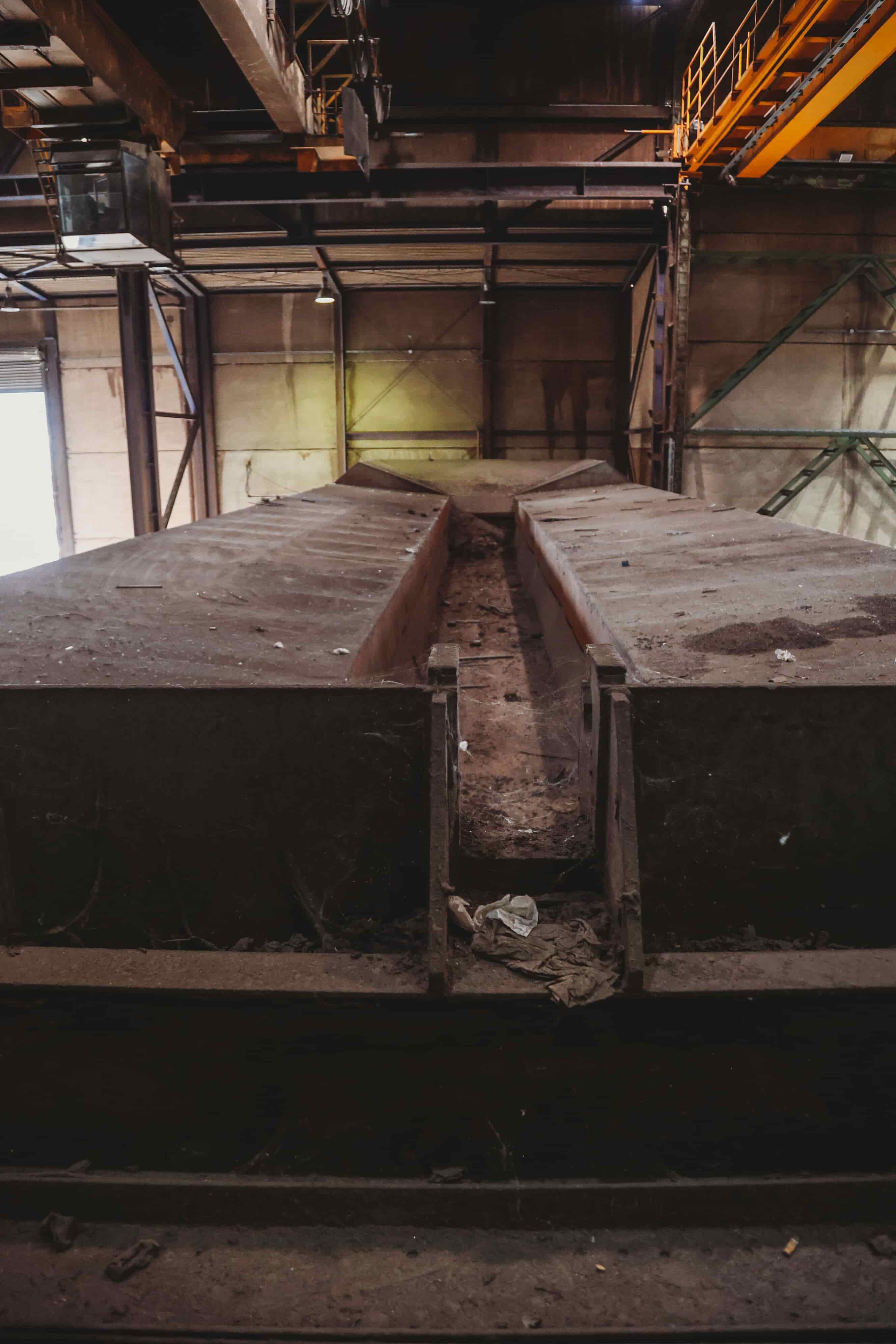

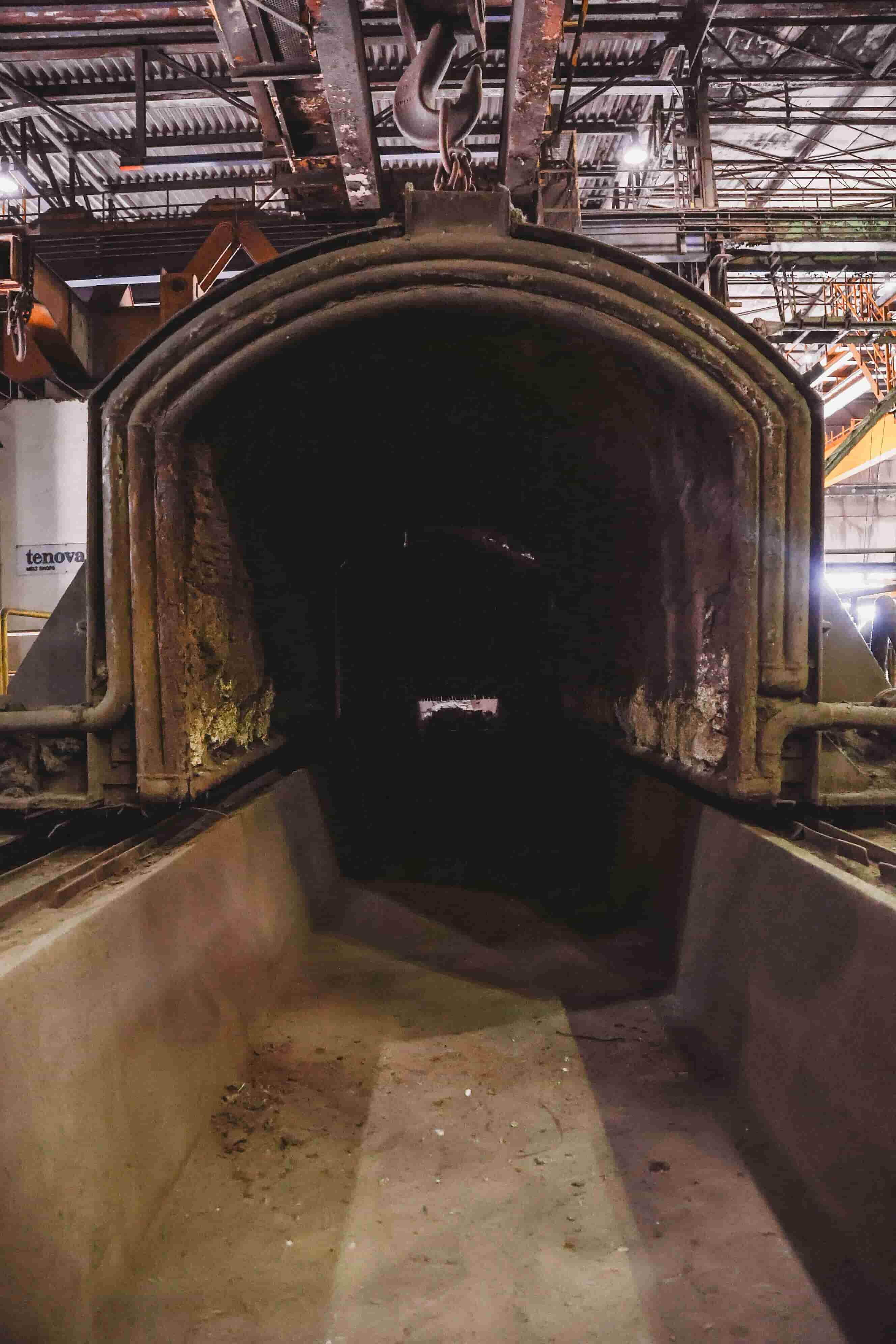

- Scrap charging and preheater conveyor
- Connecting car
- Post combustion system
Key technical data:
- Nominal size (width at bottom of pan): 1,600 mm
- Conveyor depth: ≈800 mm
- Main sections: 3
- Length of charging section: ≈25 m
- Length of preheater section: ≈21 m
- Length of connecting car: 5 m
- Scrap speed control: by inverters
- Speed of scrap on conveyors: up to 5.5 m/min
- Height of scrap on conveyor: 700 mm
- Density of scrap on conveyor (average): 0.6 t/m³
