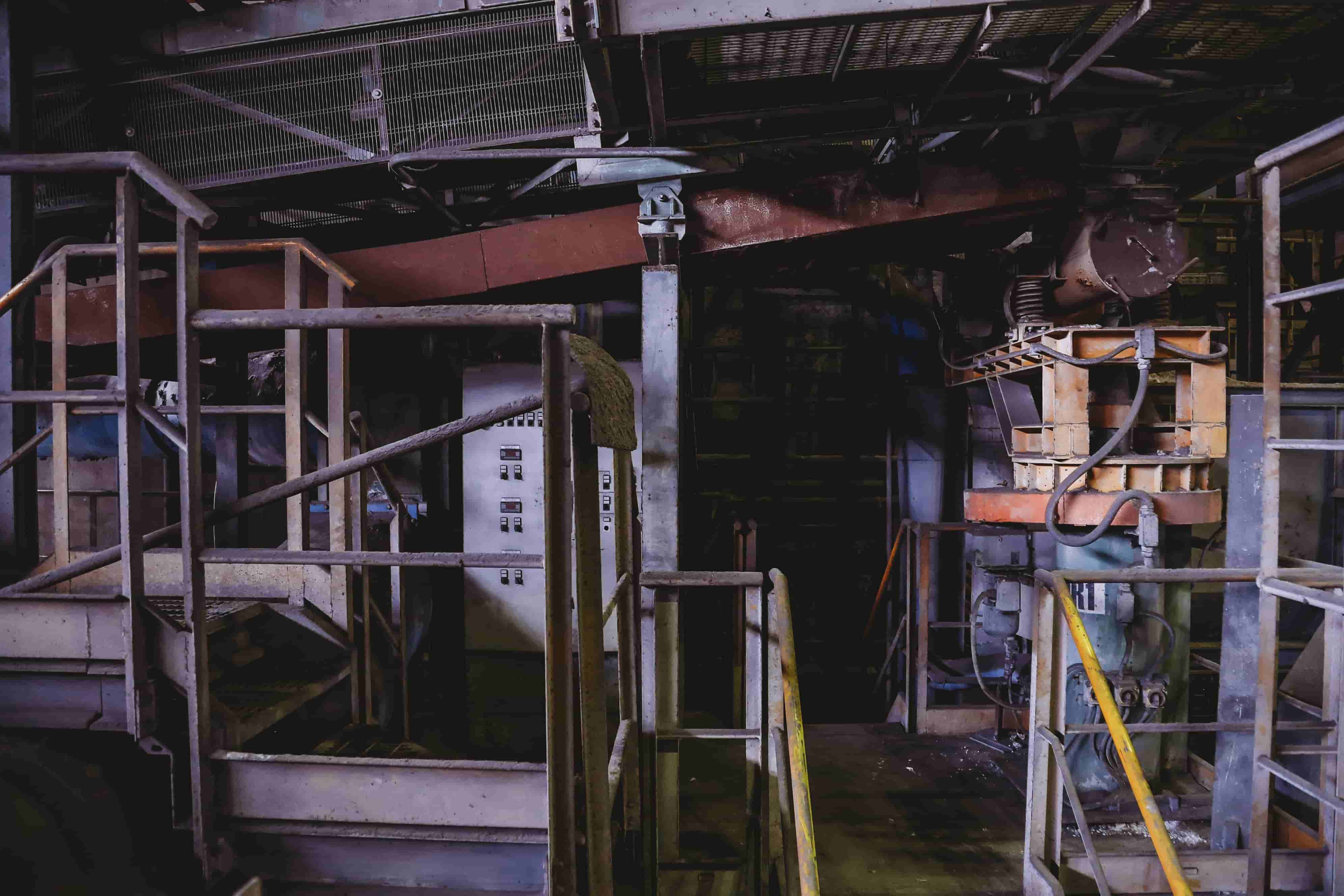

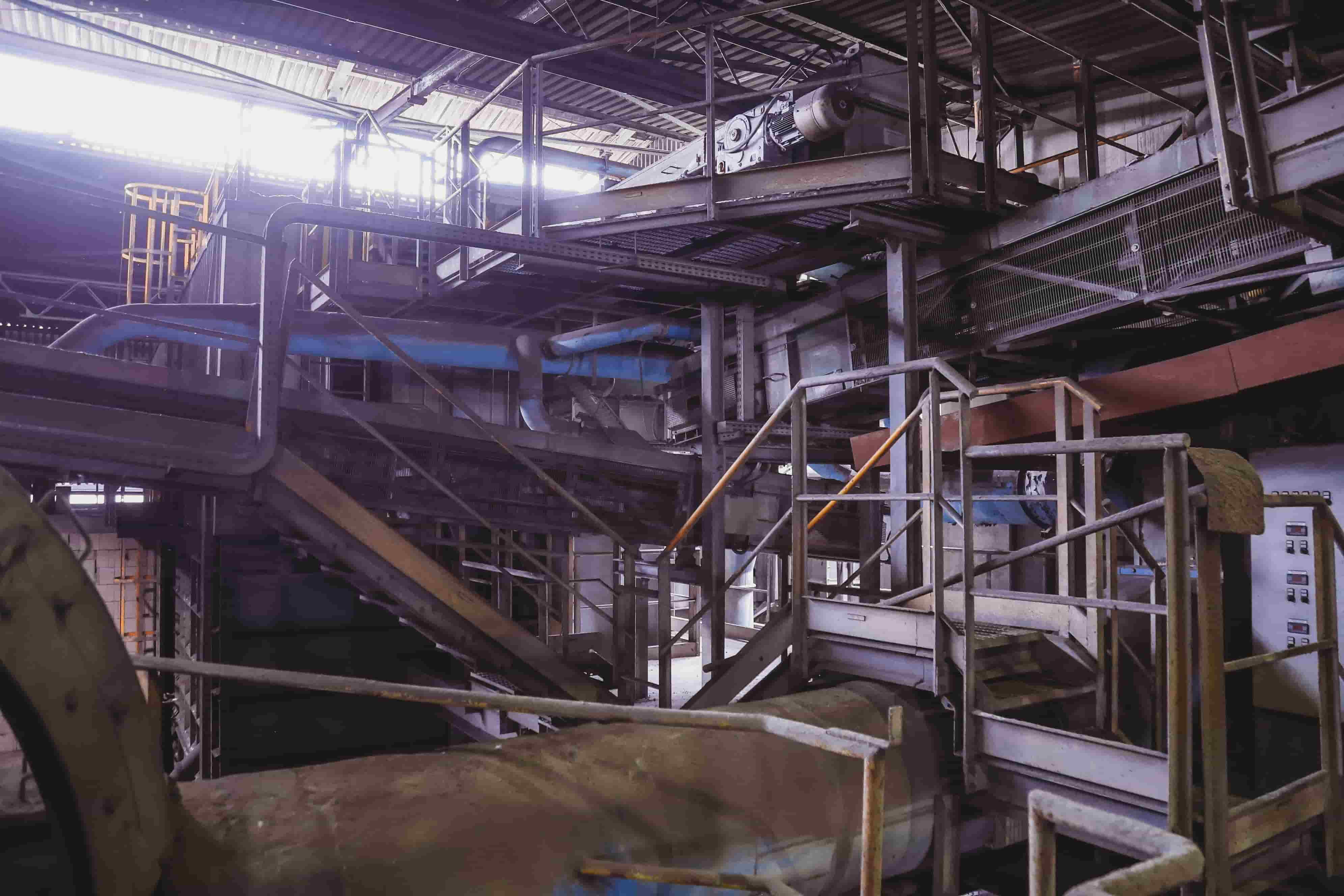

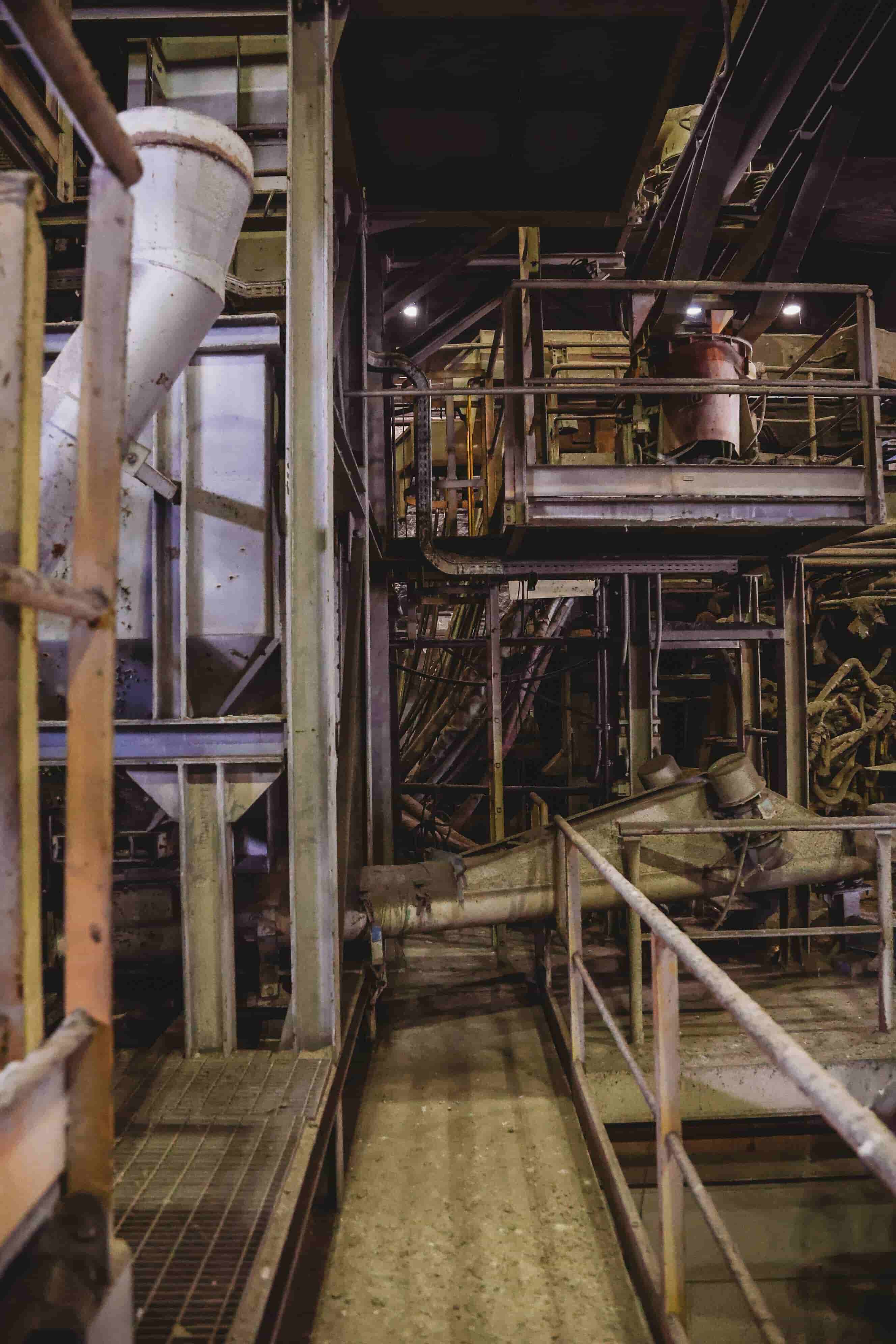

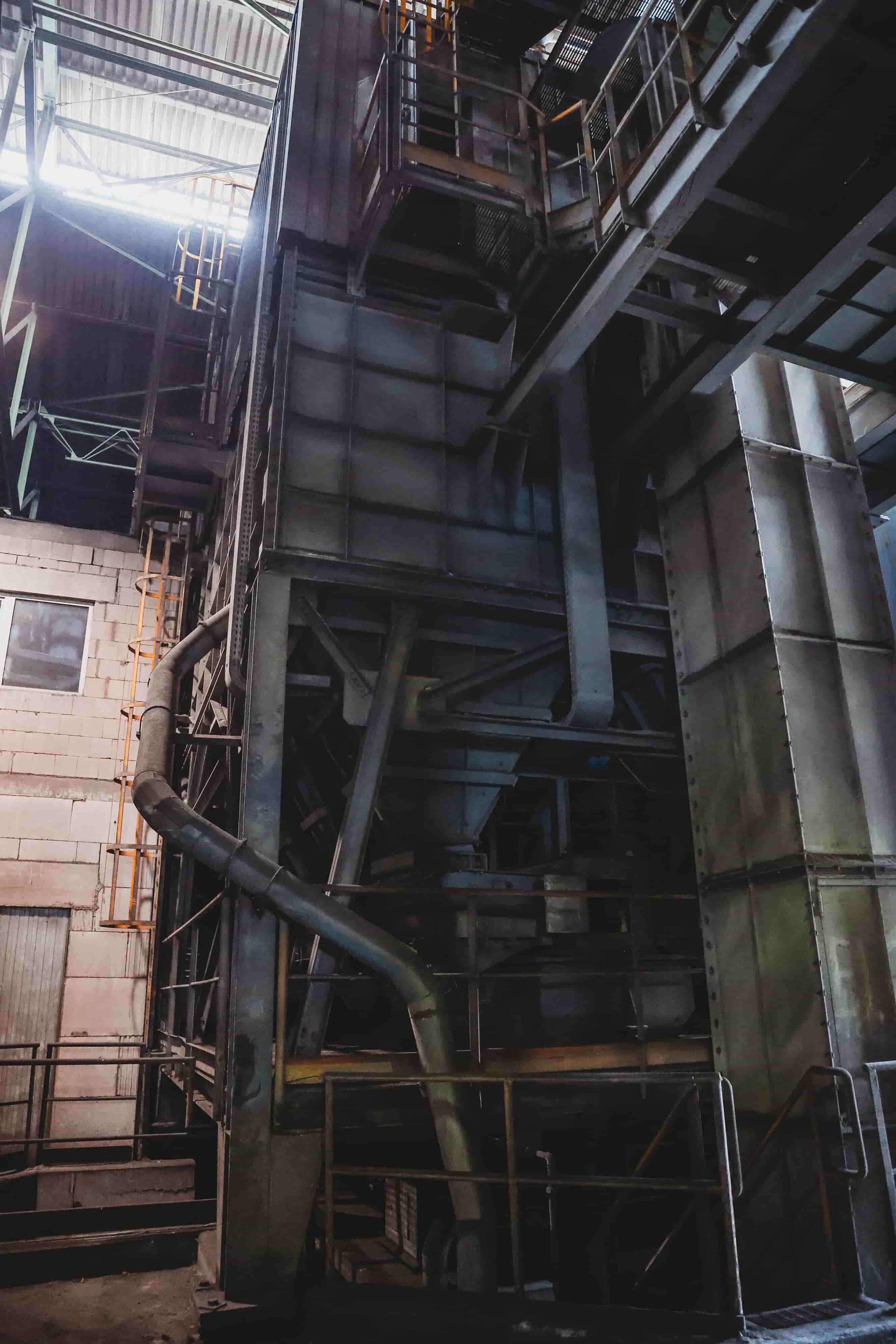

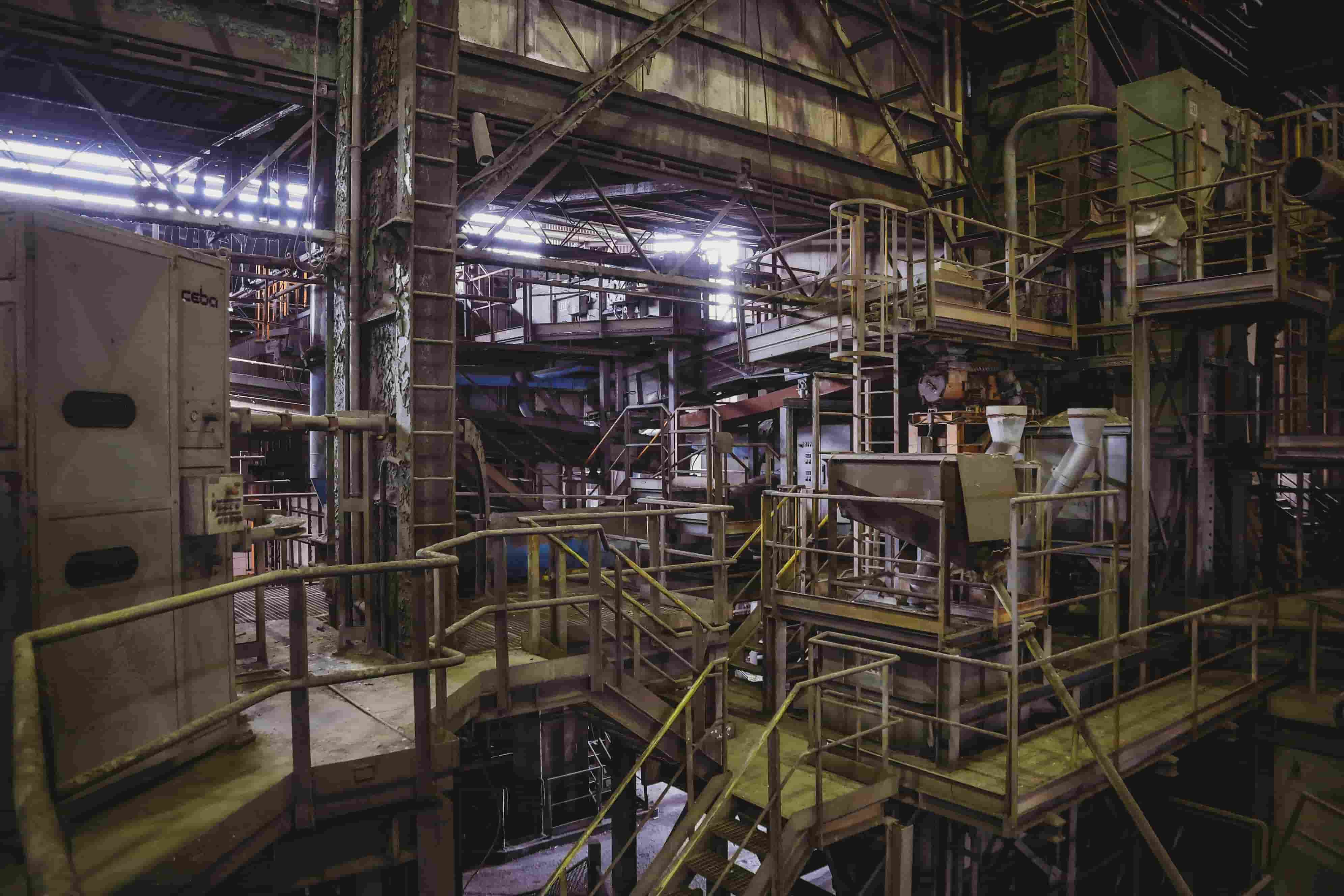

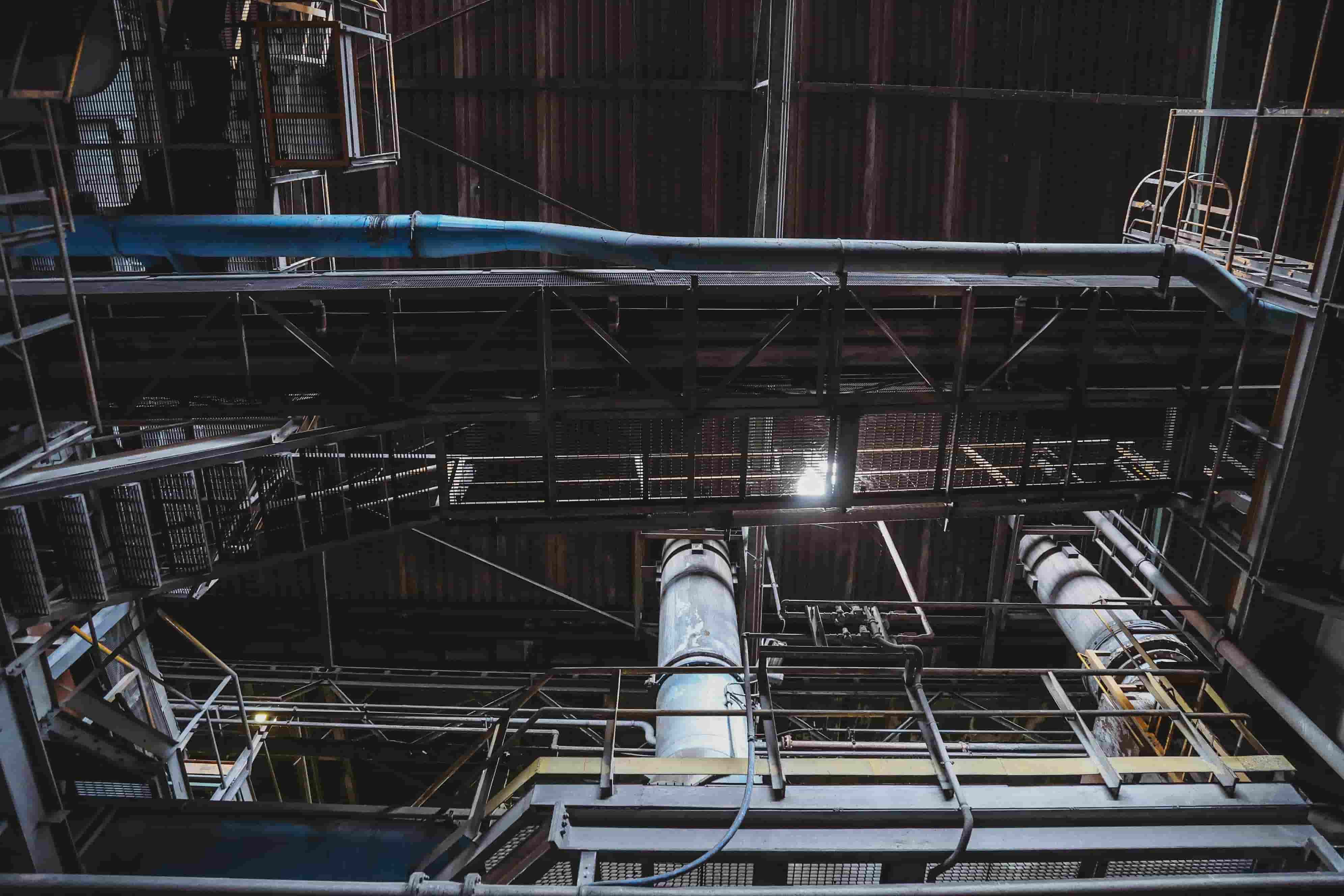

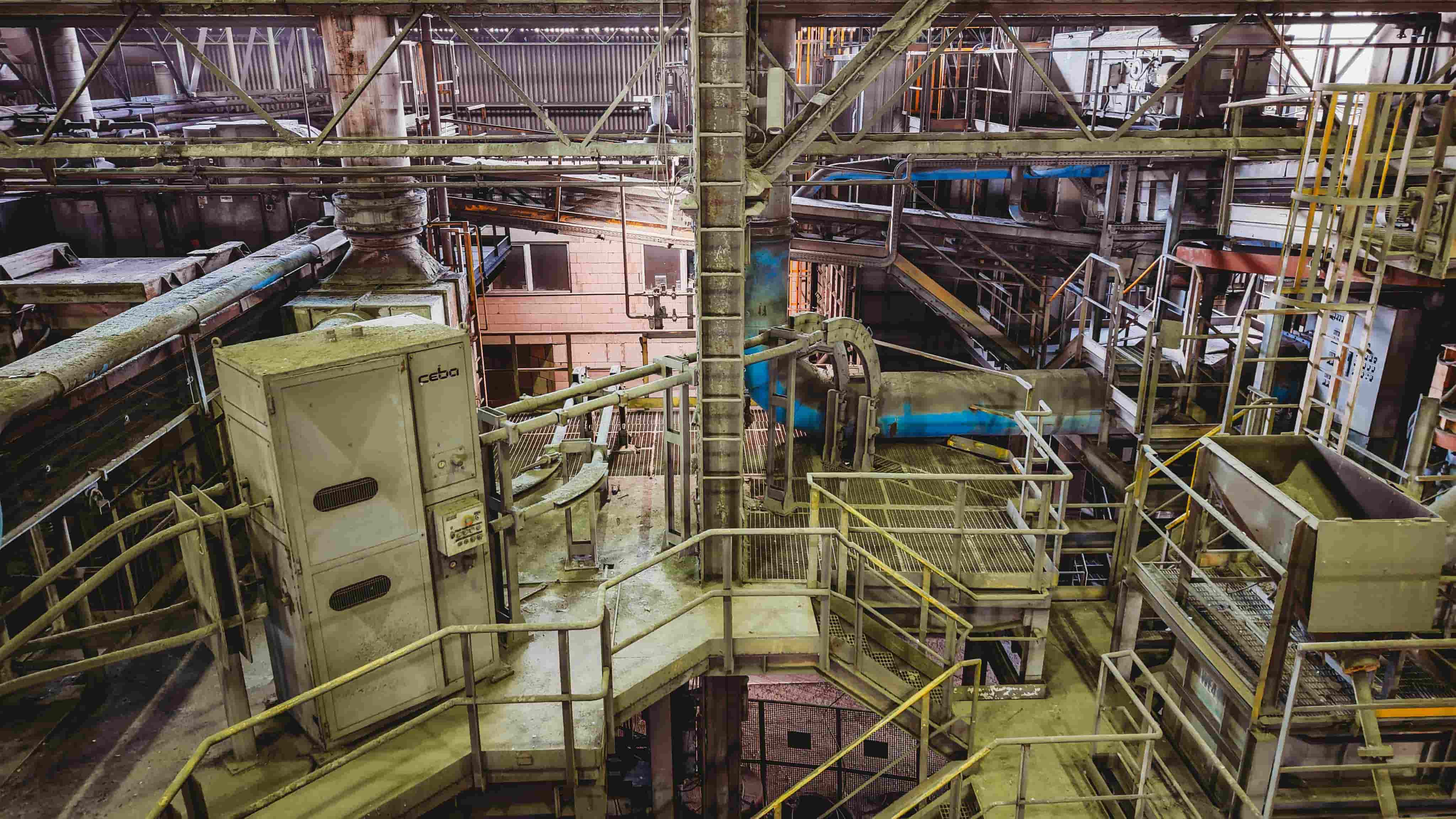

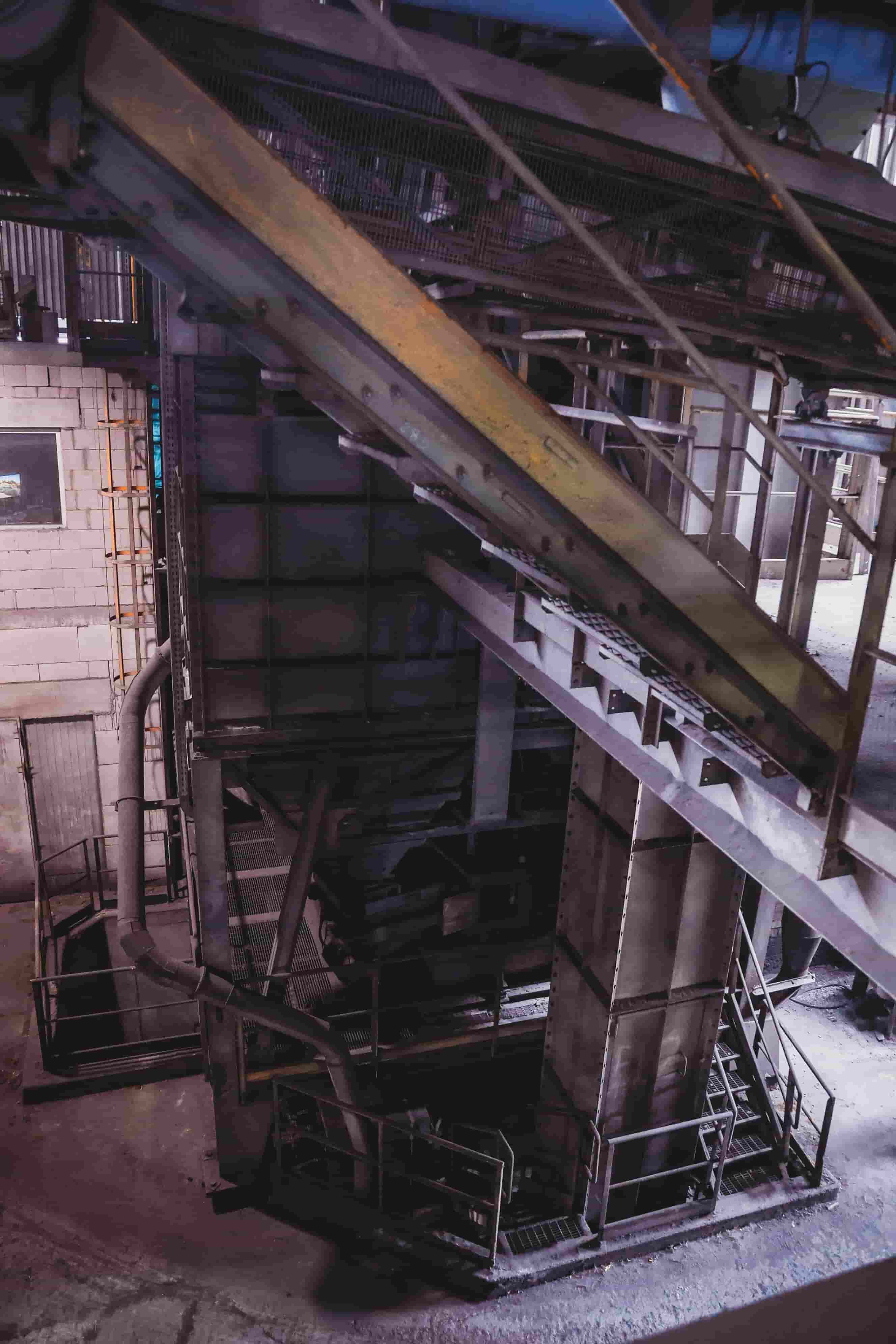

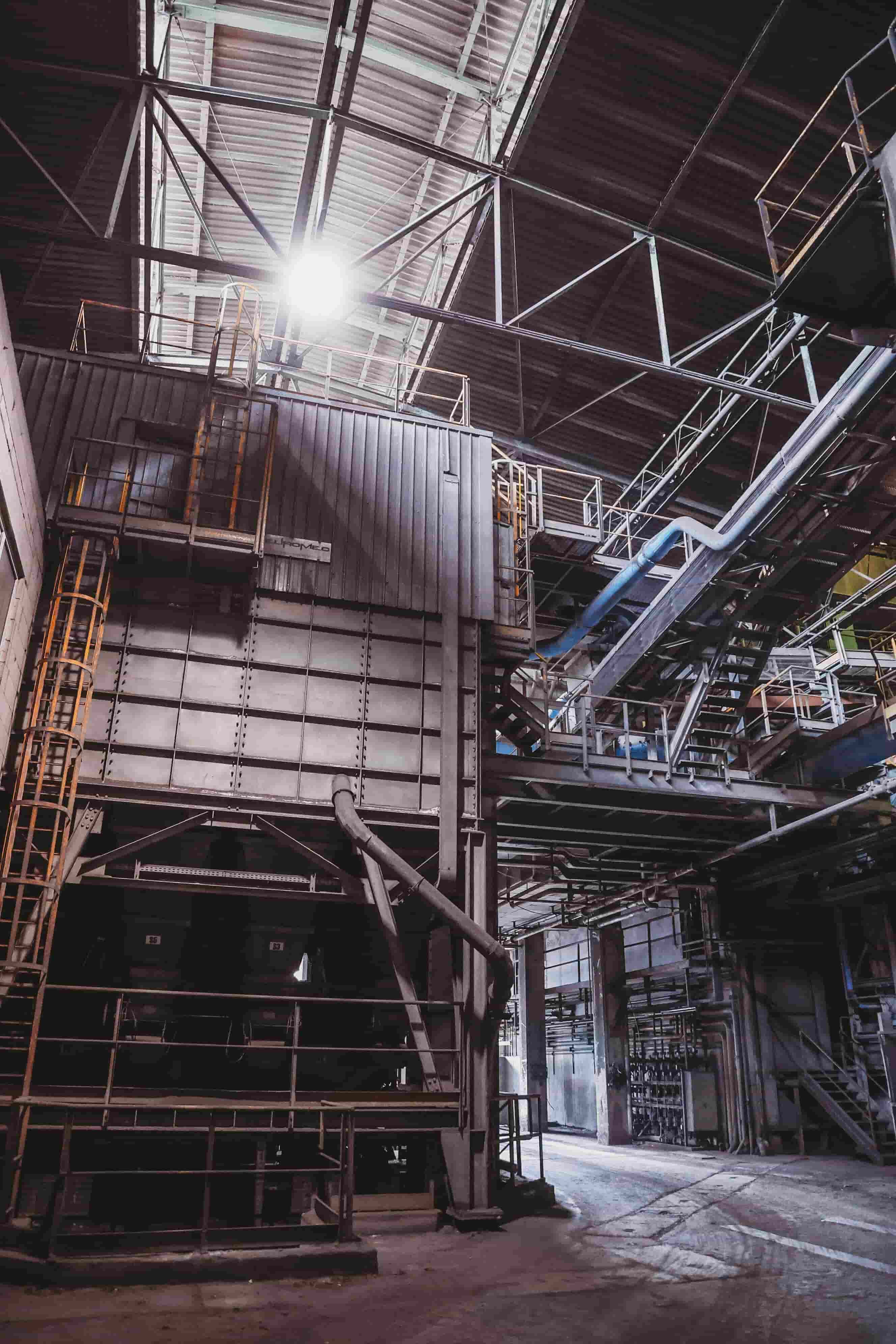

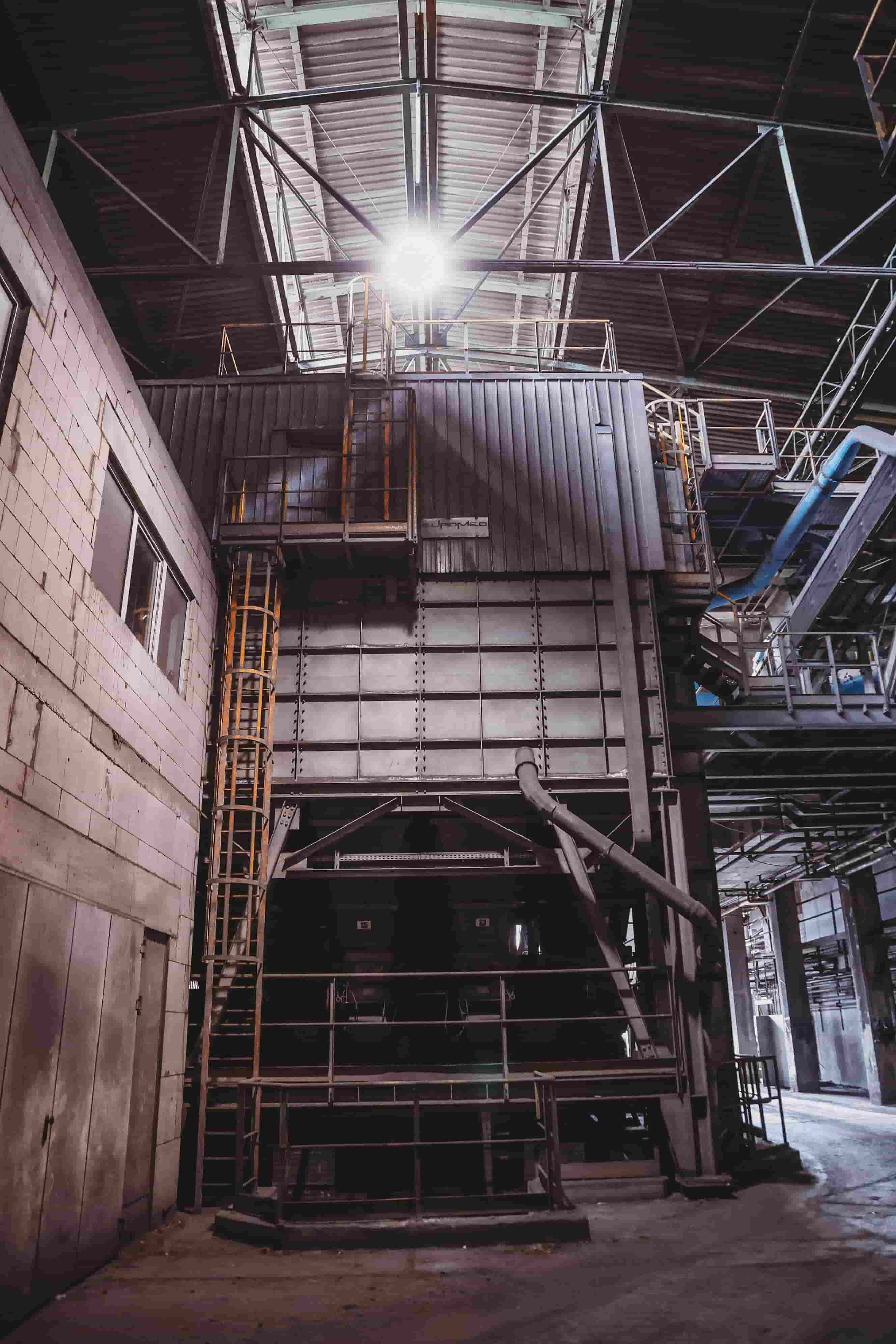

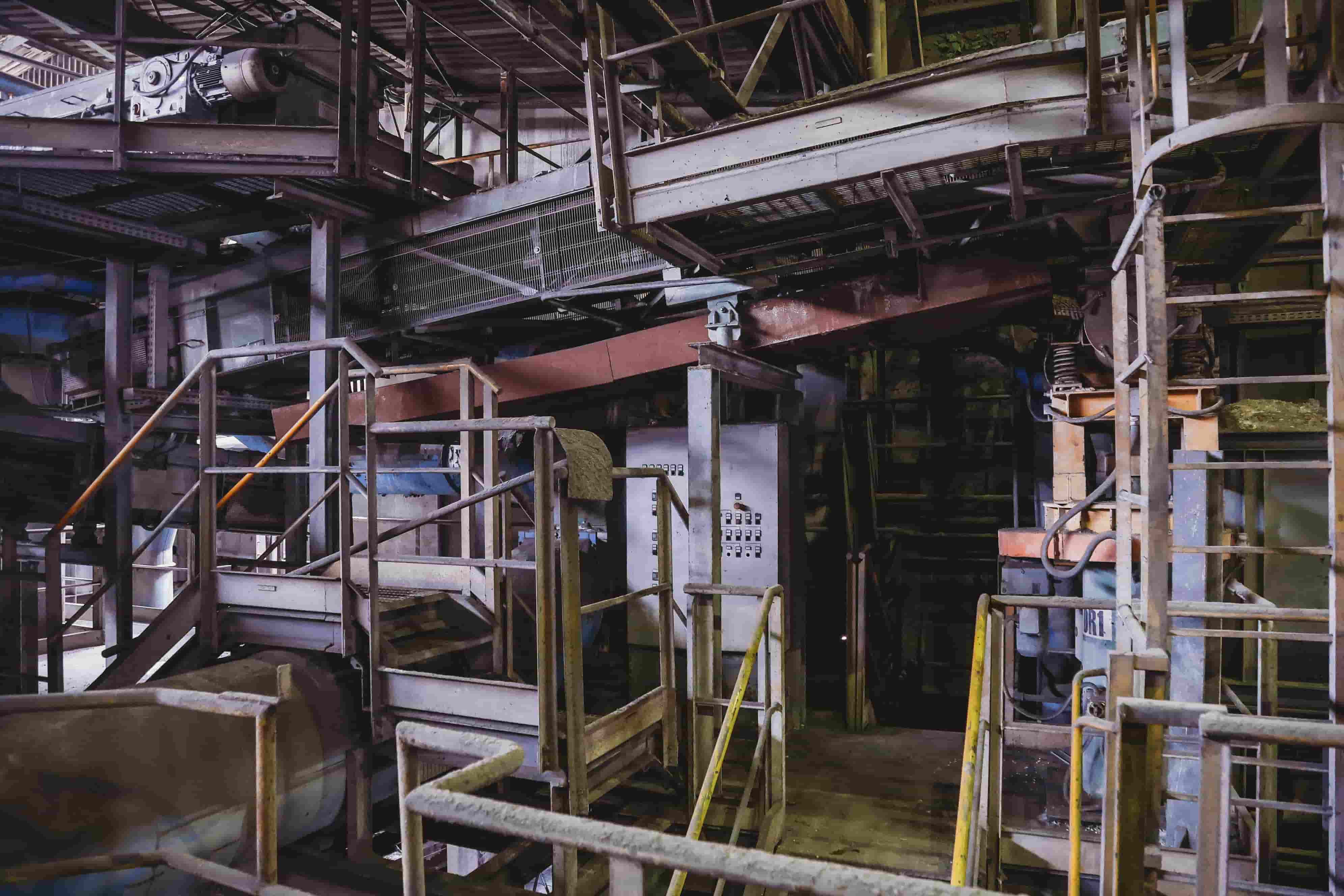

Alloy Addition System
Automated Alloy Addition & Dosing System
Technical Details

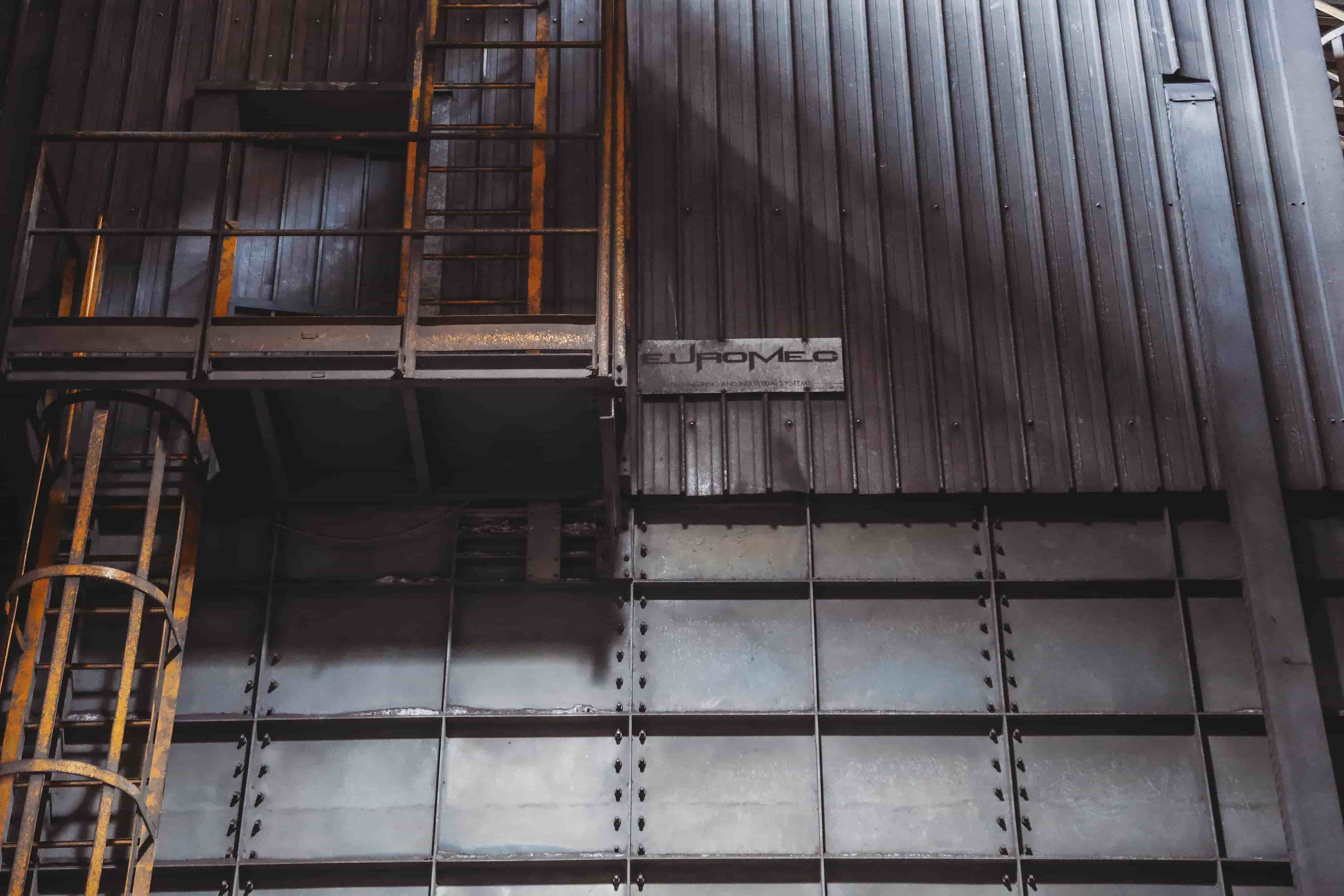

Manufacturer: Euromec S.r.l., Italy
Year of Manufacture: 2006
Type / Scope: Storage, weighing and conveying system for ferro-alloys and additives (FeMn, FeSi, FeSiMn, FeCr, FeMoMc, Al, bauxite, dolomite, coke, lime), feeding the EAF, Ladle Furnace and ladle
Key technical data:
- Materials handled: Ferro-alloys: FeMn, FeSi, FeSiMn, FeCr, FeMoMc, Al; plus Bauxite, Dolomite (Dolokalk), Coke, Lime (Kalk)
- Grain size: min. 0mm / max. 80mm (oversize max. 3%)
- Bulk density: min. 0.8t/m³ / max. 3.5t/m³
- Production basis: 30 heats per 24h (one heat every 48 minutes)
- Charge into EAF per heat: 2,500kg (lime 800 + dolomite 1,200 + coke 500)
- Charge into ladle / LF per heat: 1,090kg (lime 500 + bauxite 50 + FeSi 100 + FeSiMn 300 + FeMoMc 140)
- Installed power: ≈180 kW
- Control system: Siemens S7-300 PLC (CPU S7 314C-2DP), Profibus + Ethernet
