661. Schuler Mechanical Press
SCHULER SML4-1000-3,6x2,6-1100
1000t Mechanical Press
This is a heavy-duty mechanical press delivering 10,000 kN of nominal press force. Engineered for large-scale sheet metal stamping and forming, it features an expansive 3,600×2,600 mm bed, an extensive 1,100 mm slide stroke, and variable production speeds of 8 to 22 strokes per minute. Powered by a 165 kW drive motor, the machine is fully equipped with an integrated softshock cushion system providing up to 10,500 kN of total force and precise blank holding control for demanding, high-volume manufacturing processes.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Schuler
Country
Sweden
Machine Type
Mechanical Press
Year of Manufacture
2007
Press Force
1000t
Table Dimensions
3600×2600 mm

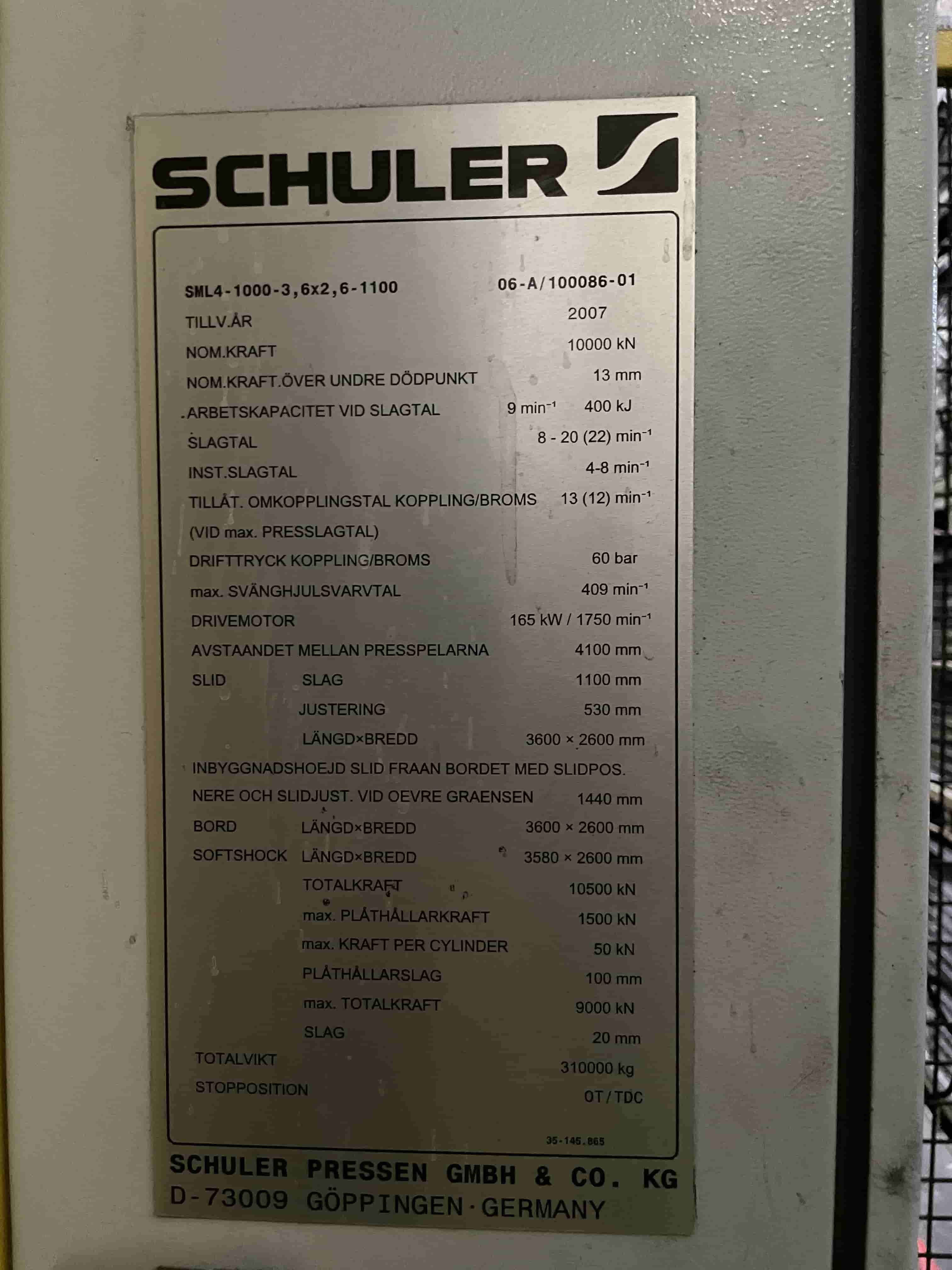

Technical Details
- Lot No. 661
- Manufacturer: Schuler
- Type / Model: SML4-1000-3,6x2,6-1100
- Serial No. 06-A/100086-01
- Year of Manufacture: 2007
- Press Force: 1000t / 10,000 kN
- Nominal Force above Bottom Dead Centre: 13 mm
- Working Capacity at Stroke Rate: 400 kJ at 9 strokes/min
- Stroke Rate: 8–20 (22) strokes/min
- Setup Stroke Rate: 4–8 strokes/min
- Permissible Clutch/Brake Switching Rate: 13 (12) cycles/min
- Operating Pressure – Clutch/Brake: 60 bar
- Max. Flywheel Speed: 409 rpm
- Drive Motor: 165 kW / 1,750 rpm
- Distance Between Press Uprights: 4,100 mm
- Table Dimensions (L×W): 3600×2600 mm
Slide / Ram Specifications
- Slide Stroke: 1100 mm
- Slide Adjustment: 530 mm
- Slide Dimensions (L×W): 3600×2600 mm
- Shut Height: 1440 mm
Softshock / Cushion System Specifications
- Dimensions (L×W): 3580 × 2600 mm
- Total Force: 1050t / 10,500 kN
- Max. Blank Holder Force: 1500 kN
- Max. Force per Cylinder: 50 kN
- Blank Holder Stroke 100 mm
- Max. Total Force: 9,000 kN
- Stroke: 20 mm
