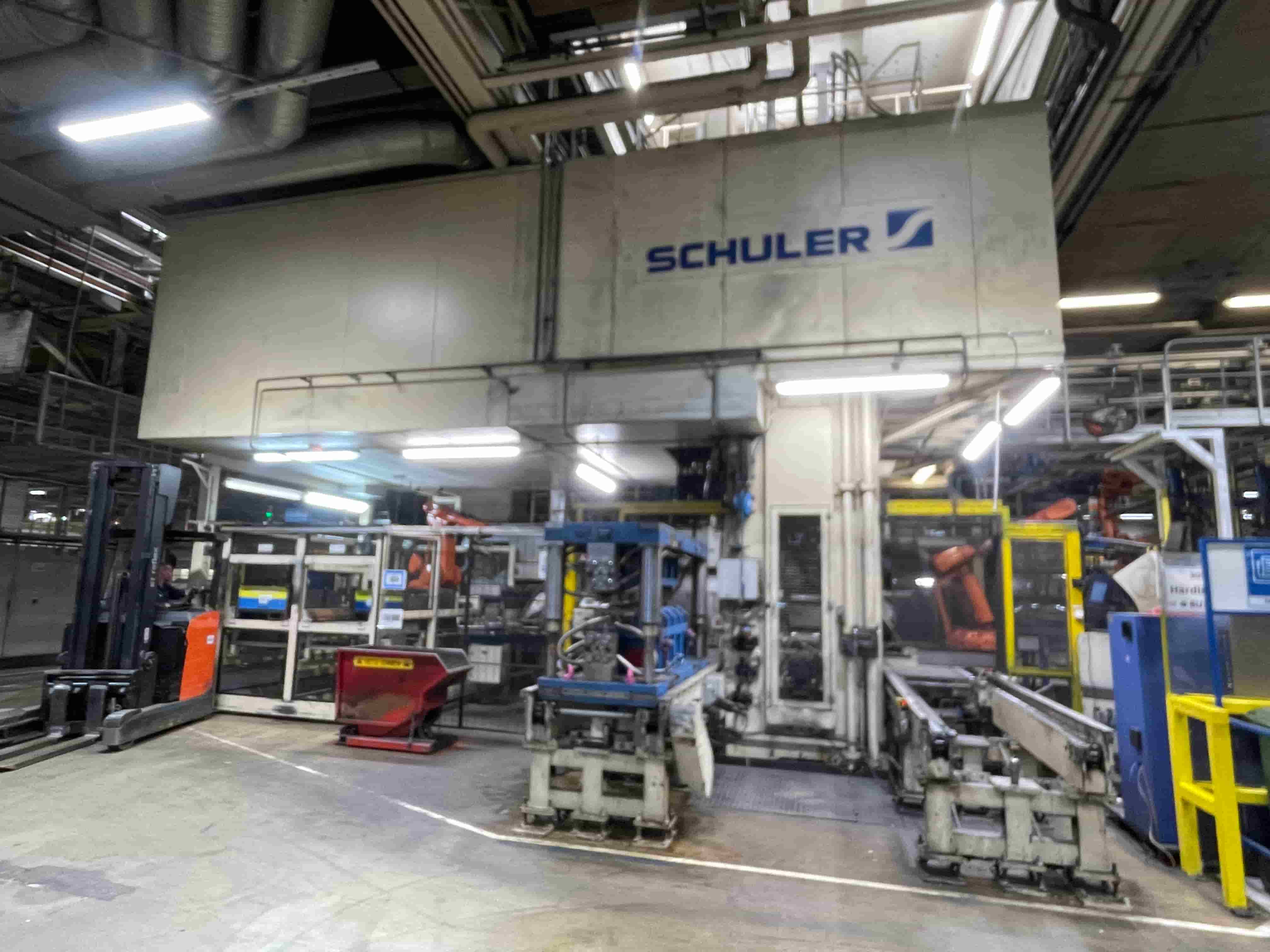

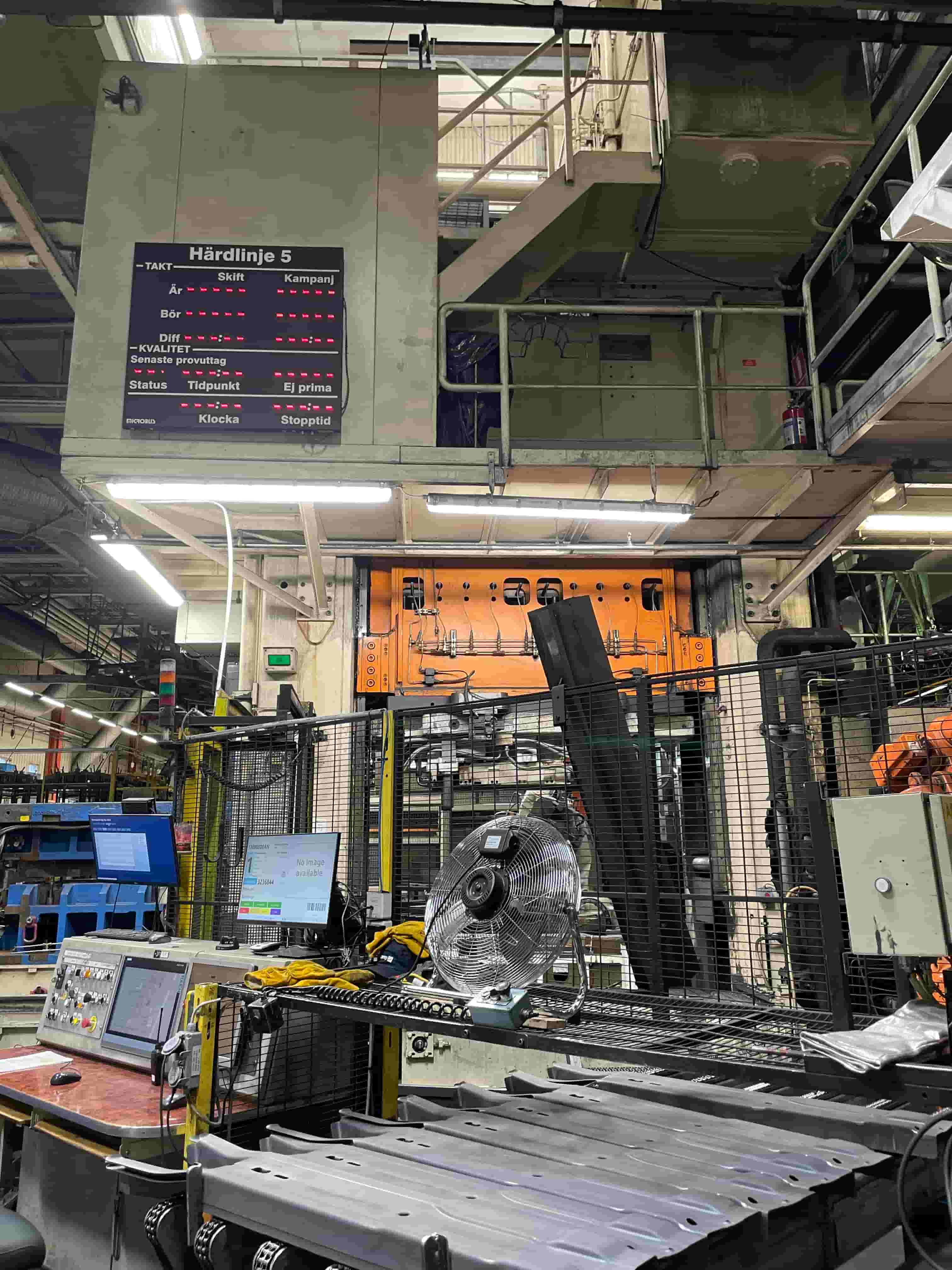

673. Schuler Press Hardening Line
SCHULER HPDZB 500-2150/500
500t Hardening Line with Wellmann Furnace
This hardening line integrates a 5,000 kN hydraulic press with a high-capacity Wellmann walking beam furnace. The 67,000 kg press features a 1,200 mm stroke, rapid closing speeds up to 800 mm/s, and accommodates tools up to 2,400 × 500 mm weighing up to 10,000 kg. Paired with a 525 kW Wellmann electrical furnace operating at output temperatures up to 940 °C with a 1,400 kg/h throughput capacity and controlled atmosphere connections (nitrogen/methanol), this line offers precise performance for automated heat treatment and press-hardening operations.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Schuler
Country
Sweden
Machine Type
Hardening Line
Year of Manufacture
2002
Press Force
500t
Stroke
1200 mm

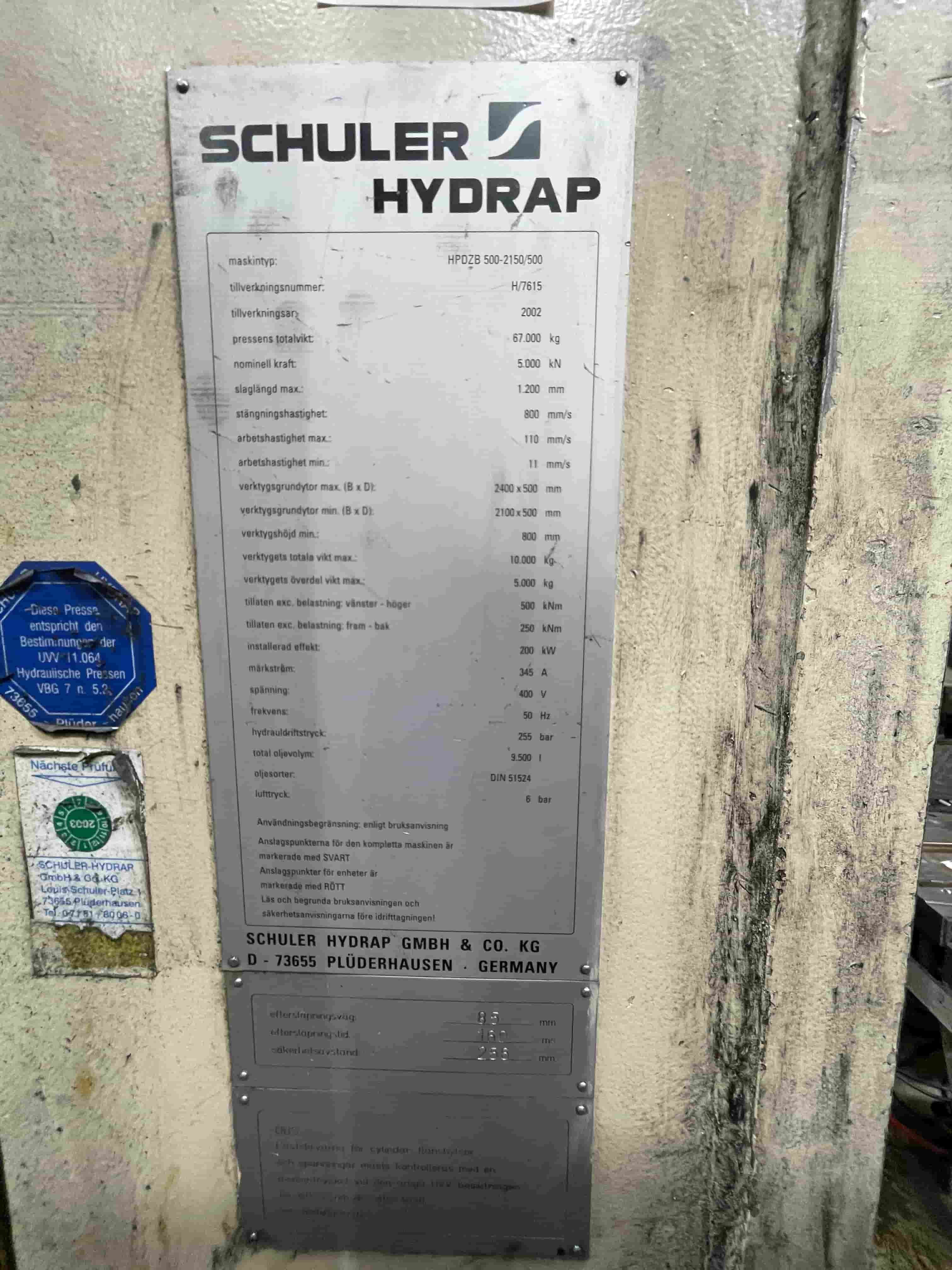

Technical Details
- Lot No. 673
- Manufacturer: Schuler
- Machine Type: HPDZB 500-2150/500
- Serial No. H/7615
- Year of Manufacture: 2002
- Total Press Weight: 67,000 kg
- Nominal Press Force: 5,000 kN
- Stroke: 1,200 mm
- Closing Speed: 800 mm/s
- Max. Working Speed: 110 mm/s
- Min. Working Speed: 11 mm/s
- Max. Tool Base Area (W × D): 2,400 × 500 mm
- Min. Tool Base Area (W × D): 2,100 × 500 mm
- Min. Tool Height: 800 mm
- Max. Total Tool Weight: 10,000 kg
- Max. Upper Tool Weight: 5,000 kg
- Permissible Eccentric Load – Left/Right: 500 kNm
- Permissible Eccentric Load – Front/Rear: 250 kNm
- Installed Power: 200 kW
- Rated Current: 345 A
- Voltage: 400 V
- Frequency: 50 Hz
- Hydraulic Operating Pressure: 255 bar
- Total Oil Capacity: 9,500 litres
- Oil Specification: DIN 51524
- Air Pressure: 6 bar
Furnace – Walking Beam Furnace
- Manufacturer: Wellmann
- Furnace Type: Walking Beam Furnace
- Charge Table Length: 2,280 mm
- Furnace Width: 2,200 mm
- Furnace Length: 4,960 mm
- Capacity: 1,400 kg/h
- Electrical Heating Power: 525 kW
- Output Temperature: 940°C
