674. Cavenaghi Press Hardening Line
CAVENAGHI CRH12 000KNKM
1200t Hardening Line with Wellmann Furnace
This hardening line combines a massive 194,000 kg, 4-lane hydraulic press with a high-capacity continuous heating system. The press delivers 12,000 kN of force over a 1,050 × 1,900 mm table, featuring independent 25-tonne upper and lower cushion pins per lane for precise forming control. It is integrated with a 17-meter, 475 kW Wellmann electrical furnace capable of processing 1,206 kg/h at output temperatures up to 940 °C, complete with precise nitrogen (2.5 bar) and liquid methanol (4 bar) atmosphere controls for demanding, heavy-duty industrial heat treatment.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Cavenaghi
Country
Sweden
Machine Type
Hardening Line
Year of Manufacture
1994
Press Force
1200t
Stroke
720 mm
Technical Details
- Lot No. 674
- Manufacturer: Cavenaghi
- Year of Manufacture: 1994
- Type: CRH12 000KNKM
- Press Weight: 194,000 kg
- Press Force: 1200t / 12,000 kN
- Stroke: 720 mm
- Daylight: 1,400 mm
- Number of Lanes: 4
- Table Dimensions: 1,050 × 1,900 mm
- Upper Cushion: 25 tonnes × 6 pins per lane
- Upper Cushion Stroke: 100 mm
- Lower Cushion: 25 tonnes × 6 pins per lane
- Lower Cushion Stroke: 100 mm
- Max. Fast Approach Speed: 550 mm/s
- Max. Working Speed: 120 mm/s

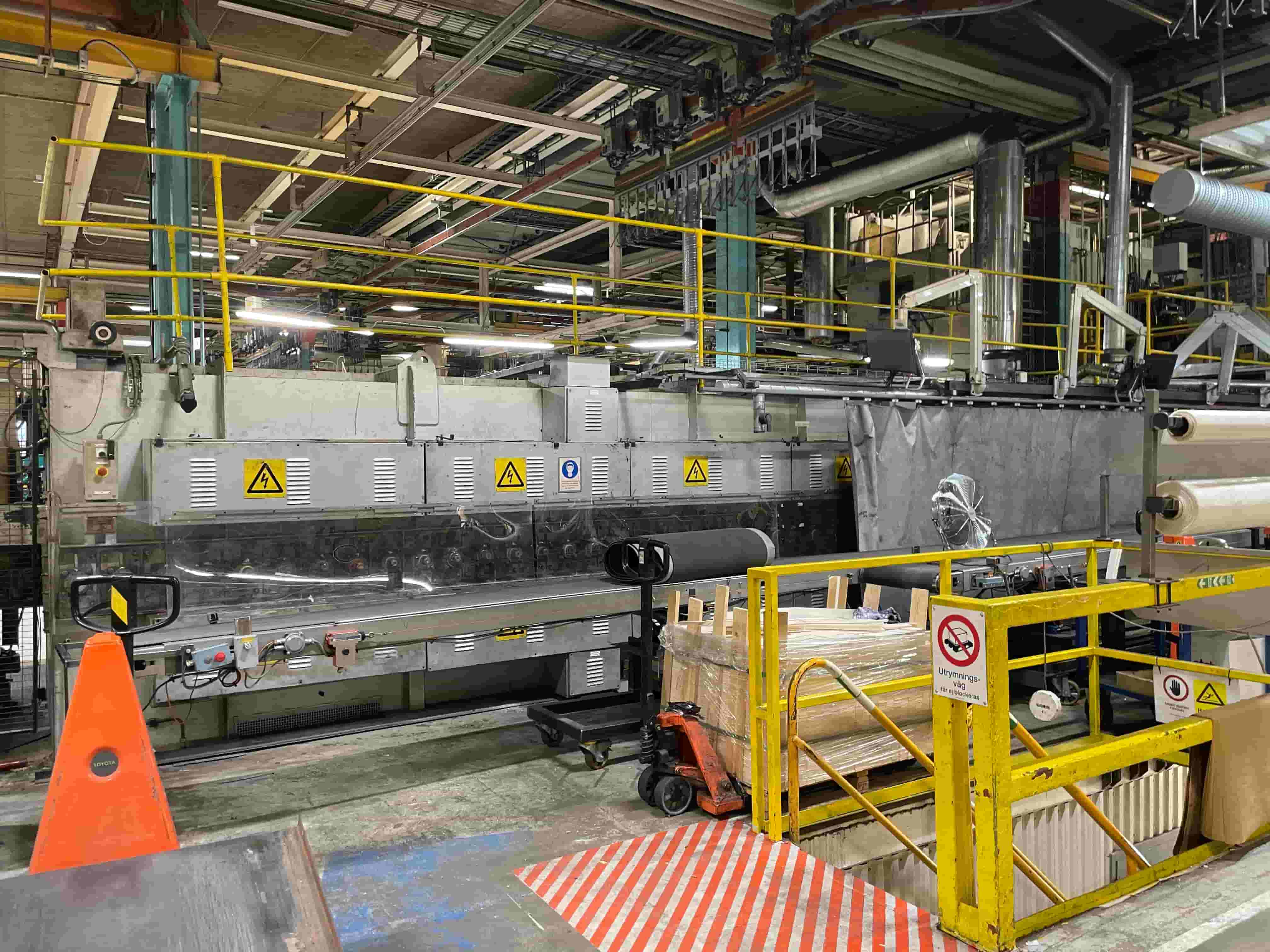

Furnace – Wellmann
- Manufacturer: Wellmann
- Output Temperature: 940 °C
- Charge Table Length: 6,185 mm
- Furnace Width: 1,000 mm
- Furnace Length: 17,098 mm
- Capacity / Throughput: 1,206 kg/h
- Electrical Heating Power: 475 kW
- Media Connection – Nitrogen: 2.5 bar
- Media Connection – Liquid Methanol: 4 bar
