675. Cavenaghi Press Hardening Line
CAVENAGHI CRCK 15001
1200t Hardening Line with Wellmann Furnace

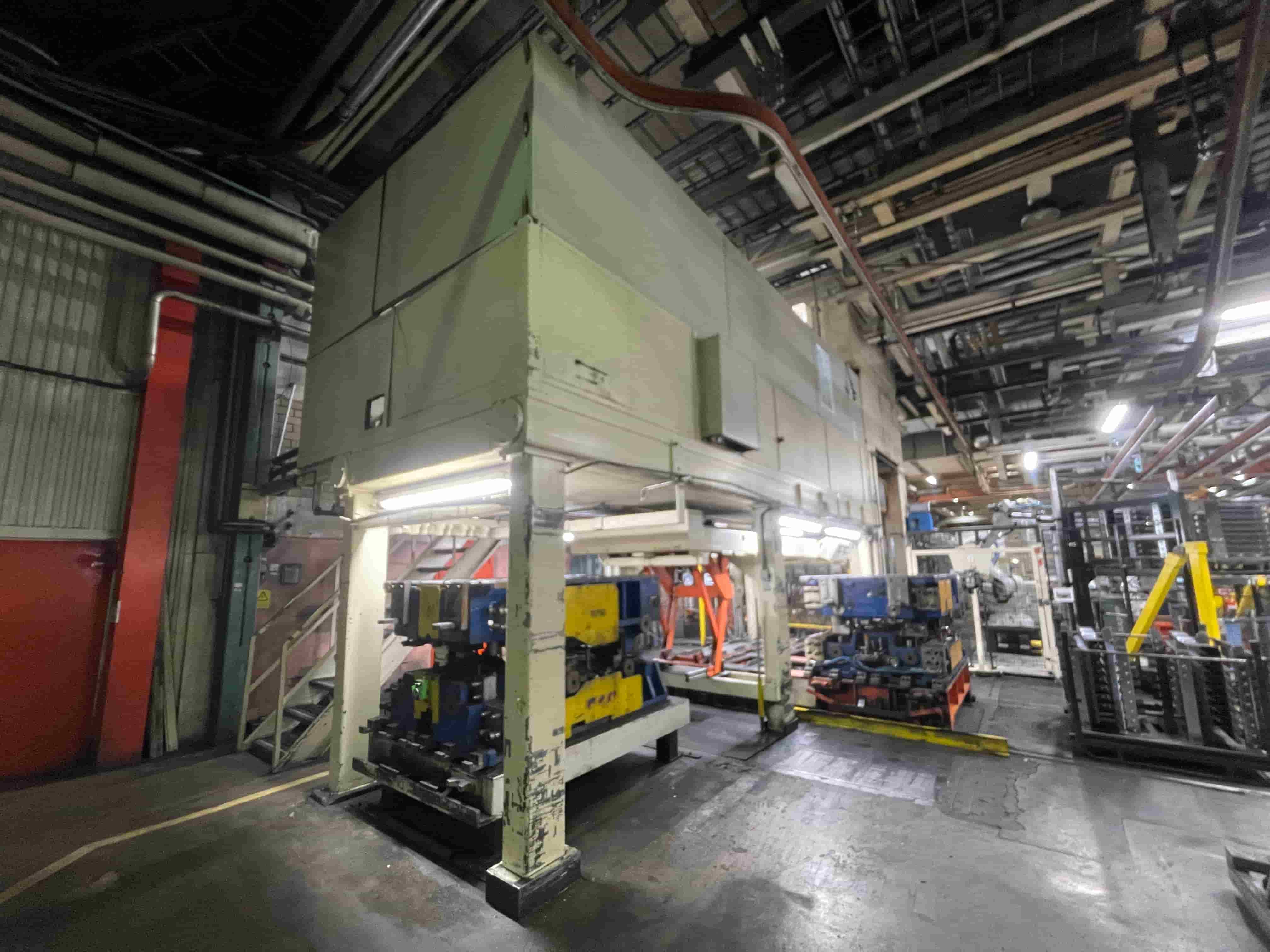

This hardening line pairs a high-capacity hydraulic press with an integrated continuous heating system. The massive 120,000 kg press delivers 1,200 tonnes of force over a 2-lane, 1,400 × 2,200 mm table and features robust 200-tonne upper and lower cushions per lane. It is fed by a 10.2-meter, 385 kW Wellmann electrical furnace capable of reaching output temperatures of 940 °C with a high-volume throughput capacity of 1,500 kg/h, providing a complete, heavy-duty solution for demanding industrial heat treatment and metalforming operations.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
Cavenaghi
Country
Sweden
Machine Type
Hardening Line
Year of Manufacture
1989
Press Force
1200t
Stroke
800 mm
Technical Details
- Lot No. 675
- Manufacturer: Cavenaghi
- Year of Manufacture: 1989
- Type: CRCK 15001
- Press Weight: 120,000 kg
- Press Force: 1,200t / 12,000 kN
- Stroke: 800 mm
- Daylight: 1,400 mm
- Number of Lanes: 2
- Table Dimensions: 1,400 × 2,200 mm
- Upper Cushion: 200 tonnes per lane
- Upper Cushion Stroke: 205 mm
- Lower Cushion: 200 tonnes per lane
- Lower Cushion Stroke: 205 mm
- Max. Fast Approach Speed: 450 mm/s
- Max. Working Speed: 60 mm/s
Furnace – Wellmann
- Manufacturer: Wellmann
- Output Temperature: 940 °C
- Charge Table Length: 5,400 mm
- Furnace Width: 1,260 mm
- Furnace Length: 10,200 mm
- Capacity / Throughput: 1,500 kg/h
- Electrical Heating Power: 385 kW
- Media Connection – Nitrogen: Pressure not specified
- Media Connection – Liquid Methanol: Pressure not specified
