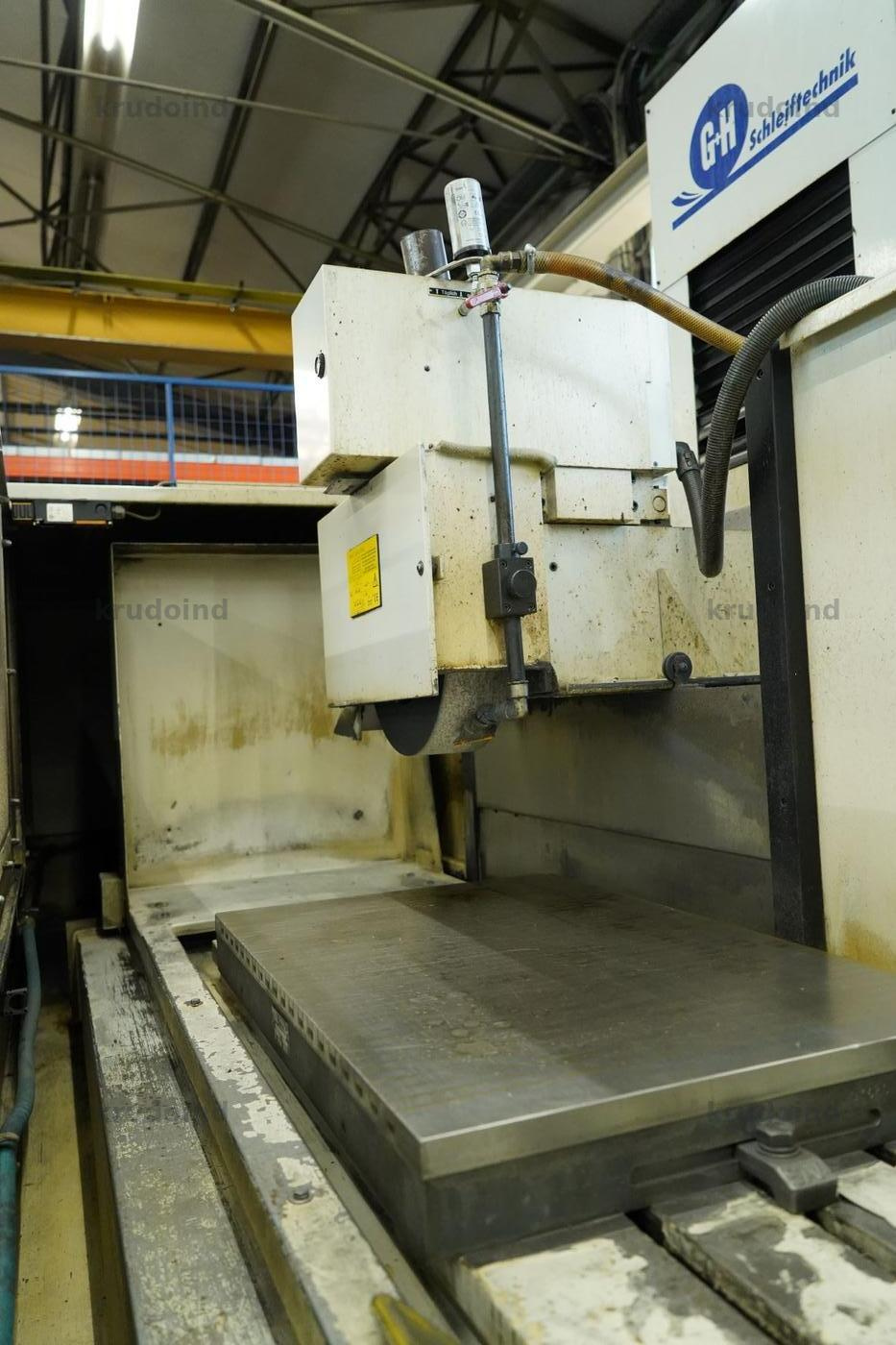

Flat Profile Grinding Machine
Precision Surface Finishing for Flat and Profiled Parts
Description
Grinding length mm: 800
Grinding width mm: 500
Grinding height mm: 425
Grinding height (option) mm: 625
Table load medical history 1100
X-axis - longitudinal movement work table
Table longitudinal stroke mm: 850
Table speed m/min 2–28
Y-axis - Vertical motion
Distance table to spindle center mm: 180-625
Distance table to spindle center (option) mm: 180-825
Vertical velocity mm/min: 50–4000
Z-axis - transverse movement
Transverse travel max. mm: 500
Transverse speed mm/min: 50–4000
Grinding spindle
Power grinding spindle motor kw: 11
Power grinding spindle motor (option) kw: 15|17
Cutting speed m/s: 32
Cutting Speed option m/s: 50
Grinding wheel, standard mm: 400x100x127
