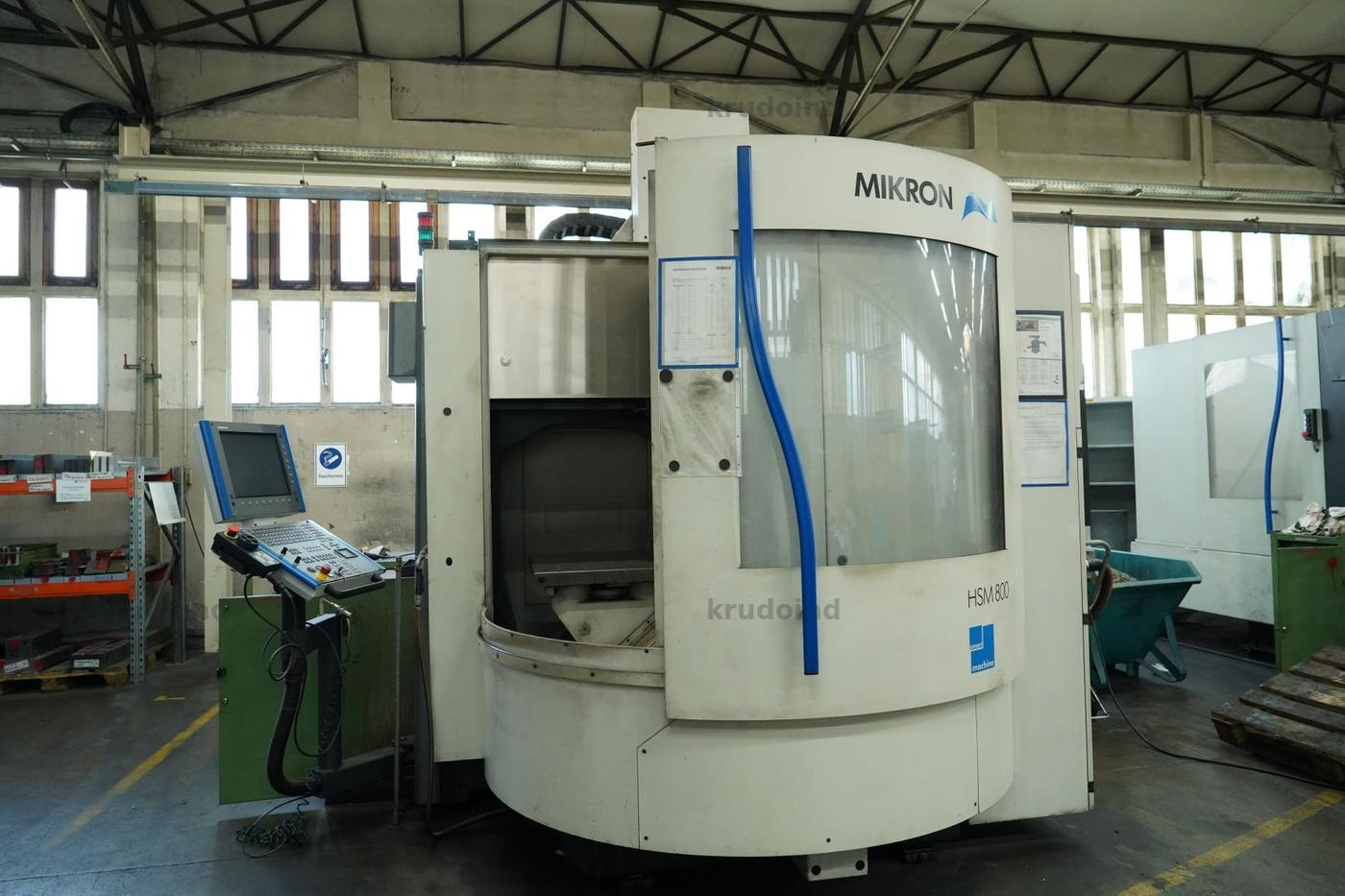

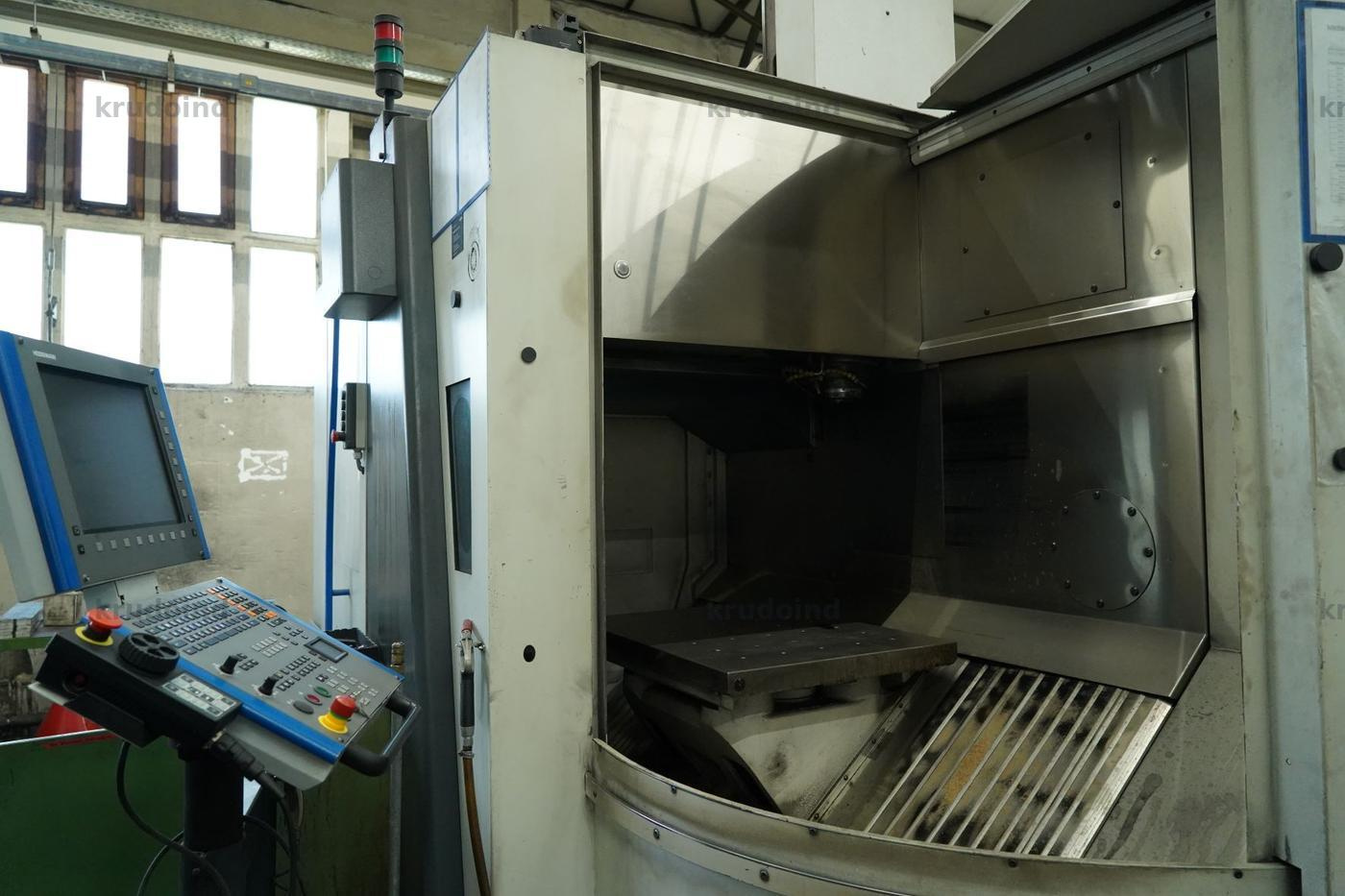

High Speed Vertical Milling Machine
High-Speed Machining for Tooling and Parts
Description
Machine weight: 8300 kg
Connected load: 29 kW
Traverse paths HSM 800:
X axis: 800mm
Y axis: 600mm
Z axis: 500mm
Feed drives:
X,Y, and Z-axis AC servo motors; 3,000 rpm; with toothed belt on ball screw
Feed speed (X,Y,Z): 0-40m/min
Axis acceleration (X, Y, Z): 1g (10 m/s)

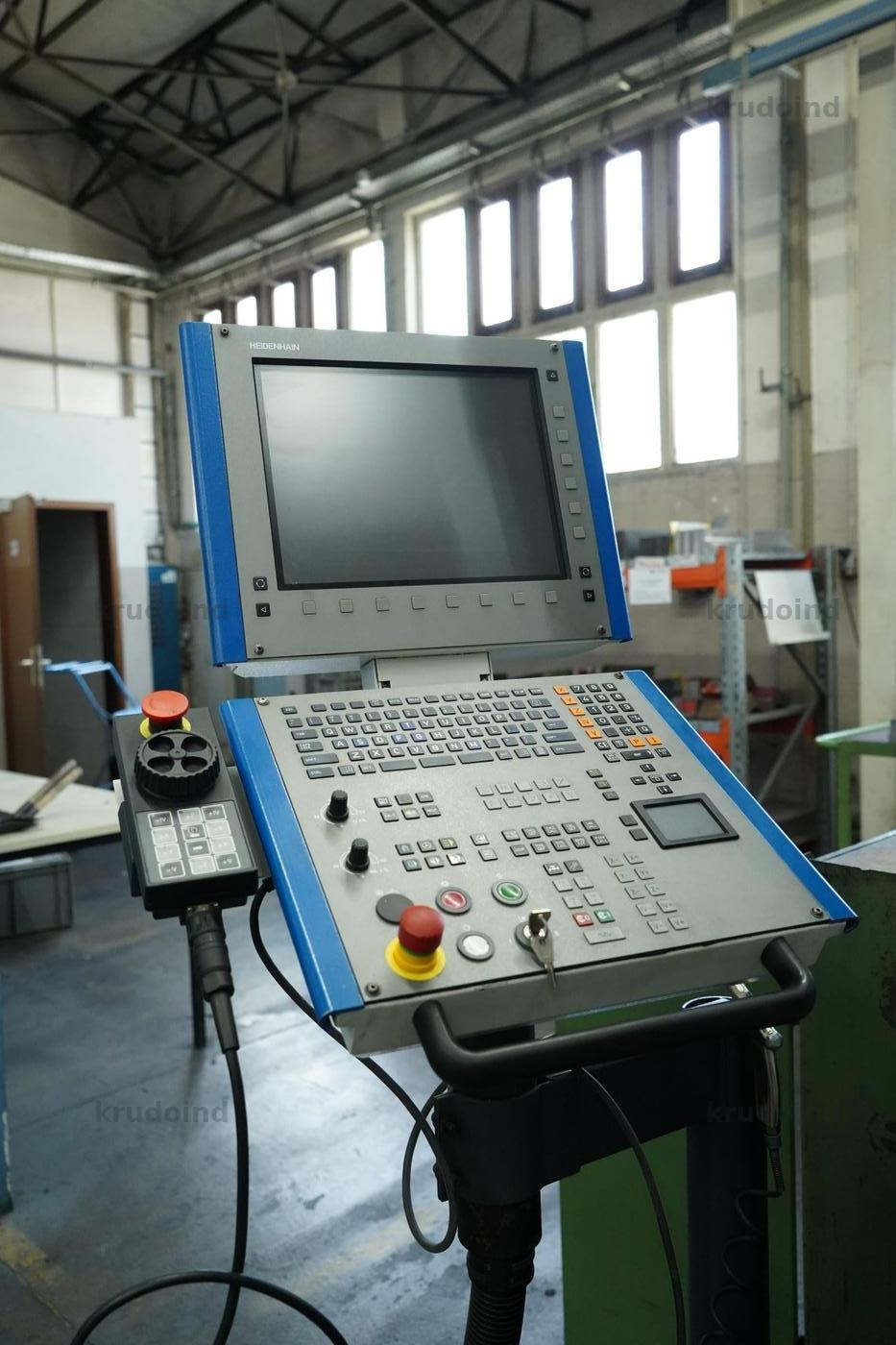

Control: Heidenhain iTNC 530

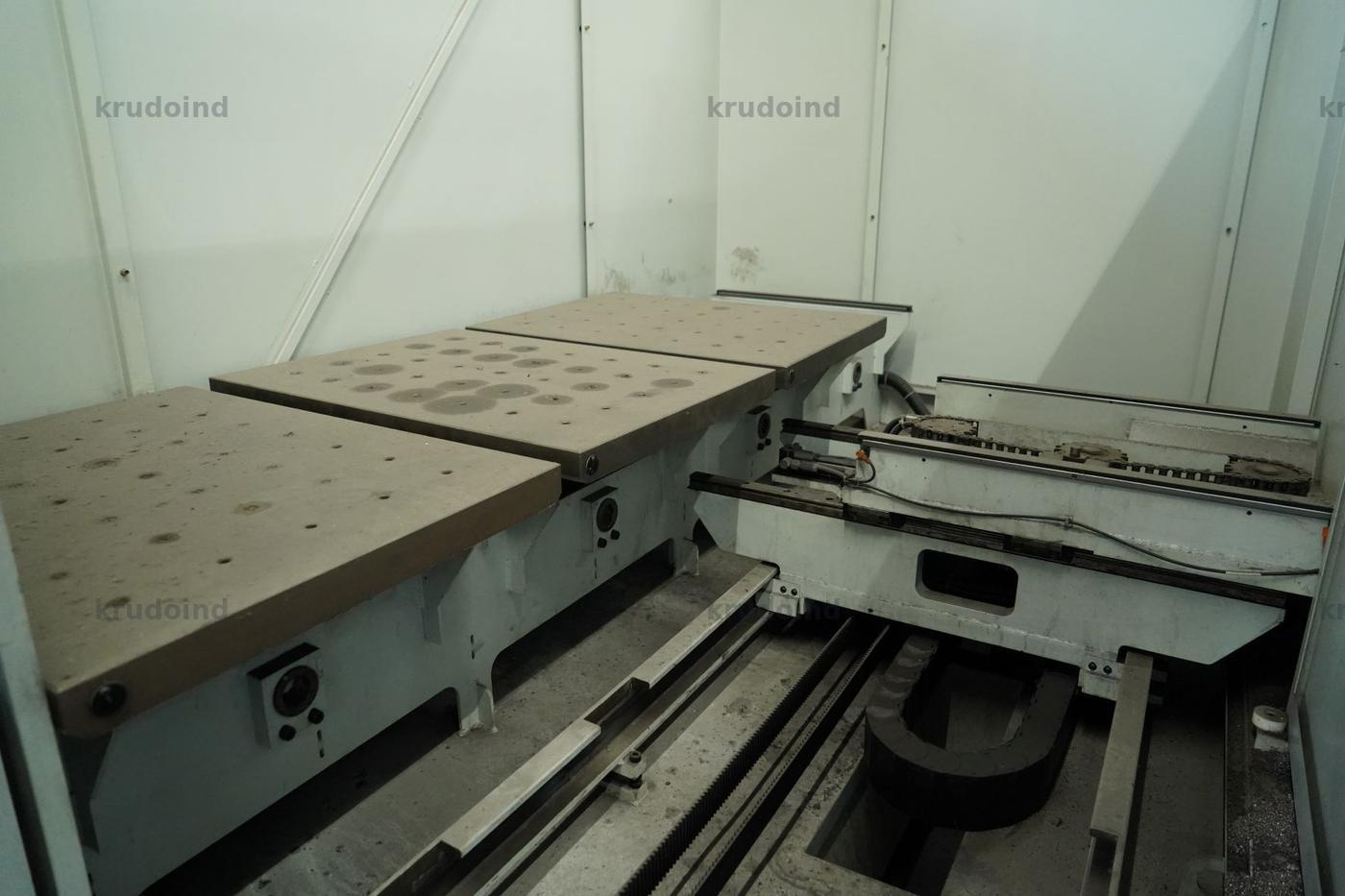

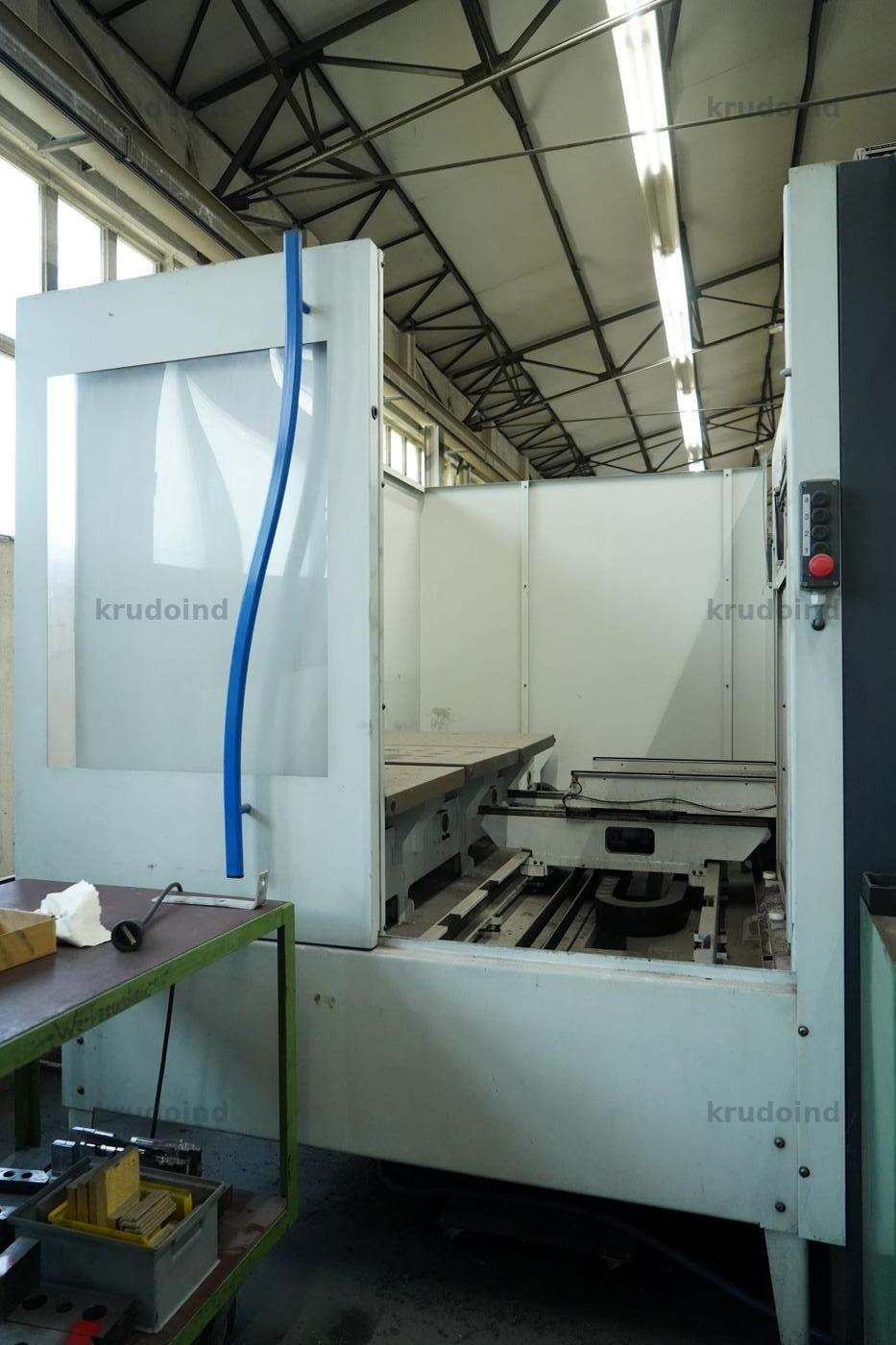

Palette:
max. workpiece weight: 1000 kg
Tool spindle 60,000 rpm:
Tool: HSK E 32
Speed: 100-60'000rpm
Power at 40% ED: 8.5 kW
Power at 100% ED: 6.5 kW
Torque at 60% ED: 3.5 Nm
Torque at 100% ED: 2.6 Nm
Lubrication: oil-air
Tool spindle 42,000 rpm:
Tool: HSK E 40
Speed: 100-42'000rpm
Power at 40% ED: 13 kW
Power at 100% ED: 10 kW
Torque at 60% ED: 4.25 Nm
Torque at 100% ED: 3.2 Nm
Lubrication: oil-air
Tool spindle 30,000 rpm:
Tool: HSK E 40
Speed: 100-30'000rpm
Power at 40% ED: 12 kW
Power at 100% ED: 10 kW
Torque at 60% ED: 8.8 Nm
Torque at 100% ED: 6.5 Nm
Lubrication: oil-air
Tool spindle 30,000 rpm:
Tool: HSK E 50
Speed: 100-36'000rpm
Power at 40% ED: 32 kW
Power at 100% ED: 24 kW
Torque at 60% ED: 20 Nm
Torque at 100% ED: 15 Nm
Lubrication: oil-air
Tool spindle 30,000 rpm:
Tool: HSK A 63
Speed: 100-24'000rpm
Power at 40% ED: 22 kW
Power at 100% ED: 12,3 kW
Torque at 60% ED: 46 Nm
Torque at 100% ED: 26 Nm
Lubrication: oil-air
max. pressure for IKZ rotary union: 80 bar
