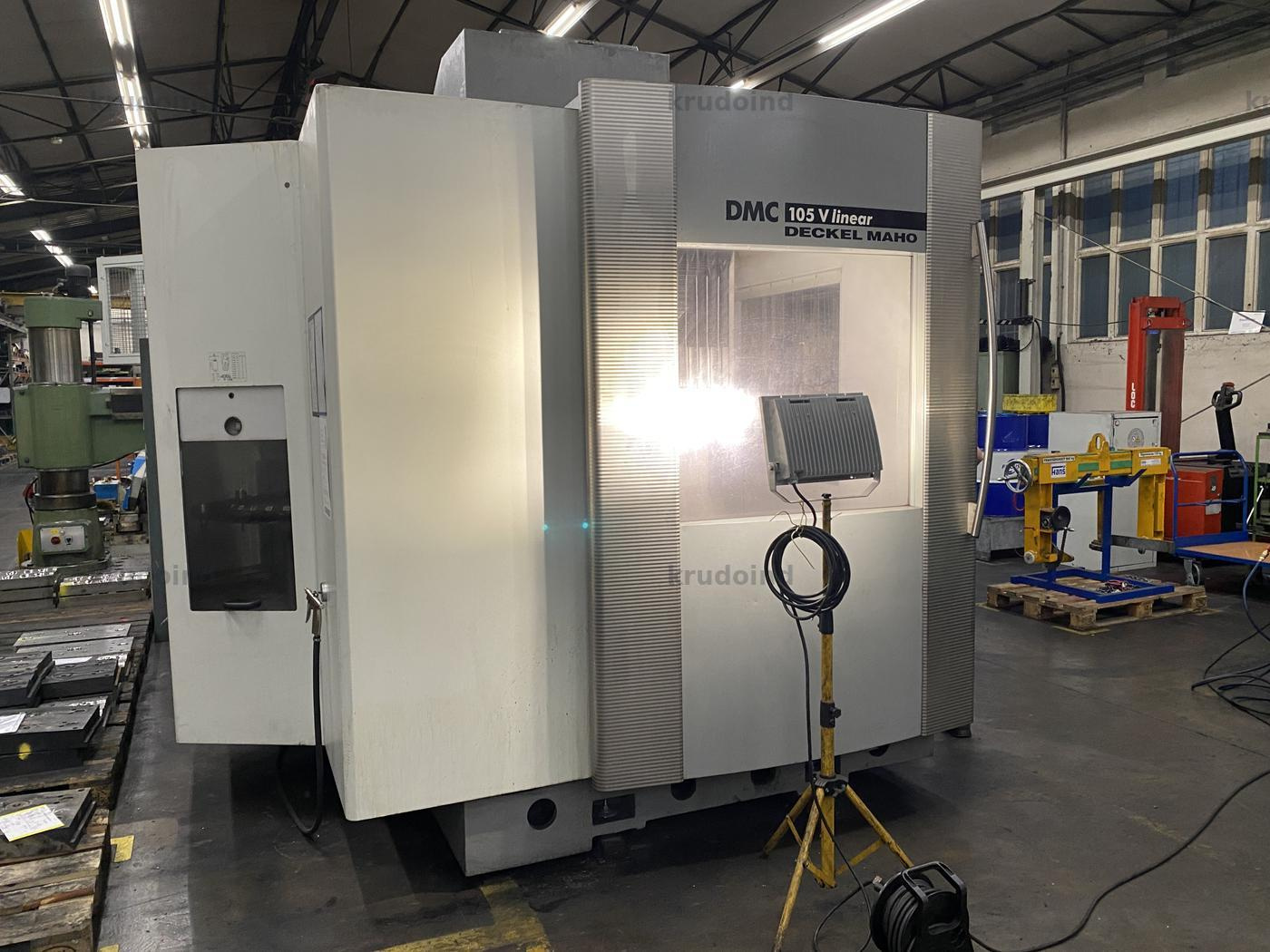

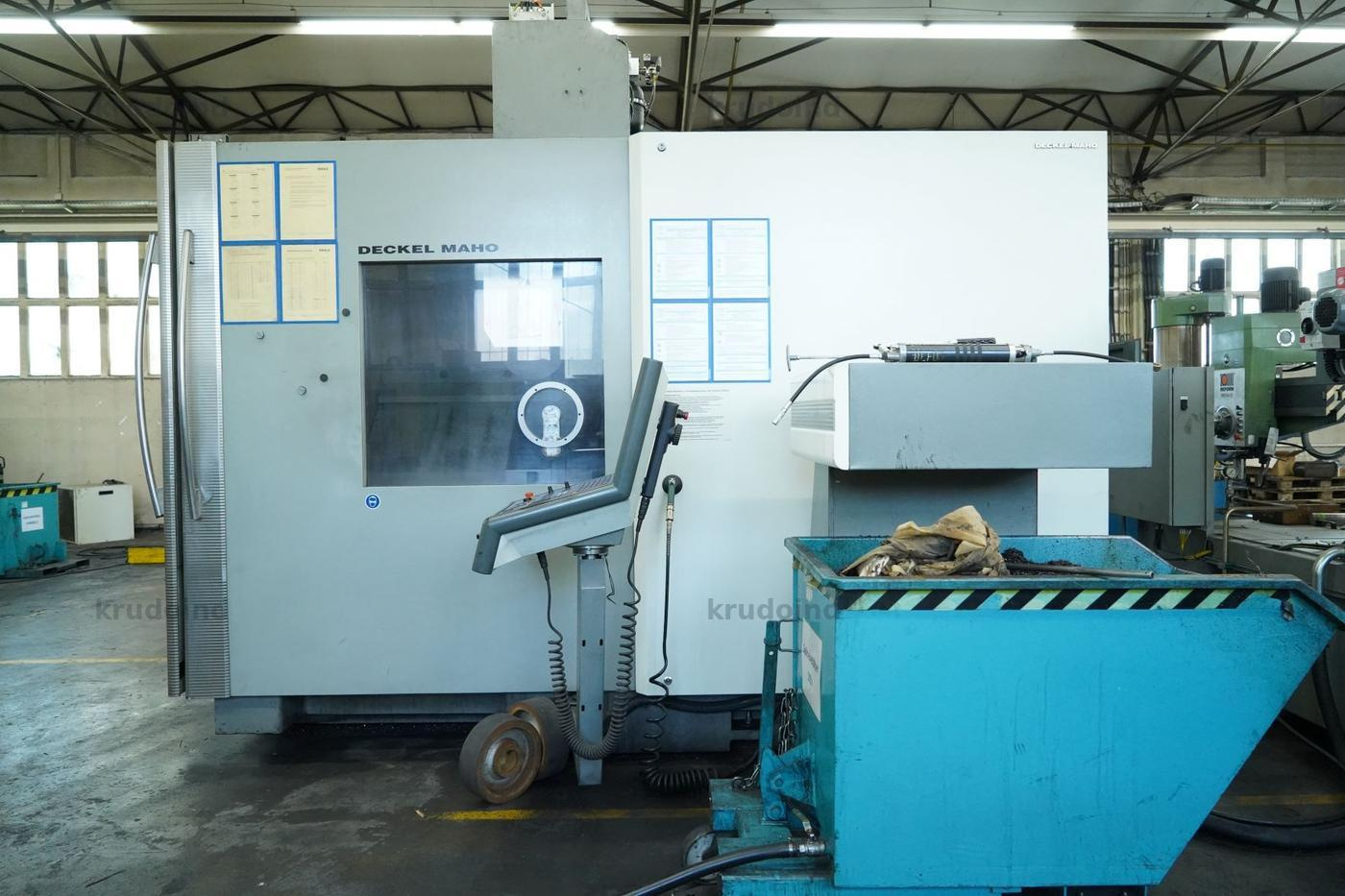

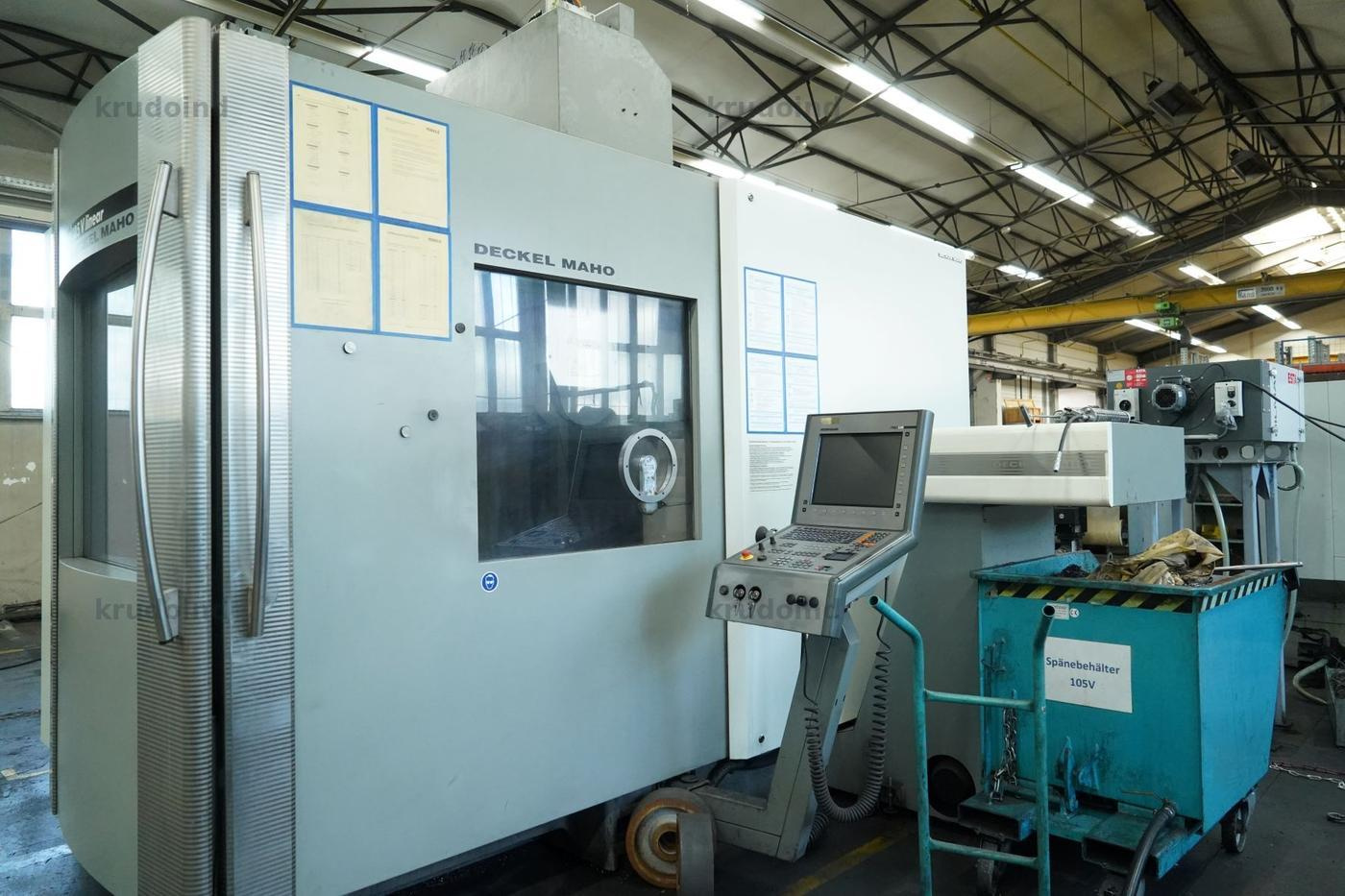

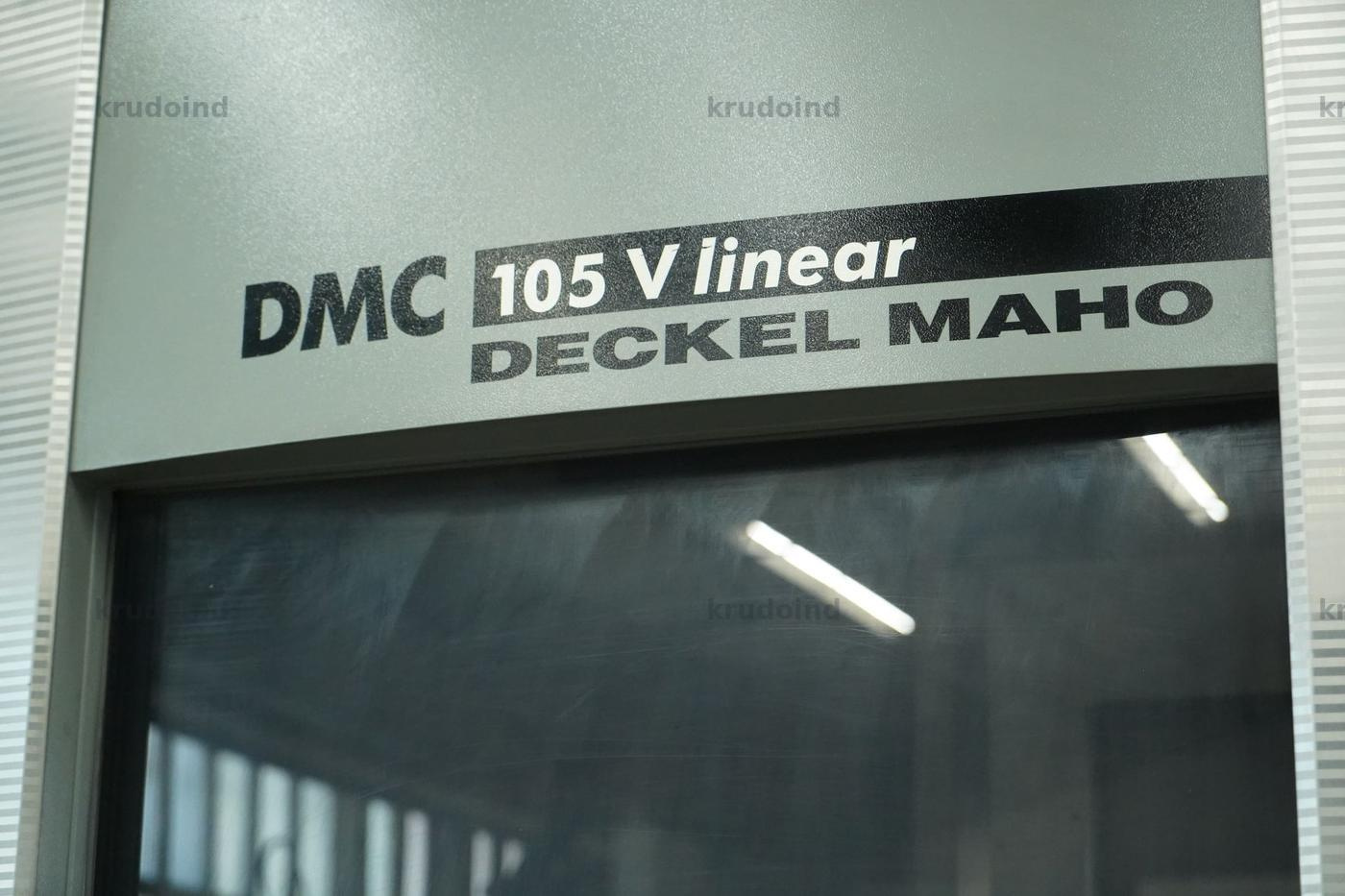

5 Axis Milling Machine
Multi-Axis Machining for Complex Geometries
Description
Travels:
X= 1050 mm
Y= 800 mm
Z= 560 mm
A= -10°/+110°
C= 360°
Kinematics fork head / rotary table
Tool holding: HSK63A
Spindle revolutions: 18000 rpm
Spindlepower:
25 / 35 kW at 100 / 40% ED
87 / 130 Nm at 100 / 40 %ED
Table size: diameter 950mm
Table load: 600 kgs
Rapid movement: 90 m/min

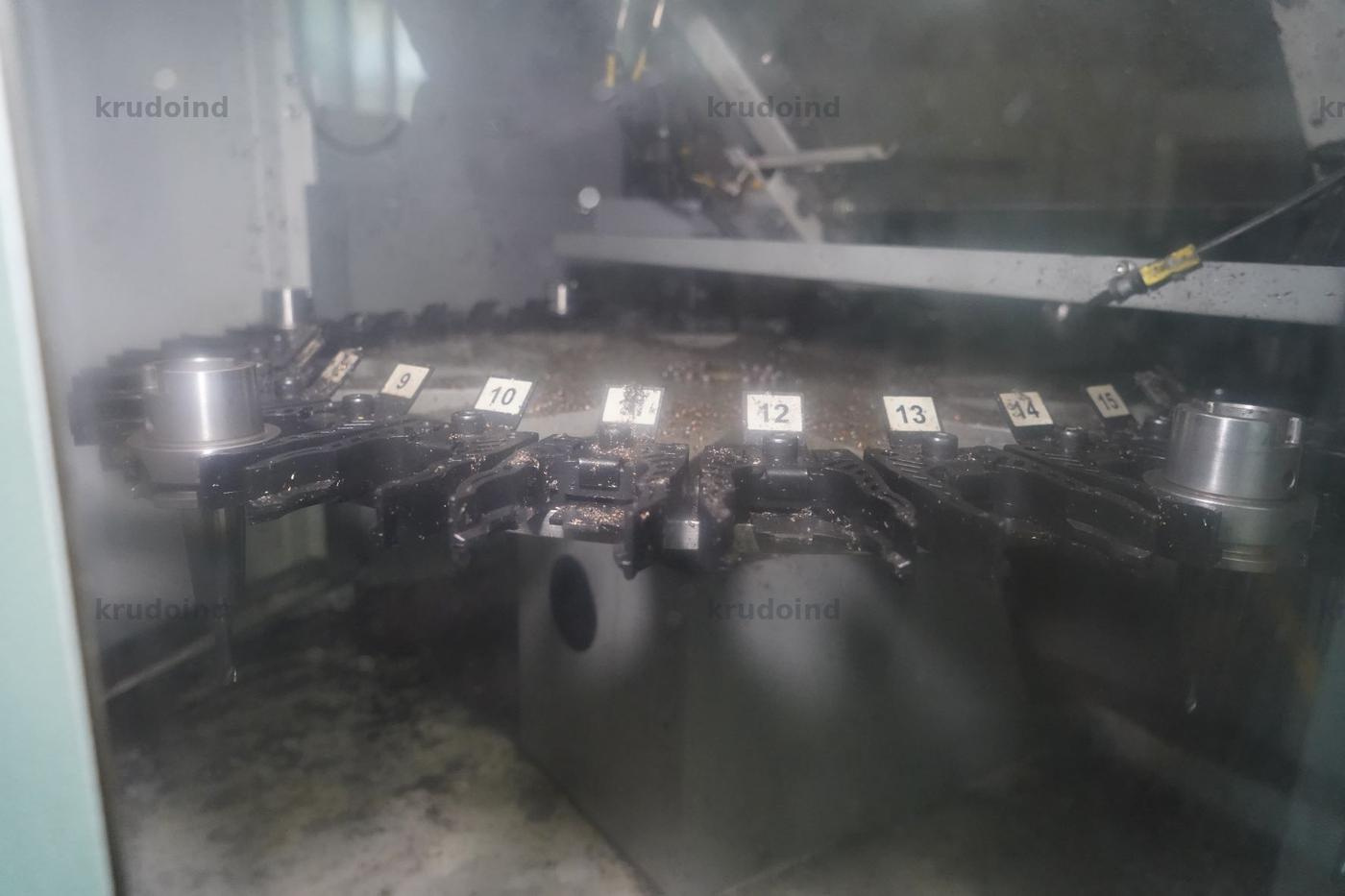

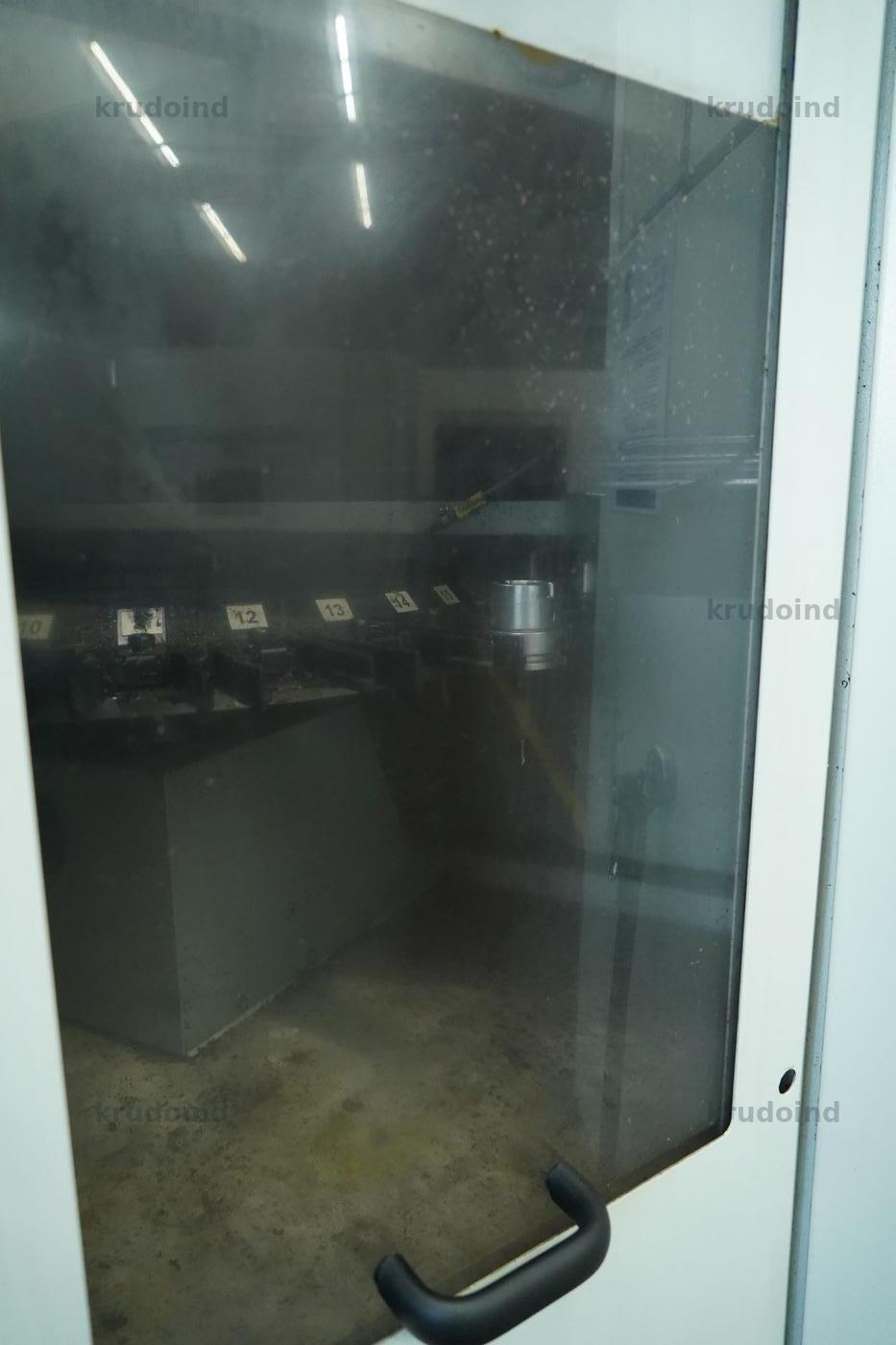

Tool magazine: 30
Weight: 13,700 kgs
Accessories:
Tool measurement and tool breakage monitoring by laser
Measuring probe: M&H 25.00-HDR
IKZ-Inner coolant supply through centre of the spindle (23l/min. at 40bar) with paper filtration plant
Roto-Clear
External blast air via 2 pipes
Cooling device air from the outside
Oil mist separator

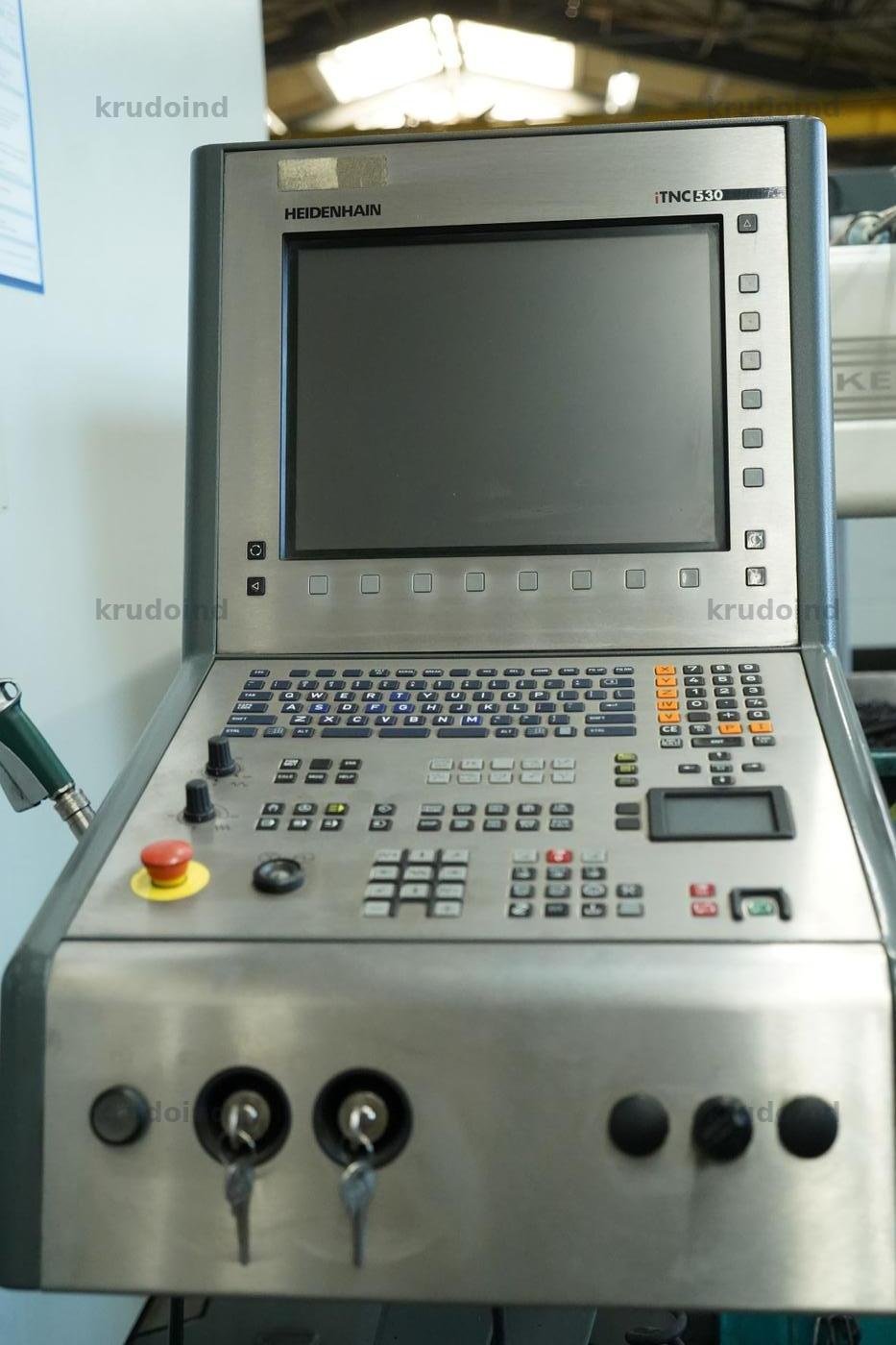

Heidenhain HR410
Application Tuning Cycle ATC
Operating mode 4
