Pipe Cutting and Chamfering Machine
Automated Pipe Cutting & Chamfering Machine for Tube Production
Description
TECHNICAL DATA – Output Pipes
- External diameter: 20-90 mm
- Wall thickness: 1.0-8.0 mm
- Pipe insert lengths: 3-6 m
- Material: 20M0Cr4
- Straightness: < 1 mm/m
- Waistband weight: < 5,000 kg
- Unit weight front pipe: < 70 kg
TECHNICAL DATA - Finished pipes
- Finished pipe lengths: 20-60 mm
- Unit weight: < 3 kg
- Residual pipe length, approx.: 60 mm
- Pipe gate length: < 5 mm (if required)
- Length tolerance: 0.05 mm (Cpk 1.67 / Cmk 2.0)
- Plan parallelism: 0.05 mm
- Delivery condition: Largely chip-free

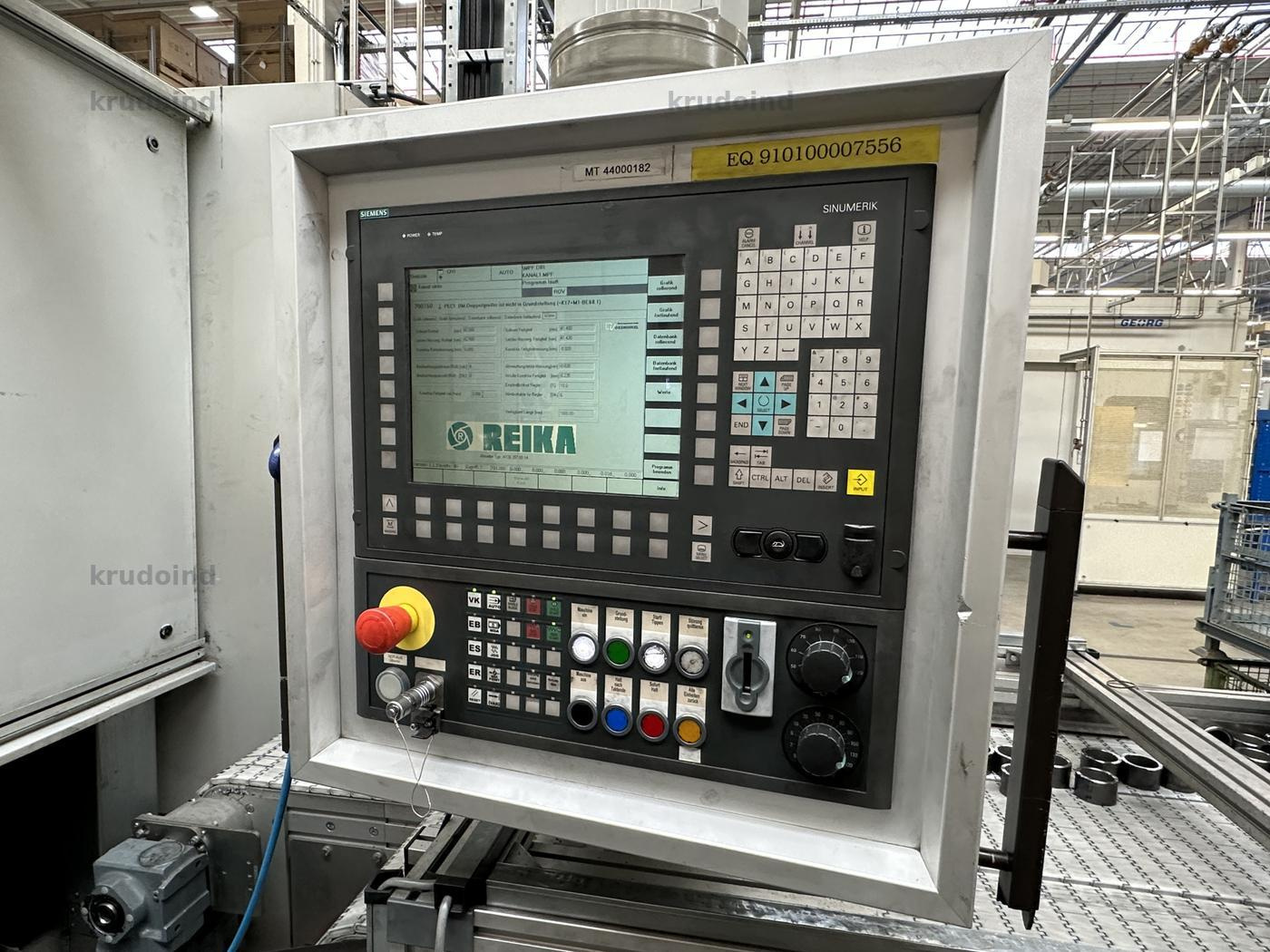

Control: SIEMENS Sinumerik 840 – D
Weight: 12000 kg
