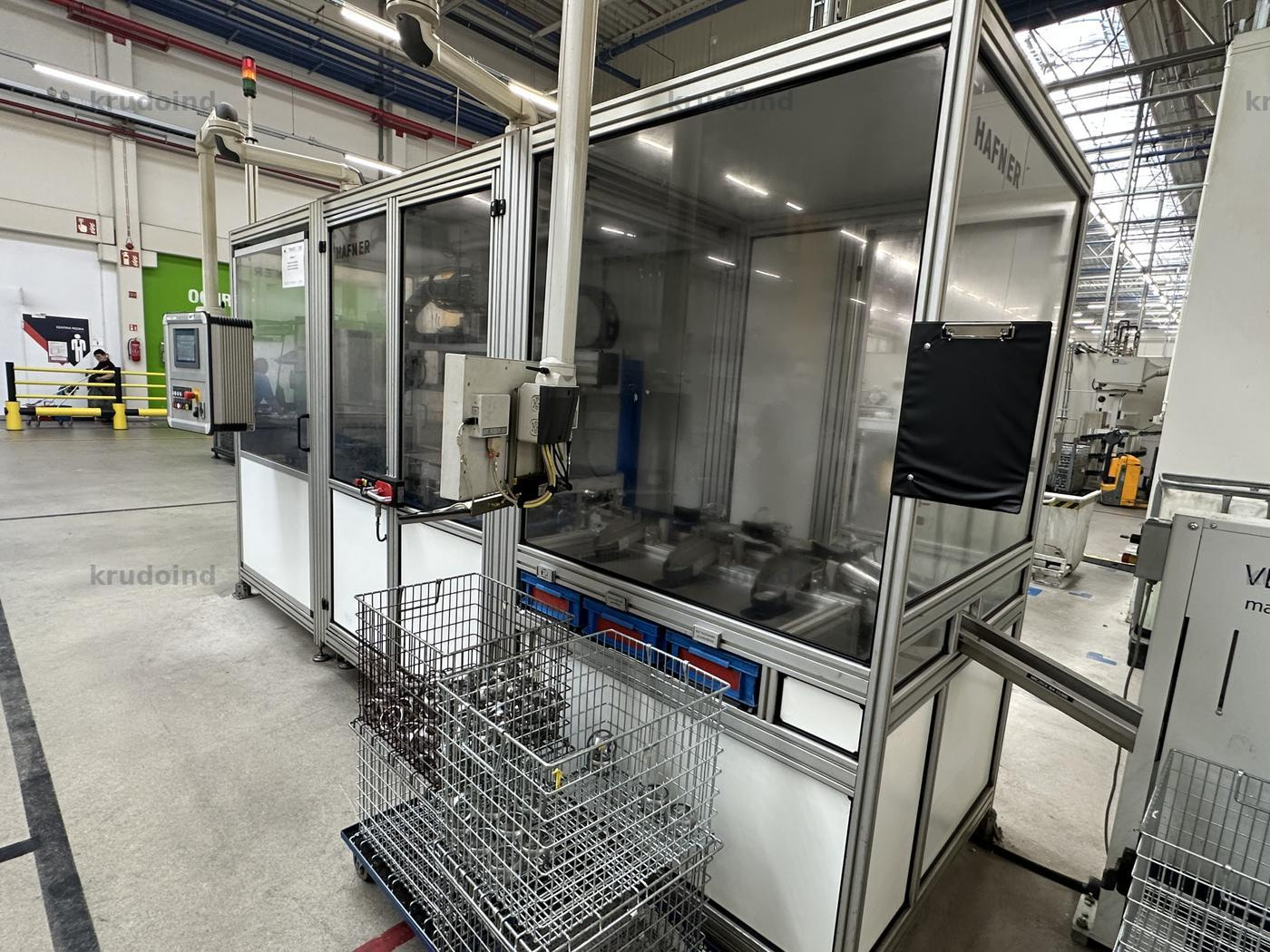

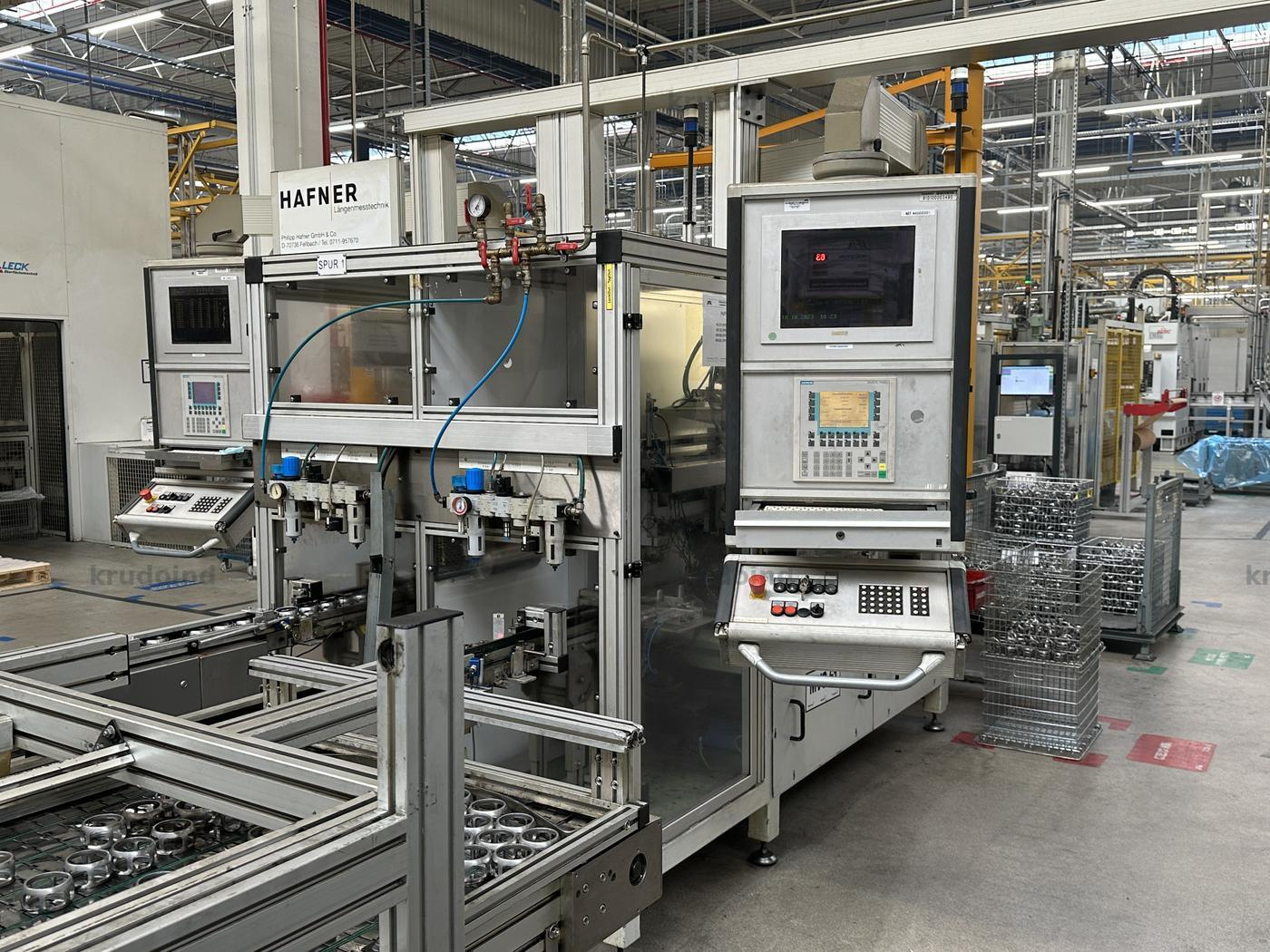

Measuring Machine
Automated Measuring Station for Dimensional Quality Control
Description
Control: SIEMENS S7-300
System: KOMEG Quality Data Systems: QDS-DSM-Rack, KOMEG TFT 15” Display, Hilscher Profibus card RS485II
Inductive length measuring probe: TESA GT62
Temperature Sensor: Omega NTC Type K
Marking: Richter Easy marker Type EM
Measuring task
This device is used to measure external diameters, window heights and symmetry. The measurements are divided into 2 measuring stations. The representation of the measuring task and the arrangement of the individual buttons can be seen on each track of the system using an overview.
Electrical connection
Connection cable: 5 x 2.5mm²
Pre-fuse: 3 x 25
Power supply: A3 x 400 V/50 Hz
Pneumatic connection
Compressed air supply: Min. 6 bar, max. 10 bar
Pressure setting on the central maintenance unit: 6 bar
Setting the pressure switch: 4.5 bar
Air consumption per work stroke: approx. 16dm³
Air consumption with a cycle time of 8 seconds: approx. 120dm³/min
