Vibratory Machine
Heavy-Duty Surface Finishing System for Industrial Components
Description

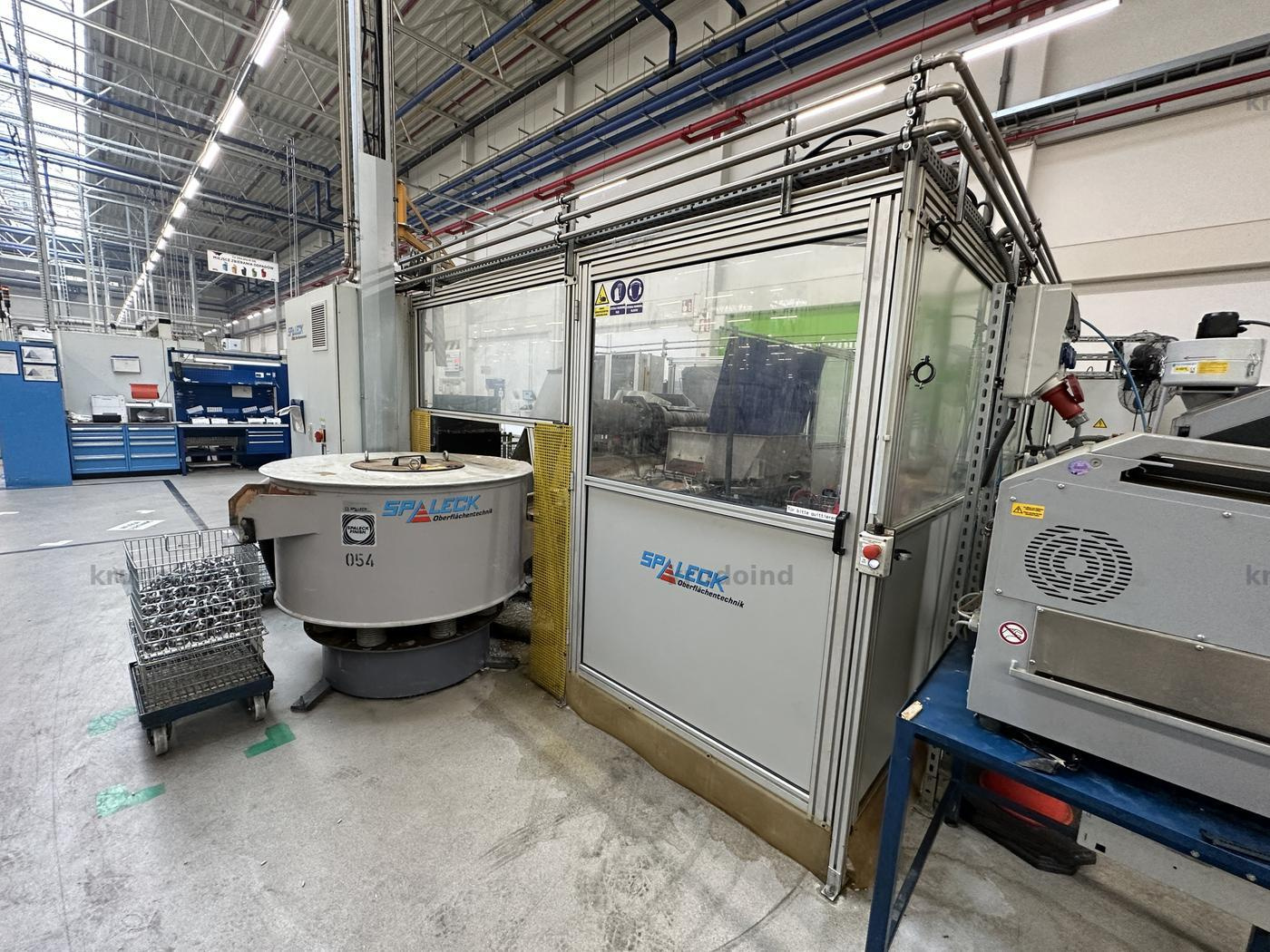

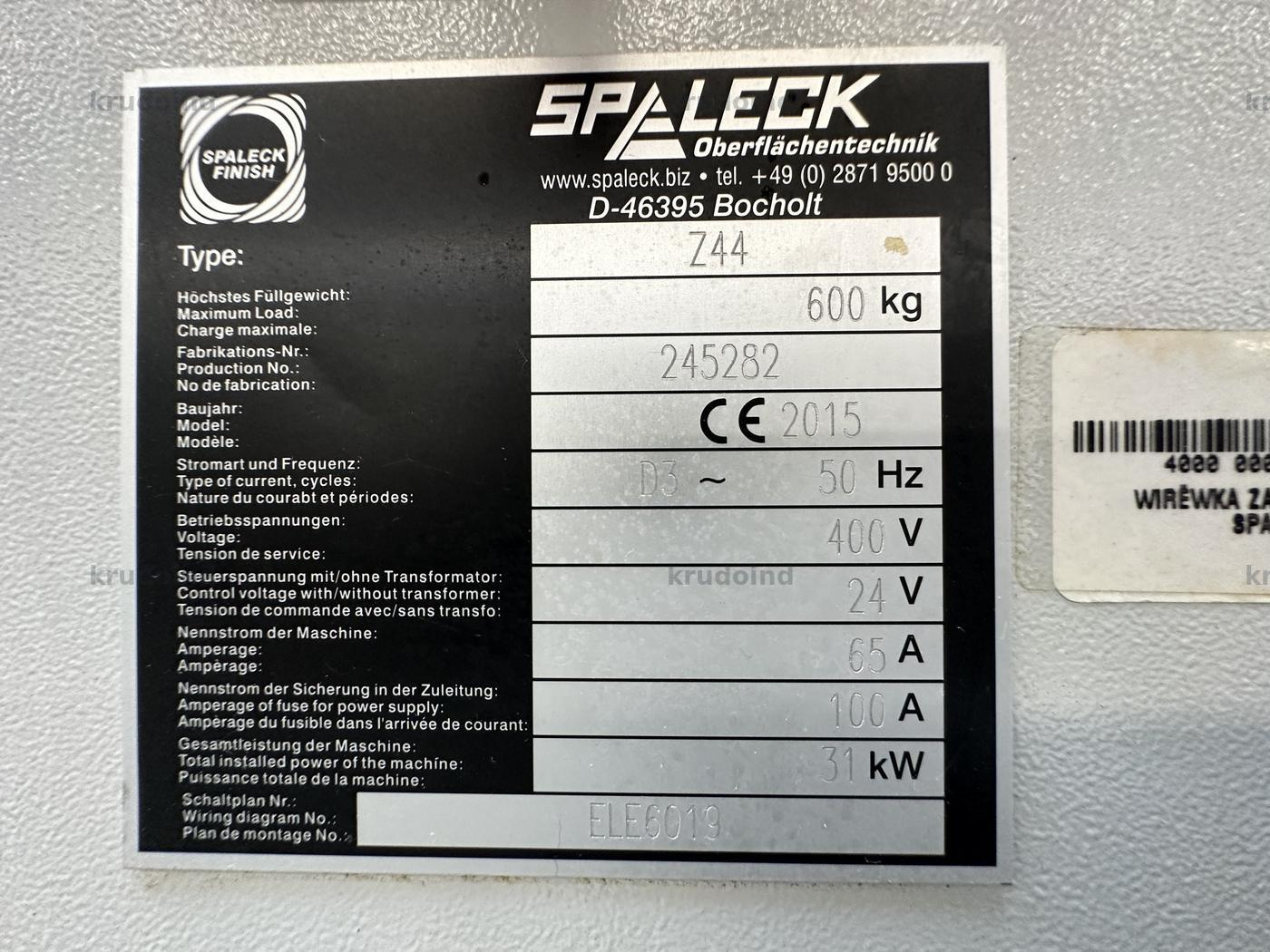

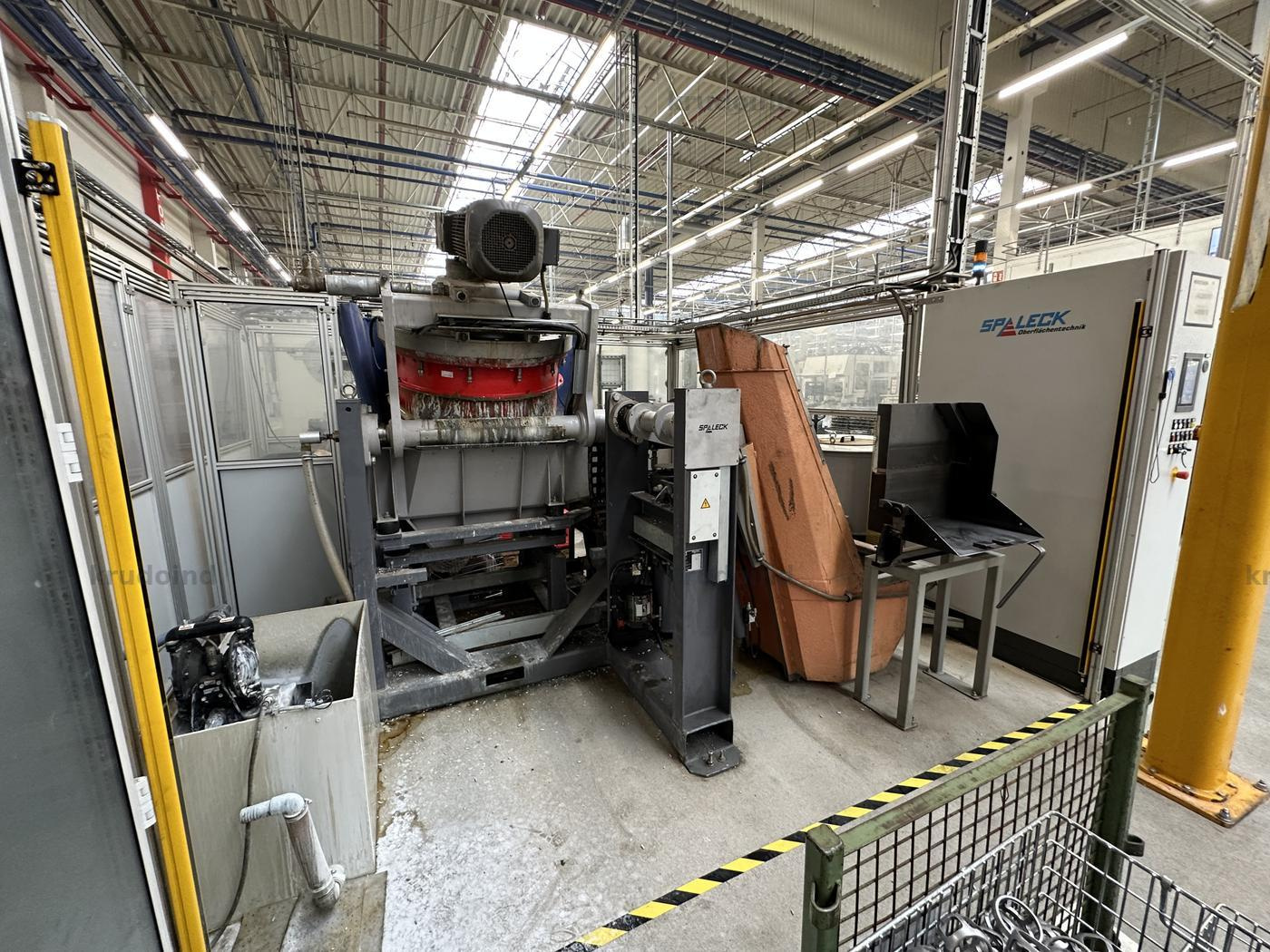

Centrifugal mass finishing machine Z44
Nominal Volume: approx. 260 l
Usable volume: up to approx. 210 l
Rotational speed actuator: from 100-215 ¹/min - infinitely variable
Annular gap width: ≥ 0.2 mm - infinitely variable
Dumping angle: approx. 170°
Drive Power, Hydraulics: 3 kW
Pressure: approx. 180 bar - predefined
Floor space : L : 4500 mm x W: 2700 mm x H: 3350 mm
Vibrating conveyor with magnetic drive Type SFM
Nominal Volume: approx. 260 l
Oscillation range: 0 to 1.0 mm
Power: 0.5 kW
Floor space : L : 1330 mm x W: 1600 mm x H: 1050 mm
Cross conveyor trough with unbalance motors
Oscillation range: approx. 1.2 mm
Power: 2 x 0.18 kW
Floor space : L : 365 mm x W: 1200 mm x H: 335 mm
Vibratory screening machine VSM with unbalance motors
Oscillation range: 0 – 4.0 mm
Power: 2 x 0.3 kW
