Vertical Turning Machine
Vertical Turning Machine for Large Workpieces
Description

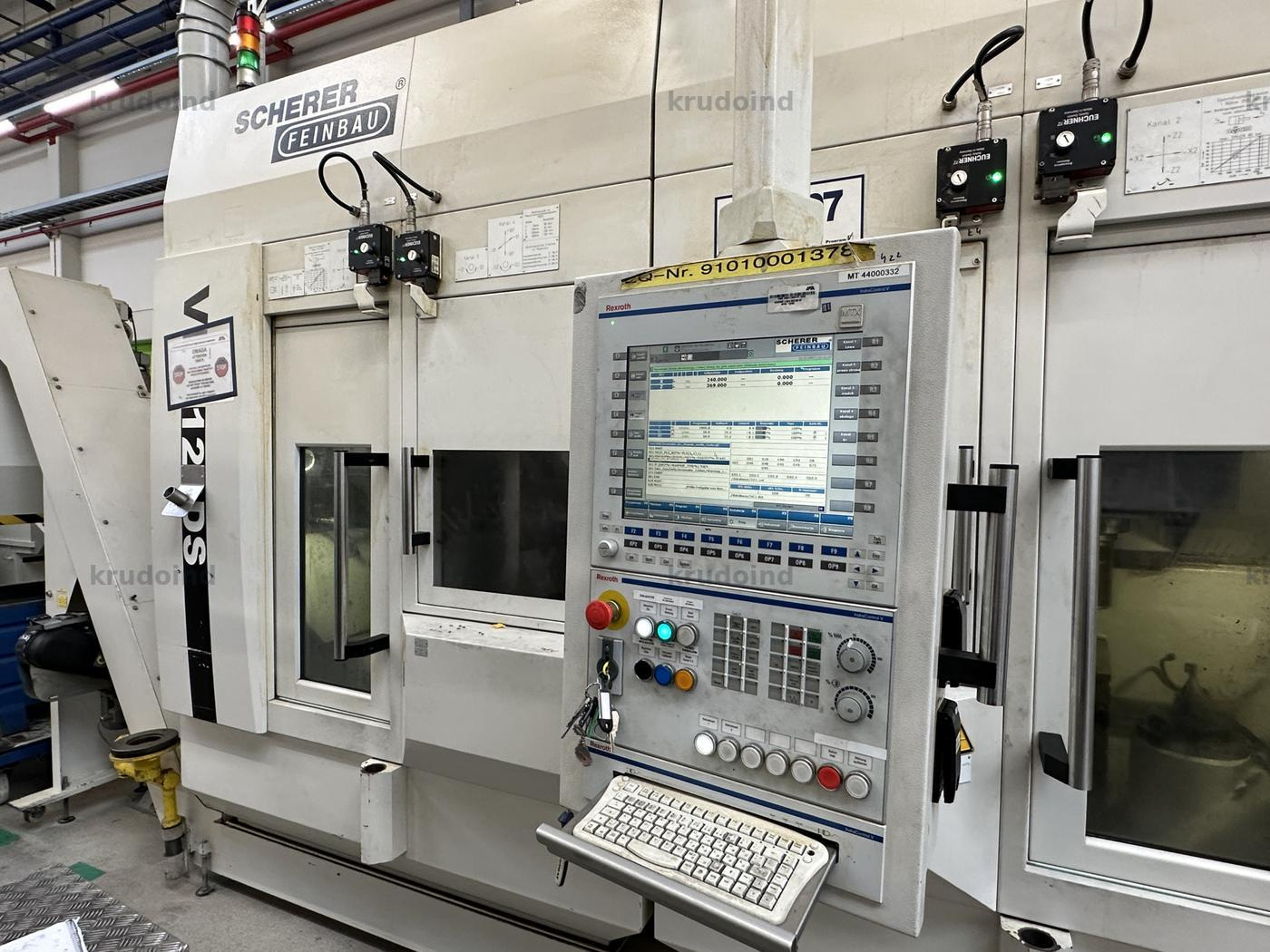

Control: BOSCH – MTX
Main spindle A6
Spindle diameter in the front bearing: 120 mm
Spindle bore diameter: 50 mm
Max. chuck diameter: 250 mm
Max. torque: 300 Nm
Milling spindle HSK-C63S
Max. spindle speed 10,000 1/min
Rapid Motion Z-Axis: 30 m/min
Rapid Motion X-Achse: 60 m/min
Dimensions: 3400mm x 2650 mm 2760 mm
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action
Watch the Machinery at work—capturing its quality in a real production environment.
More Machines from The Same Product Line
Explore additional assets from the same automotive painting and assembly line—available for standalone purchase or full-line relocation.
Machinery from The Same Factory
Explore high-value equipment originally operated within this factory—available individually or as part of a larger line or plant acquisition.
Your Contacts for This Project
Have questions about the machine, logistics, or technical details? Reach out directly to our specialists—they’ll guide you through every step with clarity and care.
