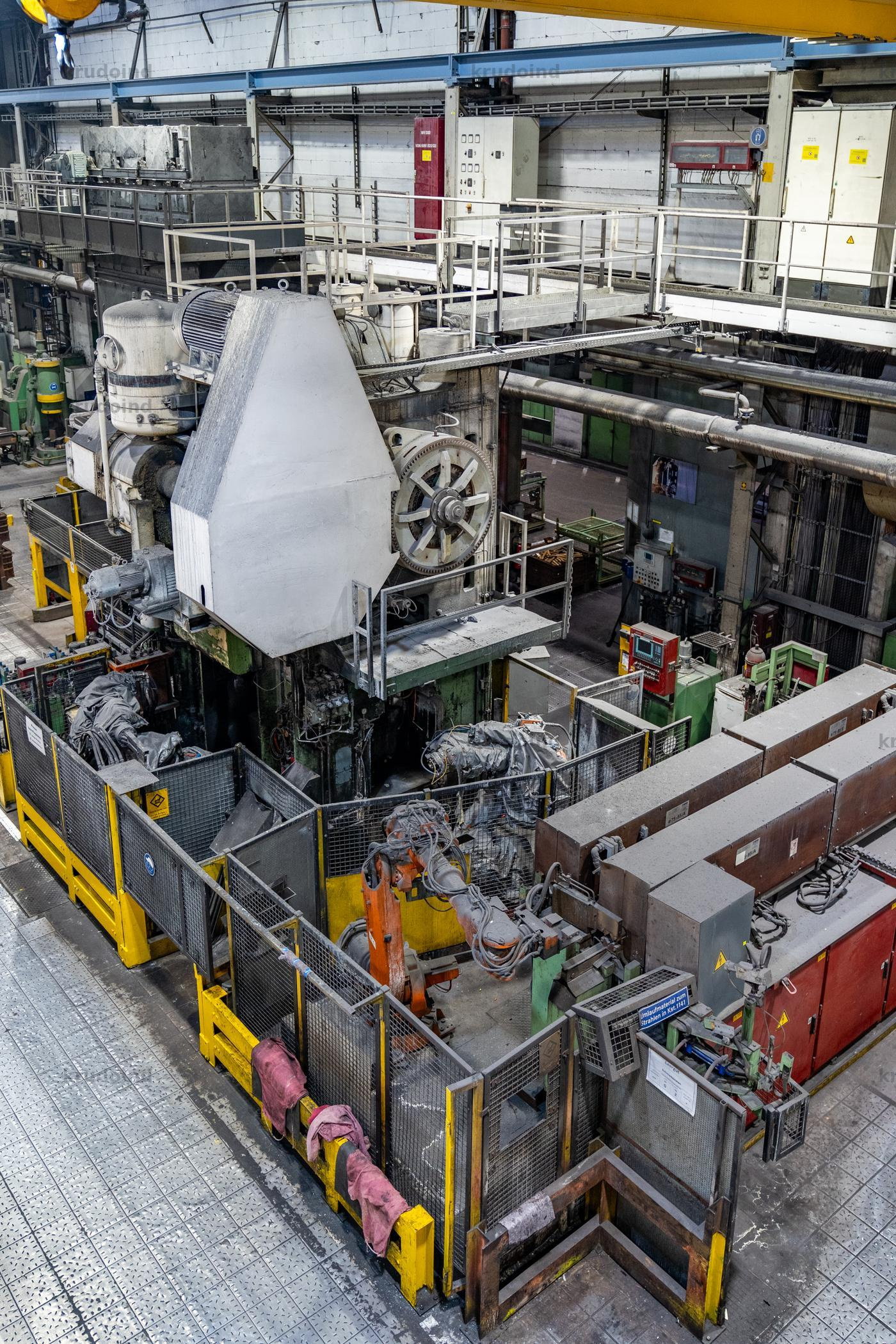

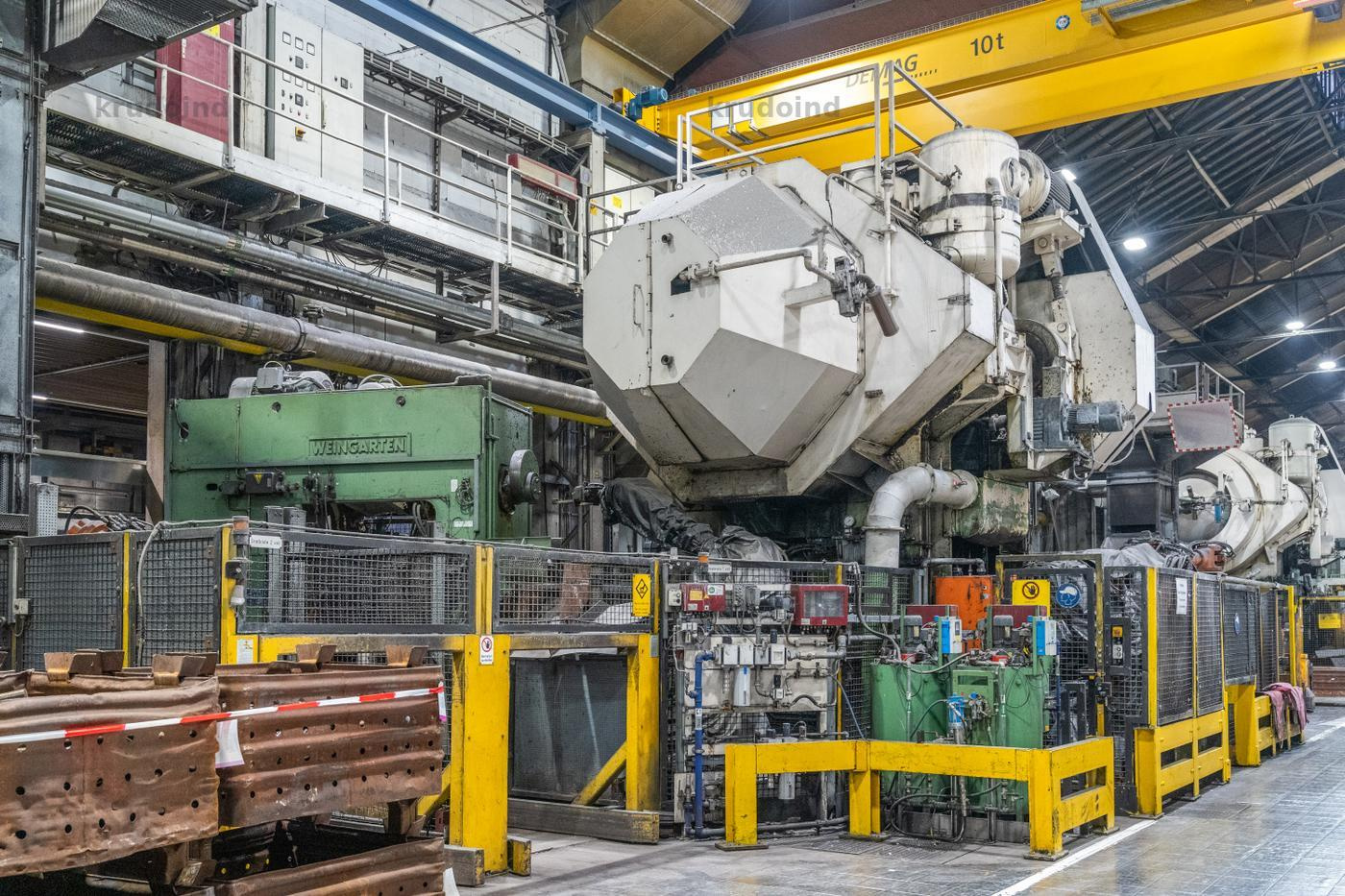

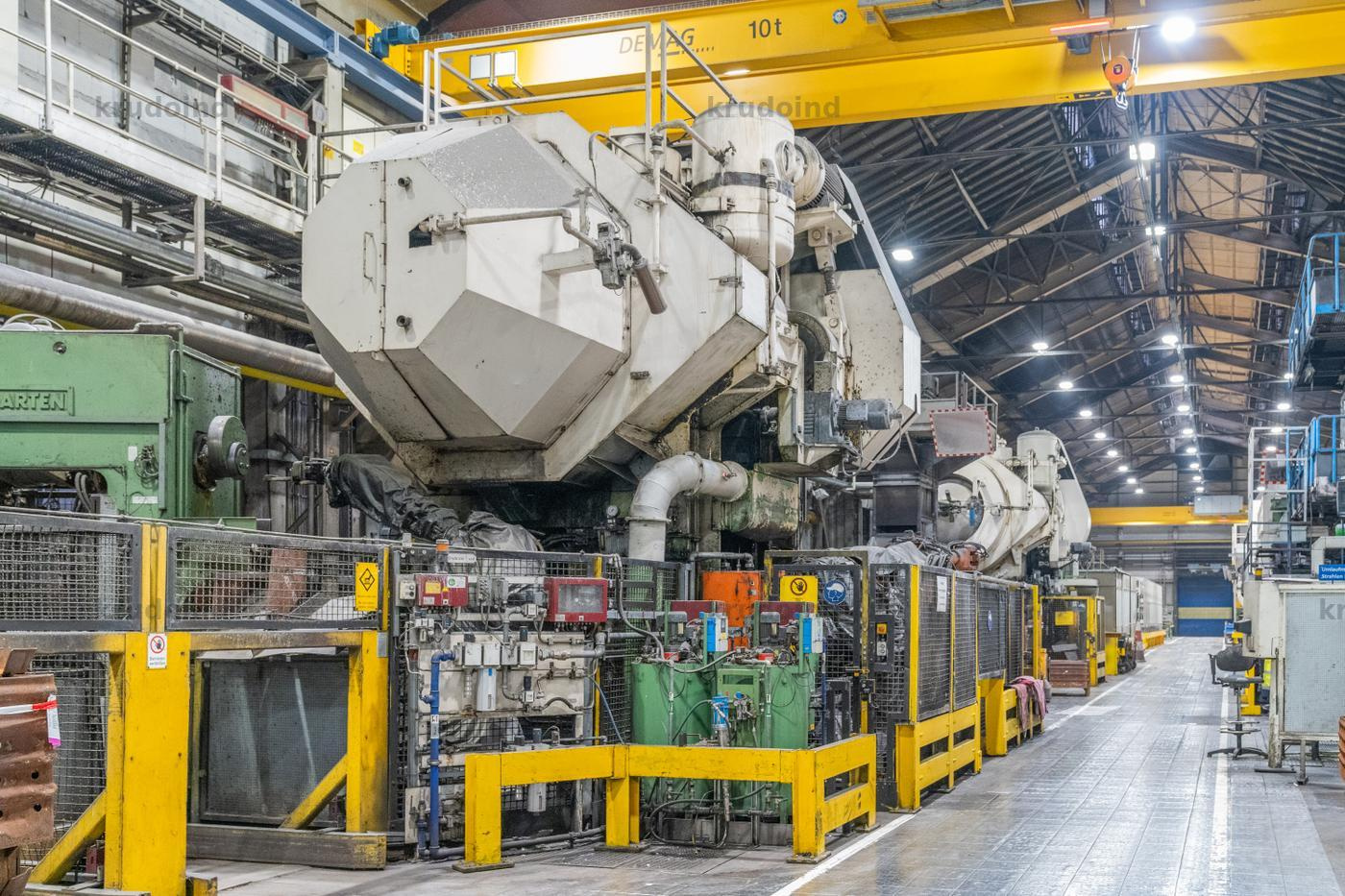

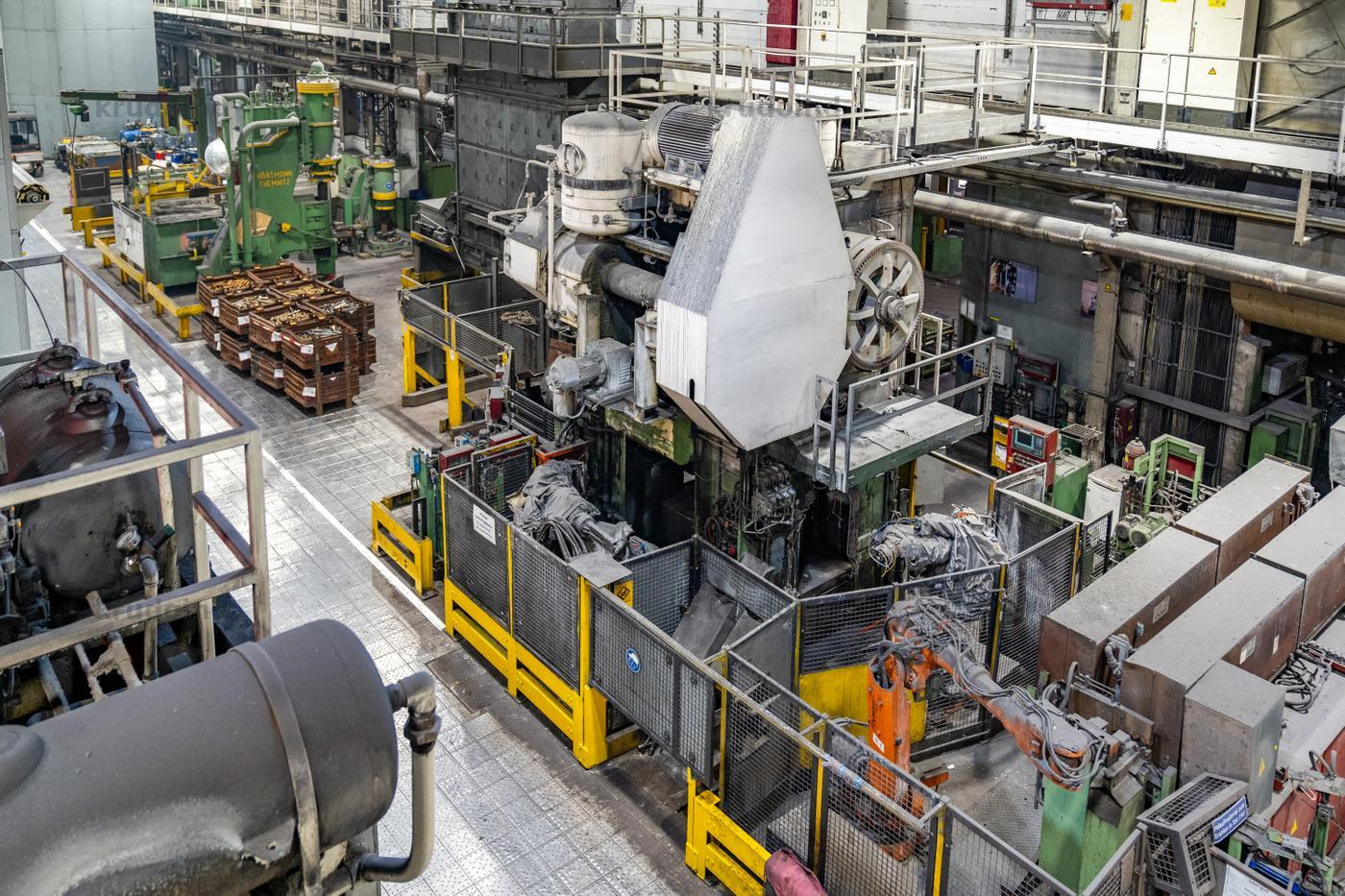

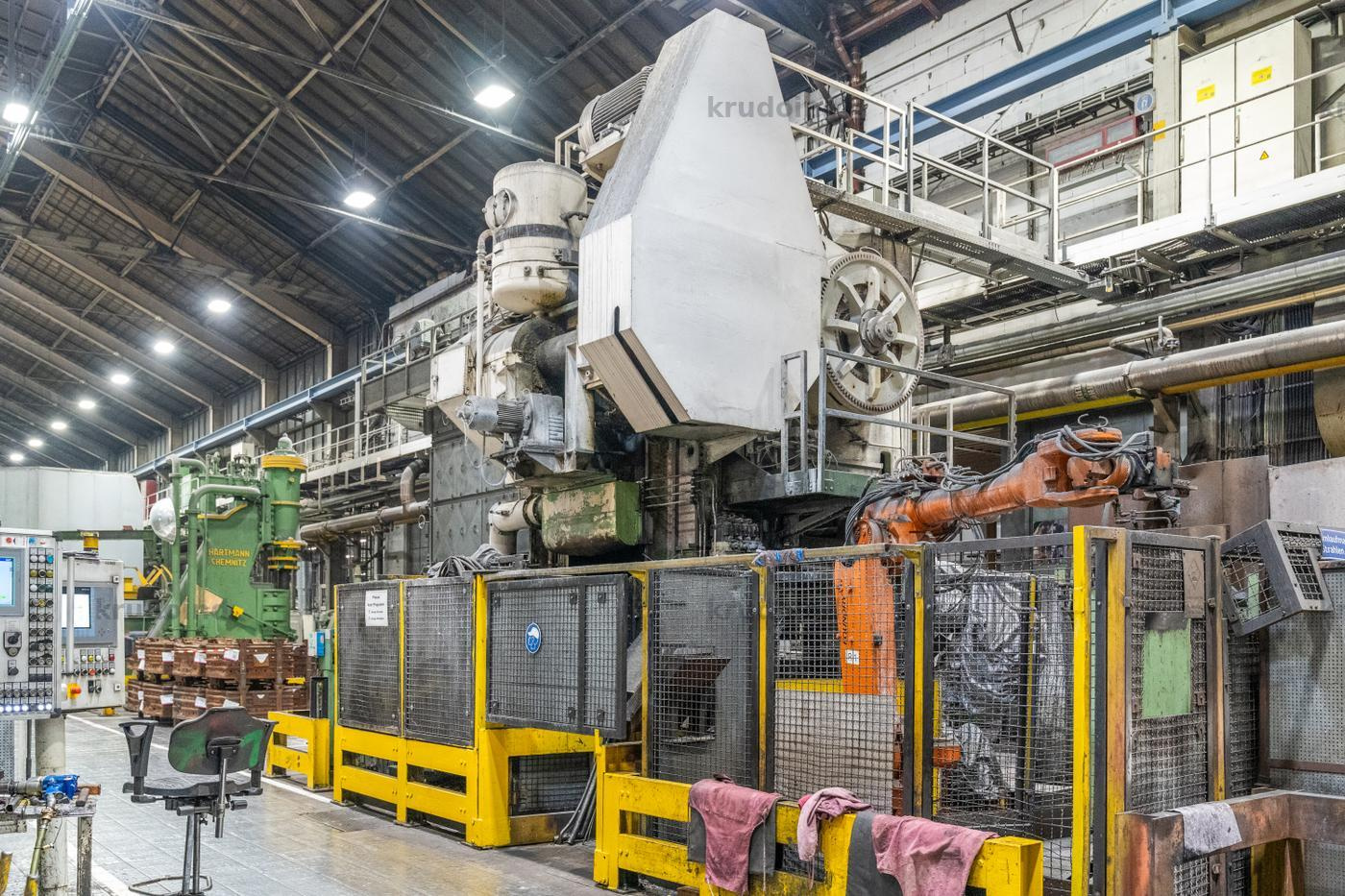

C54: Forging Line with Hasenclever VEPES 3150 (YoM: 1977)
Automated Forging & Machining Line
Description
This complete Forging Line C54 consists of several machines as listed below.
The main specifications of the C54 - Hasenclever VEPES 3150 are as follows:
Forging line C54
Make: Hasenclever
Model: VEPES 3150/1250/305
Machine number: 7271
- Nominal force: 3150 Mp
- Clear stand width: 1250 mm
- Table clamping surface
- Width from left to right: 1235 mm
- Depth from front to back: 1600 mm
- Slide clamping surface
- Width from left to right: 1180 mm
- Depth from front to back: 1160 mm
- Clear heights between table and ram
- Stroke and slide adjustment below: 935+300 mm
- Lift and slide adjustment above: 1264+300 mm
- Central height adjustment of the carriage
- By hand: -
- Through auxiliary engine and gearbox: 24 mm
- Adjustment motor
- Rated capacity: 7,35 kW
- Speed: 14,5 U/min
- Slide stroke: 305 mm
- Number of strokes per minute: *70*
- Drive motor
- Rated capacity: 150 kW
- Number of revolutions: 1500 U/min
- Electrical equipment is designed for:
- Cycles: 3
- Volt: 380
- Tension: 50
- Required compressed air: 50 atü
- Total weight: 198 t
Die deutsche Übersetzung finden Sie unten:
Schmiedelinie C54
Hersteller: Hasenclever
Model: VEPES 3150/1250/305
Maschinennummer: 7271
- Nennkraft: 3150 Mp
- Lichte Ständerweite: 1250 mm
- Tischspannfläche
- Breite von links nach rechts: 1235 mm
- Tiefe von vorne nach hinten: 1600 mm
- Schlittenspannfläche
- Breite von links nach rechts: 1180 mm
- Tiefe von vorne nach hinten: 1160 mm
- Lichte Höhen zwischen Tisch und Schlitten
- Hub und Schlittenverstellung unten: 935+300 mm
- Hub und Schlittenverstellung oben: 1264+300 mm
- Zentrale Höhenverstellung des Schlittens
- Von Hand: -
- Durch Hilfsmotor und Getriebe: 24 mm
- Verstellmotor
- Nennleistung: 7,35 kW
- Drehzahlt: 14,5 U/min
- Schlittenhub: 305 mm
- Hubzahl pro Minute: *70*
- Antriebsmotor
- Nennleistung: 150 kW
- Drehzahl: 1500 U/min
- Elektrische Ausrüstung ist ausgelegt für:
- Zyklen: 3
- Volt: 380
- Spannung: 50 Hz
- Erforderliche Druckluft: 50 atü
- Gesamtgewicht: 198 t
Further machines belonging to this forging line are:
3.1. Feeder, Make Fröhlich WS800/1000, YoM: 1983
3.2. Induction Furnace, Make AEG Elotherm BTH2/4805, YoM: 2008
3.3. Trimming Press, Make Weingarten DE200, 12SP, YoM: 1976
3.4. Cooling Tower, Make Köbo, YoM: 1976
3.5. (6) Robots, Make ABB IRB6620-150/2,2, YoM: 2009
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.

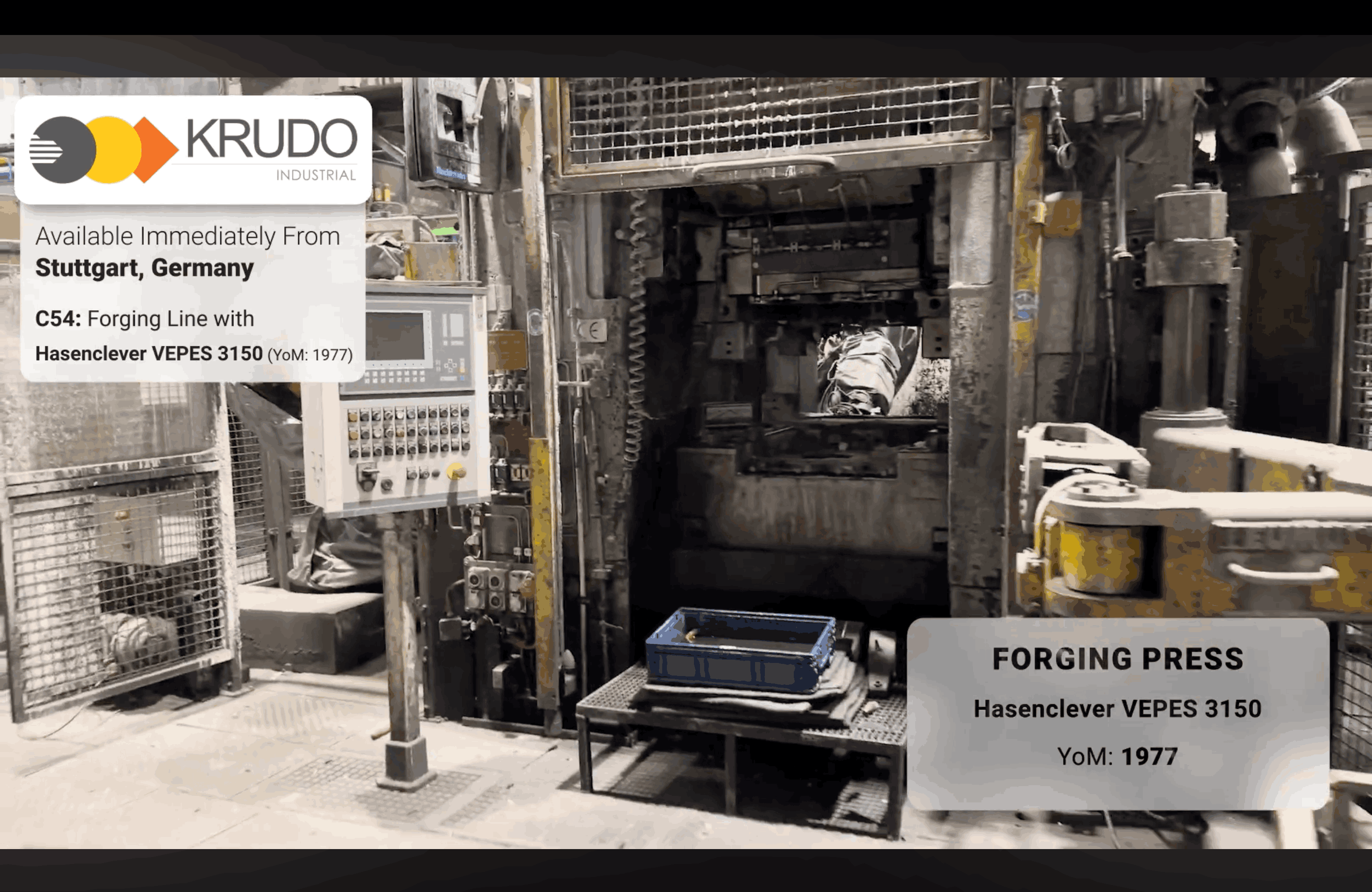

See It in Action
