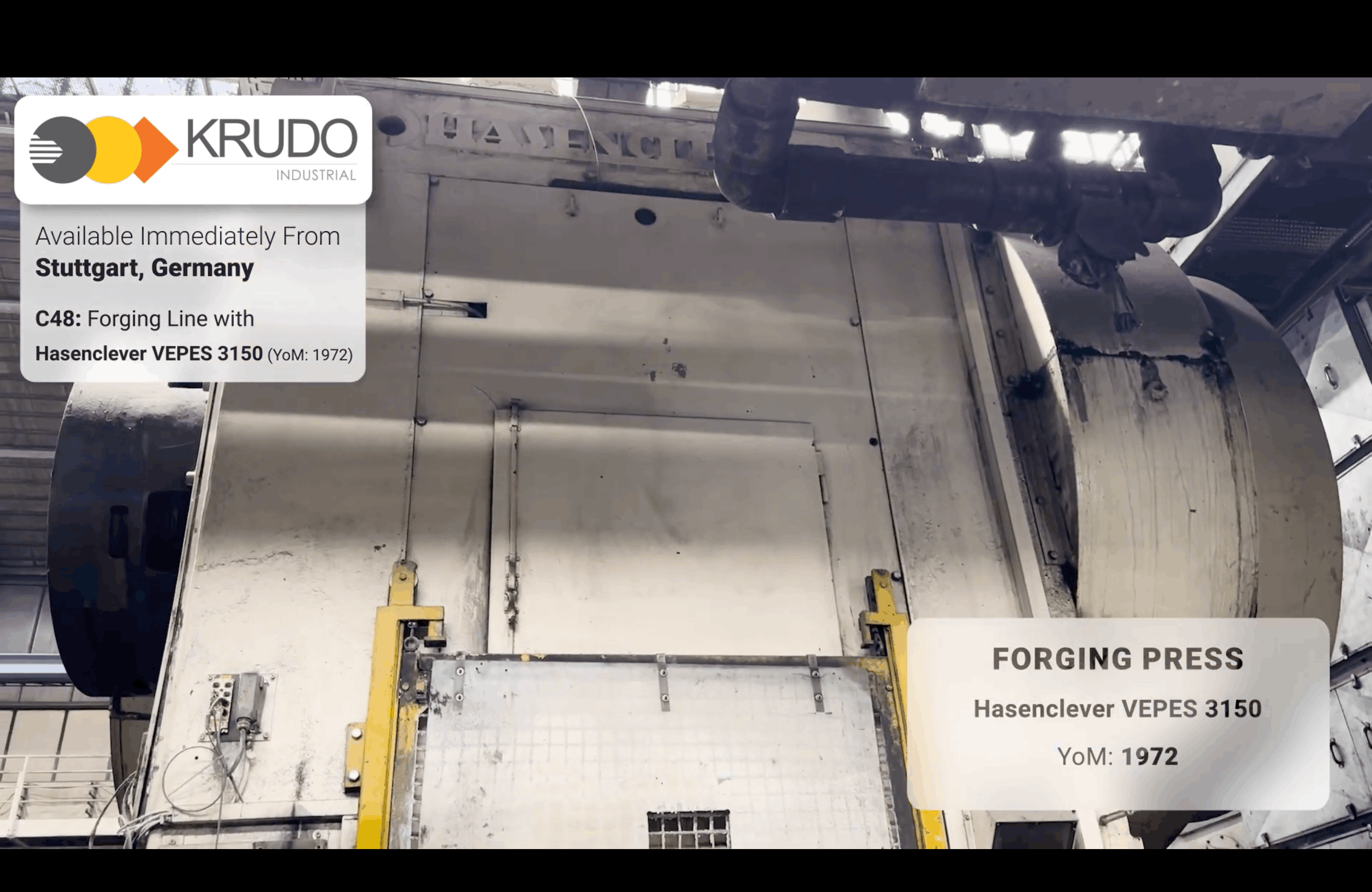

C48: Forging Line with Hasenclever VEPES 3150 (YoM: 1972)
High-Throughput Cold Forging and Machining Line
Description

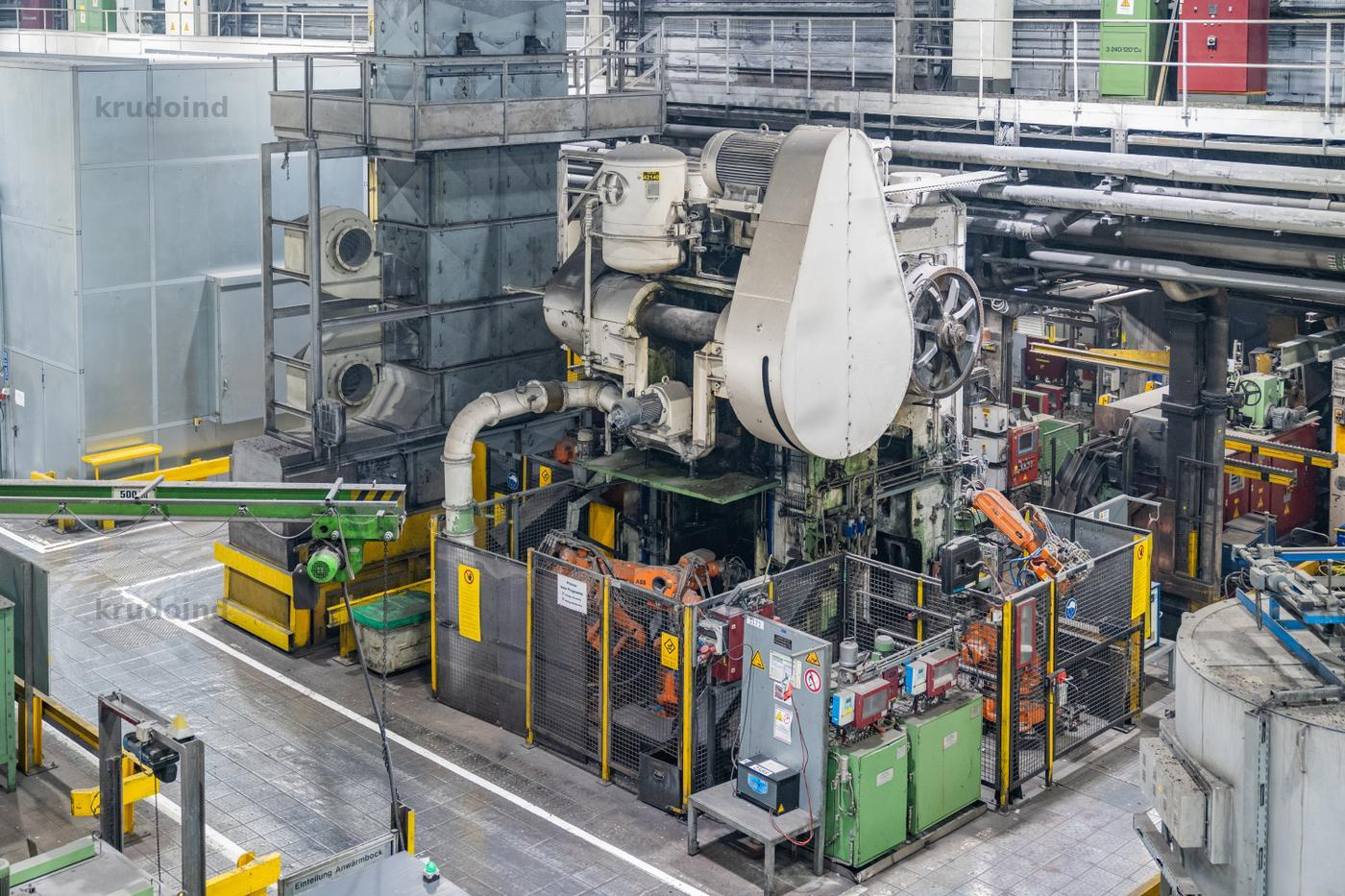

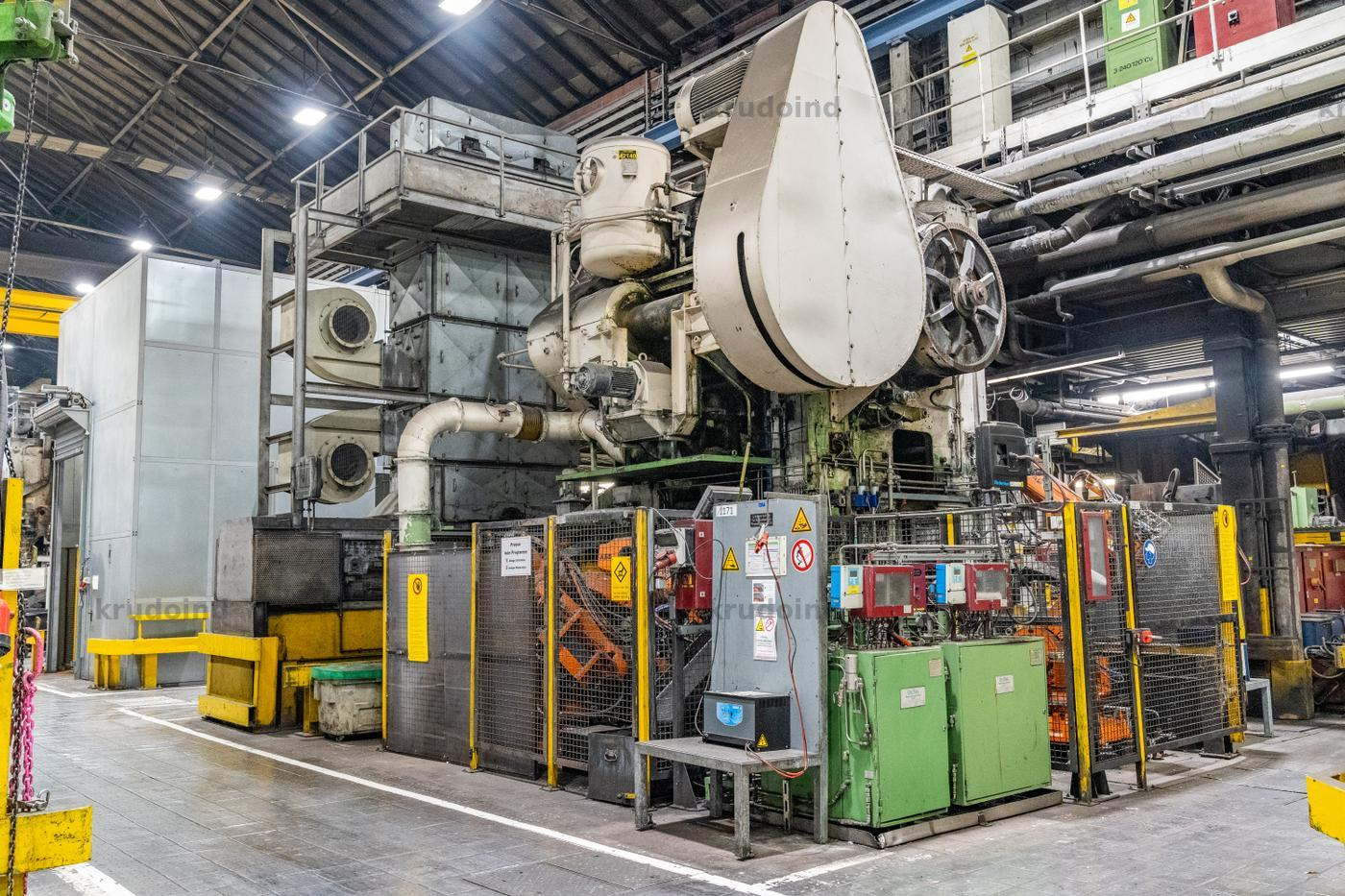

This complete Forging Line C48 consists of several machines as listed below.

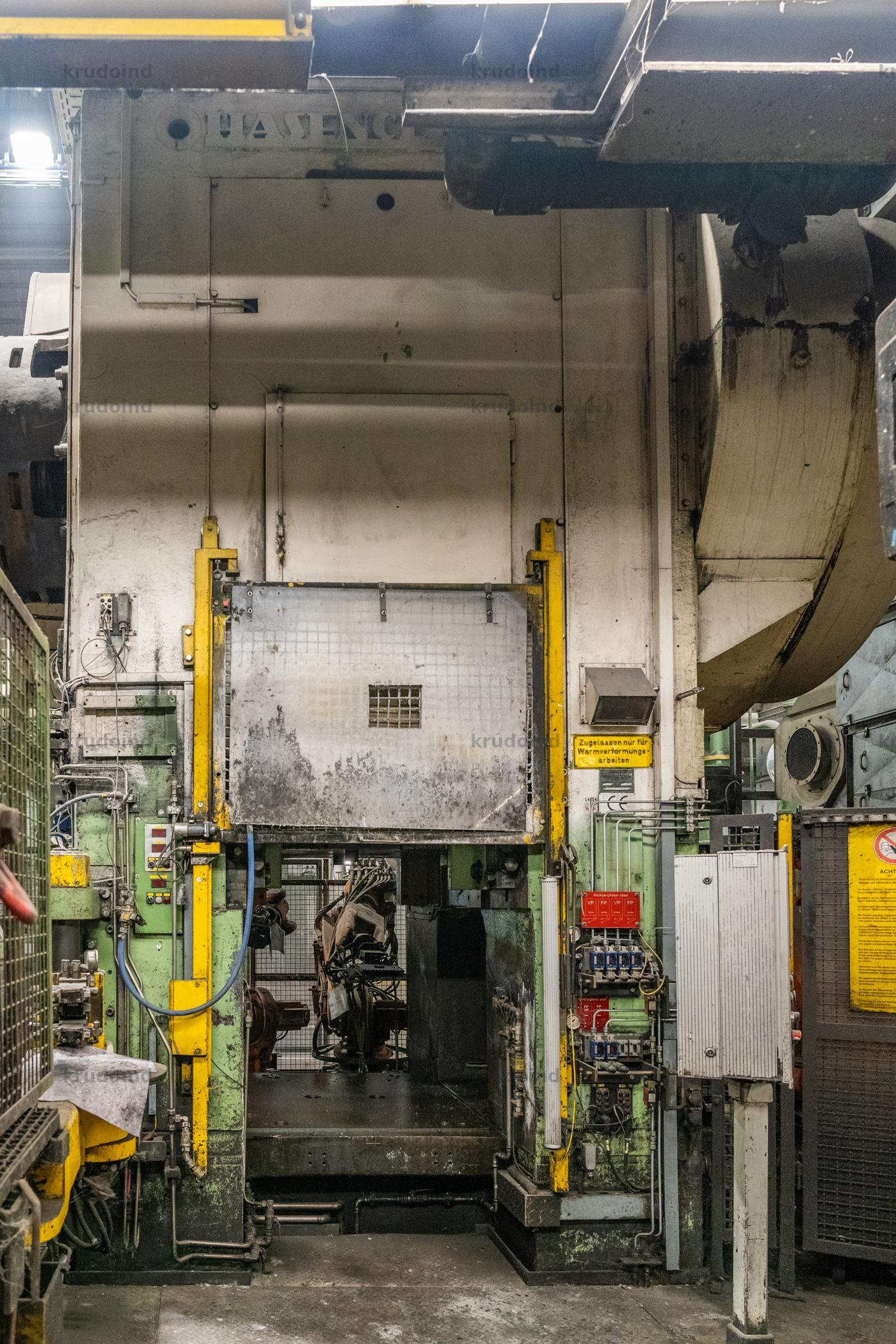

The main specifications of the C48 - Hasenclever VEPES 3150 are as follows:
Forging line C48
Make: Hasenclever
Model: VEPES 3150/1250/305
Machine number: 7429
- Nominal force: 3150 MP
- Clear stand width: 1250 mm
- Table clamping surface
- Width from left to right: 1235 mm
- Depth from front to back: 1600 mm
- Slide clamping surface
- Width from left to right: 1180 mm
- Depth from front to back: 1120 mm
- Clear heights between table and ram
- Stroke and slide adjustment below: 1026 mm
- Lift and slide adjustment above: 1355 mm
- Central height adjustment of the carriage
- By hand: -
- Through auxiliary engine and gearbox: 24 mm
- Adjustment motor
- Rated capacity: 7,35 kW
- Speed: 14,5 U/min
- Slide stroke: 305 mm
- Number of strokes per minute: 60
- Drive motor
- Rated capacity: 150 kW
- Number of revolutions: 1500 U/min
- Electrical equipment is designed for:
- Cycles: 3
- Volt: 380
- Tension: 50
- Required compressed air: 50 atü
- Total weight: 203 t
Die deutsche Übersetzung finden Sie unten:
Schmiedelinie C48
Hersteller: Hasenclever
Model: VEPES 3150/1250/305
Maschinennummer: 7429
- Nennkraft: 3150 Mp
- Lichte Ständerweite: 1250 mm
- Tischspannfläche
- Breite von links nach rechts: 1235 mm
- Tiefe von vorne nach hinten: 1600 mm
- Schlittenspannfläche
- Breite von links nach rechts: 1180 mm
- Tiefe von vorne nach hinten: 1120 mm
- Lichte Höhen zwischen Tisch und Schlitten
- Hub und Schlittenverstellung unten: 1026 mm
- Hub und Schlittenverstellung oben: 1355 mm
- Zentrale Höhenverstellung des Schlittens
- Von Hand: -
- Durch Hilfsmotor und Getriebe: 24 mm
- Verstellmotor
- Nennleistung: 7,35 kW
- Drehzahlt: 14,5 U/min
- Schlittenhub: 305 mm
- Hubzahl pro Minute: 60
- Antriebsmotor
- Nennleistung: 150 kW
- Drehzahl: 1500 U/min
- Elektrische Ausrüstung ist ausgelegt für:
- Zyklen: 3
- Volt: 380
- Spannung: 50 Hz
- Erforderliche Druckluft: 50 atü
- Gesamtgewicht: 203 t
Further machines belonging to this forging line are:
2.1. Spiral Conveyor, Make Fröhlich, YoM: 1987
2.2. Induction Furnace, Make AEG Elotherm BTH2/2 405-NC, YoM: 1999

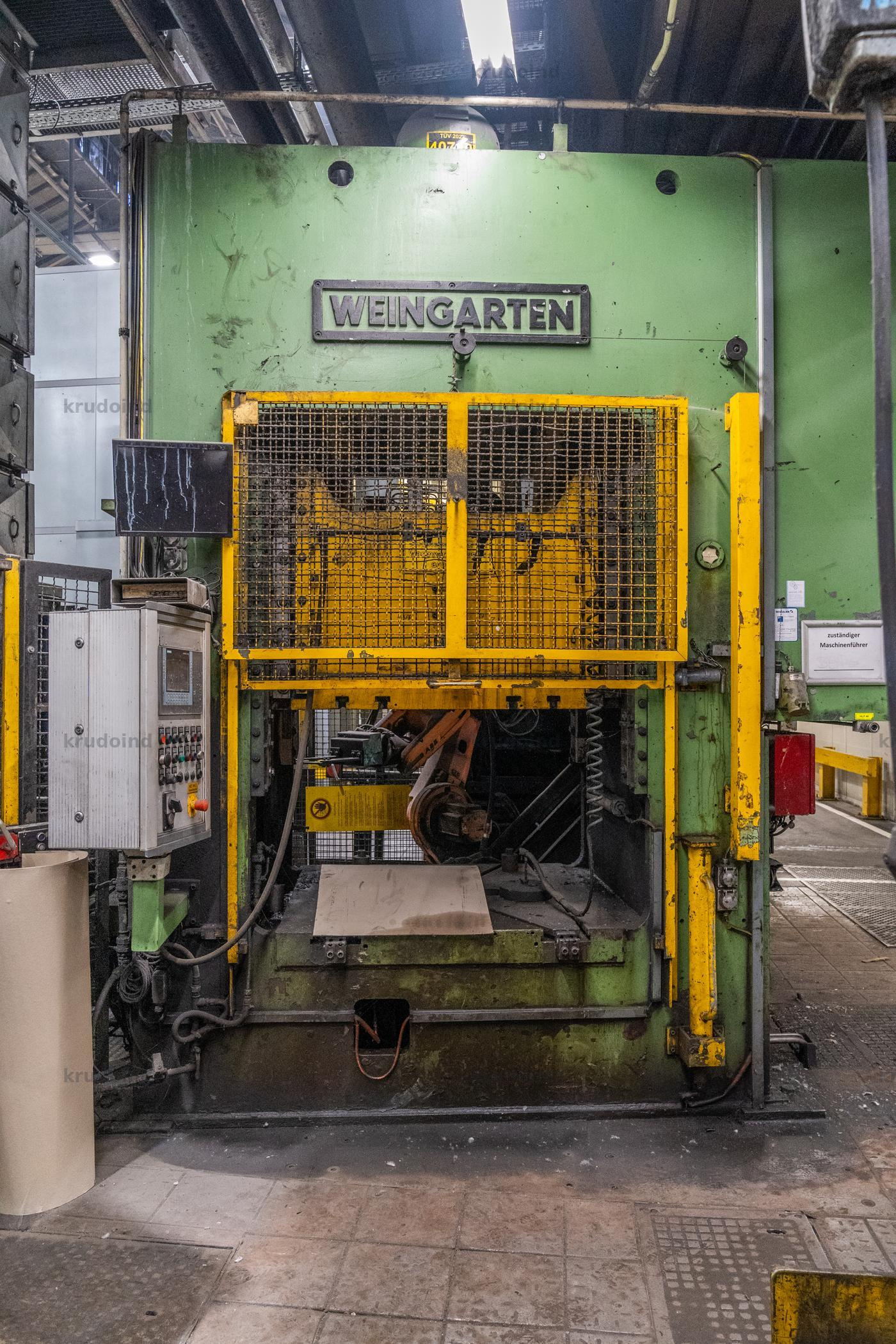

2.3. Trimming Press, Make Weingarten DE2000, 12, YoM: 1975
2.4. Cooling Tower, Make Köbo/Plappert, YoM: 1999
2.5. (5) Robots, Make ABB IRB6620-150/2,2, YoM: 2012
