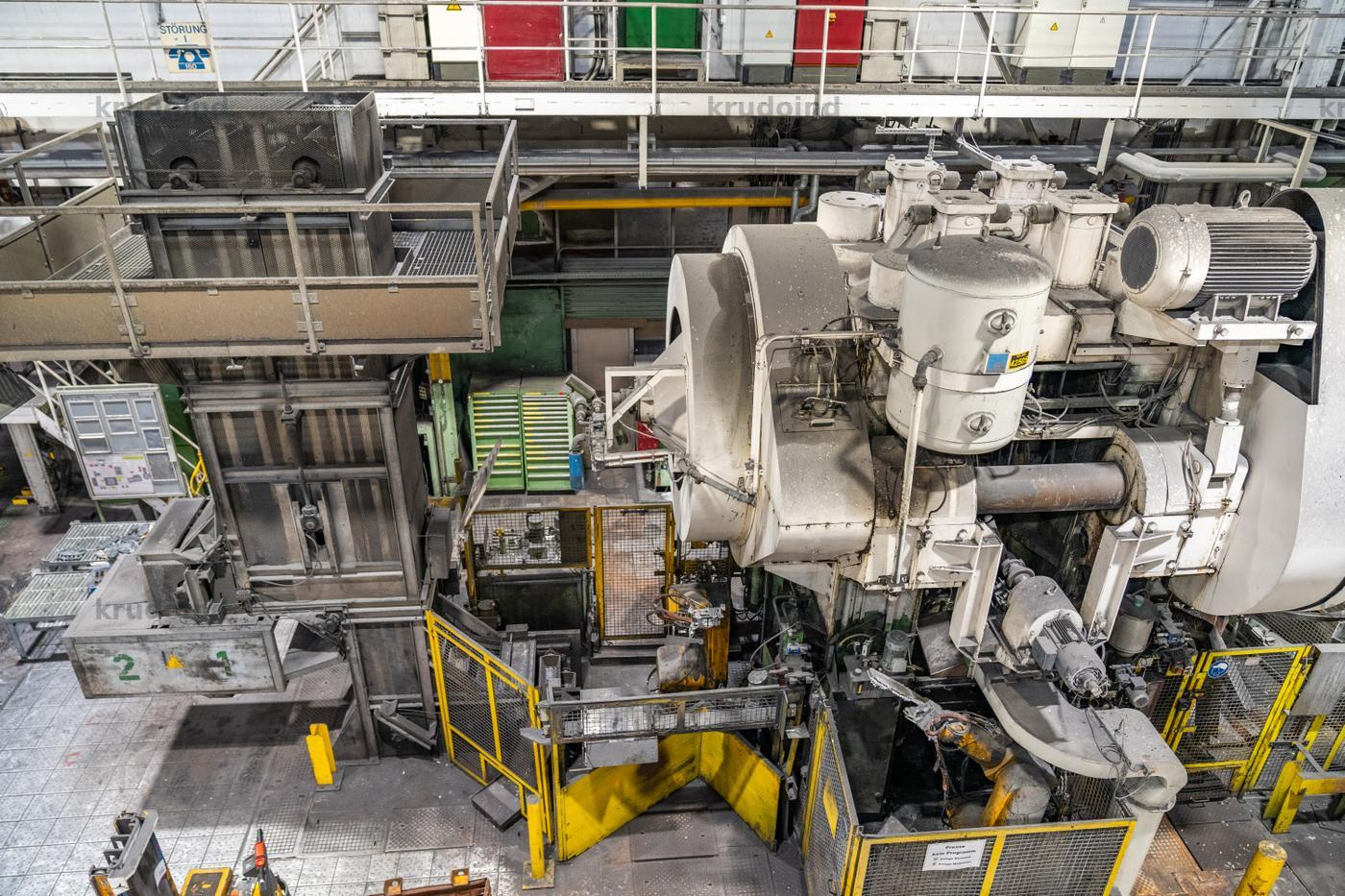

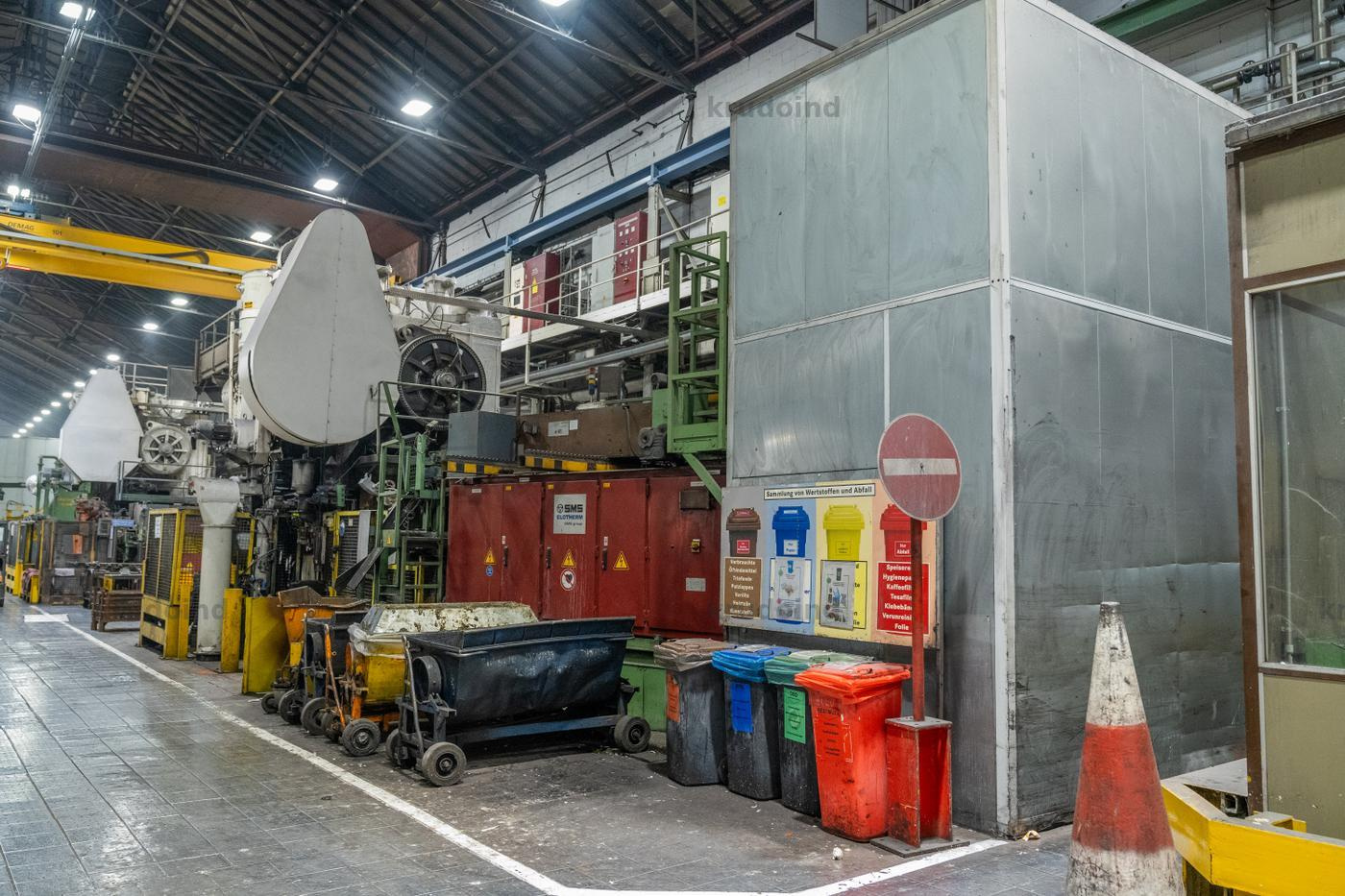

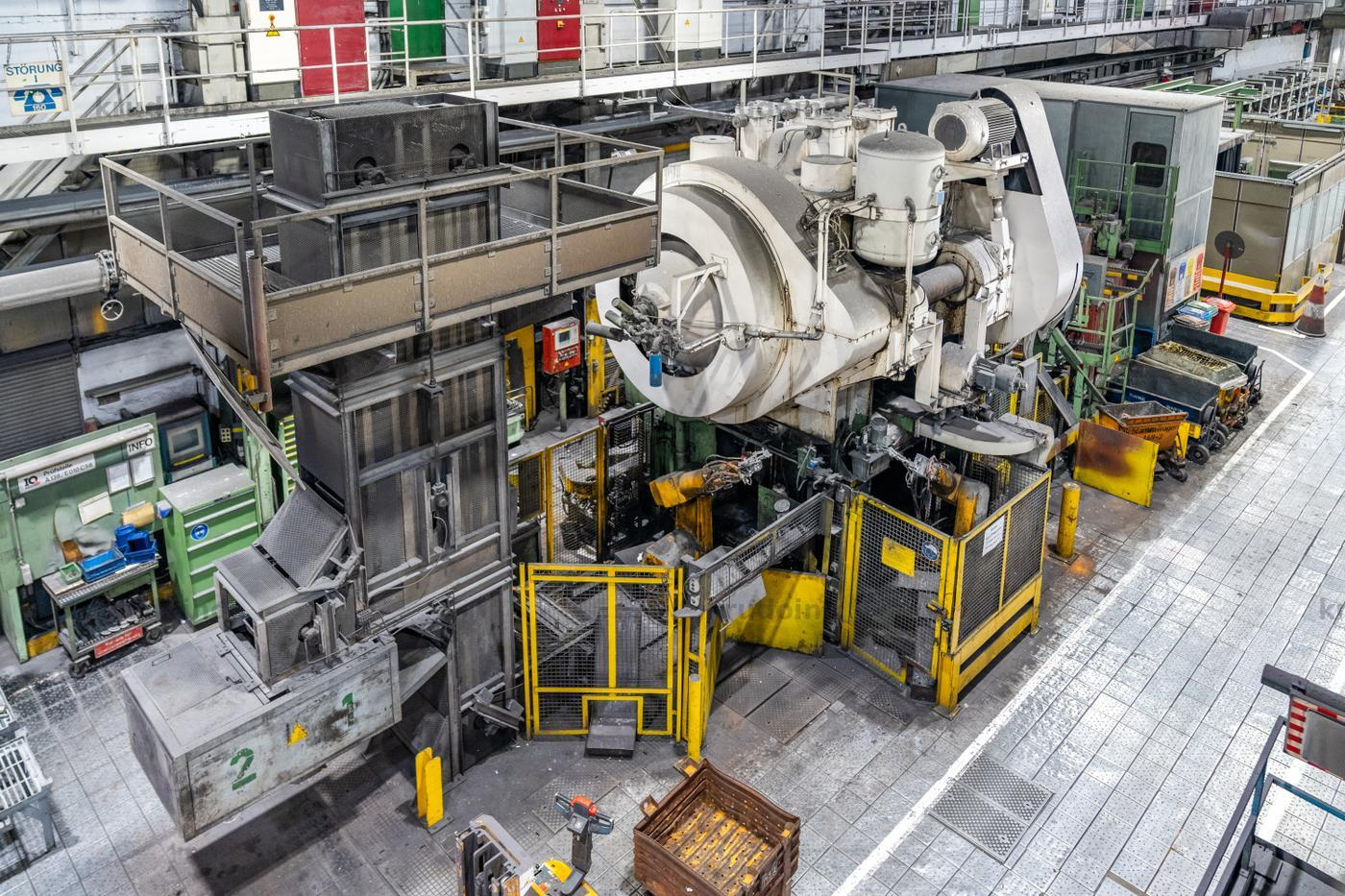

C58: Forging Line with Hasenclever VEPES 3150 (YoM: 1972)
Integrated Forging and Trimming Production Line
Description
This complete Forging Line C58 consists of several machines as listed below.
The main specifications of the C58 - Hasenclever VEPES 3150 are as follows:
Forging line C58
Make: Hasenclever
Model: VEPES 3150/1250/305
Machine number: 7271
- Nominal force: 3150 Mp
- Clear stand width: 1250 mm
- Table clamping surface
- Width from left to right: 1235 mm
- Depth from front to back: 1600 mm
- Slide clamping surface
- Width from left to right: 1120 mm
- Depth from front to back: 1120 mm
- Clear heights between table and ram
- Stroke and slide adjustment below: 935 mm
- Lift and slide adjustment above: 1264 mm
- Central height adjustment of the carriage
- By hand: -
- Through auxiliary engine and gearbox: 24 mm
- Adjustment motor
- Rated capacity: 7,35 kW
- Speed: 14,5 U/min
- Slide stroke: 305 mm
- Number of strokes per minute: 60
- Drive motor
- Rated capacity: 150 kW
- Number of revolutions: 1500 U/min
- Electrical equipment is designed for:
- Cycles: 3
- Volt: 380
- Tension: 50
- Required compressed air: 50 atü
- Total weight: 190 t
Die deutsche Übersetzung finden Sie unten:
Schmiedelinie C58
Hersteller: Hasenclever
Model: VEPES 3150/1250/305
Maschinennummer: 7271
- Nennkraft: 3150 Mp
- Lichte Ständerweite: 1250 mm
- Tischspannfläche
- Breite von links nach rechts: 1235 mm
- Tiefe von vorne nach hinten: 1600 mm
- Schlittenspannfläche
- Breite von links nach rechts: 1120 mm
- Tiefe von vorne nach hinten: 1120 mm
- Lichte Höhen zwischen Tisch und Schlitten
- Hub und Schlittenverstellung unten: 935 mm
- Hub und Schlittenverstellung oben: 1264 mm
- Zentrale Höhenverstellung des Schlittens
- Von Hand: -
- Durch Hilfsmotor und Getriebe: 24 mm
- Verstellmotor
- Nennleistung: 7,35 kW
- Drehzahlt: 14,5 U/min
- Schlittenhub: 305 mm
- Hubzahl pro Minute: 60
- Antriebsmotor
- Nennleistung: 150 kW
- Drehzahl: 1500 U/min
- Elektrische Ausrüstung ist ausgelegt für:
- Zyklen: 3
- Volt: 380
- Spannung: 50 Hz
- Erforderliche Druckluft: 50 atü
- Gesamtgewicht: 190 t
Further machines belonging to this forging line are:
5.1. Step Feeder with Tipper, Make Fröhlich, YoM: 2014
5.2. Induction Furnace, Make SMS Elotherm BTH 2/2405, YoM: 2004
5.3. Stretching Rolls, Make Eumuco ARWS 1A, YoM: 1995
5.4. (3) Robots, Make Stäubli, YoM: 2009
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.

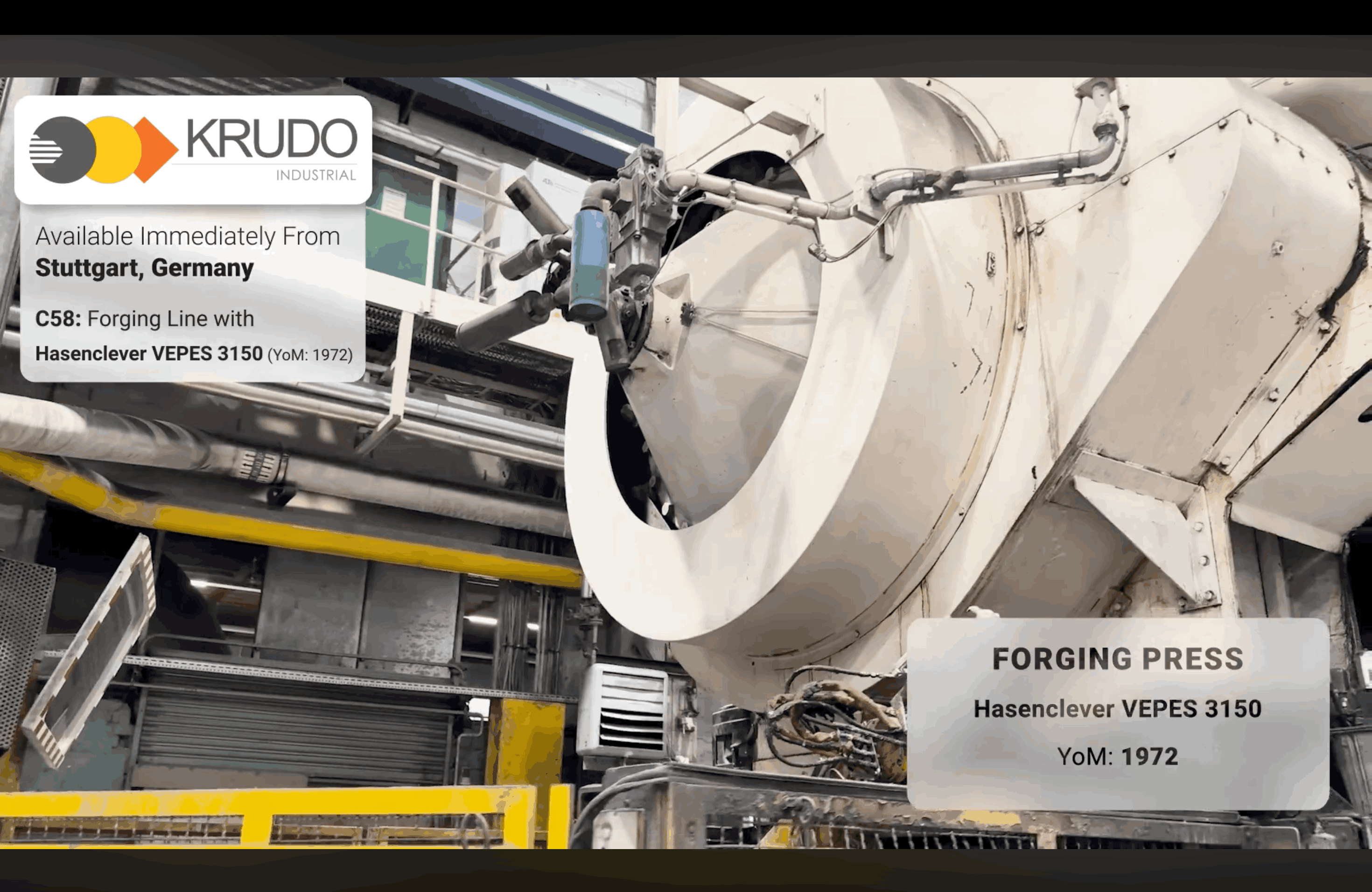

See It in Action
