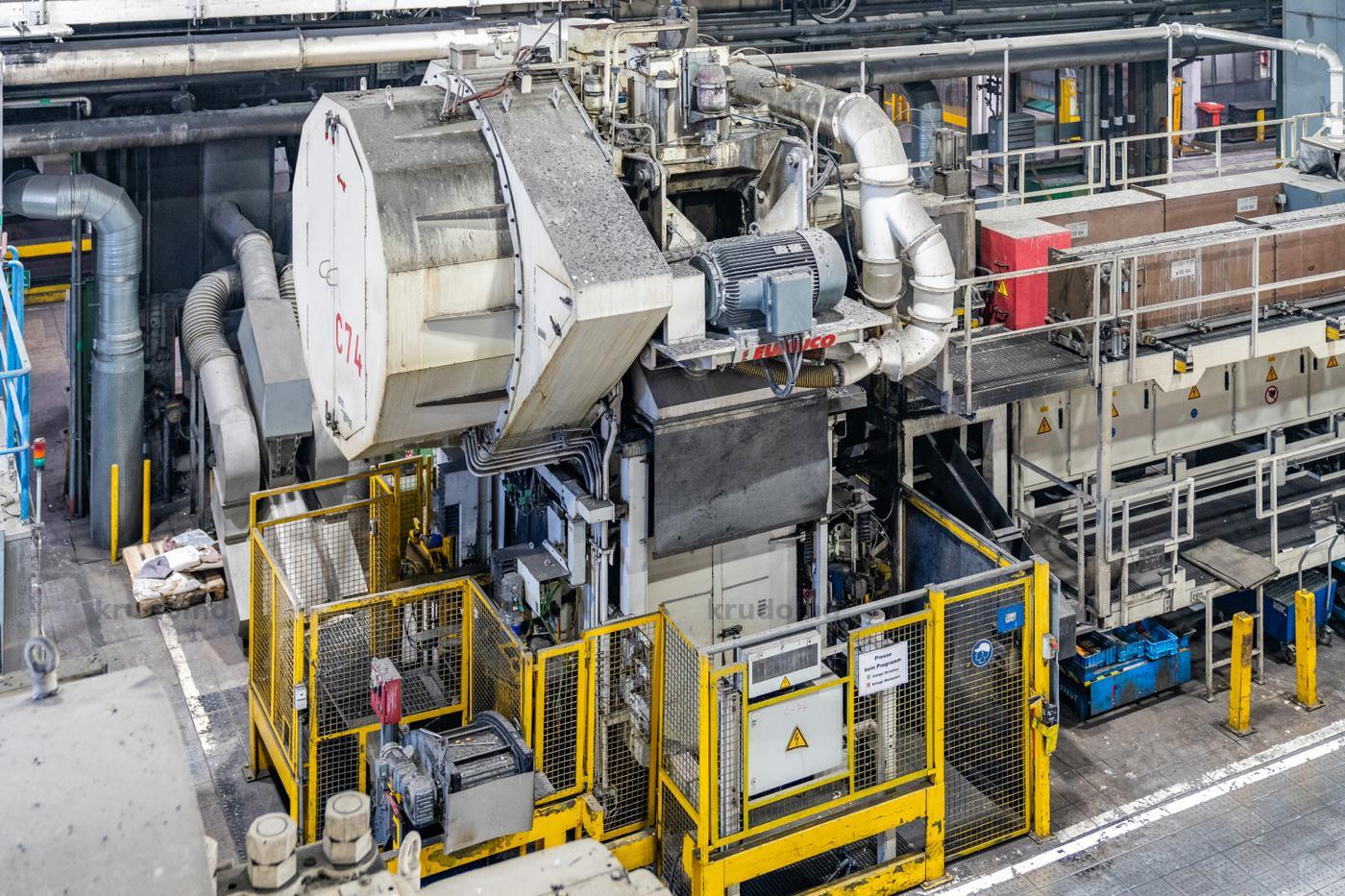

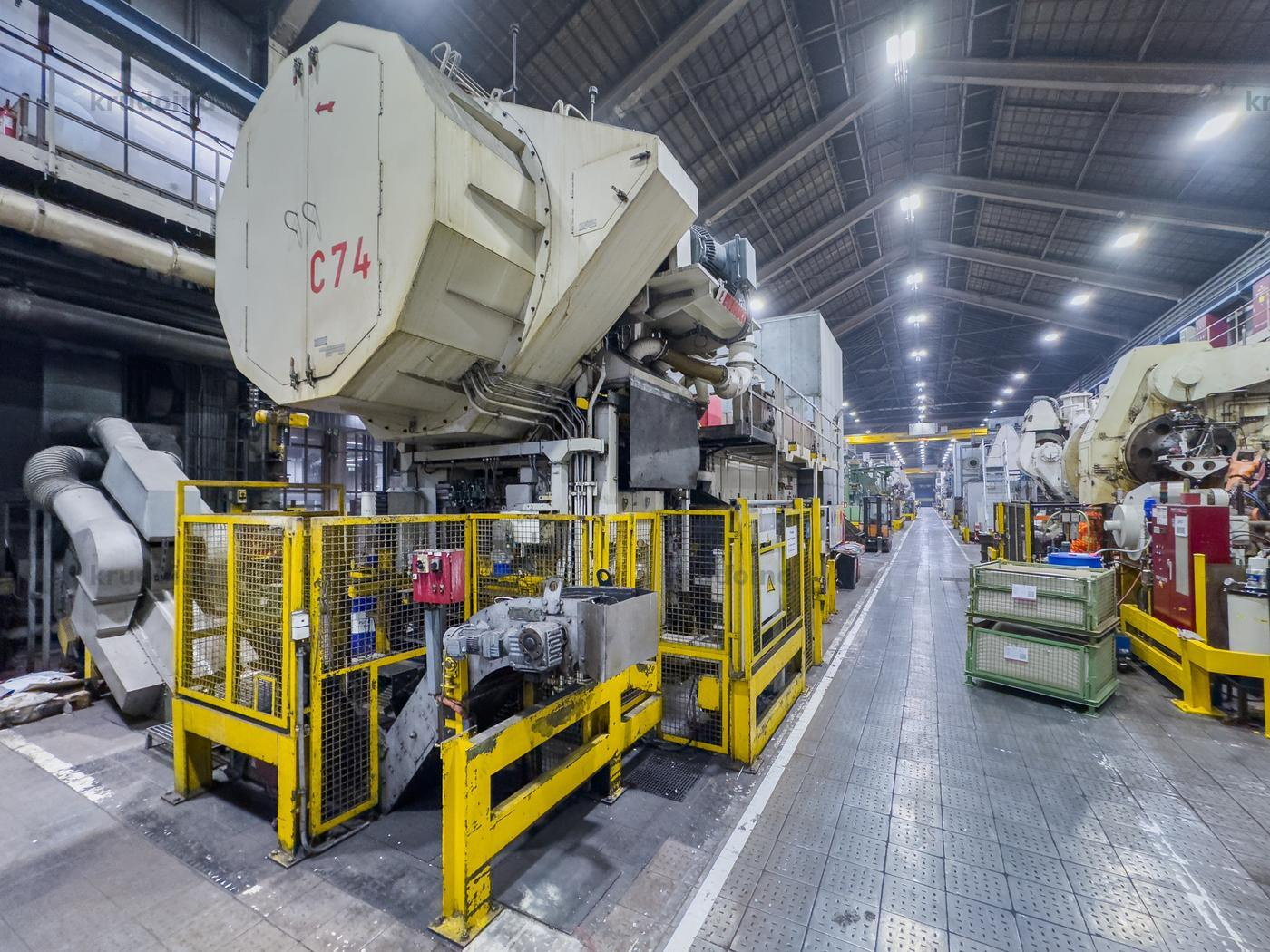

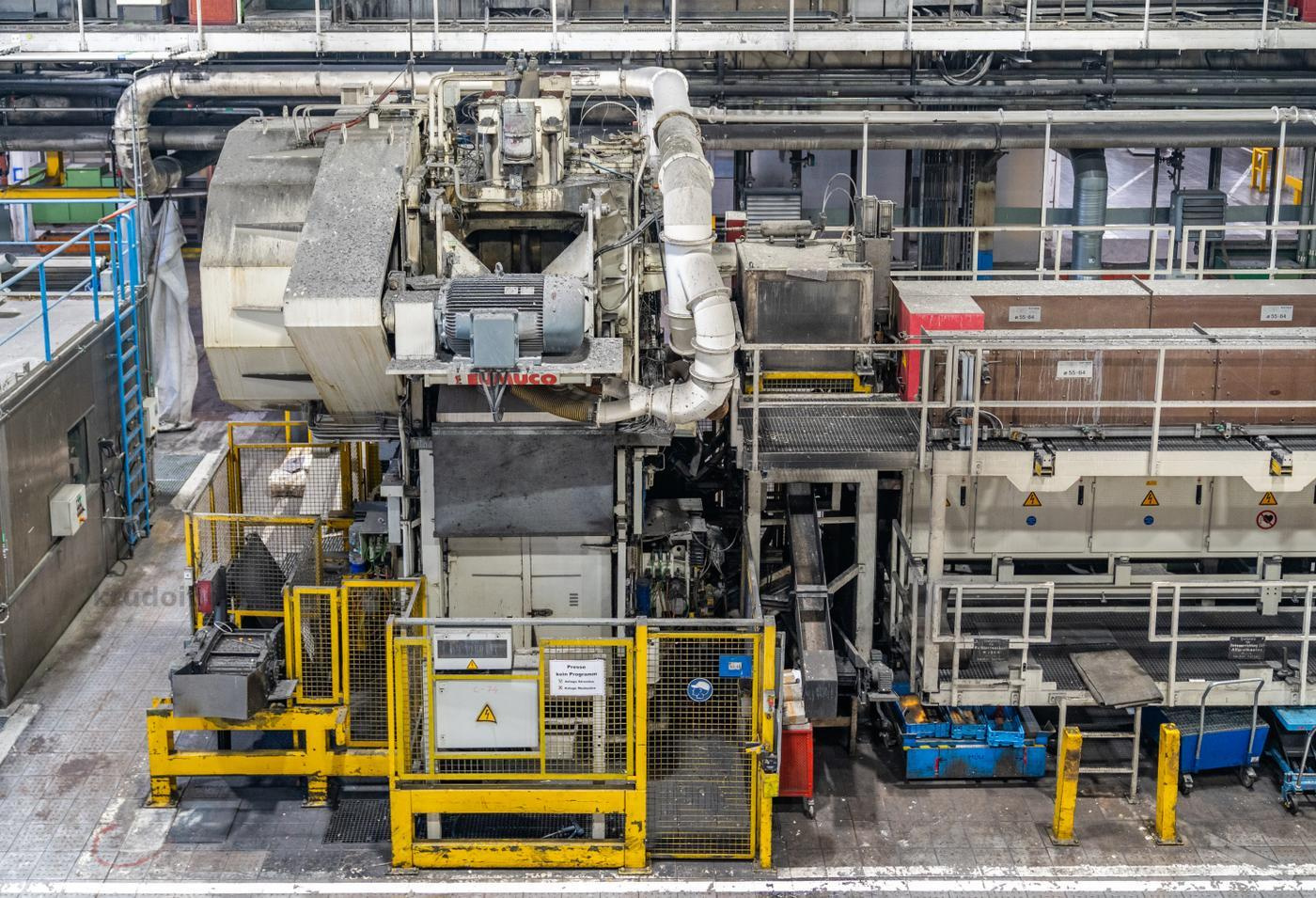

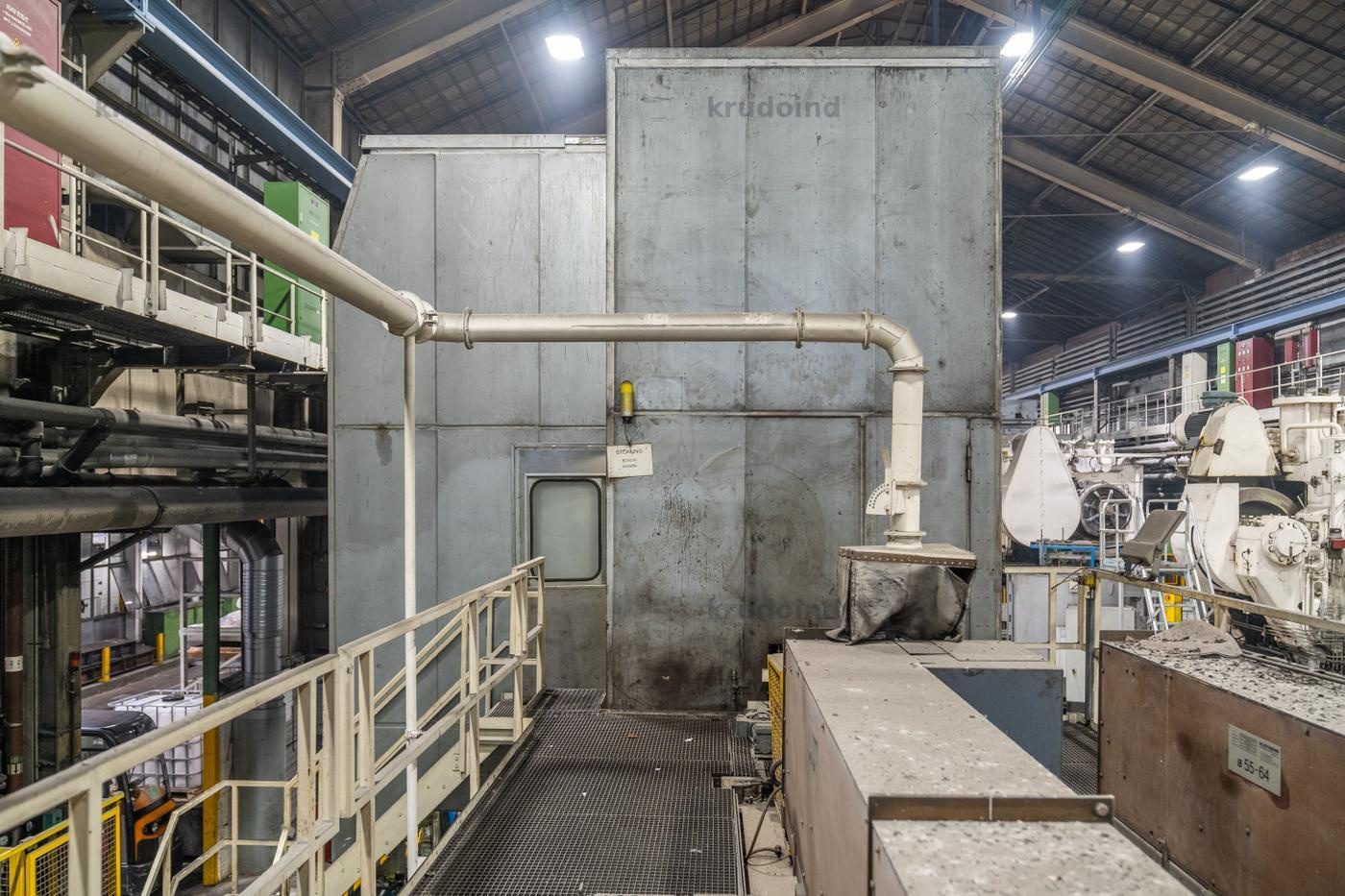

C74: Forging Line with EUMUCO AMP 1600 (YoM: 1986/2002)
High-Throughput Forging and Trimming Line
Description
This complete Forging Line C74 consists of several machines as listed below.
The main specifications of the C74 - EUMUCO AMP 1600 are as follows:
Forging line C74
Manufacturer: SMS EUMUCO
Model: AMP1600 with HCBS
Machine number: 71027
- Nominal pressing force: 16 Mn
- Clear stand width: 1160 mm
- Table clamping Surface
- Width from left to right: 1120 mm
- Depth front to back: 1400mm
- Slide clamping surface
- Width from left to right: 1180 mm
- Depth front to back: 1120mm
- Clear heights between table and carriage
- Stroke and slide adjustment below: 1026 mm
- Stroke and slide adjustment at top: 1355 mm
- Plunger adjustment path: 18 mm
- Ram output:
- Ram ejector stroke: approx. 32 mm (mechanical)
- Table ejector stroke: up to 130mm (hydraulic)
- Ram stroke: 310 mm
- Number of strokes per minute: 80 max.
- EHA automatic walking beam
- Step: 0-400mm
- Lifting stroke: 0-250 mm
- Additional front stroke max: 300 mm
- Opening stroke: 0-200mm
- Load capacity max.: 100 kg
- Performance
- Rated power: 130 kW
- Working capacity: 180 kJ
- Connection values:
- Control voltage (AC): 230 V
- Frequency: 50 Hz
- Connected load: 285 kVA
- Compressed air required: approx. 100 m³/h
Die deutsche Übersetzung finden Sie unten:
Schmiedelinie C74
Hersteller: SMS EUMUCO
Model: AMP1600 mit HBKA
Maschinennummer: 71027
- Nennpresskraft: 16 Mn
- Lichte Ständerweite: 1160 mm
- Tischspannfläche
- Breite von links nach rechts: 1120 mm
- Tiefe von vorne nach hinten: 1400 mm
- Schlittenspannfläche
- Breite von links nach rechts: 1180 mm
- Tiefe von vorne nach hinten: 1120 mm
- Lichte Höhen zwischen Tisch und Schlitten
- Hub und Schlittenverstellung unten: 1026 mm
- Hub und Schlittenverstellung oben: 1355 mm
- Stößelverstellweg: 18 mm
- Stößelausstoß
- Stößelausstoßerhub: ca. 32 mm (mechanisch)
- Tischausstoßerhub: bis 130mm (hydraulisch)
- Stößelhub: 310 mm
- Hubzahl pro Minute: 80 max.
- Hubbalkenautomatik EHA
- Schritt: 0-400 mm
- Hebehub:0-250 mm
- Zusatzhub vorne max: 300 mm
- Öffnungshub: 0-200 mm
- Tragkraft max.: 100 kg
- Leistungen
- Nennleistung: 130 kW
- Arbeitsvermögen: 180 kJ
- Anschlusswerte:
- Steuerspannung (AC): 230 V
- Frequenz: 50 Hz
- Anschlussleistung: 285 kVA
- Erforderliche Druckluft: ca. 100 m³/h
Further machines belonging to this forging line are:
4.1. Hydr. Tipping Feeder and Spiral Conveyor, Make Fröhlich, YoM: 2002
4.2. Induction Furnace, Make AEG Elotherm BTH 2/4805, YoM: 2002
4.3. Scraper Conveyor
4.4. Transport Band, Make Comes, YoM: 2002
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.

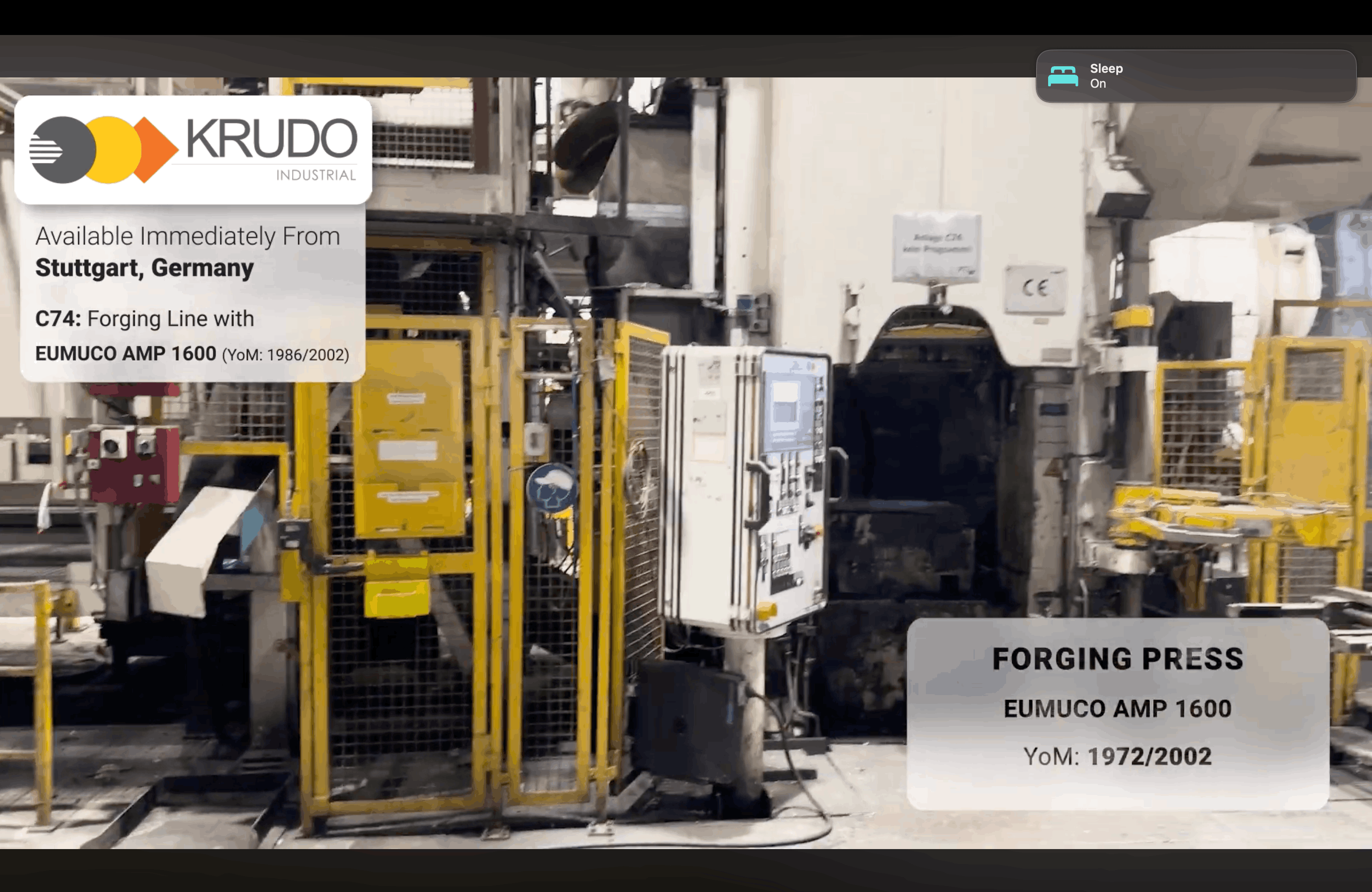

See It in Action
