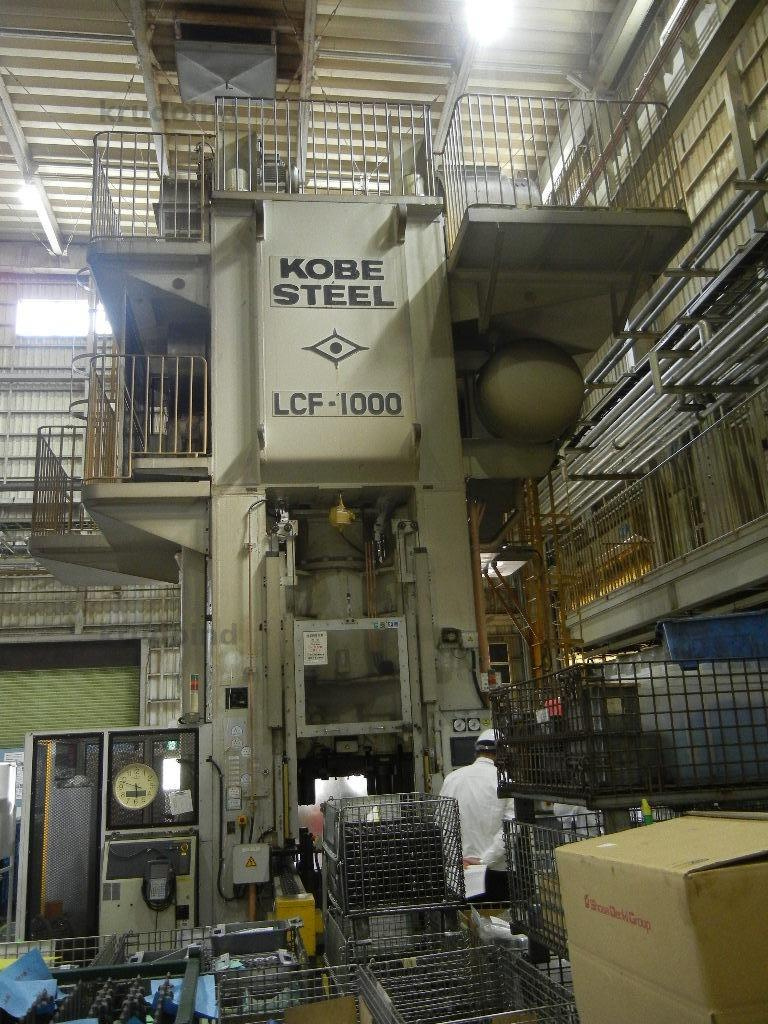

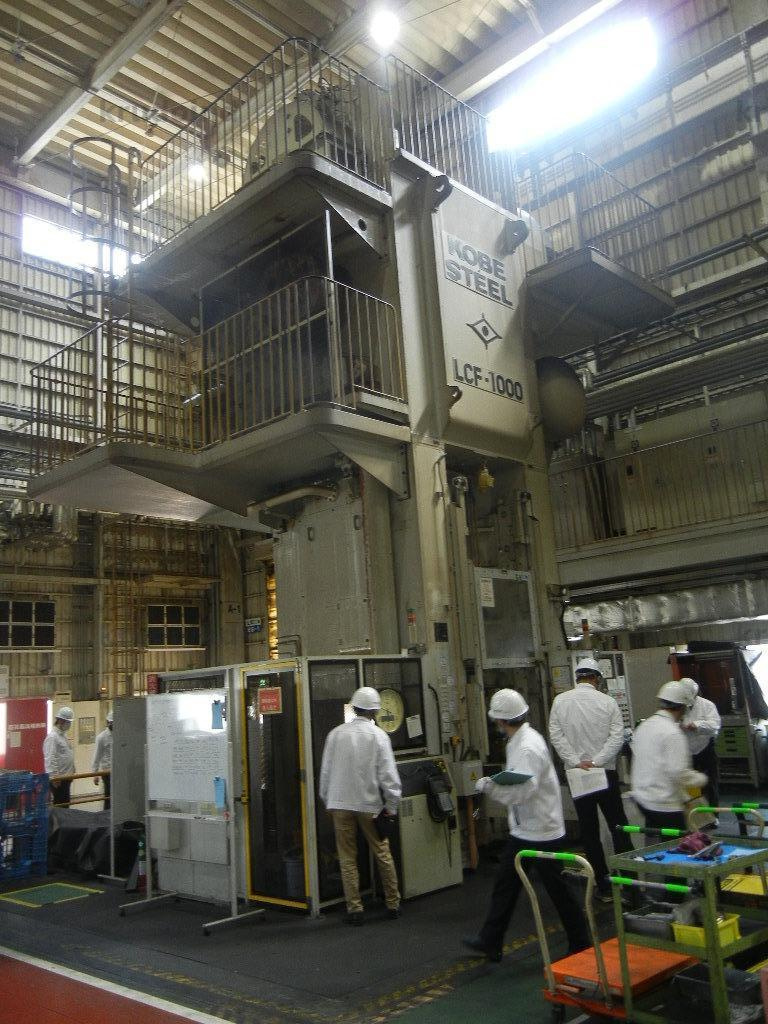

1000t Kobelco Cold Forging Press
Heavy-Duty Cold Forging Press
Description
Technical Details KOBELCO 1000t
General Information:
- Manufacturer: KOBELCO
- Model: LCF-1000
- Type: Cold Forging Press
- Year of Manufacturing: 1971
Specifications:
- Press Capacity: 1000 tons
- Forming Stages: 1
Dimensions and Layout:
- Press Size: 3M width x 9M height
- Die Height: 800 mm
- Slide Dimension (Left to Right): 1000 mm
- Slide Dimension (Front to Back): 1200 mm
- Bolster Dimension (Left to Right): 1000 mm
- Bolster Dimension (Front to Back): 1200 mm
- Thickness: 200 mm
- Slide Adjustment Length: 30 mm
- Stroke Length: 500 mm
- Number of Strokes: 15-20 spm (strokes per minute)
- Maximum Workload: 28 TON-M at 15 SPM
- Main motor: 160Kw/DC
- Press Weight: Approximately 160 tons
Auxiliary Equipment:
- Current Monitoring Device: HM in-house production
- Material Supply Device
- Dust Collector – Asahi Electric Industry – Dry type

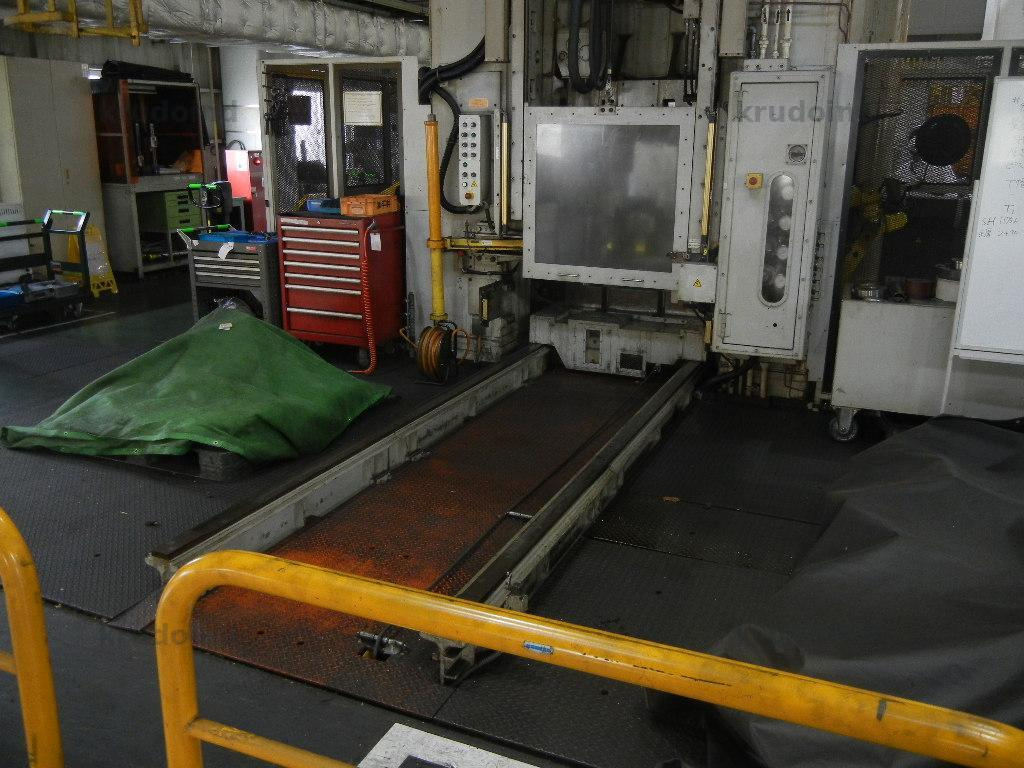

- Quick Die Change (QDC) Device: Kobe Steel
- Die Set Changer: Die set (1 upper unit/2 lower units)
- One-Component Lubricant Application Device: RCD Techno
- Underground Pit: Available (1 hydraulic unit)

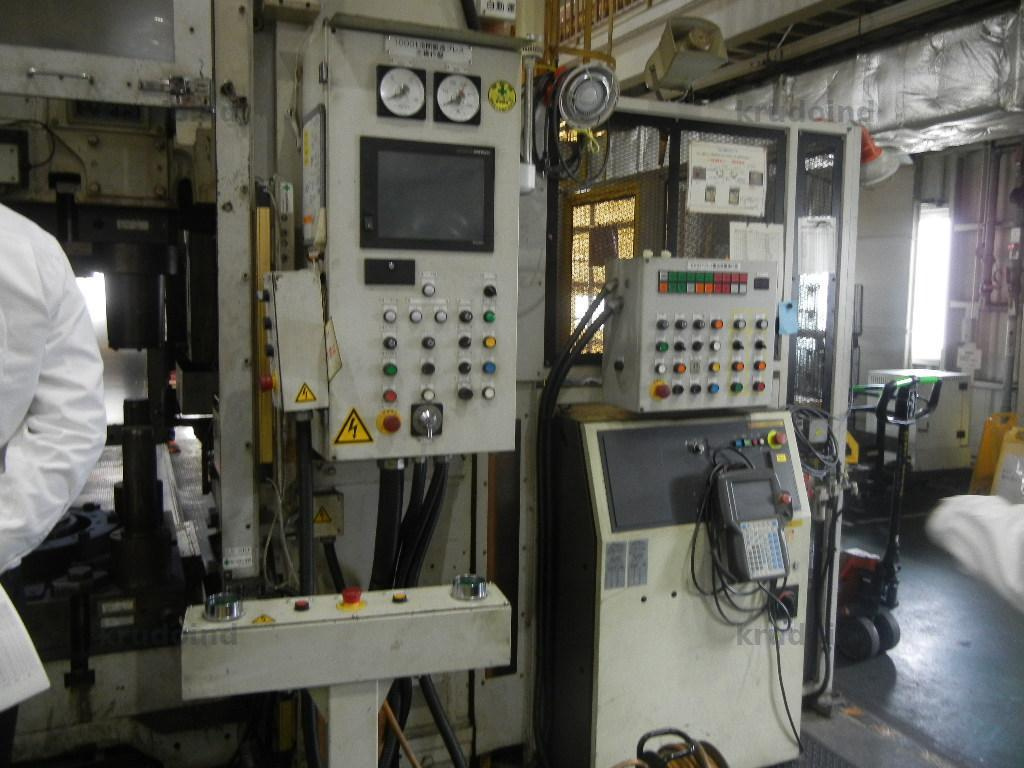

- Control Panel: Installed on the second floor
- Jib Crane – load capacity: 490kg
Additional Information:
- Automatic Transport Mechanism: Included
