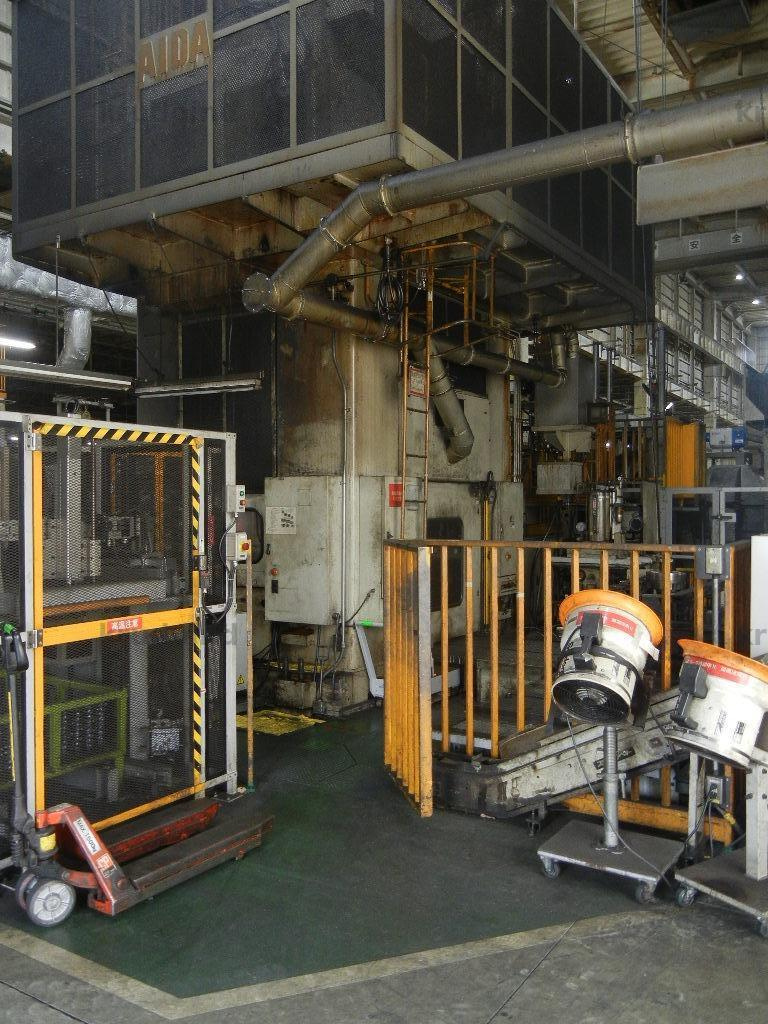

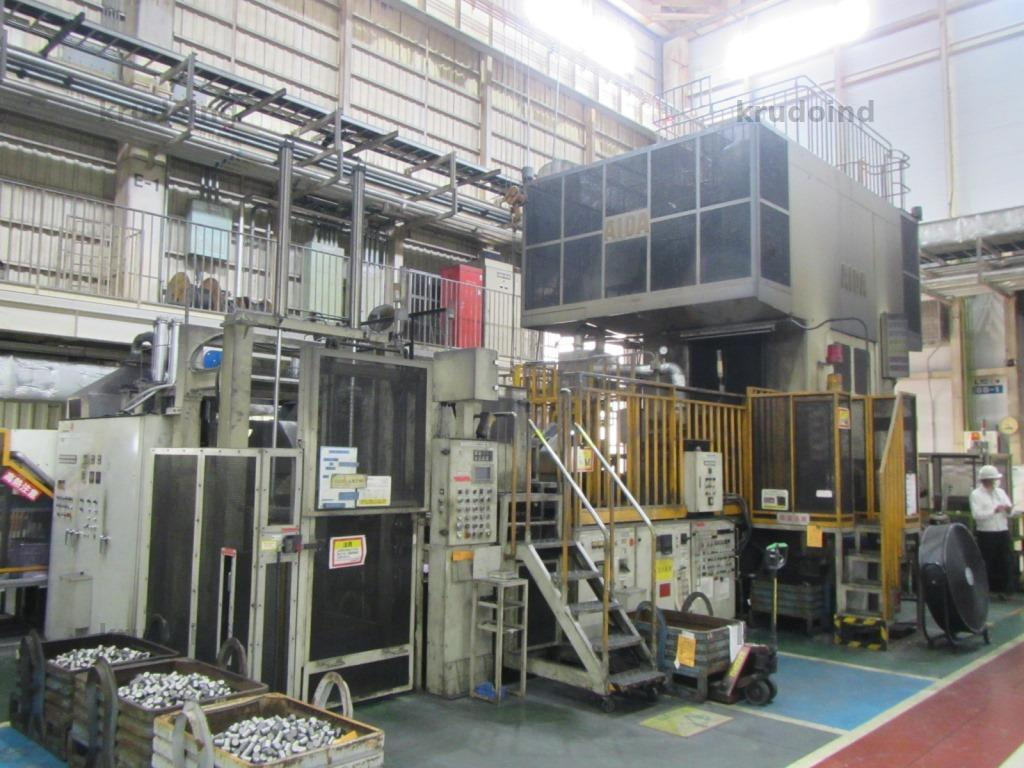

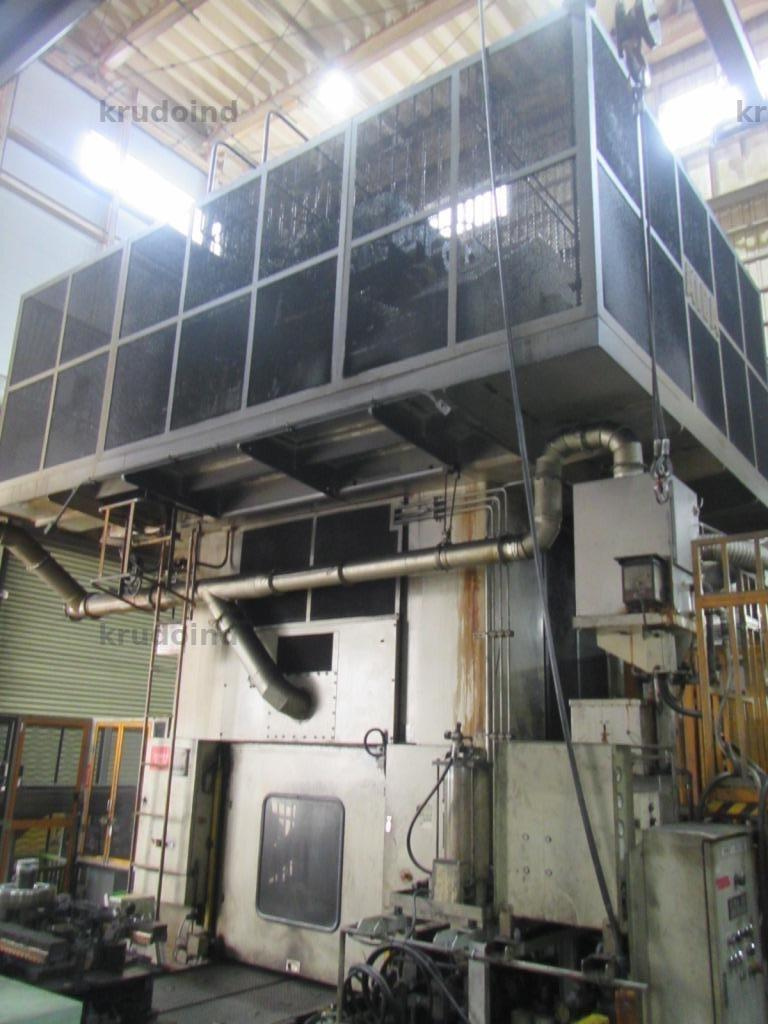

800t Aida Warm Forging Press
Medium-Capacity Warm Forging Press for Precision Forming
Description
Technical Details AIDA 800t
AIDA 800t Press Specifications:
- Type: Warm
- Press Capacity: 800t
- Model: FMX-L2
- Manufacturing Year: 1993
- Press Size: 4.5M x height 8M
- Die Height: 1100 mm
- Slide Dimensions:
- LR (Left to Right): 1200 mm
- FB (Front to Back): 1000 mm
- Bolster Dimensions:
- LR: 1200 mm
- FB: 1050 mm
- Stroke Length: 400 mm
- Slide Adjustment Length: 100 mm
- Number of Strokes: 15 to 25 strokes per minute
- Maximum Workload: 12 TON-M at 15 spm
- Press Weight: Approximately 100 tons (reference value)
- Main Motor: 185 Kw/DC
Auxiliary Equipment Specifications
- QDC (Quick Die Change Device) – AIDA – Die set changer
- Die Set:
- Configuration: 1 upper unit, 2 lower units
- Hydraulic Control Device:
- Manufacturer: Nichidai
- Billet Heater: 150 kW High Frequency Induction Heating
- Hydraulic Control Device for Presses
- Dust Collector:
- Manufacturer: Amano
- Dry
- Introduced: September 1993
- Automatic Box Packing Device:
- Introduced: March 2016
- 800 kg
- Underground Pit:
- Available: Yes (4 hydraulic units)
- Material Supply Device:
- Manufacturer: Yoshinobu Industry
Additional Features

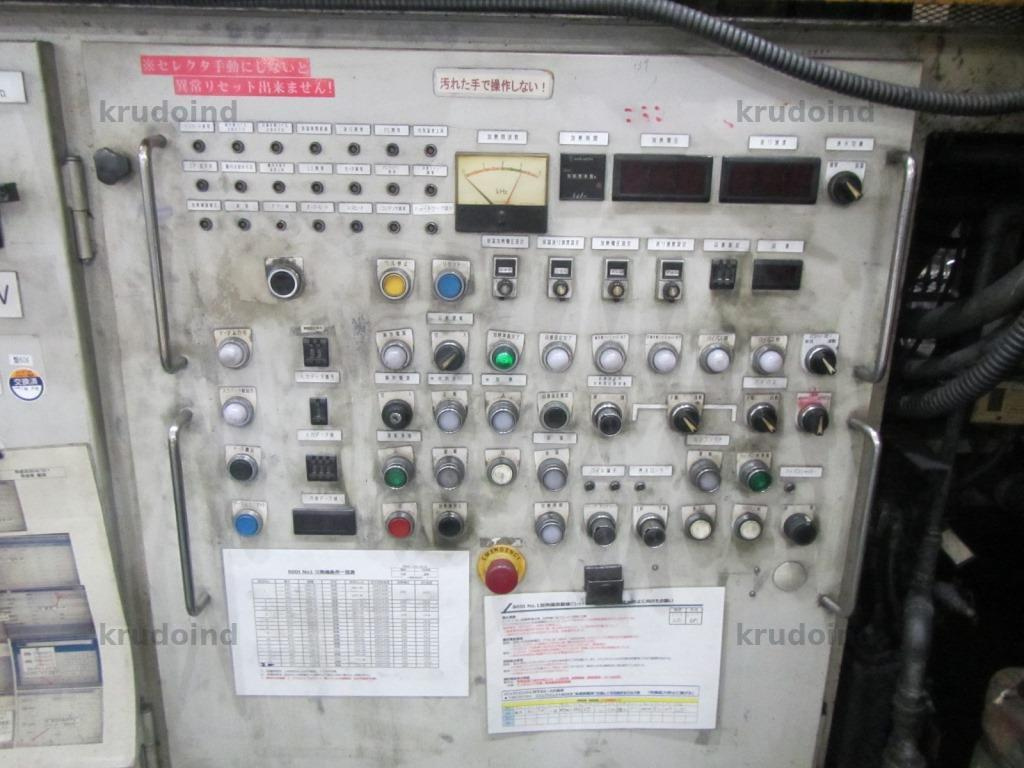

- Control Panel:
- Location: Installed on the second floor
- Automation Details:
- Feed, clamp, and lift mechanisms included
- Lubricant Application Device:
- Manufacturer: Yoshinobu Industry
- Lubricant Used: Molybdenum disulfide (ChemiLube 470)
