Description

‍

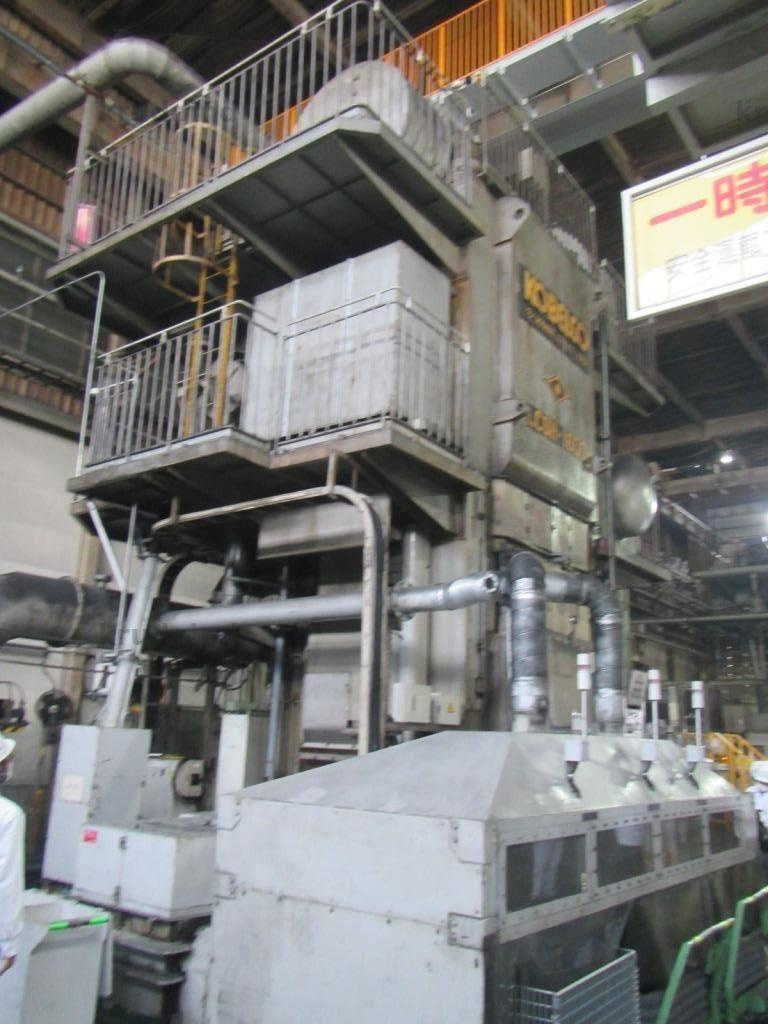

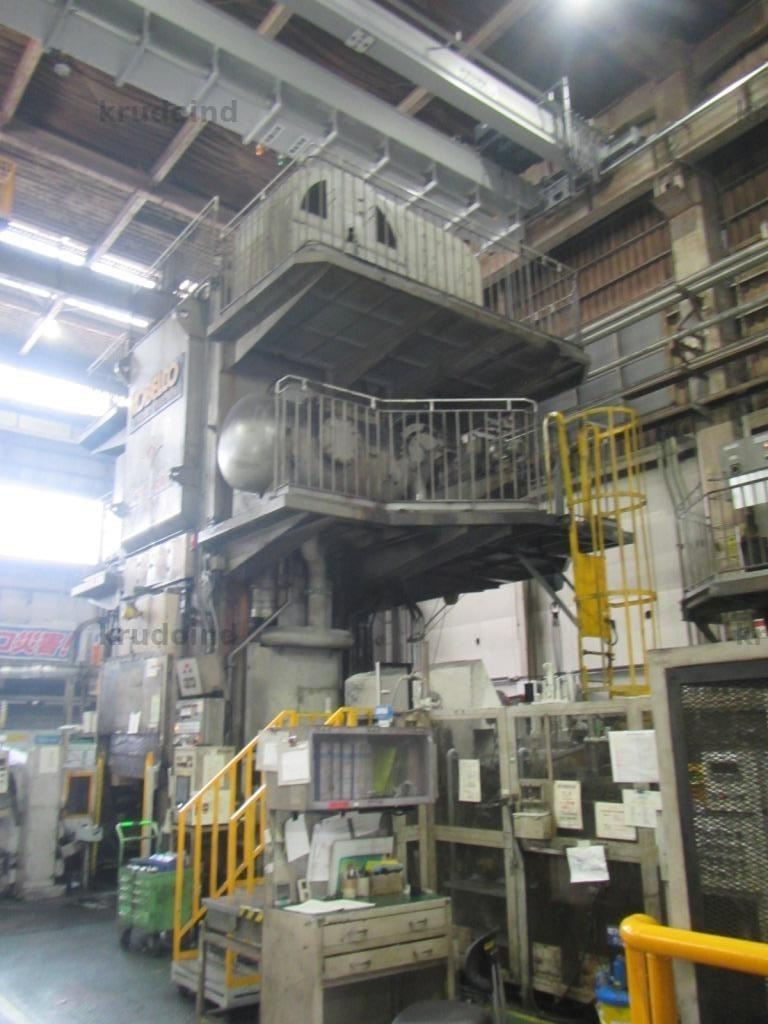

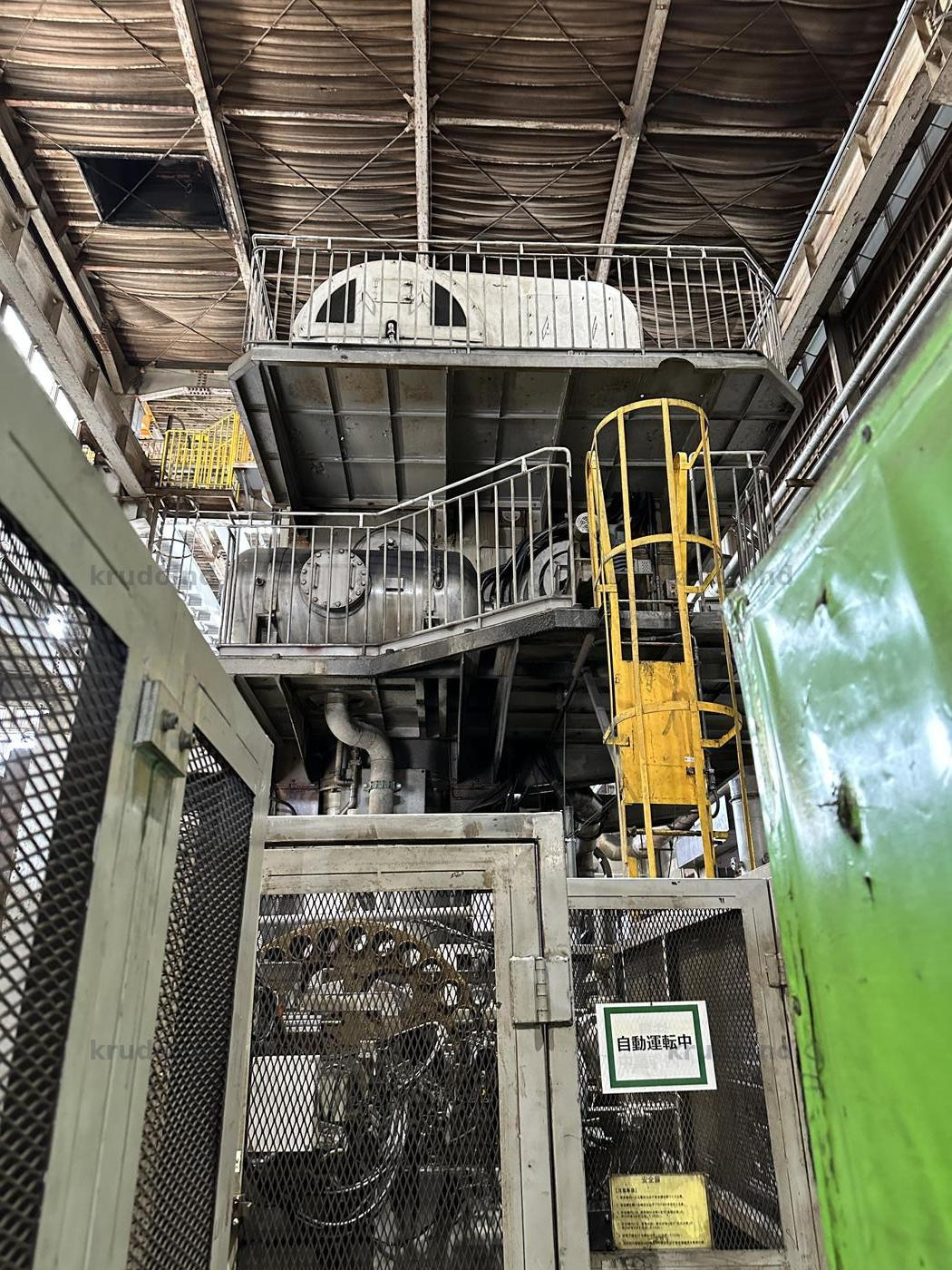

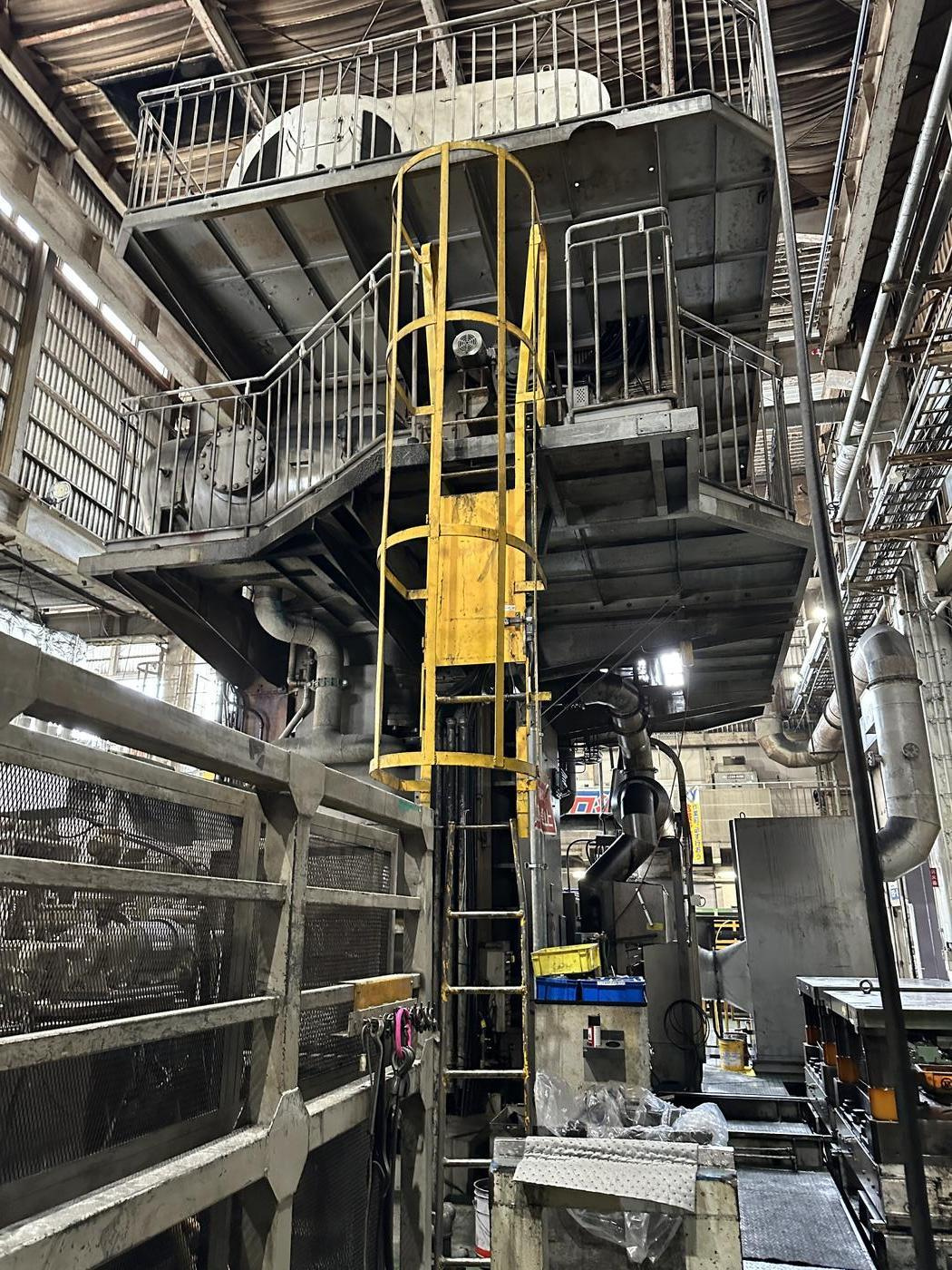

Technical Details Kobelco 1600t

‍

General Information:

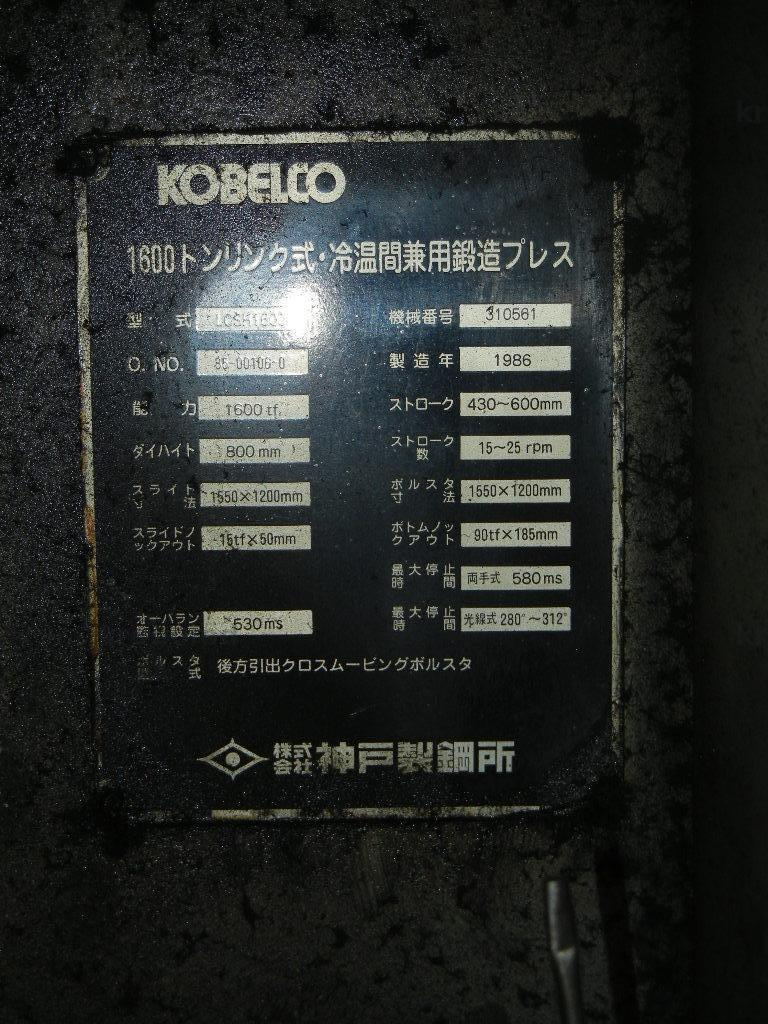

• Manufacturer: Kobelco
• Model: LCSH-1600
• Type: Cold Forging Press
• Year of Manufacture: 1986

‍

Specifications:

• Press Capacity: 1600t
• Forming Stages: 3

‍

Dimensions and Layout:

• Press Size: 4M width x 9M height
• Die Height: 800 mm
• Slide Dimension (Left to Right): 1550 mm
• Slide Dimension (Front to Back): 1200 mm
• Bolster Dimension (Left to Right): 1550 mm
• Bolster Dimension (Front to Back): 1200 mm
• Thickness: 200 mm
• Slide Adjustment Length: 30 mm
• Stroke Rate: 15-20 strokes per minute (SPM)
• Stroke Length: 430 to 600 mm
• Maximum Workload: 45 TON-M at 15 SPM
• Press Weight: Approximately 270 tons

‍

Auxiliary Equipment:

1. 1. Die Set Changer:
   • QDC (Die Change Device) by Kobe Steel
   • Two die sets, upper and lower
   • Installation Date: 1987.


2. 2. Dust collector:
   • Oil Mist Catcher – Indoor, duct included
   • Installation Date: 1987/02


3. 3. Lubricant Application Device:
   • One-component lubricant application device by RCD Techno
   • Installation Date: 2003/03


4. 4. Material Supply Device:
   • Included


5. 5. Current Monitoring Device:
   • HM in-house production


6. 6. Balancer:
   • Included

‍

Special Features:

• Quick Die Change (QDC) Device: Facilitates fast die changes
• Control Panel: Located on the second floor
• Underground Pit: Accommodates one hydraulic unit
• Transport Mechanism:
  • Feed, Clamp, Lift mechanisms included
  • Automatic transport mechanism
