1000t Kobelco Cold Forging Press
Heavy-Duty Cold Forging Press
Description

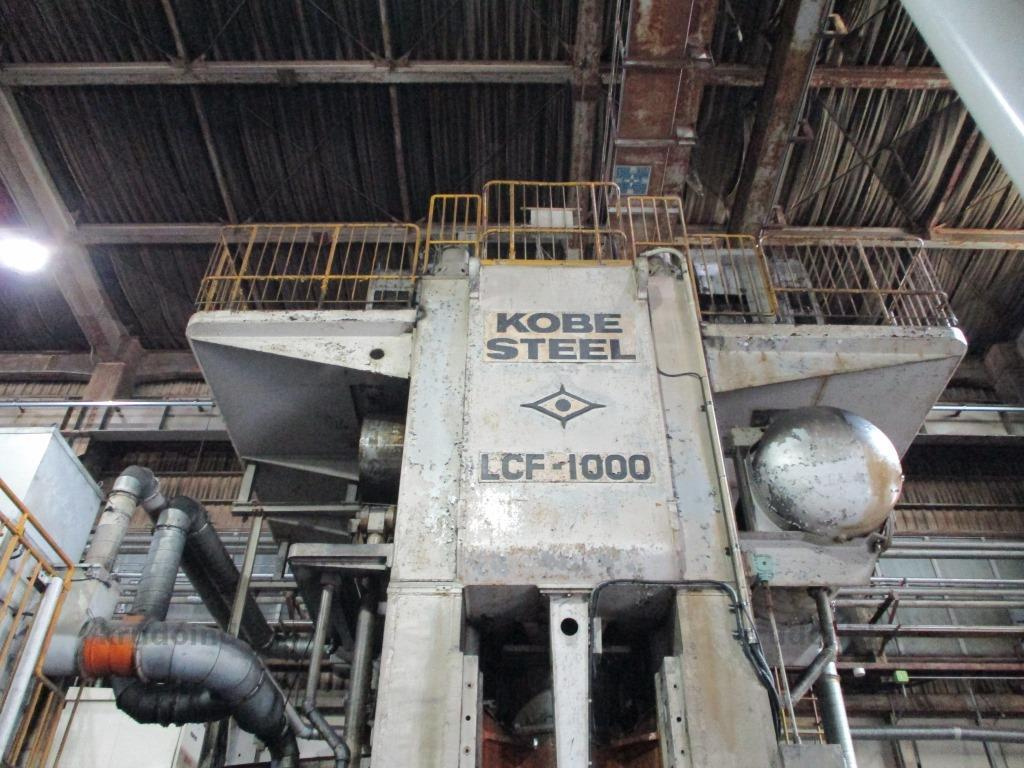

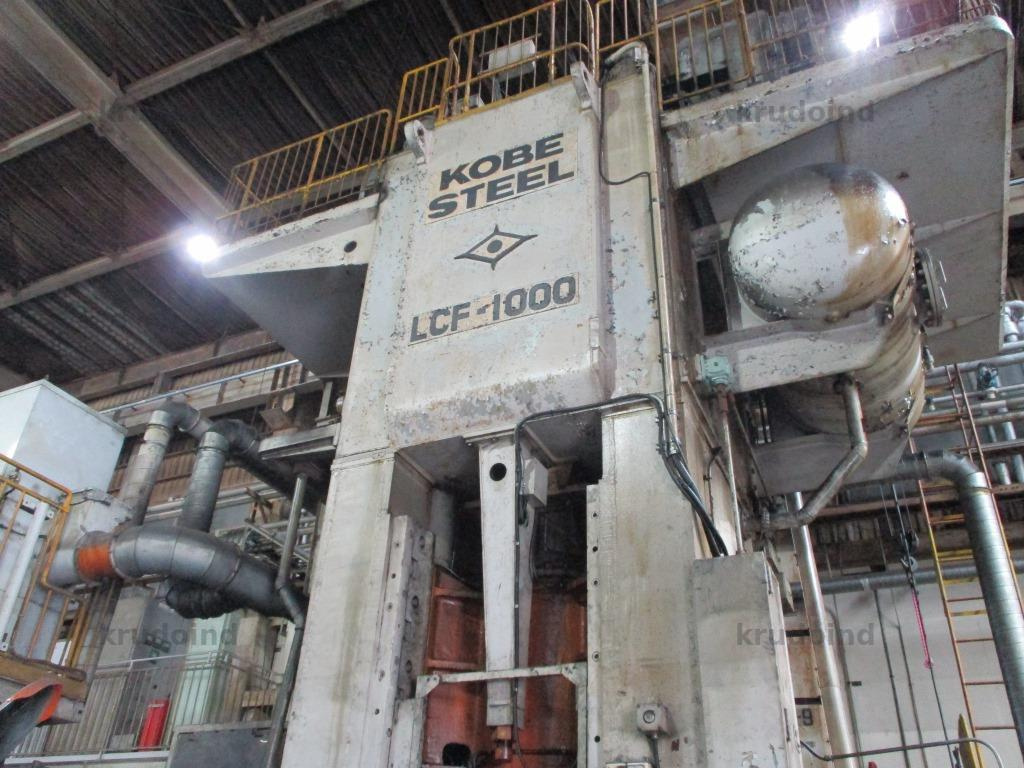

Technical Details KOBELCO 1000t
General Information:
- Manufacturer: Kobelco
- Model: LCF-1000
- Type: Cold Forging Press
- Year of Manufacturing: 1977
Specifications:
- Press Capacity: 1000 tons
- Forming Stages: 1
Dimensions and Layout:
- Press Size: 3M width x 9M height
- Die Height: 800 mm
- Slide Dimensions:
- Left to Right: 1000 mm
- Front to Back: 1200 mm
- Bolster Dimensions:
- Left to Right: 1000 mm
- Front to Back: 1200 mm
- Slide Adjustment Length: 30 mm
- Stroke Length: 500 mm
- Stroke Rate: 15 to 20 strokes per minute (SPM)
- Maximum Workload: 28 TON-M at 15 spm
- Main Motor: 160Kw/DC
- Press Weight: 180t
Auxiliary Equipment:
- QDC (Die Exchange Device) – AIDA
- Die set changer
- Die Set: Includes upper 2 units, lower 1 unit;
- Robot:
- Manufacturer: FANUC
- Model: M-10iA
- Load Capacity: 12 kg
- Weight: 130 kg
- Installation Date: February 2008
Special Features:
- Quick Die Change (QDC) Device: Facilitates fast die changes

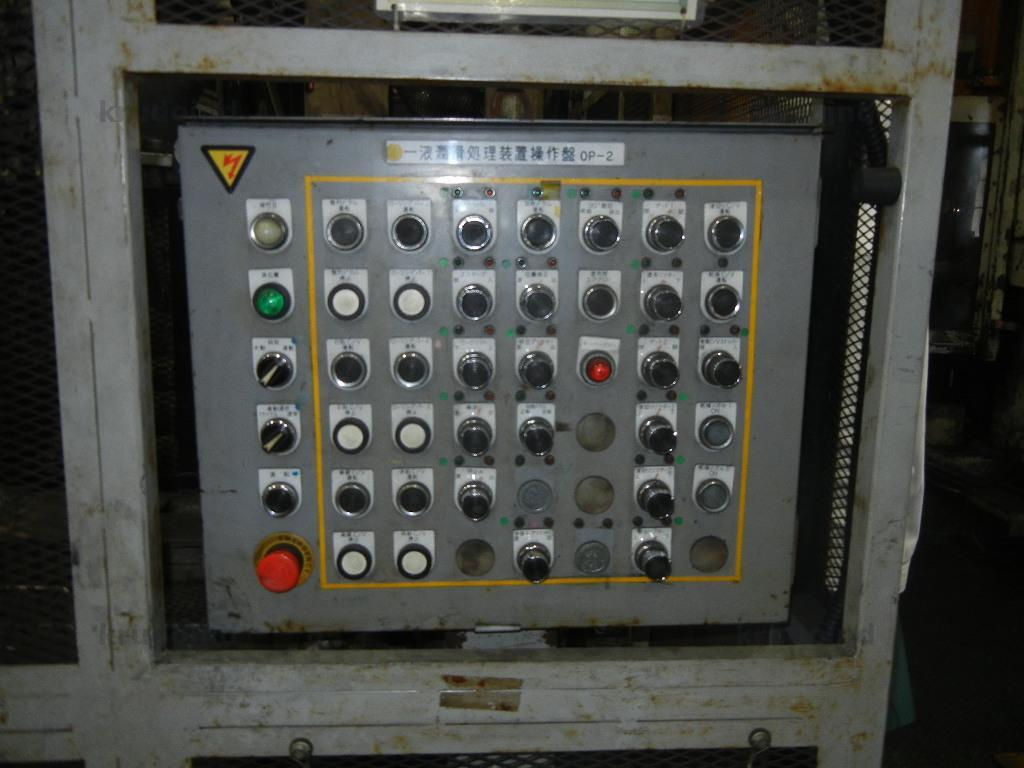

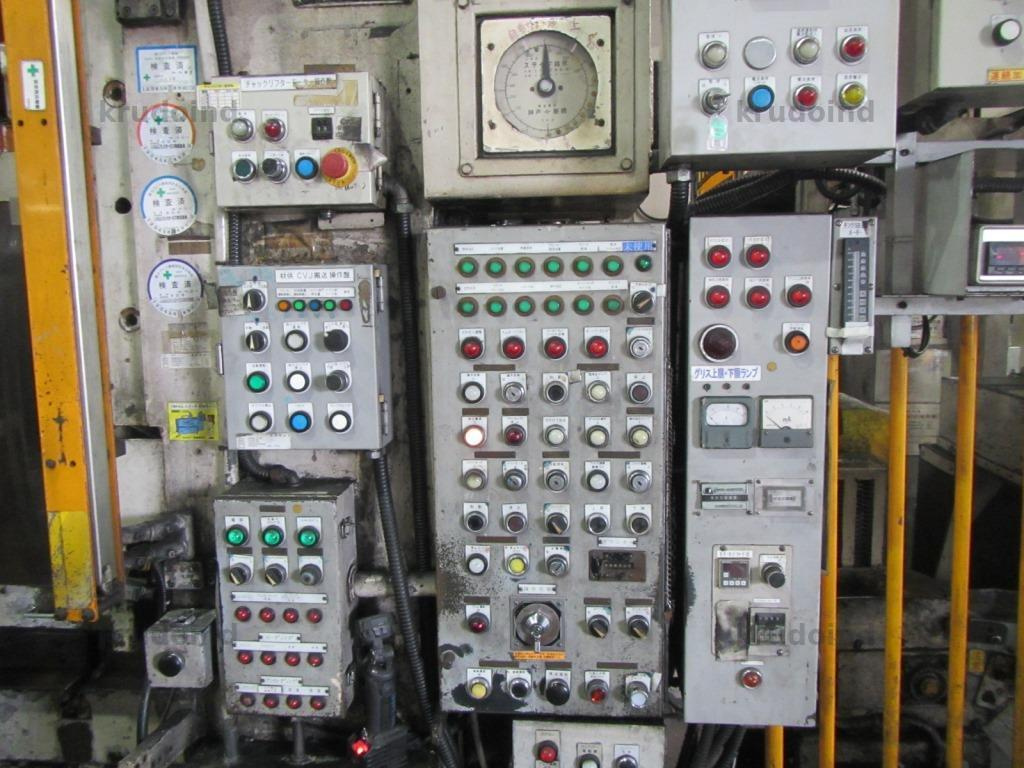

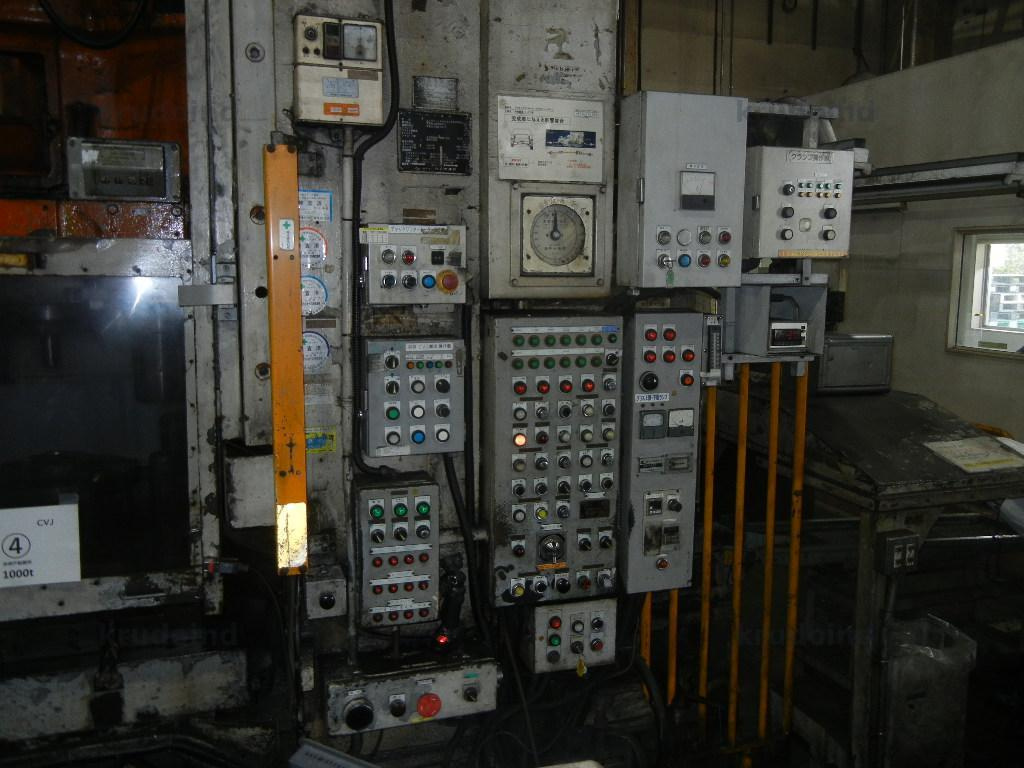

- Control Panel: Located on the second floor
- Underground Pit: Accommodates one hydraulic unit
- Transport Conveyor: Installed in May 2007
Press Weight:
- Reference Value: Approximately 180 tons
