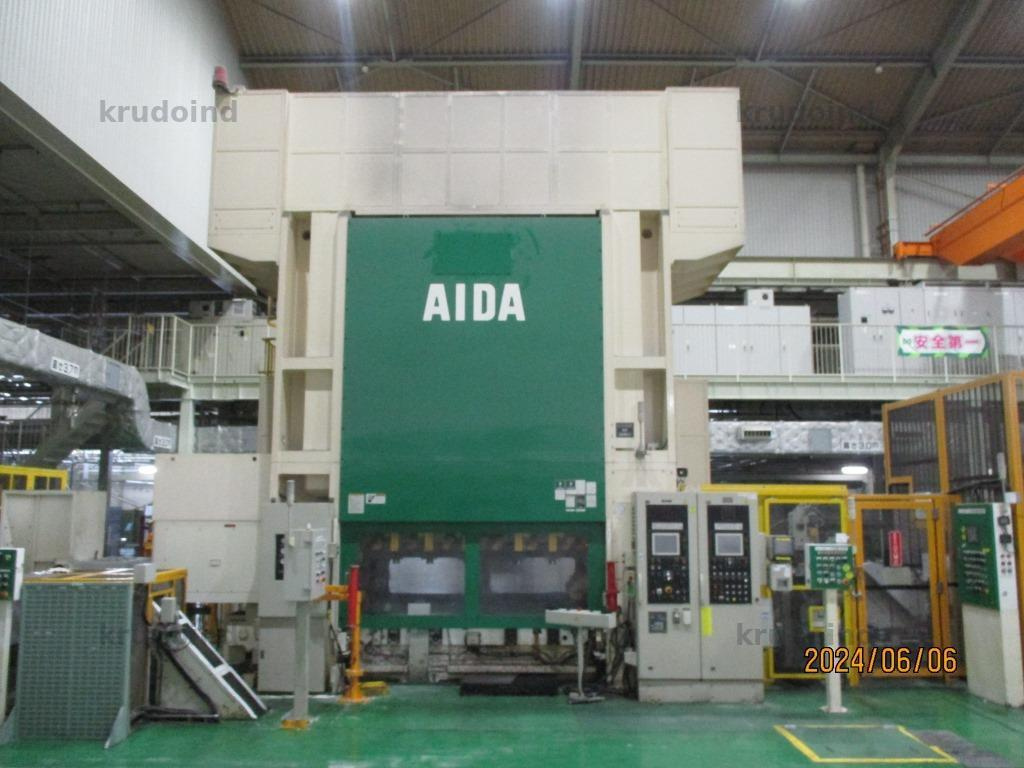

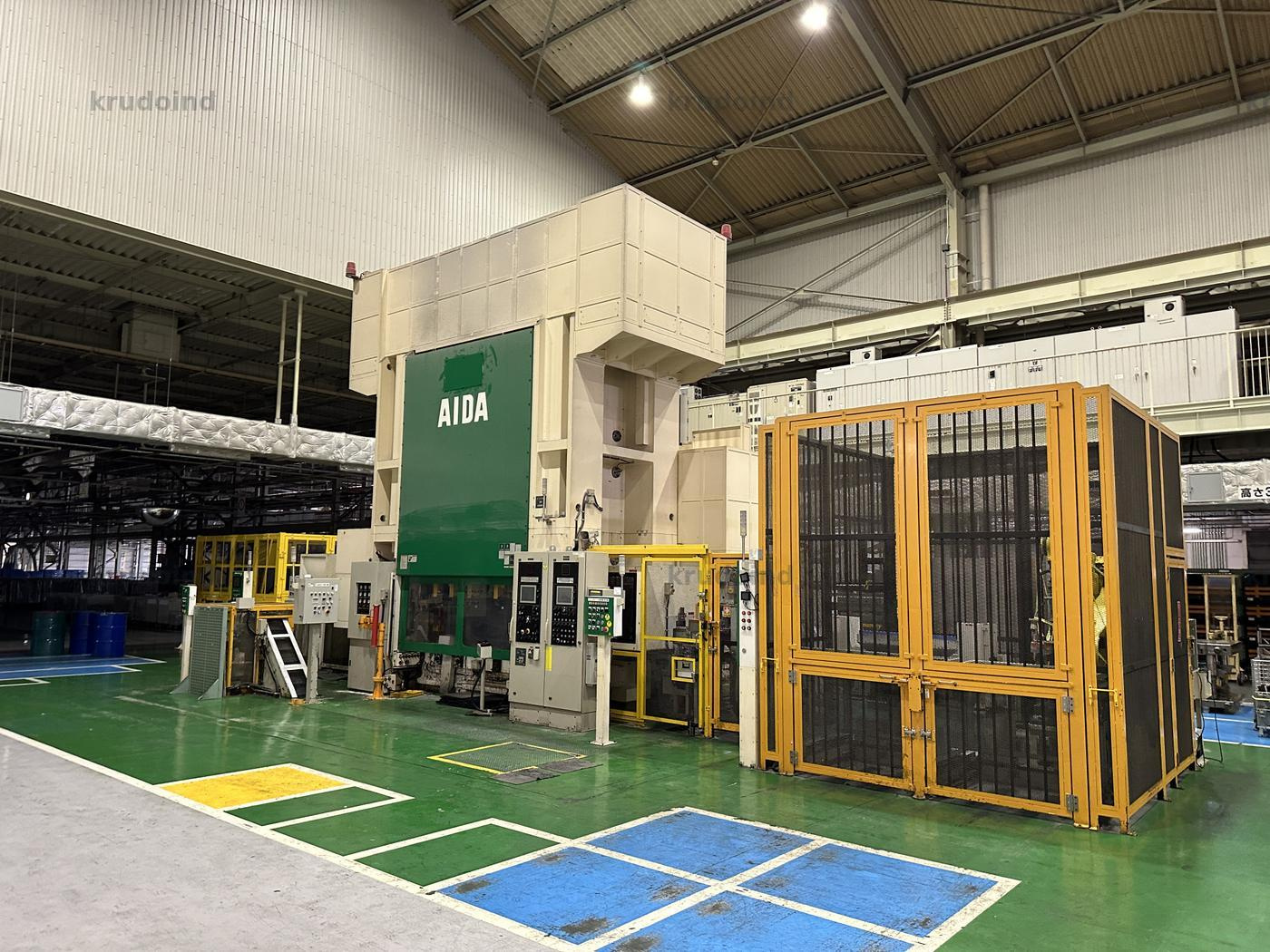

1200t Aida Cold Forging Press
High-Force Cold Forging Press for Precision Production
Description
Technical Details AIDA 1200t
General Equipment Specifications:
- Press Capacity: 1200 t
- Year of Manufacturing: 2012.
- Capability Location: Above dead center, 10 mm
- Continuous Operation:
- 15 spm, 71 kJ
- 26 spm, 167 kJ
- 30 spm, 174 kJ
- 40 spm, 181 kJ
- Intermittent Operation: 25 spm, 12 cycles, 198 kJ
- Stroke Length: 250 mm
- Idle Continuous Stroke Rate: 15-40 spm
- Intermittent Stroke Rate: 25 spm at 12 spm
- Micro-Inching: Approx. 10 spm
- Die Height: 750 mm
- Slide Adjustment: 100 mm
- Slide Dimensions (LxW): 2450 x 1000 mm
- Bolster Dimensions (LxW): 2450 x 1200 mm
- Bolster Thickness: 250 mm
- Bolster Surface Height from Floor: 800 mm
- Maximum Die Hanging Weight: 4.0 tons
- Side Opening Dimensions (WxH): 1050 x 510 mm
- Main Motor: INY 160 kW
- Power Supply:
- Main Motor: AC400V, 50Hz
- Other Motors: AC200V, 50Hz
- Control Circuit Voltage: AC100V, DC24V
- Supply Air Pressure: 0.5 MPa, boosted to 0.6 MPa
- Ambient Temperature: 5-40°C
- Total Mass Above Floor: 216 tons
Special Equipment Features:
- Variable Speed Drive: Main motor with regenerative control
- Reversing Installation: Not available for press-down tests
- Micro-Inching: Low-speed rotation type for the main motor
- Flywheel Brake: Interlinked with the main motor
- Crank Angle Indicator: Electronic, within the main control panel
- Main Motor Power Meter: Digital display
- Press Speed Meter: Digital display
- Die Height Meter: Digital display with a resolution of 0.01 mm
- Die Height Adjustment: Electric manual via push-button operation, automatic with digital setting at 0.1 mm increments
- Load Measurement: Graphic display, ALA2 model strain gauge type (also detects overloads)
- Lubrication System: Forced circulation (installed in the pit), automatic intermittent lubrication
- Hydraulic Equipment Operation: Installed in the pit
- Control Panel: Stand-alone type, within 30 meters
- Operator Console: Located at the front right frame
- Operator Stand: Dual-hand operation with a 3-meter cable
- Receptacle for Operator Stand: Located at the front right frame
- Timing Switch: Digital, with four spare circuits
- Production Counter: Reset type with a stop function after a set number, 6-digit display
- Emergency Stop Button: Lock type, positioned at various points around the room and at the operator stand
- Setup Stop Device: Switches between top dead center and 600 mm stroke
