(1983) Comessa Notching Press Cell
Rotor and Stator Production Line: Frame Sizes 280-355 mm for 75-355 kW Motors

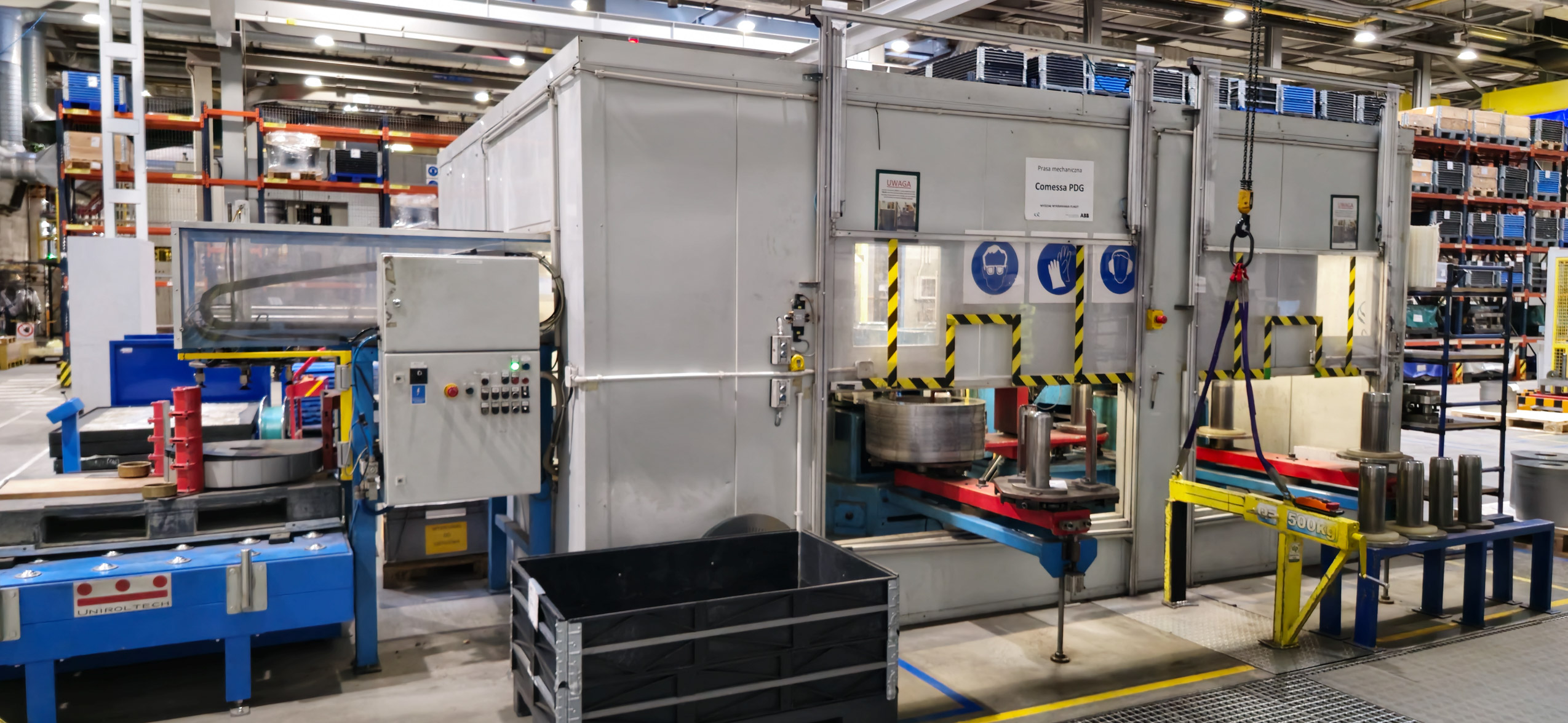

Specialized Notching Cell for Rotor and Stator Lamination Production

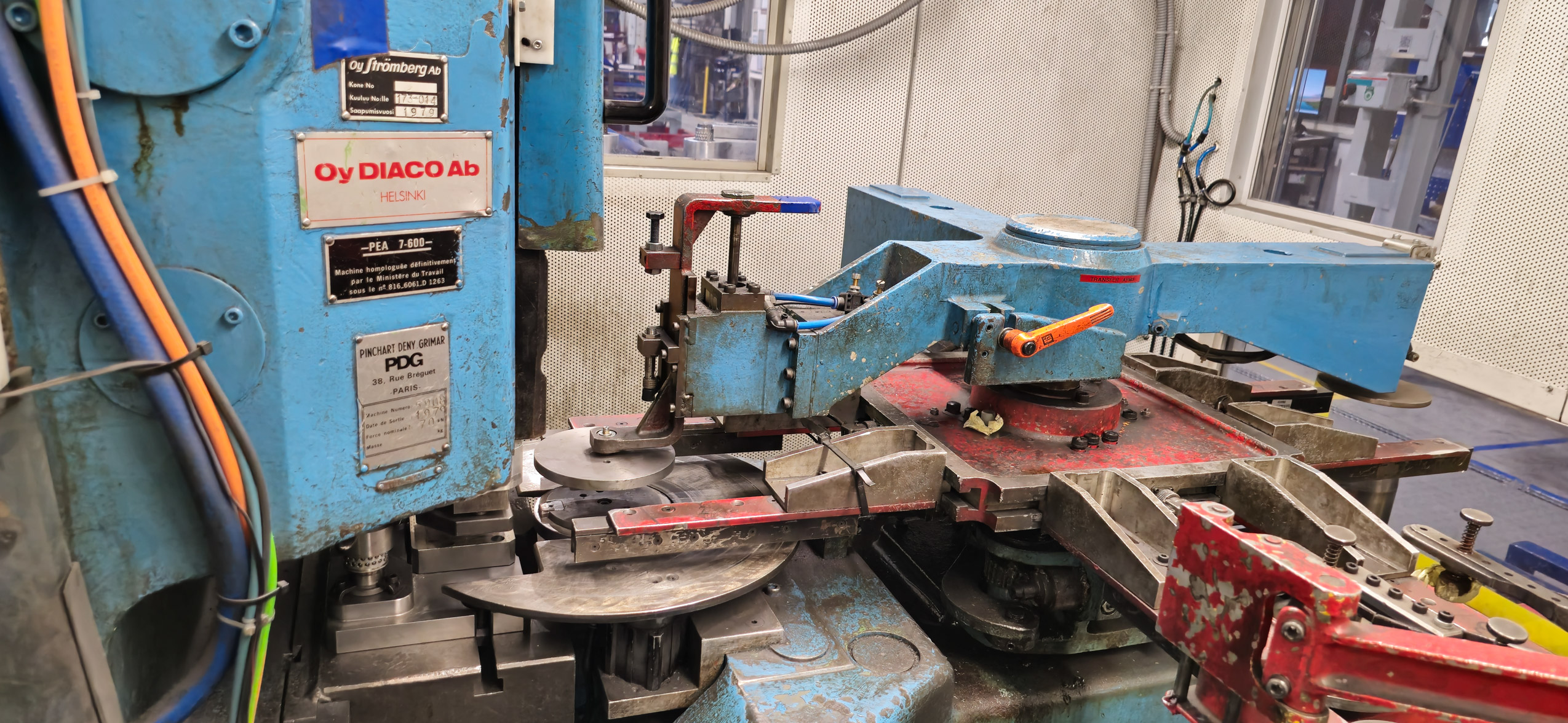

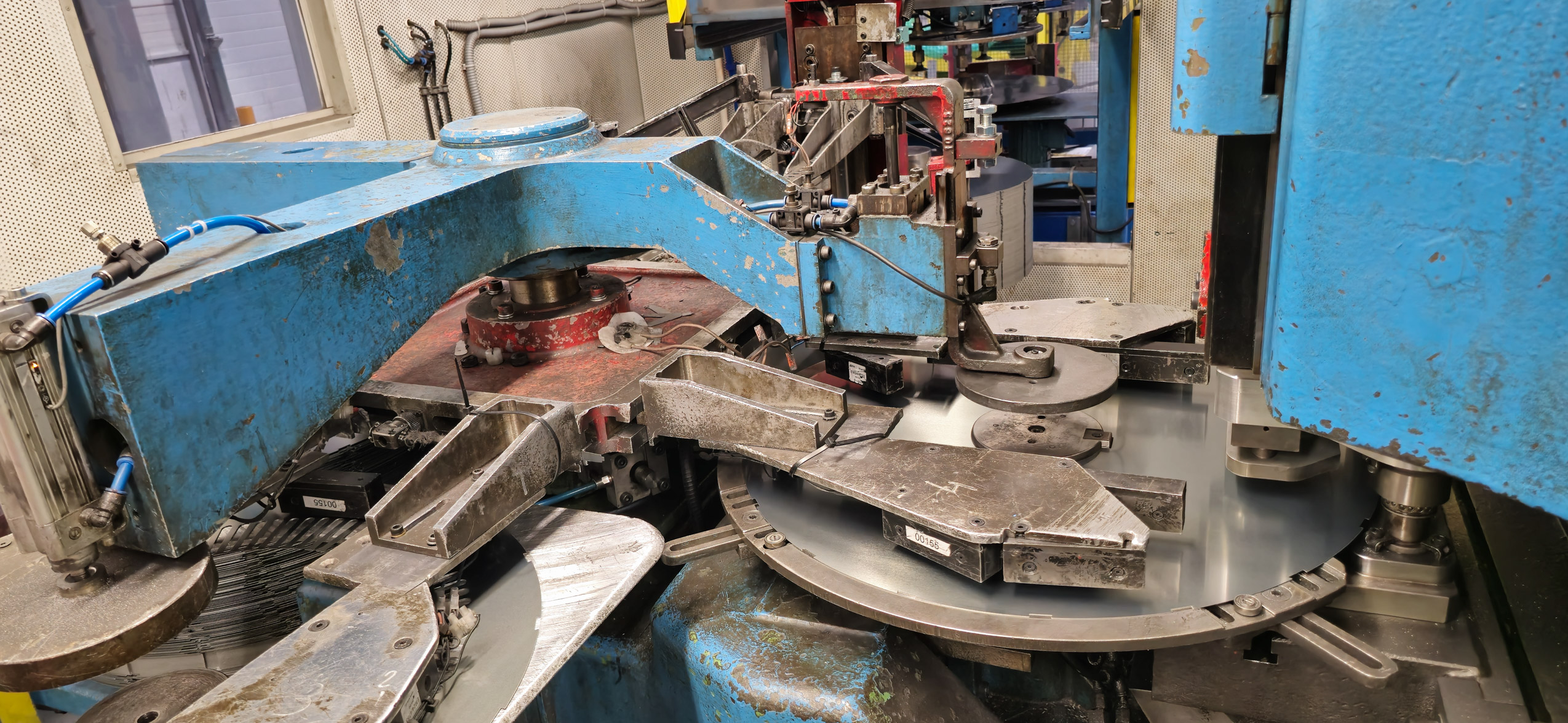

This high-speed notching press cell is designed for the precision manufacturing of rotor and stator laminations, specifically for motor frame sizes ranging from 280 to 355 mm. The cell features two Comessa PDG PEA 7-600 machines with a 7-ton pressing force and an adjustable stroke rate of up to 1000 strokes per minute. Capable of handling punching diameters up to 600 mm, it is a reliable solution for high-volume stamping operations requiring consistent accuracy and efficient cycle times.
Industry
Electric Motors
Sale Type
Private Treaty
Manufacturer
COMESSA
Country
Poland
Machine Type
Notching Press Cell
Year of Manufacture
1983
This line consists of:

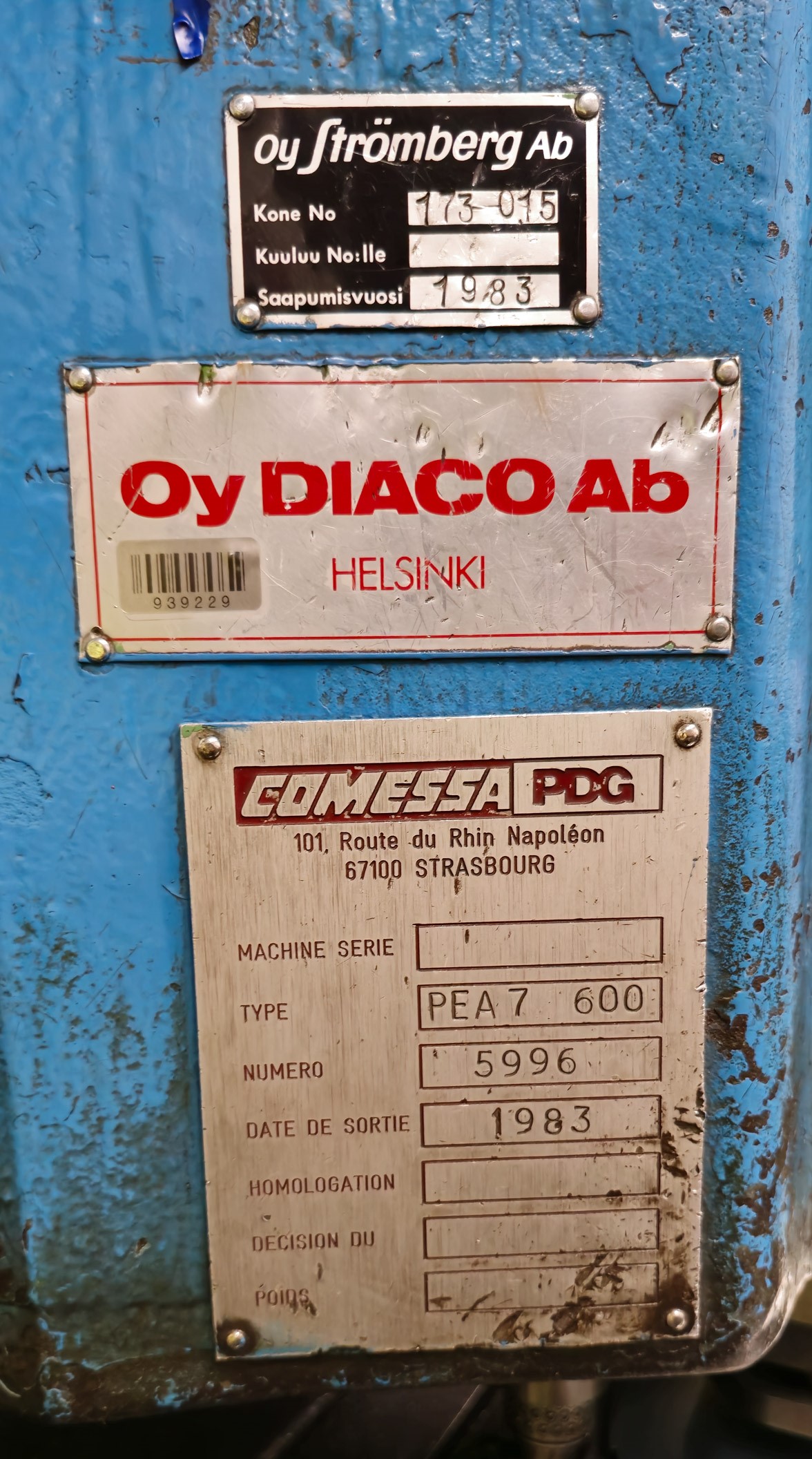

- (1979) Comessa PDG PEA 7-600 Notching Machine
- (1983) Comessa PDG PEA 7-600 Notching Machine
Technical Details
- Pressing Force: 7 tons
- Adjustable Stroke Rate: 300 – 1000 strokes/minute
- Press Stroke: 25 mm
- Stroke Adjustment: 25 mm
- Tool Lift Between Pressure Plates: 220 mm
- Closing, Tool Lift with Adjustable Pressure Plates: 260 mm
- Useful Height with Standard Dies: 160 mm
- Useful Height with Special Dies: 150 mm
- Minimum Diameter of Punching: 58 mm
- Maximum Diameter of Punching: 600 mm
- Round Disk Diameter Maximum: 580 mm
- Adjustable Working Height Above the Pressure Plate: 58 – 73 mm
- Largest Workable Sheet Size: 600 x 500 mm
- Smallest Sheet Thickness: 1 mm
- Smallest Drill Size: 18 mm
- Largest Drill Size: 130 mm
- Main Motor: 6 kW / 1500 rpm
- Maximum Dimensions of the Machine with Swing Arms for 2 Stack Loads at All Stations:
- Length: 3950 mm
- Width: 3330 mm
- Height: 1750 mm
- Approximate Weight (excluding plates): 4350 kg
