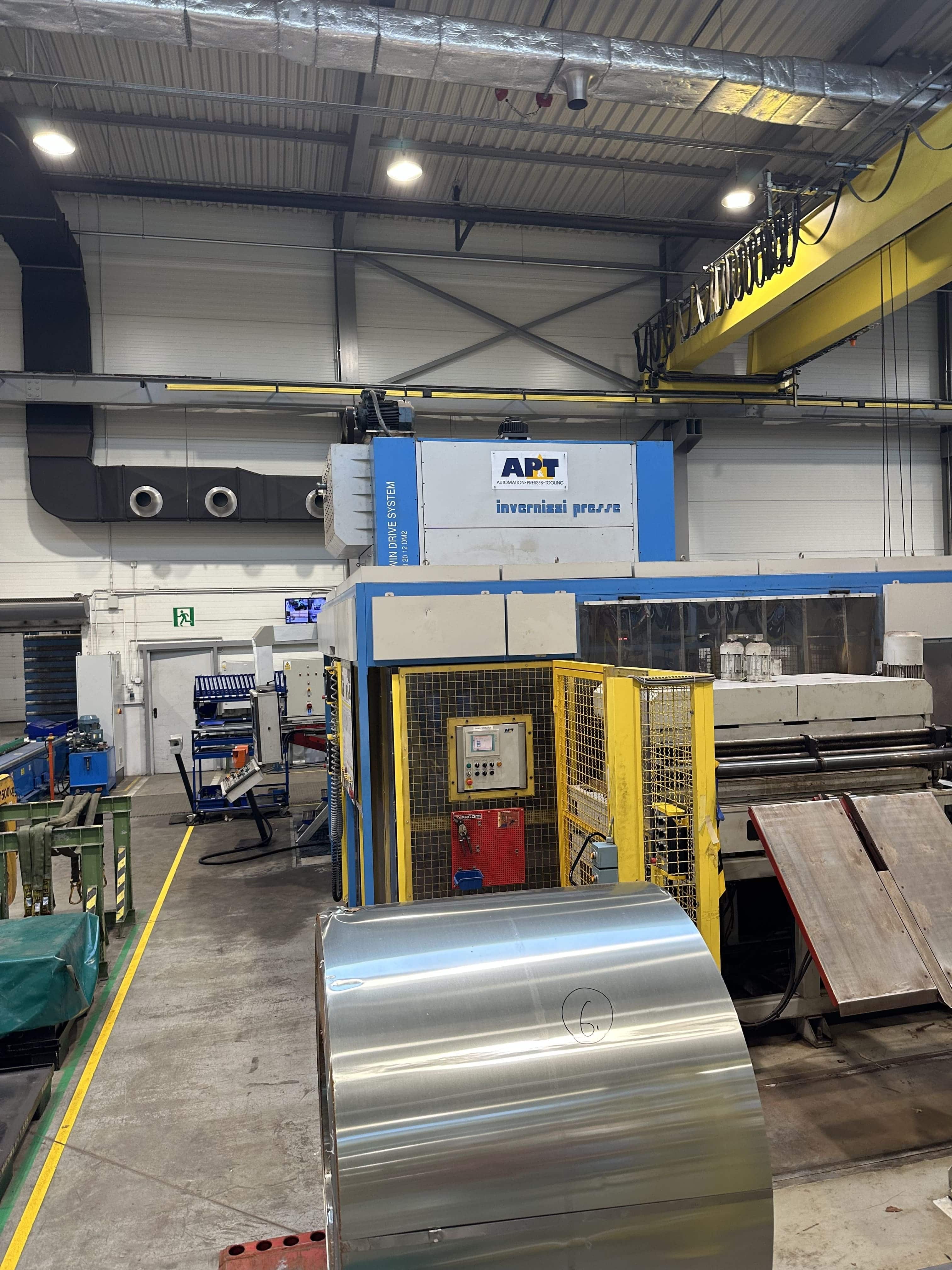

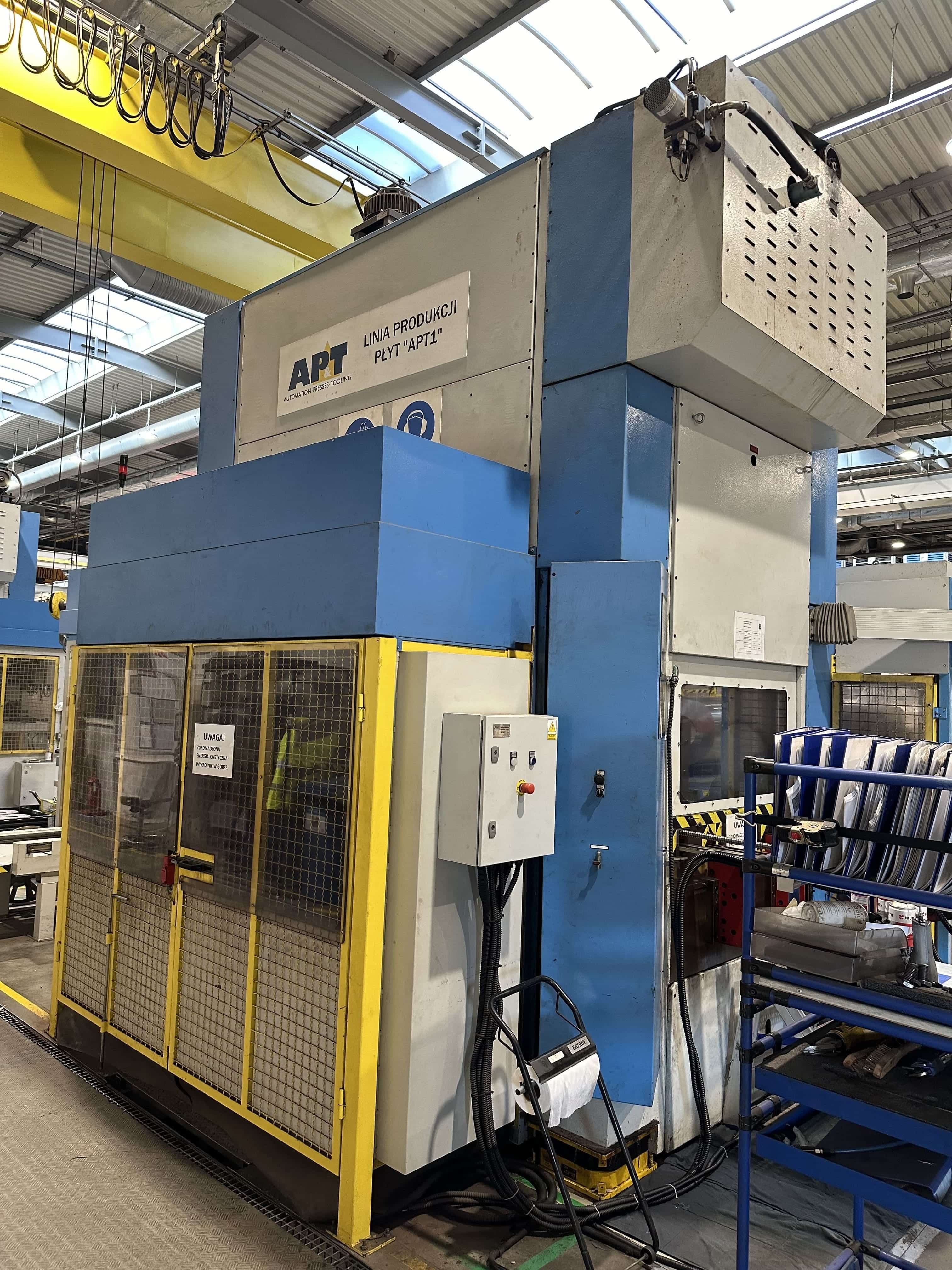

(2009) INVERNIZZI Lamination Press Line (APT1)
Heavy-Duty Lamination Press Line for Large Motor Components
This line consists of:
- (2009) DIMECO ETC 80 Coil Loading Truck
- (2009) DIMECO 2386 Heavy Duty Decoiler
- (2009) DIMECO Coil Straightener
- (2009) DIMECO 1125H SIMO STAR Zig Zag Feeder

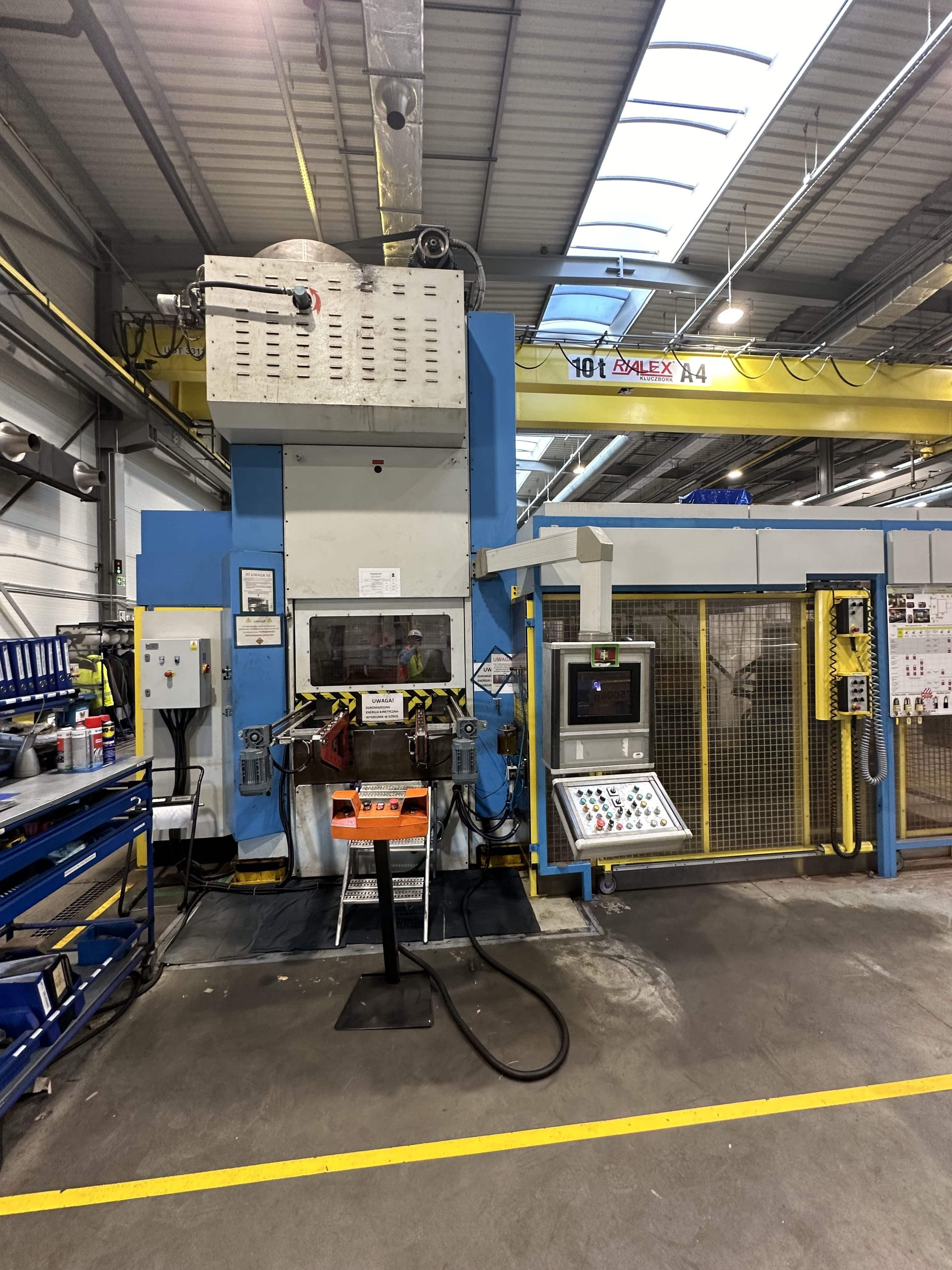

- (2009) INVERNIZZI T320 DM2 Lamination Press
- (2009) APT Stacker Unit
Technical Details
General Press Information:
- Manufacturer: Invernizzi
- Model: T320 DM2
- Year of Manufacture: 2009
- Capacity: 320 tons
Press Performance Specifications:
- Press Force: 3200 kN
- Drive Power: 22 kW
- Stroke Rate: 15-50 strokes per minute
Structural and Mechanical Dimensions:
- Slide Dimensions (Length x Width): 2000 mm x 1200 mm
- Bed Dimensions (Length x Width): 2000 mm x 1200 mm
- Opening in the Bed: 600 mm
- Openings in the Press Upright: Downward: 410 mm, Backward: 500 mm
- Bed Plate Thickness: 150 mm
Adjustments and Control Mechanisms:
- Slide Adjustment: 90 mm
- Stroke Adjustment Range: 20-40 mm
- Fixed Stroke: 17 mm
Machine Physical Parameters:
- Lateral Useful Opening: 1100 mm
- Frontal Useful Opening: 2100 mm
- Maximum Distance Between Bolster and Slide:
- Stroke Down, Adjustment Up (S.D.A.U.): 500 mm
- Stroke Down, Adjustment Down (S.D.A.D.): 450 mm
Electrical and Hydraulic Installations:
- Installed Electrical Power: 59 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Control Circuit Voltage: 24 VDC
- Hydraulic Installation Details:
- Operating Pressure Range: 60 bar (low) to 160 bar (high)
- Hydraulic Tank Capacity: 2400 liters
- Pump Motor Power: 55 kW
- Phase 2 Accumulator: 421 liters
- Phase 3 Injector: 60 liters
Cooling and Lubrication Systems:
- Centralized Lubrication System Type: Oil
- Oil Tank Capacity: 5 liters
- Cooling System Maximum Water Inlet Temperature: 25°C (requires manufacturer approval
for higher temperatures) - Minimum Water Pressure: 2 bar
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action

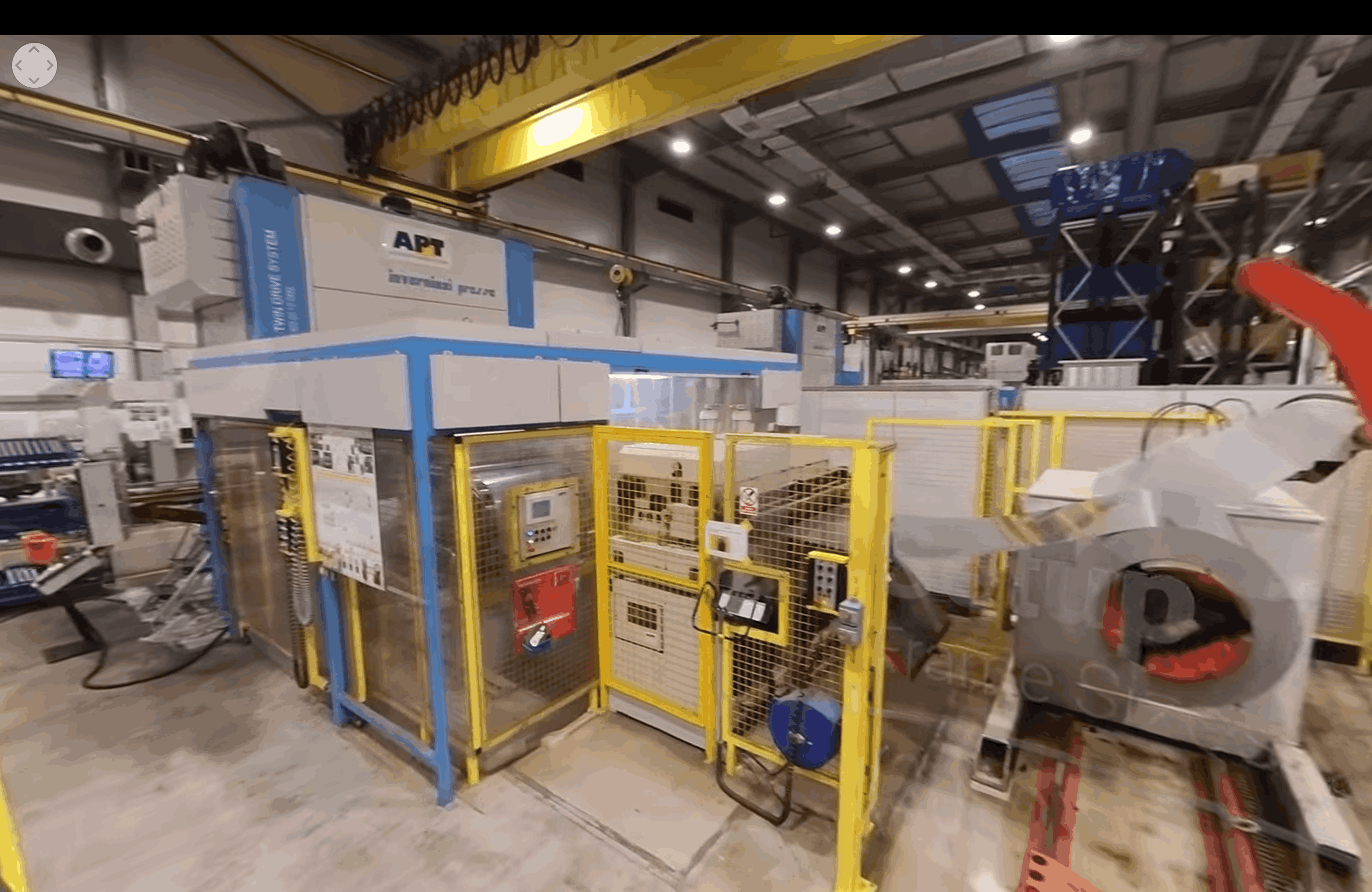

Watch the Machinery at work—capturing its quality in a real production environment.
