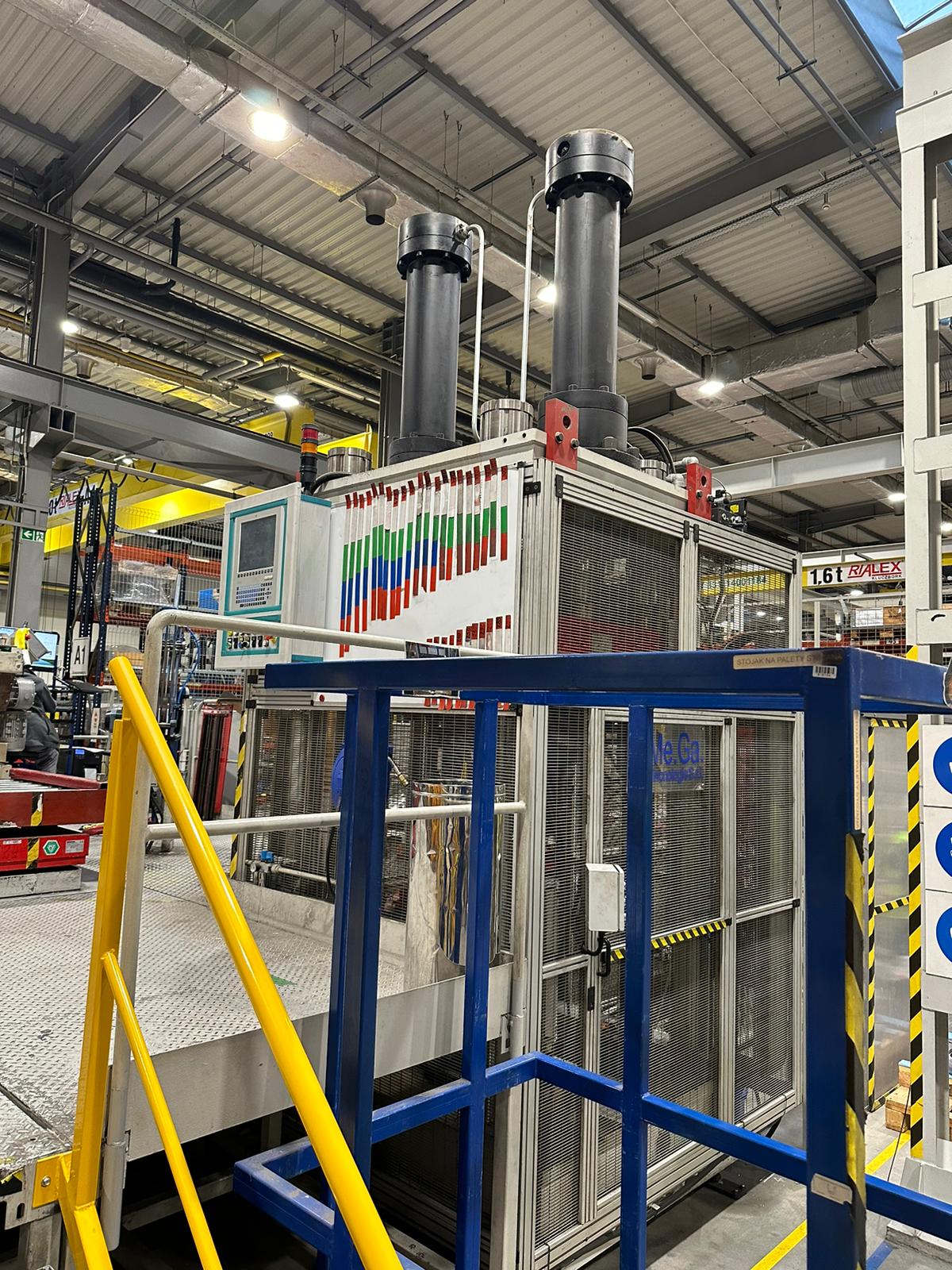

(2009) MEGA Stator Cleating Cell
High-Capacity Stator Assembly Line for Large Electric Motors
Machine Description
THE COMPLETE LINE CONSISTS OF THE FOLLOWING MACHINES:
a. (2009) Cleating Machine – OSAMA
b. (2009) Automatic Manipulator
c. (2009) Stator Conveyor – Wandalex RCN-ZM1011/0299/01
d. (2009) Conveyor + Tilting Table + Platform
Technical Details

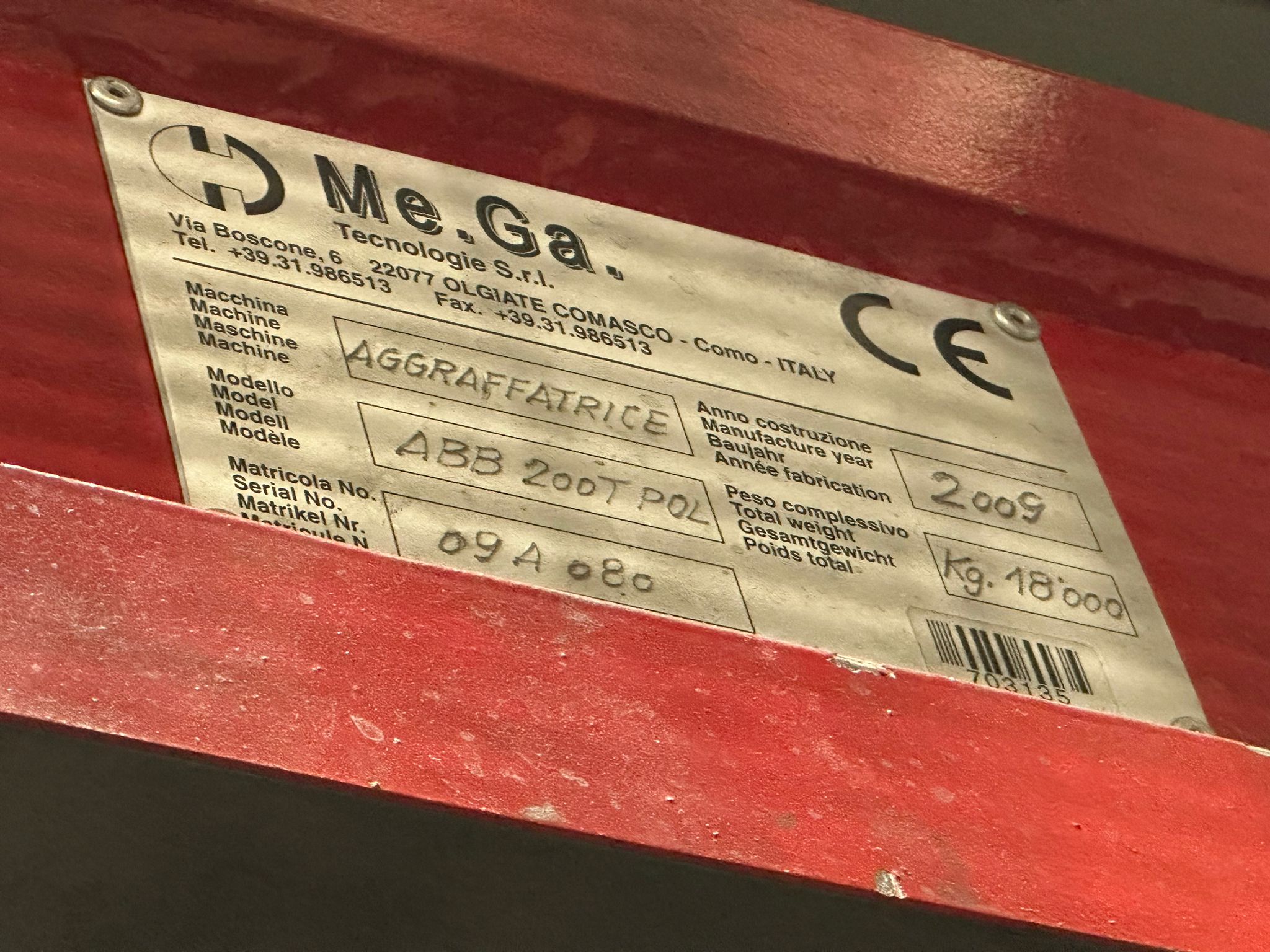

Machine: Aggraffatrice
Model: ABB 200T POL
Manufacture Year: 2009
Total Weight: 18000 kg
Types of Laminations:
– IEC Size: 280, 315, 355
– D1 (Stator): 460 mm, 520 mm, 600 mm
– D2 (Stator Hole) for Poles:
– 2-pole: 260 mm, 295 mm, 330 mm
– 4-pole: 295 mm, 330 mm, 380 mm
– 6…n-pole: 330 mm, 380 mm, 420 mm
– Number of Cleating Slots: 18 for all sizes
– H Stator: Max. 800 mm
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
