(2019) CASSIOLI Automatic Transport System
Autonomous Guided Vehicle (AGV) Material Handling Network
Machine Description
THE COMPLETE LINE CONSISTS OF THE FOLLOWING MACHINES:

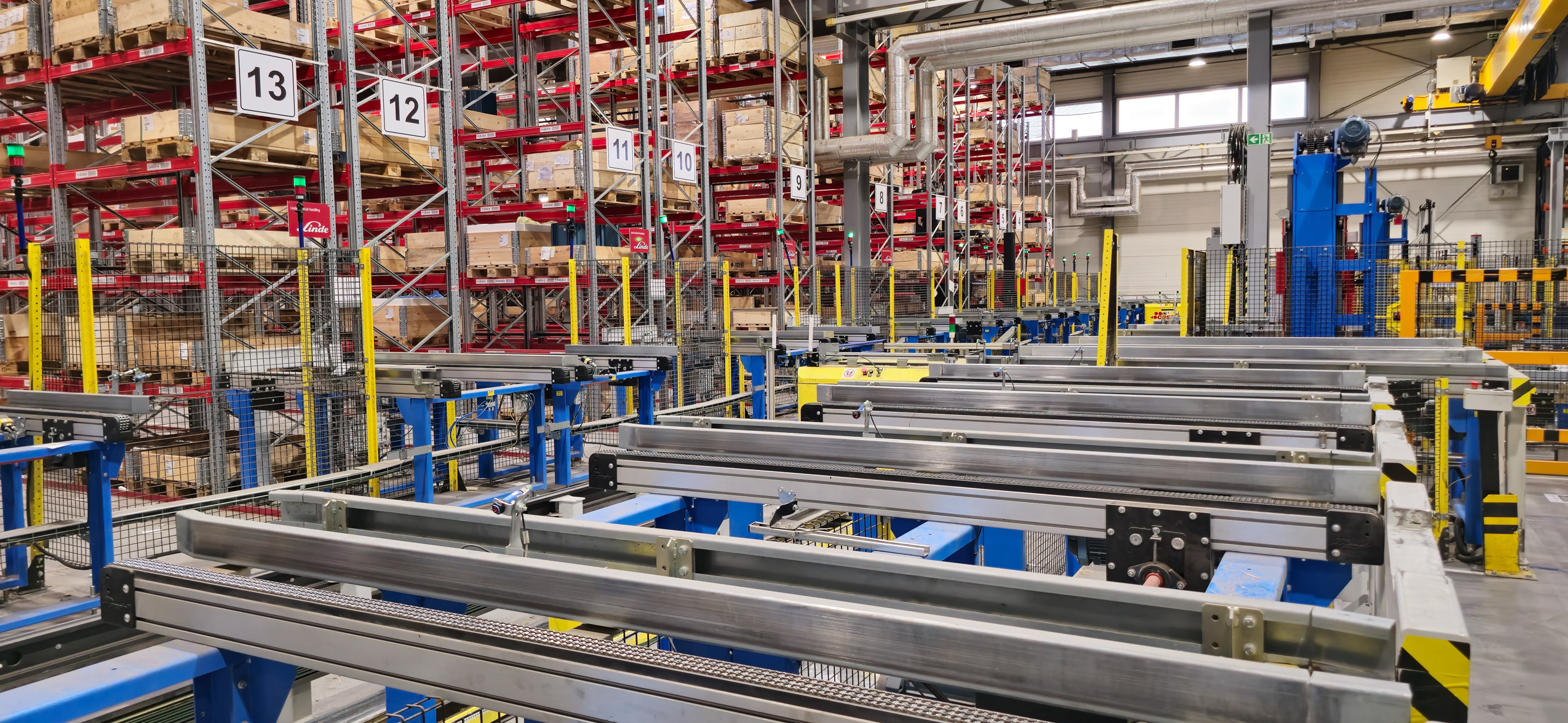

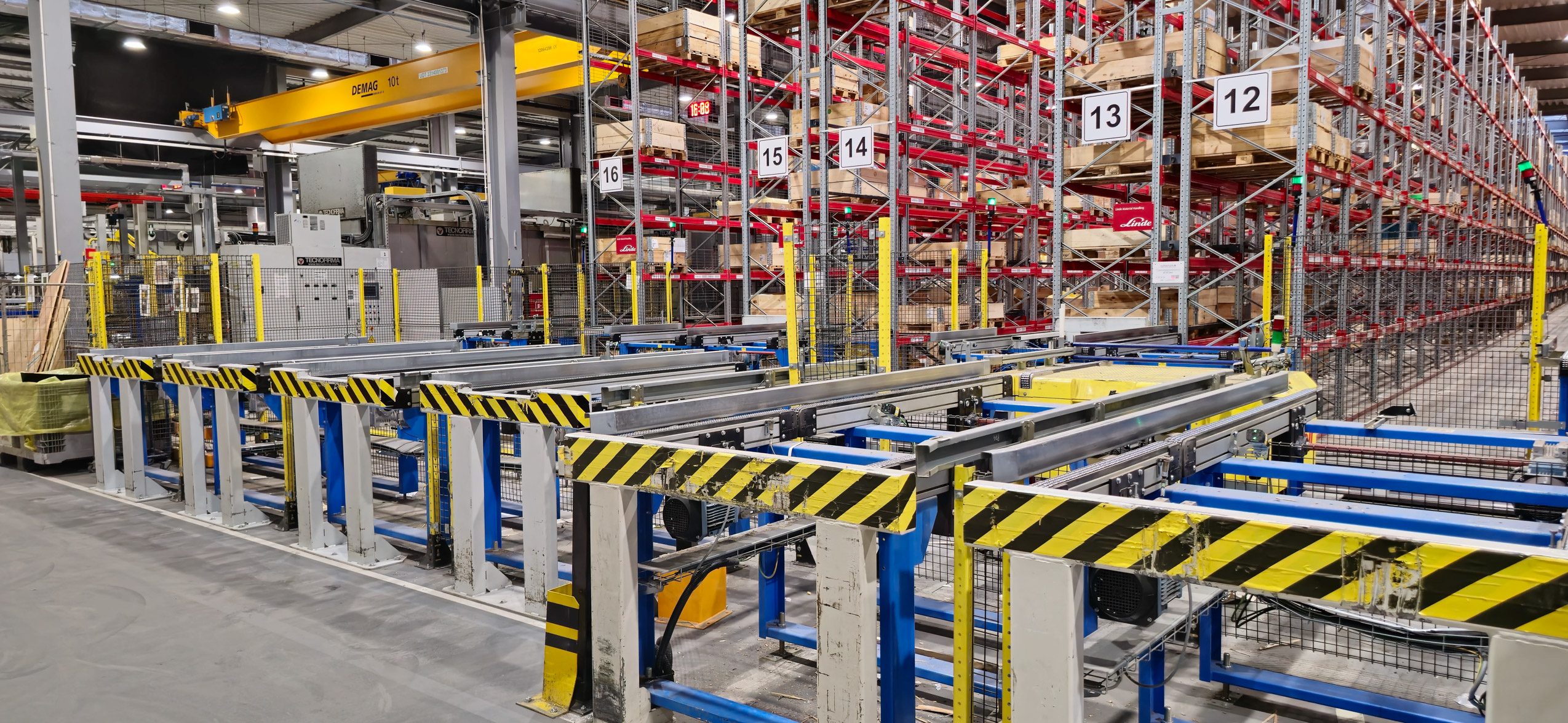

a. (2019) TCAT Chain Conveyor
b. (2019) EPAR Parallelogram Lift

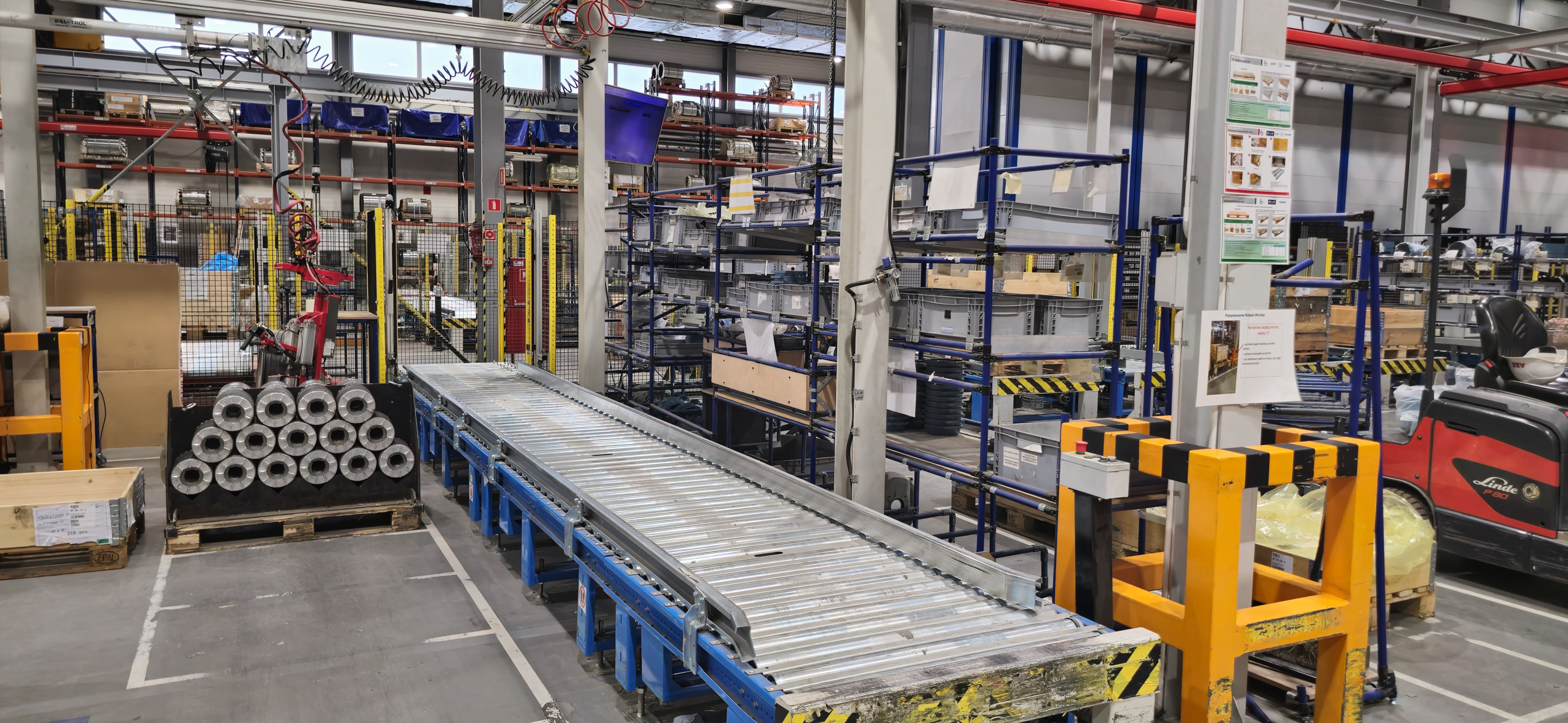

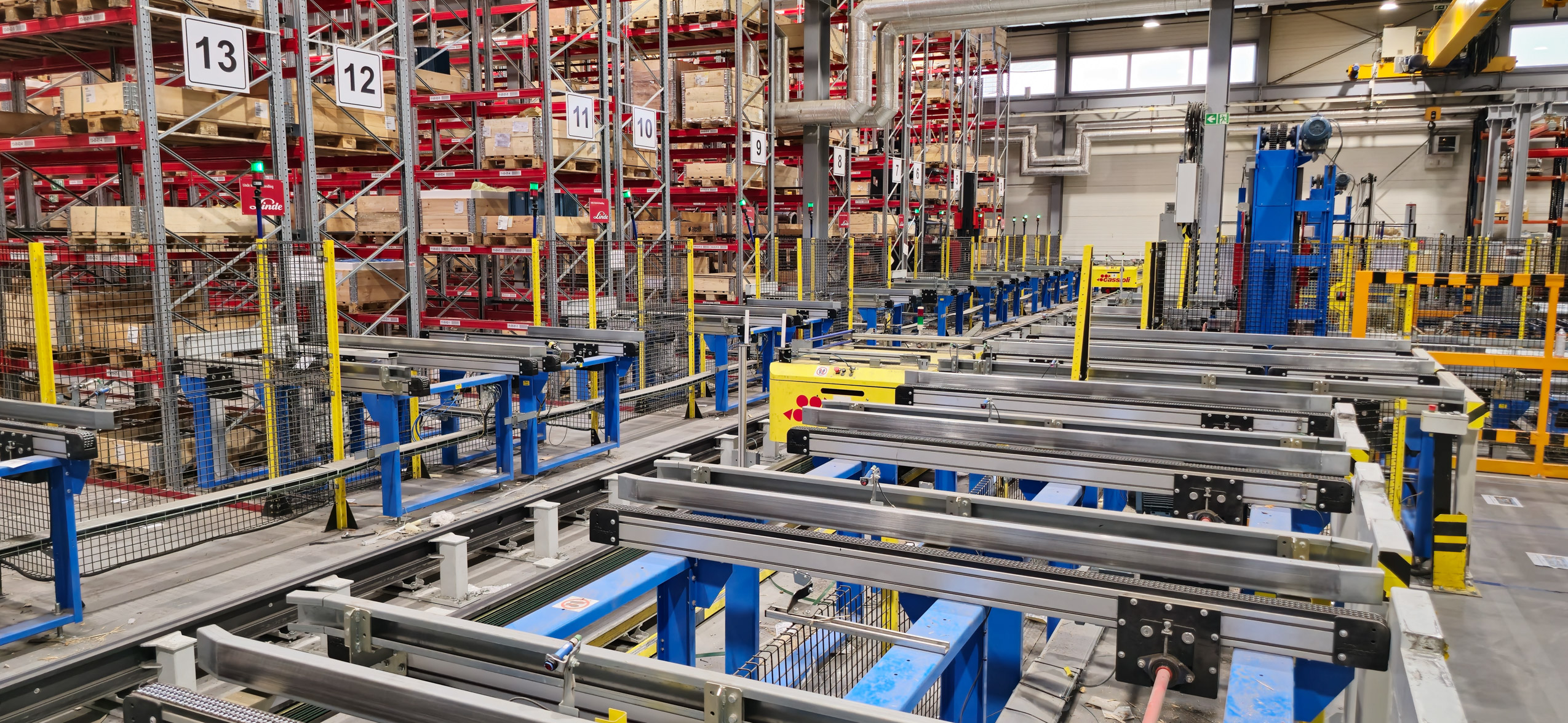

c. (2019) TRMO Driven Roller Conveyor
d. (2019) EMUL Columnar Pneumatic Lift
The 2019 CASSIOLI Automatic Transport System is an advanced material handling solution designed to optimize internal logistics in industrial and warehouse environments. This state-of-the-art system integrates cutting-edge automation technology to enhance efficiency, safety, and precision in transporting goods across production lines, storage zones, and dispatch areas.
Key Features:
- Automated Guided Vehicles (AGVs): High-performance, fully autonomous AGVs capable of precise navigation and seamless integration with existing workflows.
- Customizable Configurations: Modular design tailored to handle various load types, weights, and sizes, ensuring flexibility for diverse industrial needs.
- High-Speed Transport: Delivers rapid and reliable movement of materials while minimizing downtime.
- Smart Navigation System: Advanced sensors and software ensure collision avoidance, optimized routing, and real-time adjustments to operational changes.
- Integration Capabilities: Easily integrates with ERP, WMS, and other management systems to provide a comprehensive logistics solution.
- Energy Efficiency: Equipped with energy-saving mechanisms and long-lasting power systems for sustainable operation.
Technical Details
- Type: Automated pallet transport system using mobile carts
- Year of Manufacture: 2019
General Operation Description

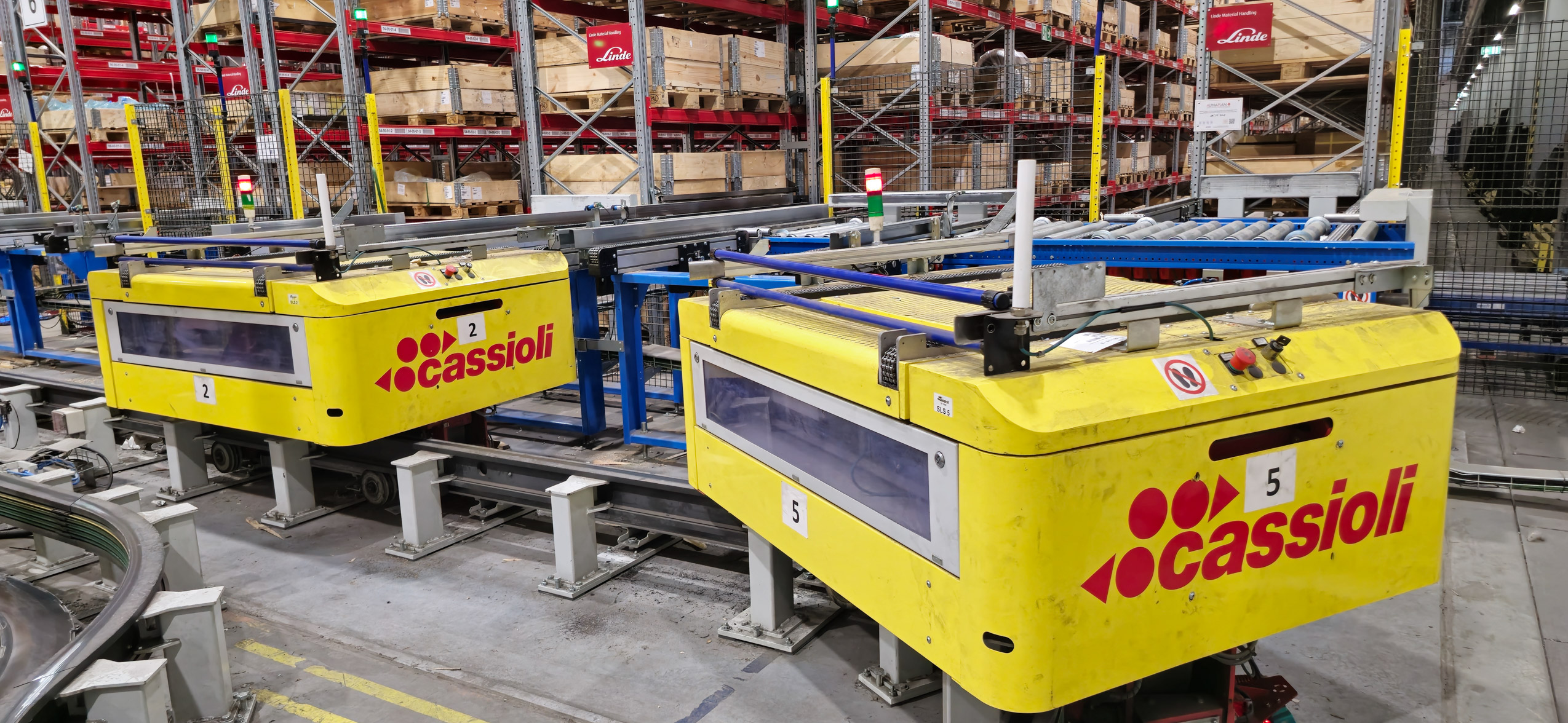

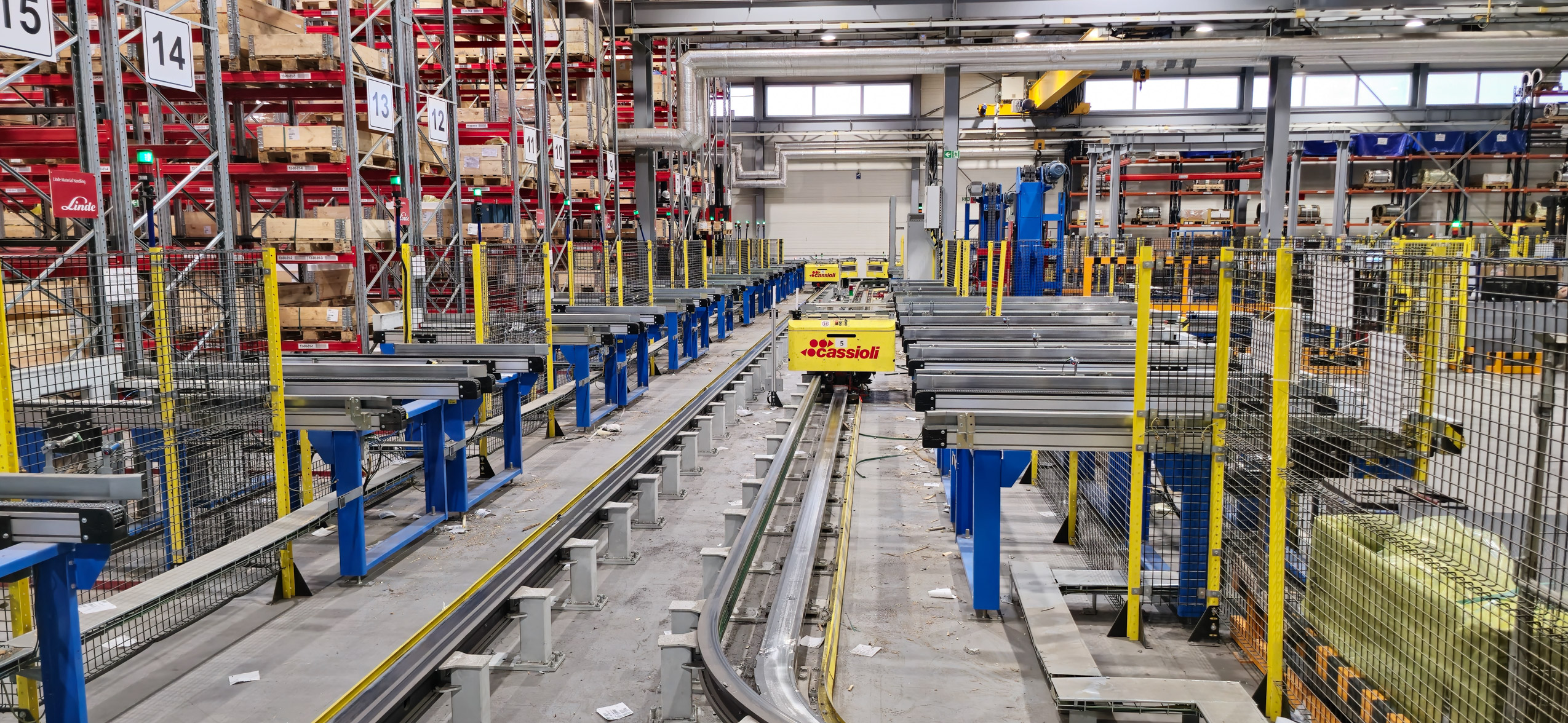

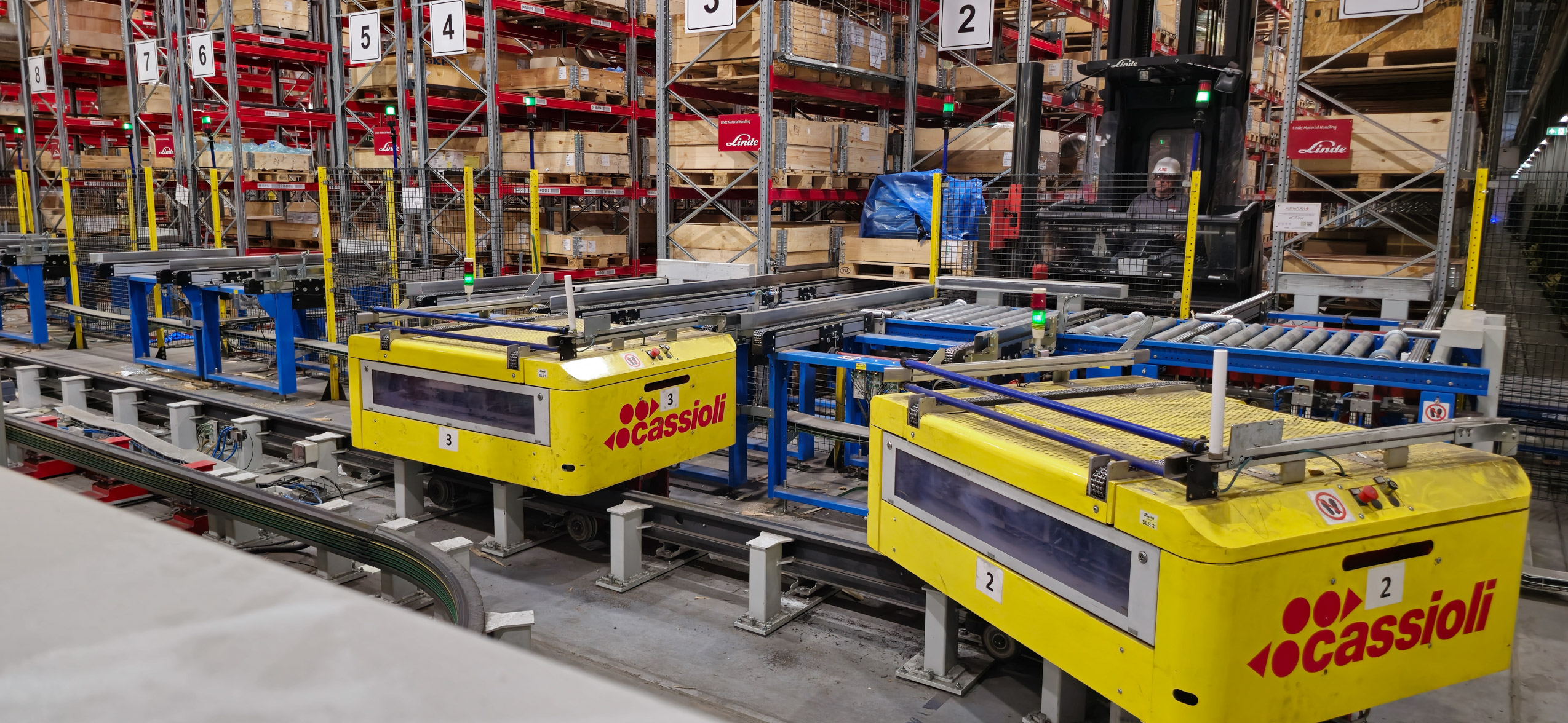

The system includes an automatic pallet transport line using self-propelled mobile carts, specifically
designed for:
- Standard Euro Pallets: 800 x 1200 mm
- Non-Standard Pallets: These are manually swapped to standard euro pallets at a designated station for re-entry into the line for continued processing.
Each pallet is marked with six characters that indicate specific entry and exit points within the warehouse, managed through barcode scanning to direct the pallet either to storage or to other processing areas such as the Kardex system or inspection stations.
Pallet Specifications:
- Standard Pallet Size: 800 x 1200 mm
- Maximum Load Height: 1200 mm
- Maximum Weight per Pallet: 1200 kg
Performance Rates (Warehouse Only):
- Capable of handling up to 146 pallets per hour
