(2019) WEINGARTEN Lamination Press Line
315-Ton Automated High-Speed Lamination Press Line

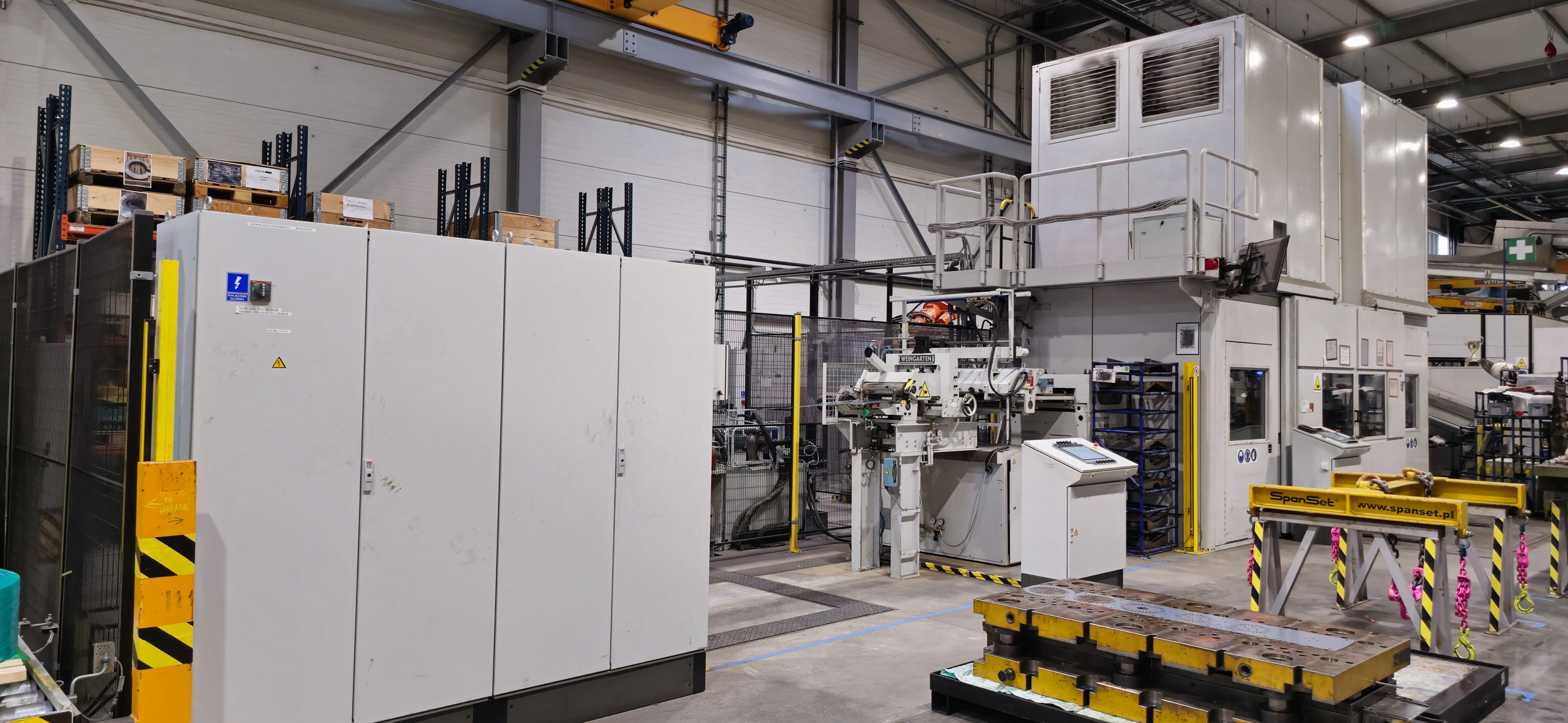

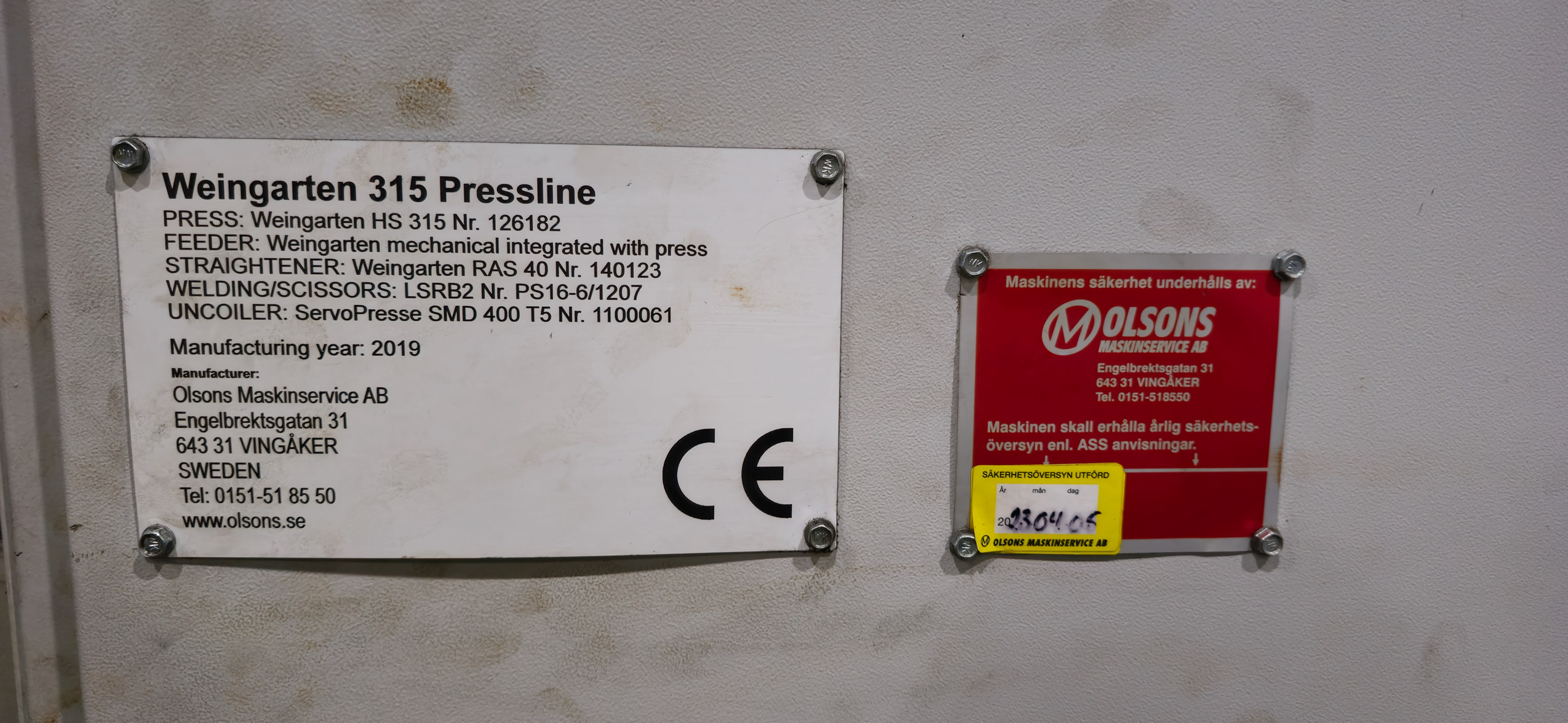

This line consists of:

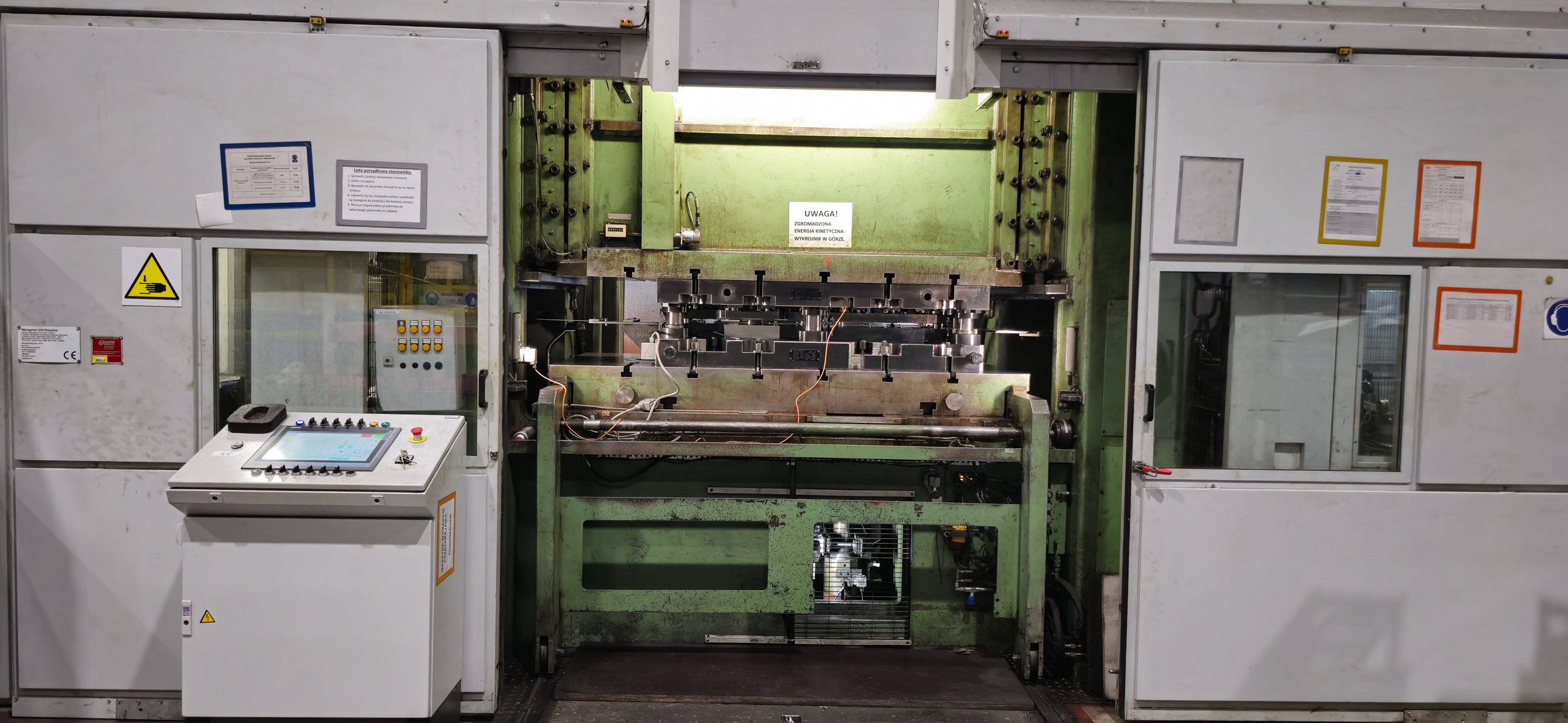

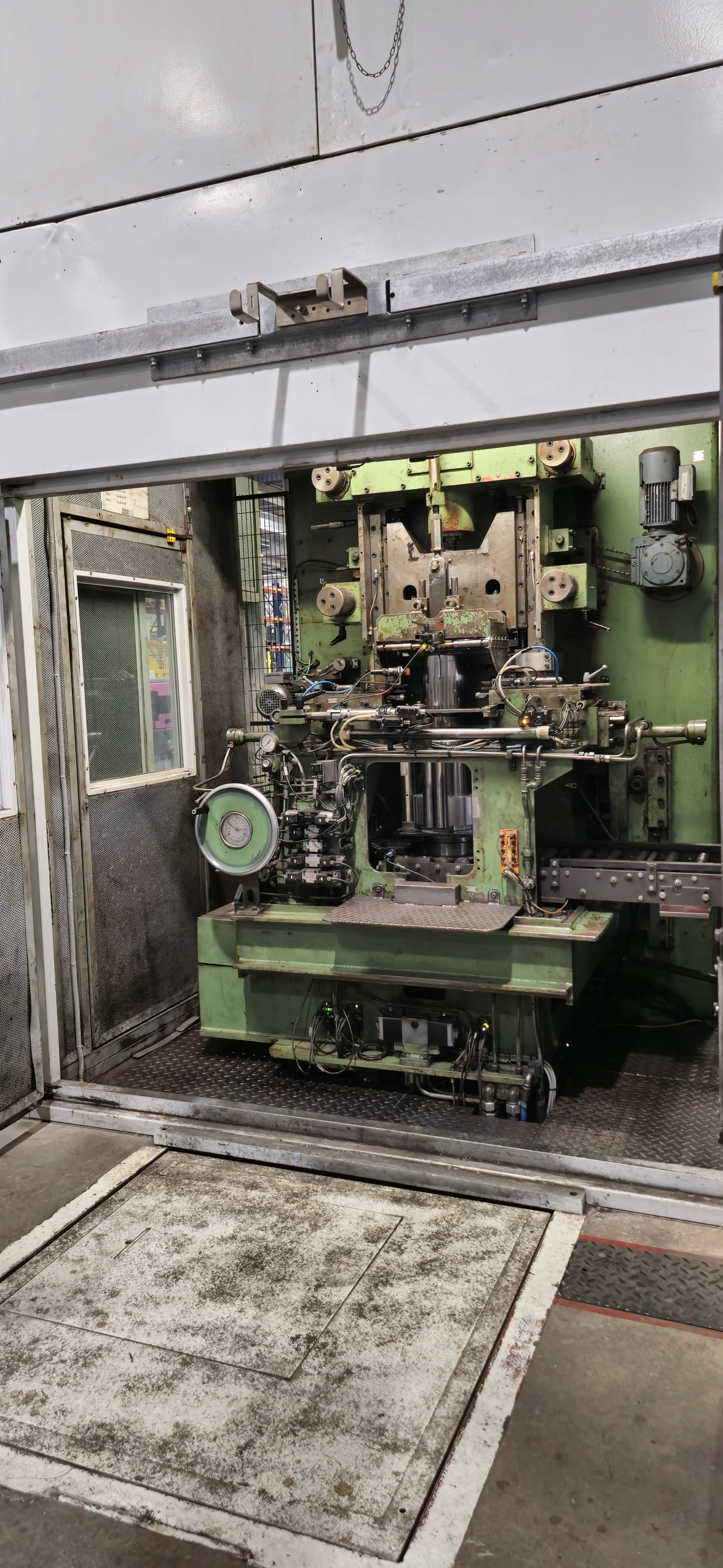

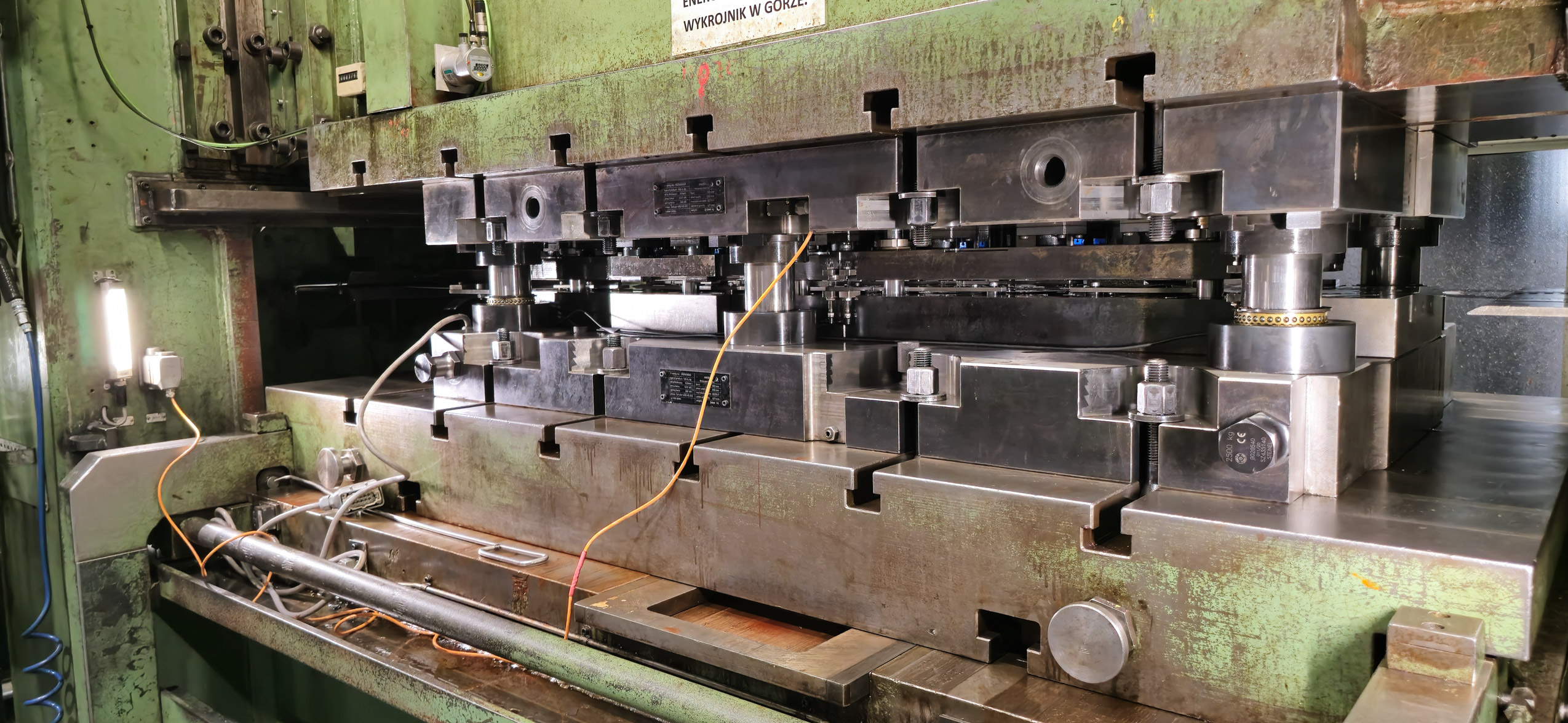

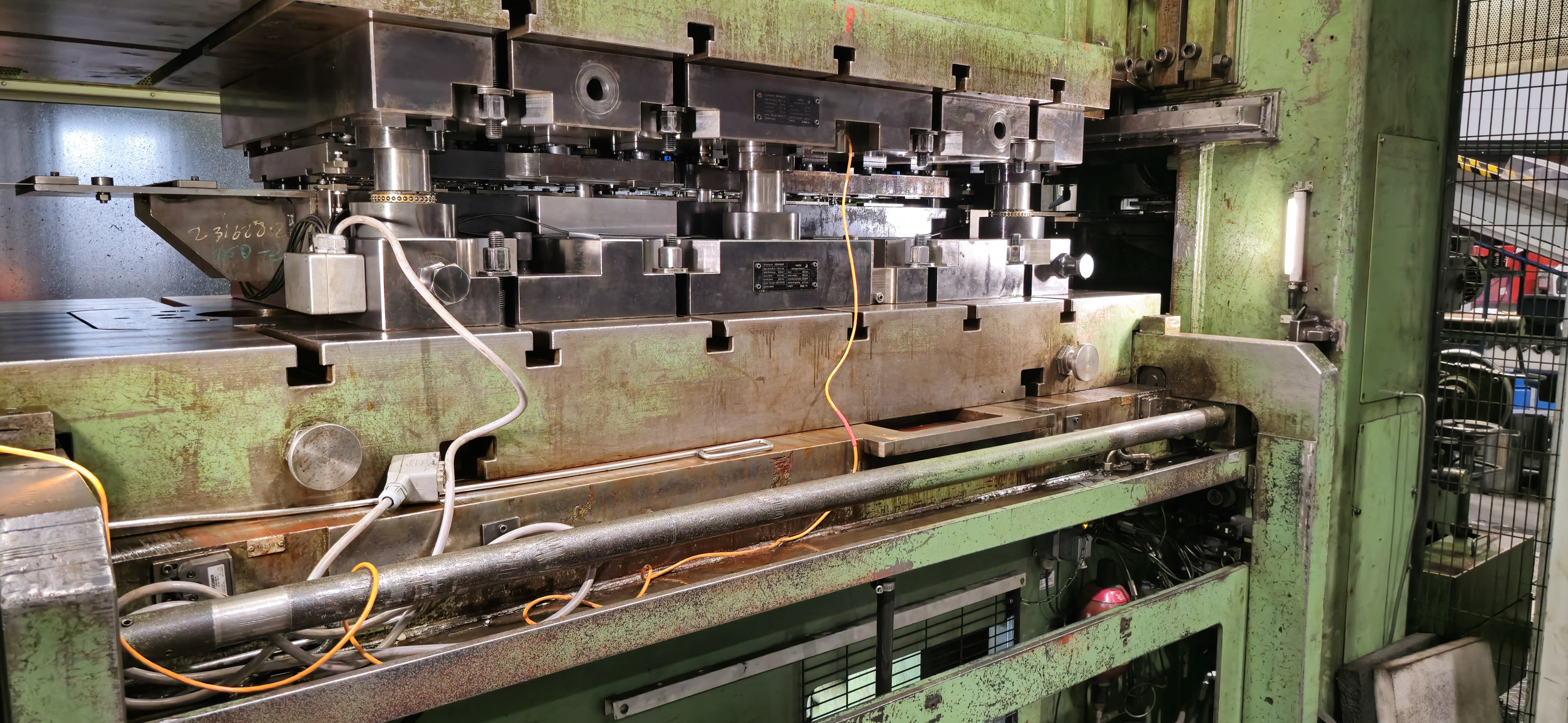

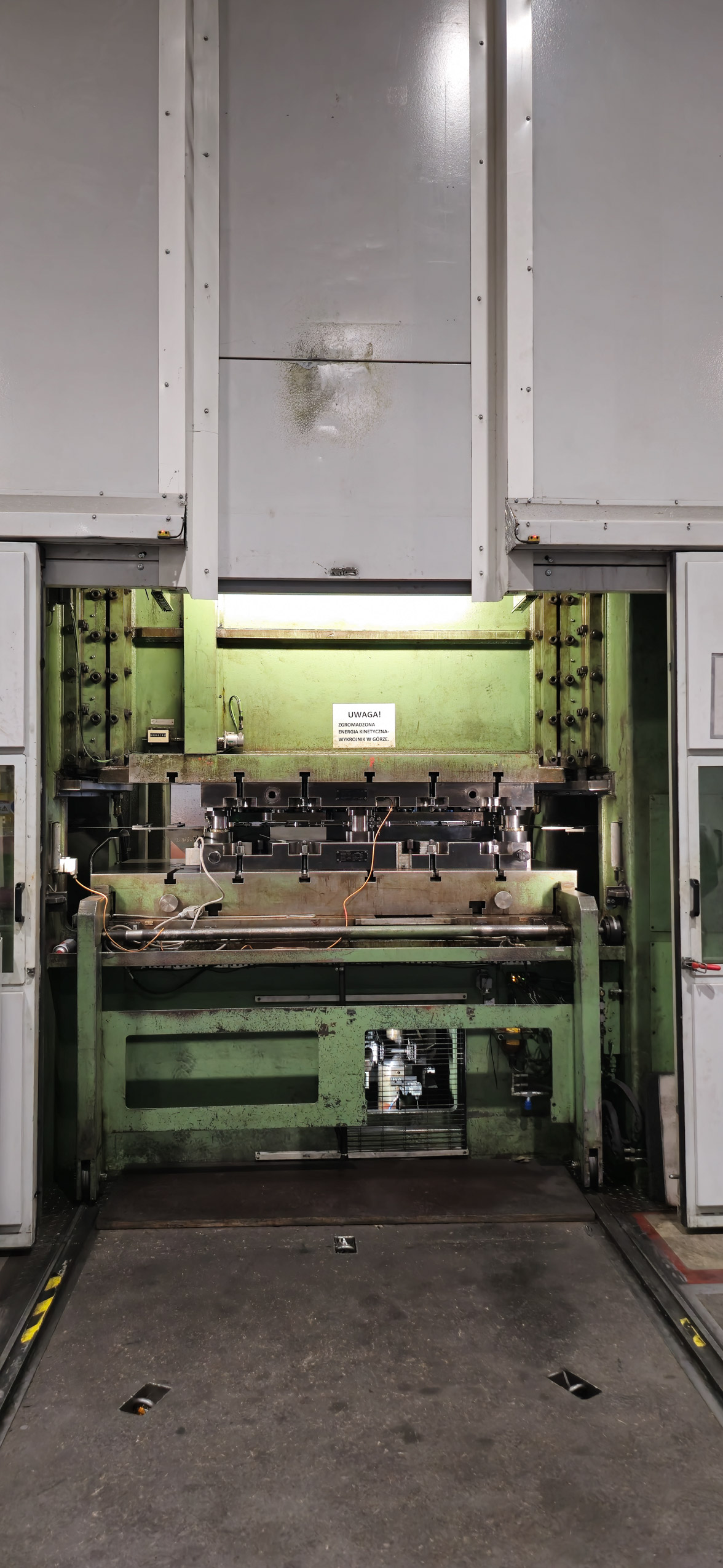

- (1977/2019 refurb.) Weingarten HS 315 Lamination Press
- (1977/2019 refurb.) Weingarten Mechanical Feeder (Integrated with Press)

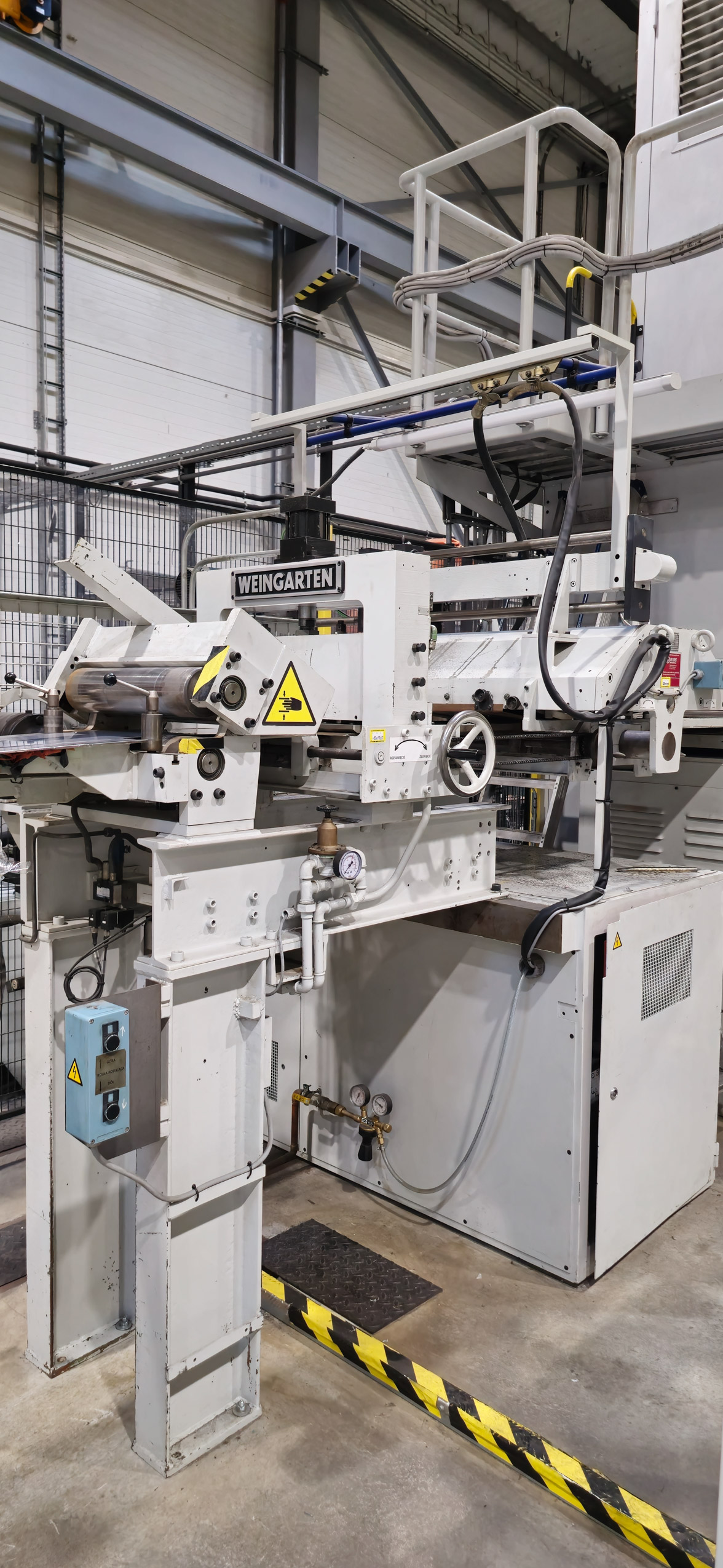

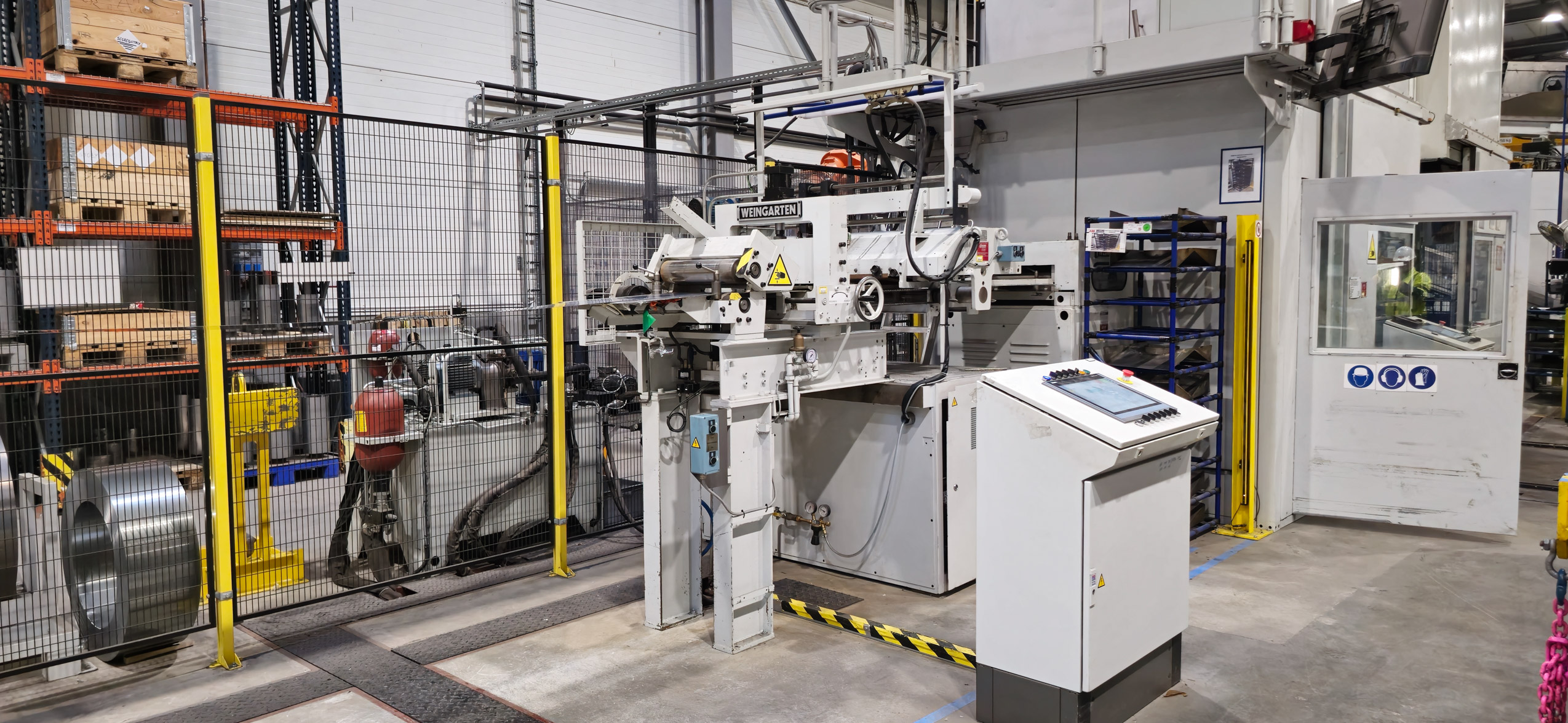

- (1977/2019 refurb.) Weingarten RAS 40 Straightener

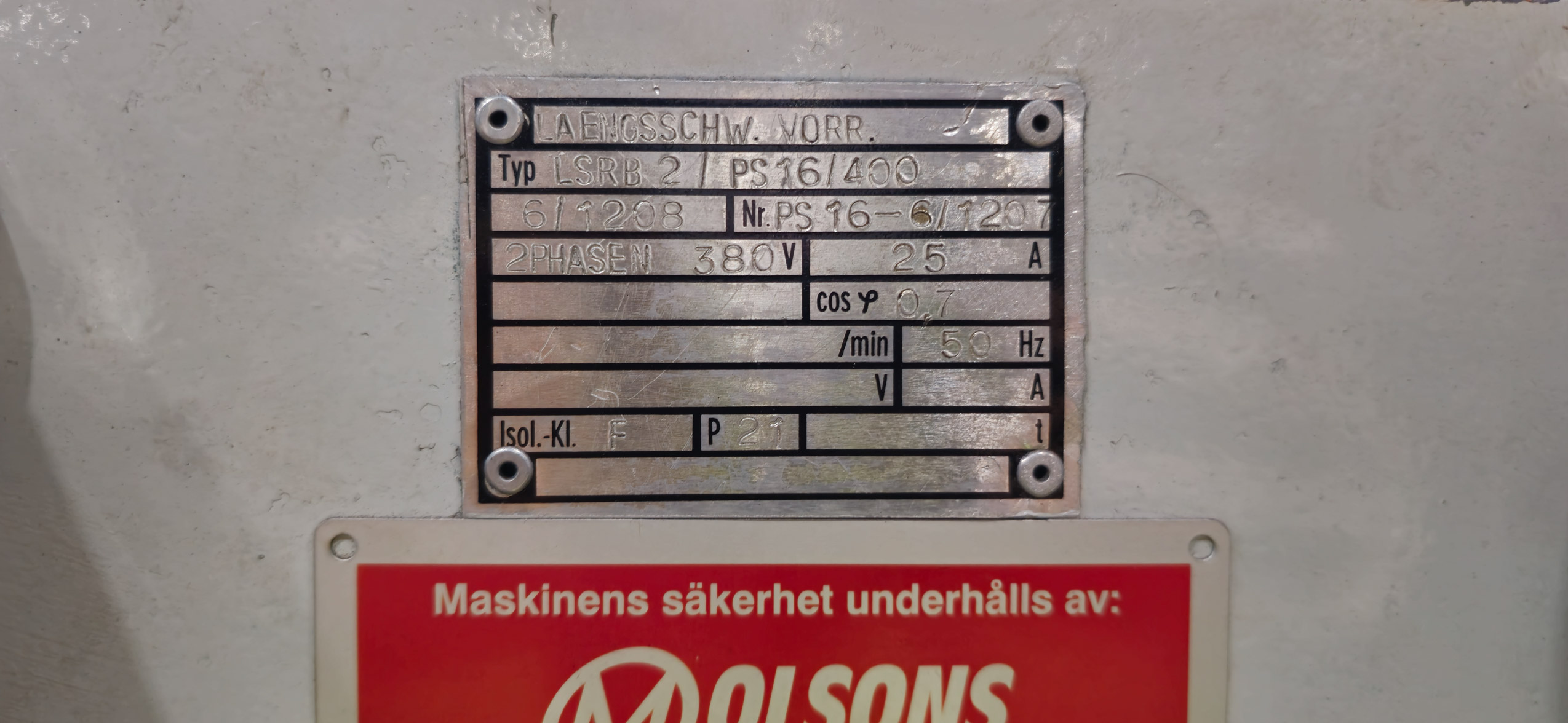

- (1977/2019 refurb.) Weingarten Welding / Scissors Unit: LSRB2

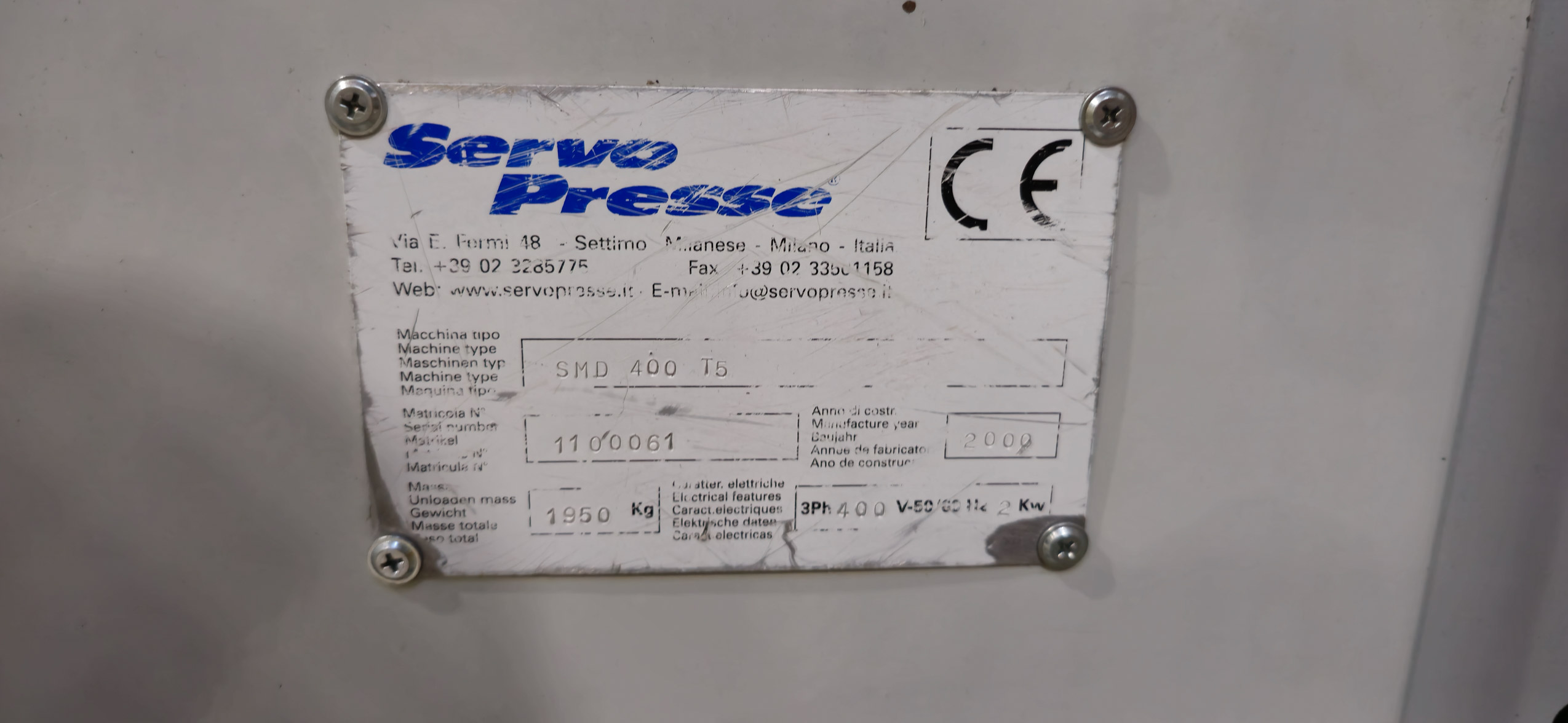

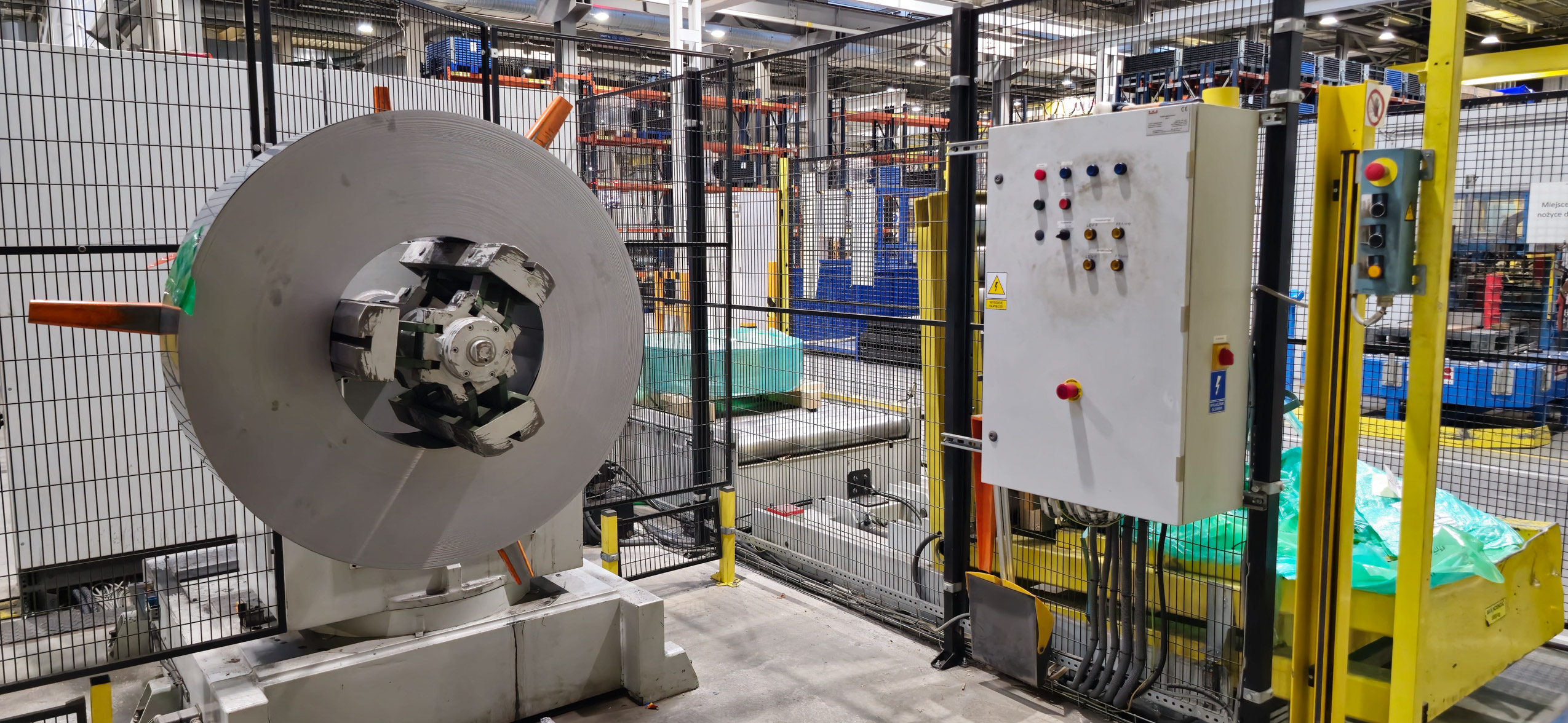

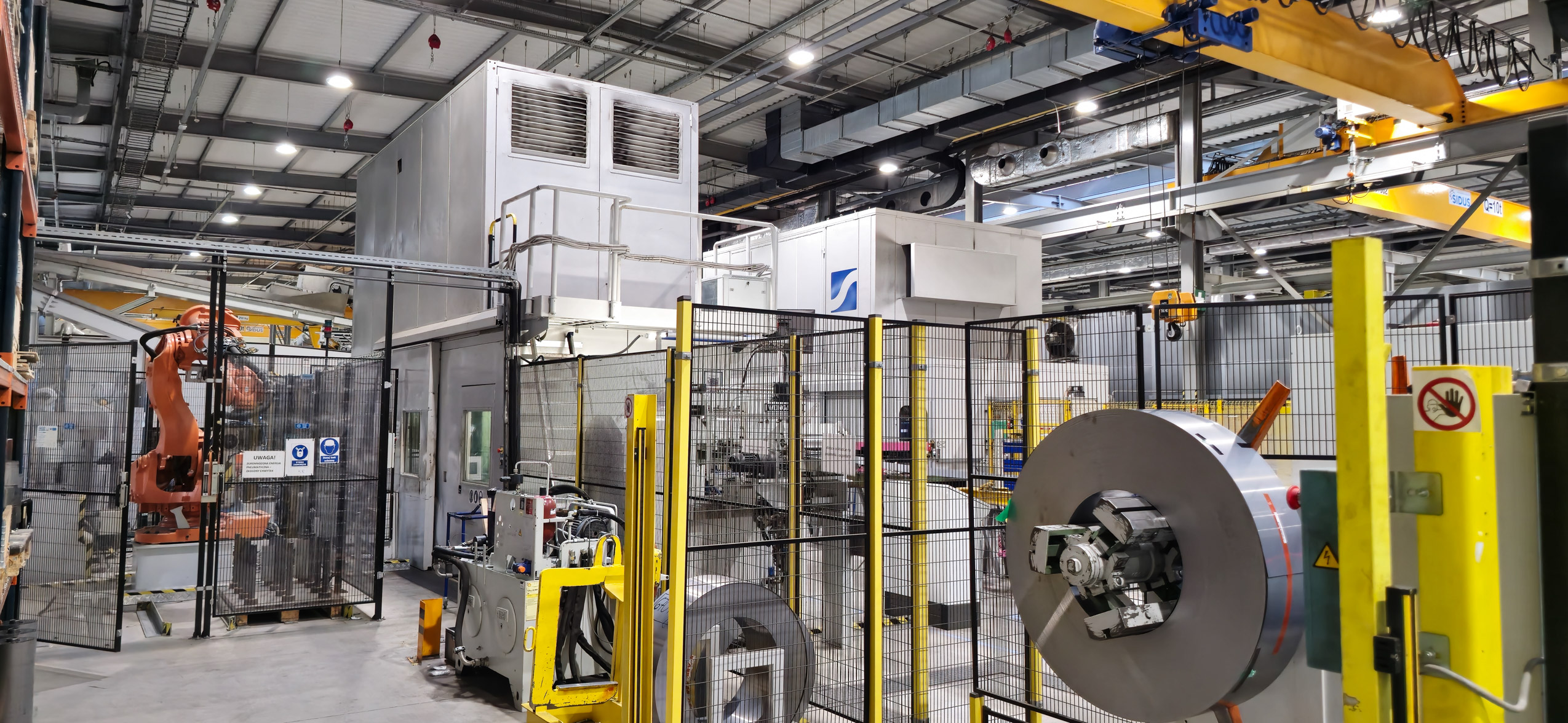

- (1977/2019 refurb.) ServoPresse SMD 400 T5 5 Uncoiler
Technical Details
Press Specifications:
- Manufacturer: Weingarten
- Force Exerted by the Press:
- Capacity: 315 t
- Notch Gap at 50 kg/mm² Force: 6300 mm²
- Maximum Sheet Thickness: 1 mm
- Free Space Between Columns: 2400 mm
- Maximum Distance Between the Table and the Slider (Bottom Jump): 630 mm
Press Table Dimensions:
- Width: 2200 mm
- Depth: 950 mm
- Hole in Table:
- Width: 1800 mm
- Depth: 400 mm
Slider Dimensions:
- Width: 2200 mm
- Depth: 800 mm
- Slot in Slider:
- Diameter: 65 mm
- Depth: 120 mm
- Normal Jump: 40 mm
Operating Mechanism:
- Slider Adjustment: 80 mm
- Number of Strokes (Depends on the Input Material): 60-280/min
- Maximum Feed Speed: 60 m/min
Drive System:
- Drive System Engine: 45 kW
- Engine Speed: 2400 RPM
- Motor to Adjust the Slider:
- Output Power: 2.2 kW
- Speed: 1000 RPM
Other Specifications:
- Required Air Pressure: 5-6 bars
- Machine Weight: 60,000 kg
