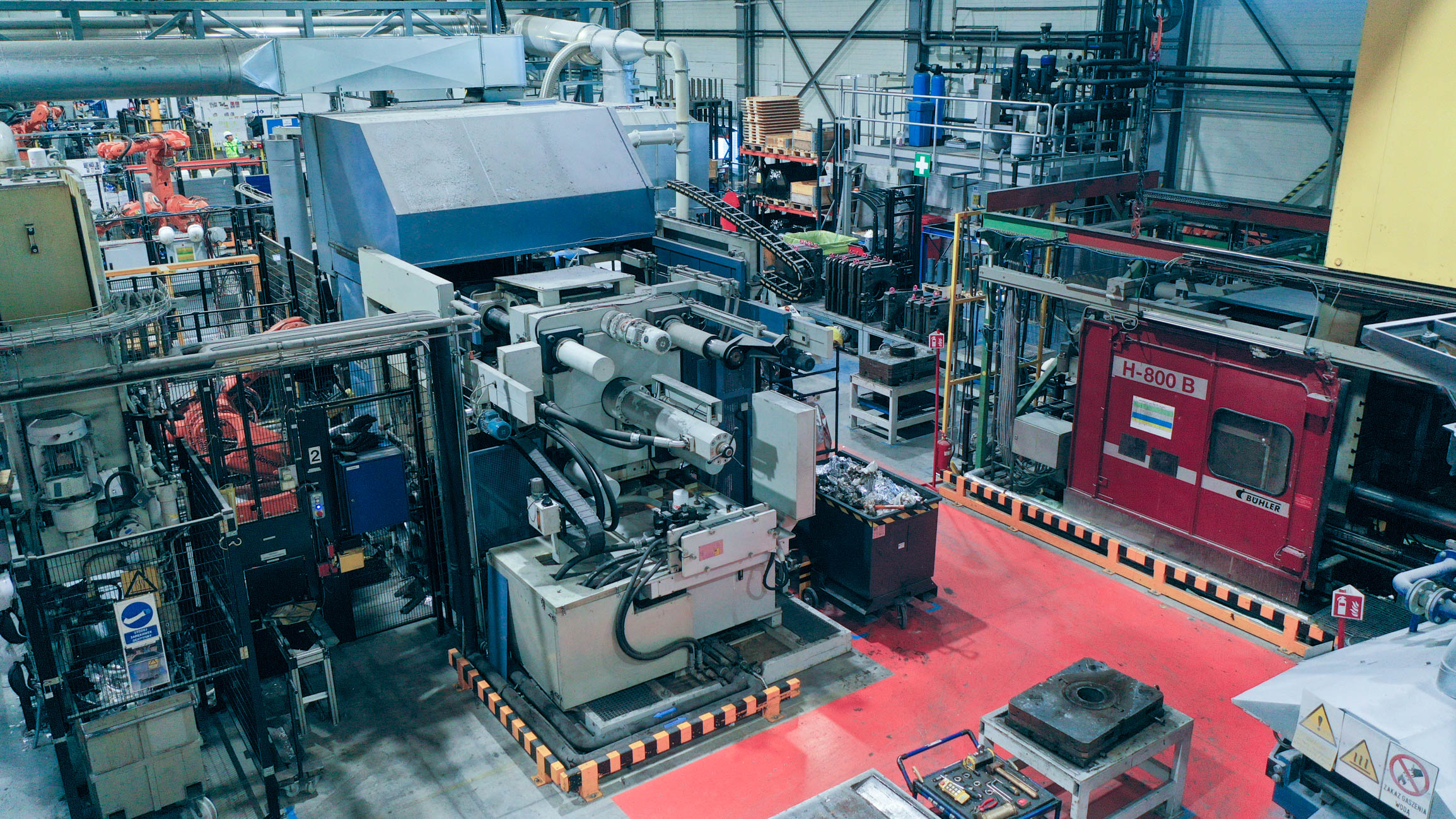

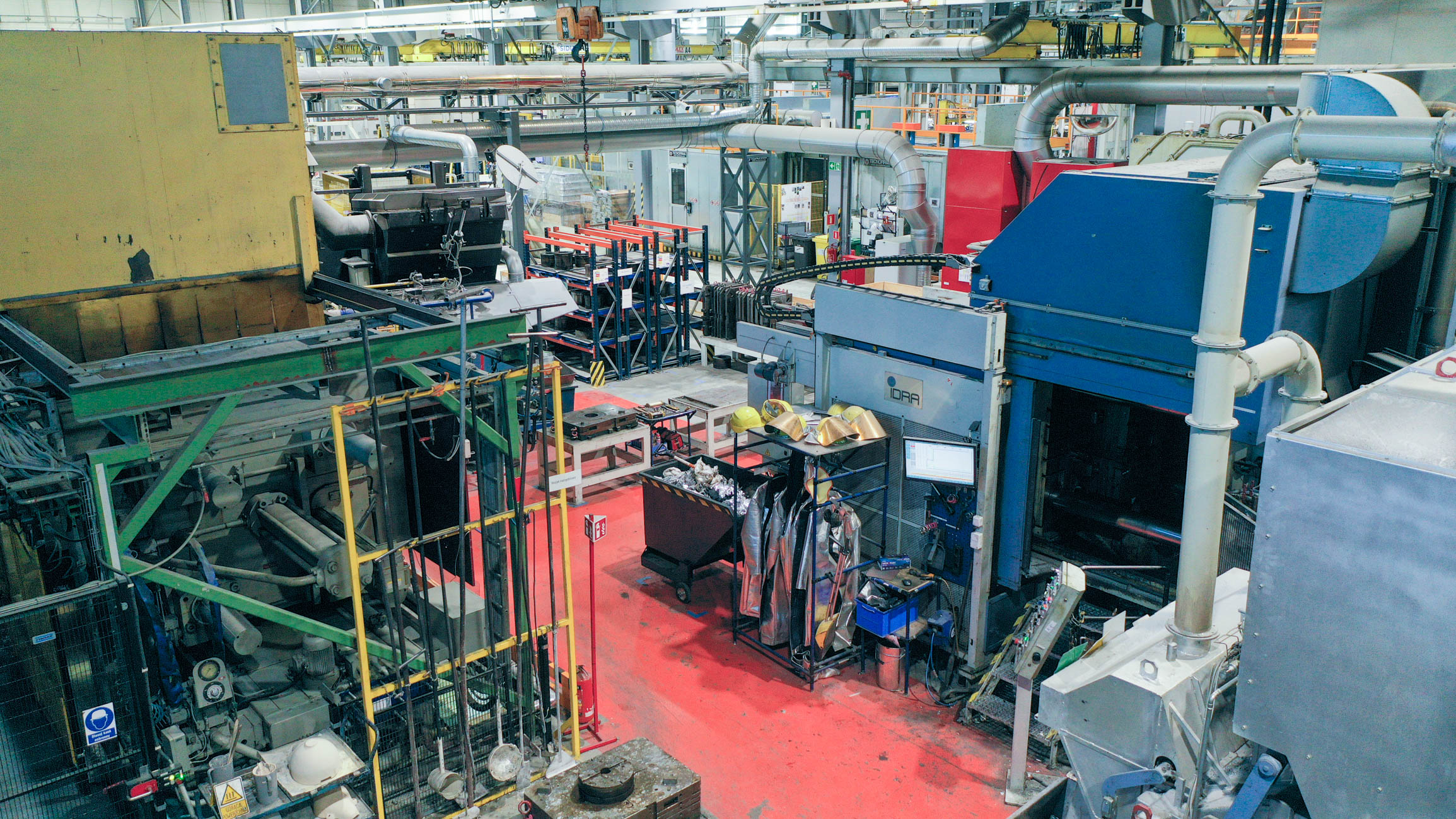

(2010) IDRA Aluminum Die Casting Cell
Fully Automated Die Casting Cell
This line consists of:

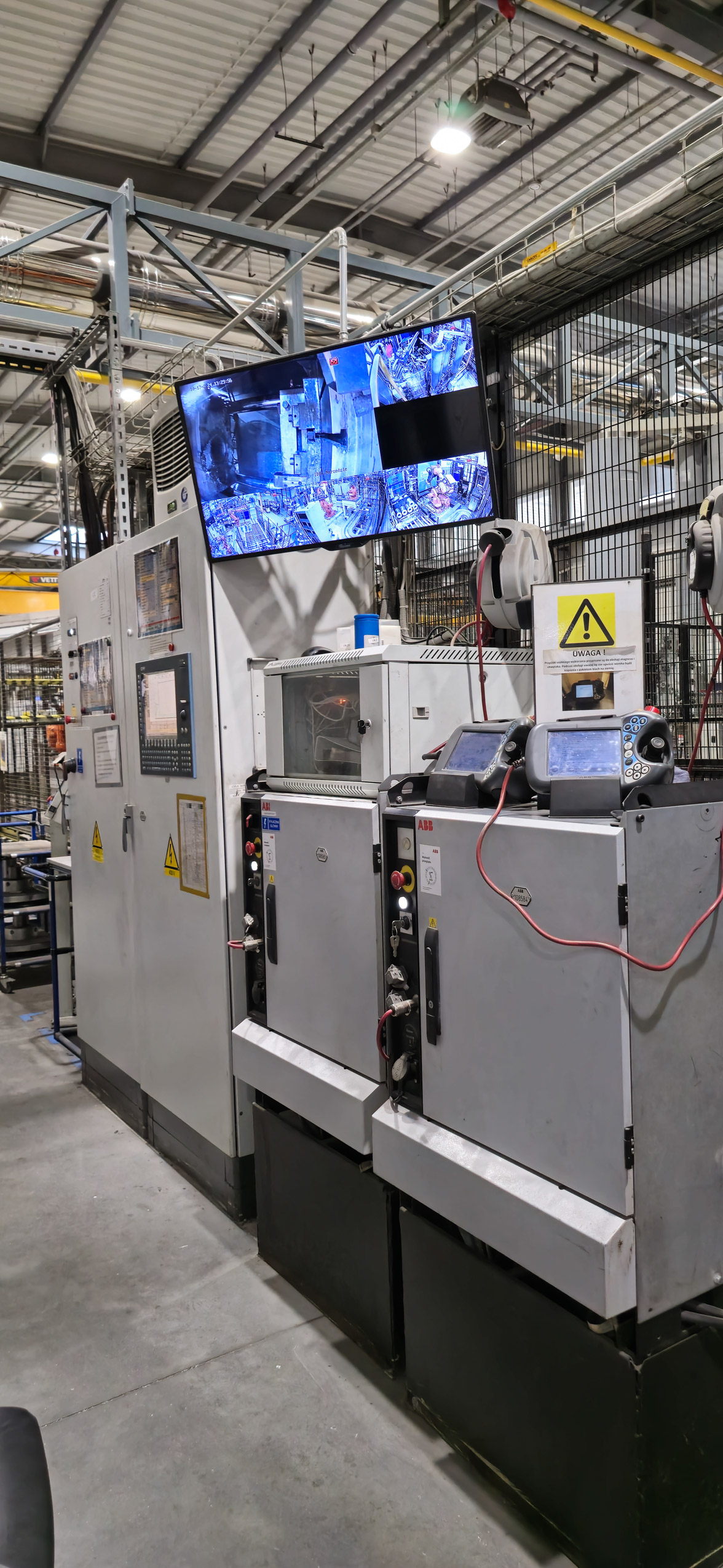

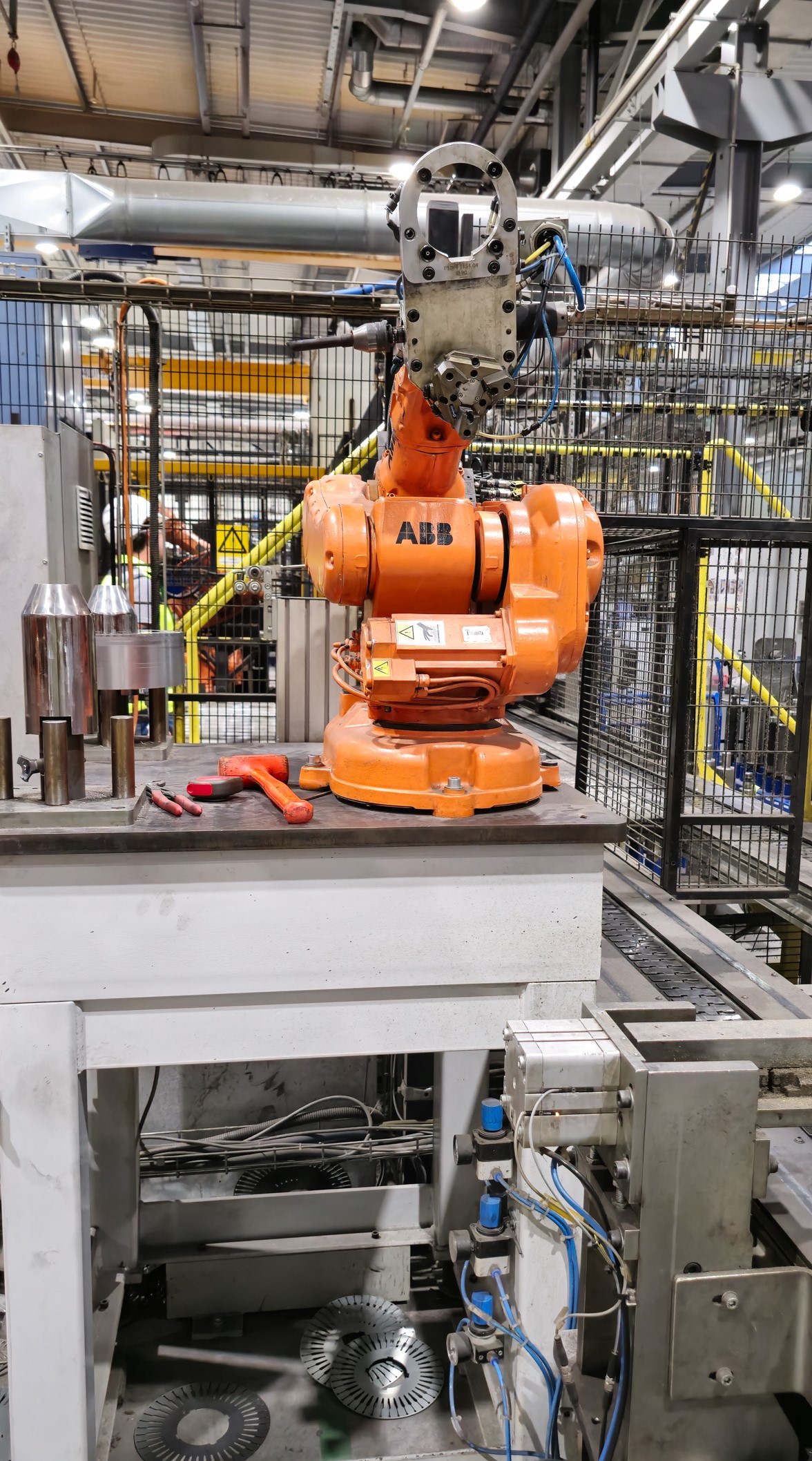

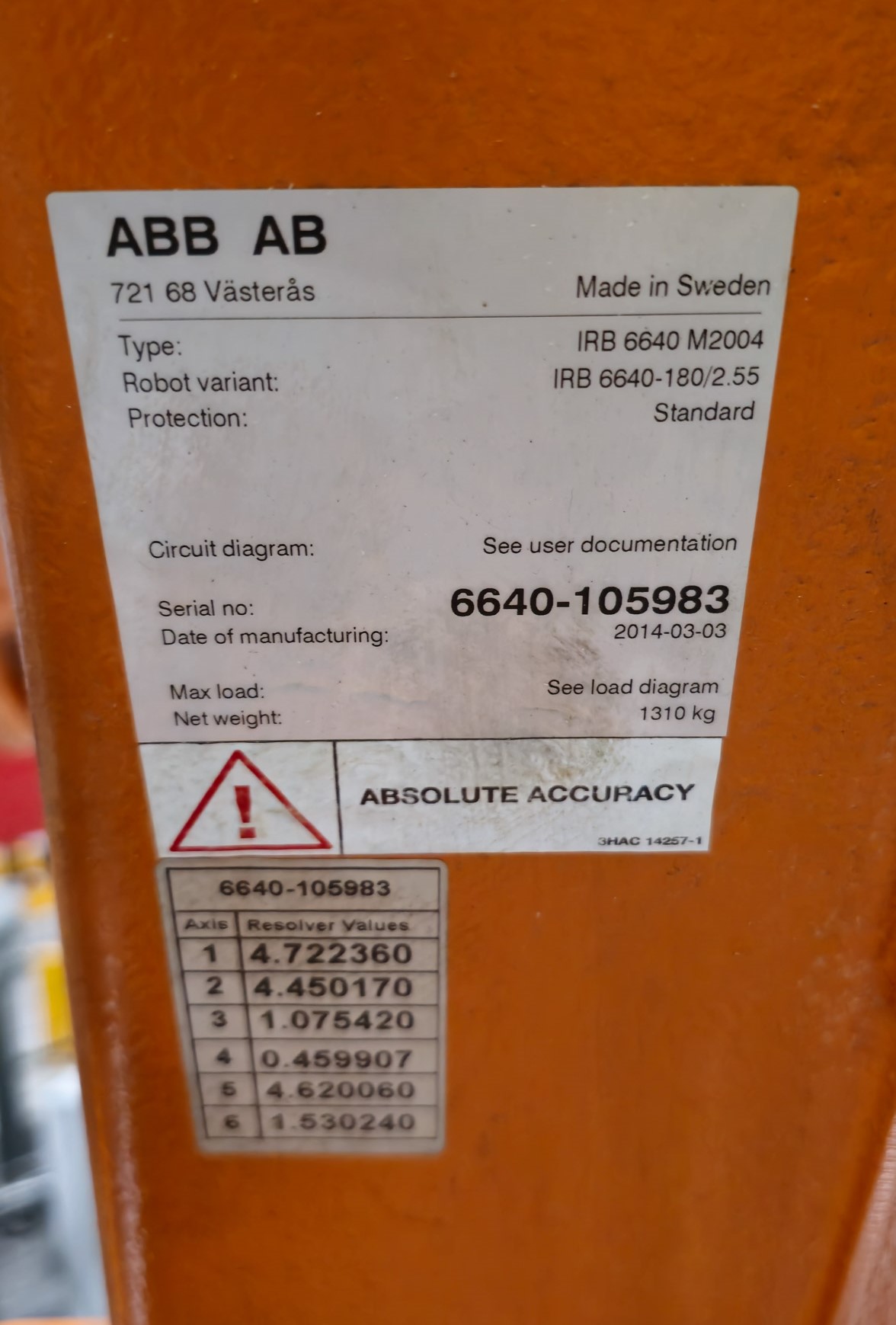

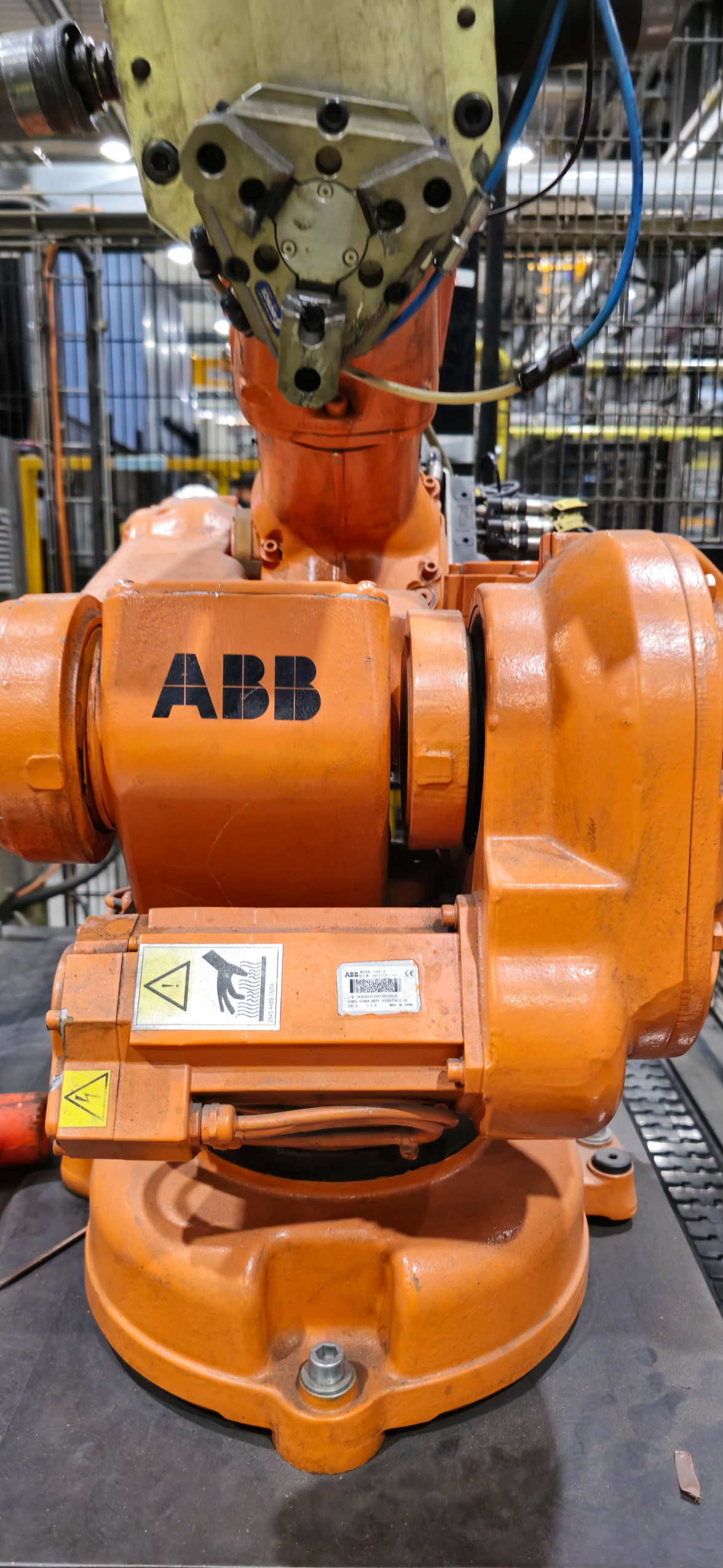

- (2014) ABB IRB 6640 Buffer Robot Cell

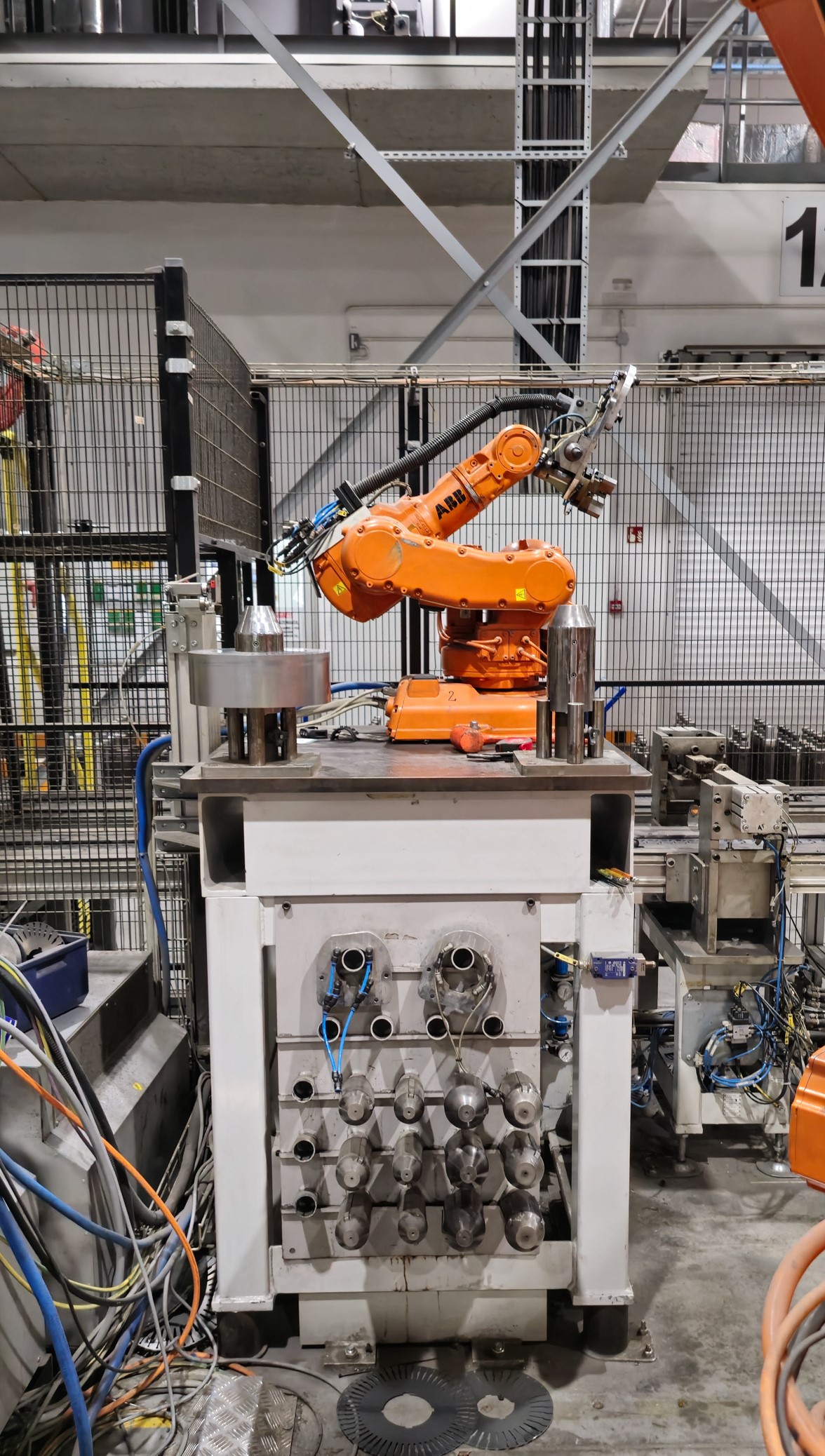

- (2014) ABB IRB 6840 Compensation Station Robot

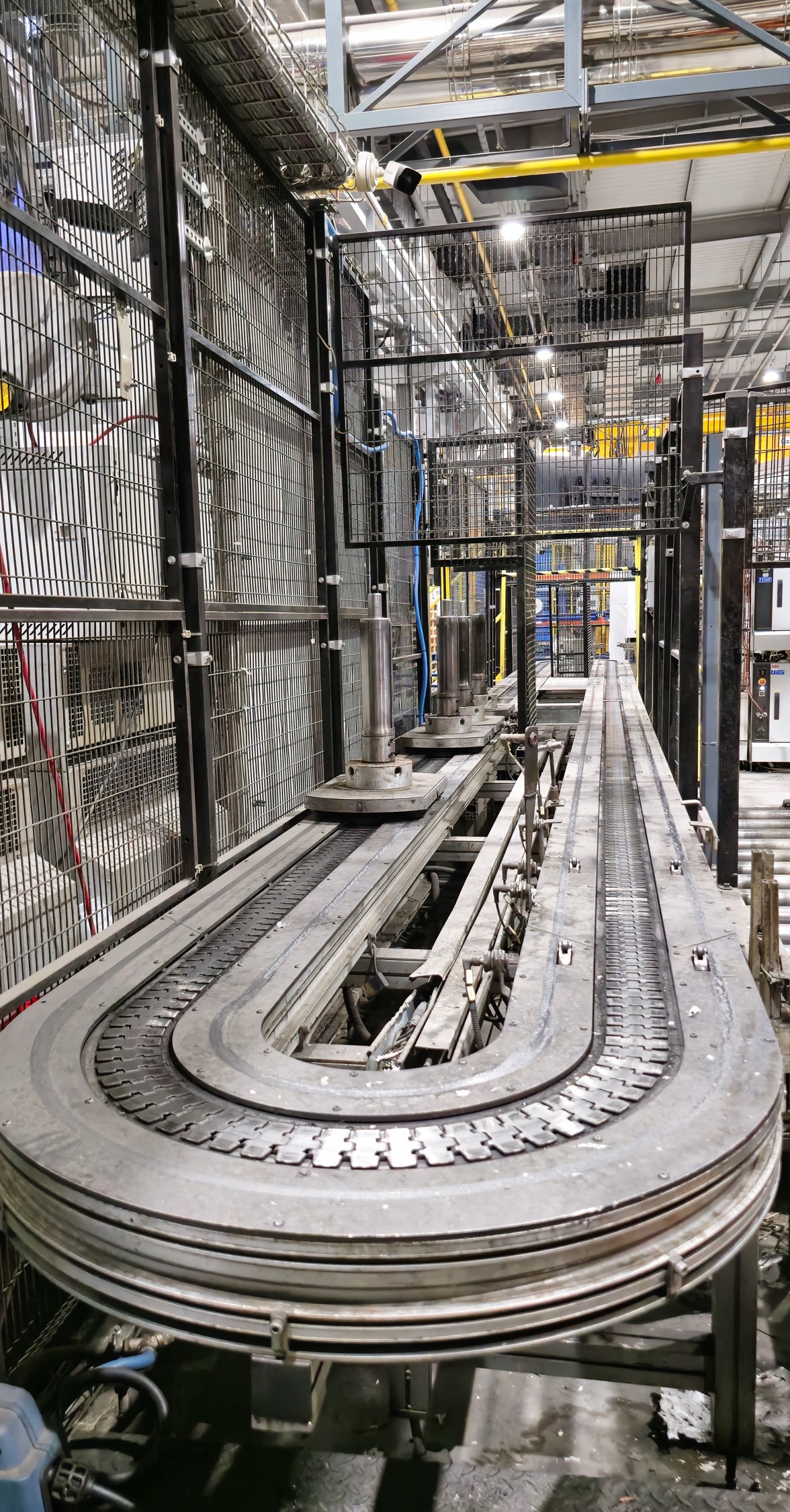

- (2014) BOFAB InterRoll S3950 Conveyor Rolls
- (2010) FERGAL FFCA01 Aluminum Melting Furnace
- (2010) IDRA CLE30 Casting Ladle

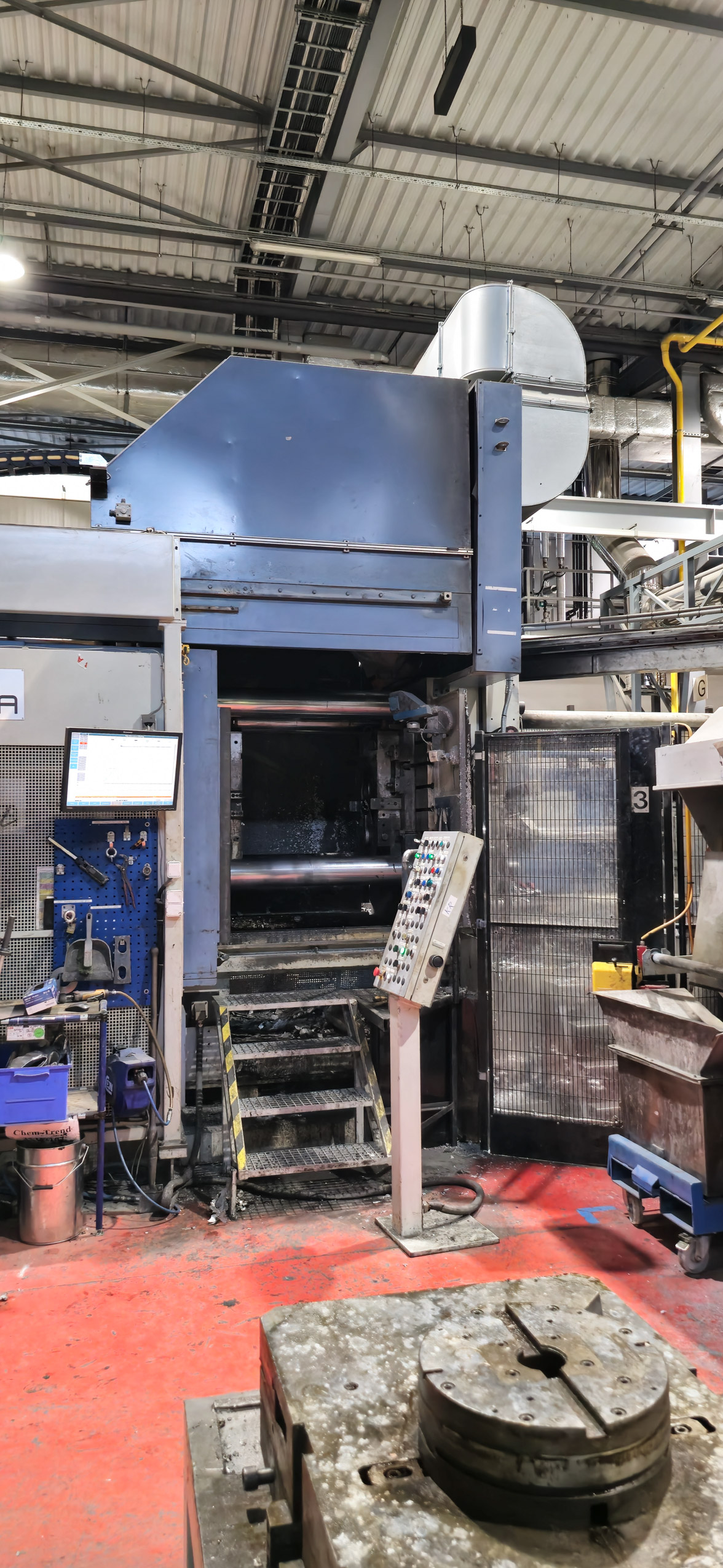

- (2010) IDRA OLK802/1300S Aluminum Die Casting Press
- (2009) ABB IRB 7600 Foundry Plus Handling Robot

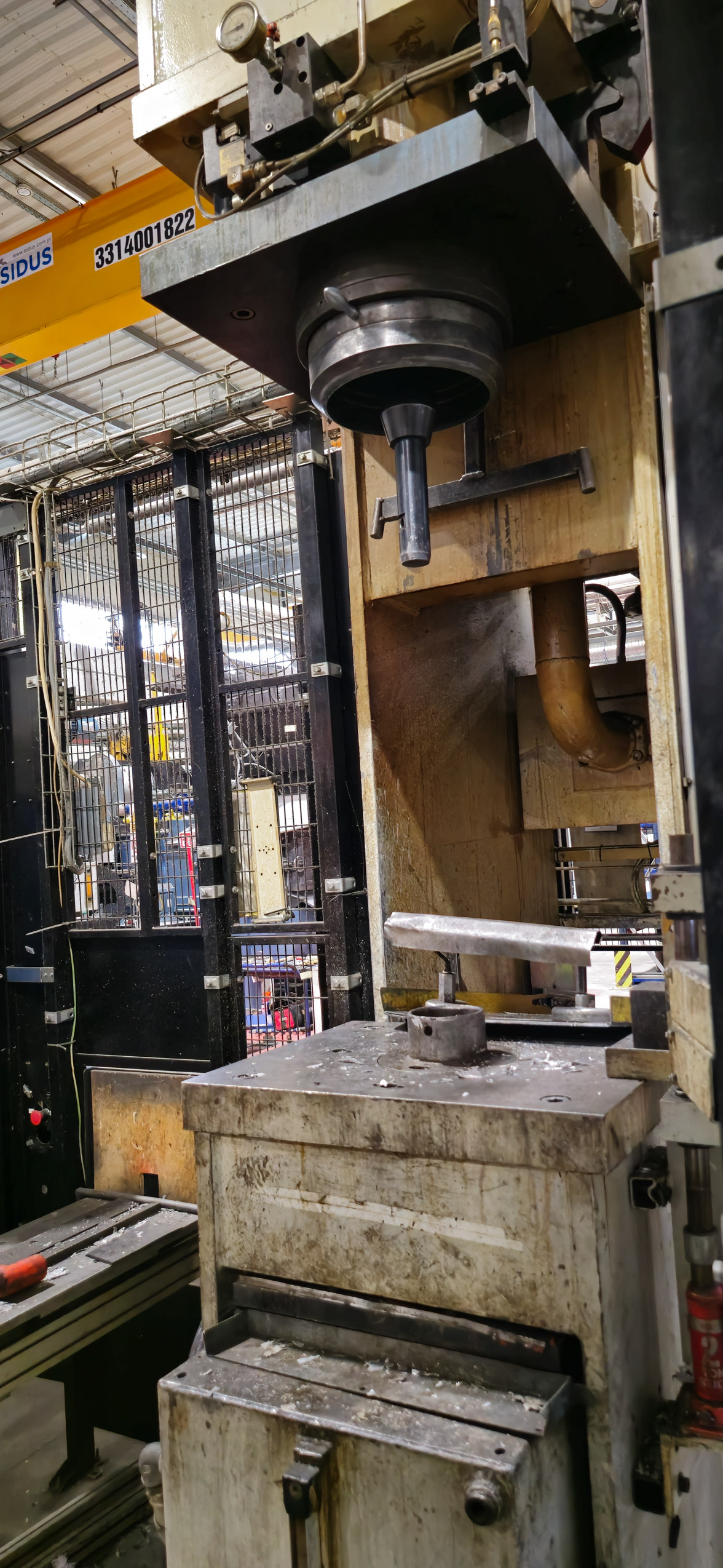

- (2010) ROBOPRESS Trancia CS 40 Trimming Press
Technical Details
Name: Cold chamber die casting machine
Model: OLK802/13008
Serial number: 7954
Year of manufacture: 2010
Max width: 3120 mm
Height: 3770 mm
Total length: 9441 mm
Maximum space for bar insertion during assembly: 12200 mm
Pillar retraction height (if applicable): 10600 mm
Maximum casting height: 900 mm
Minimum casting height: 400 mm
Press plate dimensions LxH: 1315 mm x 1315 mm
Bar spacing LxH: 830 mm x 830 mm
Bar diameter: 175 mm
Movable press plate movement: 850 mm
Injection movement: Max 890 min 650 mm
Movable press plate movement: 420 mm
Machine operating data
Closing force: 8840 kN
Opening force: 1780 kN
Maximum injection force: 976 kN
Maximum injection pressure: 424 bar
Central ejection force: 360 kN
1.2.1.3 Power supply
Electrical installation
Installed power: 59 kW
Voltage: 400 V
Frequency: 50 Hx
Extra voltage: 24 VDC
Voltage LS SV: 24 VDC
