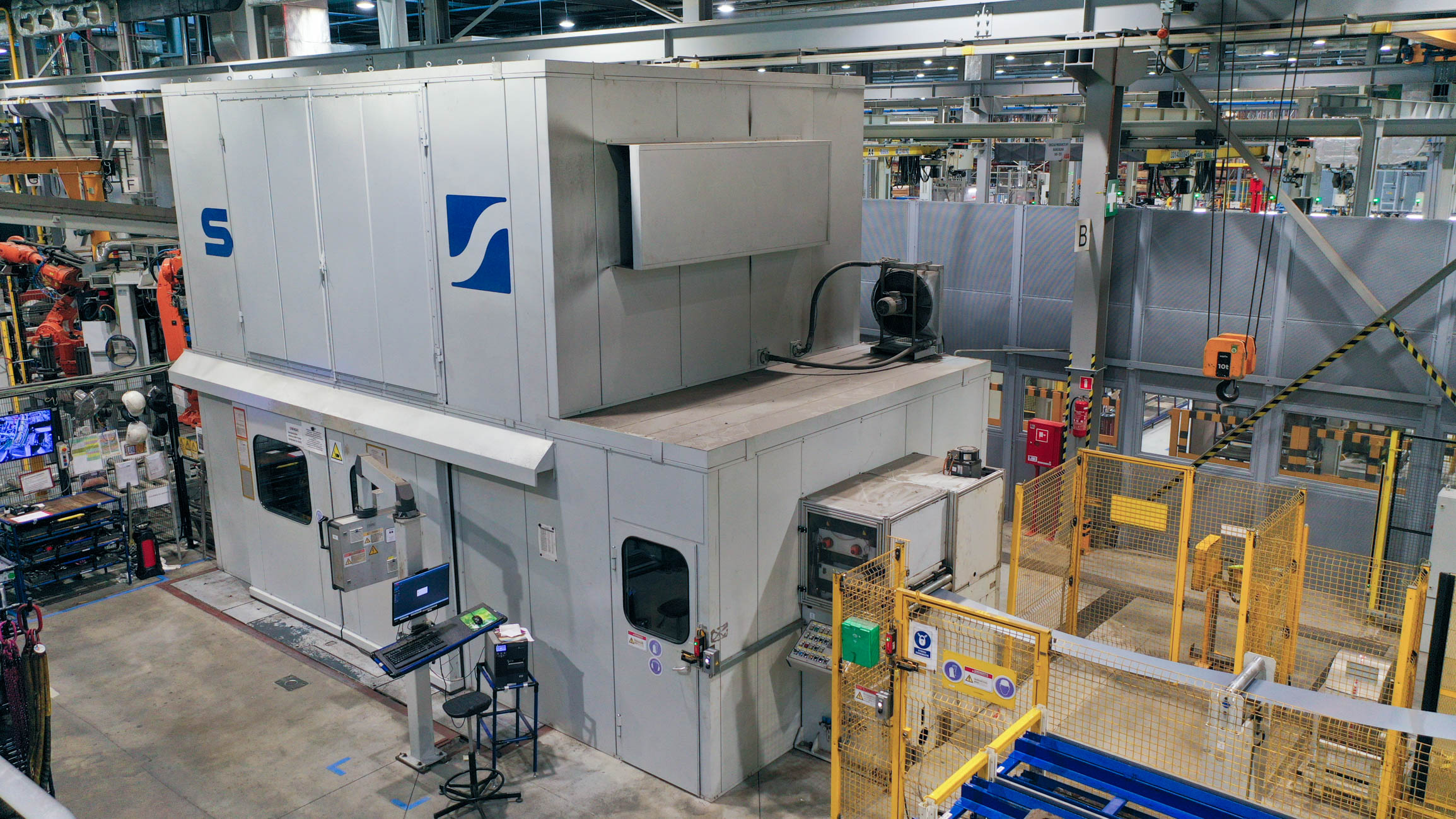

(2014) SCHULER Lamination Press Line
Rotor and Stator Production Line: Frame Sizes 160-250 mm for 11-55kW Motors
Advanced High-Speed Rotor and Stator Production Line

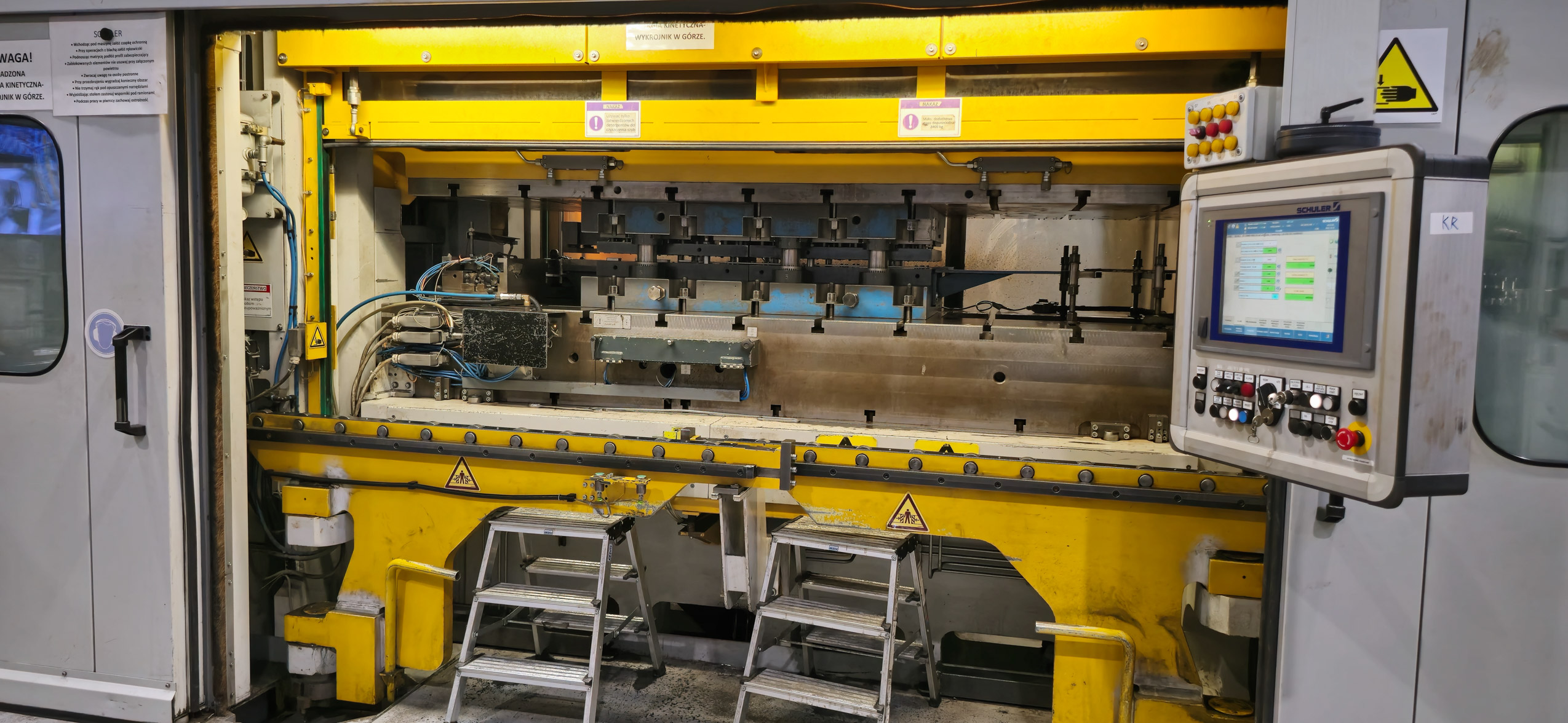

This Lamination Press Line is a high-performance manufacturing solution designed for the production of rotors and stators for 11–55kW motors (frame sizes 160–250 mm). At its core is the SCHULER SAL400 high-speed press, delivering a nominal force of 4000 kN. The complete line integrates specialized equipment including a Saronni decoiler and straightener, a Schuler Feedmax 630 feeder, and an Altek coil turner, providing a fully automated, 118,000 kg setup for precision electric motor component fabrication.
Industry
Electric Motors
Sale Type
Private Treaty
Manufacturer
SCHULER
Country
Poland
Machine Type
Lamination Press Line
Year of Manufacture
2014

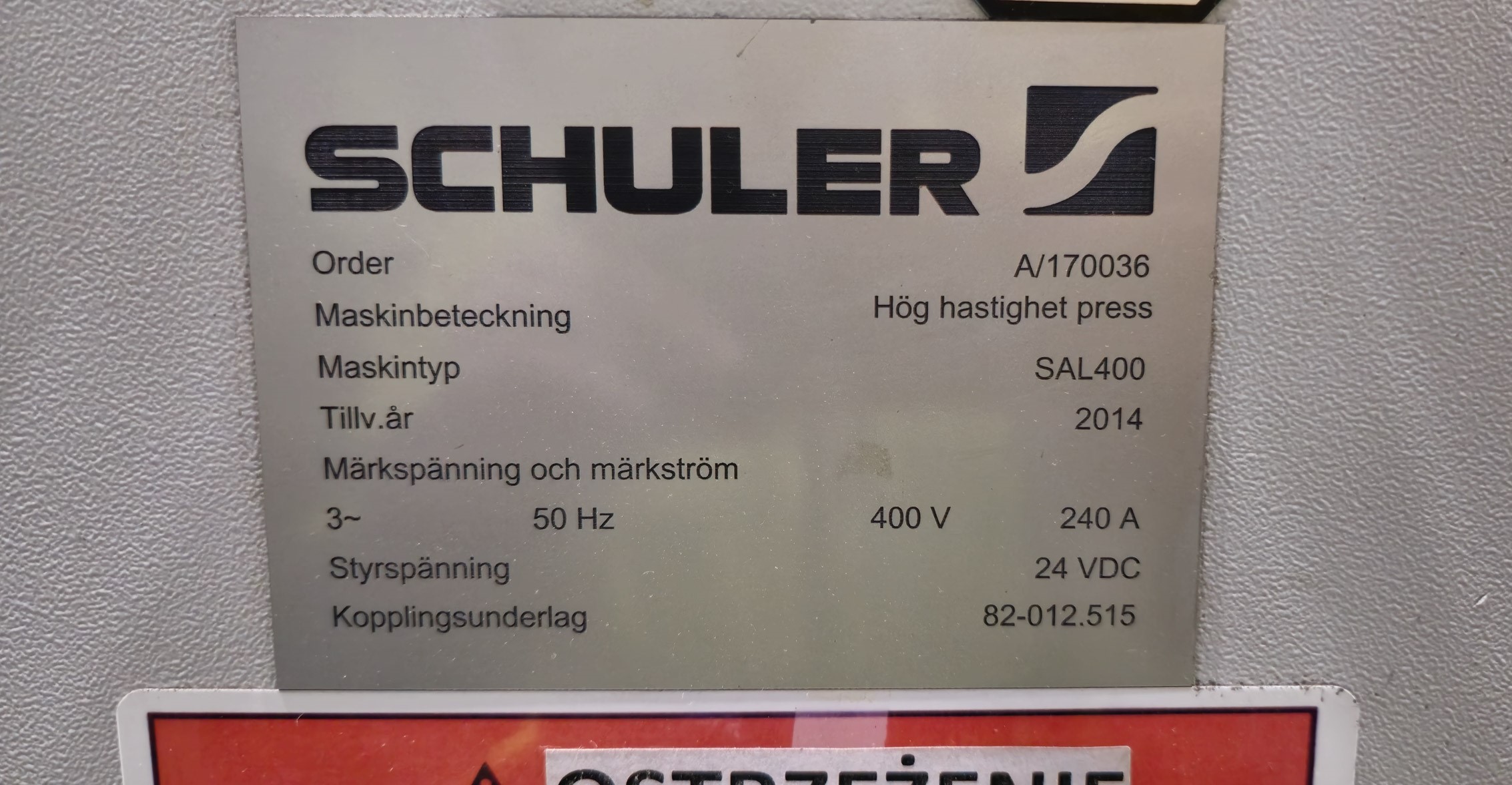

Model
SAL400

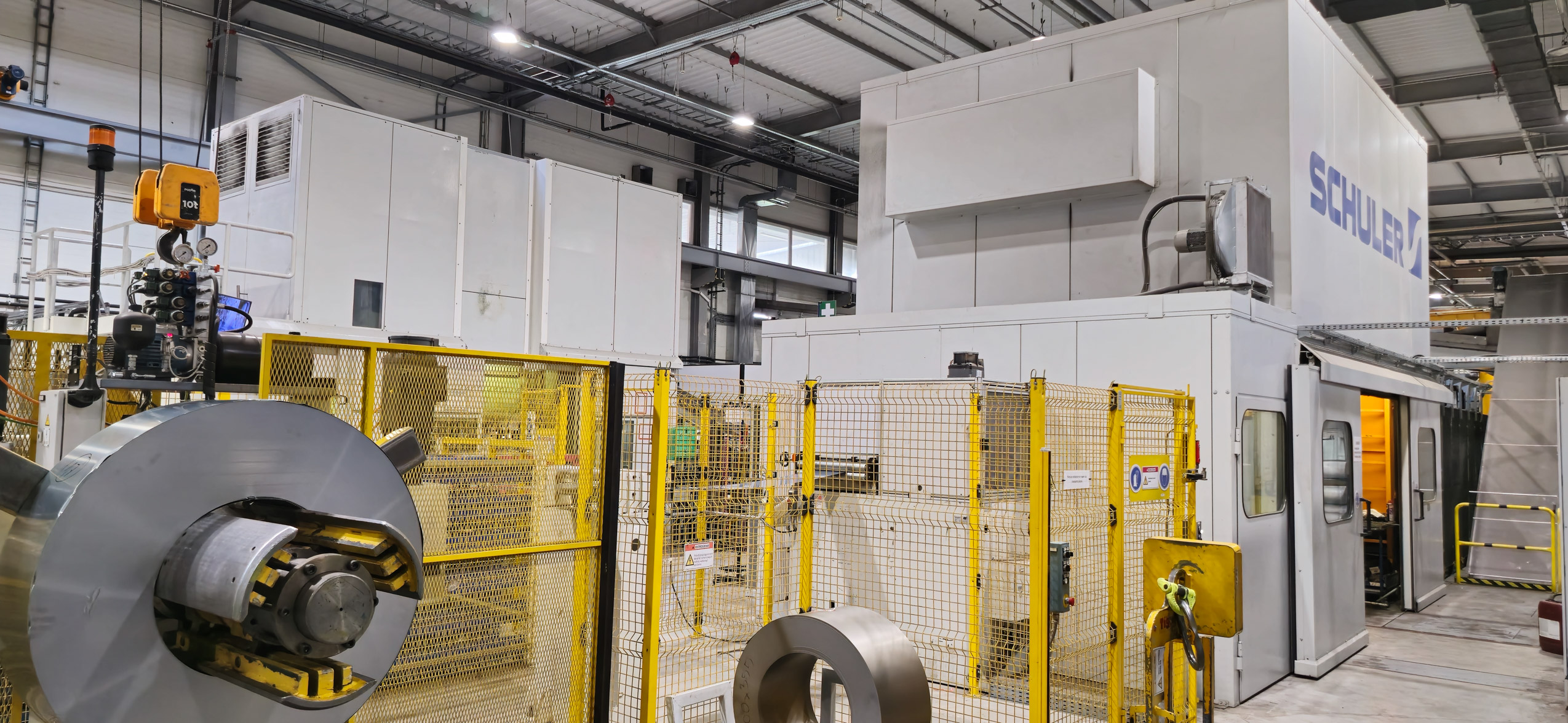

This line consists of:
- (2014) SCHULER SAL400 Lamination Press
- (2015) ALTEK Coil Turner with Roller Track
- (2013) SARONNI A04/C – R28/600 Decoiler
- (2014) SARONNI Straightener
- (2014) SCHULER Feedmax 630 Feeder
- (2019) ASTOS DM225 Scrap Conveyor
Technical Details
- Model: SAL400
- Machine type: High-speed press
- Year of manufacture: 2014
- Nominal Force[kN]: 4000
- Flywheel Speed[RPM]: 375
- Stroke Rate (strokes per minute)[SPM]: 80-375
- Drive Power[kW]: 85
- Motor speed[RPM]: 1500
- Stroke Length[mm]: 35
- Slide Adjustment[mm]: 150
- Built-in Height[mm]: 480
- Stop Position: OED – indicates a specific operational or safety setting
- Working Overpressure for Compressed Air[bar]: 5.5
- Working Pressure for Clutch/Brake[bar]: 80
- Total Weight[kg]: 118,000
- Stop Time [s]: 0.3
- Safety Distance[mm]: 240
- Rotor Package Length: 180-255
- Bed dimensions, N x O[mm]: 3213-1400
- Opening in the bed [Æ] [mm]: 2760-450
- Opening in the press upright (downward / backward) [mm]: 330/480
- Bed plate thickness [mm]: 367
- Stroke adjustment [mm]: 60-160
- Maximum Amount of Aluminum: 15kg
- Additional Restrictions: Tool availability
Belt Specifications:
- Belt Manufacturer: Siegling
- Model: Extremultus, Type GT28P
- Length / Width[mm]: 5495 / 175
- Elongation[%]: 2.2
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
By clicking Save my spot you're confirming that you agree with our Terms and Conditions.
USD
Total Project Cost

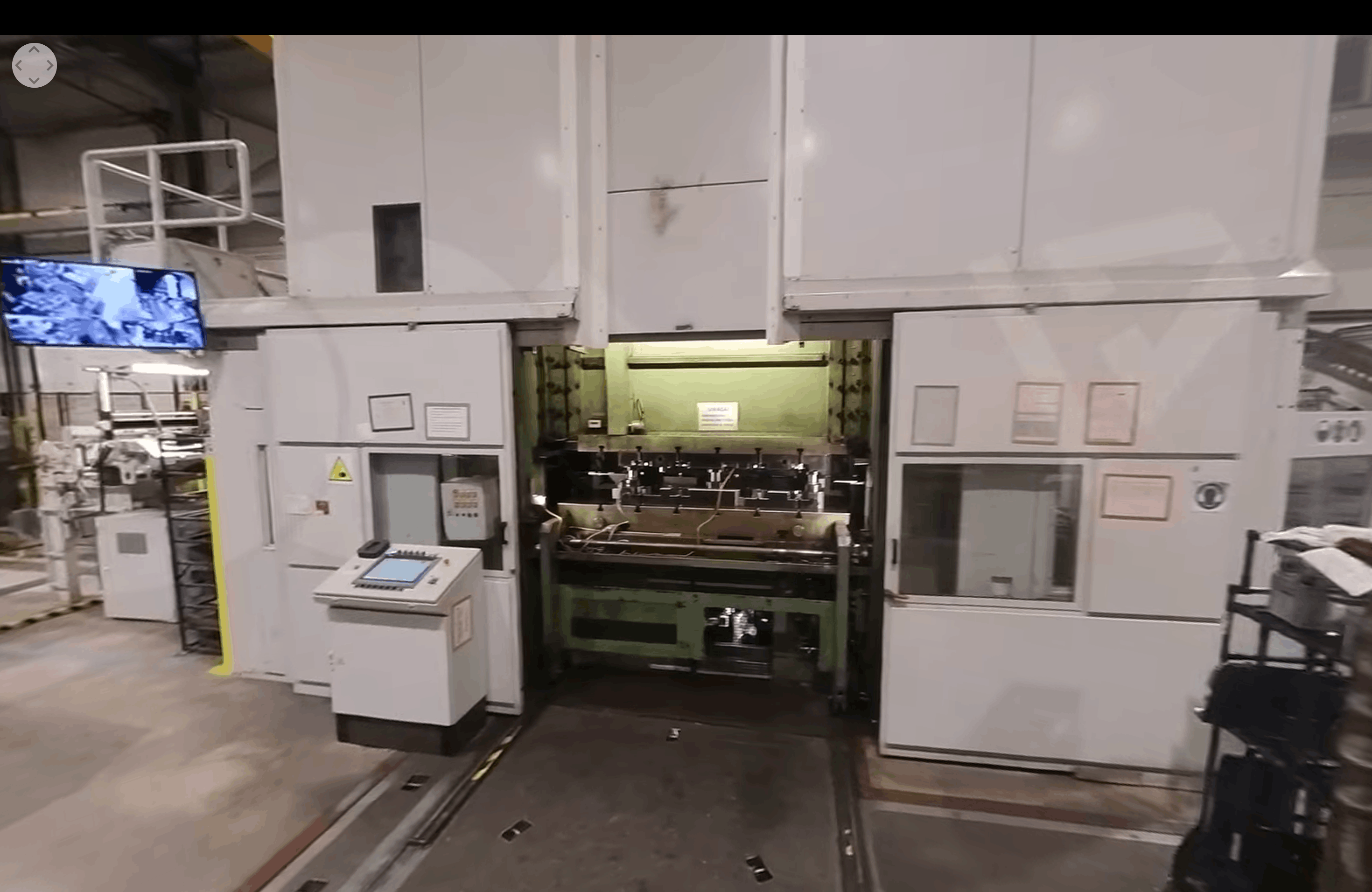

See It in Action
