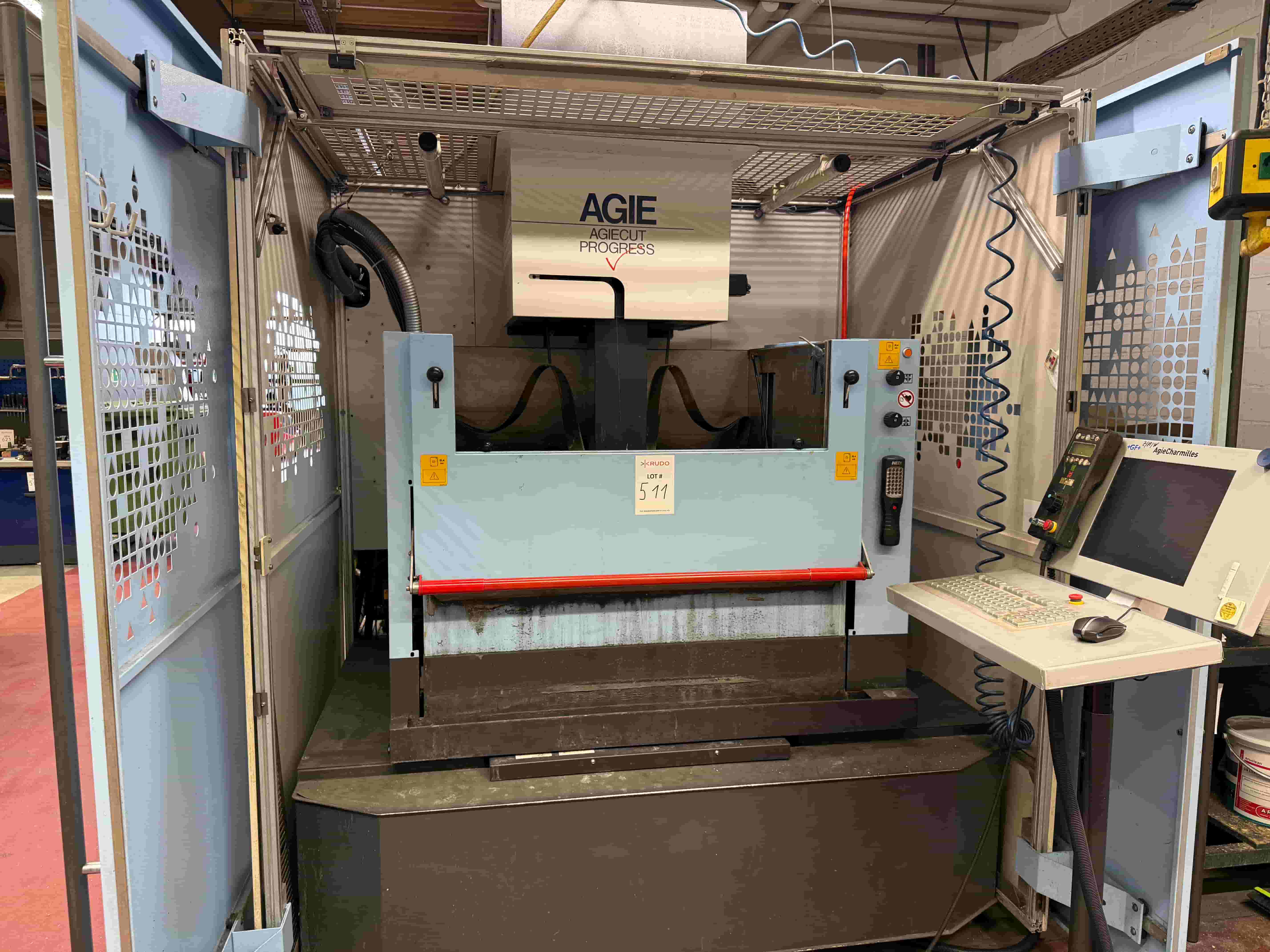

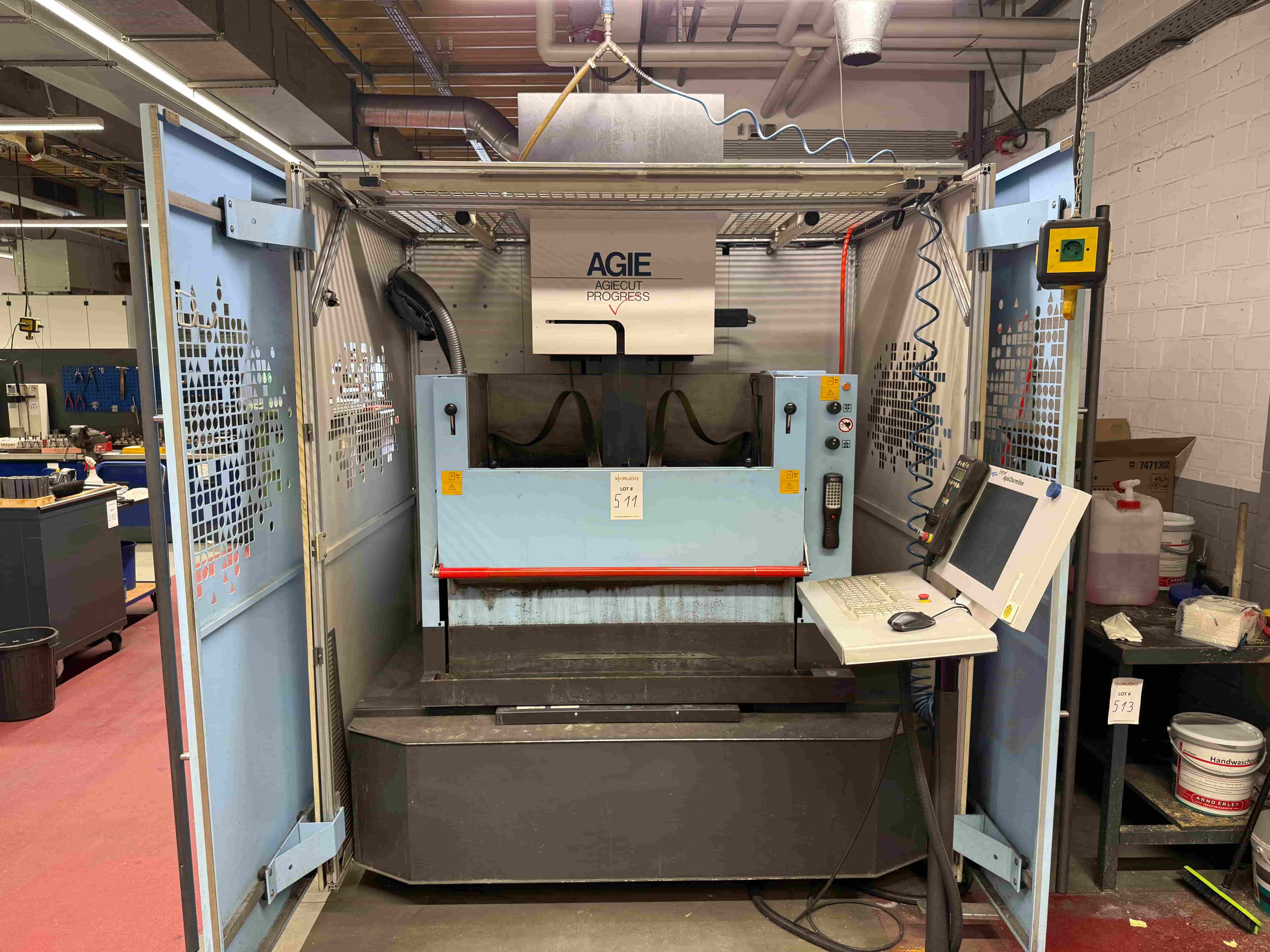

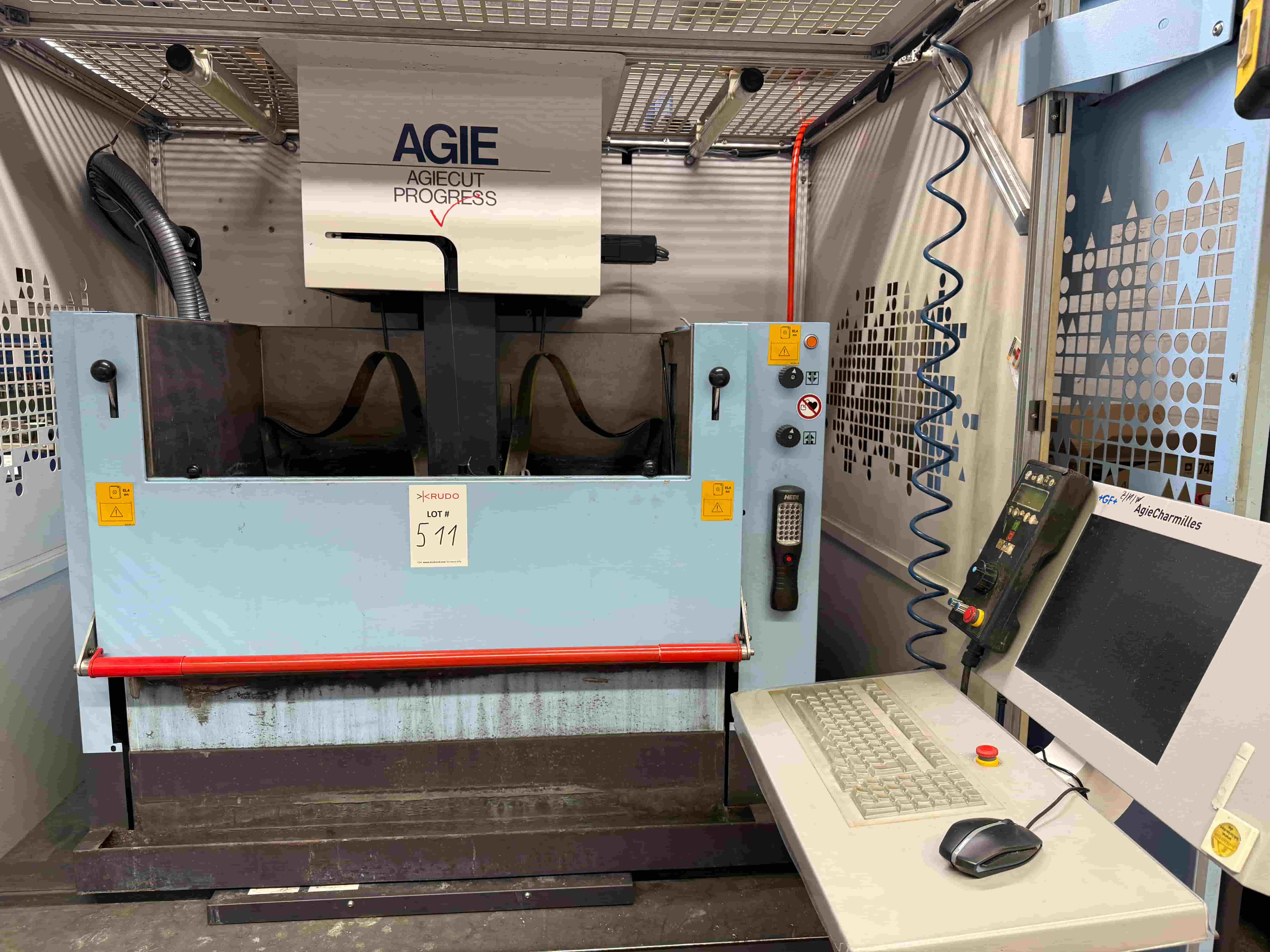

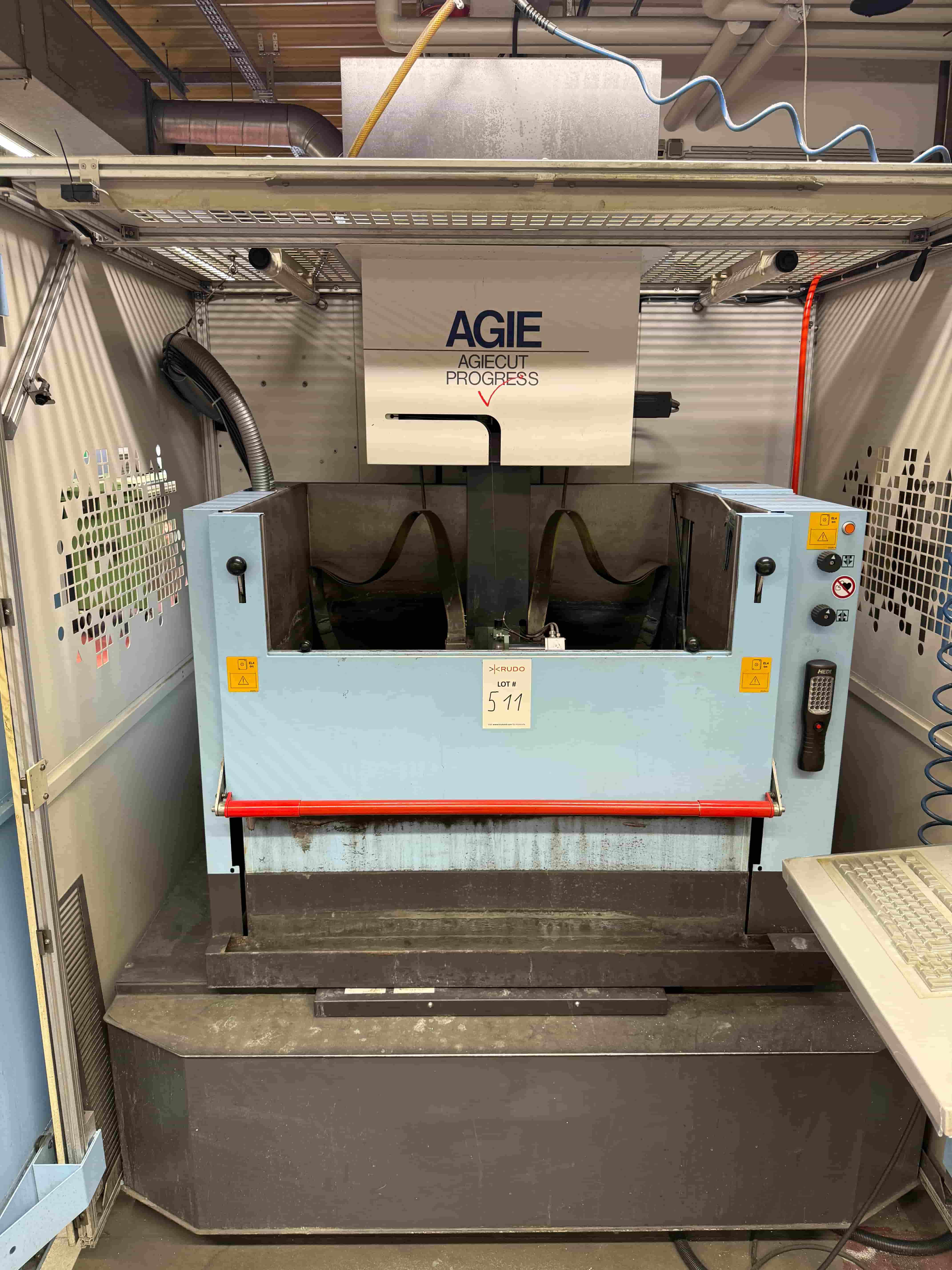

511. Agie Wire Cutting EDM Machine
Precision Wire Cutting EDM Machine
Technical Details

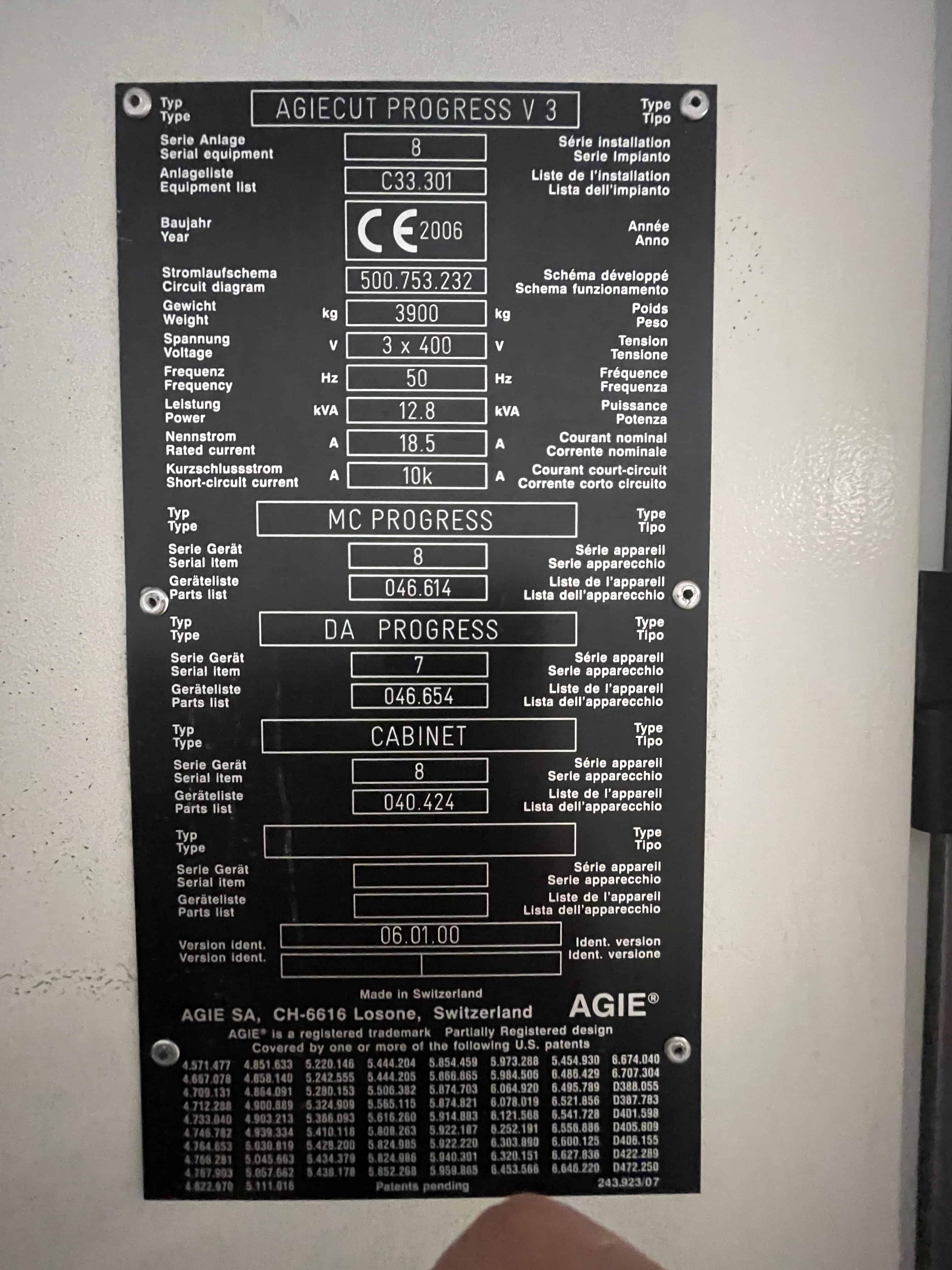

1. Machine identification data
- Name: Wire Cutting EDM Machine (Electric Discharge Machining)
- Manufacturer: Agie
- Model: Agiecut Progress V3
- Machine number: 333.010.008
- Year of manufacture: 2006

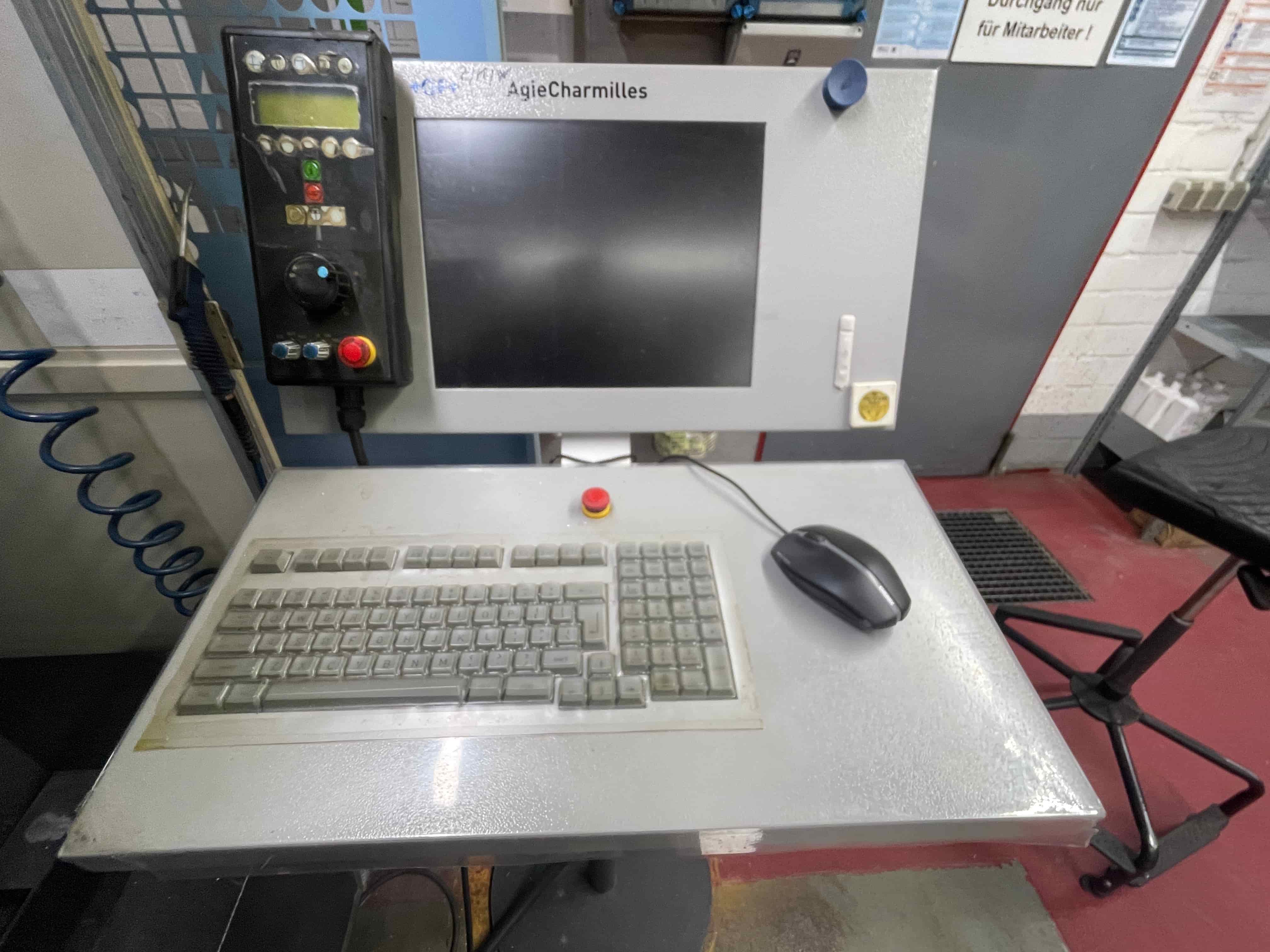

- Control: AGIEVision 5
2. Operational parameters
- Working area (X / Y / Z): 500 x 350 x 426 mm
- U-V Axis: +/- 30° / +/- 70 mm
- Max. workpiece dimensions (L x W x H): 1,050 x 650 x 420 mm
- Max. workpiece weight (with/without Dielectric): 800 kg / 400 kg
- Resolution of axes: 0.0001 mm
- Positioning speed: Up to 3 m/min

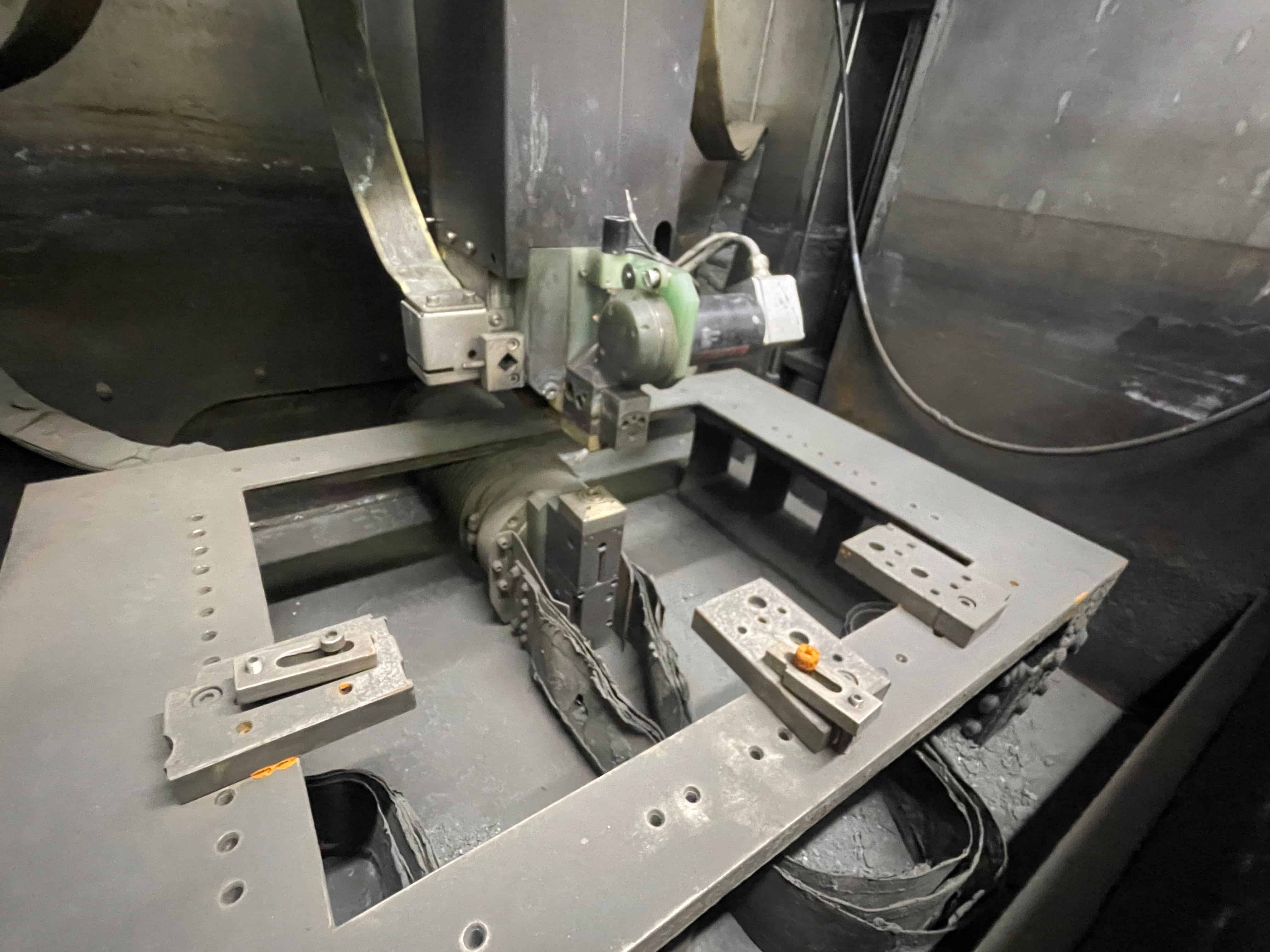

- Clamping system: Universal beams with fixing holes
- Cutting wire diameter: 0.2 – 0.33 mm
- Wire roll size: Up to 25 kg
- Wire cutting speed: 60 – 300 mm/s
- Operating hours: 46,000 h
- Electrical connection: 400 V / 50 Hz
- Total electrical load: approx. 20 kW
3. Weights
- Total machine weight: approx. 4,000 kg
4. Dimensions
- Overall machine dimensions (Width x Length x Height): approx. 2200 x 2400 x 2400 mm
Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
