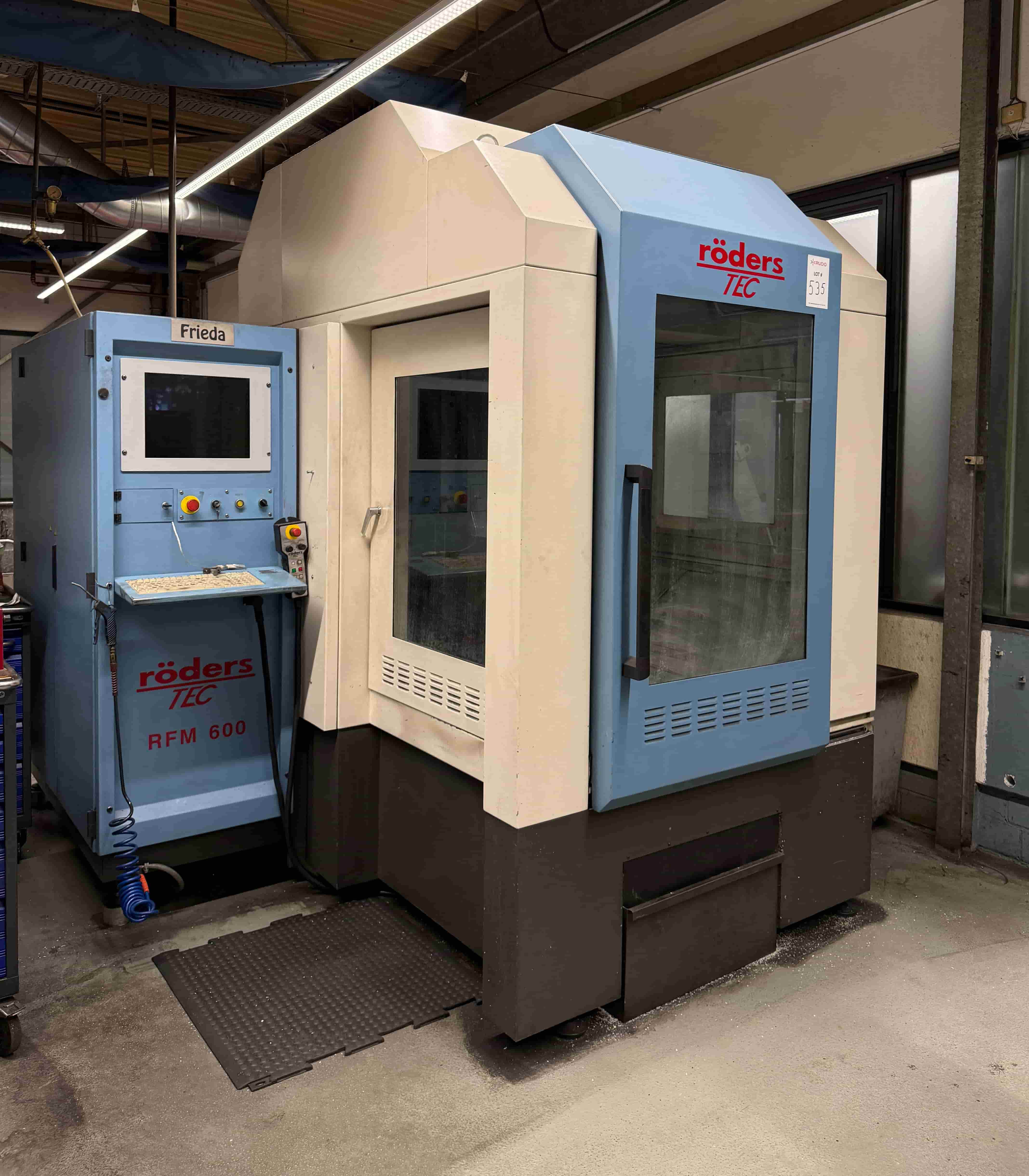

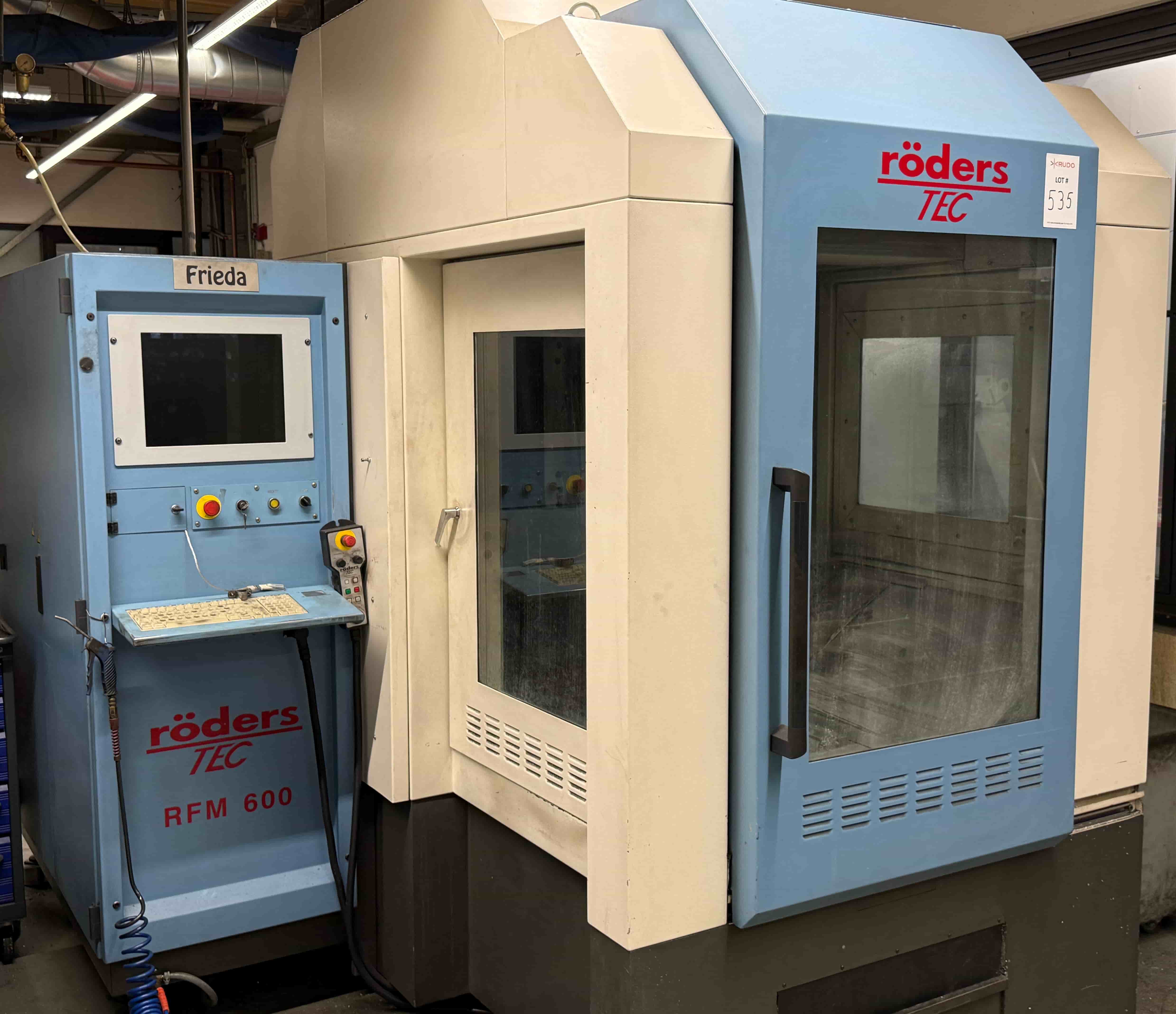

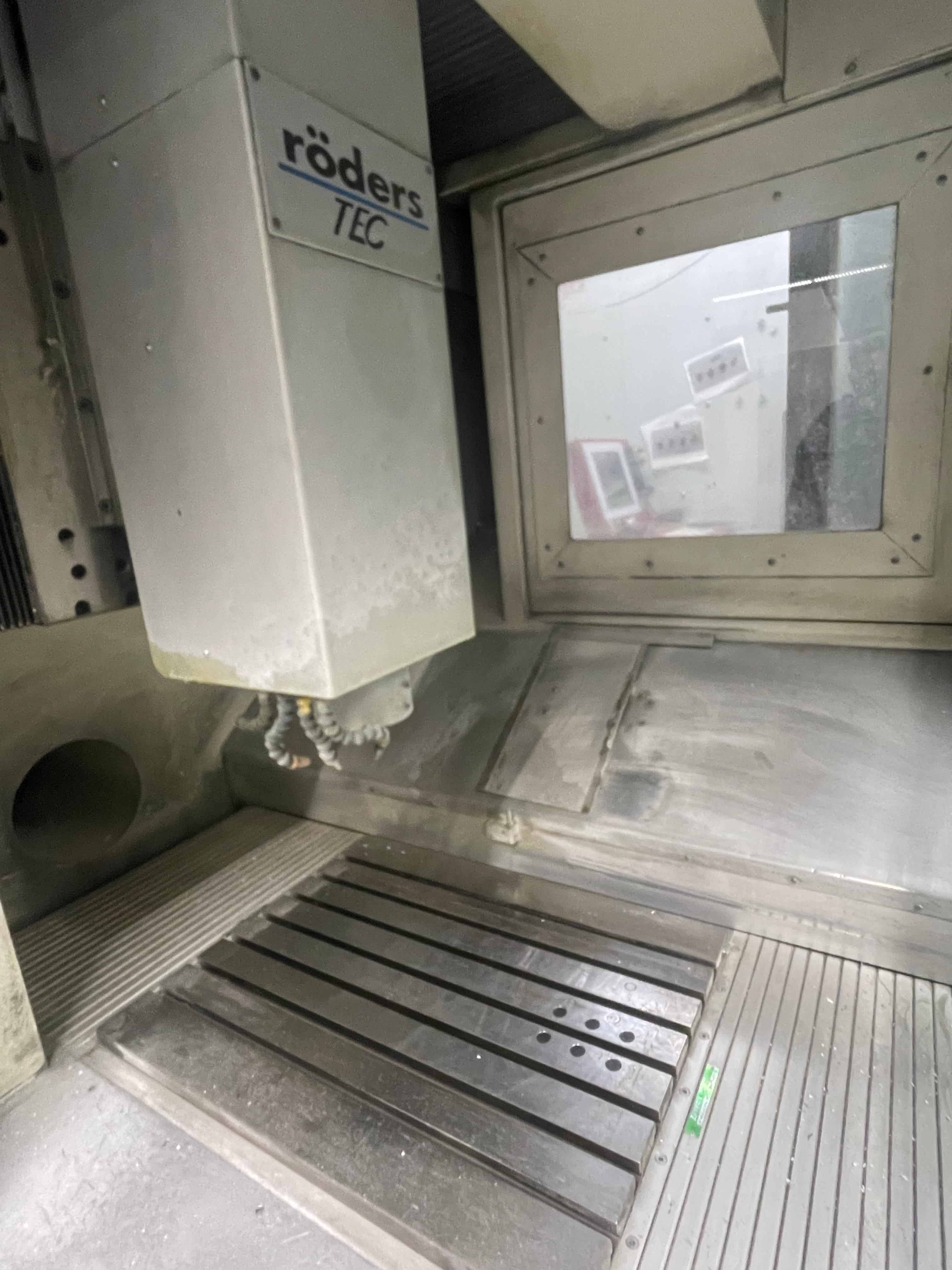

535. Röders 3-Axis High-Speed Machining Center
3-Axis High-Speed CNC Machining Center
Technical Details
1. Machine identification data
- Name: High-Speed Machining Center
- Manufacturer: Röders

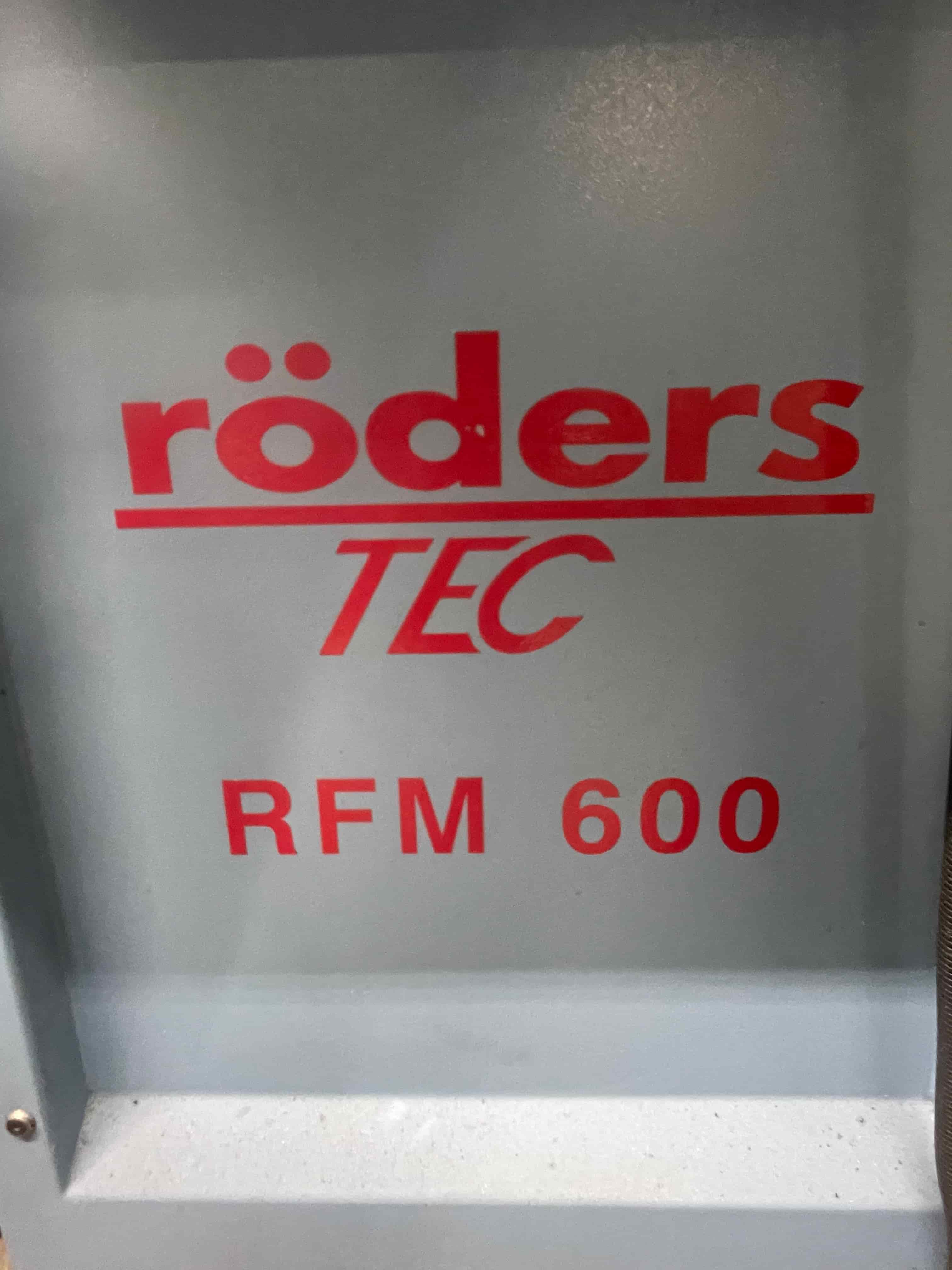

- Model: RFM 600/2
- Year of manufacture: 1999
- Machine number: 88194-80
2. Operational parameters
- Travel (X / Y / Z): 600 / 450 / 300 mm

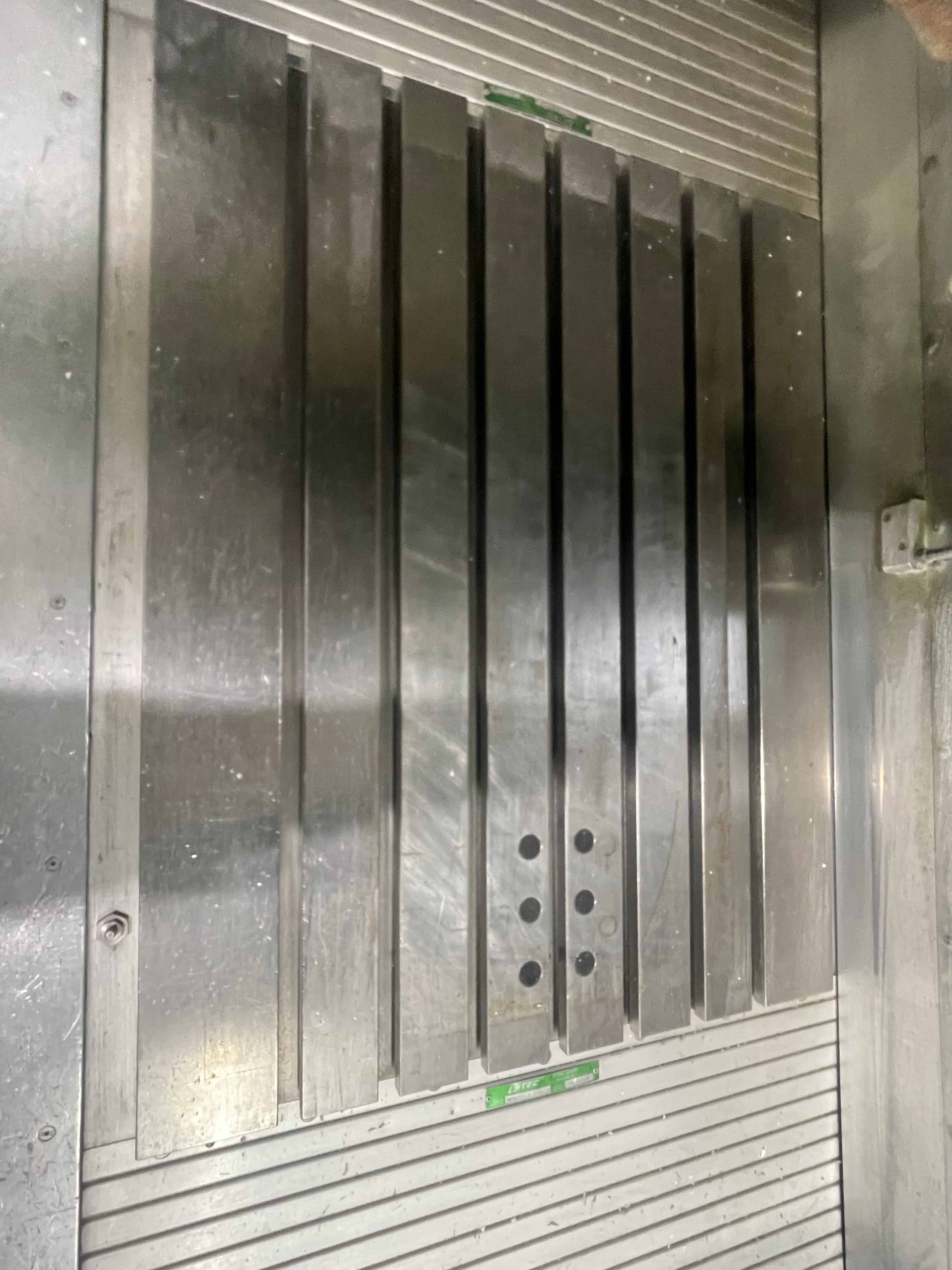

- Table size: 700 x 550 mm
- Max. table load: 800 kg

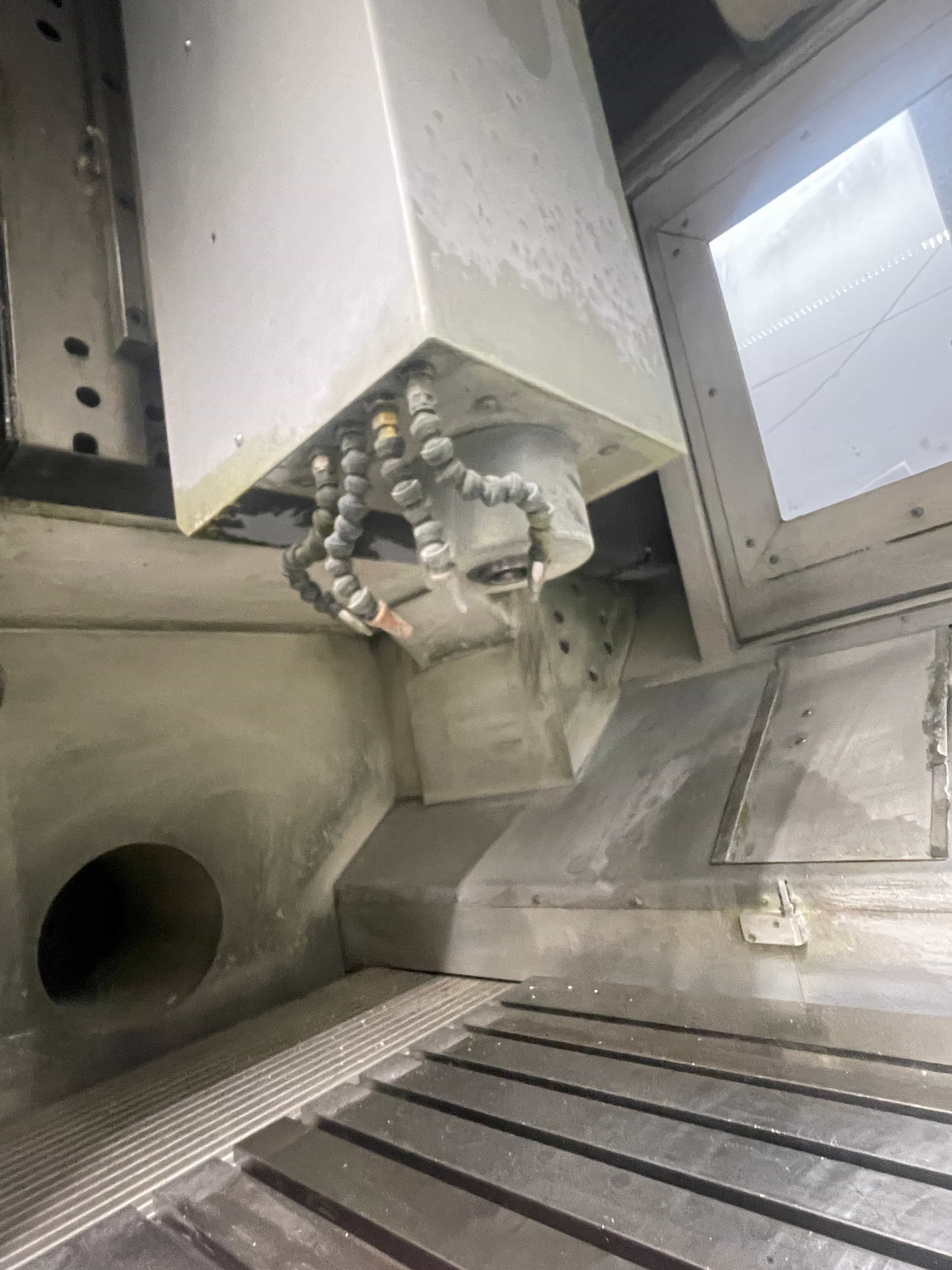

- Spindle speed: 42,000 rpm
- Spindle motor power: 14 kW
- Feed rate: 0 – 30,000 mm/min
- Rapid traverse: 30 m/min
- Tool changer: 18-position
- Operating hours: approx. 108,888 h
- Spindle hours: approx. 18,625 h

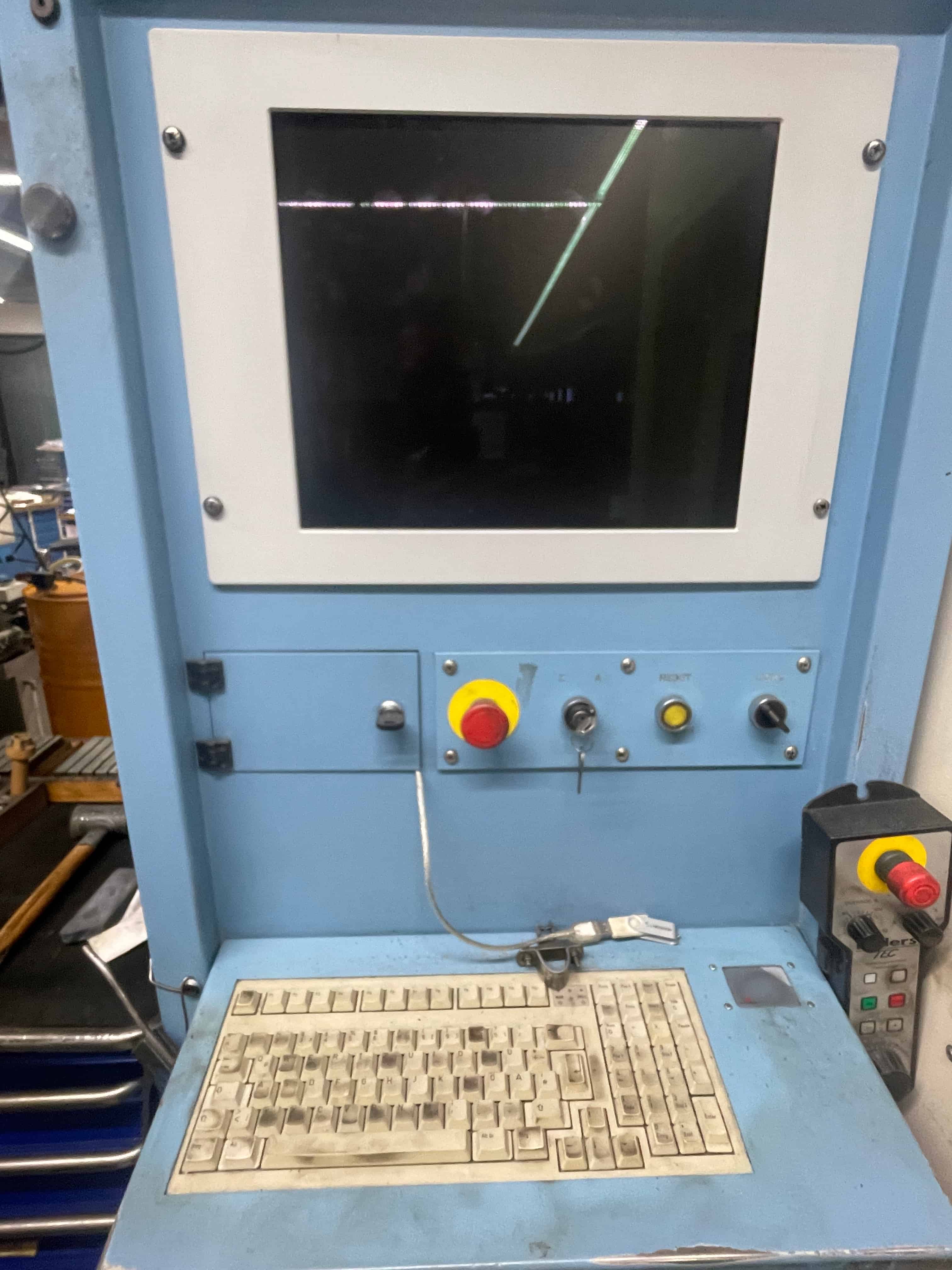

- Control: Röders RMS6

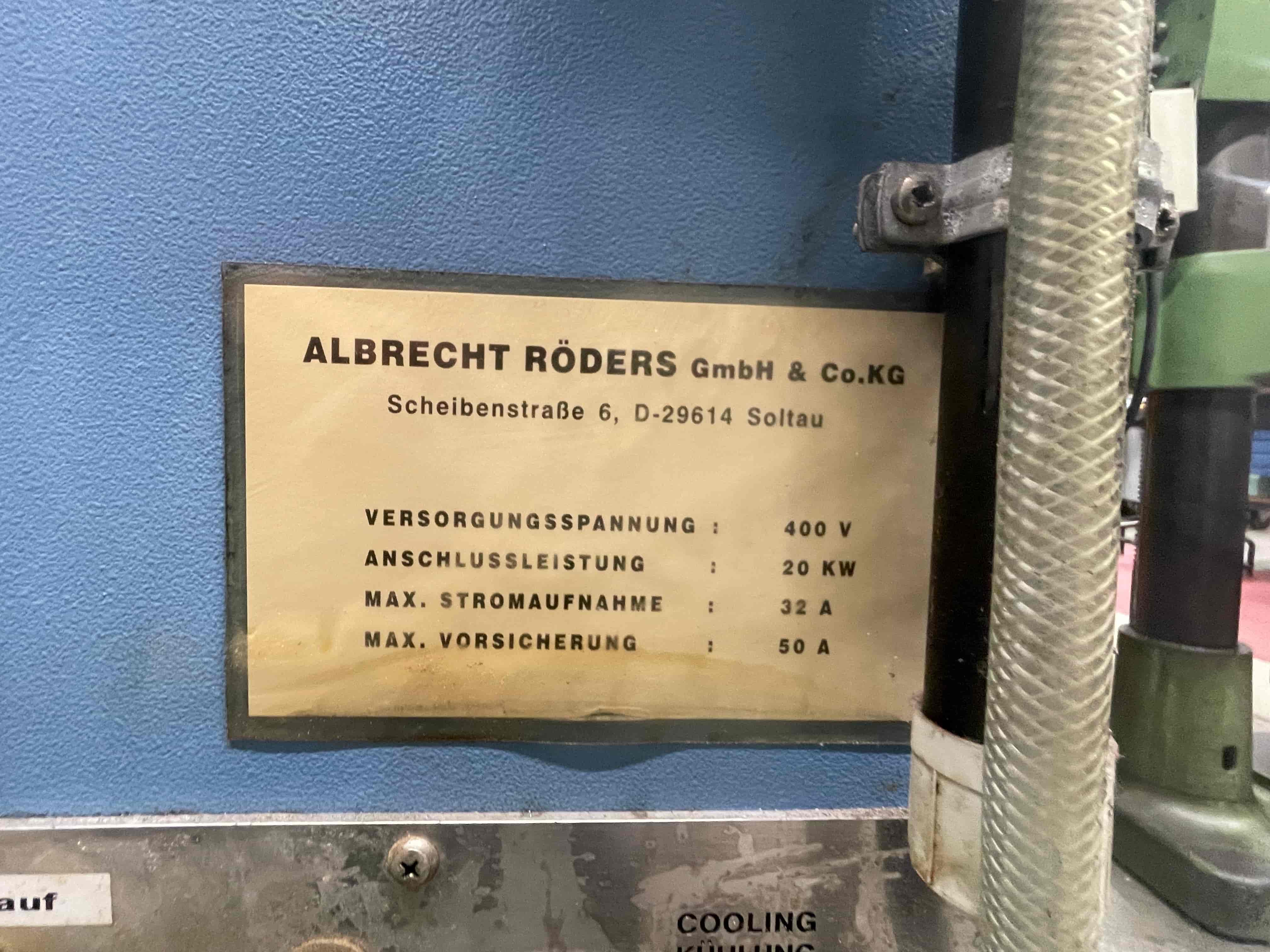

- Connections (Electrical): 400 V; 20 kVA
3. Weights
- Total machine weight: approx. 5200 kg
4. Dimensions
- Overall dimensions (Width x Length x Height): approx. 2300 x 3000 x 2700 mm
Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
