528. MEP Semi-Automatic Horizontal Band Saw

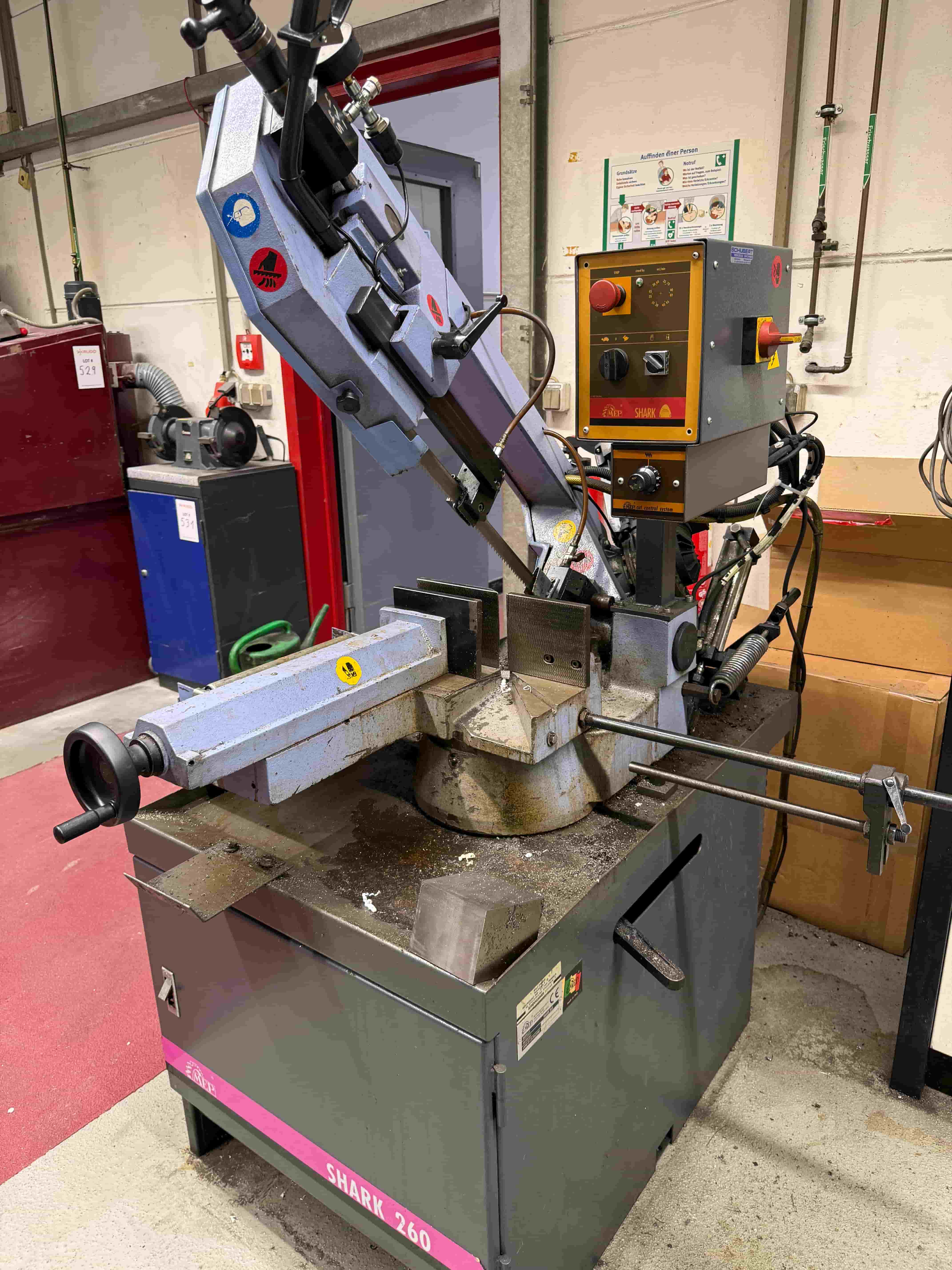

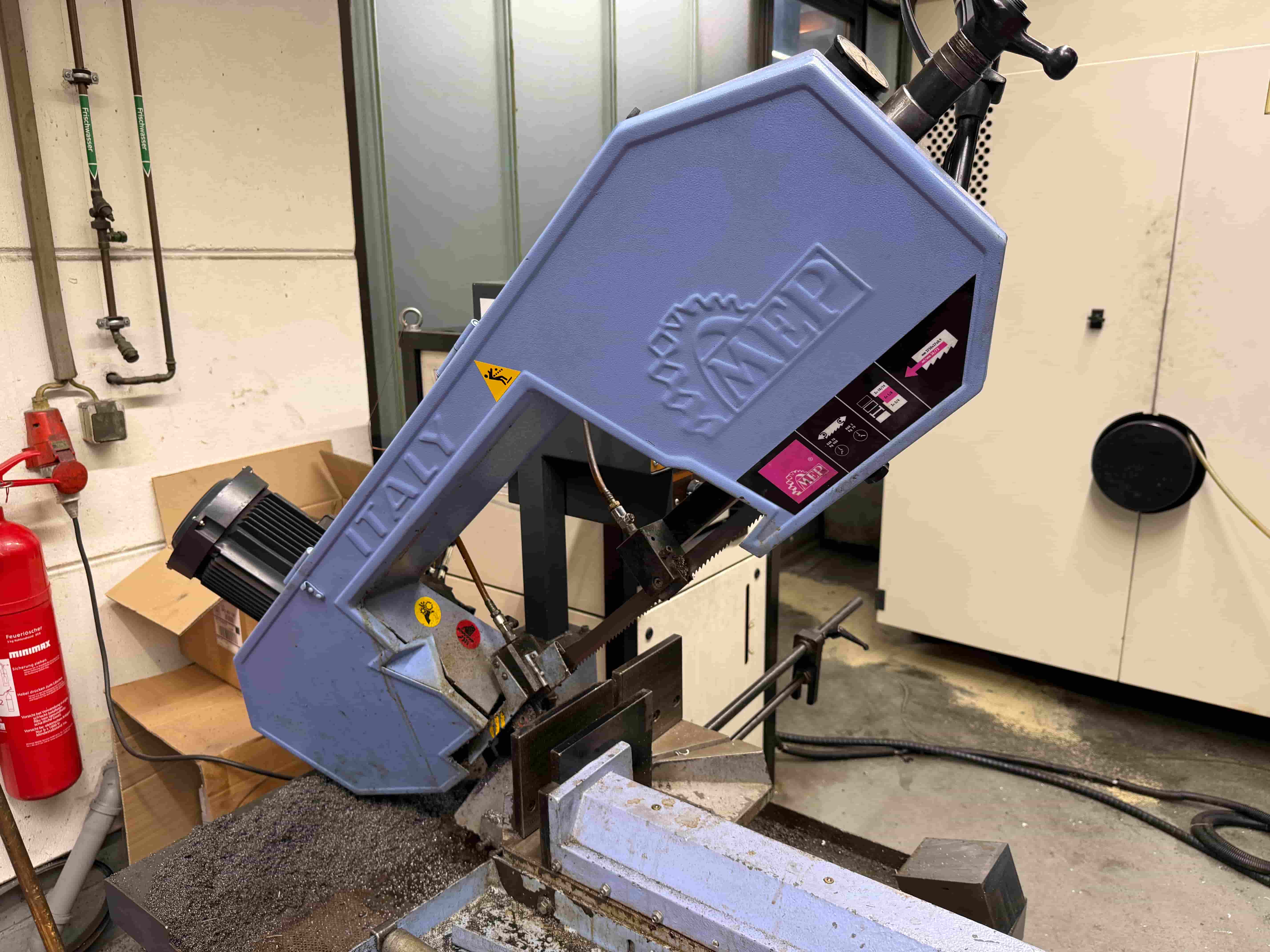

Semi-Automatic Horizontal Band Saw
Technical Details

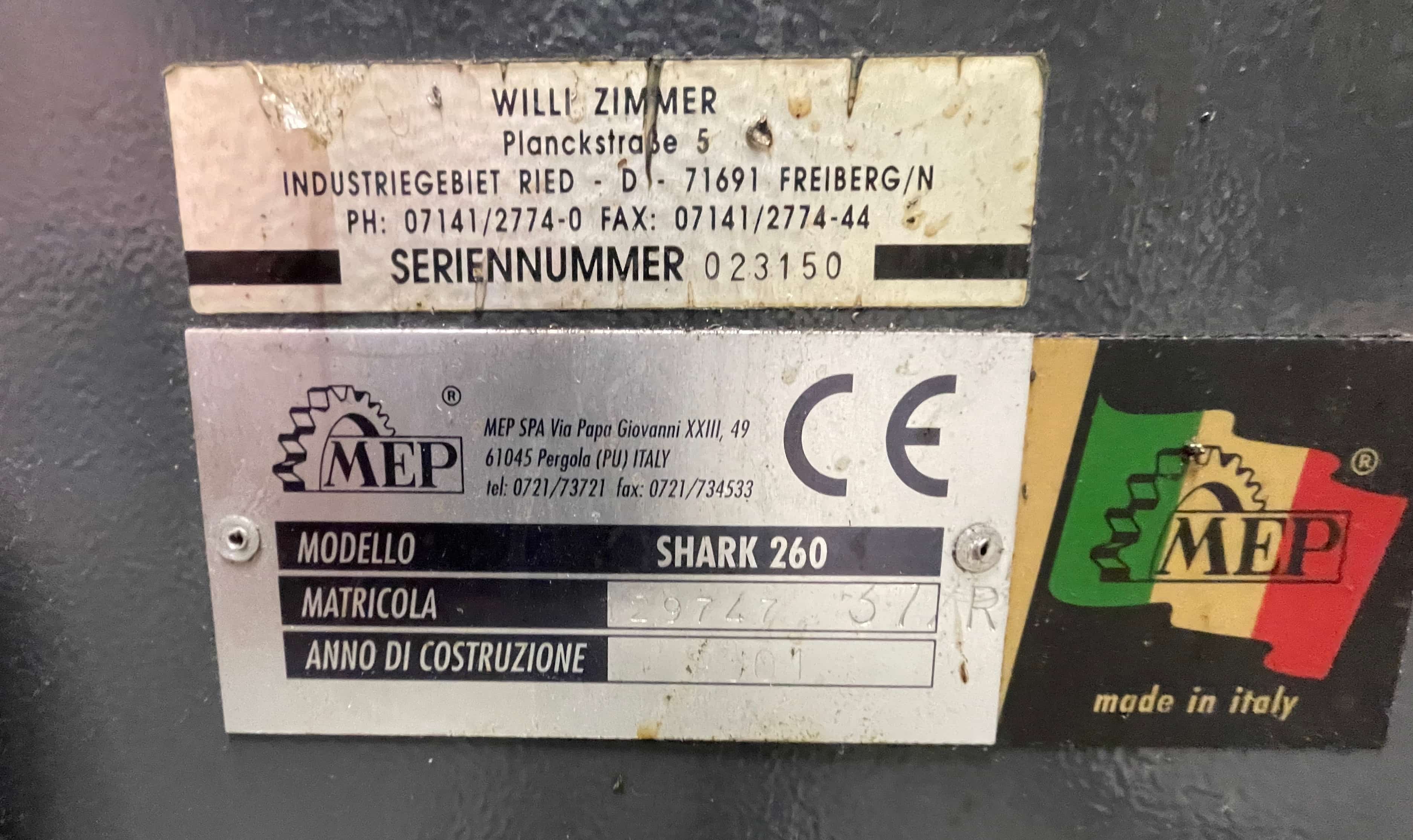

1. Machine identification data
- Name: Semi-Automatic Horizontal Bandsaw
- Manufacturer: MEP
- Model: Shark 260
- Year of manufacture: 2001
- Machine number: 29747 37.R
2. Operational parameters

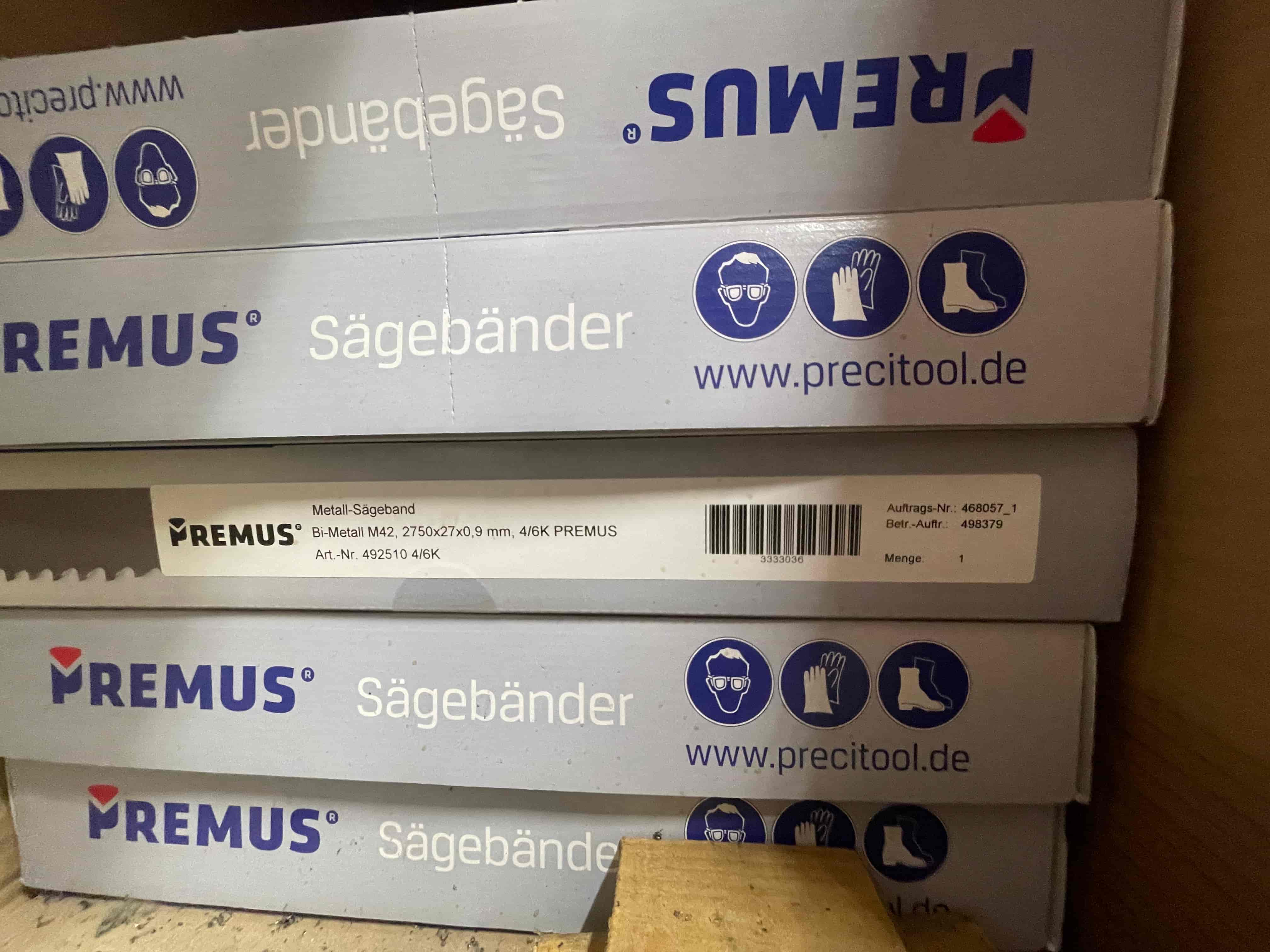

- Saw blade size: 2750 x 27 x 0.9 mm
- Cutting speeds: 2 speeds (36 & 72 RPM)
- Motor power (P max): 1.9 kW

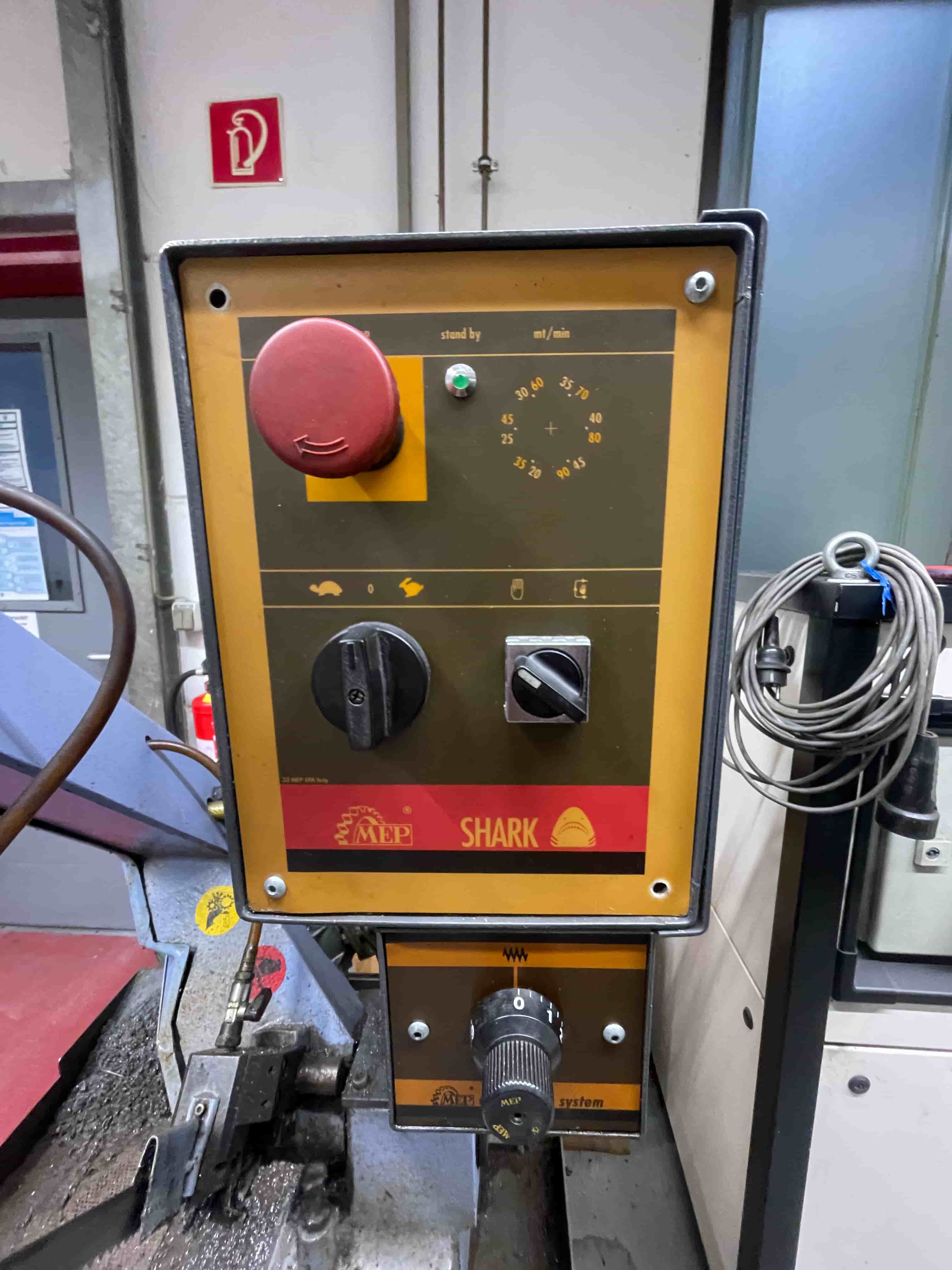

- Operation mode: Semi-automatic with CCS (Cut Control System)

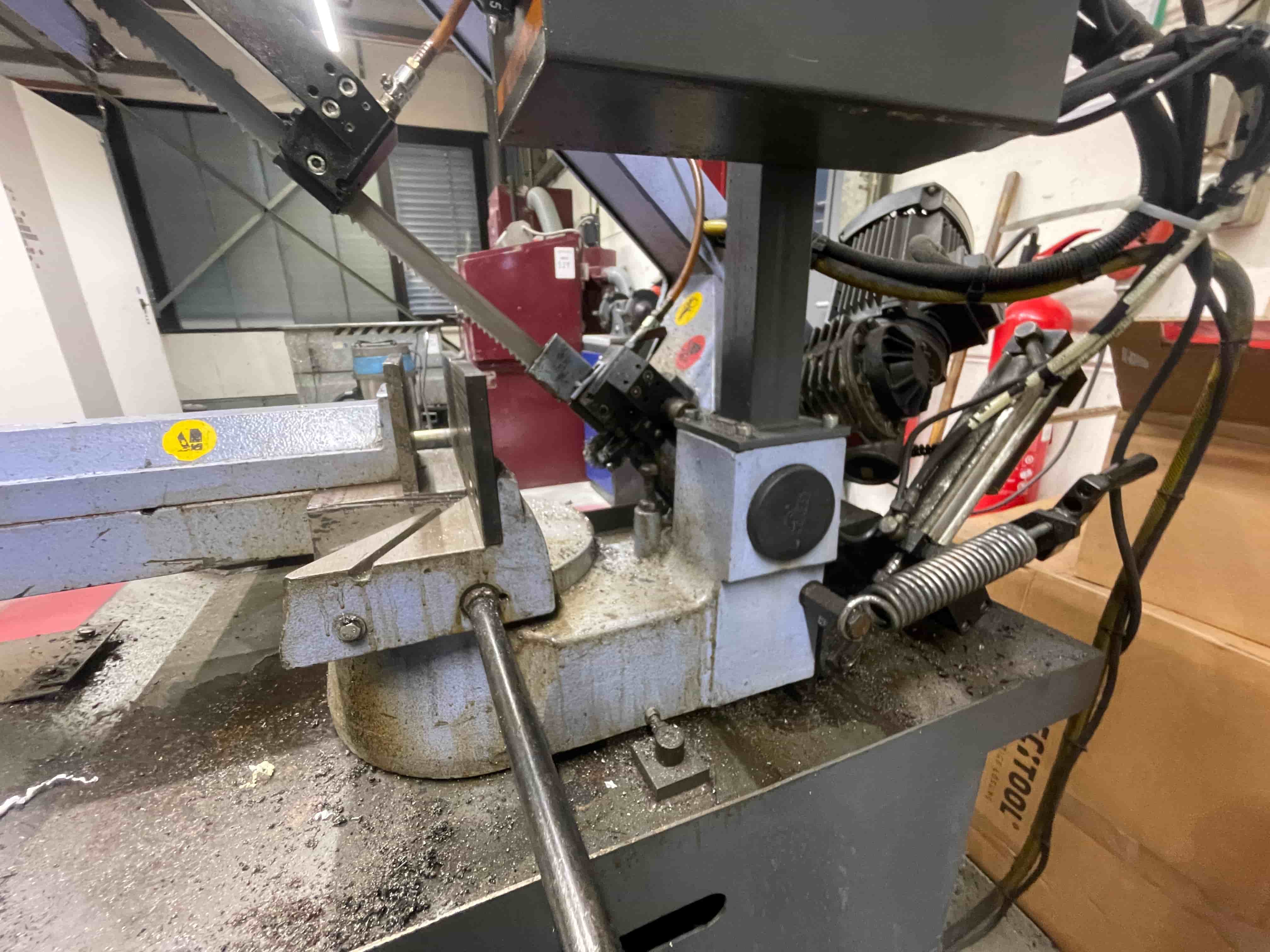

- Clamping: Pneumatic quick clamping
- Mitering capability: Yes

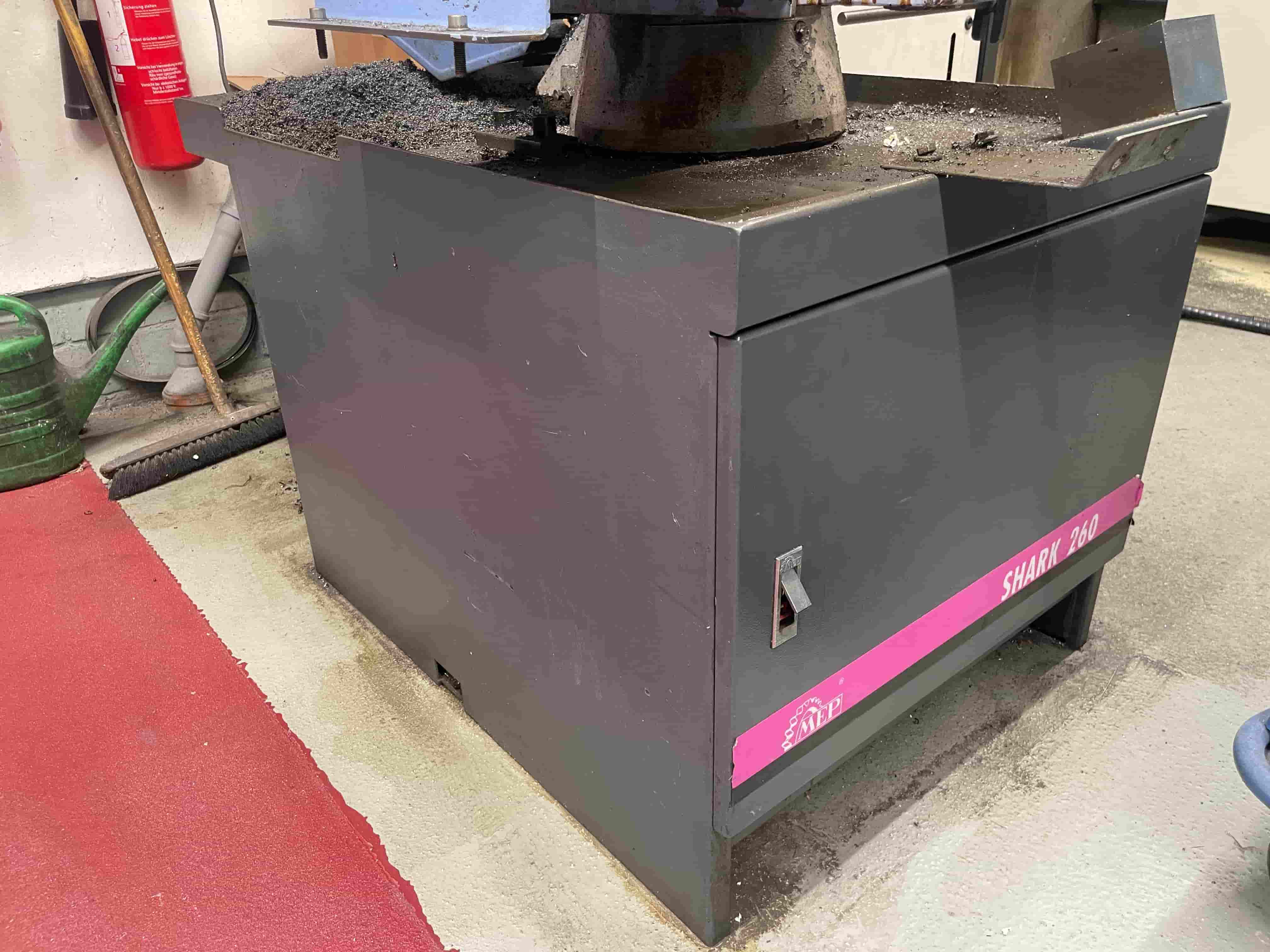

- Features: Assistant saw lowering, adjustable lowering feed rate, coolant pump in machine base

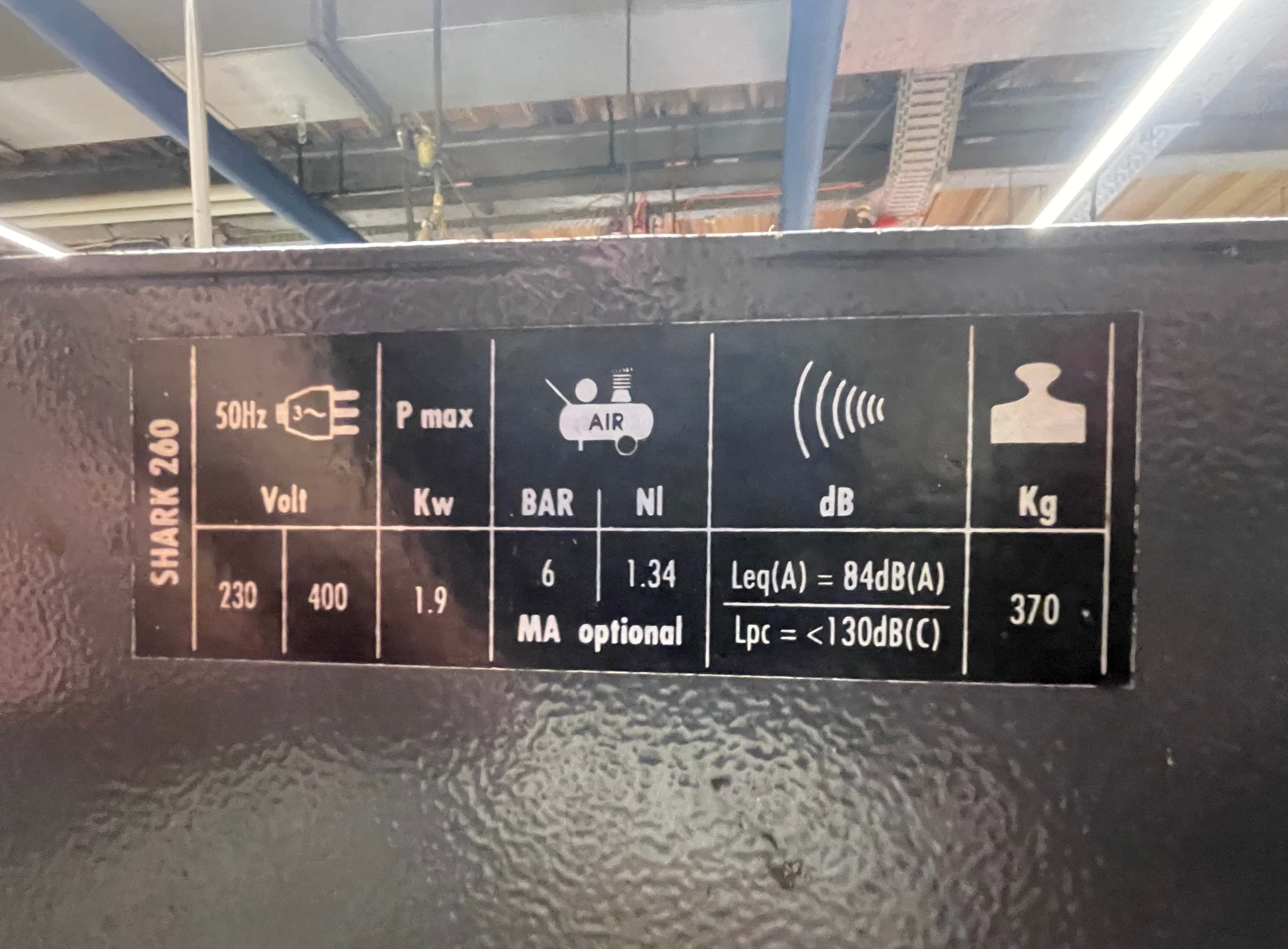

- Electrical connection: 400 V (3 Phase) / 50 Hz (optional 230 V)
- Air requirement: 6 bar
3. Weights
- Machine weight: 370 kg
4. Dimensions
- Overall machine size (Width x Length x Height): 80 x 158 x 190 cm
Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
