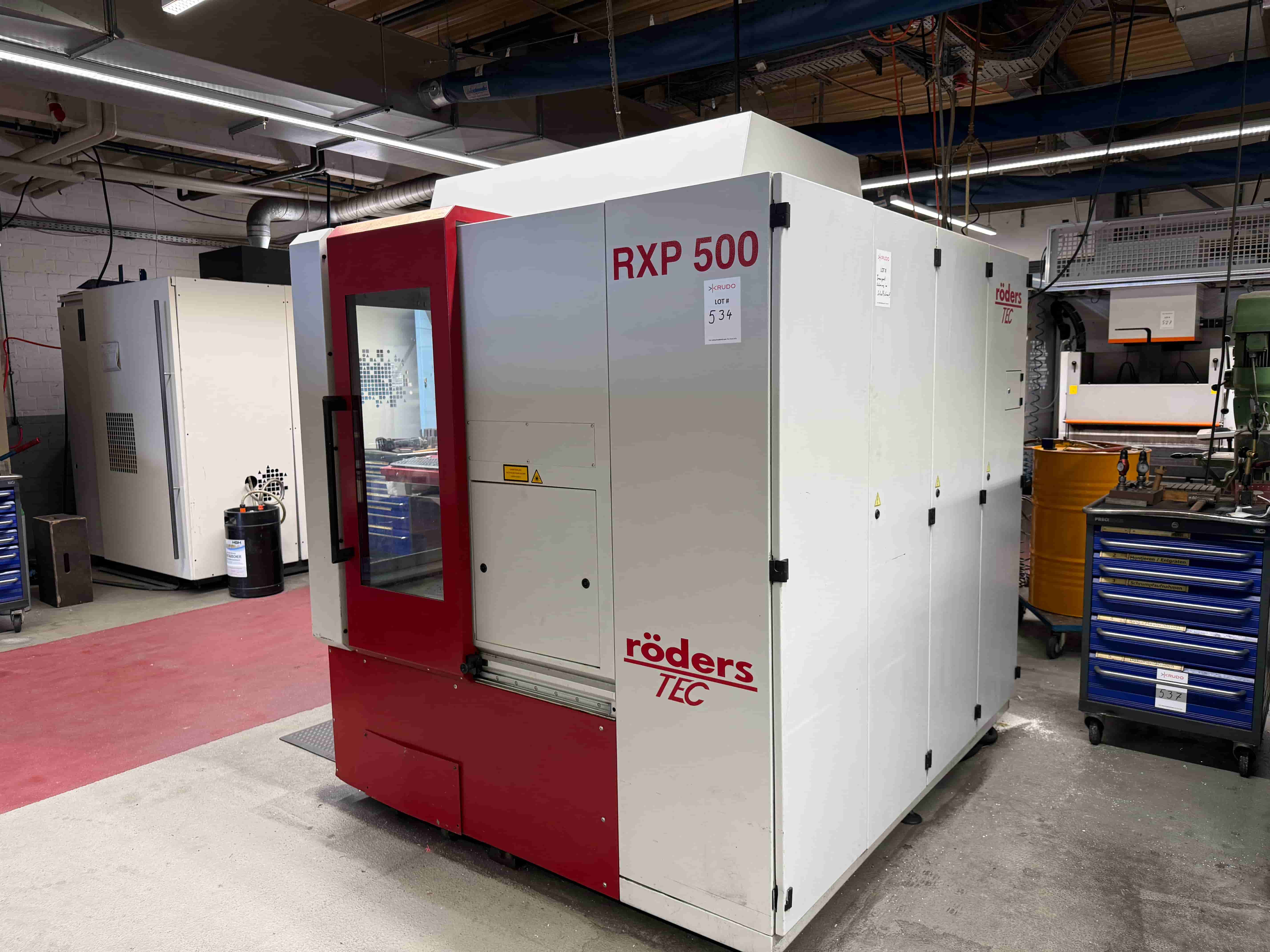

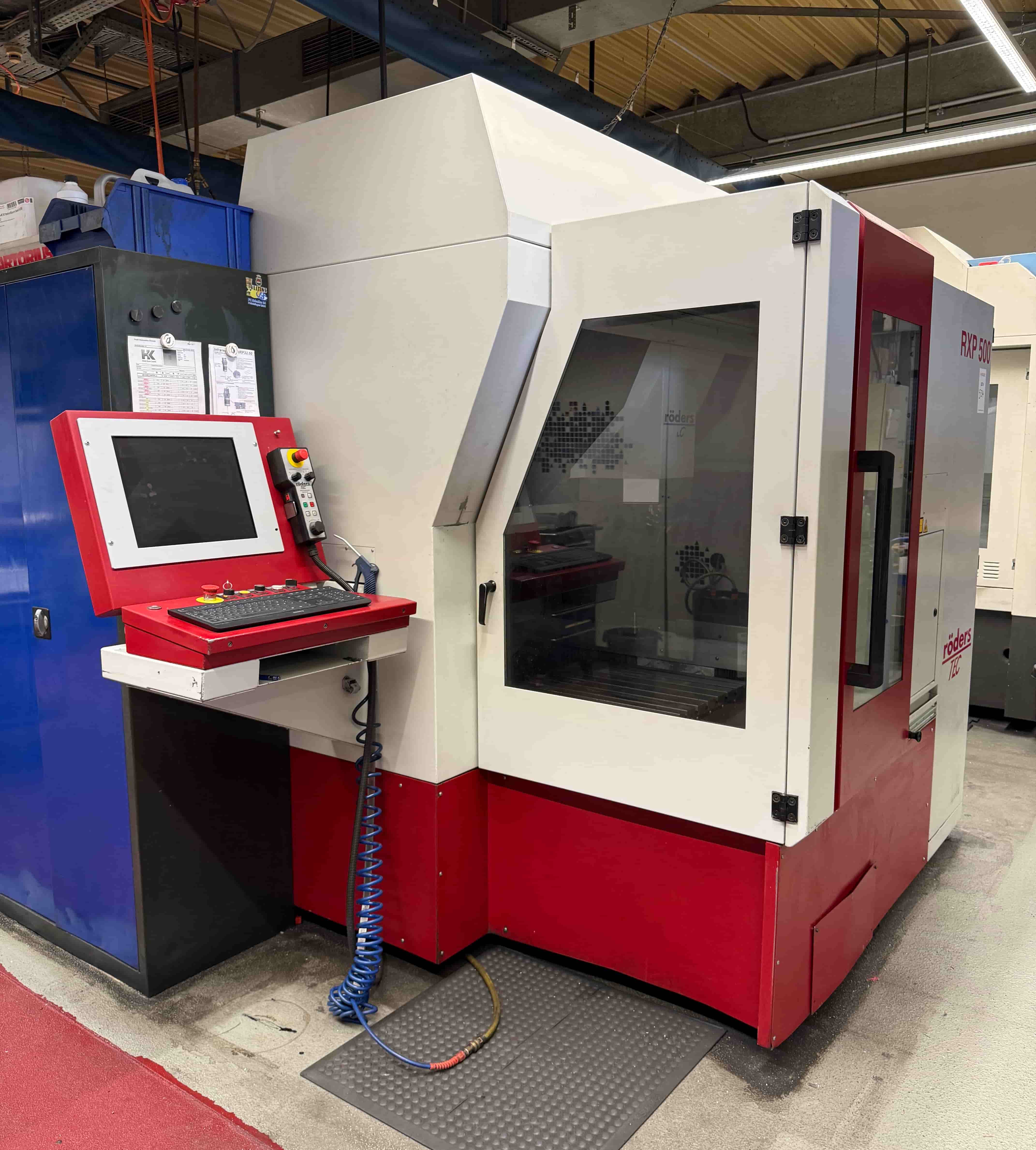

534. Röders 3-Axis High-Speed Machining Center
Röders RXP 500
Compact 3-Axis High-Speed Milling Machine
This 2006 Röders RXP 500 is a dedicated 3-axis high-speed machining center, highly regarded in the industry for micro-machining and delivering impeccable surface finishes.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Röders
Country
Germany
Machine Type
High-Speed Machining Center
Year of Manufacture
2006
Model
RXP 500

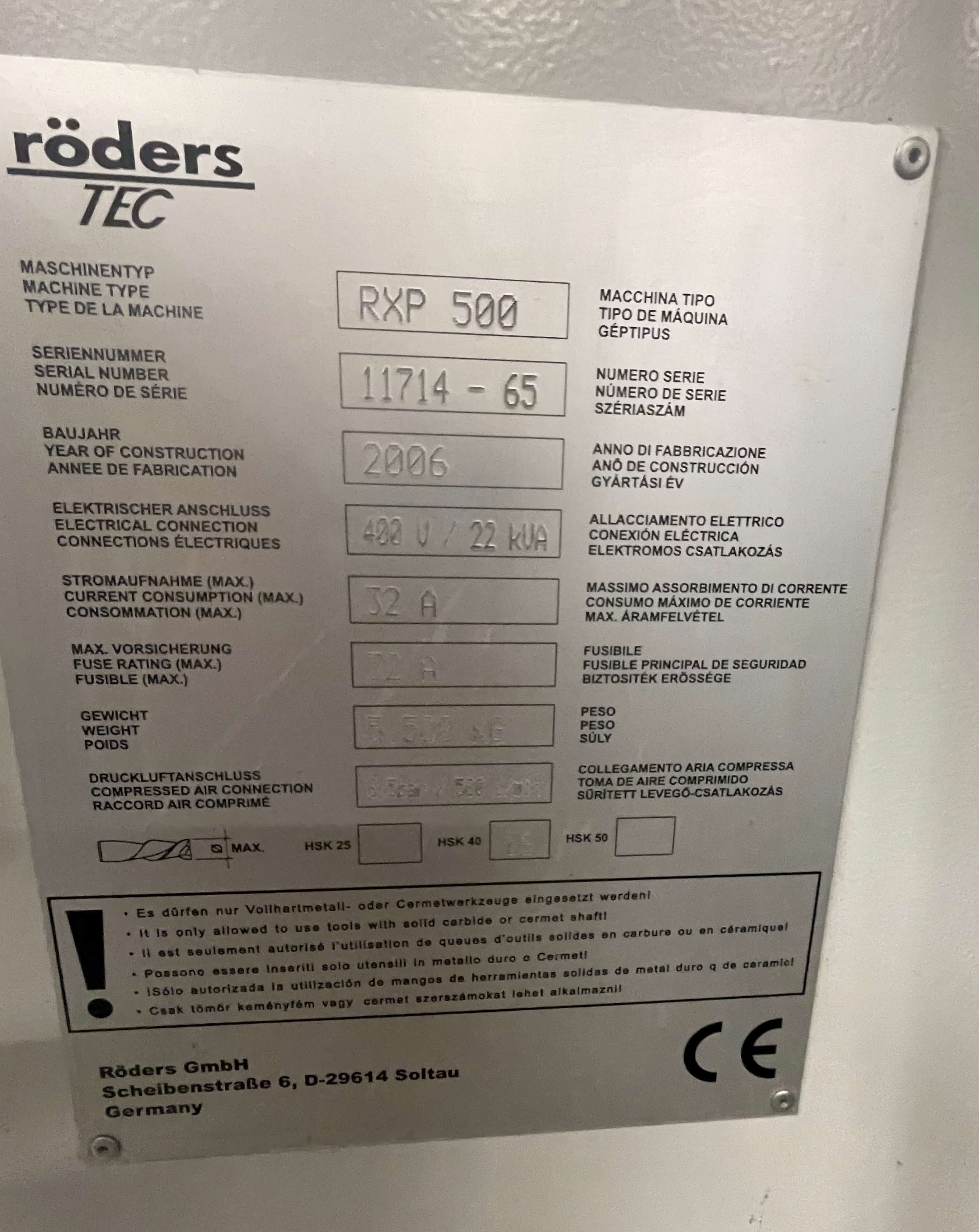

Machine Number
11714-65
Technical Details
1. Machine identification data
- Name: CNC High-Speed Milling Machine
- Manufacturer: Röders
- Model: RXP 500
- Machine number: 11714-65
- Year of manufacture: 2006
2. Operational parameters
- Travel (X / Y / Z): 500 / 400 / 240 mm

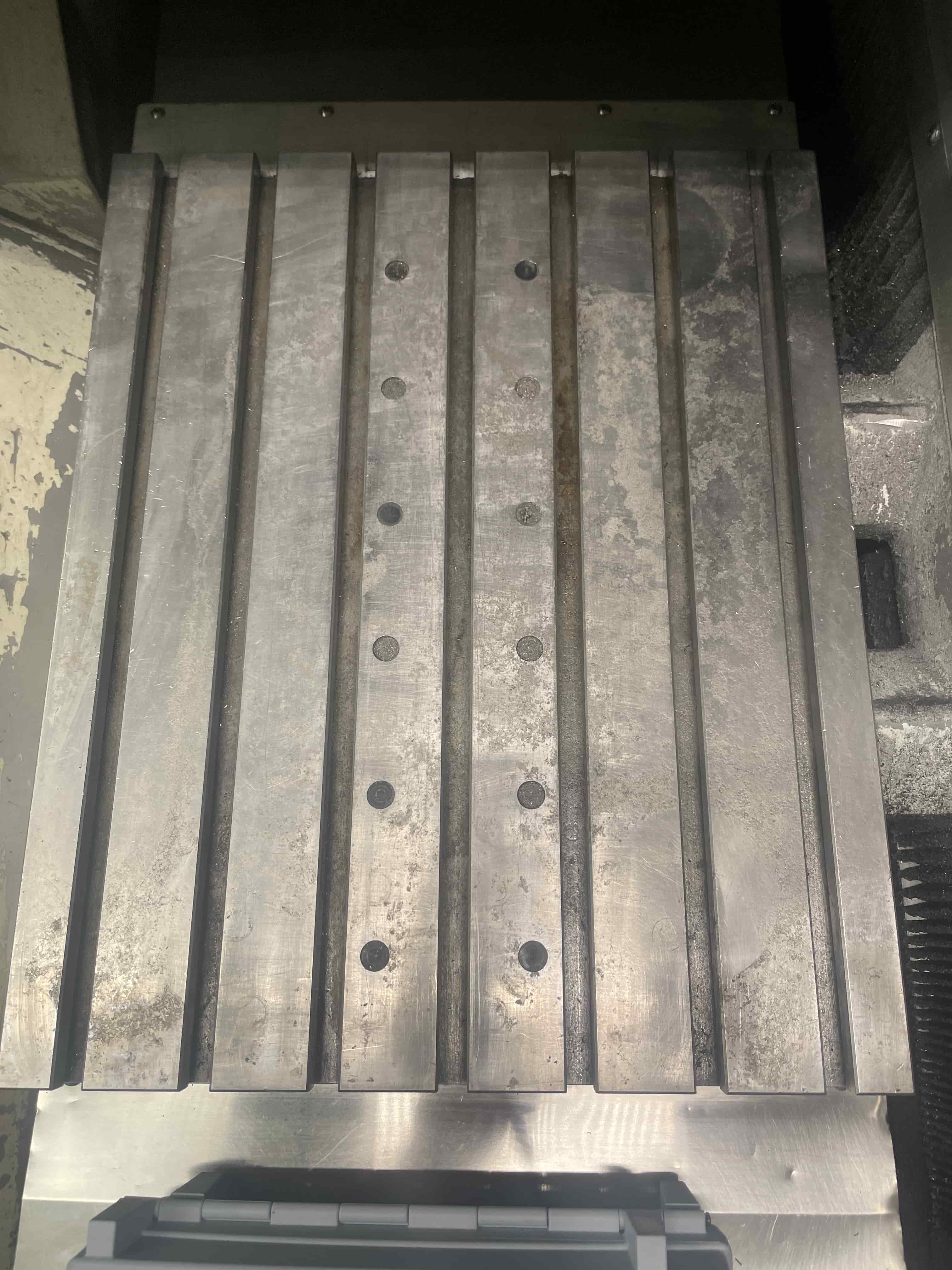

- Table size: 550 x 450 mm (T-slots: 14 mm, spacing 63 mm)
- Max. workpiece weight: 400 kg
- Axis drives: Linear motors in all axes
- Feed rate: 0 – 40,000 mm/min

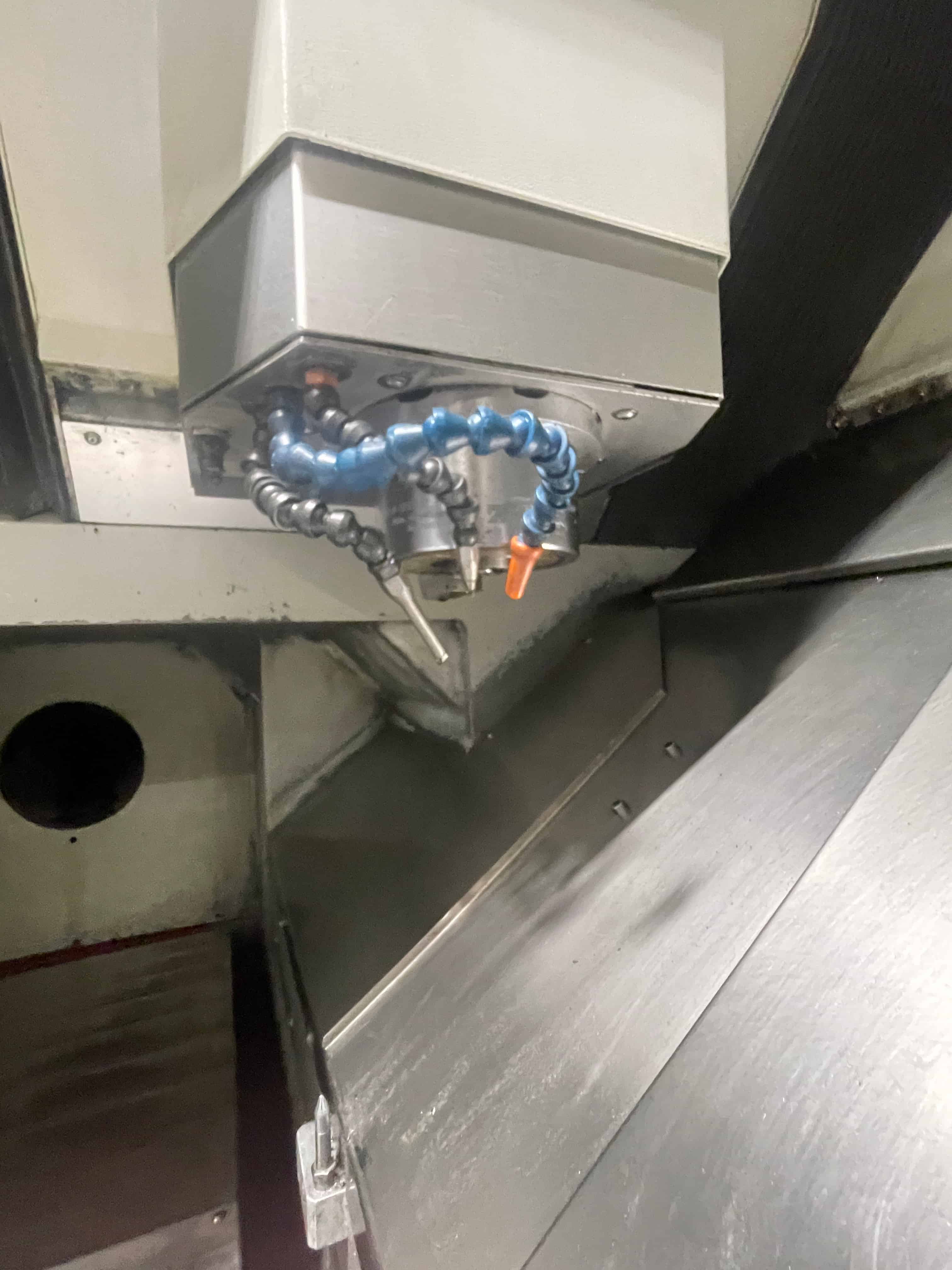

- Spindle: 14 kW; 42,000 rpm
- Tool holder: HSK E40
- Tool magazine: 21 positions (optional up to 42 positions)
- Max. tool diameter: 16 mm
- Connections (Electrical): 400 V 3-phase (390V - 410V); 22 kVA
- Connections (Pneumatic): min. 6.5 bar; 500 Nl/min (filtered, oil- and water-free)
- Environmental limits: 15°C - 35°C operating temperature
3. Weights
- Total machine weight: approx. 5500 kg
4. Dimensions
- Overall dimensions with electrical cabinet (Width x Length x Height): 2710 x 2350 x 2320 mm
- Height with optional suction device: 2600 mm
