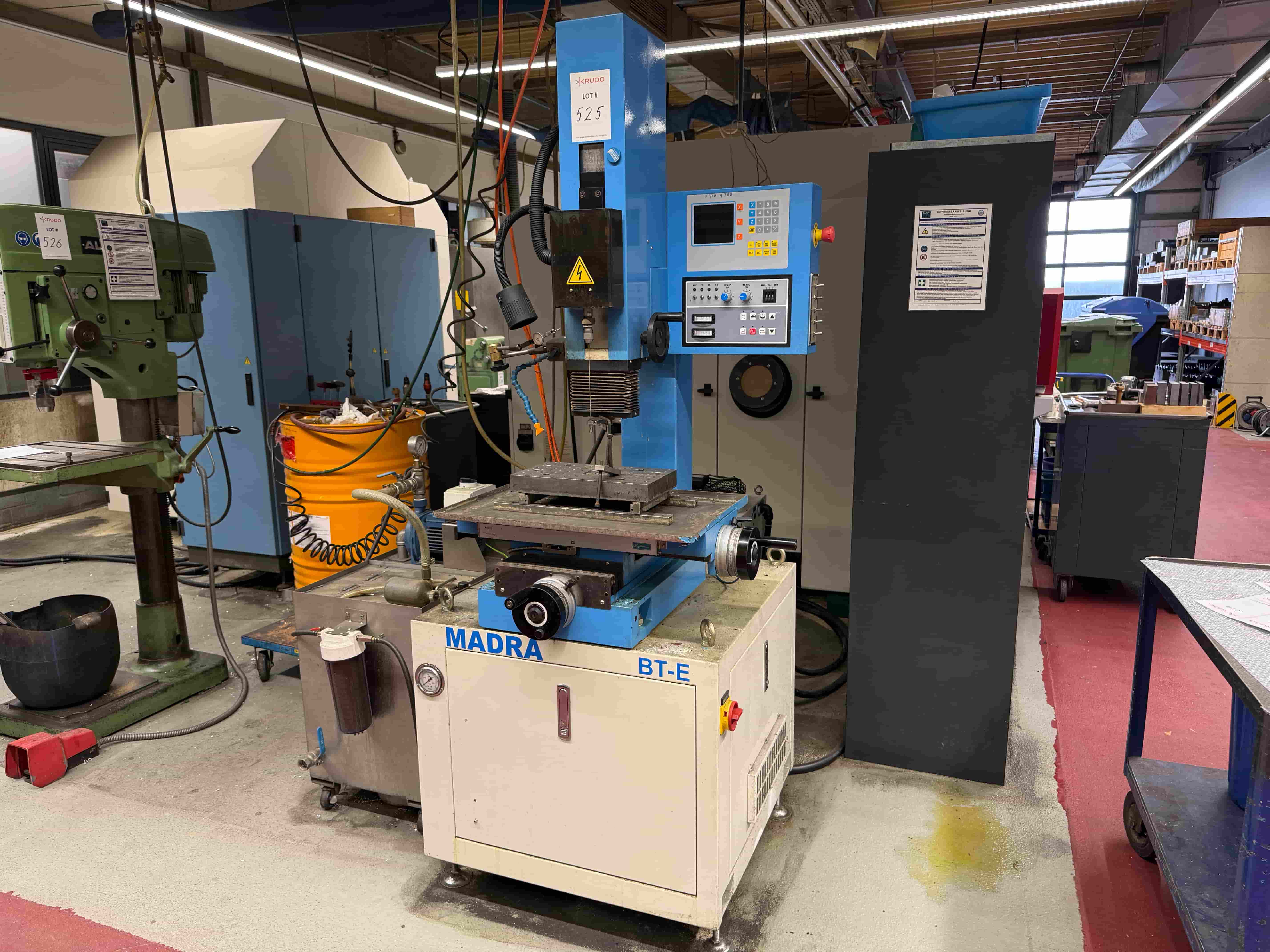

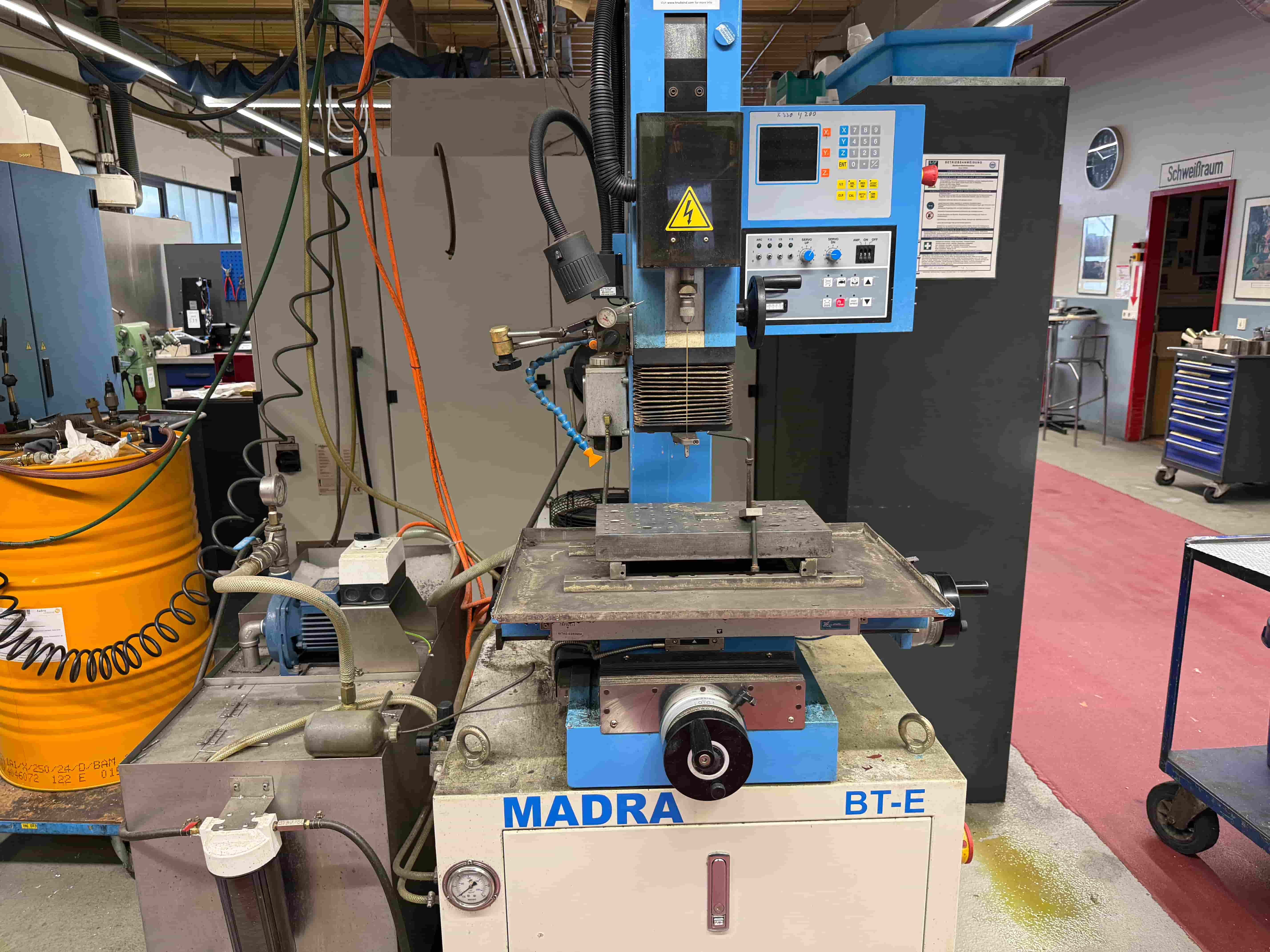

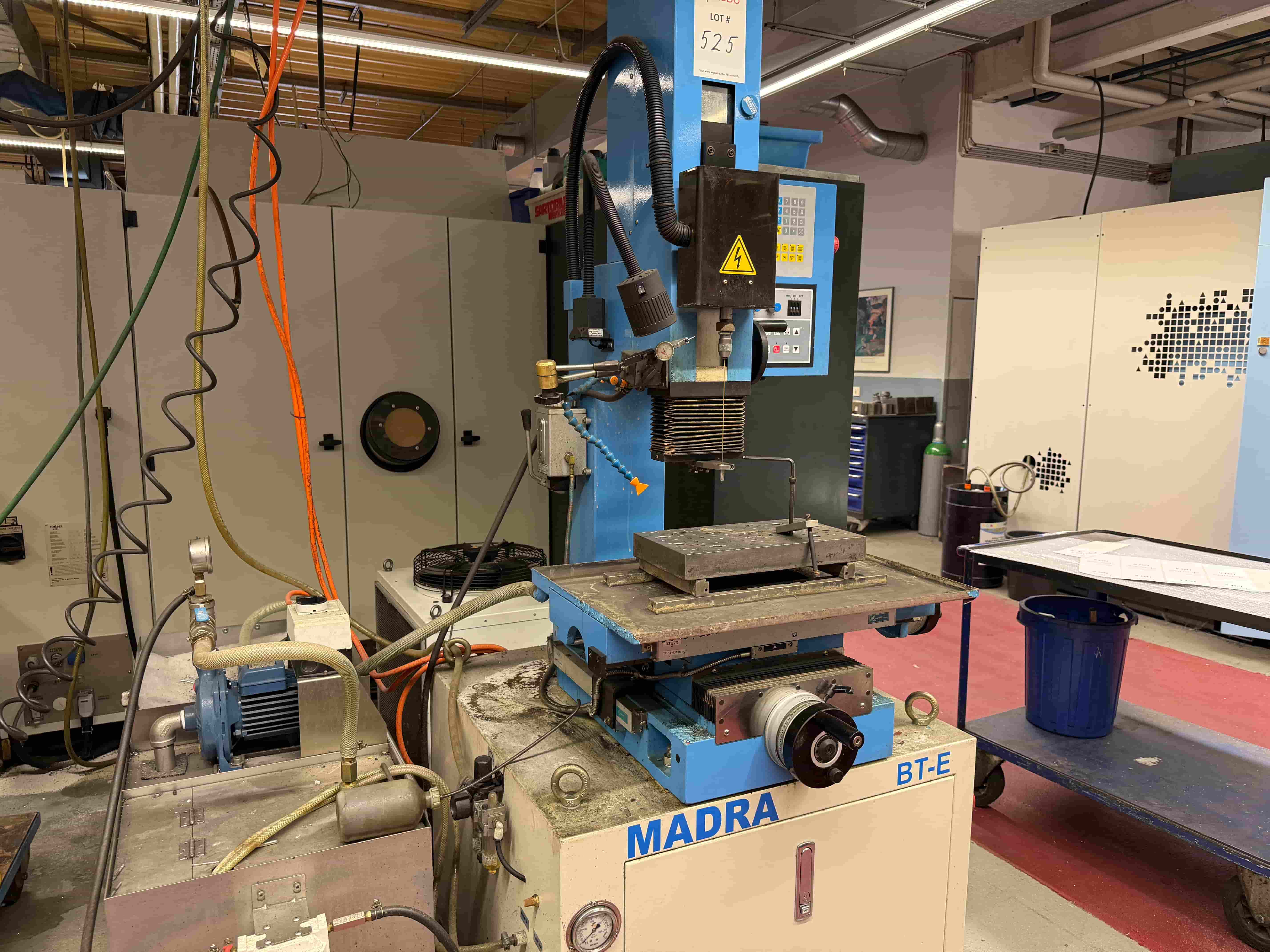

525. Madra EDM Drilling Machine
Madra BT-E
Late-Model EDM Drilling Machine
This 2020 Madra BT-E is a highly efficient EDM hole drilling machine, engineered for rapid, precise start-hole creation in hardened metals and exotic alloys.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Madra
Country
Germany
Machine Type
EDM Drilling Machine
Year of Manufacture
2020
Model
BT-E
Machine Number
191007
Technical Details

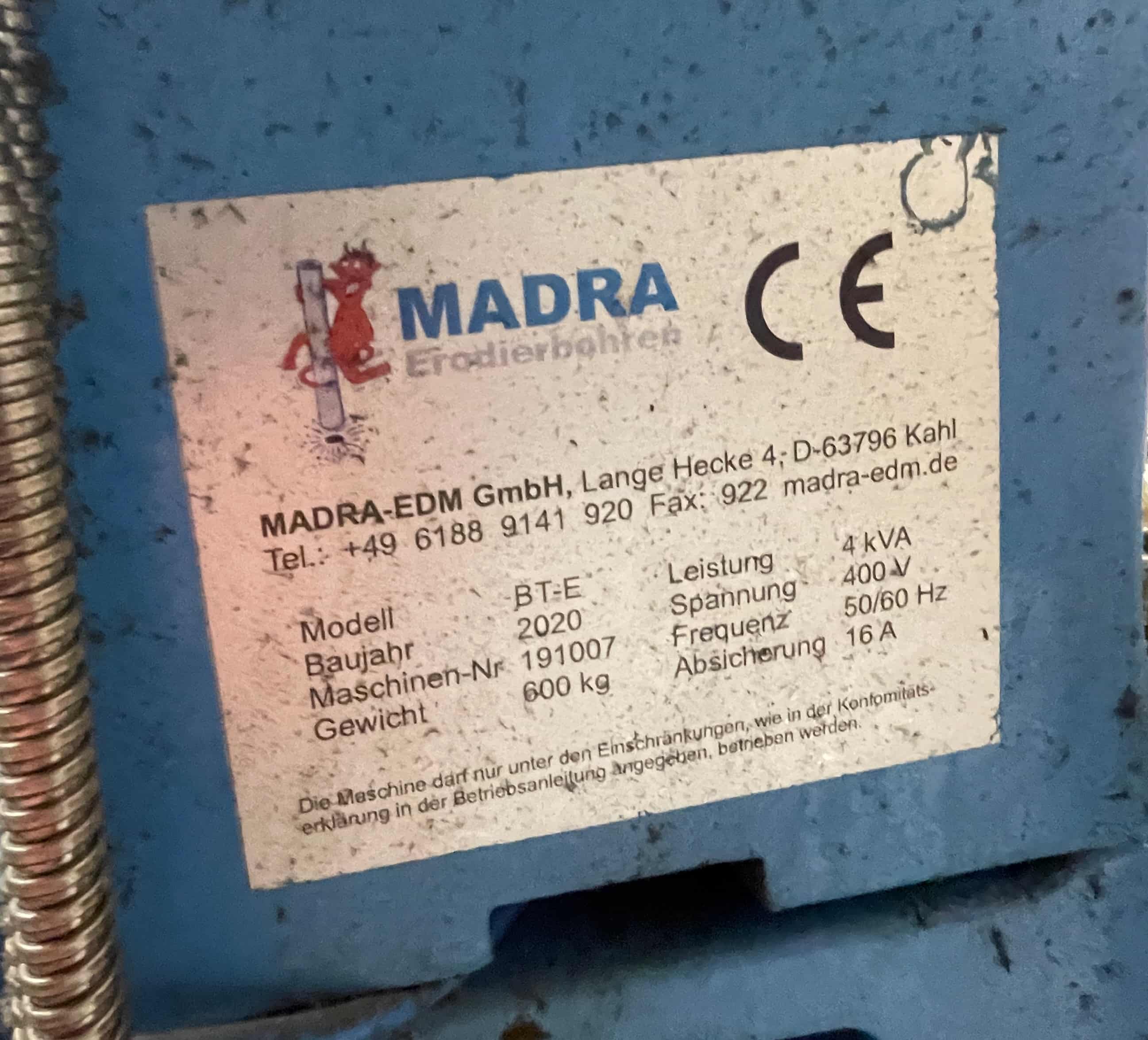

1. Machine identification data
- Name: EDM Drilling Machine
- Manufacturer: Madra
- Model: BT-E
- Machine number: 191007
- Year of manufacture: 2020
2. Operational parameters
- Travels (X / Y): 300 x 200 mm
- Travels (Z / W): 345 mm
- Electrode guide travel: 150 mm
- Table size: 460 x 210 mm
- Max. workpiece weight: 200 kg
- Distance between guide and table: 50 – 200 mm
- XYZ DRO resolution: 0.005 mm
- Max. machining current: 30 A
- Max. power consumption: 4 kVA
- Electrical connection: 3 x 400 V
3. Weights
- Machine weight: 550 kg
4. Dimensions
- Overall machine dimensions (Width x Length x Height): 800 x 800 x 2000 mm
