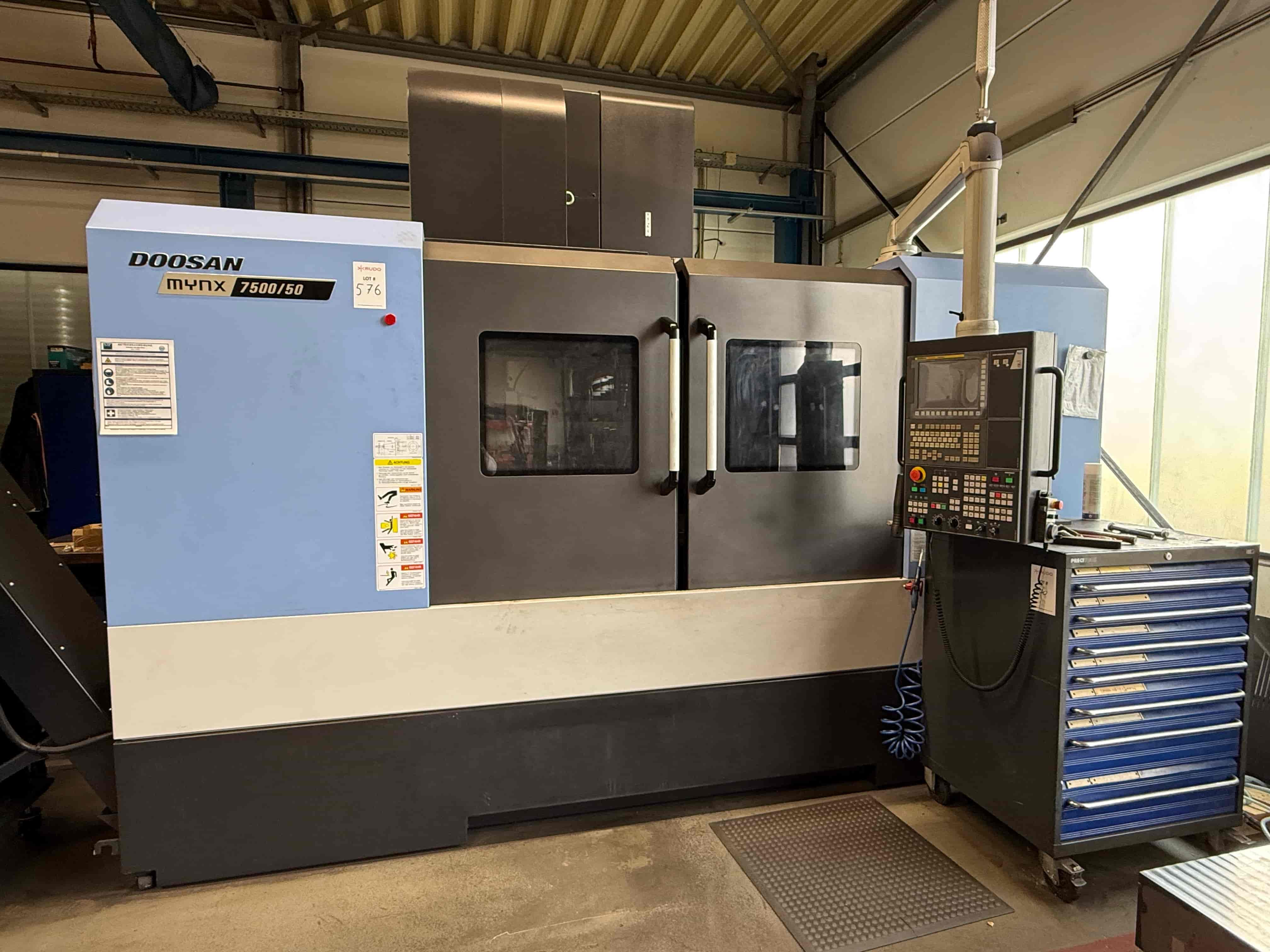

576. Doosan 3-Axis CNC Vertical Machining Center

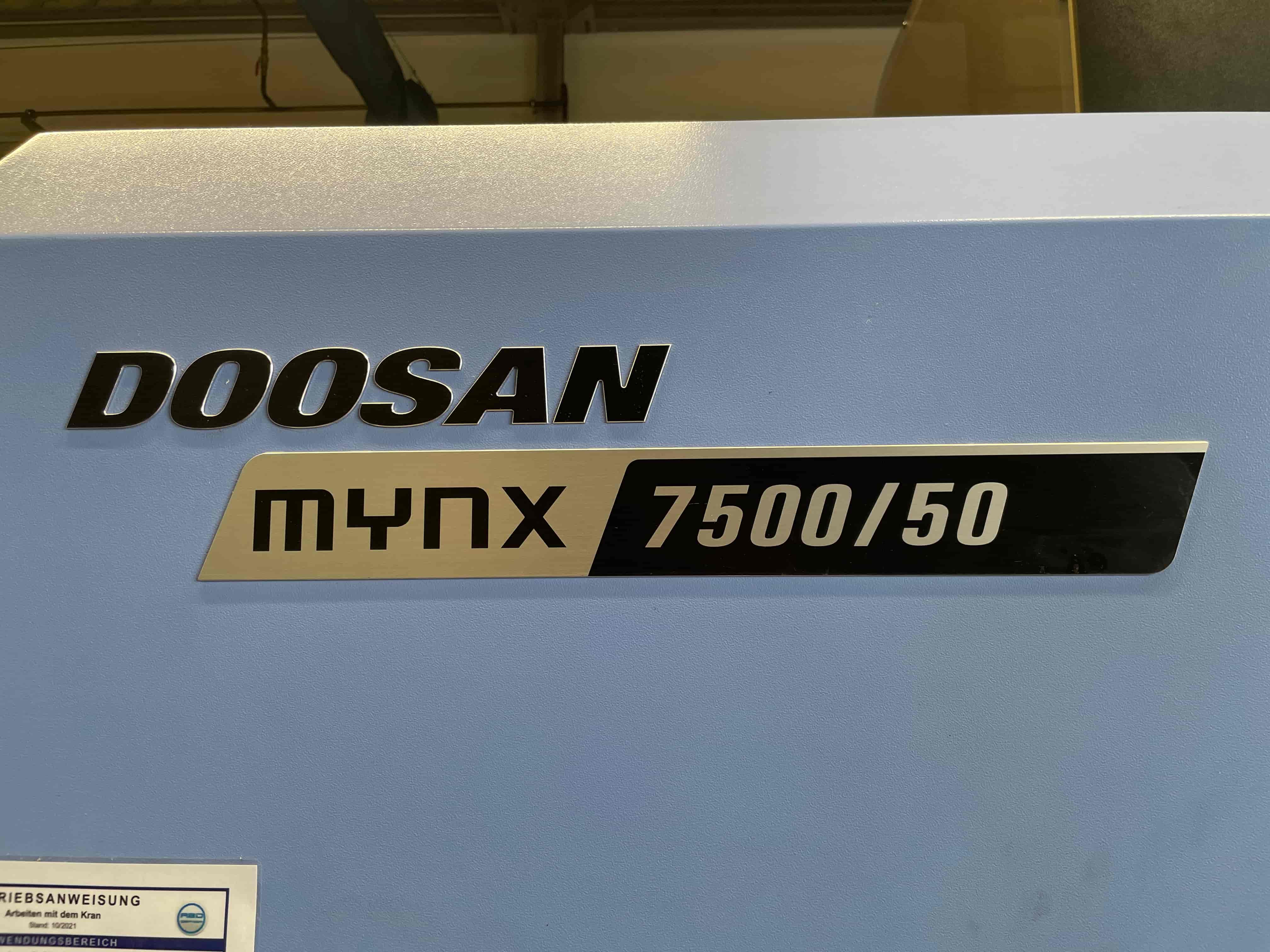

Doosan Mynx 7500/50
Heavy-Duty 3-Axis Vertical Machining Center
Built for aggressive cutting capacity, this 2018 Doosan Mynx 7500/50 is a robust 3-axis CNC vertical center ideal for heavy part machining and high-productivity workflows.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Doosan
Country
Germany
Machine Type
CNC Vertical Machining Center
Year of Manufacture
2018
Model
Mynx 7500/50
Technical Details

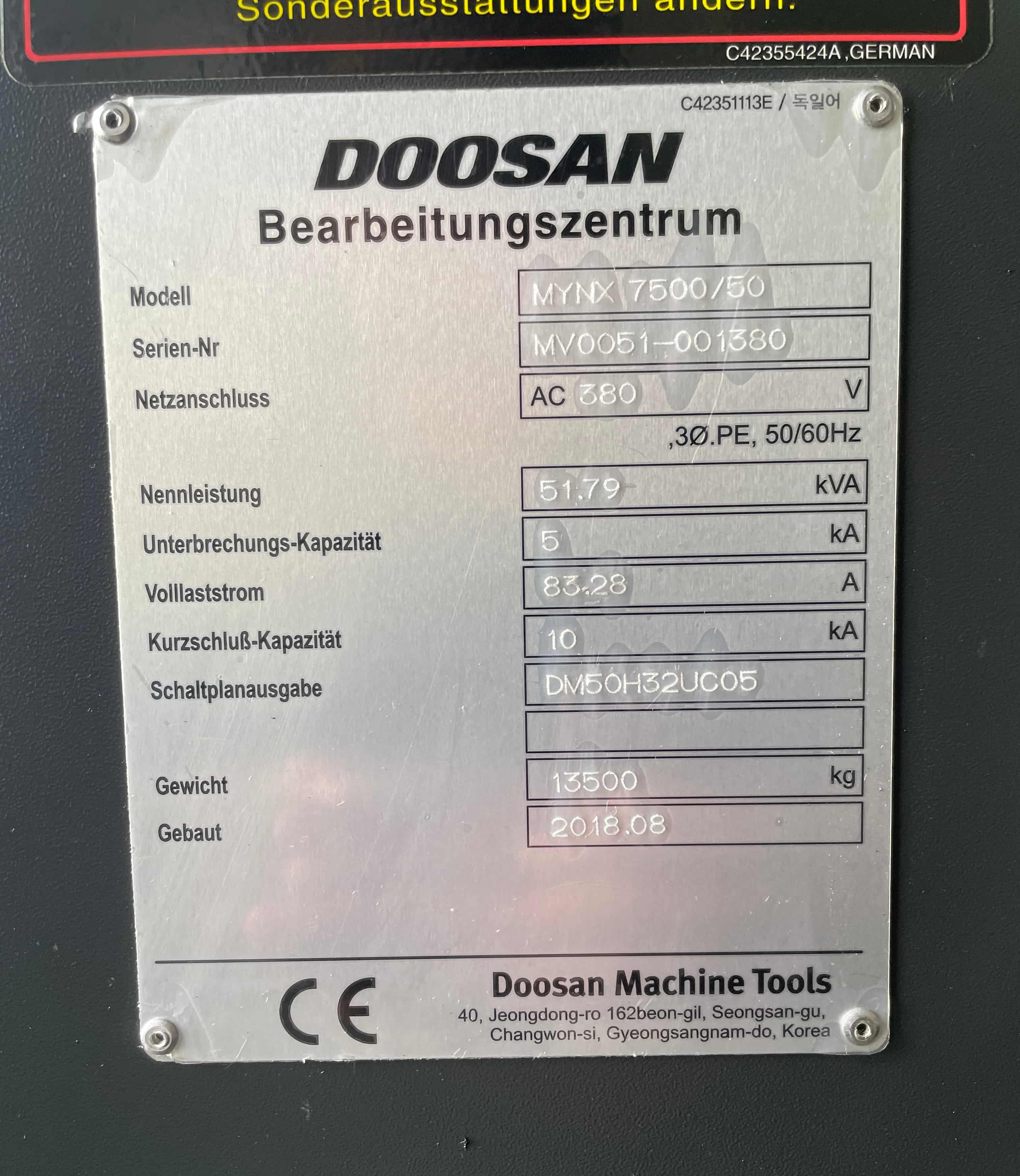

1. Machine identification data
- Name: CNC Vertical Machining Center
- Manufacturer: Doosan
- Model: Mynx 7500/50
- Year of manufacture: 2018
2. Operational parameters
- Travel (X / Y / Z): 1525 mm / 762 mm / 625 mm
- Table size: 1600 x 750 mm
- Max. workpiece weight: 1500 kg
- Spindle speed: 60 – 6000 rpm
- Spindle motor power: 18.5 / 22 kW
- Max. torque: 452 Nm
- Spindle taper: DIN 69871 B SK 50
- Distance spindle nose to table: 200 – 825 mm
- Distance spindle center to column: 785 mm
- Rapid traverse (X, Y / Z): 30 m/min / 24 m/min
- Feed rate (X, Y, Z): 1 – 12,000 mm/min
- Tool magazine: 24 positions
- Max. tool weight: 15 kg
- Max. tool length: 350 mm
- Max. tool diameter: 125 mm (230 mm with empty adjacent pockets)
- Tool change time: 2.5 sec / 6.0 sec

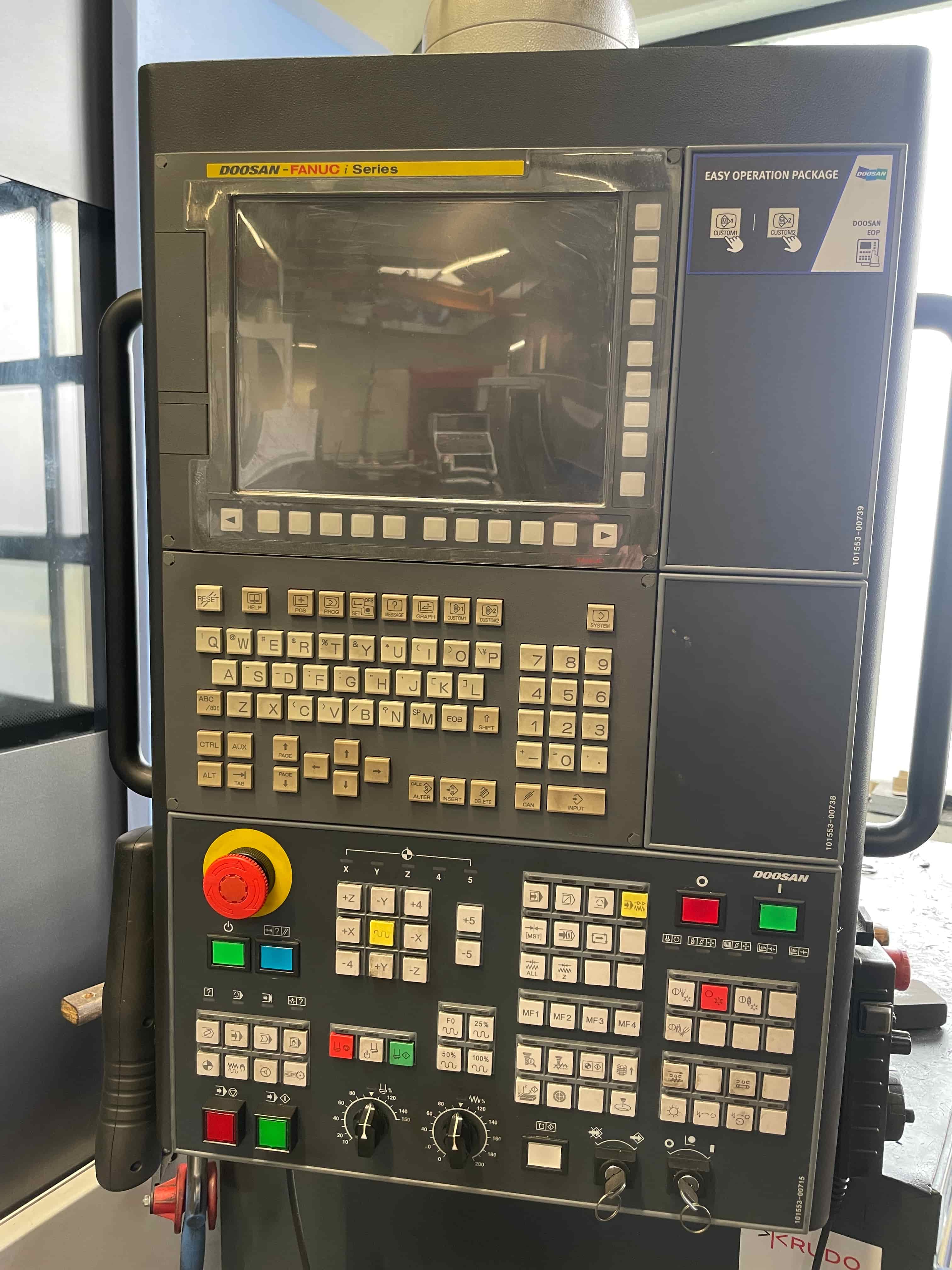

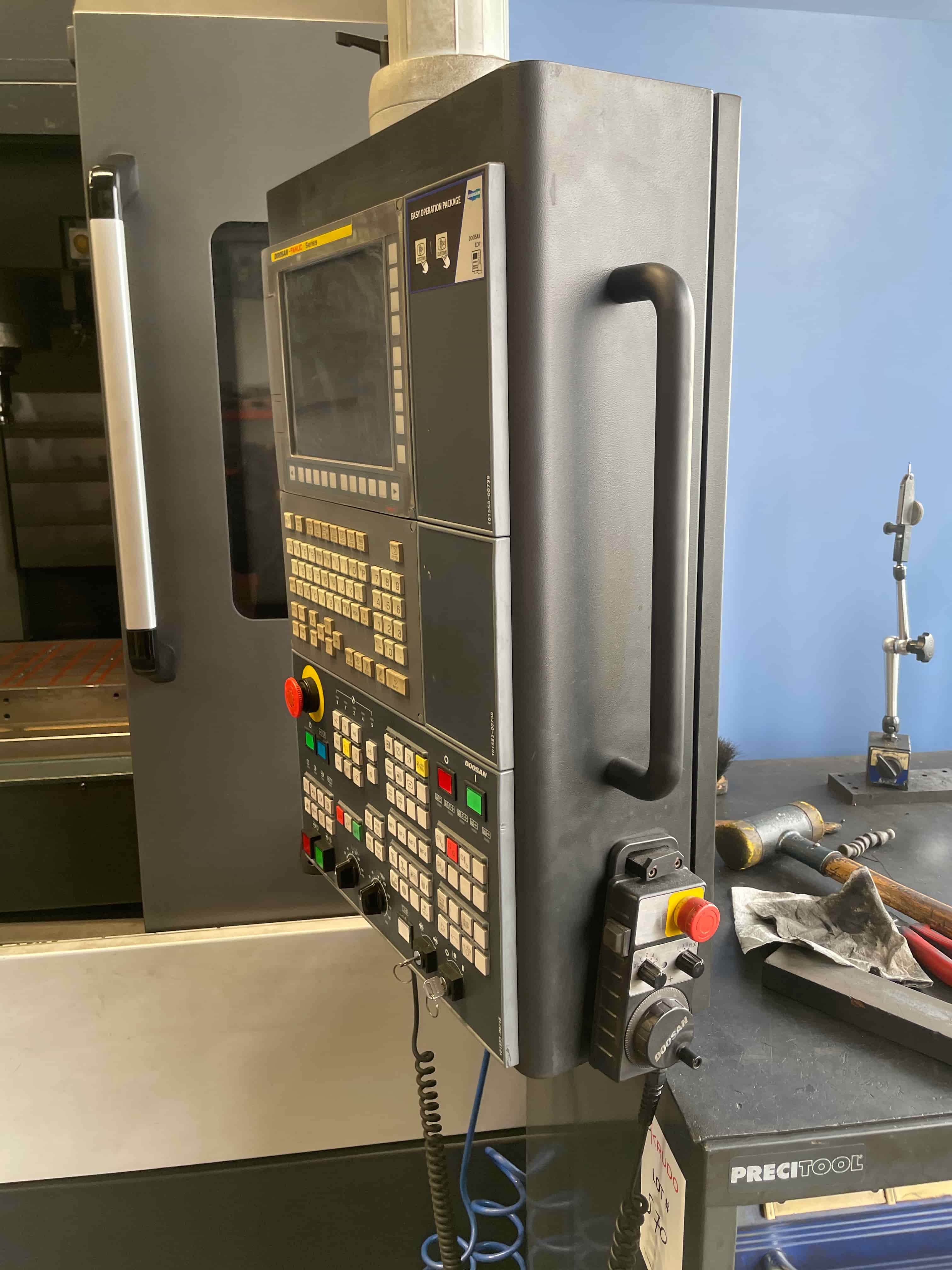

- Control: Fanuc αP30
- Coolant tank capacity: 380 L
- Air pressure requirement: 6.0 bar
- Power requirement: 47.3 kVA
3. Weights
- Total machine weight: approx. 13500 kg
4. Dimensions
- Overall dimensions (Width x Length x Height): 4050 x 3900 x 3235 mm
