560. Manitou Electric Forklift

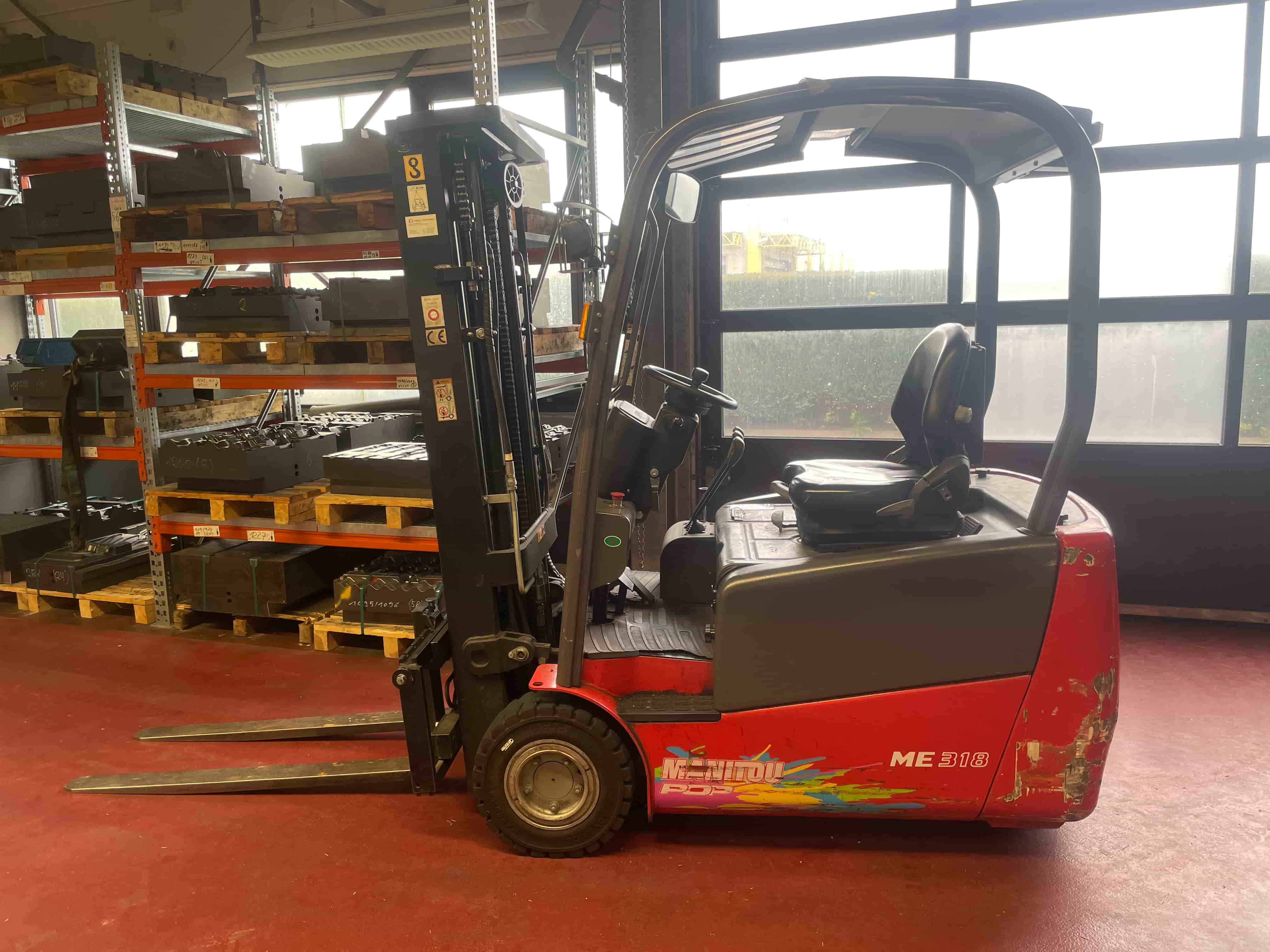

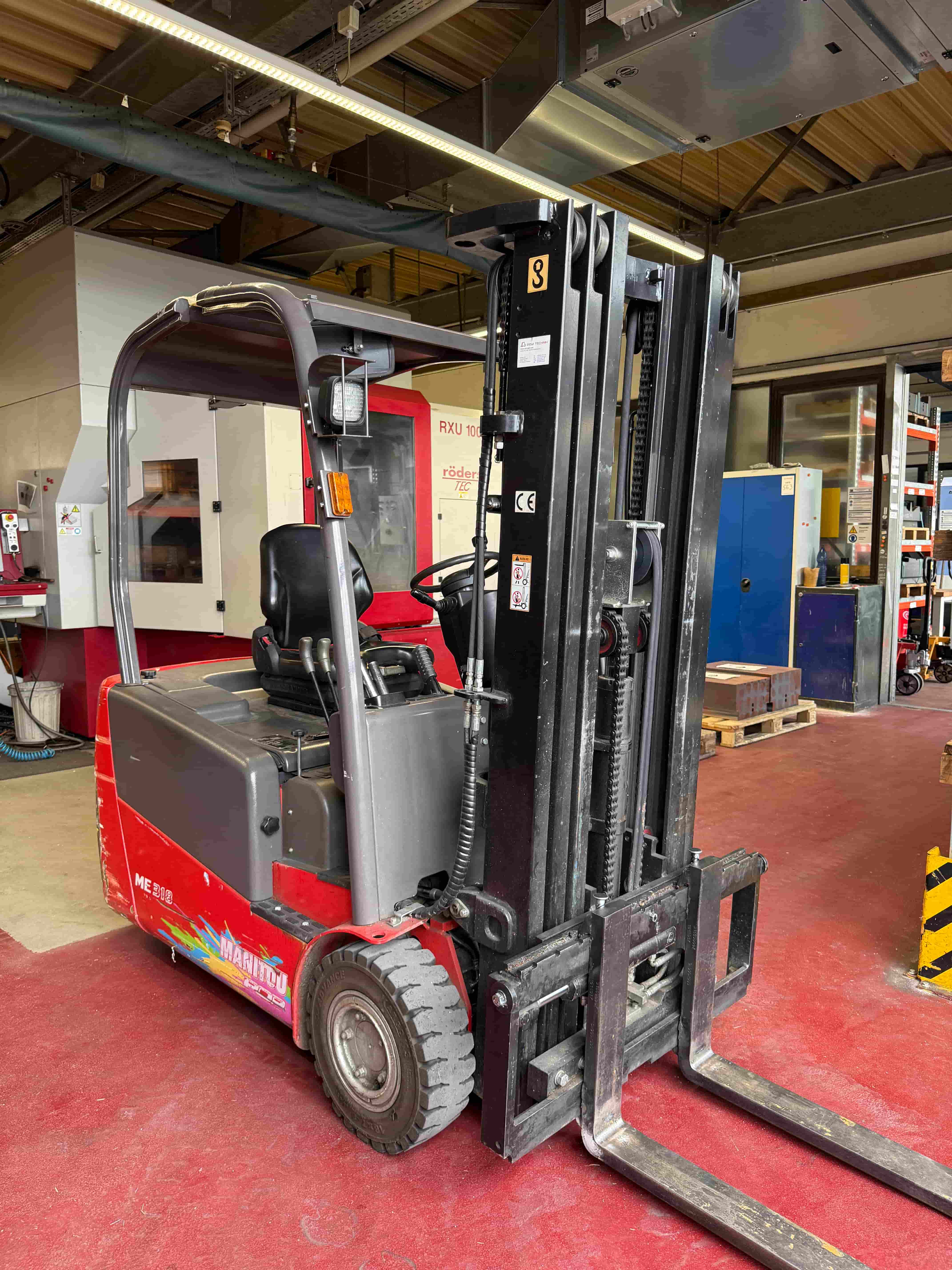

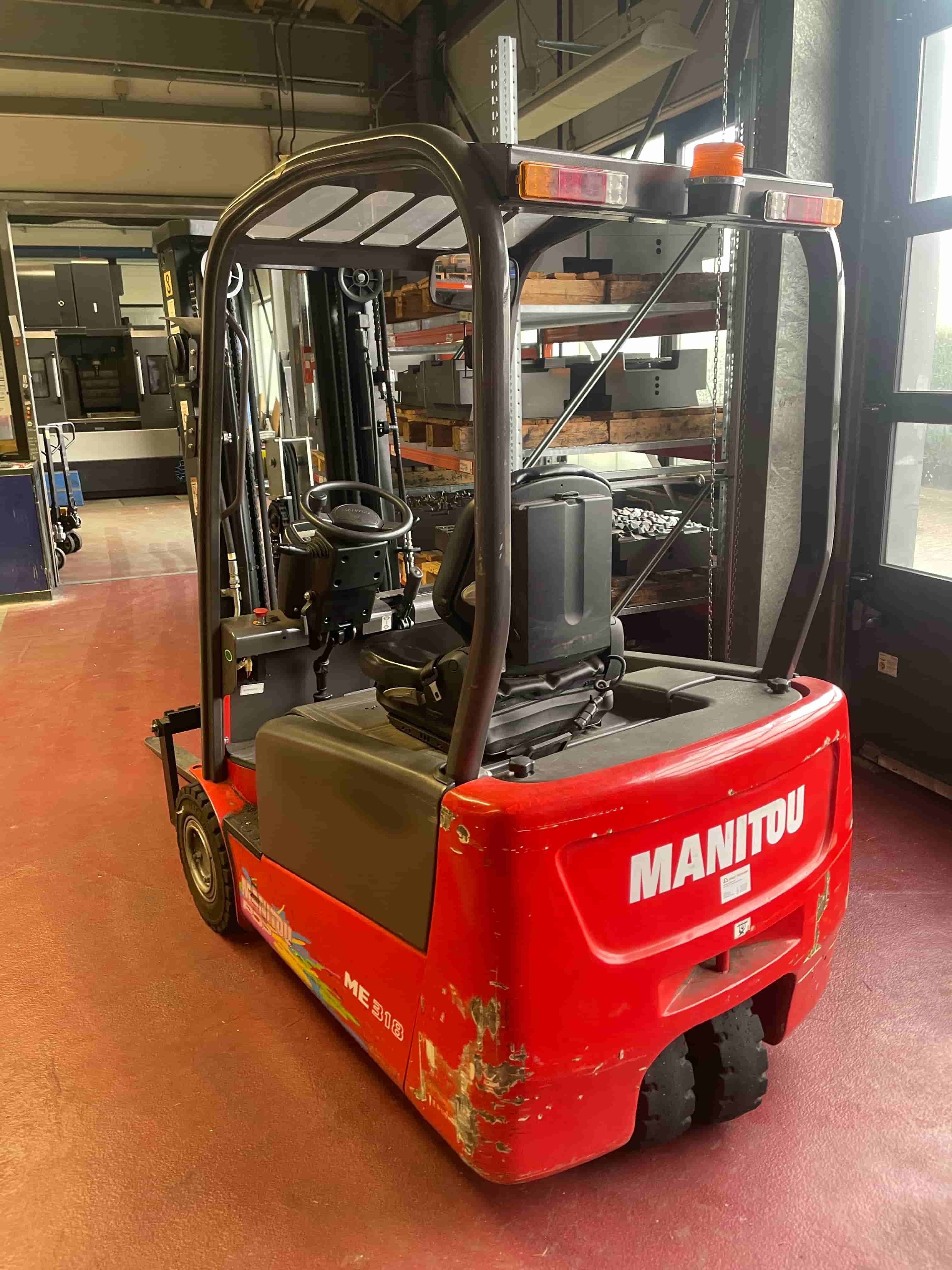

Manitou ME 318
3-Wheel Electric Forklift
This 2016 Manitou ME 318 is a highly maneuverable electric forklift offering efficient, emission-free material handling and a robust lift capacity for smooth facility logistics.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Manitou
Country
Germany
Machine Type
Electric Forklift
Year of Manufacture
2016
Model
ME 318
Machine Number
861492
Technical Details

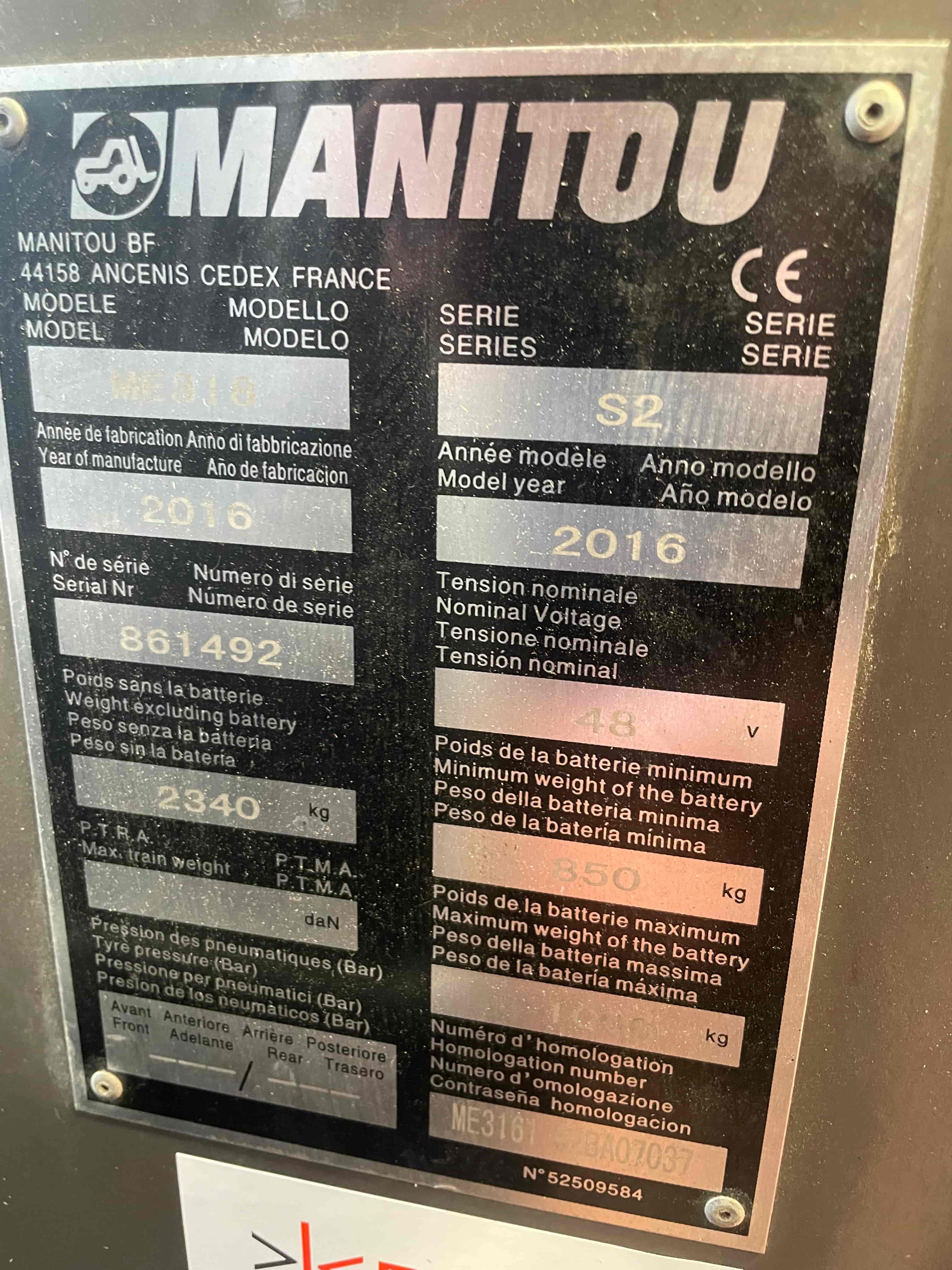

1. Machine identification data
- Name: 3-Wheel Electric Forklift
- Manufacturer: Manitou
- Model: ME 318
- Machine number: 861492
- Year of manufacture: 2016

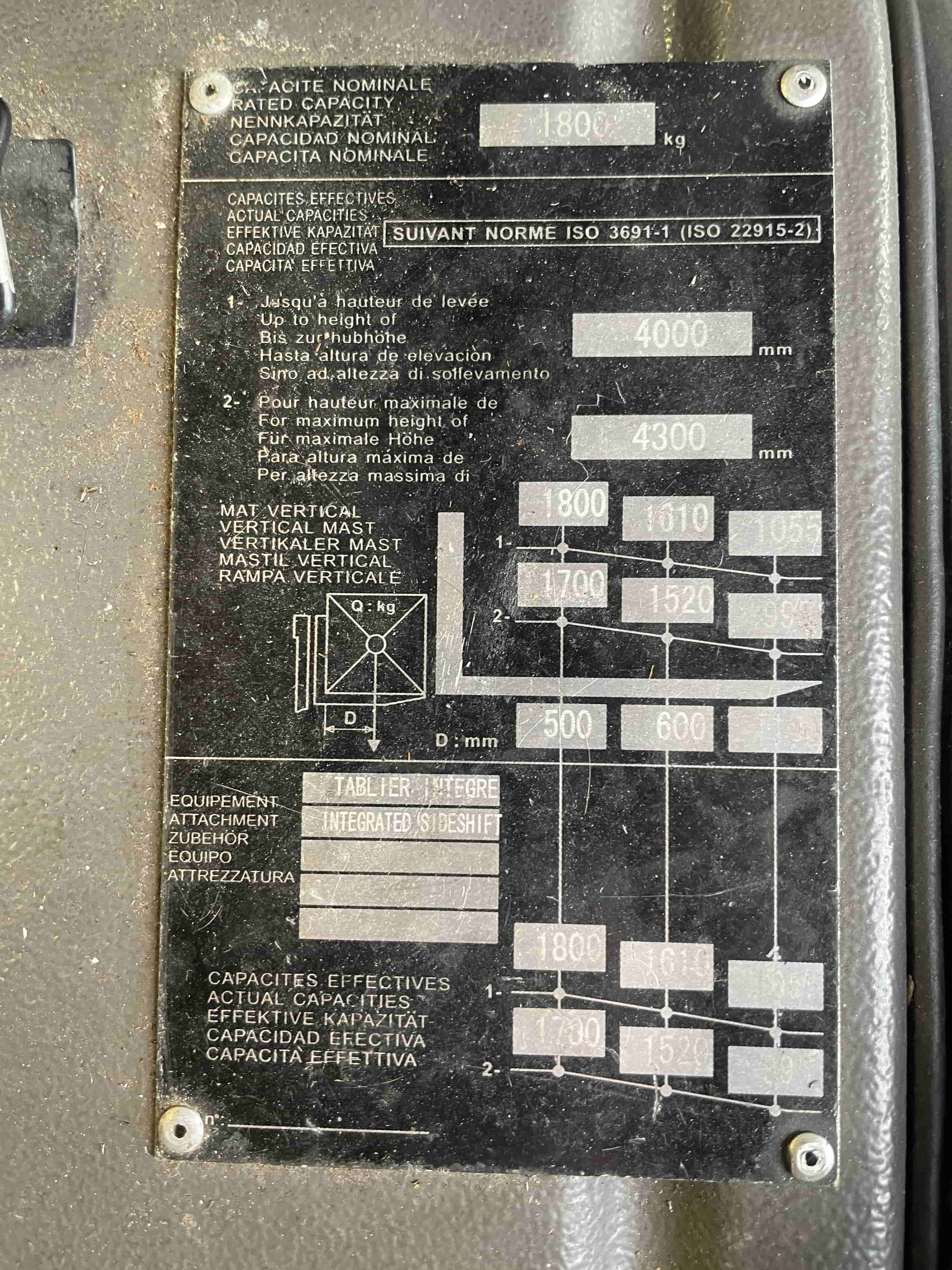

2. Operational parameters
- Nominal capacity: 1800 kg
- Load center: 500 mm
- Power source: Electric
- Max. lift height: 4300 mm (Nominal: 4000 mm)
- Turning radius: 1555 mm
- Aisle width (1000 x 1200 pallets, crosswise): 3241 mm
- Aisle width (800 x 1200 pallets, lengthwise): 3365 mm
- Fork dimensions (Thickness x Width x Length): 35 mm x 100 mm x 1070 mm
- Fork carriage: DIN 15173 2A
- Ground clearance (Under mast / Center wheelbase): 100 mm / 110 mm
- Load distance: 355 mm
3. Weights
- Operating weight (with battery): 3240 kg
4. Dimensions
- Overall length: 2968 mm
- Length to front face of forks: 1898 mm
- Overall width: 1086 mm
- Height of overhead guard (cabin): 2042 mm
- Seat height: 1000 mm
- Wheelbase: 1358 mm
- Coupling height: 500 mm
