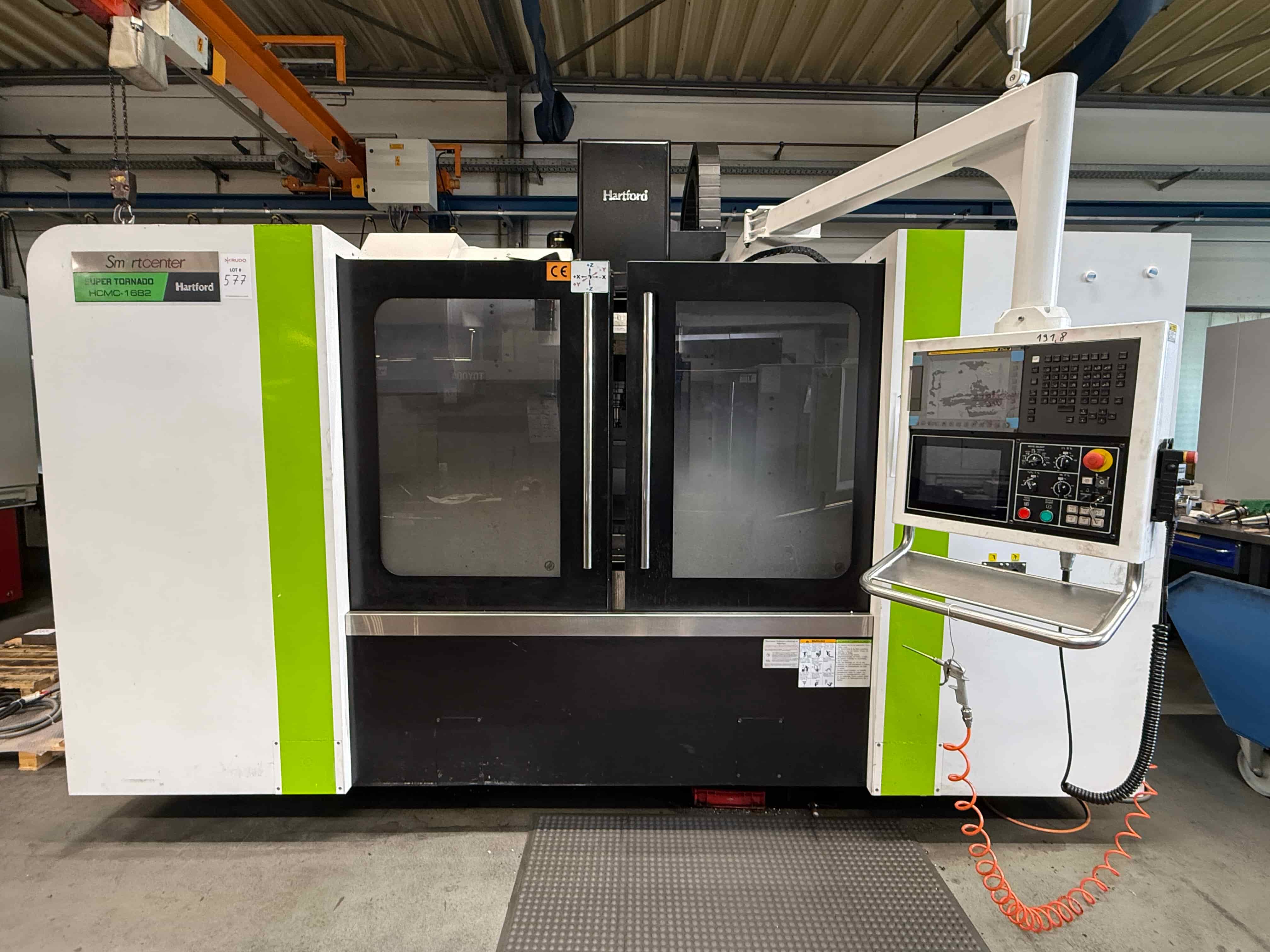

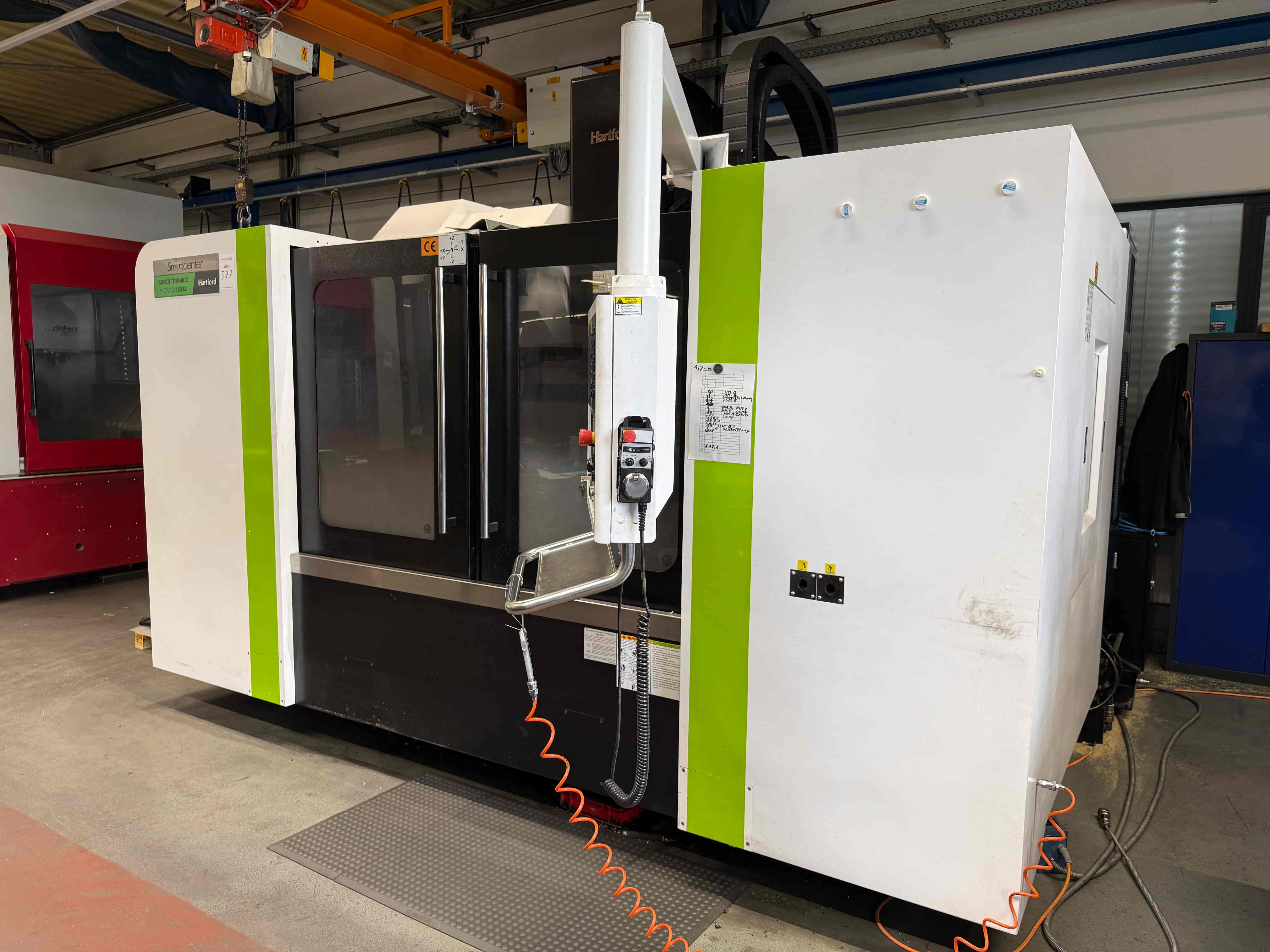

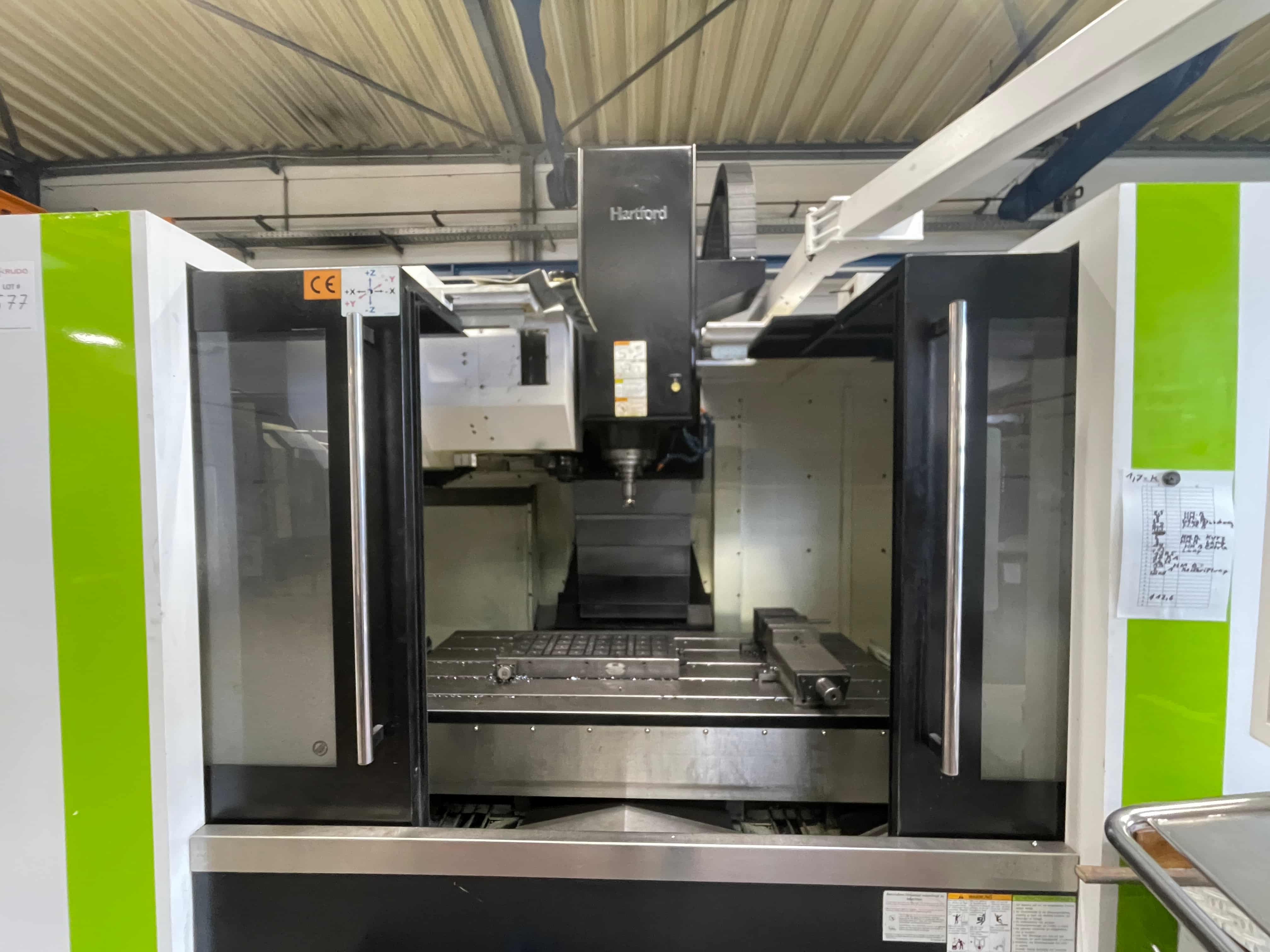

577. Hartford 3-Axis CNC Vertical Machining Center

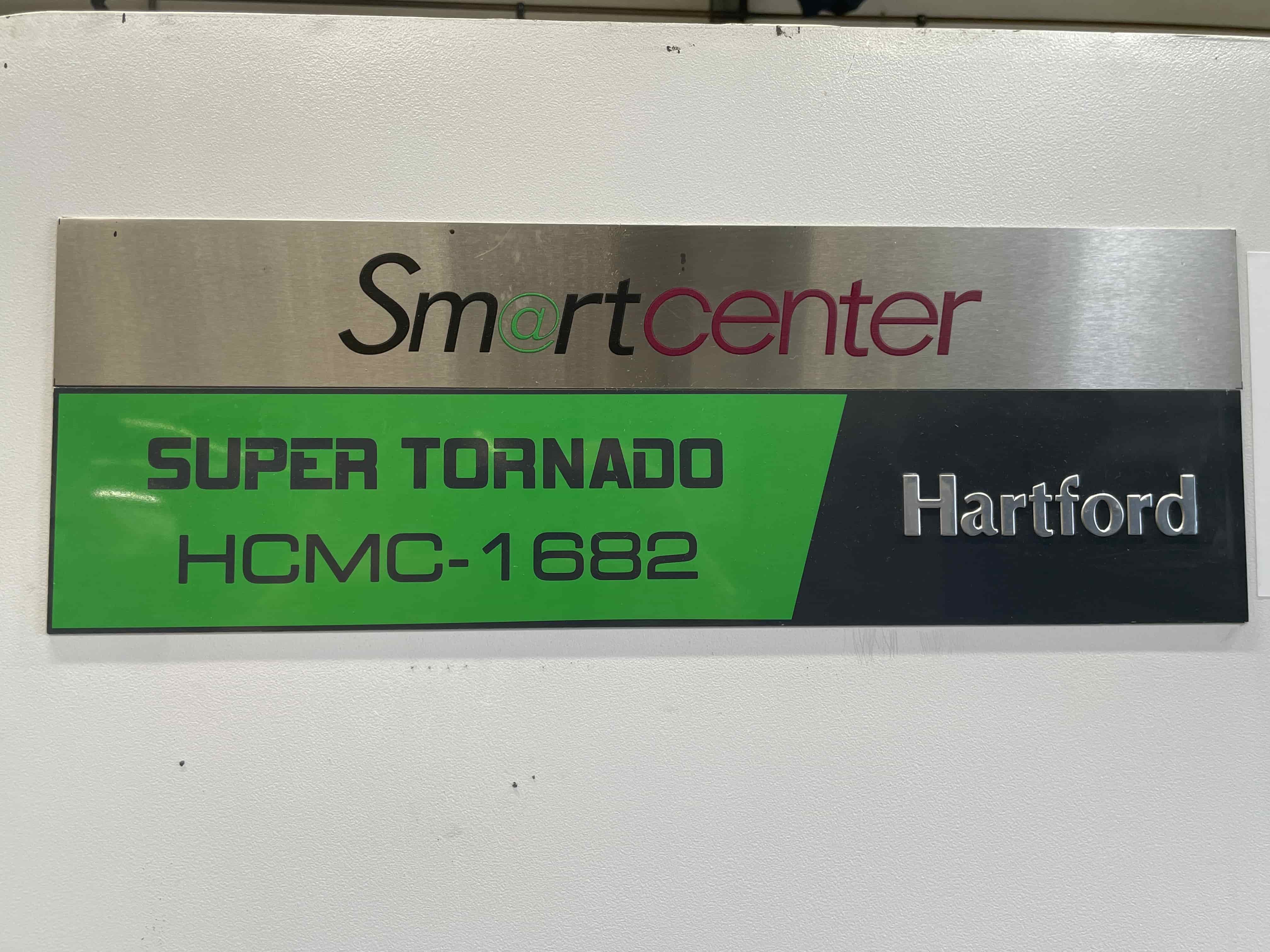

Hartford HCMC-1682
Late-Model 3-Axis CNC Vertical Center
This 2021 Hartford HCMC-1682 offers exceptional structural rigidity and modern CNC capabilities, providing a highly efficient and reliable solution for versatile 3-axis milling.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Hartford
Country
Germany
Machine Type
CNC Vertical Machining Center
Year of Manufacture
2021
Model
HCMC-1682
Machine Number
100000755
Technical Details

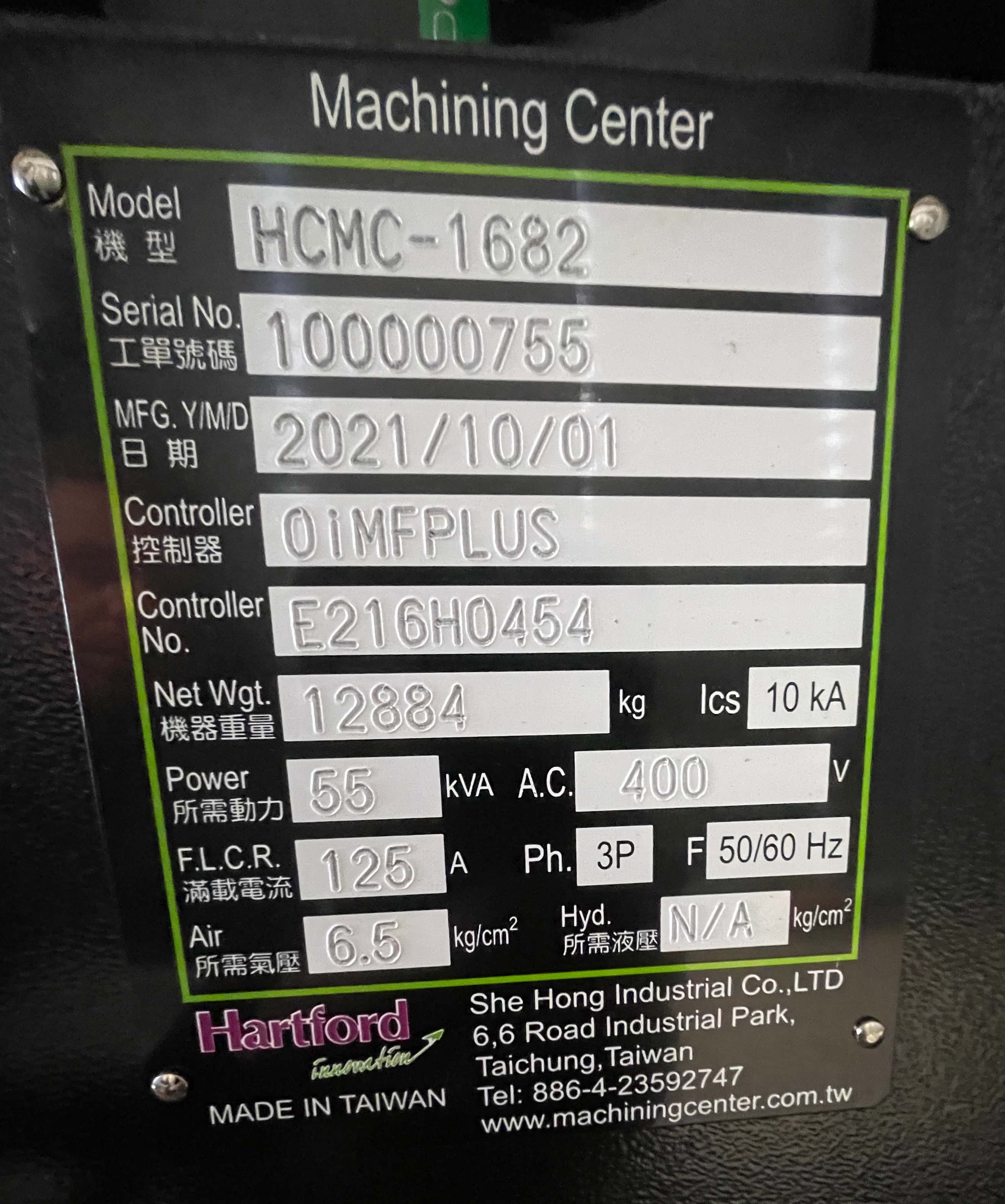

1. Machine identification data
- Name: CNC Vertical Machining Center
- Manufacturer: Hartford
- Model: HCMC-1682
- Machine number: 100000755
- Year of manufacture: 2021

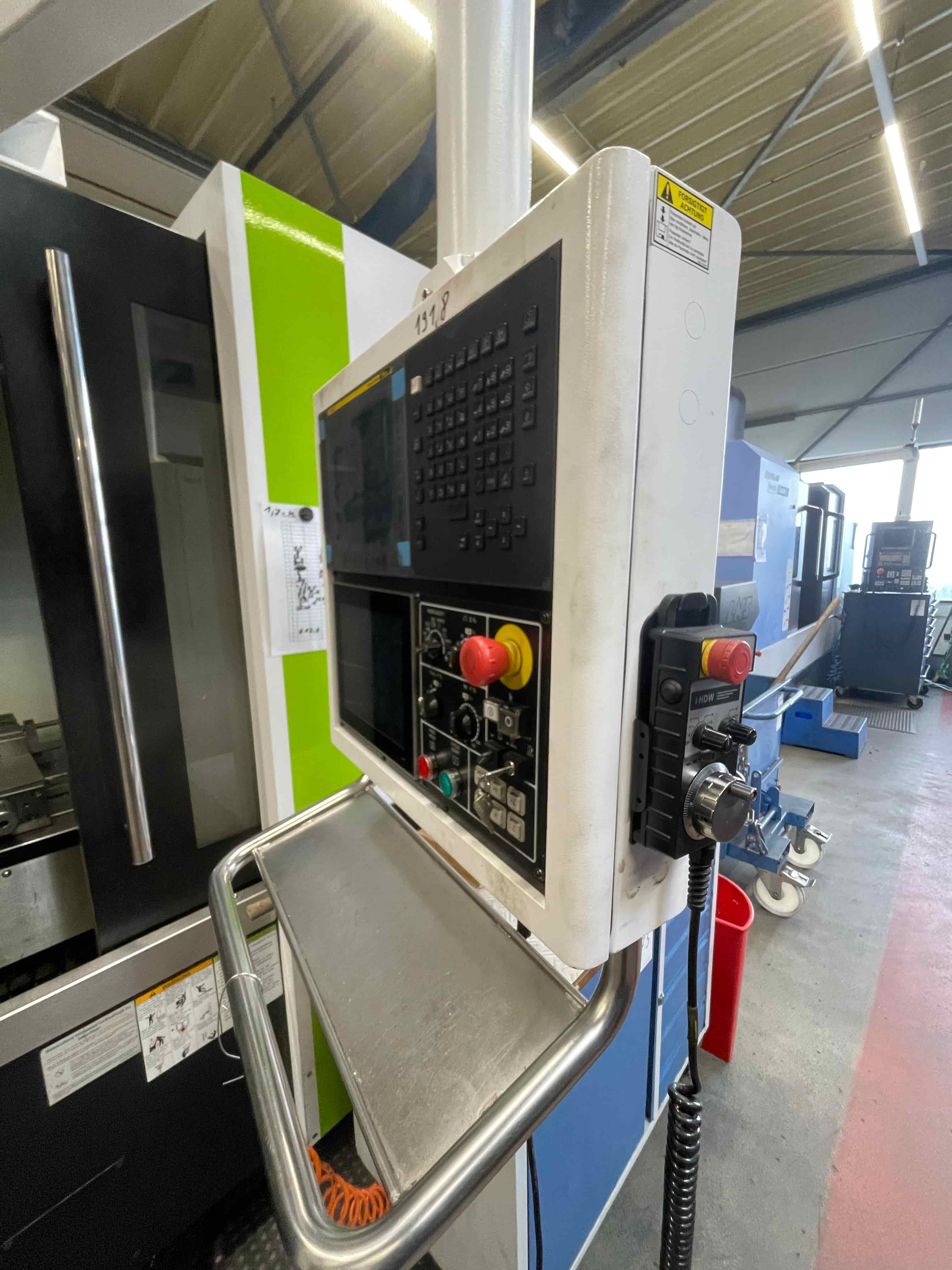

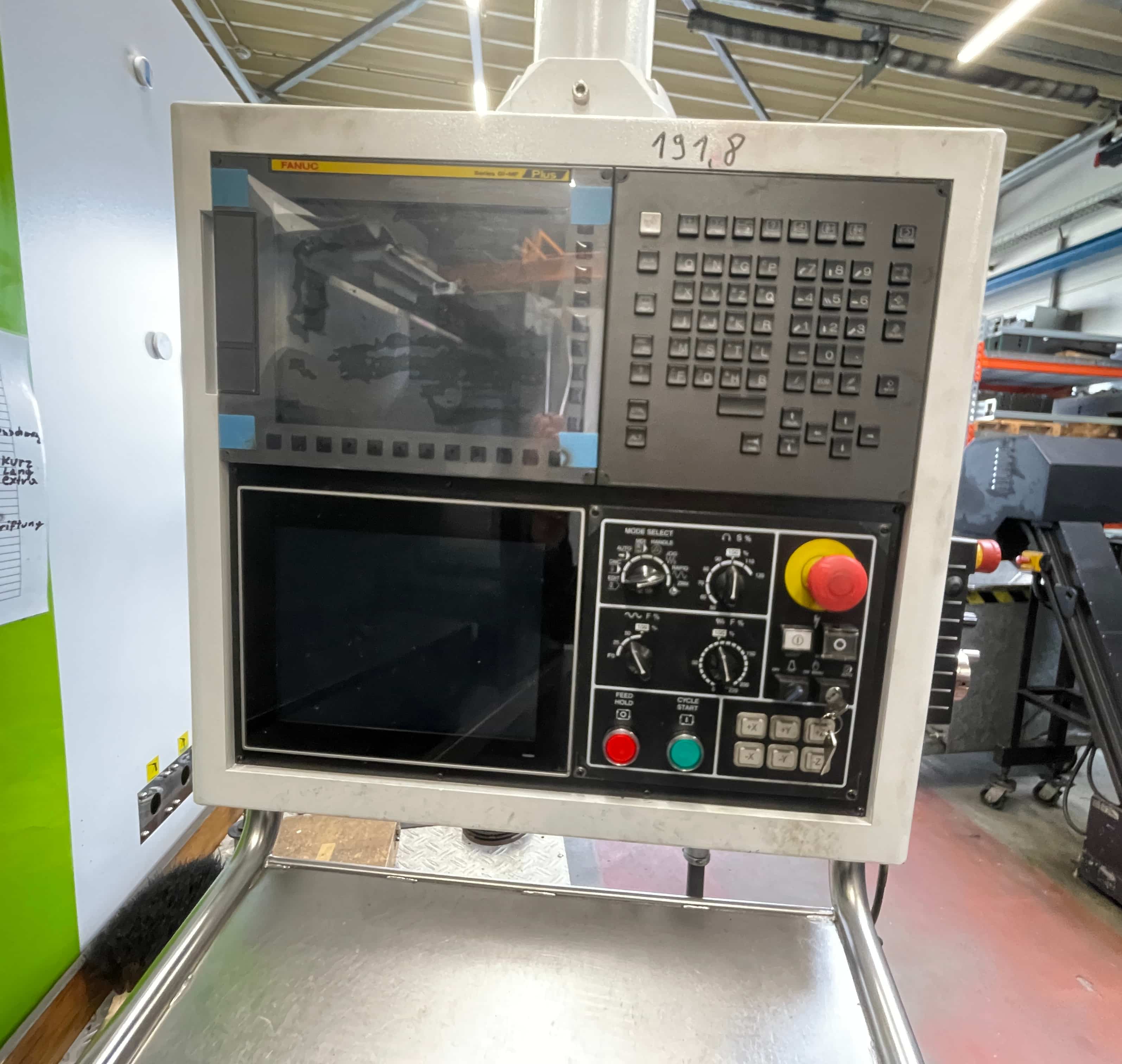

- Controller: Fanuc OiMF PLUS
2. Operational parameters
- Travel (X / Y / Z): 1,600 / 820 / 660 mm
- Table Size: 1,750 x 820 mm
- Max. Table Load: 2,200 kg

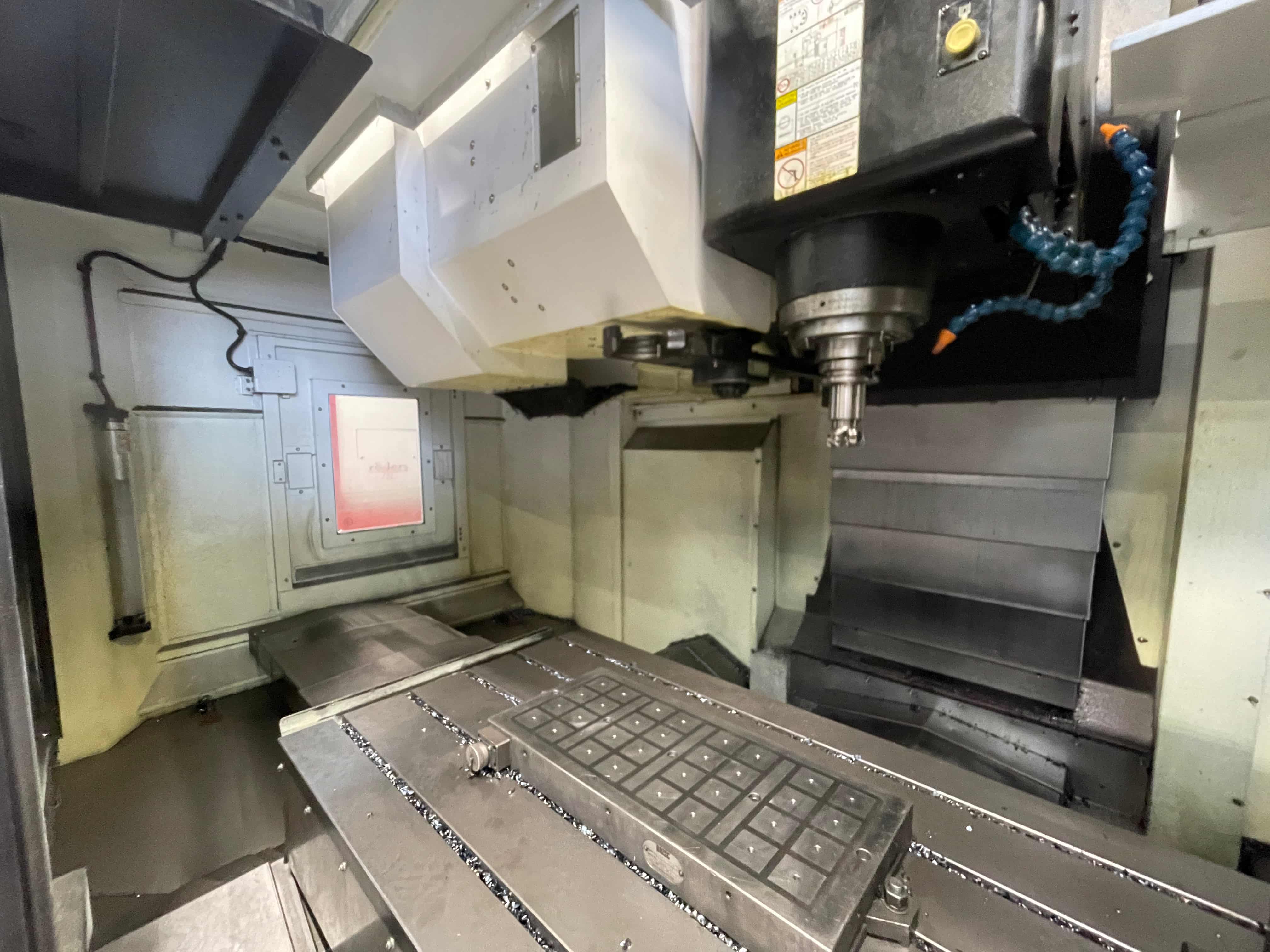

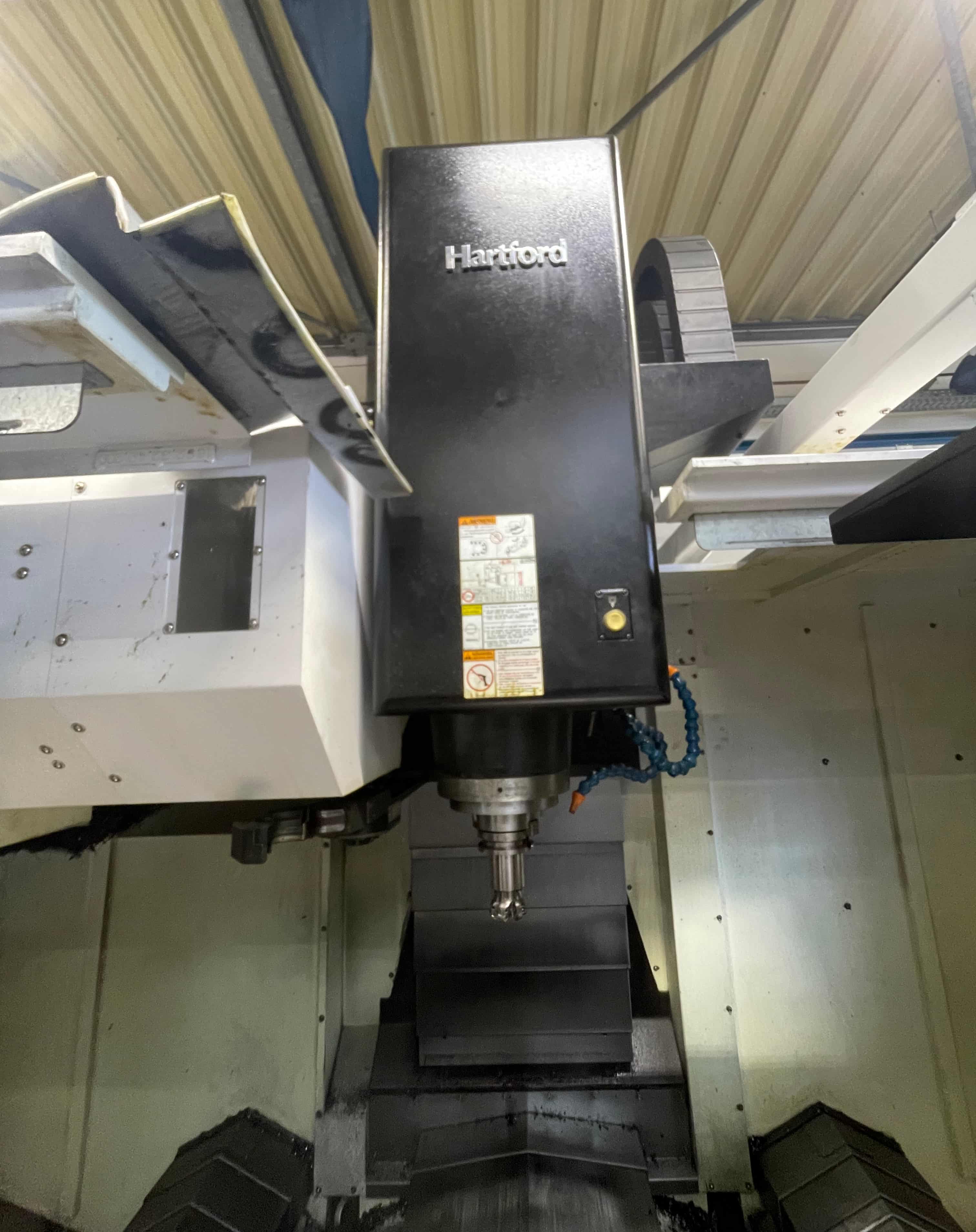

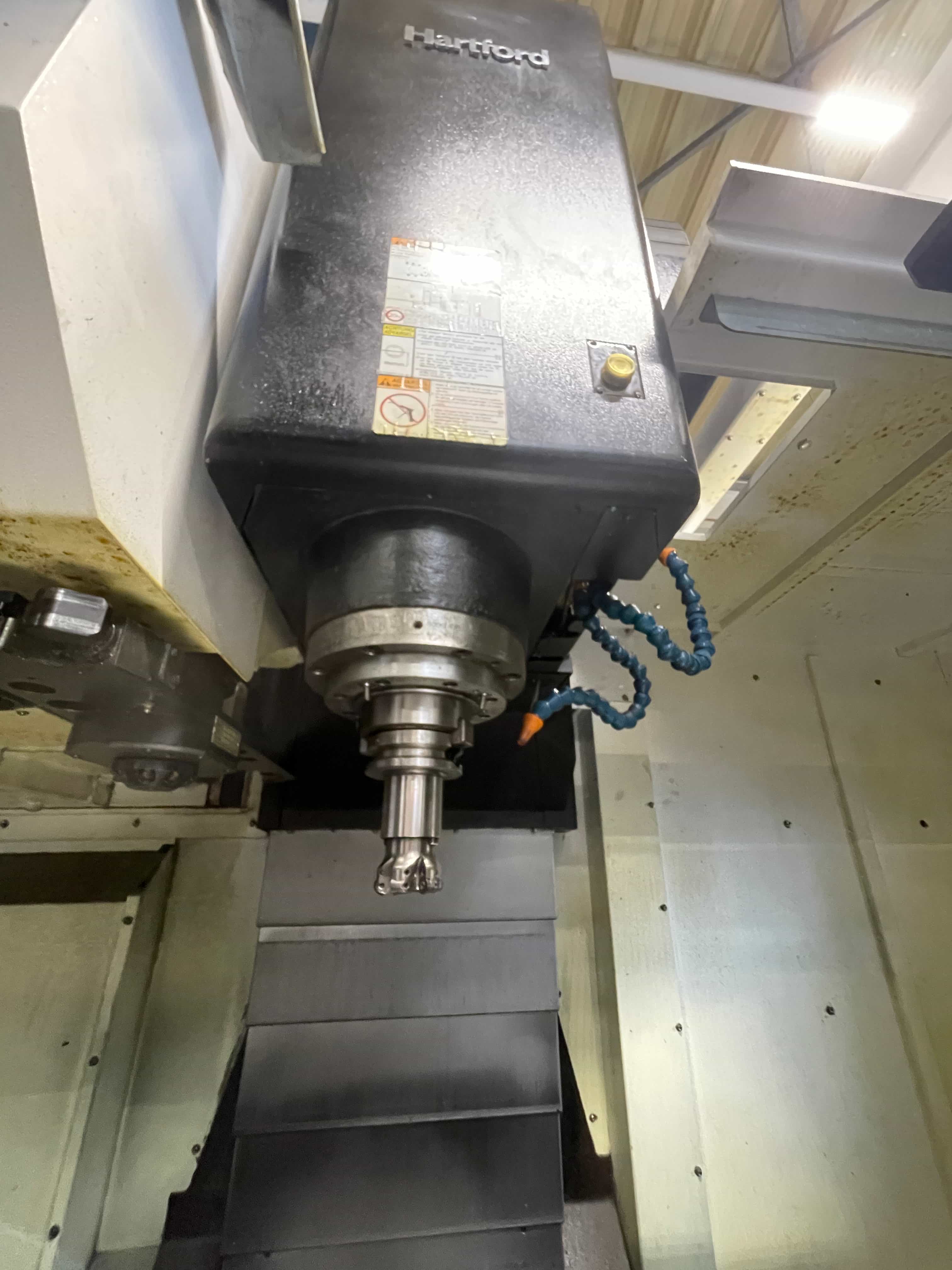

- Spindle Taper: ISO50
- Spindle Speed
- Geared: 4,000 / 6,000 / 8,000 RPM
- DDS: 10,000 / 12,000 RPM
- Spindle Power: 11.0 / 15.0 kW (options up to 26 kW)
- Rapid Traverse (X / Y / Z): 20 / 20 / 18 m/min
- Number of ATC Stations: 32
- Spindle Nose to Table: 150 – 810 mm

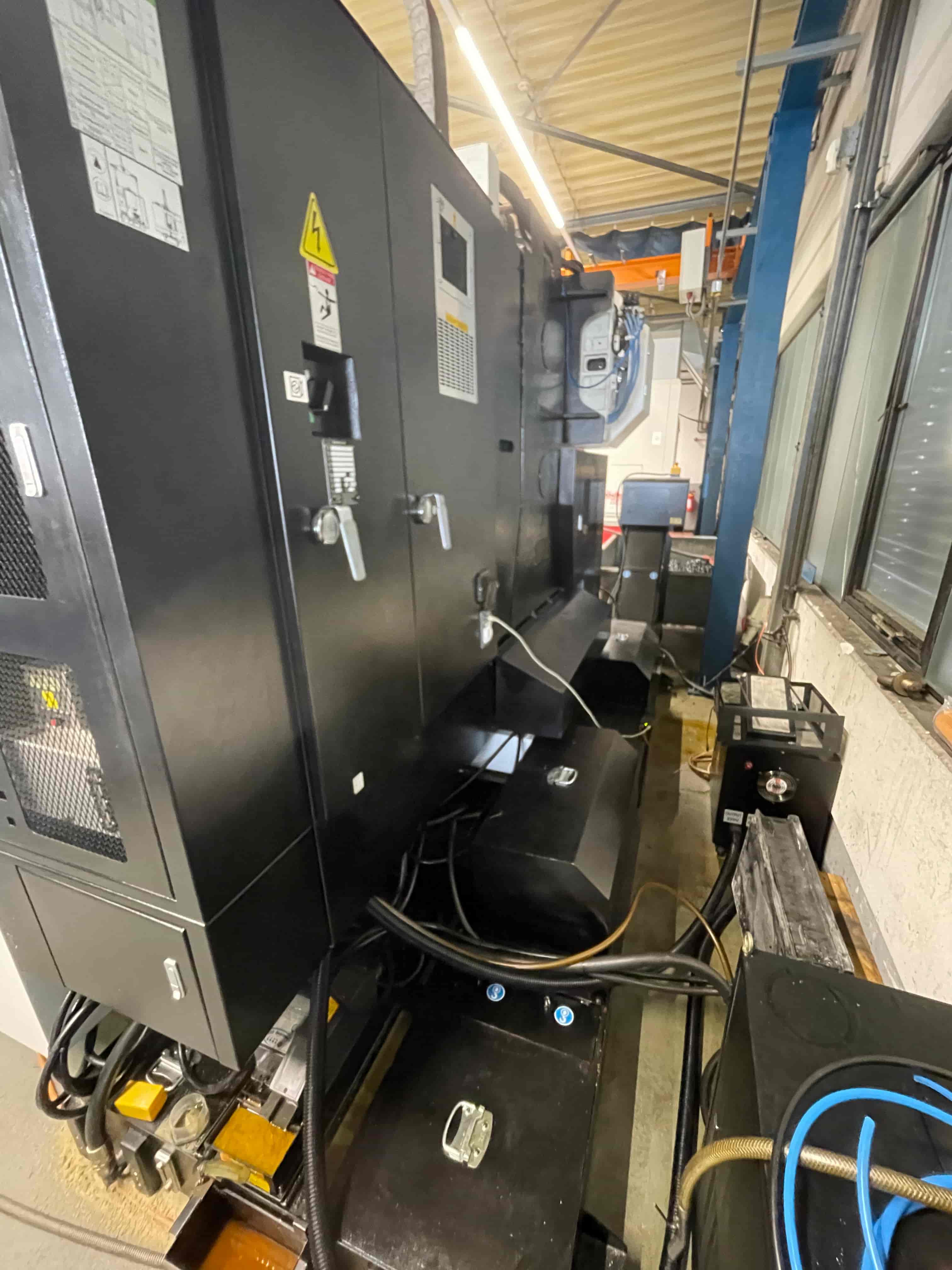

- Electrical: 400 V / 3P / 125 A
3. Weights
- Net weight: 12884 kg
4. Dimensions
- Overall dimensions (Width x Length x Height): Approx. 2700 x 4000 x 3400 mm
