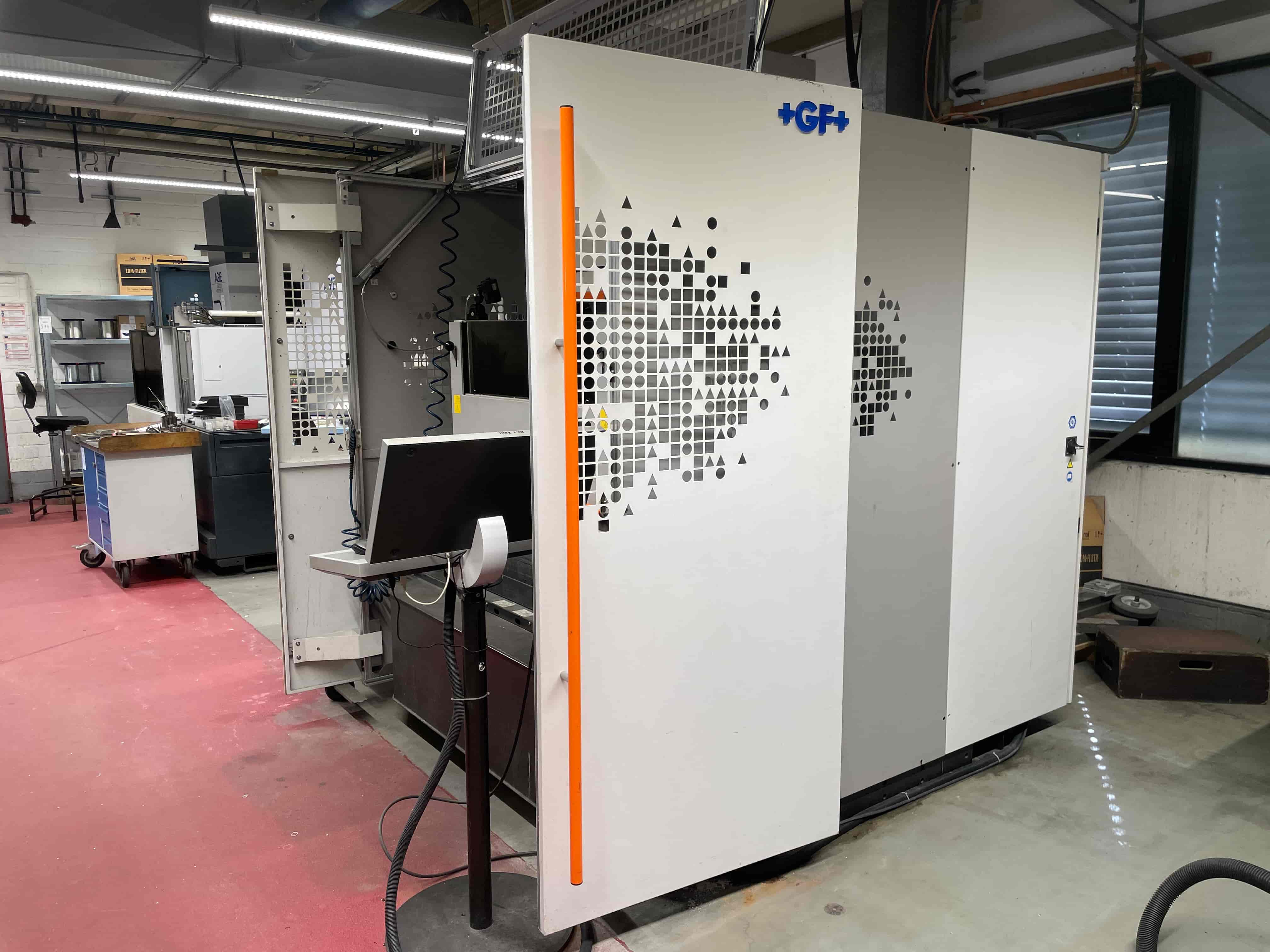

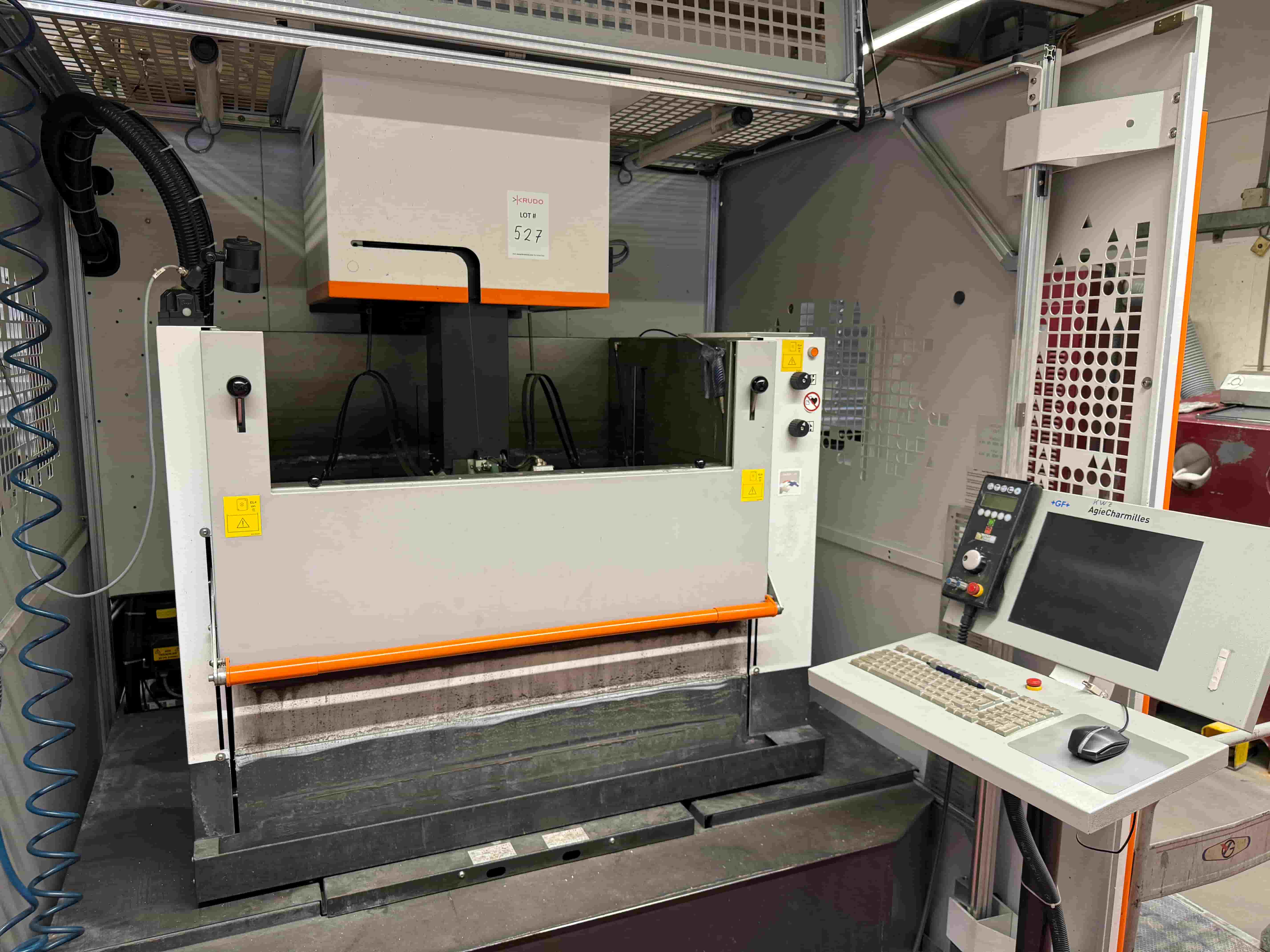

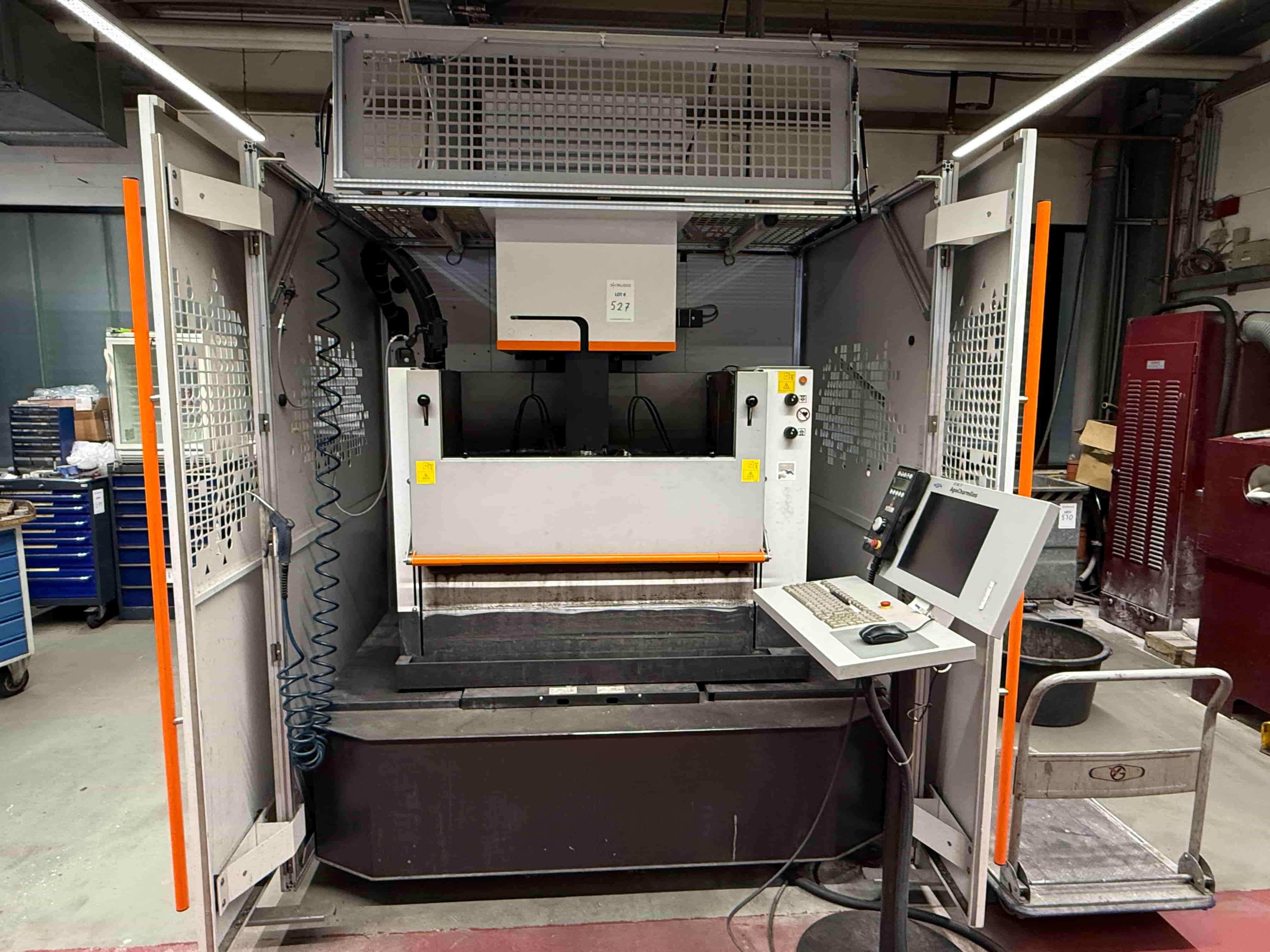

527. Agie Wire Cutting EDM Machine
High-Precision Wire EDM System
Technical Details

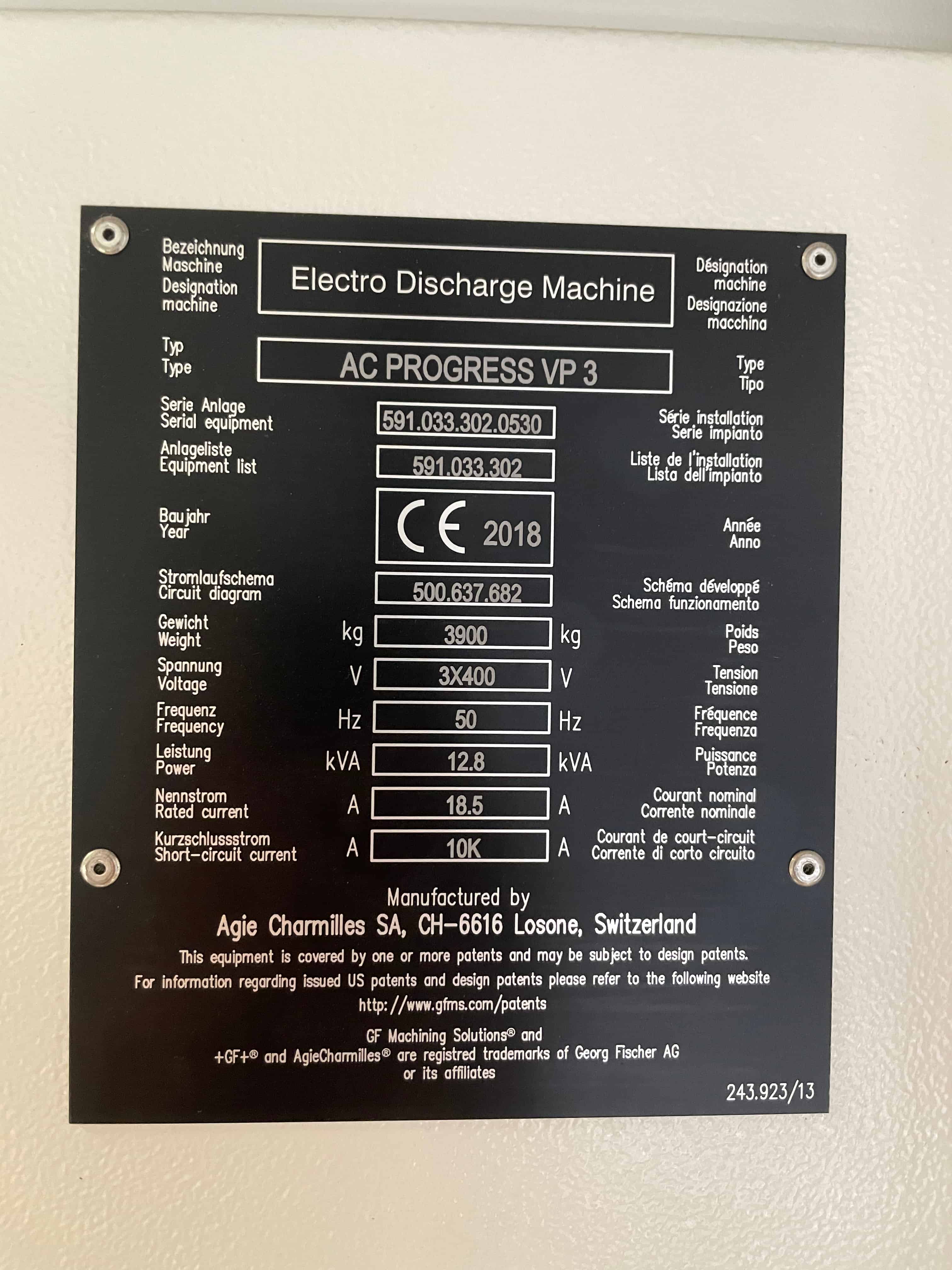

1. Machine identification data
- Name: Wire Cutting EDM Machine (Electric Discharge Machining)
- Manufacturer: Agie
- Model: AC Progress VP3
- Machine number: 591.3.020.530
- Year of manufacture: 2018
2. Operational parameters
- Travel (X / Y / Z): 500 x 350 x 426 mm
- Travel (U / V): ± 70 mm
- Max. taper angle: 30° at 100 mm height
- Max. workpiece dimensions (X / Y / Z): 1050 x 650 x 420 mm
- Max. workpiece weight (without water): 400 kg
- Max. workpiece weight (with water): 800 kg

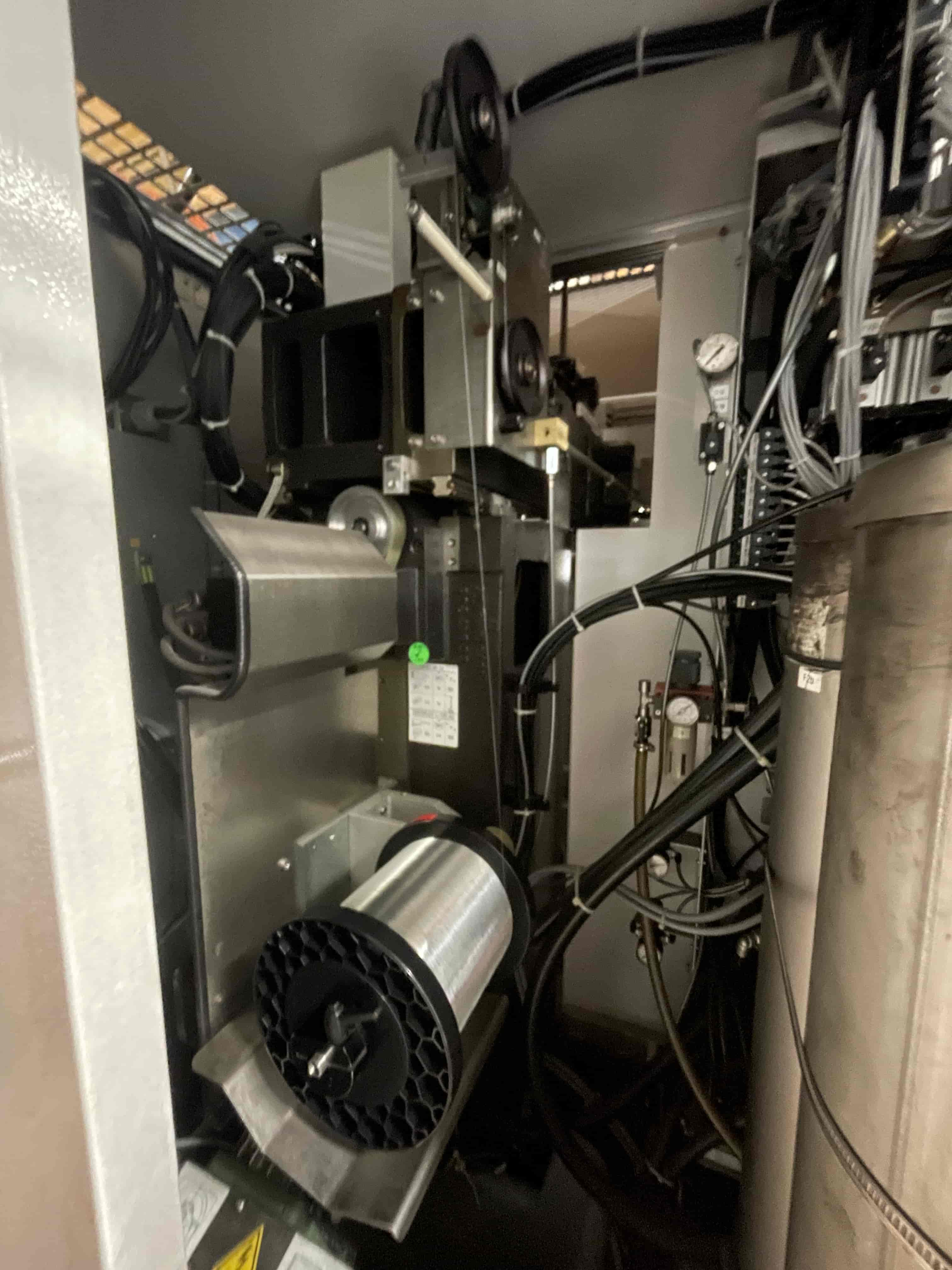

- Wire diameters: 0.15 – 0.33 mm
- Generator: IPG-VPC
- Max. cutting rate: > 500 mm²/min
- Best surface roughness: Ra 0.2 µm
3. Weights
- Total machine weight: 4200 kg
4. Dimensions
- Overall machine dimensions (Width x Length x Height): 2300 x 1940 x 2600 mm
Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
