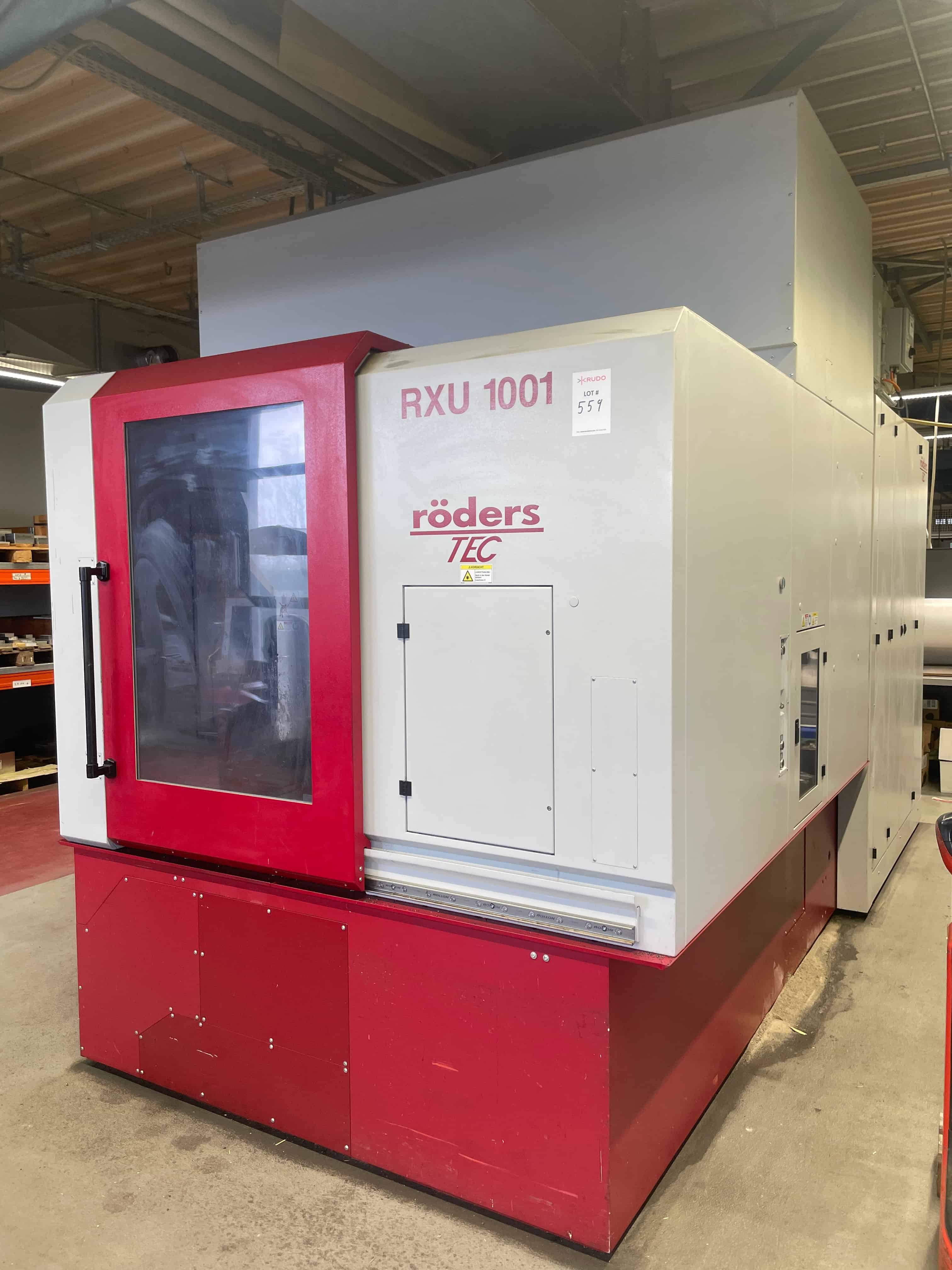

559. Röders 5-Axis High-Speed Machining Center
Röders RXU 1001
High-Dynamics 5-Axis Vertical Machining Center
Featuring state-of-the-art drive technology, this 2018 Röders RXU 1001 delivers high dynamic performance and exceptional precision for demanding 5-axis machining applications.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Röders
Country
Germany
Machine Type
High-Speed Machining Center
Year of Manufacture
2018
Model
RXU 1001
Machine Number
15355-14
Technical Details
1. Machine identification data
- Name: High-Speed Machining Center
- Manufacturer: Röders
- Model: RXU 1001
- Machine number: 15355-14
- Year of manufacture: 2018
2. Operational parameters
- Travel (X / Y / Z): 1000 mm / 810 mm / 500 mm
- Clearance height: 700 mm
- Machining feed rate: 0 - 60,000 mm/min

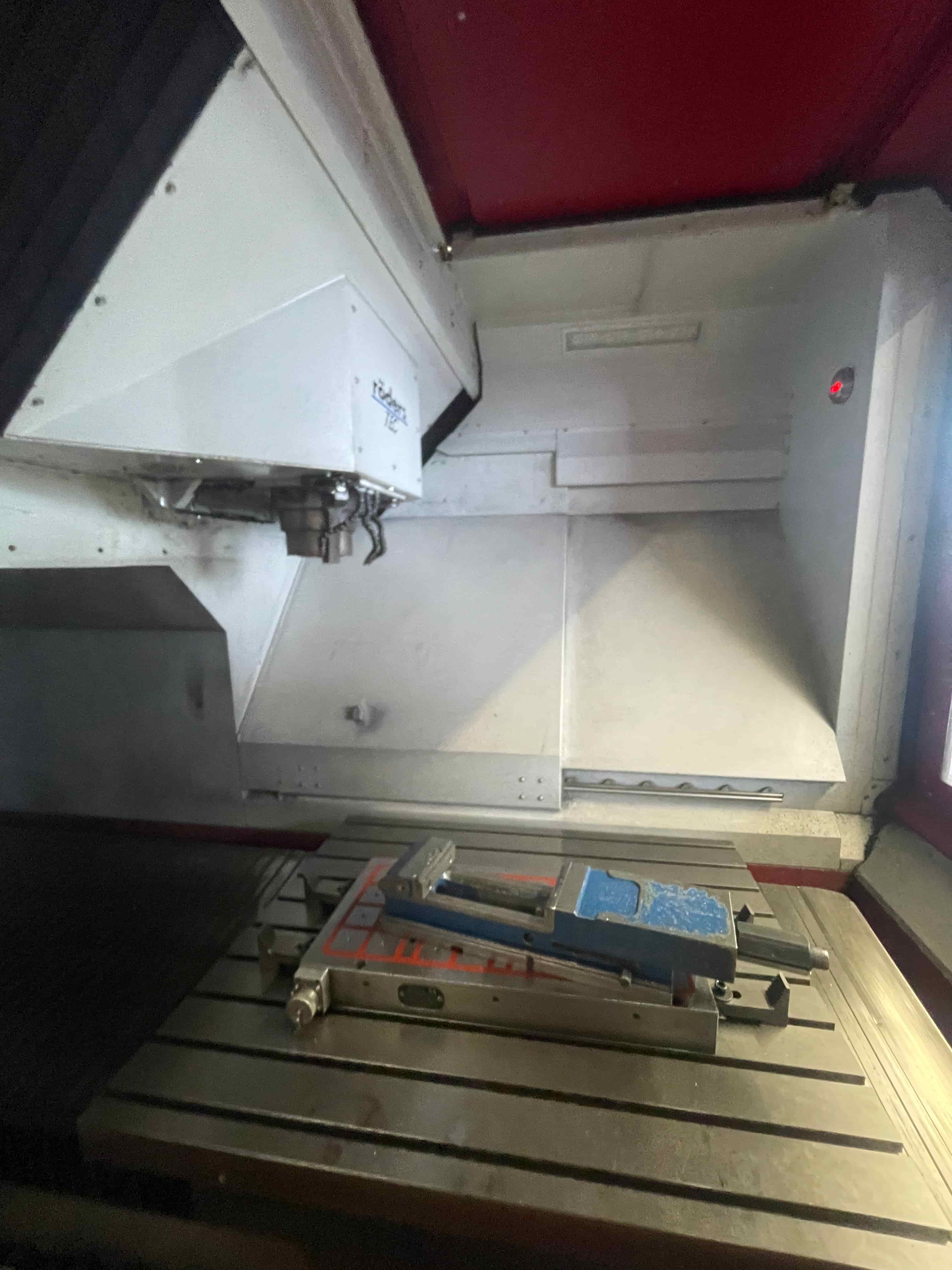

- Table size: 996 x 796 mm
- Max. workpiece weight: 2000 kg
- Axis drives: Linear motors in all axes

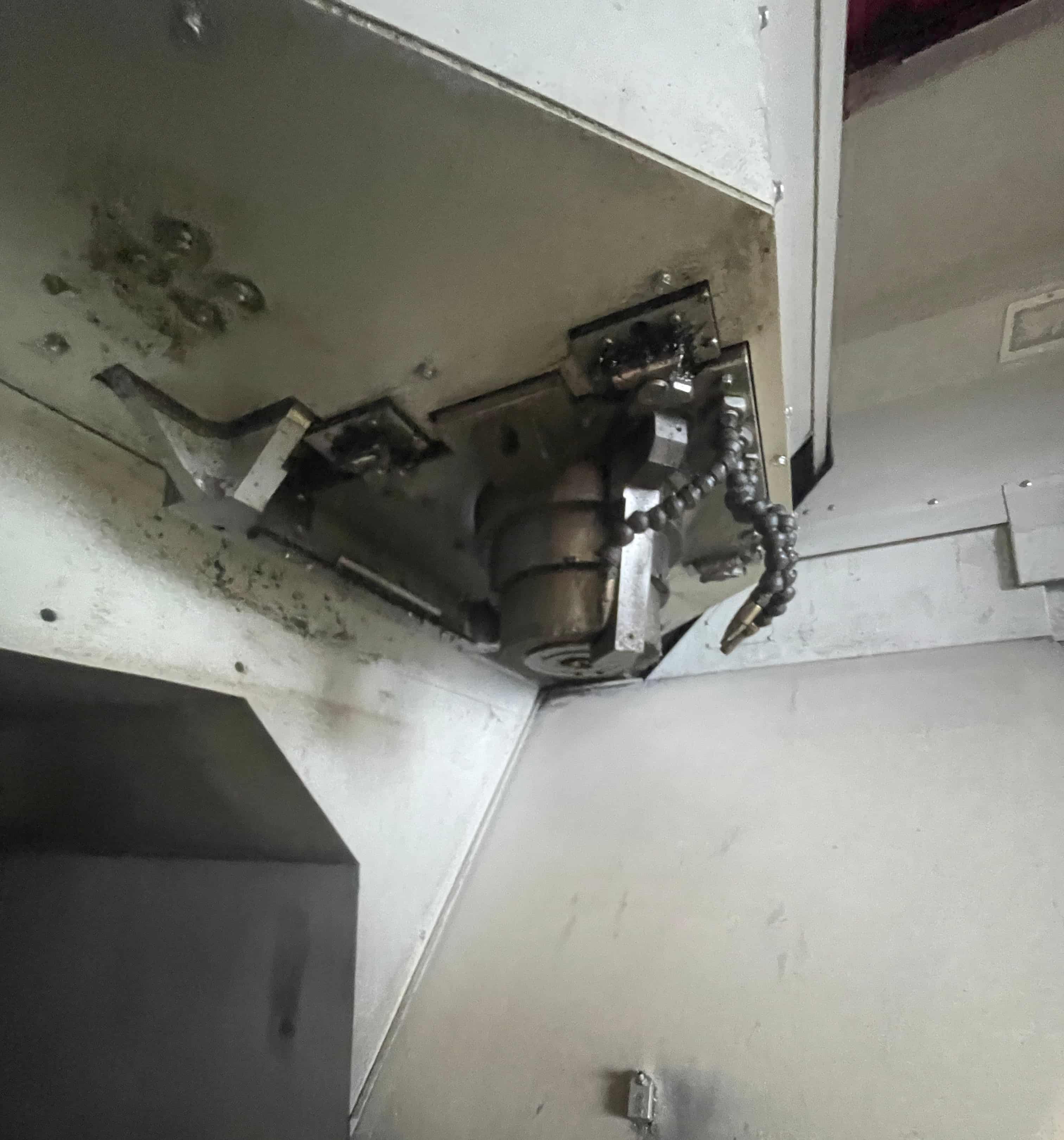

- Spindle: 40.4 kW; 100 - 30,000 rpm
- Tool holder: HSK-F63
- Tool magazine: 40 positions
- Max. tool diameter: 30 mm
- Operating hours: approx. 56,106 h
- Spindle hours: approx. 27,275 h

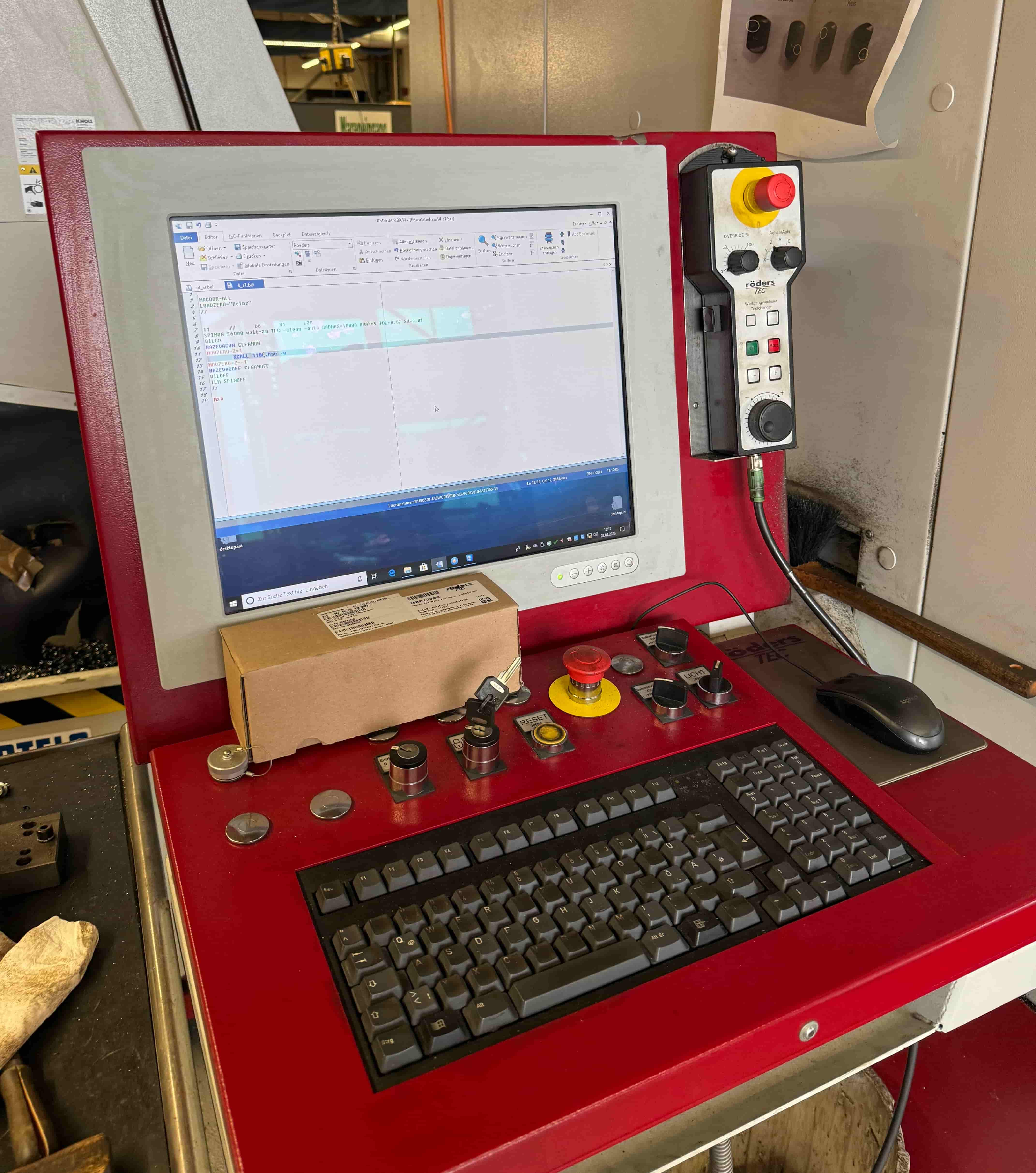

- Control: HSC-Control Röders RMS6 X.xx (19-inch TFT monitor)
- Connections (Electrical): 400 V ±5%; 125 A; approx. 85 kVA
- Connections (Pneumatic): min. 6.5 bar; 750 L/min (ISO 8573.1 Class 4)
- Environmental limits: 15°C - 35°C; 20% - 80% humidity (non-condensing)
3. Weights
- Total machine weight: approx. 19500 kg
4. Dimensions
- Machine with terminal (Width x Length x Height): 3500 x 4814 x 3320 mm
- Transport dimensions (Width x Length x Height): 2800 x 4814 x 2700 mm
