580. Röders 5-Axis High-Speed Machining Center

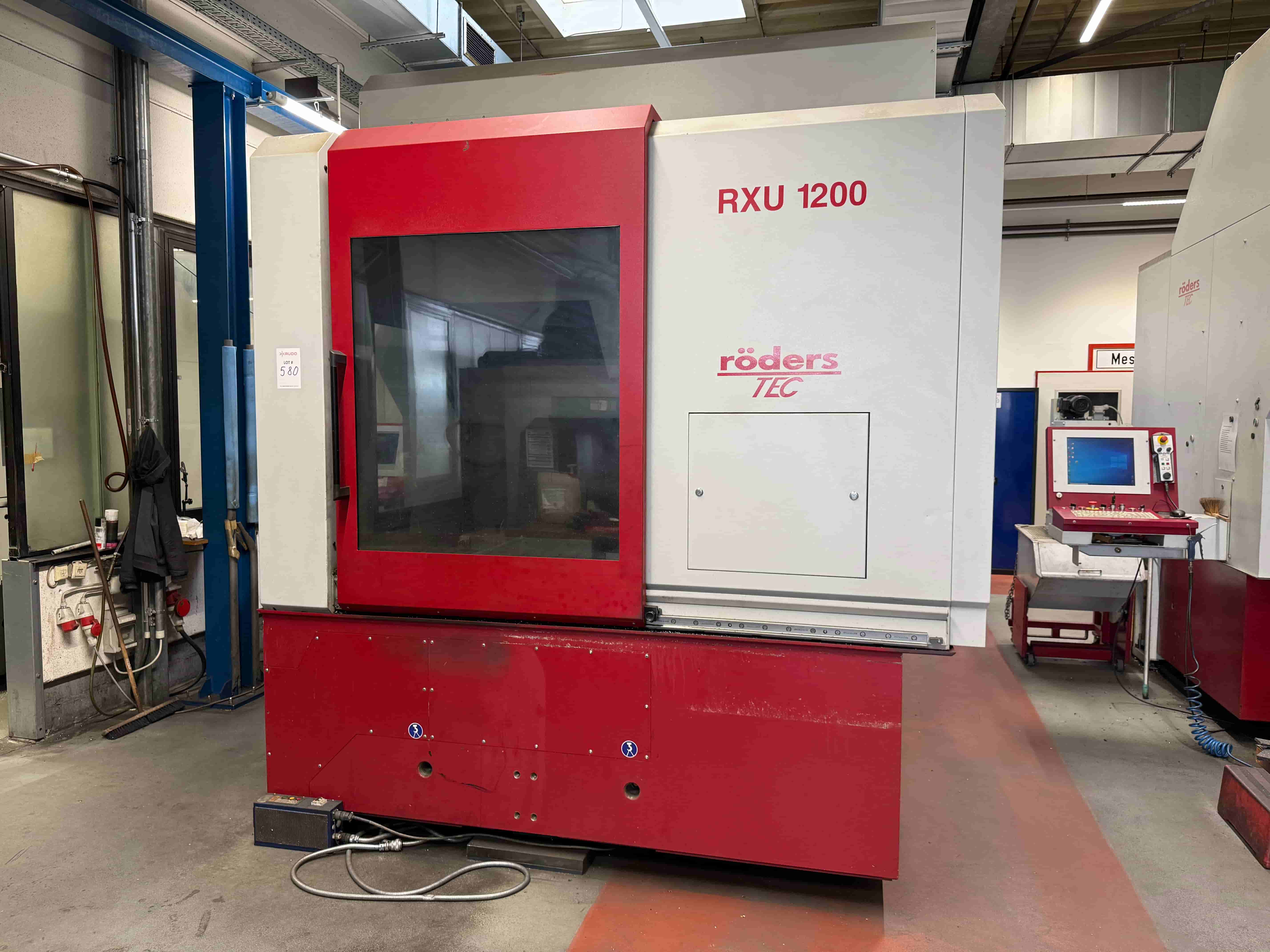

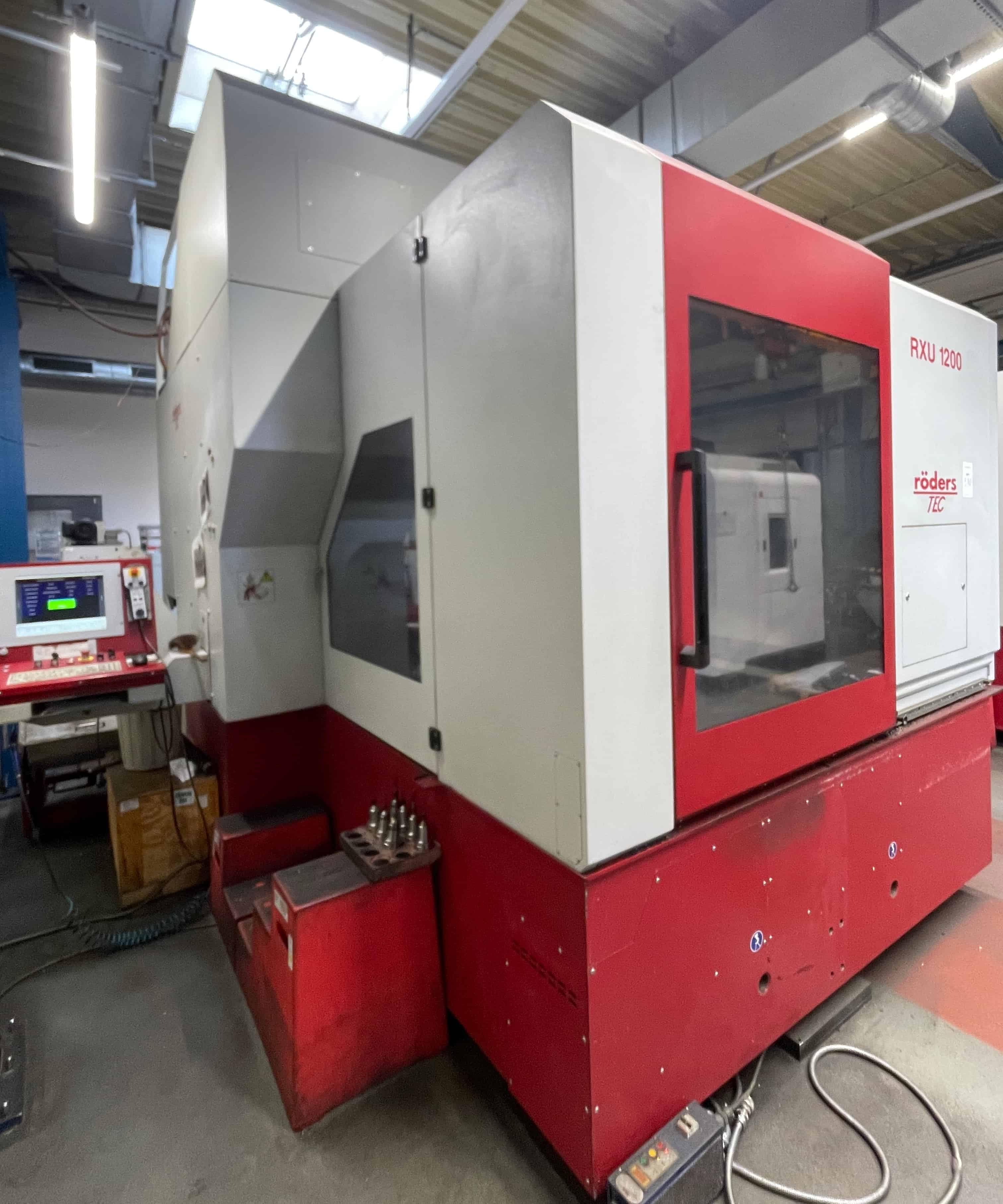

Röders RXU 1200
High-Dynamics 5-Axis Vertical Machining Center
This 2013 Röders RXU 1200 is a top-tier 5-axis high-speed machining center engineered for maximum rigidity and flawless surface quality in complex milling operations.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Röders
Country
Germany
Machine Type
High-Speed Machining enter
Year of Manufacture
2013
Model
RXU 1200
Machine Number
13764-15
Technical Details

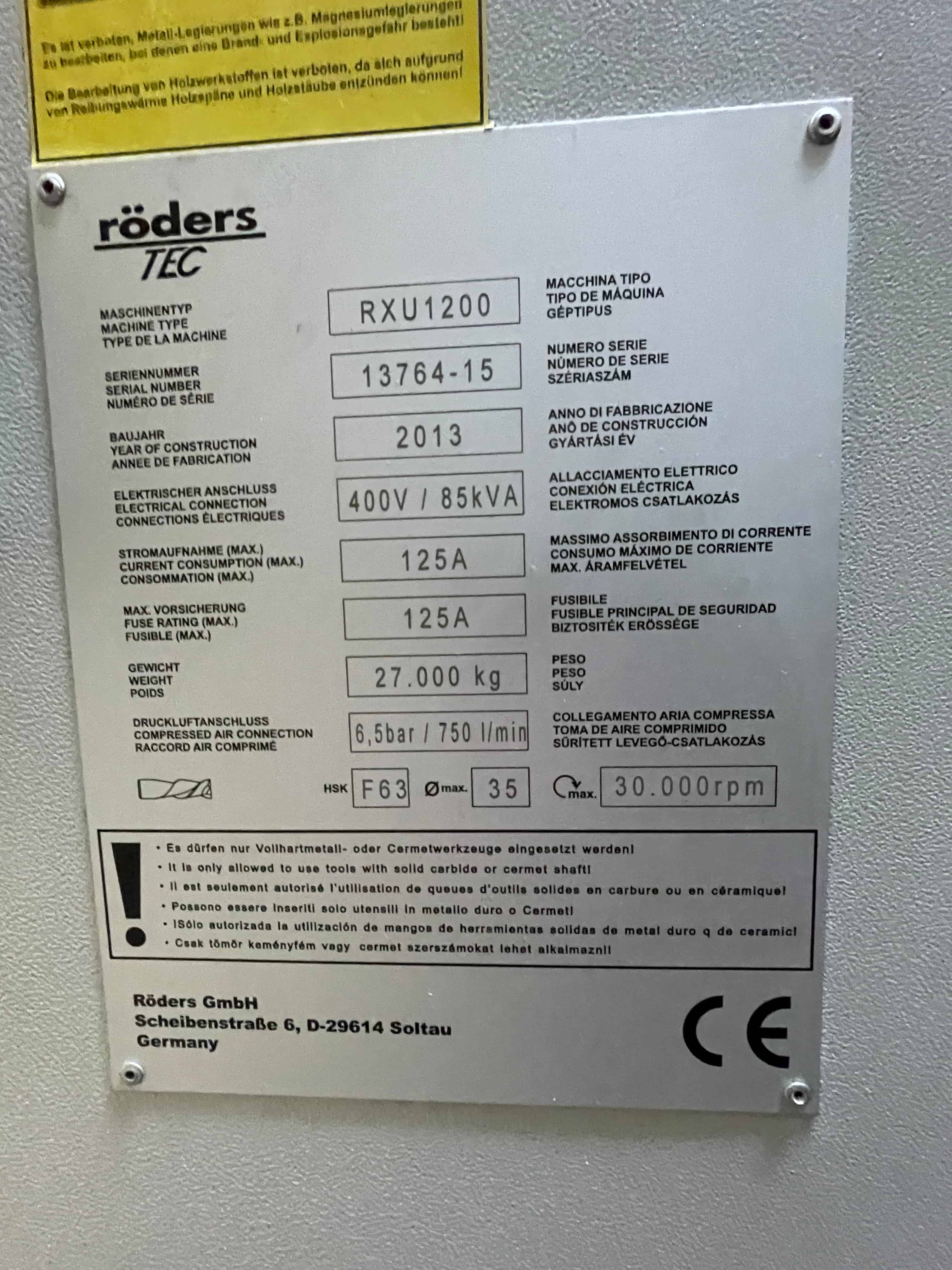

1. Machine identification data
- Name: High-Speed Machining Center
- Manufacturer: Röders
- Model: RXU 1200
- Machine number: 13764-15
- Year of manufacture: 2013
2. Operational parameters
- Travel (X / Y / Z): 1200 mm / 1050 mm / 500 mm
- Clearance height: 600 mm
- Machining feed rat: 0 - 60,000 mm/min

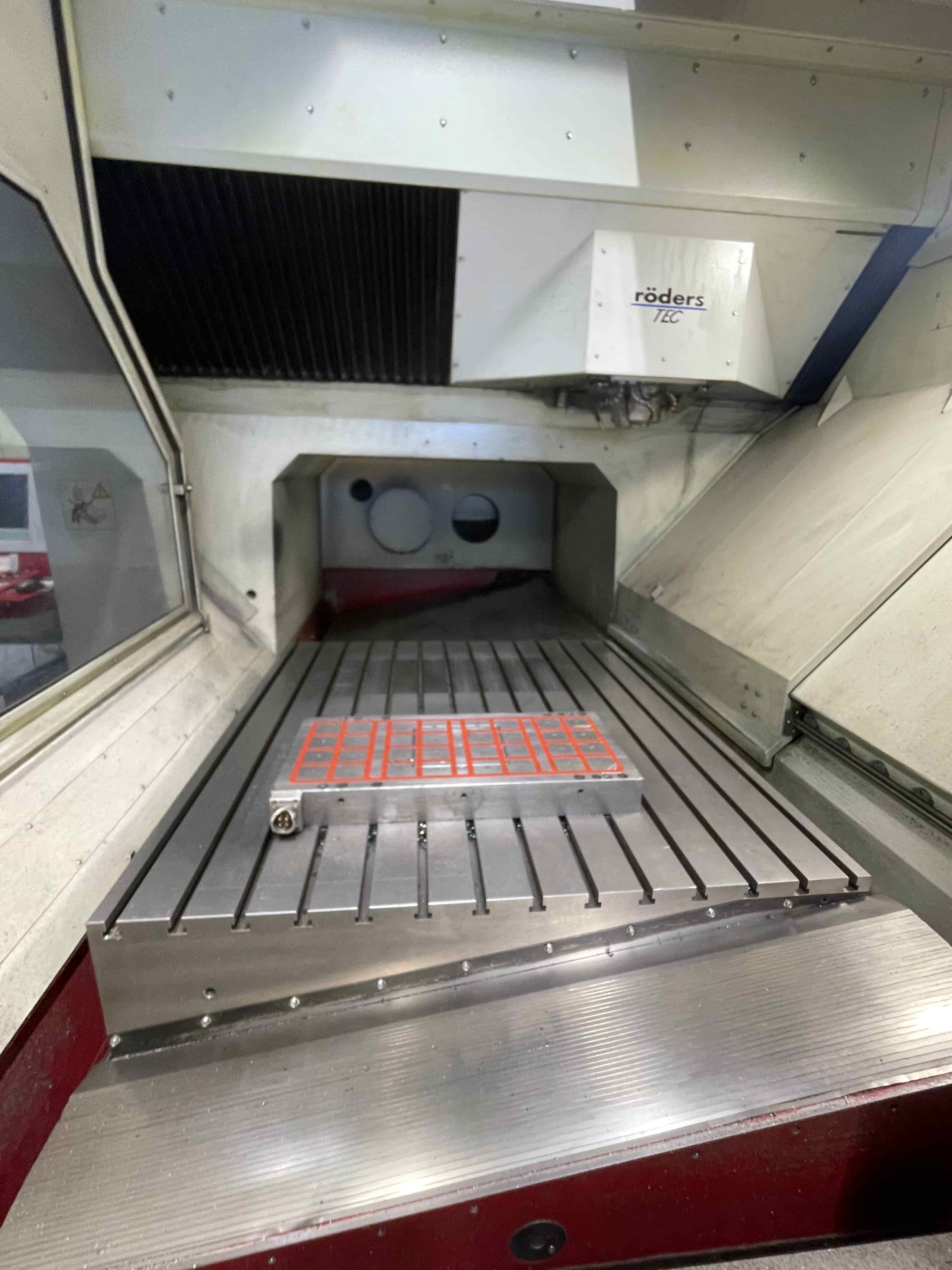

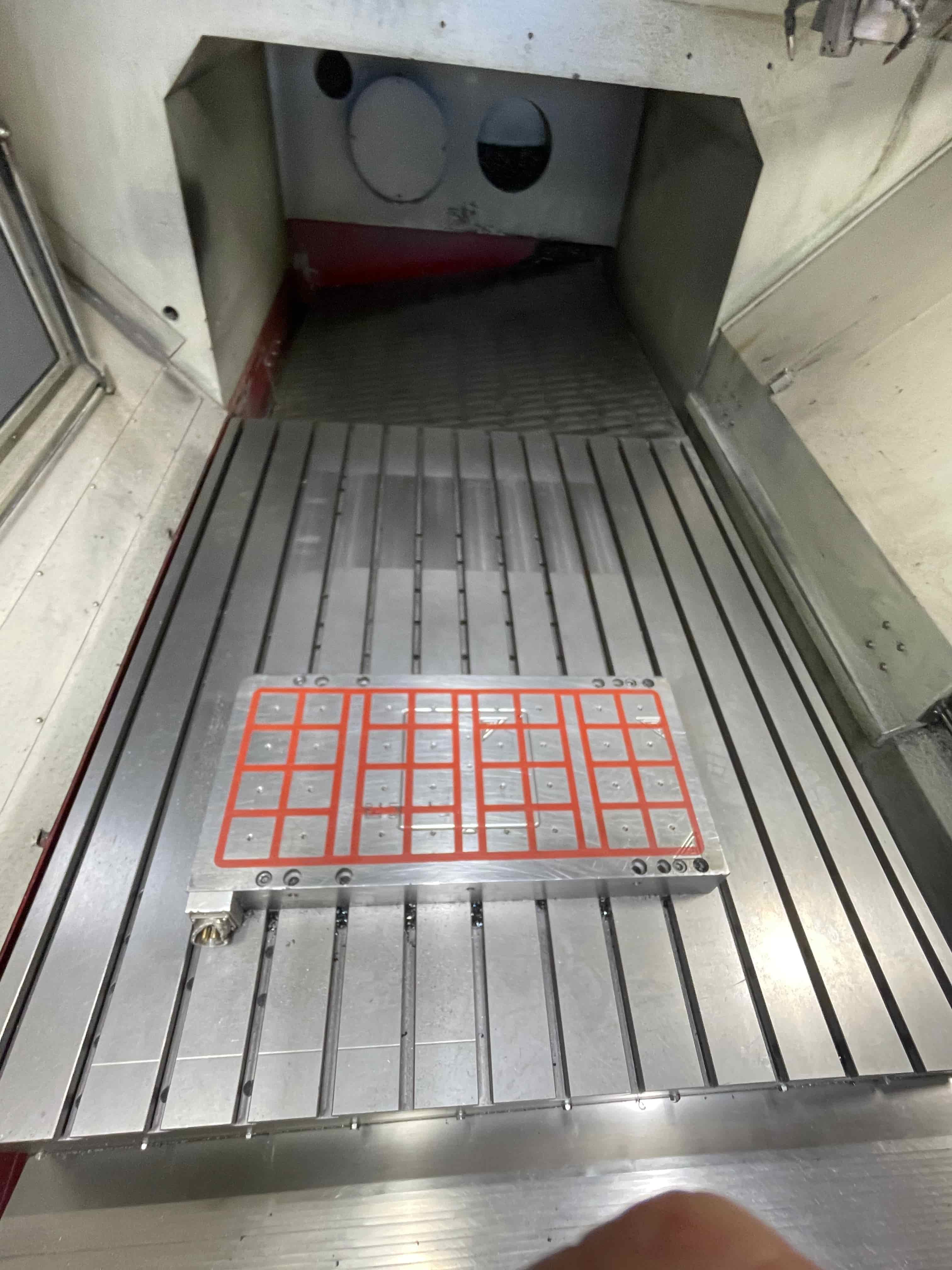

- Table size: 1300 x 1100 mm
- Max. workpiece weight: 3000 kg
- Axis drives: Linear motors in all axes

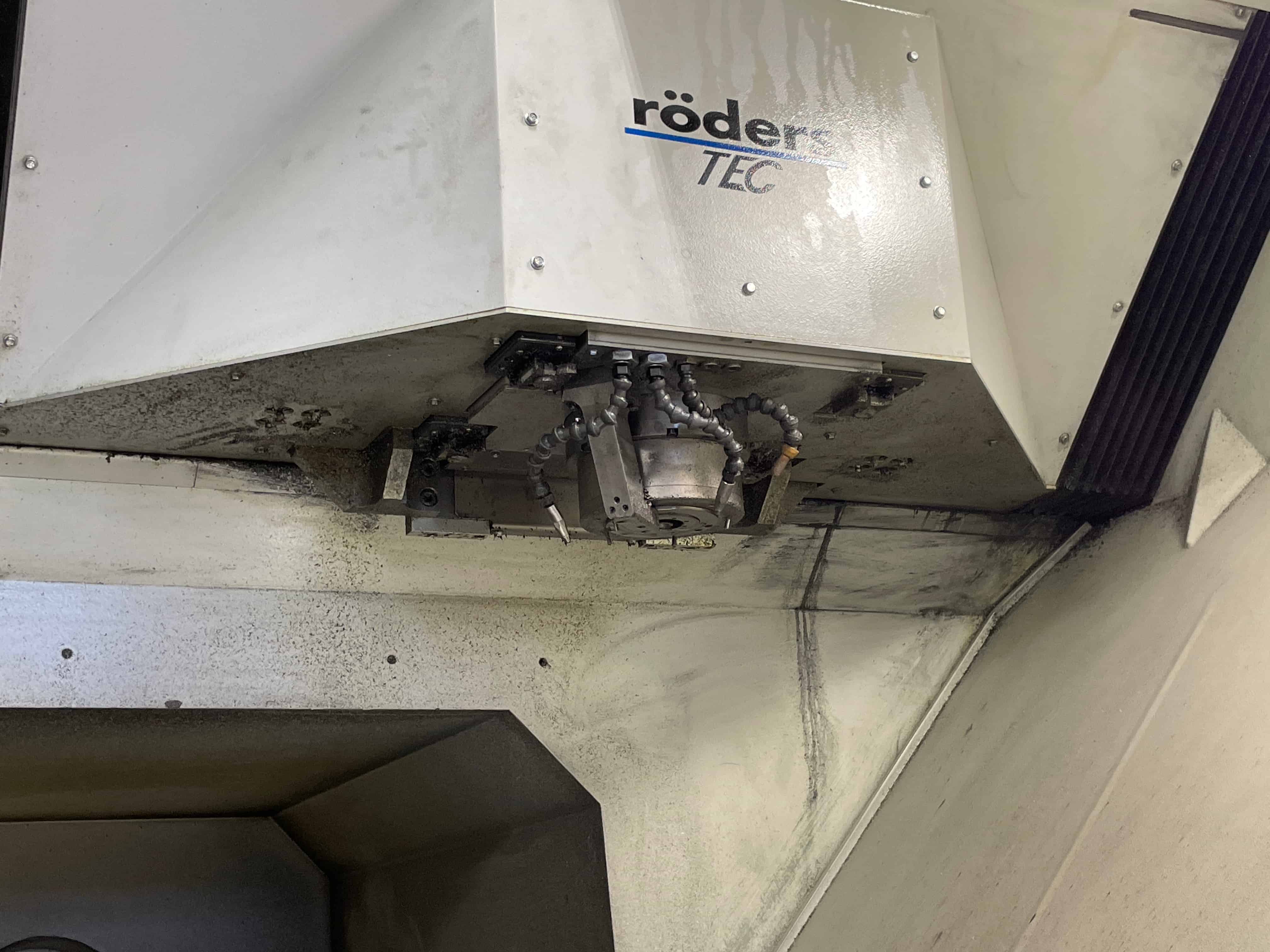

- Spindle: GMN HCS170; 40.4 kW; 100 - 30,000 rpm
- Tool holder: HSK-F63

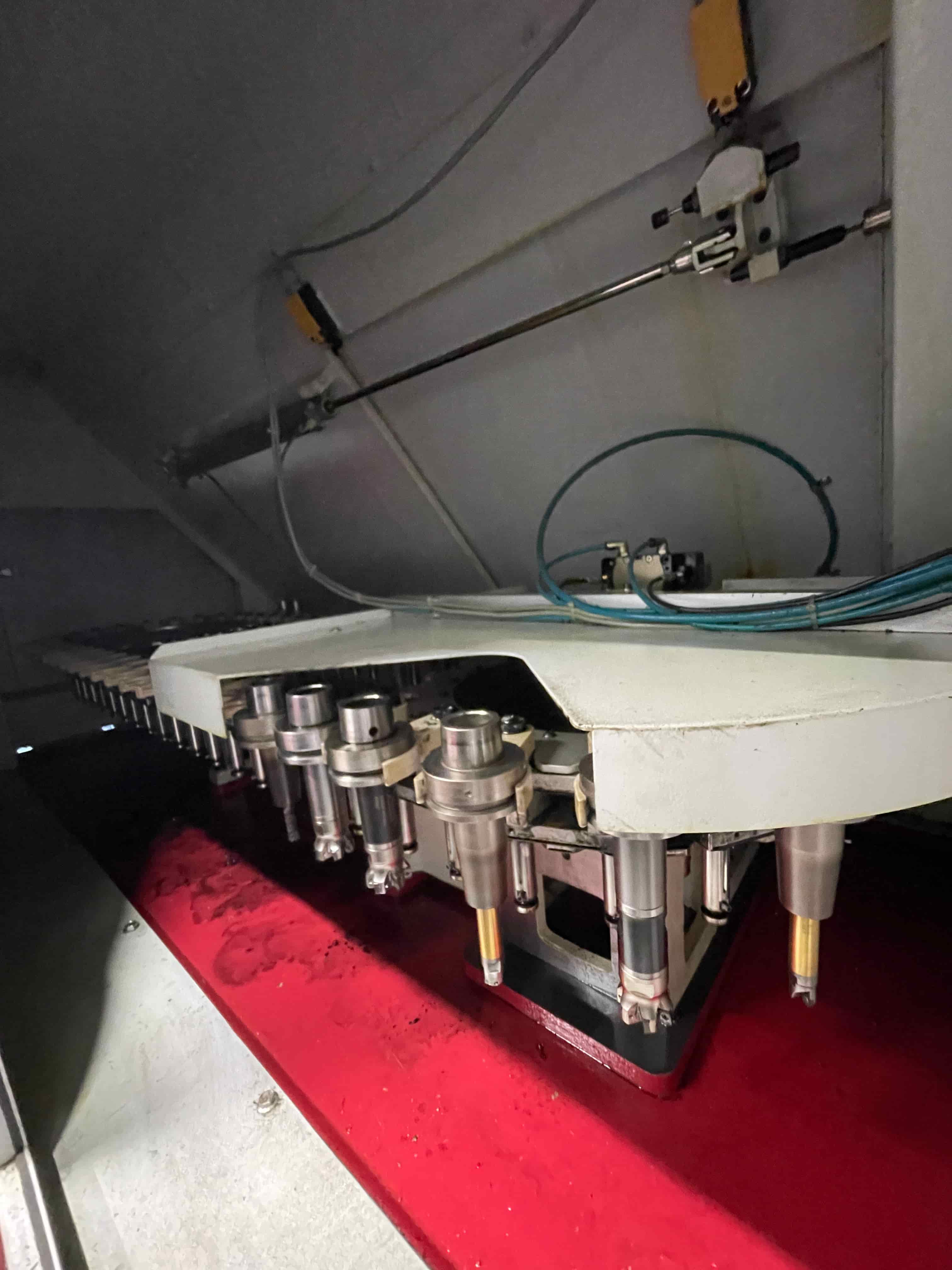

- Tool magazine: 56 positions
- Max. tool diameter: 35 mm (HSK-F63)
- Max. tool length: 115 mm
- Max. tool shank diameter: 25 mm
- Operating hours: approx. 36,937 h
- Spindle hours: approx. 17,737 h

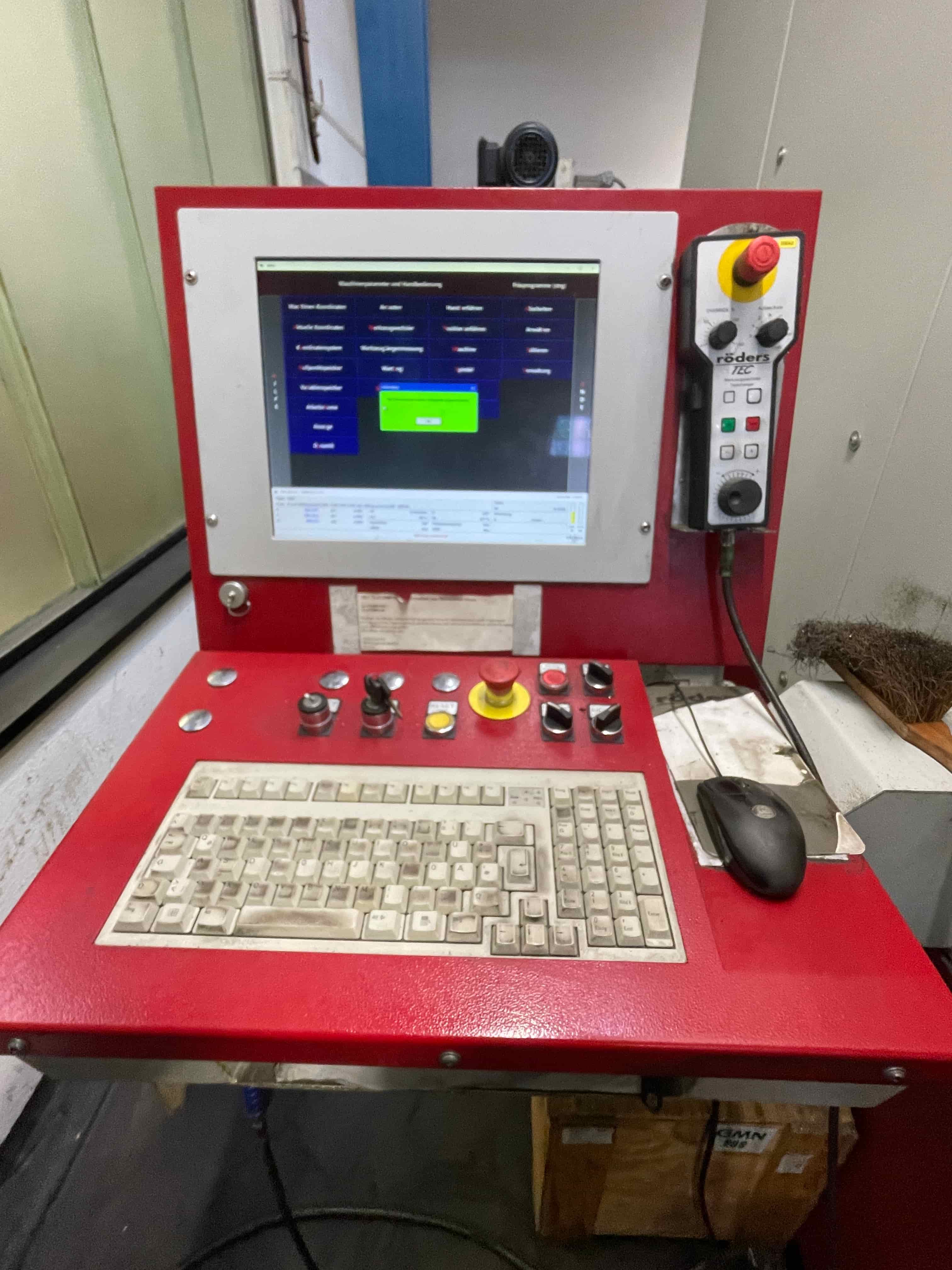

- Control: HSC-Control Röders RMS6 X.xx (17-inch TFT monitor)
3. Weights
- Total machine weight: approx. 28000 kg
- Transport weight: approx. 26500 kg
4. Dimensions
- Machine with terminal (Width x Length x Height): 3850 x 4960 x 3820 mm
- Transport dimensions (Width x Length x Height): 2940 x 5000 x 3560 mm
