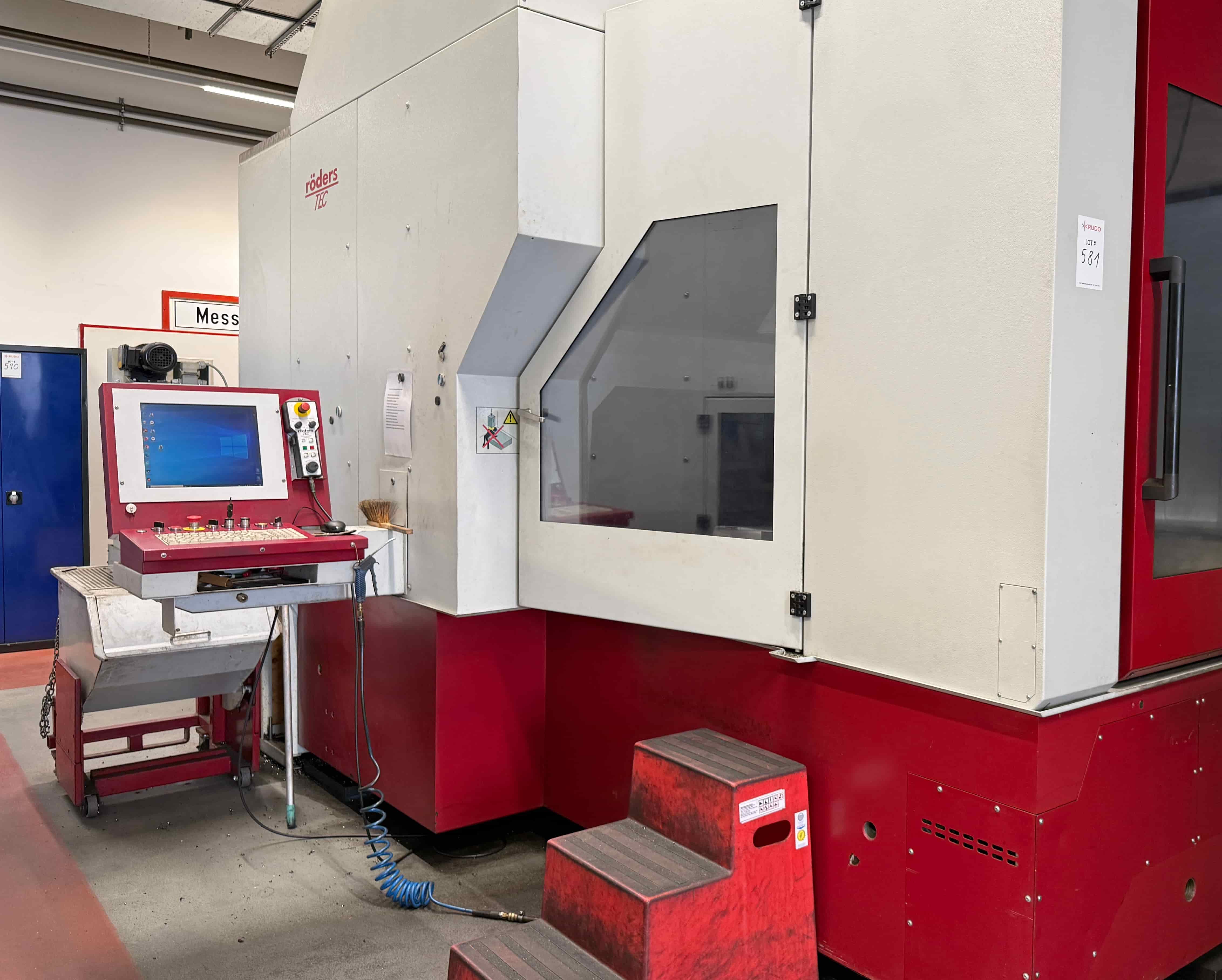

581. Röders 5-Axis High-Speed Machining Center
Röders RXU 1200
High-Dynamics 5-Axis Vertical Machining Center
Engineered for optimal accuracy and continuous precision, this 2012 Röders RXU 1200 provides exceptional 5-axis CNC performance for advanced manufacturing and toolmaking.
Industry
CNC Machine Tools
Sale Type
Private Treaty
Manufacturer
Röders
Country
Germany
Machine Type
High-Speed Machining Center
Year of Manufacture
2012
Model
RXU 1200
Machine Number
13761-12
Technical Details

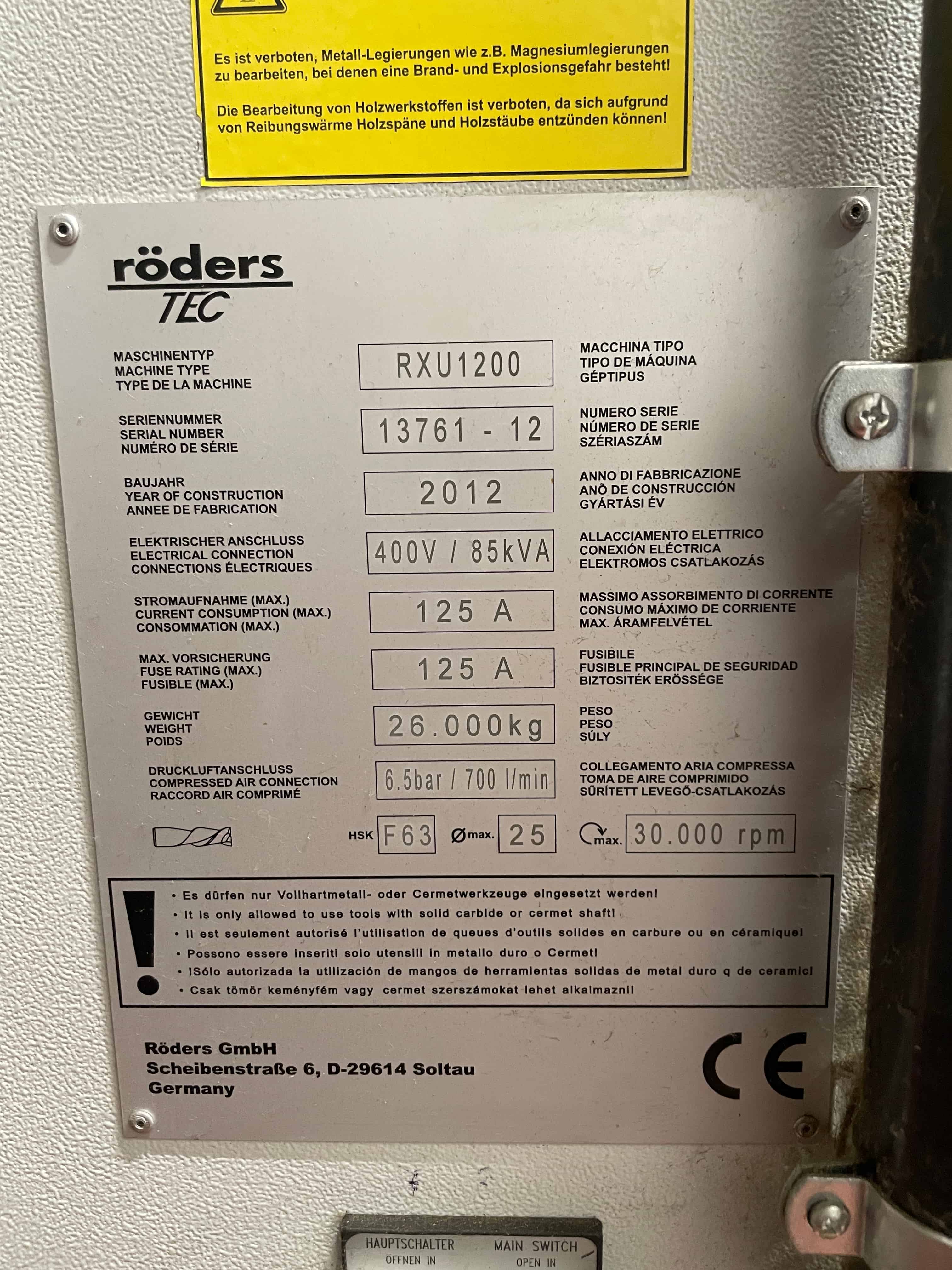

1. Machine identification data
- Name: High-Speed Machining Center
- Manufacturer: Röders
- Model: RXU 1200
- Machine number: 13761-12
- Year of manufacture: 2012
2. Operational parameters
- Travel (X / Y / Z): 1200 mm / 1000 mm / 500 mm
- Clearance height: 600 mm
- Machining feed rate: 0 - 60,000 mm/min

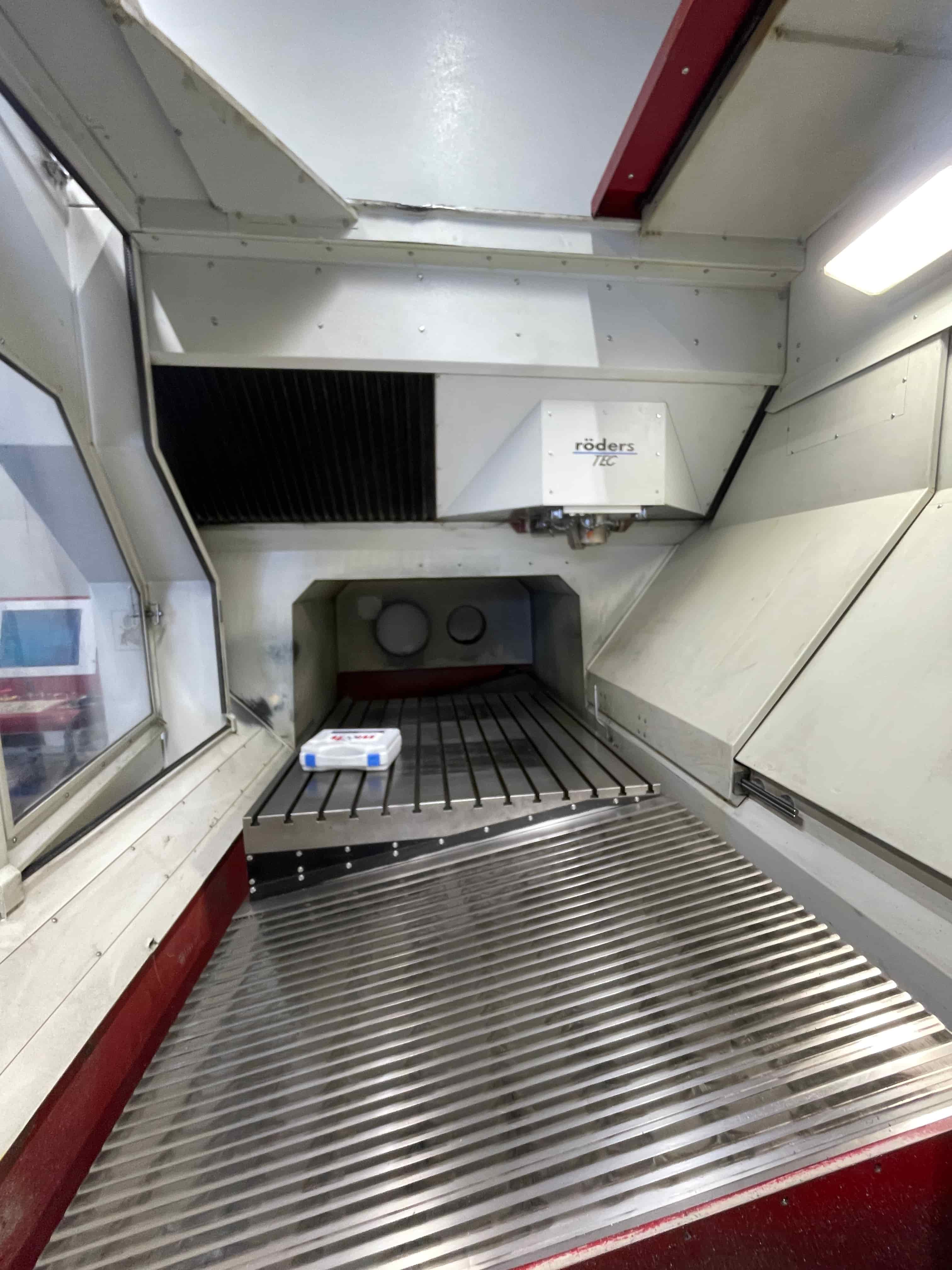

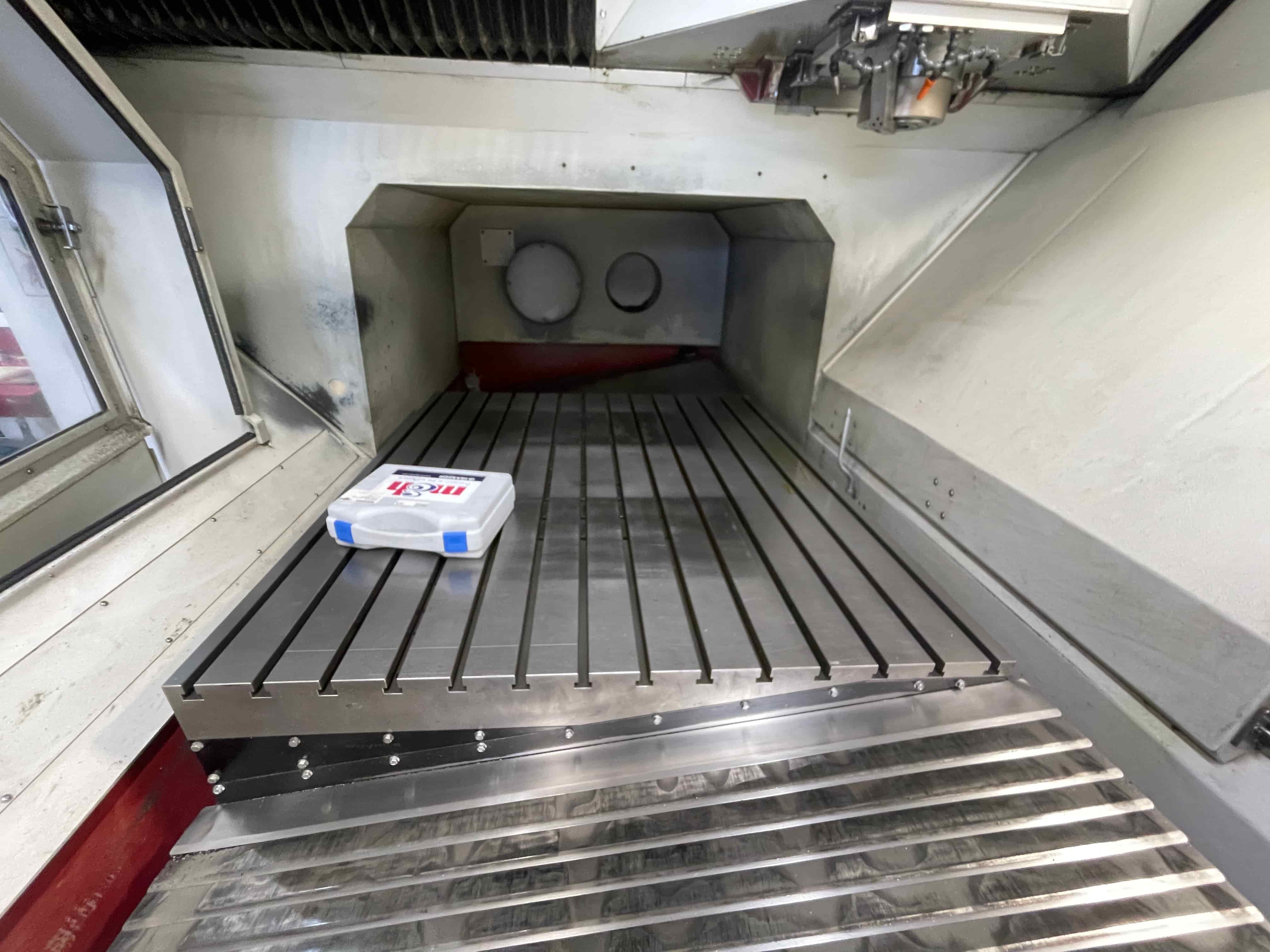

- Table size: 1300 x 1100 mm
- Max. workpiece weight: 3000 kg
- Axis drives: Linear motors in all axes

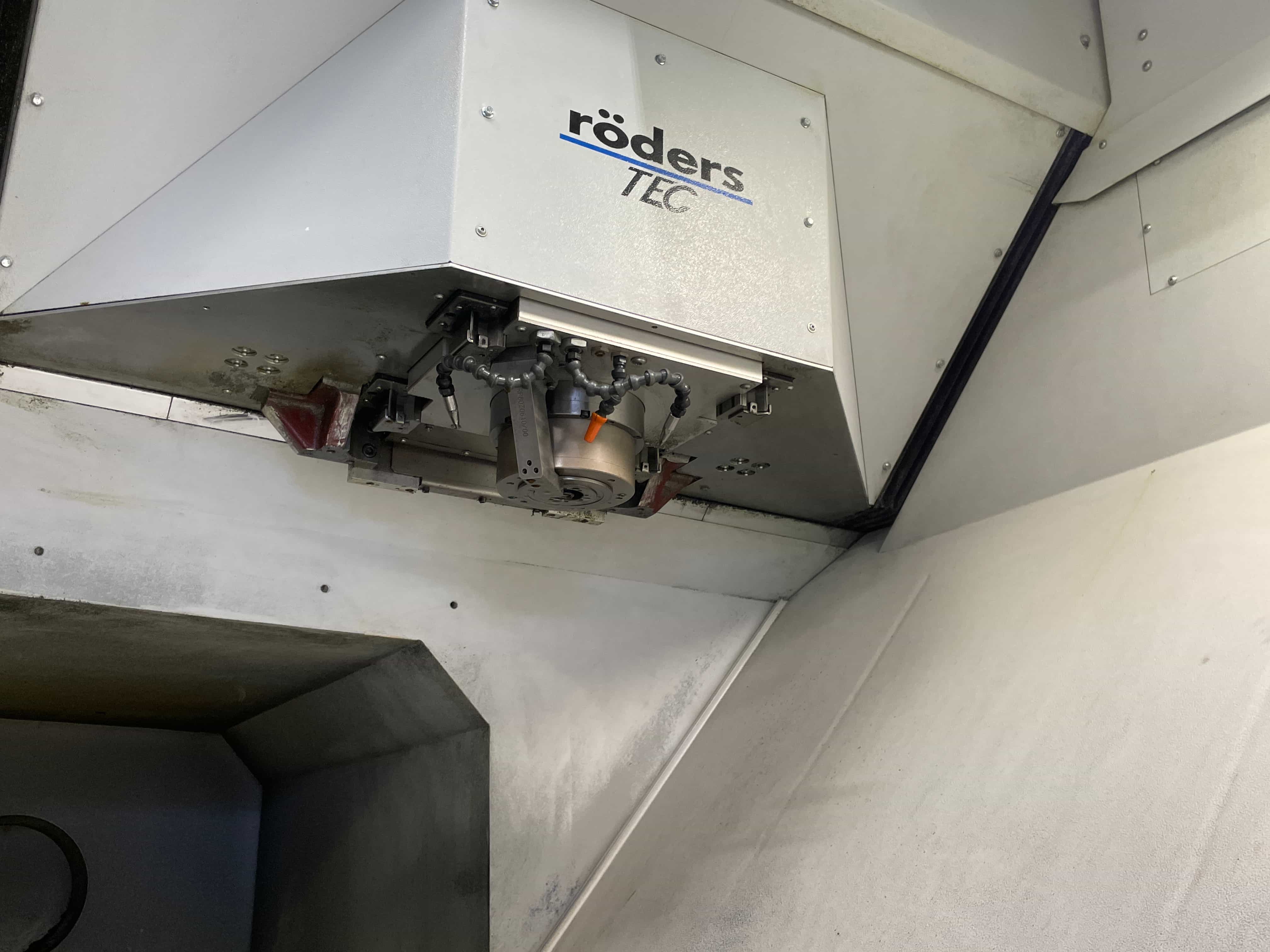

- Spindle: GMN HCS170; 40.4 kW; 100 - 30,000 rpm
- Tool holder: HSK-F63
- Tool magazine: 56 positions
- Max. tool diameter: 35 mm (HSK-F63)
- Operating hours: approx. 16,951 h
- Spindle hours: approx. 6,889 h

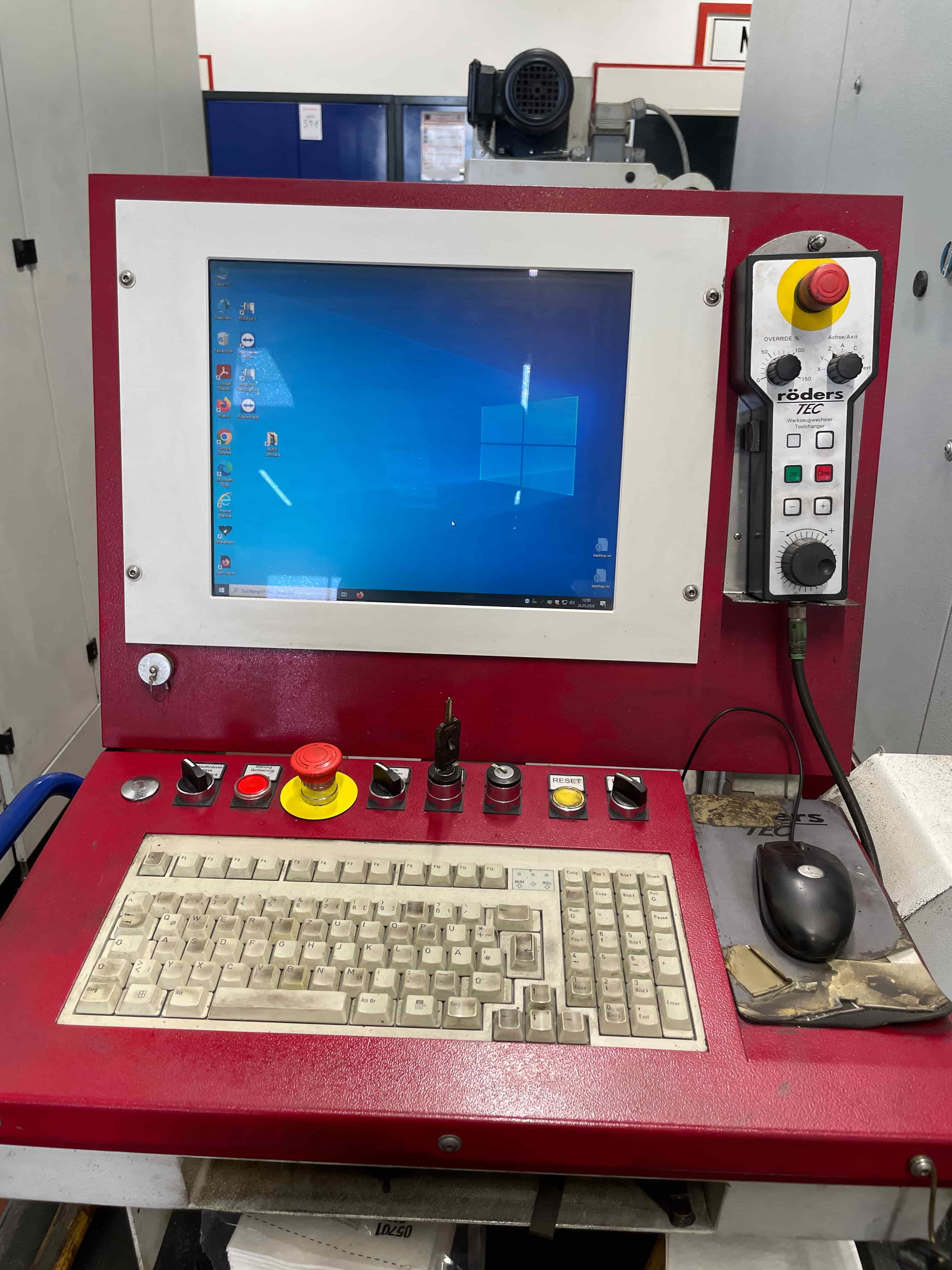

- Control: HSC-Control Röders RMS6 X.xx (17-inch TFT monitor)
- Connections (Electrical): 400 V ±10%; 64 A; approx. 44 kVA
- Connections (Pneumatic): min. 6.5 bar; 500 L/min (ISO 8573.1 Class 4)
3. Weights
- Total machine weight: approx. 28000 kg
- Transport weight: approx. 26500 kg
4. Dimensions
- Machine with terminal (Width x Length x Height): 3850 x 4960 x 3820 mm
- Transport dimensions (Width x Length x Height): 2940 x 5000 x 3560 mm
