Grinding Machine
BUDERUS CNC 235 IA-T-L
High-Precision CNC Grinding for Surface Finishing
CNC grinding machine engineered for accurate material removal and superior surface quality on shafts and cylindrical parts in the production line.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
BUDERUS
Country
Belgium
Machine Type
Grinding
Year of Manufacture
2017
Model
CNC 235 IA-T-L
Description
Grinding Machine
- Largest workpiece diameter: Ø250 mm
- Largest workpiece length: 150 mm
- Height of the workpiece spindle above the floor: 1150 mm
- Largest swing diameter above the table 310 mm
- Workpiece spindle speeds NC-programmable: 0 - 3000 rpm
Table strokes:
- Z axes : 885 mm
- X axes : 300 mm
Table speed infinitely adjustable:
- Z axes : 0 - 60 m / min
- X axes : 0 - 30 m / min
- Infeed speed infinitely variable: 0.01 - 15 mm / min
- Infeed depending on the stroke: 0.0005 - 0.1 mm
- Workpiece spindle positioning: C-axis
- Operating voltage: 3~400 VAC/50 Hz
- Connected load of the machine: approx. 45 kW

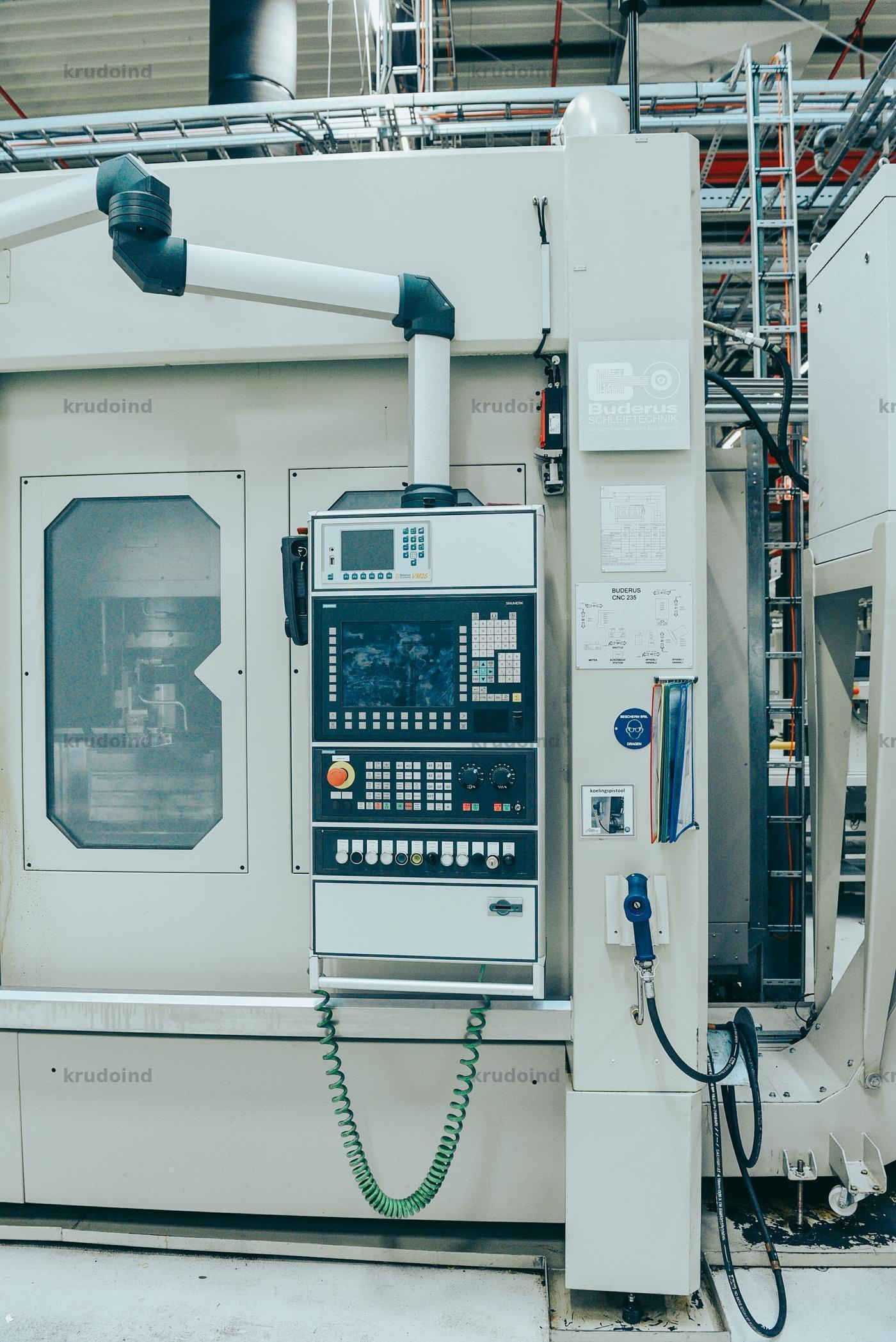

- Control: Siemens SINUMERIK 840 D SL
- Compressed air connection: 30 Nm³/h-5 bar
- Weight: 16500 kg
