Inline Measuring Cell with Manipulator
Automated Inline Measurement Station with Manipulator
Description

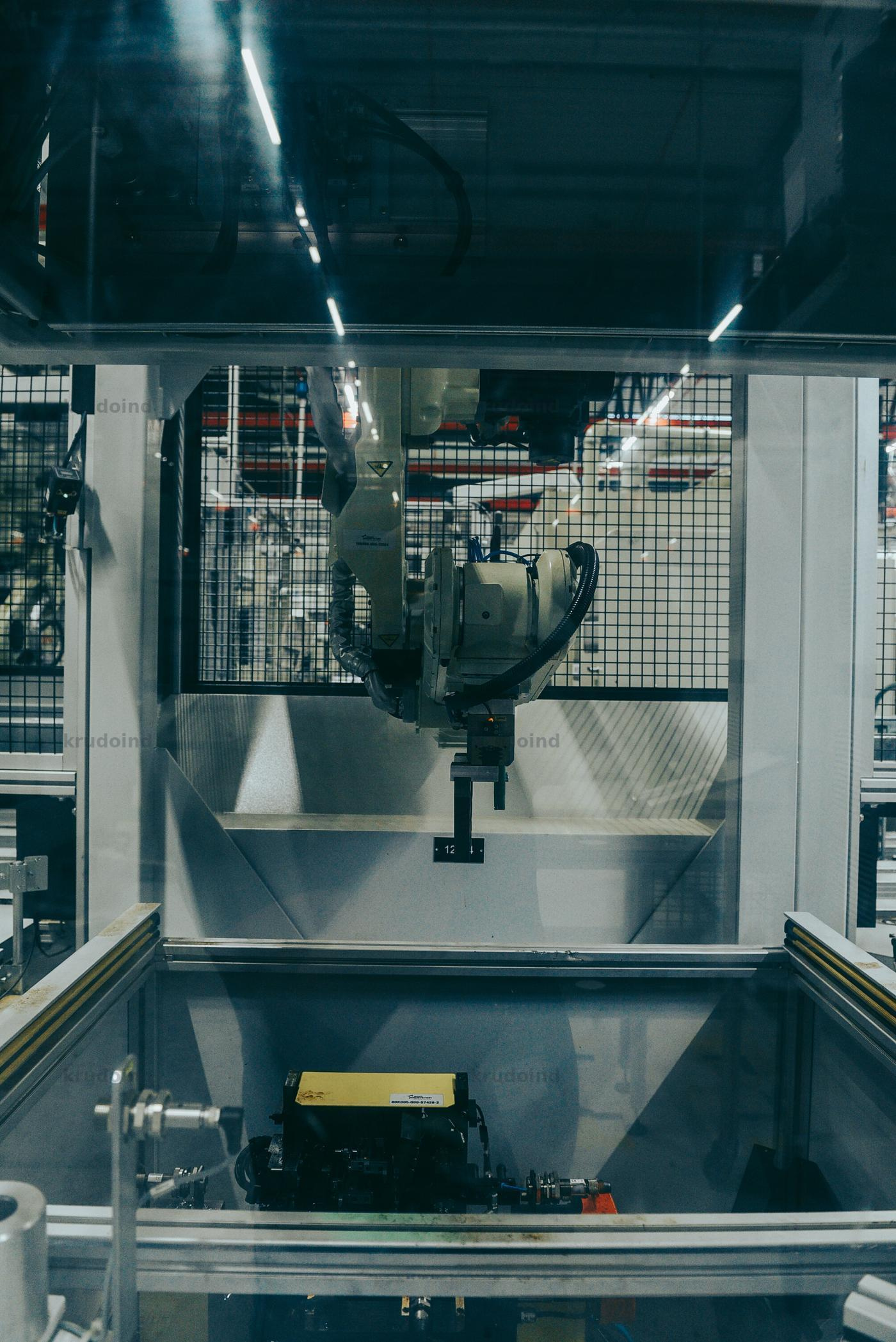

Inline Measuring Cell with Manipulator - NACHI MC12S
Fully automated Q inspection station which is used for 100% inline measurements of critical characteristics. Operator can monitor trends and Q-statistics with NACHI manipulators:
- Number of axis: 6
- Drive system: AC Servo System
Max. working envelope:
- Axis: 1 ± 3.14 rad (± 180 °)
- Axis 2 + 1.05 ~ - 2.53 rad (+ 60 ~ - 145 °)
- Axis 3: +4.22～-2.69 rad（+242～-154 °）
- Axis 4: ± 3.14 rad (± 180 °)
- Axis 5: ± 2.42 rad (± 139 °)
- Axis 6: ± 6.28 rad (± 360 °)
- Max. pay load: 12 kg
- Weight: 210 kg
