Universal Turning Center
CNC Turning for Precision Shaft Machining
Description

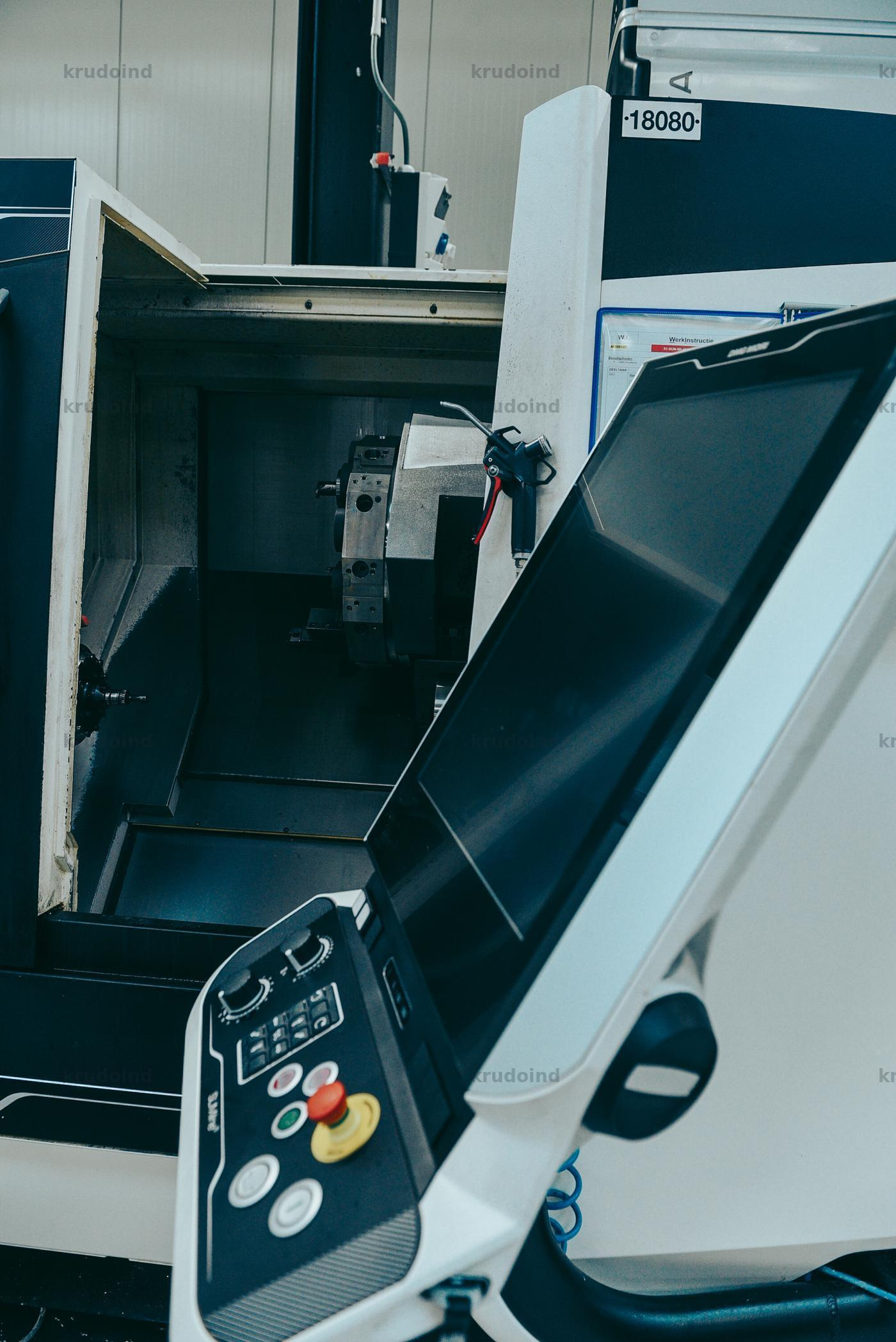

Universal Turning Center - DMG MORI CLX 450
Working area:
- Swing over bed: 650 mm
- Swing over cross slides: ø 465 mm
- Max. turning diameter: ø 400 / ø 315* mm
- Cross travel (X): 267.5 mm
- Longitudinal travel (Z): 600 mm
- Rapid traverse (X / Z): 30 / 30 m/min
Main Spindle:
- Spindle nose: A2-8
- Bar capacity: Ø 80 mm
- Spindle diameter in the front bearing: 130 mm
- Chuck: 210** / 250 / 315
- Drive power (40/100% ED): 25.5 / 17 kW
- Maximum torque (40/100% ED): 426 / 283 Nm
- Maximum speed: 4000 rpm
Positioning accuracy:
- Acc. to ISO 230-2 in X- / Z-axes (indirect measurement system): 5 / 10 μm
- Acc. to ISO 230-2 for C-axis: 20 arcsec
Turret:
- Number of tool stations: 12 x VDI 40/6 x BT
- Of which driven tool stations: 12**
- Tool station diameter: 40 mm
- Max. power: 5.44 kW
- Max. torque (40 % DC): 20 Nm
- Max. speed: 4,000 rpm
Tailstock:
- Tailstock travel: 500 mm
- Life center interface: 5 MK
- Max. tailstock force: 8 kN
Guidways:
- Ball screw X-/Z-axis (D x P): 40 x 10 mm
- Machine weight 5,050 Kg
