CNC Universal Turning Center
Universal CNC Turning for Complex Component Machining
Description

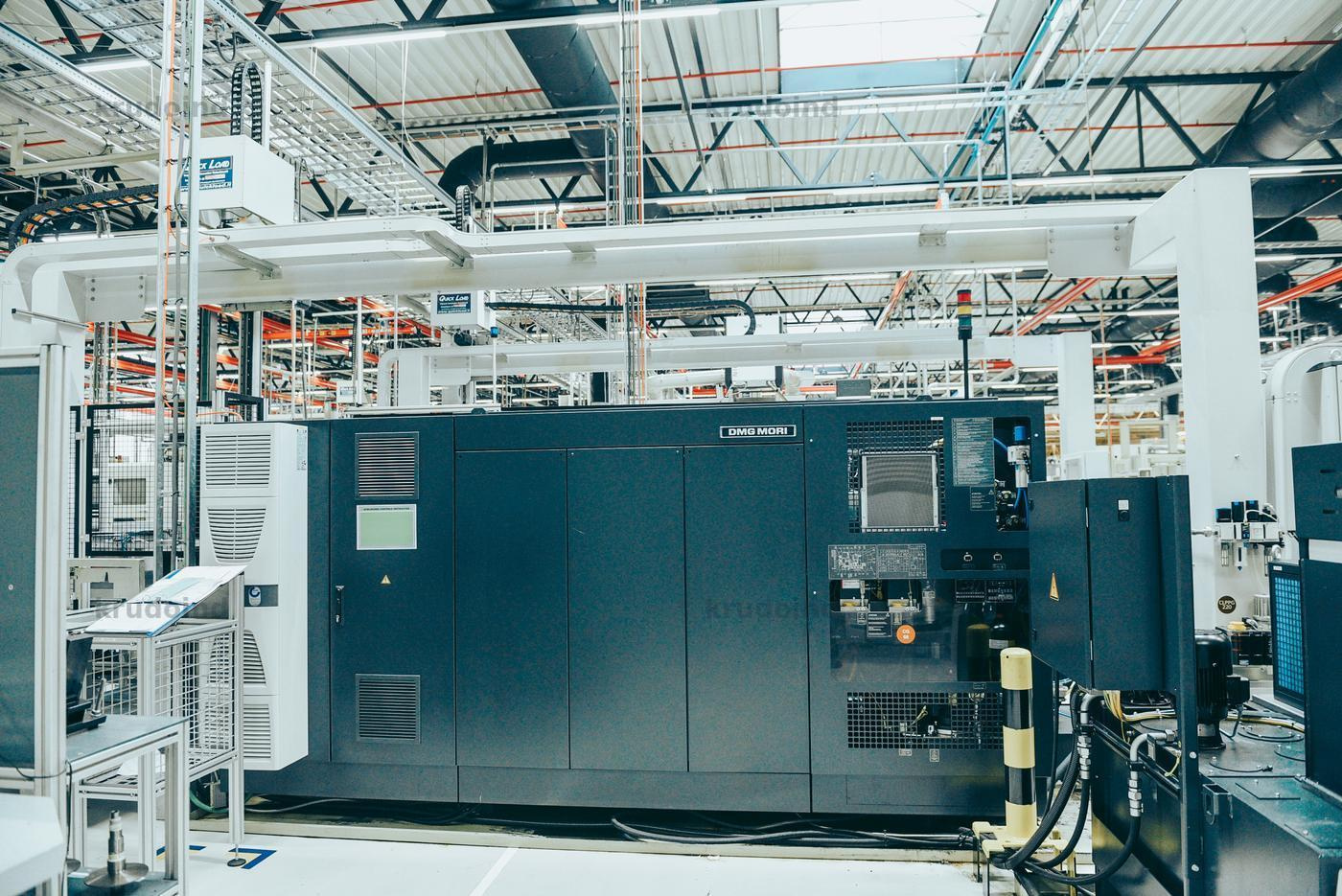

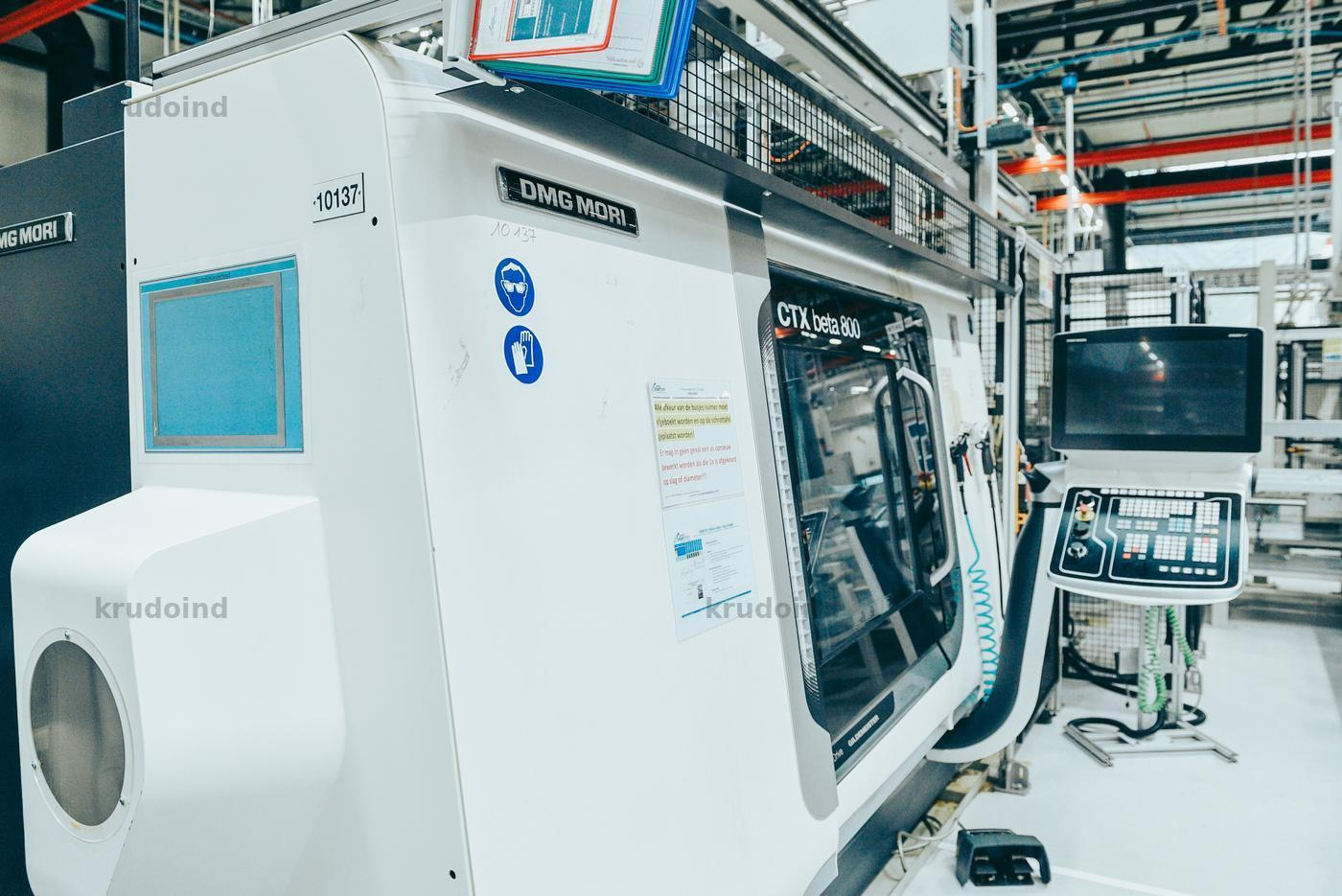

CNC Universal Turning Center - DMG MORI CTX beta 800
Working area:
- Circulation diameter over bed web cover: 700 mm
- Max turning diameter: 410 mm
- Max turning length: 800 mm
- Rod passage: 65 (76) mm
- Chuck diameter: 250 (315) mm
- Flat stroke: 300 mm
- Longitudinal stroke: 850 mm
Feeds:
- Rapid response X/Z axles: 60/30 m/min
Main Spindle:
- Spindle head (flat flange): 170 h5 mm
- Spindle diameter in the front bearing: 130 mm
- Spindle bore: 87 mm
Main drive:
- Power of the three-phase main drive 25 kW
- Torque (100% ED) 280 Nm
- Speed range 25 - 5000 1/min
- Drive power rating (100% DC): 35 kW(AC)
Counter spindle: ISM 52 *** ISM 76 synchronous.
- Spindle head (flat flange) : 140 h5 mm *** 170 h5 mm
- Spindle diameter in the front bearing: 100 mm *** 130 mm
- Spindle bore: 73 mm *** 87 mm
Counter spindle drive: ISM 52 *** ISM 76 synchronous.
- Drive power (100% ED): 15 kW *** 25 kW
- Torque (100% ED): 95 Nm *** 280 Nm
- Speed range: 0 - 6000 1/min *** 5000 1/min

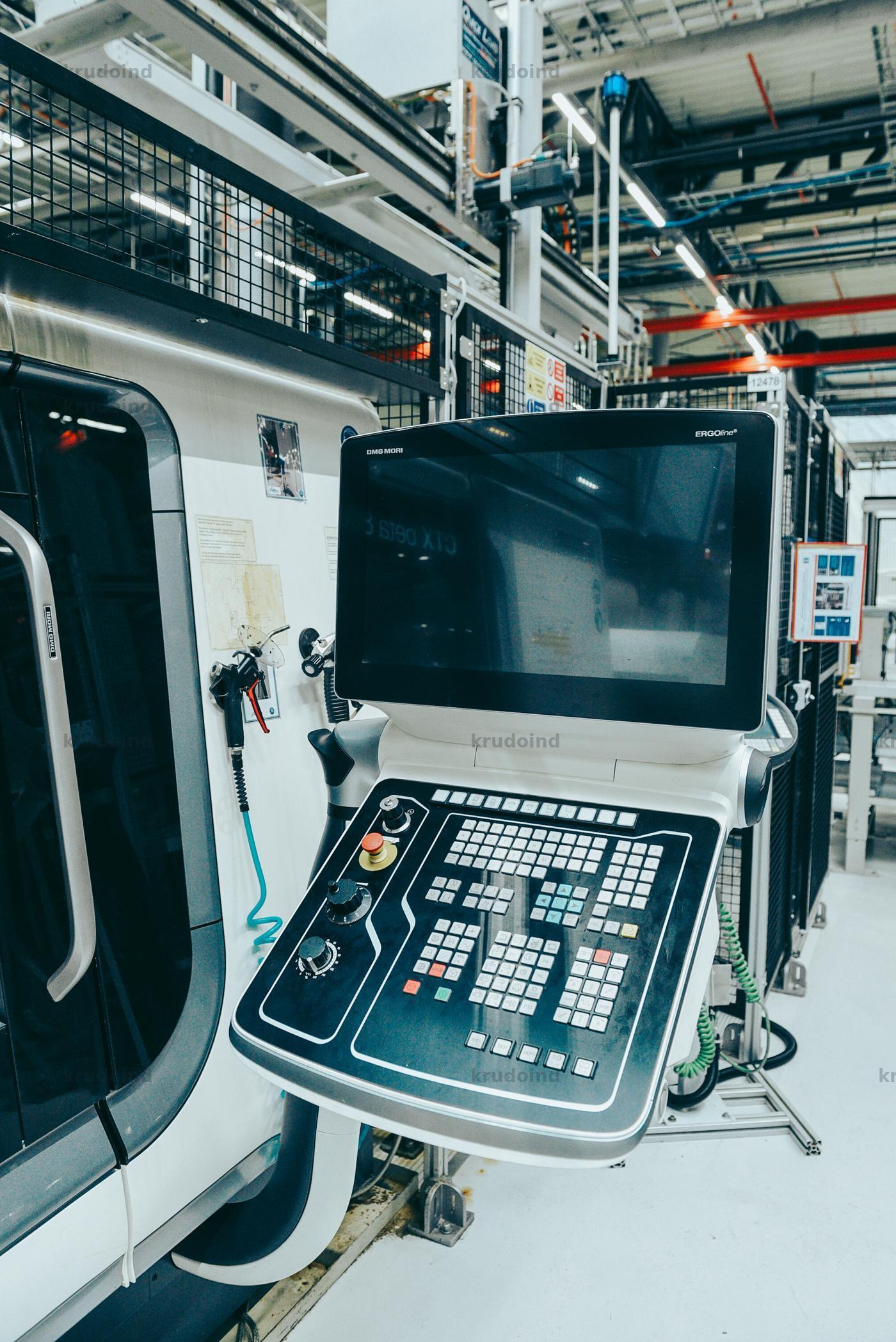

Control & Software: CELOS with SIEMENS
- CELOS Machine: APP-based user interface with access to all production-related information
- CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
- Digital Factory: Continuous digital workflows from planning to production & service
Tool holder in accordance with VDI/DIN 69880: 12 x VDI 40 + 6 Block tools
Number of driven tools/ maximum speed: 12/6,000 rpm
Dimensions (W x L x H): 4,771 mm x 1,862 mm x 2,035 mm
Machine weight: 6,500 Kg
