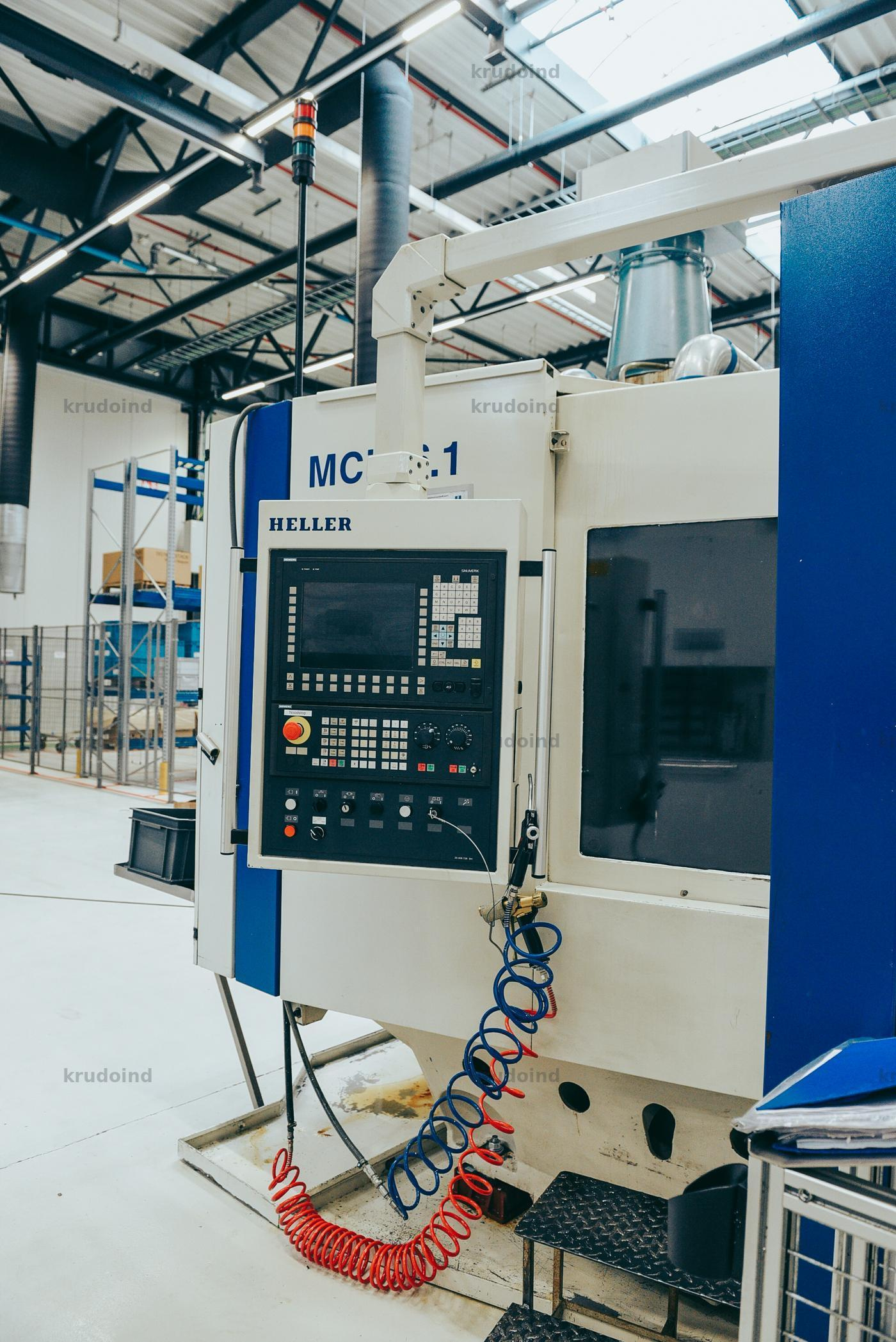

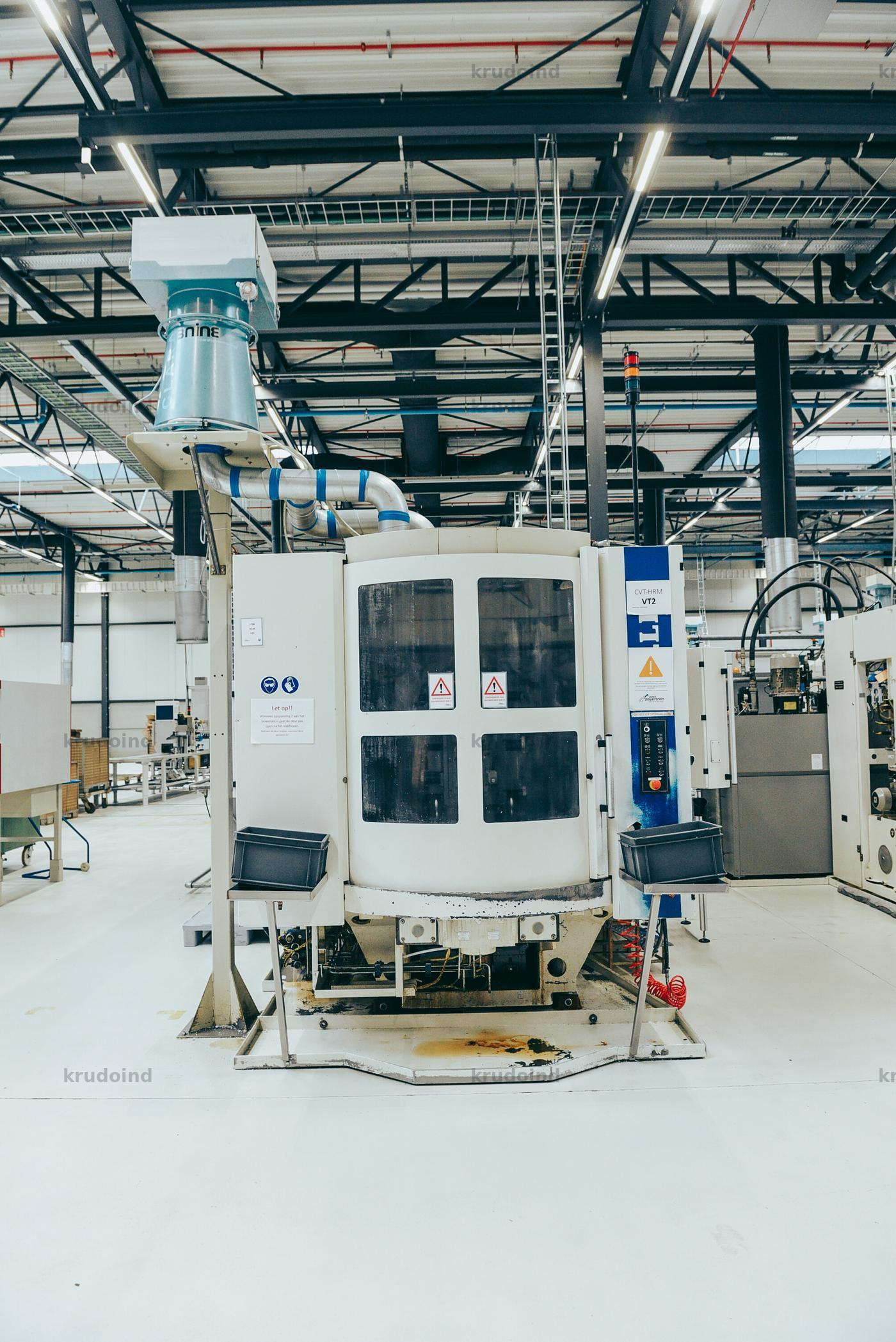

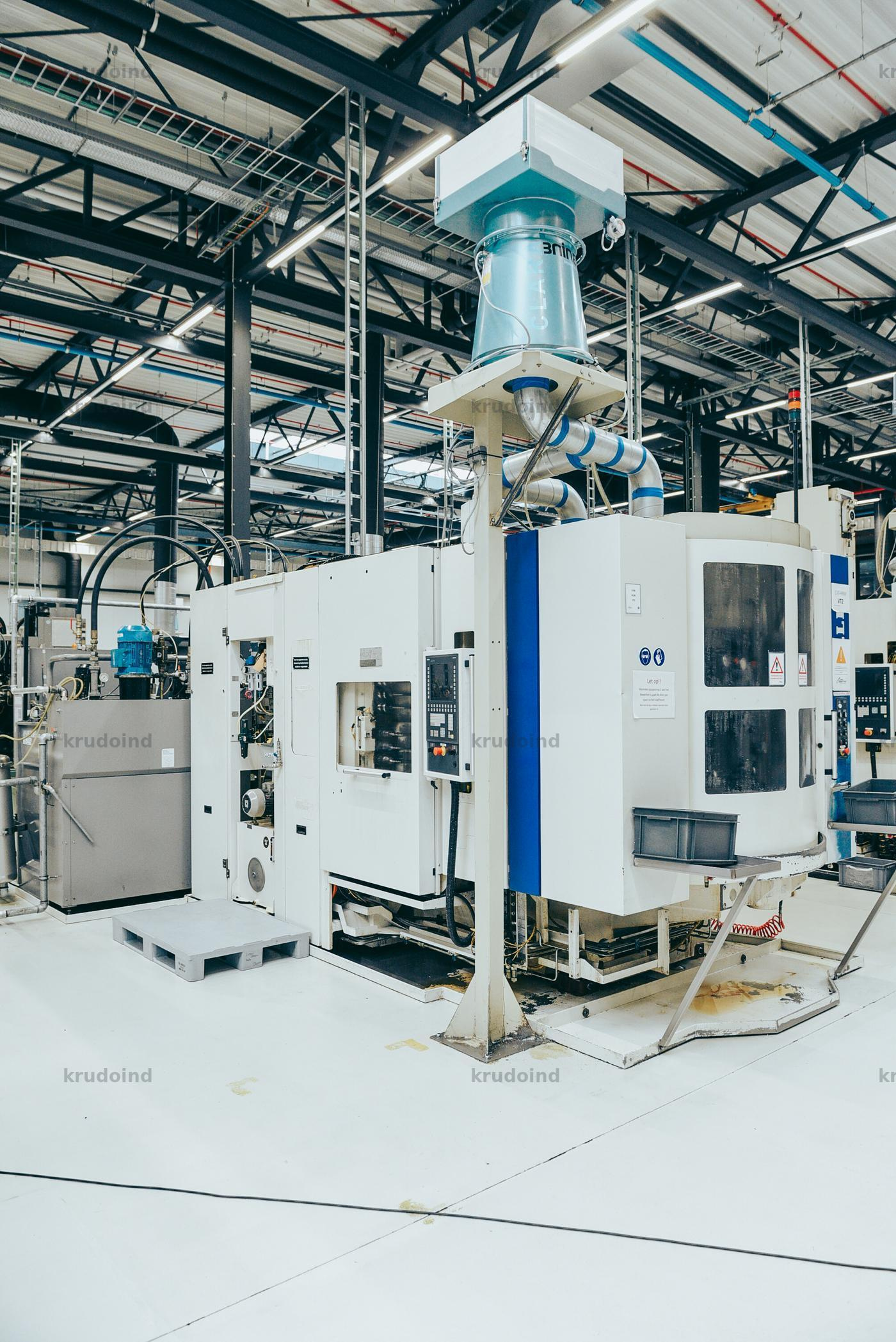

4 Axis Machining Center
HELLER MCi 16.1
Four-Axis Machining for Complex Component Geometry
Four-axis machining center engineered for precise milling and contouring of complex shaft and component features with high accuracy and surface finish.
Industry
Automotive
Sale Type
Private Treaty
Manufacturer
HELLER
Country
Belgium
Machine Type
Machining Center
Year of Manufacture
2006
Model
MCi 16.1
Description
4 Axis Machining Center MCi 16.1
- Travel x-y-z: 630 mm
- Maximum overall operating power: 69 kVA
- Spindle speed range: 16000 rpm (max)
- Rapid traverse rate in X-, Y-, Z-axis (Power/Speed): 65000/90000 mm/min
- Acceleration in X-, Y-, Z-axis (Power/Speed): 8/10 m/s²
- Tool holder: - ISO 40 spindle taper DIN 69871 form A, AD or B
- with pull stud DIN 69872 form A or B
- HSK 63 spindle taper (option) DIN 69893 form A
- Control: Siemens 840D
- chip conveyor / coolant system
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
