Inline Measuring Cell with Manipulator
Automated Inline Measuring Station with Manipulator
Description

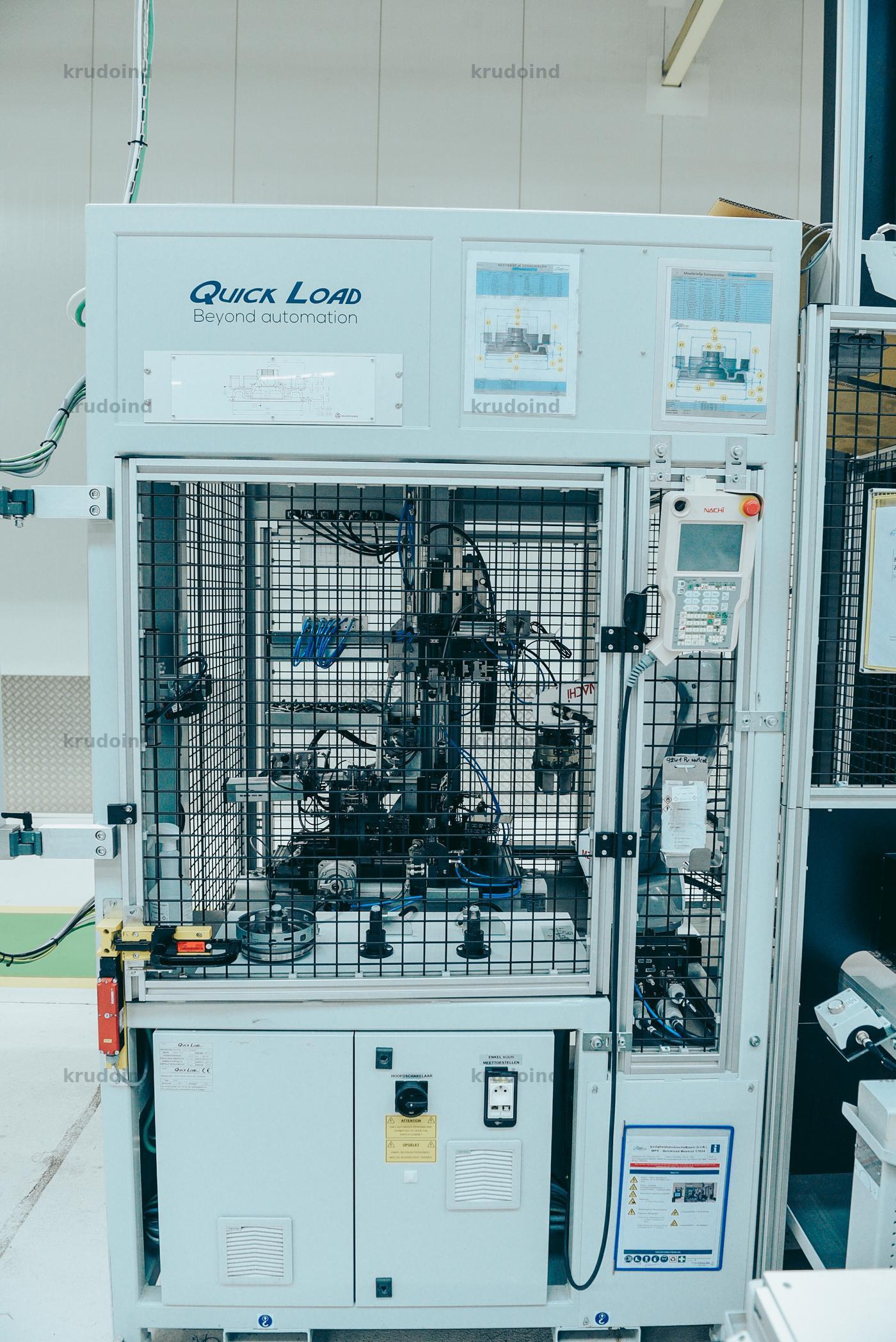

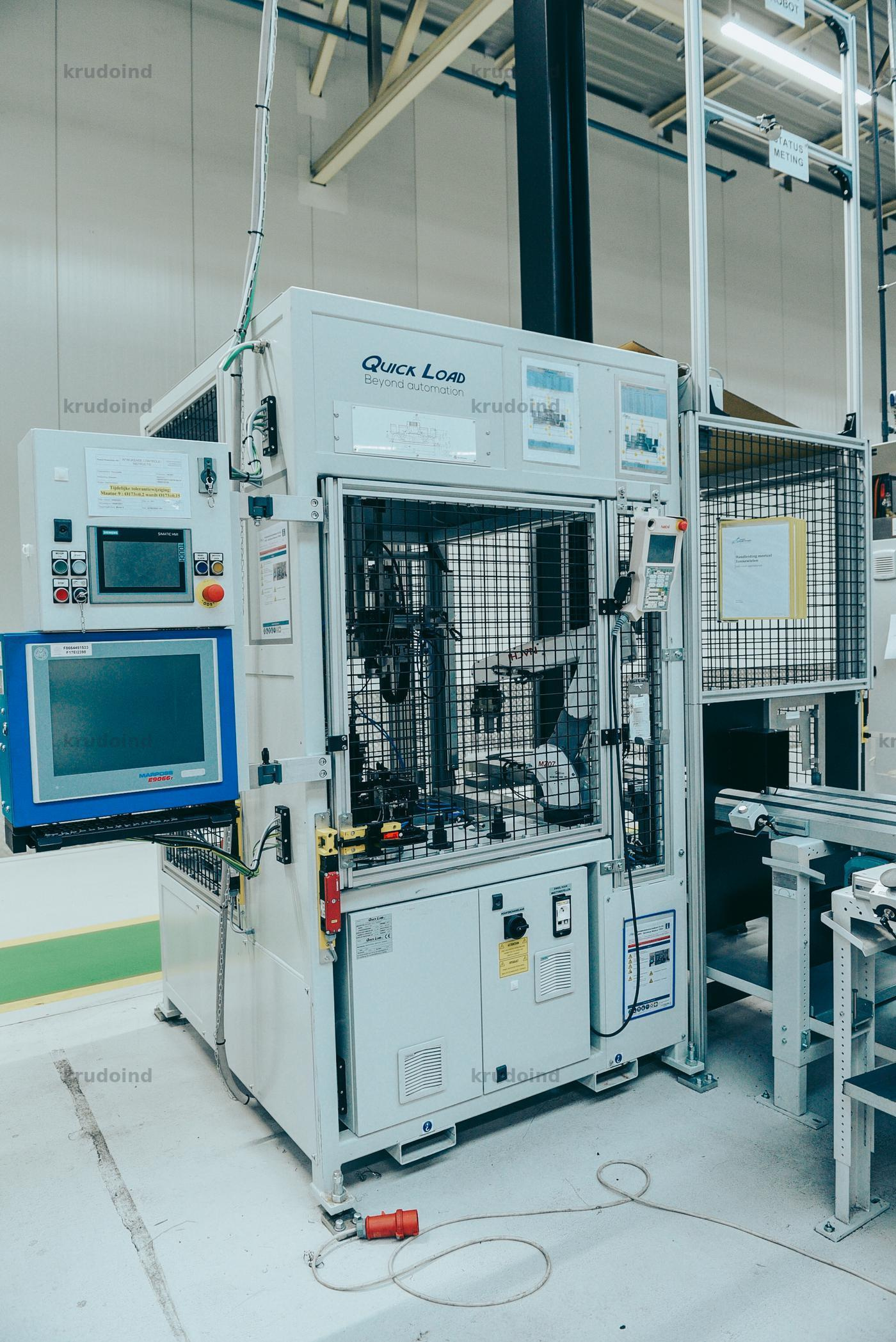

Inline Measuring Cell with Manipulator - QuickLoad MC12S
Measuring unit consists of:
- A Nachi MZ07L FD11 robot
- An automatic bench gauge for sungear
Description of measuring cell:
- Ppneumatic cylinders for moving the measuring heads
- Vertical slide, pneumatically operated, arranged for moving the measuring head for the control of characteristic M1 and the driving unit for the dynamic check
- Stop device, pneumatically operated, for workpiece angular orientation
- Several proximity switches
- Siemens modul ET200pro
- GagePod + E9066T
Description of robot:
- Wrist payload 7 kg
- Repeatability 0.03 mm
- Range of action 912 mm.
- Position control by means of absolute encoders.
- Control panel containing drivers and control logic.
- Programming terminal with 8 m long connection cable
- A three-lever pneumatic gripper SCHUNK PZN PLUS 100-1 for pick-up of workpieces weighing up to 6 kg
