Universal Turning Center
CNC Turning for Precision Shaft Machining
Description
Working area
Swing over bed: 650 mm
Swing over cross slides: ø 465 mm
Max. turning diameter: ø 400 / ø 315* mm
Cross travel (X): 267.5 mm
Longitudinal travel (Z): 600 mm
Rapid traverse (X / Z): 30 / 30 m/min
Control

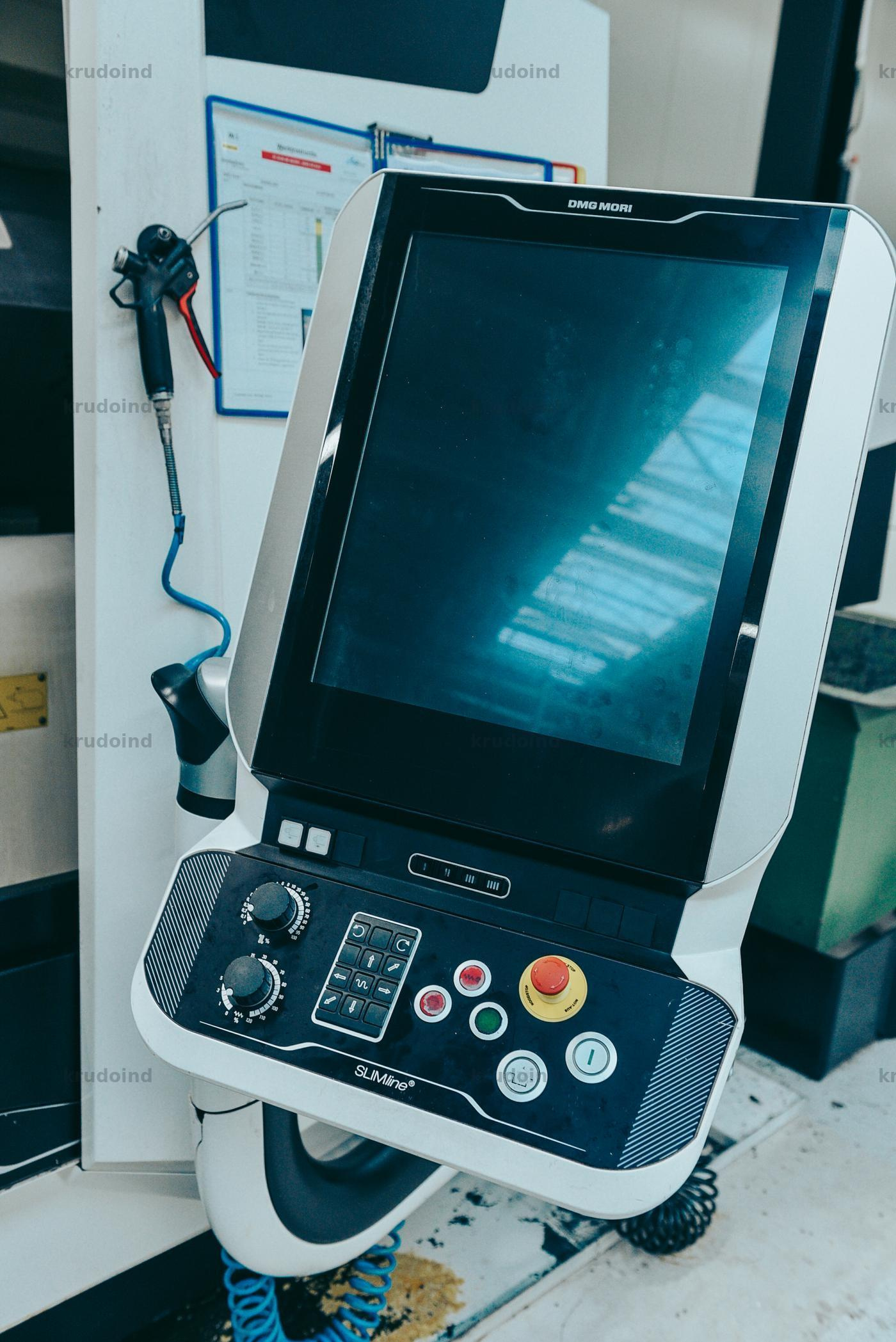

The new DMG MORI SLIMline® multi-touch control with Operate 4.7 on SIEMENS and 3D control technology
Main Spindle
Spindle nose: A2-8
Bar capacity: Ø 80 mm
Spindle diameter in the front bearing: 130 mm
Chuck: 210** / 250** / 315**
Drive power (40/100% ED): 25.5 / 17 kW
Maximum torque (40/100% ED): 426 / 283 Nm
Maximum speed: 4000 rpm
Positioning accuracy
Acc. to ISO 230-2 in X- / Z-axes (indirect measurement system): 5 / 10 μm
Acc. to ISO 230-2 for C-axis: 20 arcsec

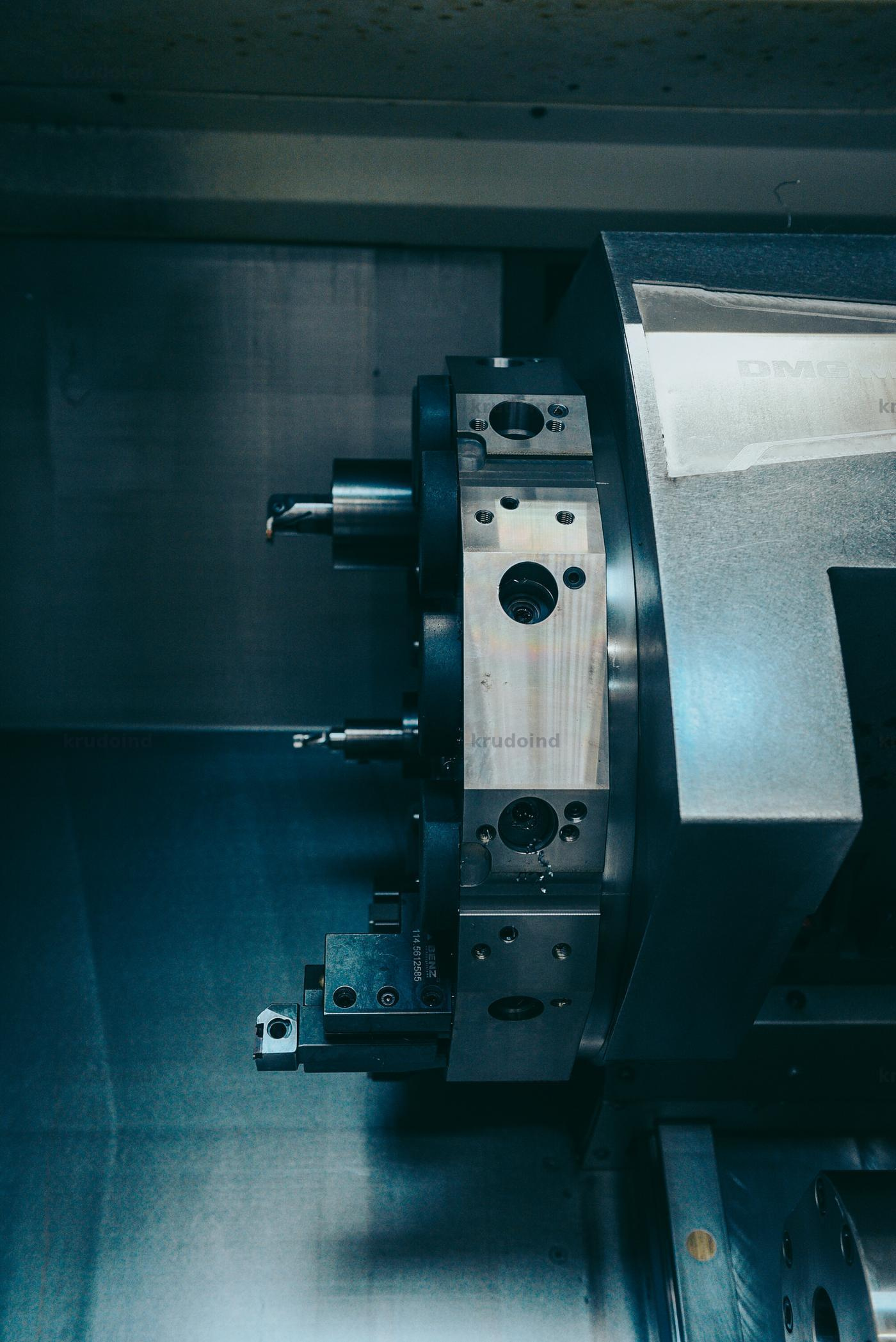

Turret
Number of tool stations: 12 x VDI 40/6 x BT
Of which driven tool stations: 12**
Tool station diameter: 40 mm
Max. power: 5.44 kW
Max. torque (40 % DC): 20 Nm
Max. speed: 4,000 rpm
Tailstock
Tailstock travel: 500 mm
Life center interface: 5 MK
Max. tailstock force: 8 kN
Guidways
Ball screw X-/Z-axis (D x P): 40 x 10 mm
Machine weight 5,050 Kg
