Grinding Machine
CNC Grinding System for Fine Surface Finishing
Description

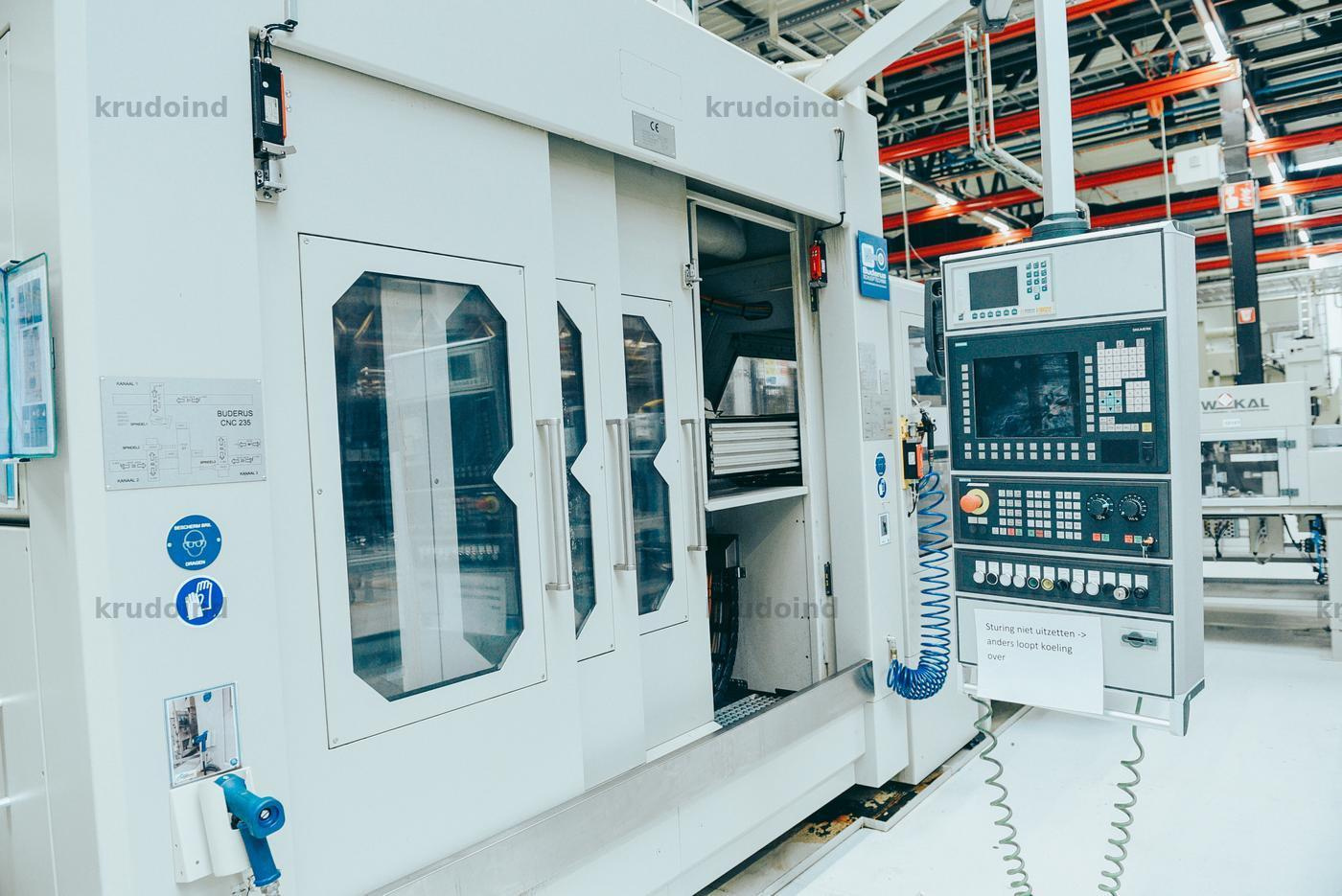

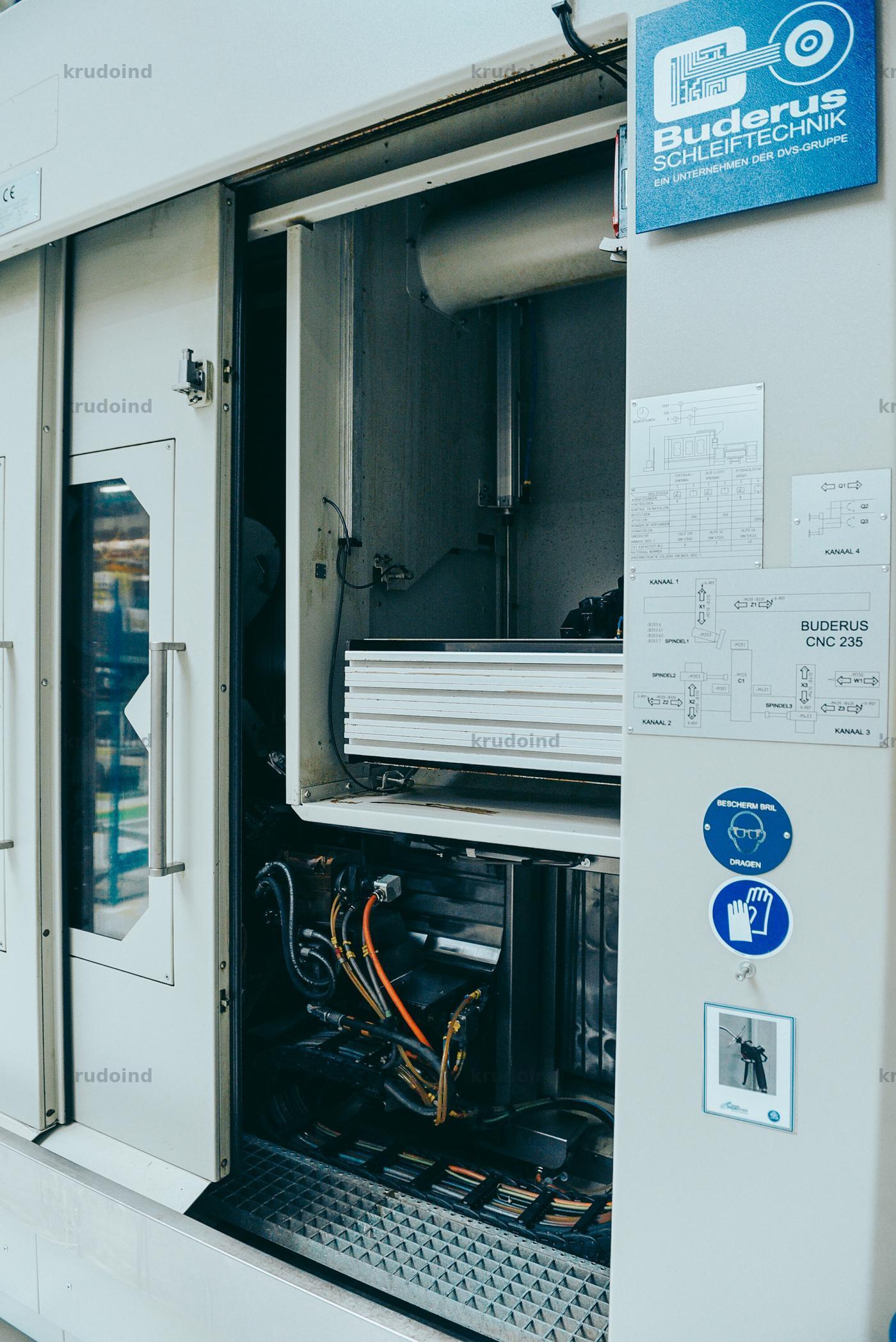

Grinding Machine - Buderus CNC 235 MA
- Largest workpiece diameter: 150 mm
- Max. workpiece diameter: 280 mm
- Largest swing diameter above the table:200 mm
- Height of the workpiece spindle above the floor: 1250 mm
- Workpiece spindle speeds NC-programmable
Table Strokes:
- Z1 axis : 600 mm
- Z2 axis : 400 mm
- Z3 axis : 400 mm
- X1 axis : 280 mm
- X2 axis : 280 mm
- X3 axis : 280 mm
Table speed infinitely adjustable:
- Z axes : 0 - 30 m / min
- X axes : 0 - 30 m / min
- Infeed speed infinitely variable: 0.01 - 15 mm / min
- Infeed depending on the stroke: 0.0005 - 0.1 mm
- Workpiece spindle positioning: C-axis
- Connected load of the machine: approx. 50 kW
- Control: Siemens SINUMERIK 840D
- Weight: 9000 kg
Project Value
End-to-end project management covering acquisition, disassembly, logistics, and compliance — executed with precision and global fluency.
See It in Action
Watch the Machinery at work—capturing its quality in a real production environment.
